  1. NuVo Distributed Audio Products

  2. Traditional Installed Products Better - Essentia Best – Grand Concerto Powerline - Renovia Good - Simplese

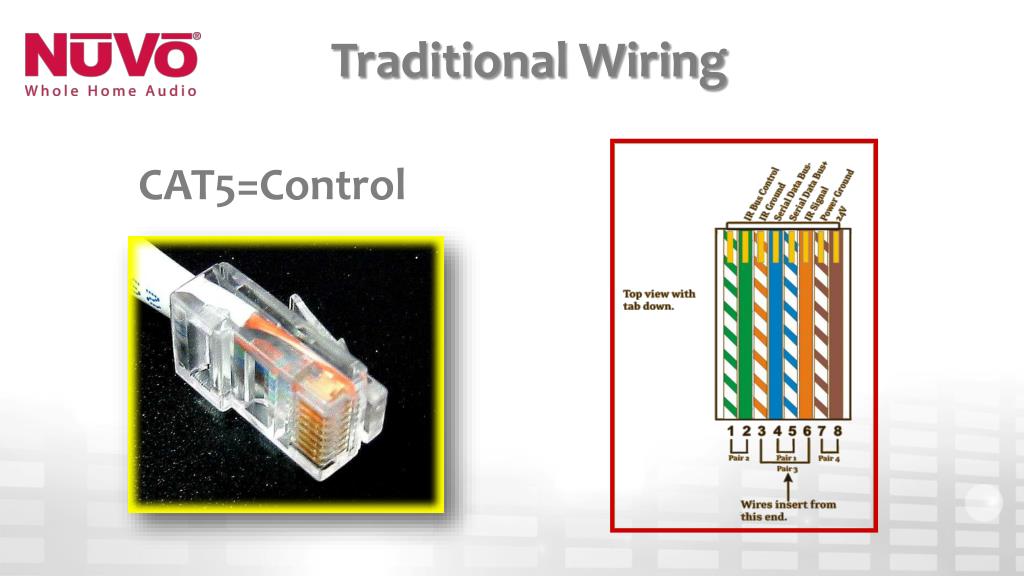

  3. Traditional Wiring CAT5=Control

  4. Traditional Wiring Speaker Wire=Audio The common termination is: Left -, Left + and Right -, Right + Left +, Left - and Right +, Right -

  5. Best – Grand Concerto

  6. Grand Concerto Back Panel

  7. Grand Concerto EZ Port

  8. Better - Essentia

  9. Essentia Back Panel

  10. Essentia Allport

  11. NuVoNet Sources

  12. The Music Port and Music Port Elite

  13. The Music Port and Music Port Elite Back Panel

  14. Connecting the Music Port to NuVoNet

  15. Know the IP Address • 66.42.227.218 (NuVo’s Demo MPS4-E)

  16. The T2FAM Tuner

  17. The T2 Active Antenna and NuVoNet

  18. NuVoDock for iPod

  19. Installing the NuVoDock for iPod

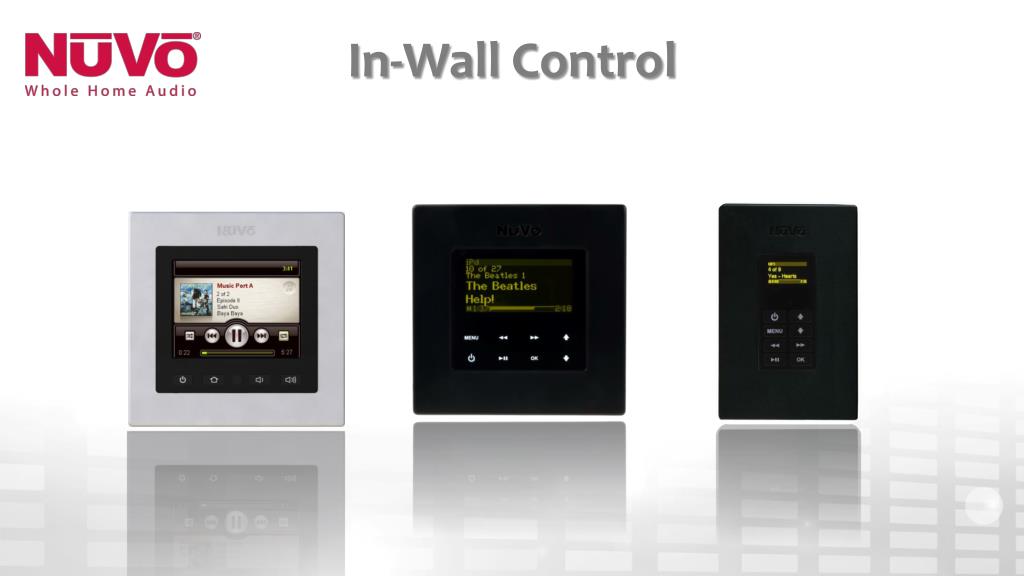

  20. In-Wall Control

  21. Renovia Powerline Solution NV-FSZA50 Freestanding Amp NV-RVM Source Hub

  22. The Renovia System

  23. The Digital P0wer Amplifiers D460 - 4 x 60 Watts D2120 - 2 x 120 Watts

  24. Local Amplifiers LSA40 40 Watt Local Source Amp WA-40 40 Watt Standalone Amp

  25. Thank you for your time Any Questions?
