Presentation Transcript

Trans neptunian objects and pluto l.jpg

Trans-Neptunian Objects and Pluto

Astronomy 311

Professor Lee Carkner

Lecture 21

Gas giant moons l.jpg

Gas Giant Moons

  • Kinetic energy of launch equals potential energy at peak

    • PE = KE

    • mgh = ½mv2

    • h = ½mv2/mg = ½v2/g

  • Gravity on Io

    • g = GM/R2

    • g = [(6.67X10-11)(8.94X1022)]/(1.82X106)2

    • g= 1.8 m/s2

  • Final height

    • h = [(½)(6002)]/1.8 = 100000 m = 100 km

Pluto god of the underworld l.jpg

Pluto -- God of the Underworld

  • Pluto is the God of the Dead in Roman mythology

  • Pluto was discovered at Lowell Observatory and its first 2 letters commemorate Percival Lowell

The discovery of pluto l.jpg

The Discovery of Pluto

  • In the late 1800’s it was believed that Neptune’s orbit was being perturbed by a 9th planet

  • Many astronomers tried to determine its position, including Percival Lowell

    • The position turned out to be a coincidence, Pluto is too small to effect Neptune’s orbit

The discovery of pluto5 l.jpg

The Discovery of Pluto

Slide6 l.jpg

  • No spacecraft has ever visited it

    • But will not get to Pluto until 2015

  • The best information comes from HST

  • Pluto facts l.jpg

    Pluto Facts

    • Size: 2300 km

      • Smaller than the 7 largest moons

    • Orbit: 39.5 AU

    • Description: Very small, very cold, very distant

    Composition of pluto l.jpg

    Composition of Pluto

    • Pluto has a density of 2000 kg/m3

    • Pluto is probably composed of ice and rock

    • Spectra of Pluto reveal the presence of methane, nitrogen and carbon monoxide ice

      • The temperature on Pluto is only ~50 K so the atmosphere can’t escape

    Spectra of pluto showing methane ice l.jpg

    Spectra of Pluto Showing Methane Ice

    Features of pluto l.jpg

    Features of Pluto

    • HST can see regions of different brightness on Pluto’s surface

    • The other bright regions may be areas where impacts have gouged out fresh ice

    Pluto s moons l.jpg

    Pluto’s Moons

    • Pluto’s largest moon Charon was discovered as a small bulge in a high resolution image (1978)

      • Their sizes are closer than any planet and moon

    • They have very similar densities, masses and sizes

    • Two other smaller moons Nix and Hydra were discovered by HST in 2005

      • Each is about 50 km in diameter

    Is pluto a planet l.jpg





    Eccentric orbit

    Not largest TNO

    Is Pluto a Planet?

    Pluto s orbit l.jpg

    Pluto’s Orbit

    • Pluto’s orbit is much more eccentric and much more inclined than any planet

      • Eccentricity =

        • Most other planets e<0.1

      • Inclination =

    • Pluto’s orbit carries it inside the orbit of Neptune

    • Pluto is tipped on its side like Uranus

    Small icy bodies l.jpg

    Small, Icy Bodies

    • Small icy bodies in the outer solar system (beyond Jupiter) have no good name

    • Lets call all of them “Trans-Neptunian Objects” or “TNOs”

    • They are all similar to Pluto (but usually much smaller)

    • Most are only recently discovered and not well characterized or organized

    Discovering tnos l.jpg

    Discovering TNOs

    • Around 1950 Kuiper and Edgeworth proposed a belt of comets out beyond Neptune

    • In 1992 the first (besides Pluto) TNO was discovered (QB1)

    • Discovered via long exposures with large telescopes (including HST)

    • Total population of large TNOs may be 70000 (larger than 100 km)

    Discovering tnos16 l.jpg

    Discovering TNOs

    Slide17 l.jpg

    • Centaur:

    • Resonant: in an orbital resonance with Neptune

    • Classical Kuiper Belt:

    • Scattered Disk: large distances and eccentricities

    Classical kuiper belt l.jpg

    Classical Kuiper Belt

    • Most of the objects have nearly circular orbits, low inclinations and are not effected by Neptune’s gravity

    • Probably formed in place from the leftover material at the edge of the solar nebula

    Resonant objects l.jpg

    Resonant Objects

    • TNOs tend to collect on these orbits

    • Examples:

      • Pluto is in this group so they are called Plutinos

      • Marks the edge of the classical Kuiper Belt, few TNOs beyond this point

  • Theory: Neptune formed closer to the Sun and then migrated outwards

    • Swept up TNOs into resonances as it moved out

  • Tnos and resonance l.jpg

    TNOs and Resonance

    Scattered disk objects l.jpg

    Scattered Disk Objects

    • Some TNOs have very irregular orbits

    • These objects are thought to have been scattered by gravitational interaction with a gas giant (mostly Neptune)

    • Can be hard to find due to their odd orbits

    Slide22 l.jpg


    • The largest TNO currently known is called Eris

      • Larger than Pluto

    • Semi-major axis of 68 AU, but is currently at 97 AU due to high eccentricity

      • Part of the scattered disk

    • Has a small moon, Dysnomia

      • formerly called “Gabrielle”

    Large kbo size comparisons l.jpg

    Large KBO Size Comparisons

    Centaurs l.jpg


    • Some TNOs are inside the orbit of Neptune

      • Called Centaurs

    • Have a wide range of orbital parameters

    • Centaurs are thought to be former Kuiper belt objects that have been ejected inward into the gas giant region

      • Will eventually collide with something or be ejected from the solar system altogether

    The oort cloud l.jpg

    The Oort Cloud

    • In 1950 Dutch astronomer Jan Oort postulated a spherical shell of comets surrounding the solar system at about 50,000 AU

    • He computed the orbits of long period comets and found:

      • They should spend most of their time far from the Sun

    Diagram of the oort cloud l.jpg

    Diagram of the Oort Cloud

    Population of the oort cloud l.jpg

    Population of the Oort Cloud

    • There may be as many as 1 trillion comets in the Oort cloud

    • These bodies probably formed in the gas giant region and were ejected out to the Oort cloud by a close encounter with a large planet

    Tentative origin of the tnos l.jpg

    Tentative Origin of the TNOs

    • The gas giants and TNOs gravitationally interact with each other

      • Some TNOs are flung very far out and form the Oort cloud

      • Some TNOs are swept up in Neptune’s resonances as Neptune migrates out and form the Resonant TNOs

      • Some TNOs form between 40-50 AU and are not much affected by gravitational interaction and form the Kuiper belt

    Next time l.jpg

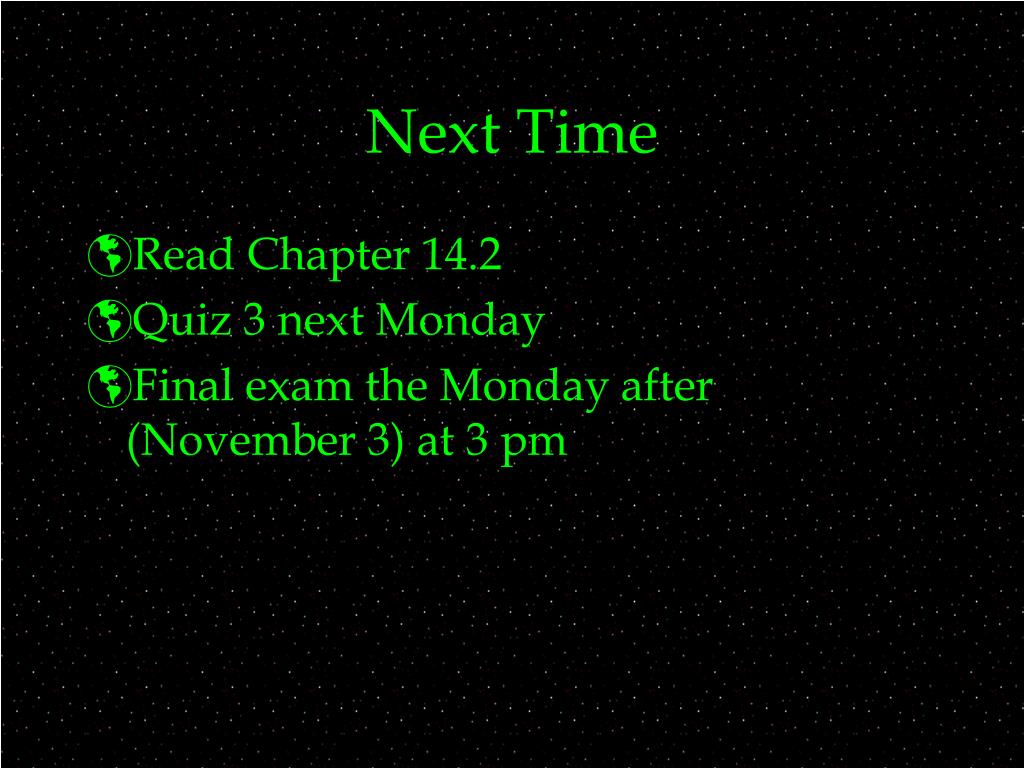

    Next Time

    • Read Chapter 14.2

    • Quiz 3 next Monday

    • Final exam the Monday after (November 3) at 3 pm

    Summary pluto l.jpg

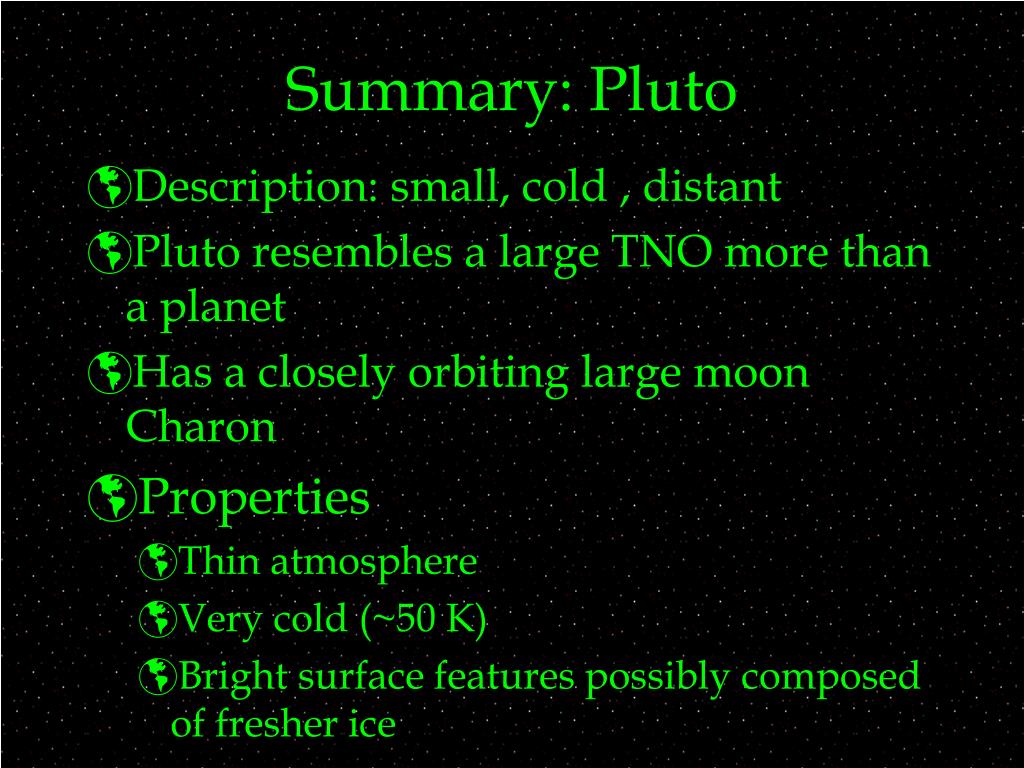

    Summary: Pluto

    • Description: small, cold , distant

    • Pluto resembles a large TNO more than a planet

    • Has a closely orbiting large moon Charon

    • Properties

      • Thin atmosphere

      • Very cold (~50 K)

      • Bright surface features possibly composed of fresher ice

    Summary tnos l.jpg

    Summary: TNOs

    • Past the orbit of Neptune the solar system is made up of many small icy bodies

    • About 1000 found in the last 15 years

    • Are organized into many different classes based on orbits

    • Theories on their origin and evolution still under development
