  1. Report on POP & CICE of RACM components Jaromir Jakacki, IO PAS Boulder, CO, 2010

  2. Main tasks: • Extended domain • Code was added in tag 11, was tested for functionality with compset H and grid ar9v2_ar9v2 • Currently input file names for extended domain are hardwired in the code • New grid • New grid is prepared but there is difference between domain error appeared between ice and ocean (both models read the same file (linked – not copied)) • Bathymetry for new grid (regular domain) and land mask (extended domain) are done • Extended domain climatology sst and sss data are prepared for 12 months • Mask between regular and extended domain is also done • Successful integration of 10 years of pop/cice/datm/slnd (in reality it is 14 years, but 4 with error)

  3. seaice at 2003-08-01_00:00:00 Old grid – area of T-points

  4. New grid - method Old grid north pole

  5. New grid - comparison

  6. New bathymetry and land mask

  7. Mask for merging domains

  8. Extended domain – interpolation data (at coupling time step) • Read in data (monthly SST, SSS (PHC 3.0) and mask) • Interpolation data in ocn_comp_mct.F90 at each coupling time step simple method – linear interpolation Y = AX+B For two months Y1=AX1+B and Y2=AX2+B A=(Y2-Y1)/(X2-X1) and B=y2-AX2 Y- output temperature or salinity 3) Merge interpolated data with ocean sea surface temperature

  9. Extended domain (current version has 72 points) – merged temperature and salinity (just for testing) SST_OUT=SST_CLIM*mask+SST_POP*(1-mask)

  10. Examples of interpolated on extended domain data: temperature and salinity

  11. Examples of results from ice component after 10 years integration

  12. Examples of results from ice component after 10 years integration

  13. Future work • Finishing work on new grid • Testing it on regular en extended domain • Checking new mask during integration • Beginning long term integration?? Thank You

  14. Interpolated and merged extended domain (2nd result) – sst POP and climatology sst (PHC)

  15. Interpolated extended domain (1st result)

  16. Extended domain • Monthly climatology data was interpolated for extended domain (temperature and salinity from PHC 3.0) • Some code was added to read those data and mask (ocn_init_mct routine) • Some code was added to interpolate and merge data with ocean domain at coupling time step (ocn_setdef_mct routine) • All was tested and seems to be working fine, only mask will require a little work

  17. Interpolated and merged extended domain (2nd result) – sss POP and climatology sss

  18. Examples of results from ocn and ice components

  19. Future plans • We are going to switch to other grid (will not exactly match with current) • Mask for merging sst and sss requires some work. But only mask. It is ready for running, mask can be replaced at any time • After switching to new grid we are able to begin integration - I am planning to begin to work with ocn/ice/wrf/slnd model using converted old ocean restart file

  20. New grid

  21. Important things • Net cdf in ocean model – optional compilation of the io_netcdf.F90, io.F90, io_types.F90 and io_binary.F90 • Diagnostic output in all models (performance) there is debbuging level from 0 to 4? (not sure), but there is a lot of write statements from all cores • Sometimes model hangs when after saving ocean restart file (I have no idea – there is no output – jobs are killed because of wall time) – about 20% of jobs • Computer resources – waiting time for one 256 processors job is about 2 days!!!!

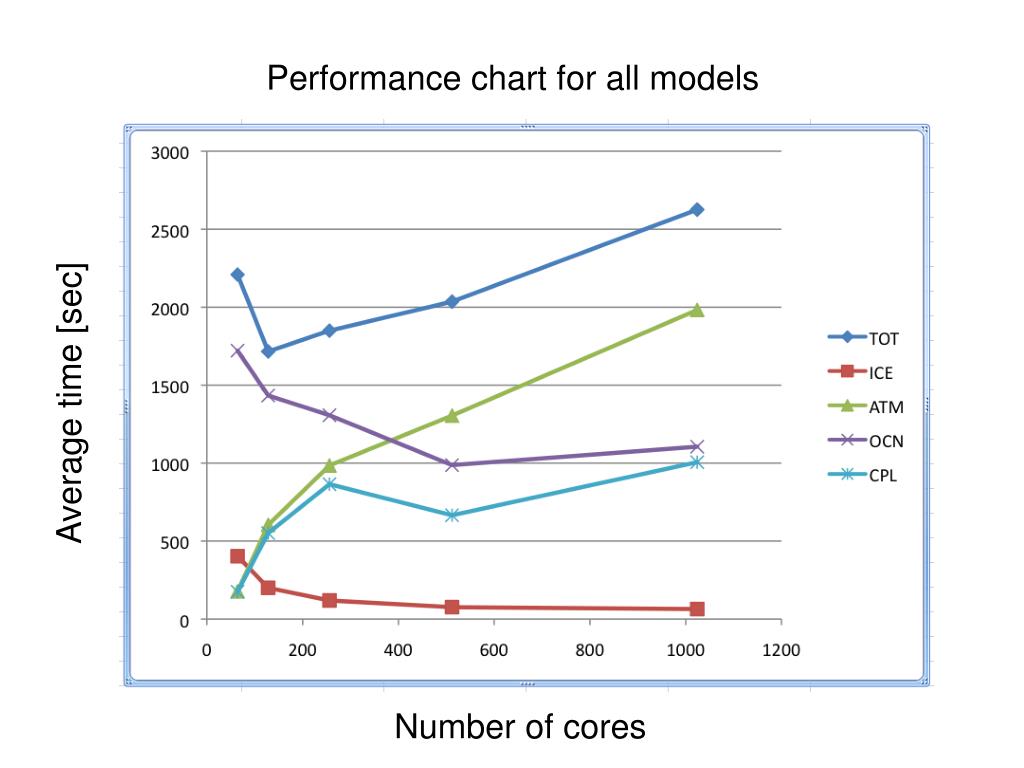

  22. Performance chart for all models Average time [sec] Number of cores

  23. Code for linear interpolation (just for checking – maybe somebody will see mistake – not for presentation) data data_days /-14.5,15.5,45,74.5,105,135.5,166,196.5, & 227.5,258,288.5,319,349.5,380.5/ call mct_aVect_copy(avSST12,av_xp1,temp_flds(xp1),'fld') call mct_aVect_copy(avSST12,av_xp2,temp_flds(xp2),'fld') av_A%rAttr(1,:)=(av_xp2%rAttr(1,:)-av_xp1%rAttr(1,:))/(data_days(xp2)-data_days(xp1)) av_B%rAttr(1,:)=av_xp2%rAttr(1,:)-av_A%rAttr(1,:)*data_days(xp2) av_l_temp%rAttr(1,:)=av_A%rAttr(1,:)*rday+av_B%rAttr(1,:)!interpolation of salinity call mct_aVect_copy(avSSS12,av_xp1,salt_flds(xp1),'fld') call mct_aVect_copy(avSSS12,av_xp2,salt_flds(xp2),'fld') av_A%rAttr(1,:)=(av_xp2%rAttr(1,:)-av_xp1%rAttr(1,:))/(data_days(xp2)-data_days(xp1)) av_B%rAttr(1,:)=av_xp2%rAttr(1,:)-av_A%rAttr(1,:)*data_days(xp2) av_l_salt%rAttr(1,:)=av_A%rAttr(1,:)*rday+av_B%rAttr(1,:)
