Presentation Transcript


Distributed database management systems l.jpg

Distributed Database Management Systems


Evolution of ddbms l.jpg

Evolution of DDBMS

  • Decentralized database management systems (DDBMS)

    • Interconnected computer systems

    • Data/processing functions reside on multiple sites

  • 1970’s: Centralized DBMS

  • 1980’s: Social and Technical Changes

    • Ad hoc capability required

    • Decentralized management structure common

  • 1990’s: New forces

    • Internet and the World Wide Web used for data access and distribution

    • Data analysis through data mining and data warehousing


Ddbms advantages l.jpg

DDBMS Advantages

  • Data located near site with greatest demand

  • Faster data access

  • Faster data processing

  • Growth facilitation

  • Improved communications

  • Reduced operating costs

  • User-friendly interface

  • Less danger of single-point failure

  • Processor independence


Ddbms disadvantages l.jpg

DDBMS Disadvantages

  • Complexity of management and control

  • Security

  • Lack of standards

  • Increased storage requirements

  • Greater difficulty in managing data environment

  • Increased training costs


Distributed processing l.jpg

Distributed Processing

Shares database’s logical processing among physically, networked independent sites


Distributed database l.jpg

Distributed Database

Stores logically related database over physically independent sites


Distributed database vs distributed processing l.jpg

Distributed Database vs. Distributed Processing

  • Distributed processing

    • Does not require distributed database

    • May be based on a single database on single computer

    • Copies or parts of database processing functions must be distributed to all data storage sites

  • Distributed database

    • Requires distributed processing

  • Both

    • Require a network to connect components


Functions of ddbms l.jpg

Functions of DDBMS

  • Application/end user interface

  • Validation to analyze data requests

  • Transformation to determine request components

  • Query optimization to find the best access strategy

  • Mapping to determine the data location

  • I/O interface to read or write data

  • Formatting to prepare the data for presentation

  • Security to provide data privacy

  • Backup and recovery

  • DB Administration

  • Concurrency Control

  • Transaction Management


Fully distributed database management system l.jpg

Fully Distributed Database Management System

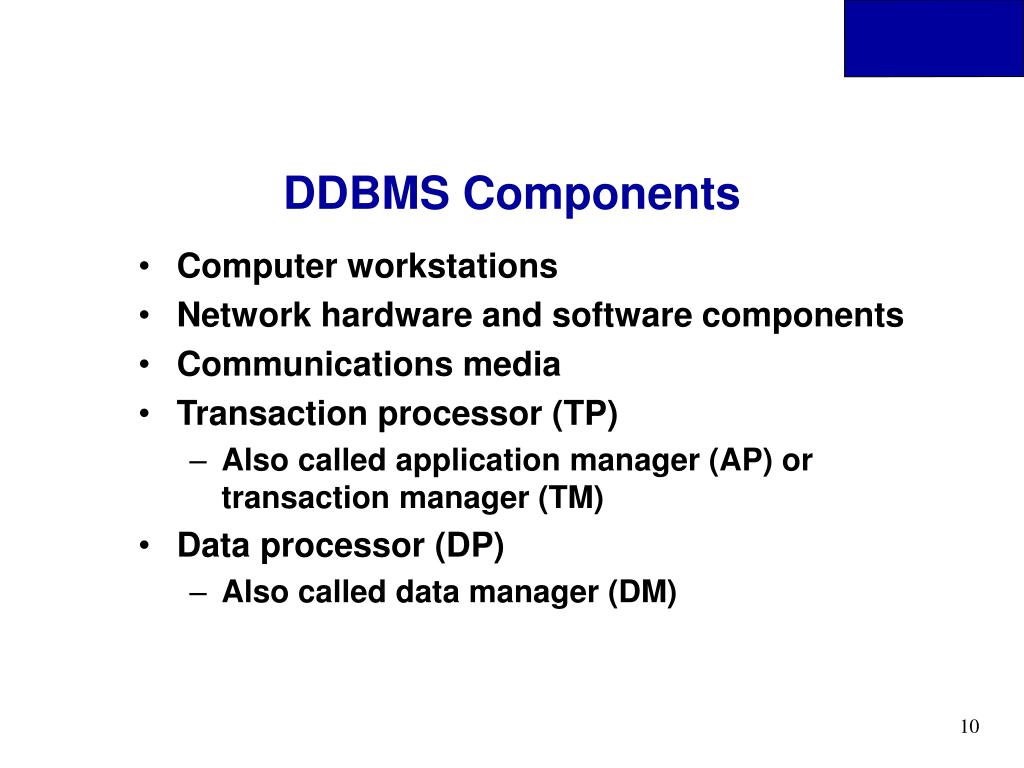

Ddbms components l.jpg

DDBMS Components

  • Computer workstations

  • Network hardware and software components

  • Communications media

  • Transaction processor (TP)

    • Also called application manager (AP) or transaction manager (TM)

  • Data processor (DP)

    • Also called data manager (DM)


Distributed database components l.jpg

Distributed Database Components

Figure 10.5


Ddbms protocols l.jpg

DDBMS Protocols

  • Interface with network to transport data and commands between DPs and TPs

  • Synchronize data received from DPs and route to appropriate TPs

  • Ensure common database functions

    • Security

    • Concurrency control

    • Backup and recovery

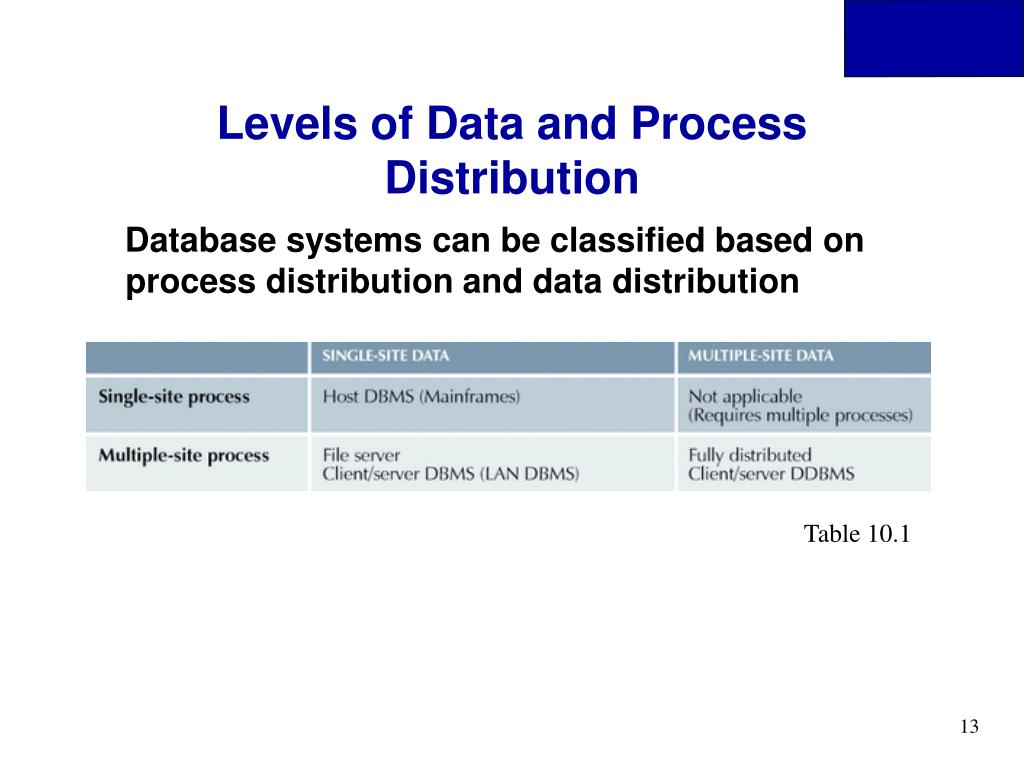

Levels of data and process distribution l.jpg

Levels of Data and Process Distribution

Database systems can be classified based on process distribution and data distribution

Table 10.1

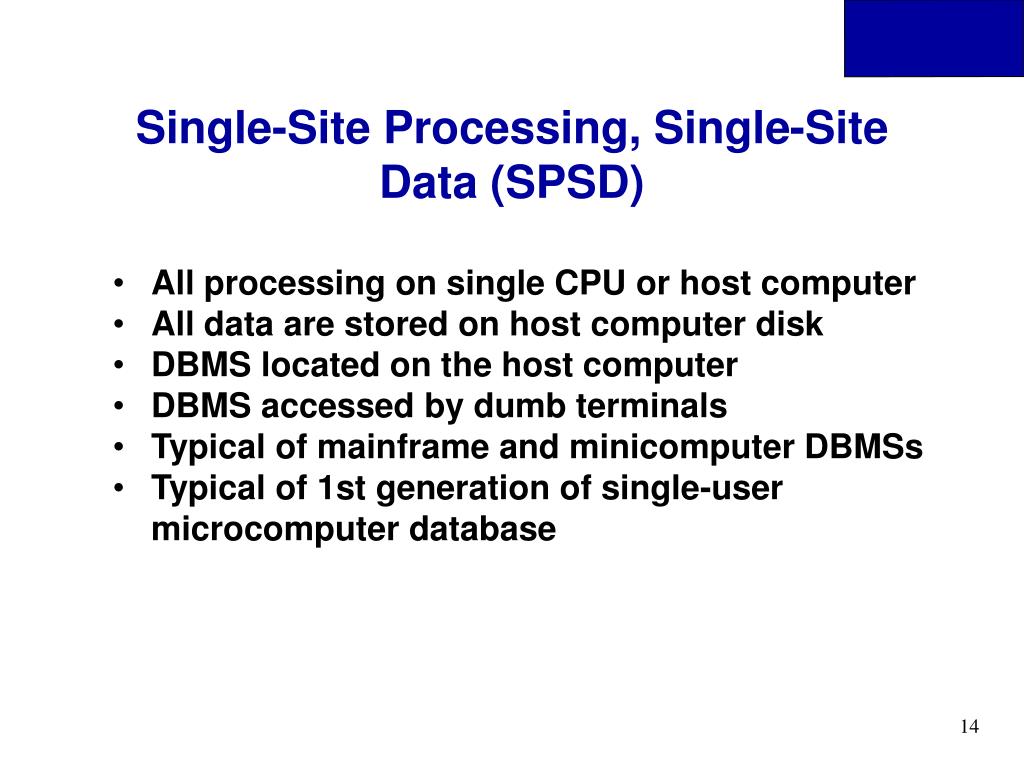

Single site processing single site data spsd l.jpg

Single-Site Processing, Single-Site Data (SPSD)

  • All processing on single CPU or host computer

  • All data are stored on host computer disk

  • DBMS located on the host computer

  • DBMS accessed by dumb terminals

  • Typical of mainframe and minicomputer DBMSs

  • Typical of 1st generation of single-user microcomputer database


Multiple site processing single site data mpsd l.jpg

Multiple-Site Processing, Single-Site Data (MPSD)

  • Requires network file server

  • Applications accessed through LAN

  • Variation known as client/server architecture


Multiple site processing multiple site data mpmd l.jpg

Multiple-Site Processing, Multiple-Site Data (MPMD)

  • Fully distributed DDBMS with support for multiple DPs and TPs at multiple sites

    • Homogeneous I

      • Integrate one type of centralized DBMS over the network

    • Heterogeneous

      • Integrate different types of centralized DBMSs over a network

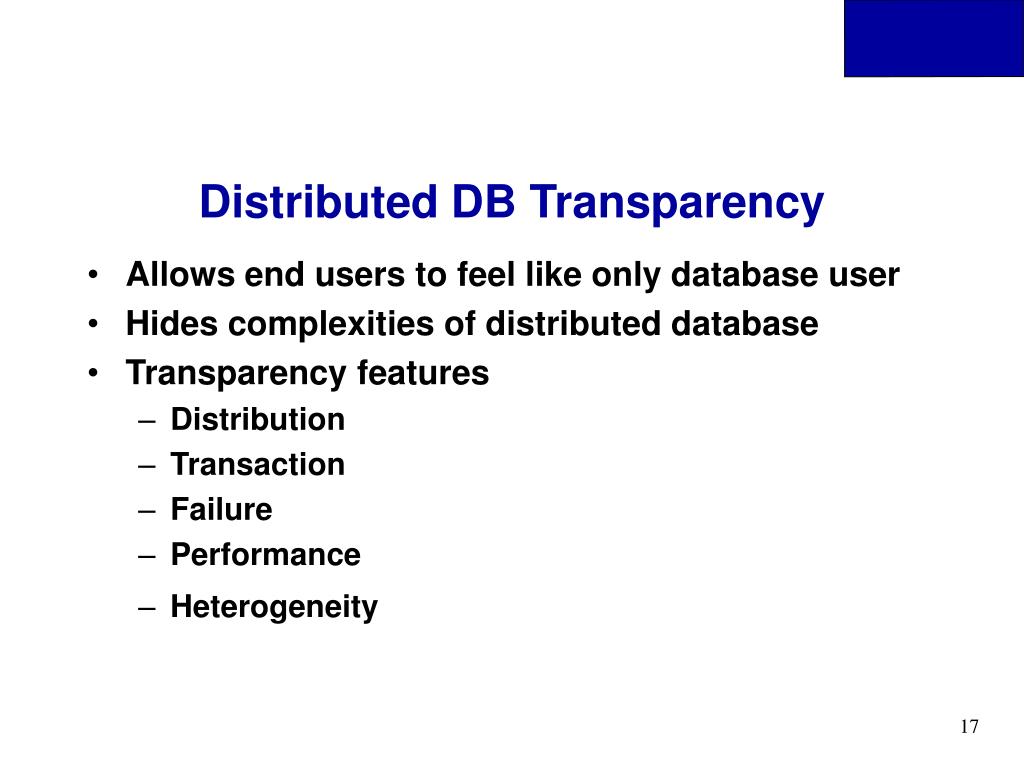

Distributed db transparency l.jpg

Distributed DB Transparency

  • Allows end users to feel like only database user

  • Hides complexities of distributed database

  • Transparency features

    • Distribution

    • Transaction

    • Failure

    • Performance

    • Heterogeneity


Distributed concurrency control l.jpg

Distributed Concurrency Control

  • Multisite, multiple-process operations more likely to create data inconsistencies and deadlocked transactions

  • Problems

    • Transaction committed by local DP

    • One DP could not commit transaction’s result

    • Yields inconsistent database


Two phase commit protocol l.jpg

Two-Phase Commit Protocol

  • DO-UNDO-REDO protocol

    • Write-ahead protocol

    • Two kinds of nodes

      • Coordinator

      • Subordinates

  • Phases

    • Preparation

      • Coordinator sends message to all subordinates

      • Confirms all are ready to commit or abort

    • Final Commit

      • Ensures all subordinates have committed or aborted


Performance transparency and query optimization l.jpg

Performance Transparency and Query Optimization

  • Objective: Minimize total cost associated with execution of request

  • Main costs

    • Access time

    • Communication

    • CPU time

  • Basis for query optimization algorithms

    • Optimum execution order

    • Sites accessed to minimize communication costs

  • Dynamic or static optimization

  • Statistically based vs. rule-based query optimization algorithms


Distributed database design l.jpg

Distributed Database Design

  • Partition database into fragments

    • Horizontal

    • Vertical

    • Mixed

  • Fragments to replicate

    • Storage of data copies at multiple sites

    • Fully, partially, unreplicated databases

  • Data allocation

    • Where to locate data

    • Centralized, partitioned, replicated


Client server advantages over ddbms l.jpg

Client/Server Advantages Over DDBMS

  • Client/server less expensive

  • Client/server solutions allow use of microcomputer’s GUI

  • More people with PC skills than mainframe skills

  • PC is well established in workplace

  • Numerous data analysis and query tools exist

  • Considerable cost advantages to off-loading application development

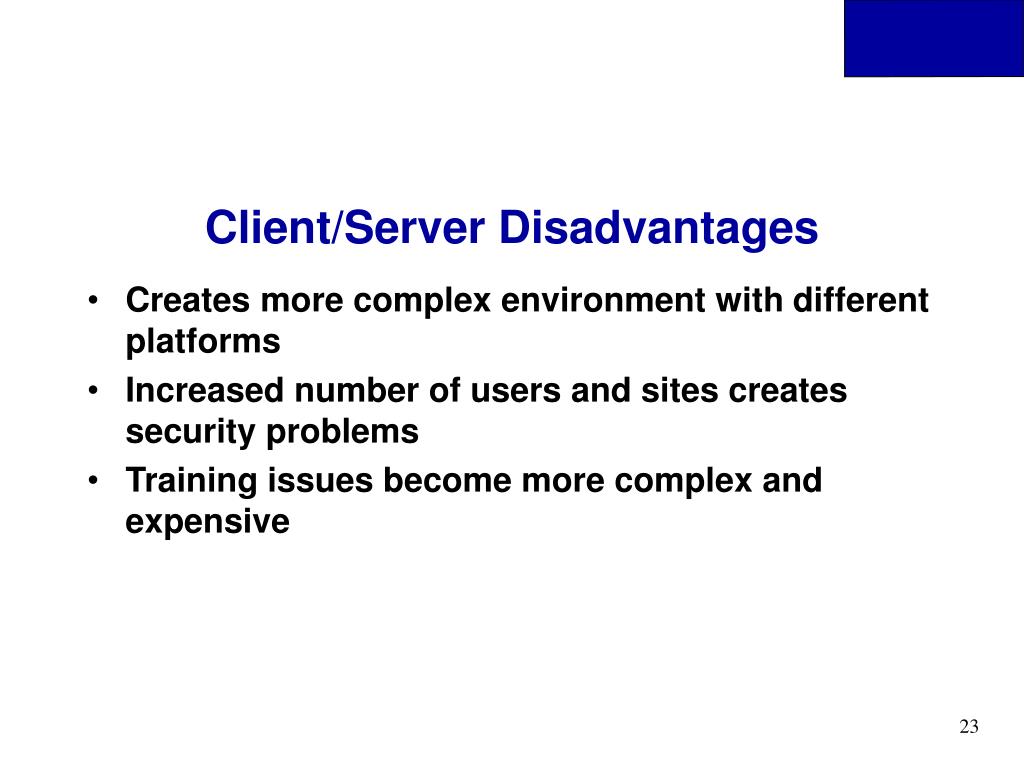

Client server disadvantages l.jpg

Client/Server Disadvantages

  • Creates more complex environment with different platforms

  • Increased number of users and sites creates security problems

  • Training issues become more complex and expensive
