  1. Homework • Homework • Continue Reading K&R Chapter 2 • We’ll go over HW2 • HW3 is posted • Questions?

  2. Review HW2 Solution • Let’s go over solutions to HW2 • Learn to write pseudo code effectively • Learn to think about the problem logically • Learn to write C code from pseudo code • These are key for being a good programmer

  3. trim • Pseudo code for the trim program while there is still a line to process for each character starting at the end of the line find the first non blank character or the beginning of the line if a non-blank character is found add an EOL and a terminating zero and print out the string

  4. trim • While writing the pseudo code, think about: • A good strategy (e.g. scan line from the end backwards rather than trying to go forwards) • Stopping each scan (e.g. not blank, not tab, etc) • What’s needed to make a shorter line printable (e.g. add a new EOL and terminating zero) • What indicates that it is time to stop looping on input lines (e.g. return from getline > 0 is false)

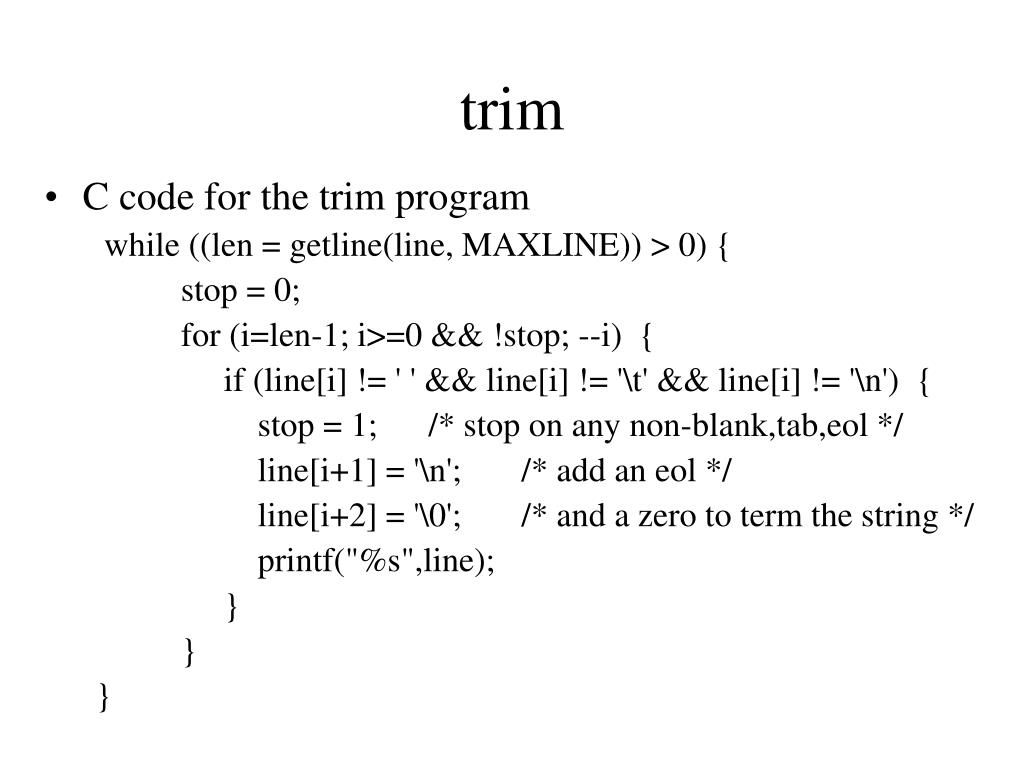

  5. trim • C code for the trim program while ((len = getline(line, MAXLINE)) > 0) { stop = 0; for (i=len-1; i>=0 && !stop; --i) { if (line[i] != ' ' && line[i] != '\t' && line[i] != '\n') { stop = 1; /* stop on any non-blank,tab,eol */ line[i+1] = '\n'; /* add an eol */ line[i+2] = '\0'; /* and a zero to term the string */ printf("%s",line); } } }

  6. reverse • Pseudo code for the reverse function find length of the string to reverse for each character from the beginning of the string to half way copy the character here to a holding variable copy the character the same distance from end to here copy the holding variable to the same distance from end String Array Holding Variable

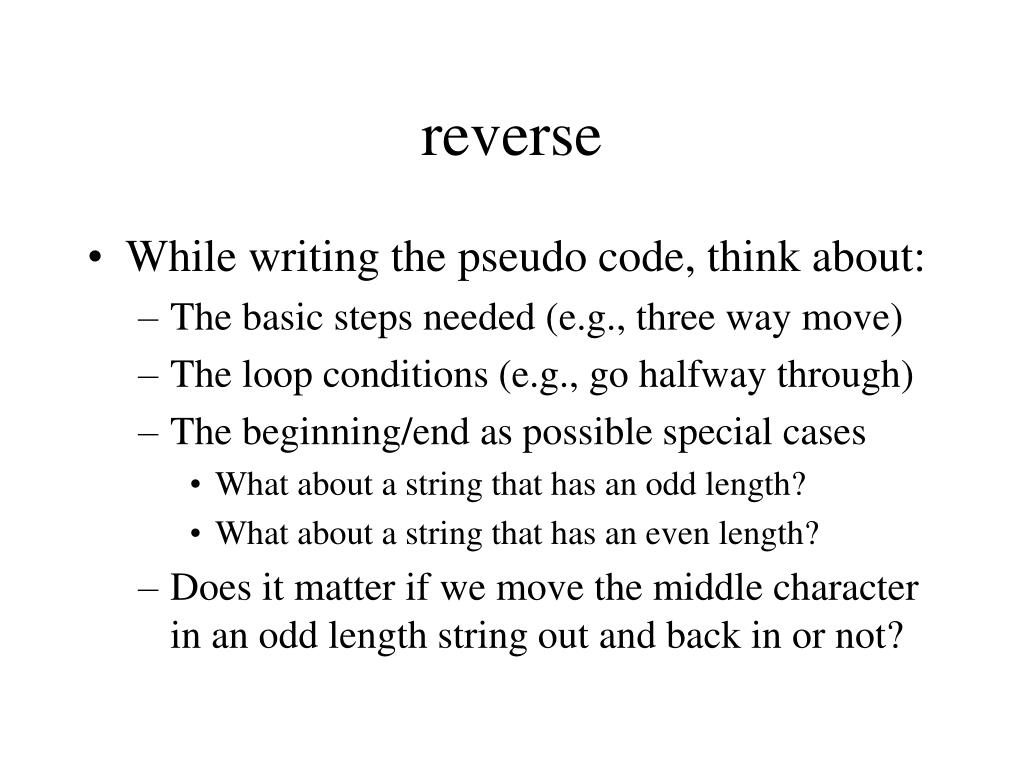

  7. reverse • While writing the pseudo code, think about: • The basic steps needed (e.g., three way move) • The loop conditions (e.g., go halfway through) • The beginning/end as possible special cases • What about a string that has an odd length? • What about a string that has an even length? • Does it matter if we move the middle character in an odd length string out and back in or not?

  8. reverse • C code for the reverse function int len, i; char c; len = strlen(line) - 1; /* array index = len - 1 */ for (i=0; i<=len/2; ++i) { /* go halfway through the line */ c = line[i]; /* save a character from line */ line[i] = line[len-i]; /* overwrite that character */ line[len-i] = c; /* save reversed character */ }

  9. Forcing Groups of Bits Off • Given char n, how to turn off all bits except the least significant 5 bits: n = n & ‘\x1f’ n = ‘\xa5’ 10100101 n & ‘\x1f’ 10100101 & 00011111 turn off all bits 00000101 except bottom 5 • Called "masking" the bits -- only see bits on in result where 1's found in mask value

  10. Forcing Groups of Bits Off • x = x & ~077 (octal for a change) Sets least significant 6 bits in x to 0 Even if you don't know size of x (e.g. size of int) ~077 = ~00 . . . 00111111 = 11 . . . 11000000 of required size Extends itself with 1 bits on left for length of x

  11. Forcing Groups of Bits On • Given n, how to turn on the MS two bits (if already on, leave on). n = n | ‘\xc0’ n = '\xa5' n | '\xc0': 10100101 | 11000000 turn on MS 2 bits 11100101

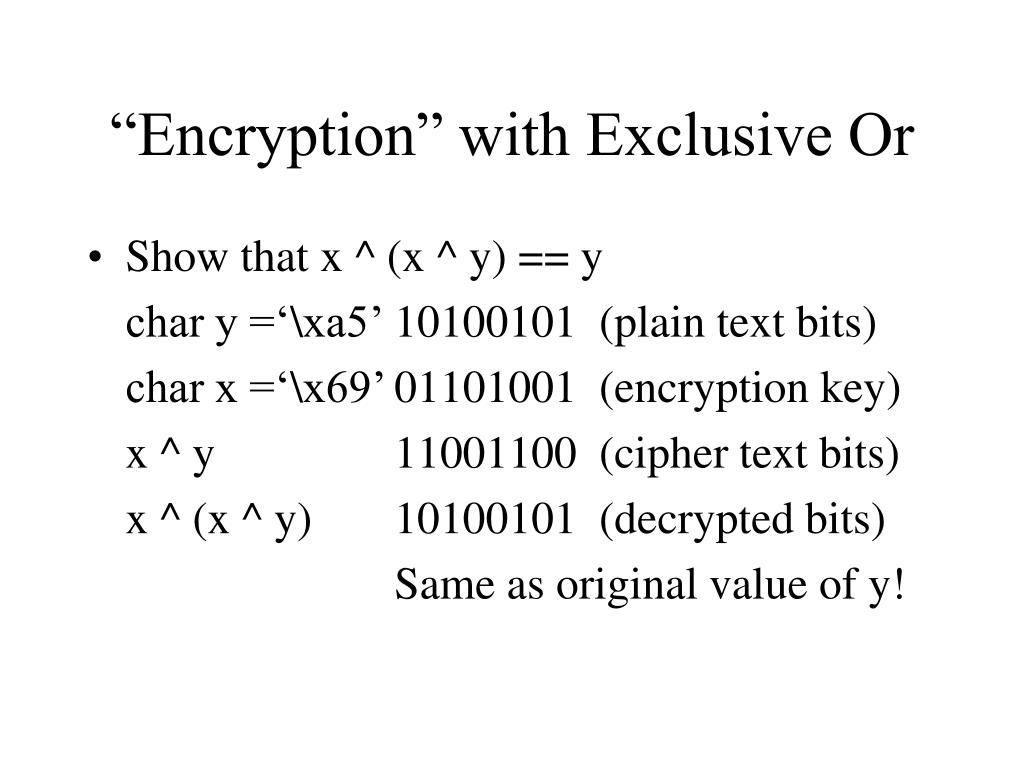

  12. “Encryption” with Exclusive Or • Show that x ^ (x ^ y) == y char y =‘\xa5’ 10100101 (plain text bits) char x =‘\x69’ 01101001 (encryption key) x ^ y 11001100 (cipher text bits) x ^ (x ^ y) 10100101 (decrypted bits) Same as original value of y!

  13. String Constants • String constant: “I am a string.” • An array (a pointer to a string) of char values somewhere ending with NUL = '\0', the char with zero value. • "0" is not same as '0'. The value "0" can't be used in an expression - only in arguments to functions like printf(). • Also have string functions: See pg. 241, Appendix B and B3, pg. 249 #include <string.h> With these definitions, can use: len = strlen(msg); where msg is string in a string array • NOTE: Write your own string functions for homework!!

  14. Enumeration Symbolic Constants • enum boolean {FALSE, TRUE}; • Enumerated names assigned values starting from 0 • FALSE = 0 • TRUE = 1 • Now can declare a variable of type enum boolean: enum boolean x; x = FALSE;  • Just a shorthand for creating symbolic constants instead of with #define statements • Storage requirement is the same as int

  15. Enumeration Symbolic Constants • If you define months as enum type enum months {ERR, JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT, NOV, DEC}; • Debugger might print value 2 as FEB

  16. Code Example of the enum type int main() { enum month {ERR, JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT, NOV, DEC}; enum month this_month; this_month = FEB; … … }

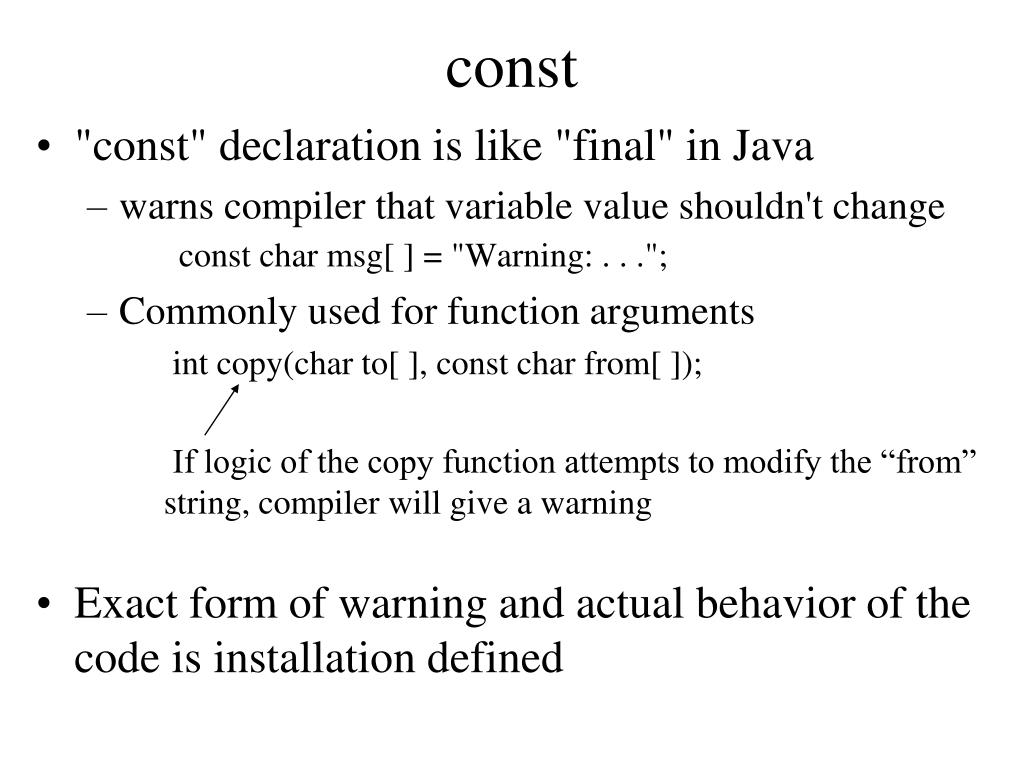

  17. const • "const" declaration is like "final" in Java • warns compiler that variable value shouldn't changeconst char msg[ ] = "Warning: . . ."; • Commonly used for function arguments int copy(char to[ ], const char from[ ]); If logic of the copy function attempts to modify the “from” string, compiler will give a warning • Exact form of warning and actual behavior of the code is installation defined

  18. Operators • Arithmetic Operators: + Add - Subtract * Multiply / Divide % Modulo (Remainder after division ) e.g. 5%7 = 5 7%7 = 0 10%7 = 3 • Examples: int x, y; x / y truncates (no fractional part) x % y is the remainder when x is divided by y. Always true that: x == y*(x/y) + x%y

  19. Operators • Logical Operators: && logical and || logical or ! Not • Example: … int year; if ((year % 4 == 0 && year % 100 != 0) || year % 400 == 0) printf( "%d is a leap year\n", year); else printf( "%d is not a leap year\n", year); • Why are no inner parentheses needed? See precedence table, P 53. Good questions for exams!!

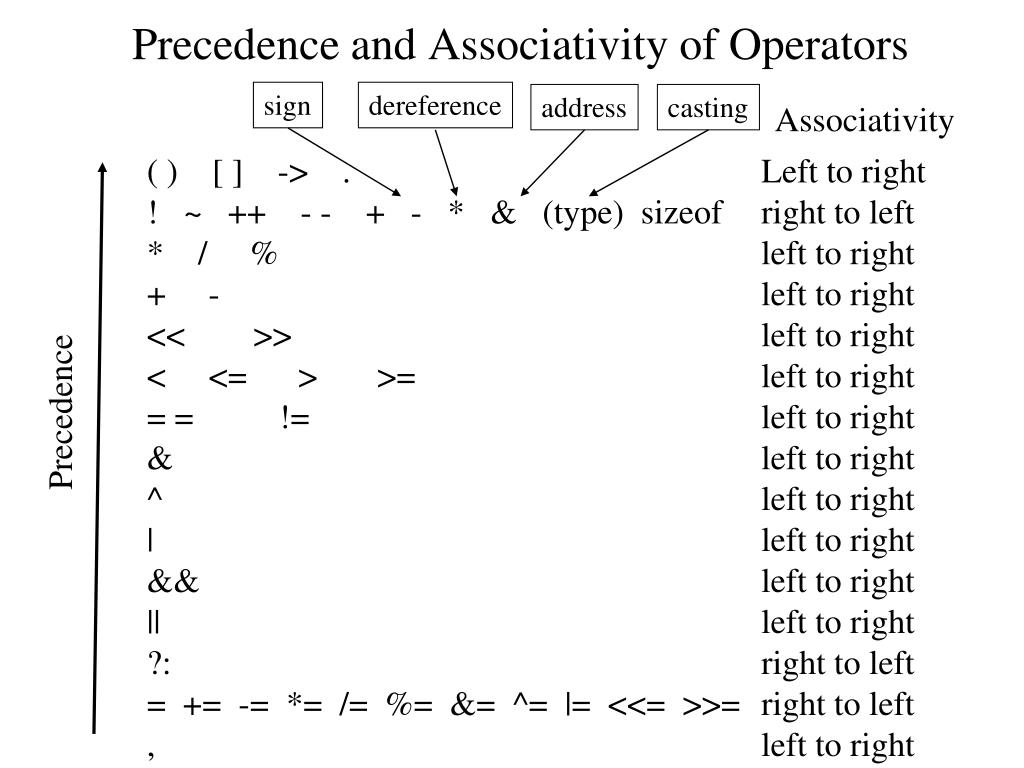

  20. Precedence and Associativity of Operators sign dereference address casting Associativity ( ) [ ] -> . Left to right ! ~ ++ - - + - * & (type) sizeof right to left * / % left to right + - left to right << >> left to right < <= > >= left to right = = != left to right & left to right ^ left to right | left to right && left to right || left to right ?: right to left = += -= *= /= %= &= ^= |= <<= >>= right to left , left to right Precedence

  21. Precedence and Associativity • Precedence • Operators in the same row have the same precedence • Operators are in order of decreasing precedence • Associativity • Determine the order if the operators have the same precedence • e.g x = y +=z -= 4 means x = y +=(z -= 4) x =(y +=(z -= 4))

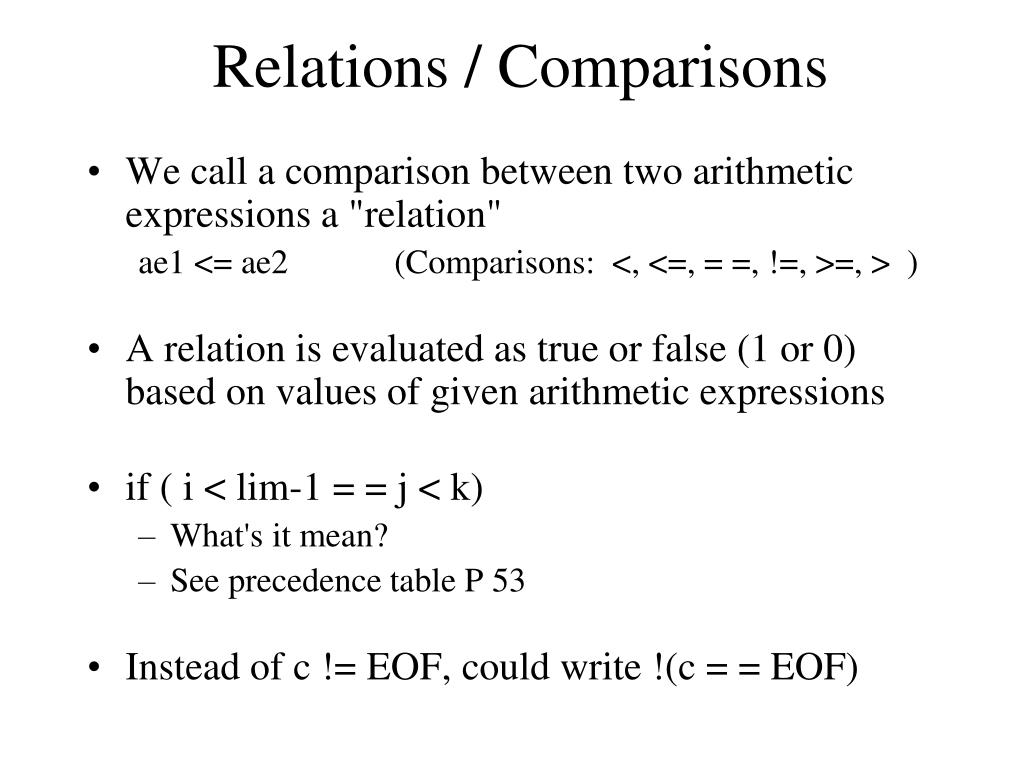

  22. Relations / Comparisons • We call a comparison between two arithmetic expressions a "relation"  ae1 <= ae2 (Comparisons: <, <=, = =, !=, >=, > ) • A relation is evaluated as true or false (1 or 0) based on values of given arithmetic expressions • if ( i < lim-1 = = j < k) • What's it mean? • See precedence table P 53 • Instead of c != EOF, could write !(c = = EOF)
