Besov bayes chomsky plato

Multiscale Geometric Image Processing

Besov BayesChomsky Plato

Richard Baraniuk

Rice University

dsp.rice.edu

Joint work with

Hyeokho ChoiJustin RombergMike Wakin


Image processing
Image Processing

  • Analyzing, modeling, processingimages

    • special class of 2-d functions

    • ex: digital photos

  • Problems:

    • representation, approximation, compression, estimation, restoration, deconvolution, detection, classification, segmentation, …


Low level image structures
Low-Level Image Structures

  • Prevalent image structures:

    • smooth regions - grayscale regularity

    • smooth edge contours - geometric regularity

  • Must exploit both for maximum performance


Lossy image compression
Lossy Image Compression

  • Given image

    approximate using bits

  • Error incurred = distortionExample: squared error


Rate distortion analysis
Rate-Distortion Analysis

as

  • Asymptotic analysis; maximize rate

achievable region

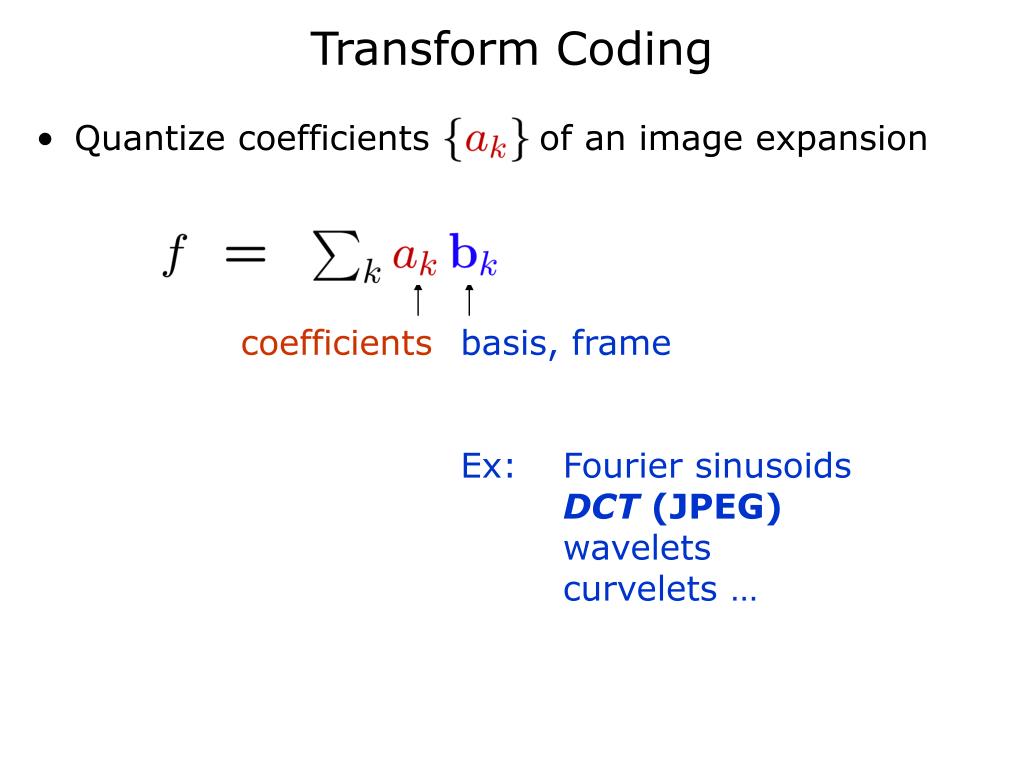

Transform coding
Transform Coding

  • Quantize coefficients of an image expansion

coefficients

basis, frame

Ex: Fourier sinusoids

DCT (JPEG)

wavelets curvelets …


Transform coding1
Transform Coding

  • Quantize coefficients of an image expansion

coefficients

basis, frame

quantize to total bits


Wet paint test image
Wet Paint Test Image


Jpeg compressed dct
JPEG Compressed (DCT)

PSNR = 26.32dB @ 0.0103bpp


Multiscale image processing
MultiscaleImage Processing


Multiscale image analysis
Multiscale Image Analysis

  • Analyze an image a multiple scales

  • How? Zoom out and record information lost in wavelet coefficients

info 1

info 2

info 3


Wavelet based image processing
Wavelet-based Image Processing

  • Standard 2-D tensor product wavelet transform


Transform domain modeling
Transform-domain Modeling

  • Transform-domain modeling and processing

transform

coefficient

model

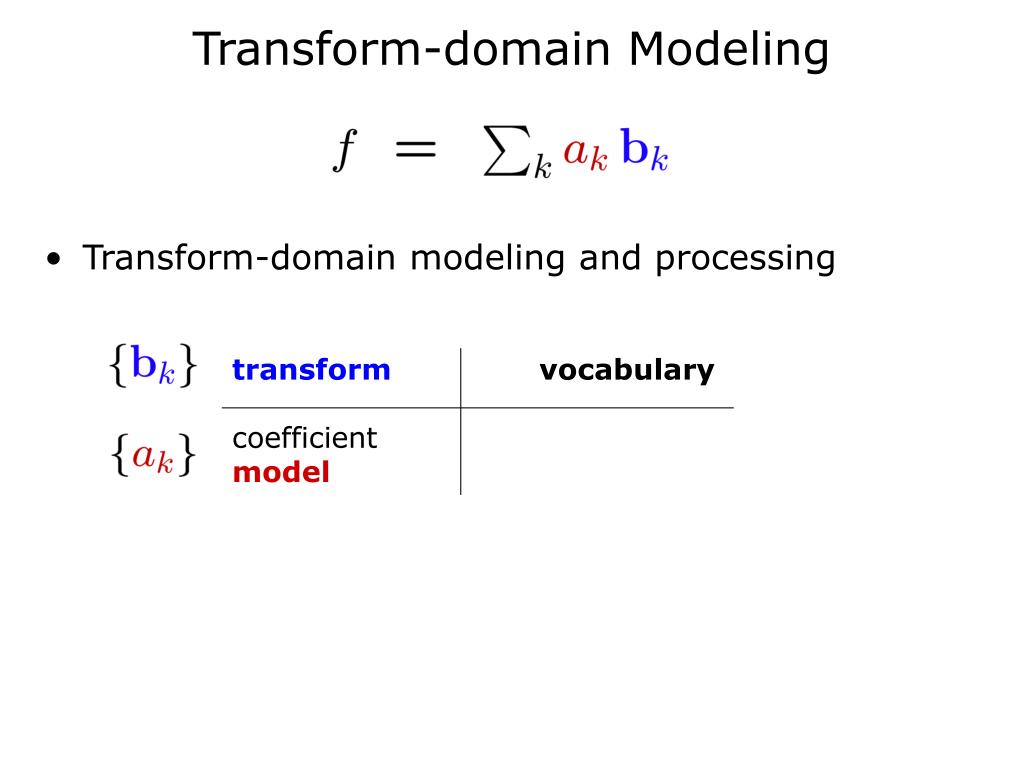

Transform domain modeling1
Transform-domain Modeling

  • Transform-domain modeling and processing

transformvocabulary

coefficient

model

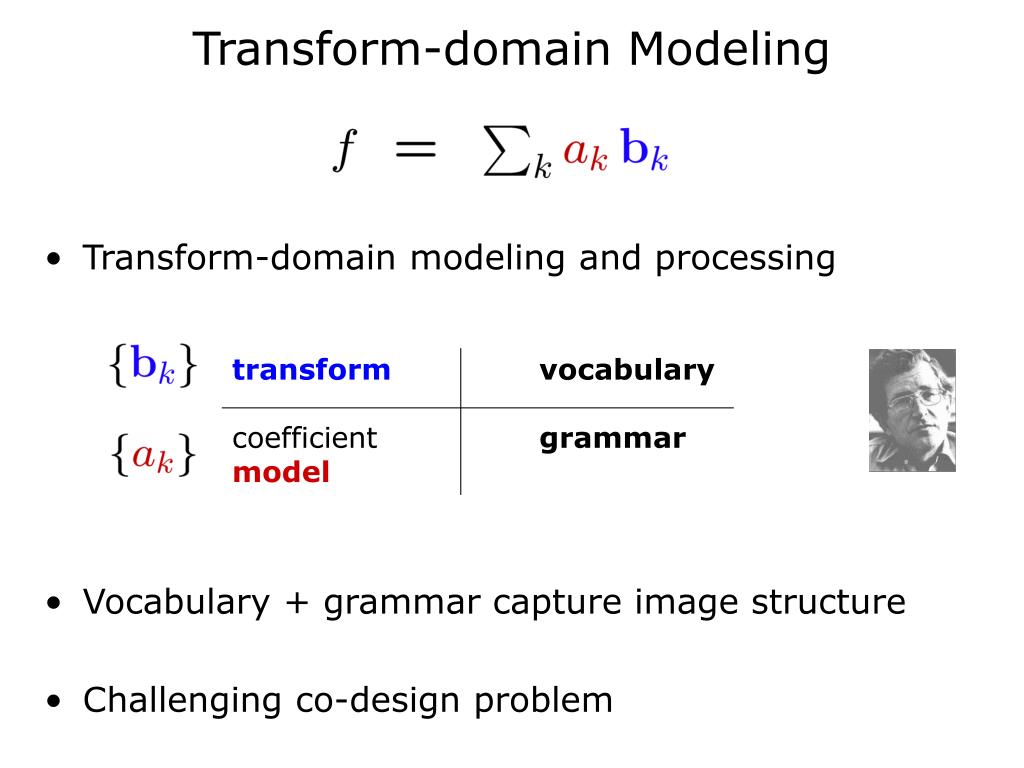

Transform domain modeling2
Transform-domain Modeling

  • Transform-domain modeling and processing

  • Vocabulary + grammar capture image structure

  • Challenging co-design problem

transformvocabulary

coefficient grammar

model


Nonlinear image modeling
Nonlinear Image Modeling

  • Natural images do not form a linear space!

  • Form of the “set of natural images”?

+

=


Set of natural images
Set of Natural Images

Small: NxN sampled images comprise an extremely small subset of RN2


Set of natural images1
Set of Natural Images

Small: NxN sampled images comprise an extremely small subset of RN2


Set of natural images2
Set of Natural Images

Small: NxN sampled images comprise an extremely small subset of RN2

Complicated: “Manifold” structure

RN2



Wedge manifold1
Wedge Manifold

3 Haar wavelets


Wedge manifold2
Wedge Manifold

3 Haar wavelets


Set of natural images3
Set of Natural Images

Small: NxN sampled images comprise an extremely small subset of RN2

Complicated: “Manifold” structure

RN2


Stochastic projections
Stochastic Projections

  • Projection

    = “shadow”


Higher d stochastic projections
Higher-D Stochastic Projections

  • Model (partial) wavelet coefficient joint statistics

  • Shadow more faithful to manifold

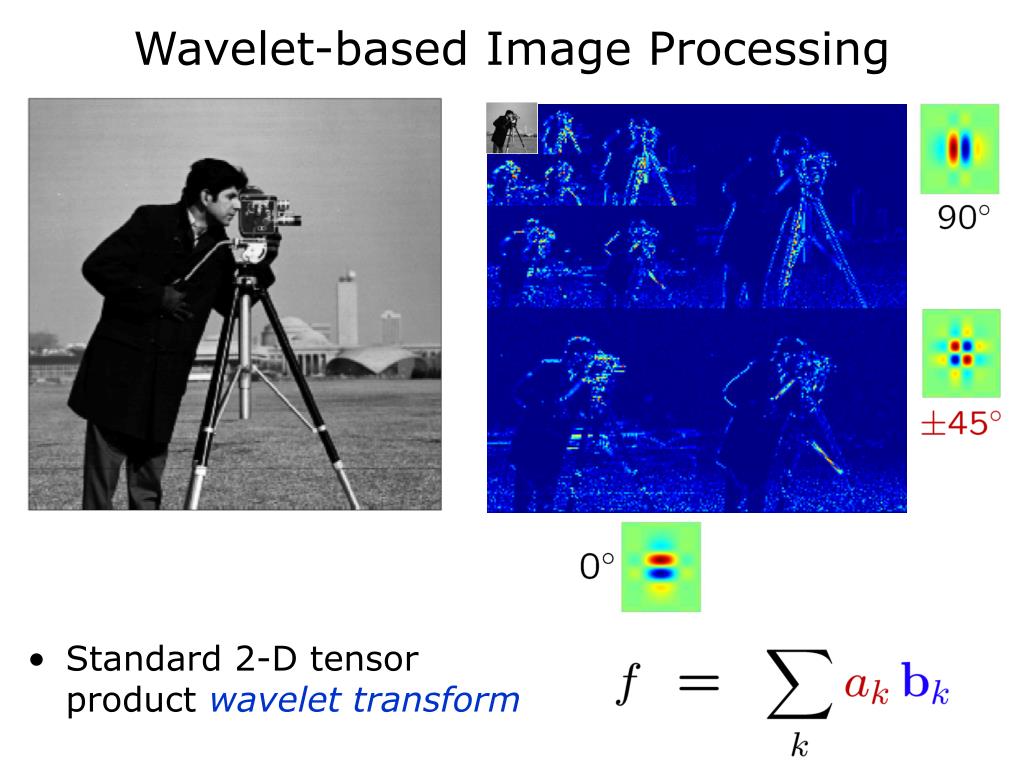

Wavelet based image processing1
Wavelet-based Image Processing

  • Standard 2-D tensor product wavelet transform


Wavelet coefficient sparsity
Wavelet Coefficient Sparsity

  • Most


Wavelet quadtree structure
Wavelet Quadtree Structure

  • Wavelet analysis is self-similar

  • Image parent square divides into 4 children squares at next finer scale


Wavelet quadtree correlations
Wavelet Quadtree Correlations

  • Smooth regionsmallwc’s tumble down tree

  • Edge/ridge regionlarge wc’s tumble down tree


Zero tree compression
Zero Tree Compression

  • Idea: Prune wavelet subtrees in smooth regions

Z

  • tree-structured thresholding

  • spend bits on (large) “significant” wc’s

  • spend no bits on (small) wc’s…

  • zerotree symbolZ = {wc and all decendants = 0}


Zero tree compression1
Zero Tree Compression

  • Label pruned wavelet quadtree with 2 stateszero-tree- smooth region (prune)significant- edge/texture region (keep)

S

smooth

smooth

Z

Z

S

not

smooth

Z

smooth

S

S

S

S


Zero tree compression2
Zero Tree Compression

  • Label pruned wavelet quadtree with 2 stateszero-tree- smooth region (prune)significant- edge/texture region (keep)

  • Can optimize placement of Z and S with dynamic programming (SFQ) [Xiong, Ramchandran, Orchard]

S

smooth

smooth

Z

Z

S

not

smooth

Z

smooth

S

S

S

S


Wet paint test image1
Wet Paint Test Image


Jpeg compressed dct1
JPEG Compressed (DCT)

PSNR = 26.32dB @ 0.0103bpp


Jpeg2000 compressed wavelets
JPEG2000 Compressed (Wavelets)

PSNR = 29.77dB @ 0.0103bpp


Sfq compressed wavelets
SFQ Compressed (Wavelets)

PSNR = 29.77dB @ 0.0103bpp


Sfq wc code map
SFQ WC Code Map

green = significantblue = zero tree



The jpeg2000 disappointment
The JPEG2000 Disappointment

  • JPEG2000: replace DCT with wavelet transform

  • Does not improve on decay rate of JPEG!

  • WHY?neither DCT norwavelets are theright transform

JPEG (DCT)

JPEG2000 (wavelets)


Wavelet Challenges

  • Geometrical info not explicit

  • Inefficient-large number of large wc’s cluster around edge contours, no matter how smooth


Wavelets and cartoons
Wavelets and Cartoons

13

26

52

  • Even for a smooth C2 contour, which straightens at fine scales…


2 d wavelets poor approximation
2-D Wavelets: Poor Approximation

13

26

52

  • Even for a smooth C2 contour, which straightens at fine scales…

  • Too many wavelets required!

-term wavelet approximation

not


2 d wavelets poor approximation1
2-D Wavelets: Poor Approximation

13

26

52

  • Even for a smooth C2 contour, which straightens at fine scales…

  • Too many wavelets required!

-bit wavelet approximation

not


Solution 1 upgrade the transform
Solution 1: Upgrade the Transform

13

26

52

  • Introduce anisotropic transform

    • curvelets, ridgelets, contourlets, …

  • Optimal error decay rates for some simple images


Solution 2 upgrade the processing
Solution 2: Upgrade the Processing

13

26

52

  • Replace coefficient thresholding by a new wc modelthat captures anisotropicspatial correlations


Our goal new image models
Our Goal: New Image Models

  • Wavelet coefficient models that capture both geometric and textural aspects of natural images

  • Optimal error decay rates for some image class



Geometry model for cartoons
Geometry Model for Cartoons

C2 boundary

  • Toy model: flat regions separated by smooth contours

  • Goal: representation that is

    • sparse

    • simply modeled

    • efficiently computed

    • extensible to texture regions


2 d dyadic partition
2-D Dyadic Partition

  • Multiscale analysis

  • Partition; not a basis/frame

  • Zoom in by factor of 2 each scale


2 d dyadic partition quadtree
2-D Dyadic Partition = Quadtree

  • Multiscaleanalysis

  • Partition; not a basis/frame

  • Zoom in by factor of 2 each scale

  • Each parent node has 4 children at next finer scale


Wedgelet representation donoho
Wedgelet Representation [Donoho]

r

  • Build a cartoon using wedgelets on dyadic squares

    wedgelet = atomic geometric element




Wedgelet representation
Wedgelet Representation

r

  • Build a cartoon using wedgelets on dyadic squares

  • Choose orientation (r,q) from finite dictionary (toroidal sampling)

  • Quad-tree structuredeeper in tree finer curve approximation


Wedgelet representation1
Wedgelet Representation

  • Prune wedgelet quadtree to approximate local geometry (adaptive)

  • Decorate leaves with (r,q) parameters


Wedgelet inference
Wedgelet Inference

  • Find representation / prune tree to balance a fidelity vs. complexity trade-off

  • For Comp(W) –need a model for the wedgelet representation(quadtree + (r,q))

  • Donoho: Comp(W) = #leaves


Wedgelet inference1
Wedgelet Inference

  • Find representation / prune tree to balance a fidelity vs. complexity trade-off

  • O(N) dynamic programmingsolution (bottom-up recursion)

  • Optimal approximation

  • Near-optimal rate/distortion decay


Leaves complexity penalty
#Leaves Complexity Penalty

  • Accounts for wedgelet partition size, but not wedgelet orientation

#leaves

#leaves

“smooth”

“simple”

“rough”

“complex”


Multiscale geometry model mgm
Multiscale Geometry Model (MGM)

  • Decorate each tree node with orientation (r,q) and then model dependencies thru scale

  • Insight: Smooth curve Geometric innovations small at fine scales

  • Model: Favor small innovations over large innovations (statistically)


Multiscale geometry model mgm1
Multiscale Geometry Model (MGM)

  • Wavelet-like geometry model: coarse-to-fine prediction

    • model parent-to-child transitions of orientations

small

innovations

large


MGM

  • Wavelet-like geometry model: coarse-to-fine prediction

    • model parent-to-child transitions of orientations

  • Markov-1 statistical model

    • state = (r,q) orientation of wedgelet

    • parent-to-child state transition matrix


MGM

  • Markov-1 statistical model

  • Joint wedgelet Markov probability model:

  • Complexity = Shannon codelength == number of bits to encode


Mgm and edge smoothness
MGM and Edge Smoothness

“smooth”

“simple”

“rough”

“complex”


Mgm inference
MGM Inference

  • Find representation / prune tree to balance the fidelity vs. complexity trade-off

  • Efficient O(N) solution via dynamic programming


Mgm approximation
MGM Approximation

  • Find representation / prune tree to balance the fidelity vs. complexity trade-off

  • OptimalL2 error decay rate for cartoons

single scale

multiscale


Wedgelet coding of cartoon images
Wedgelet Coding of Cartoon Images

  • Choosing wedgelets = rate-distortion optimization

Shannon code length

to encode


Wedgelet coding of cartoon images1
Wedgelet Coding of Cartoon Images

  • Choosing wedgelets = rate-distortion optimization

~130 bits coded independently

~25 bits coded with MGM


Predictive wedgelet coding is optimal
Predictive Wedgelet Coding is Optimal

C2contour (1-d)

Optimal rate-distortion performance

compared to

for Donoho’s leaf-only encoding



Joint texture geometry compression
Joint Texture/Geometry Compression

  • Dictionary D = {wavelets} U {wedgelets}

  • Representation tradeoff: texture vs.geometry


Recall zero tree compression
Recall – Zero Tree Compression

  • Idea: Prune wavelet subtrees in smooth regions

Z

  • tree-structured thresholding

  • spend bits on (large) “significant” wc’s

  • spend no bits on (small) wc’s…

  • zerotree symbolZ = {wc and all decendants = 0}


Zero tree compression3
Zero Tree Compression

  • Label pruned wavelet quadtree with 2 stateszero-tree- smooth region (prune)significant- edge/texture region (keep)

S

smooth

smooth

Z

Z

S

not

smooth

Z

smooth

S

S

Z: all wc’s below=0

S

S


Enter geometry
Enter Geometry

  • Label pruned wavelet quadtree with 2 stateszero-tree- smooth region (prune)significant- edge/texture region (keep)

  • Suboptimal NLA/R-D decay w/ edges

S

smooth

smooth

Z

Z

S

S

texture

geometry

S

S

S

S

Z

S

S

S


Wedgelets for geometry
Wedgelets for Geometry

  • Label pruned wavelet quadtree with 2 stateszero-tree- smooth region (prune)significant- edge/texture region (keep)

  • Idea: use wedgelets in geometric edge squares

S

smooth

smooth

Z

Z

S

G

texture

geometry

G: wc’s below are wc’s of a wedgelet

S

S

S

S


Wedgelets for geometry1
Wedgelets for Geometry

  • Label pruned wavelet quadtree with 3 stateszero-tree- smooth region (prune)geometry- edge region (prune)significant- texture region (keep)

S

smooth

smooth

Z

Z

S

G

texture

geometry

G: wc’s below are wc’s of a wedgelet

S

S

S

S


Wedgelets for geometry2
Wedgelets for Geometry

  • Label pruned wavelet quadtree with 3 stateszero-tree- smooth region (prune)geometry- edge region (prune)significant- texture region (keep)

  • Optimize placement of Z, G, S by dyn. programming

S

smooth

smooth

Z

Z

S

G

texture

geometry

G: wc’s below are wc’s of a wedgelet

S

S

S

S


Wedgelet trees for geometry
Wedgelet Trees for Geometry

  • Label pruned wavelet quadtree with 3 stateszero-tree- smooth region (prune)geometry- edge region (prune)significant- texture region (keep)

  • Optimize placement of Z, G, S by dyn. programming

S

smooth

smooth

Z

Z

S

G

texture

G: wc’s below are wc’s of a wedgelet tree

S

S

geometry

S

S


Image approximation
Image Approximation

S

Z

Z

S

G

S

S

S

S

Z

Z

S

S

S: describe (code) wc’s

G

S

S


Image approximation1
Image Approximation

S

Z

Z

S

G

S

S

S

S

Z: all wc’s below=0

ie: wc’s of

Z

Z

S

S

S: describe (code) wc’s

G

S

S


Image approximation2
Image Approximation

S

Z

Z

S

G

S

S

S

S

Z: all wc’s below=0

ie: wc’s of

G: wc’s below are wc’s of a wedgelet ie: wc’s of

“wedgeprint”

Z

Z

S

S

S: describe (code) wc’s

G

S

S


Optimality of wedgeprints
Optimality of Wedgeprints

C2texture (2-d)

C2contour (1-d)

  • TheoremFor C2 / C2 images, optimal asymptotic L2 error decay and near-optimal rate-distortion


Practical image coder wsfq
Practical Image Coder – WSFQ

  • Wedgelet-SFQ (WSFQ) coder builds on SFQ coder [Xiong, Ramchandran, Orchard]

  • At low bit rates, often significant improvement in visual quality over SFQ and JPEG-2k (sharper edges)

  • Bonus: WSFQ representation contains explicit “cartoon” geometry information


Wet paint test image2
Wet Paint Test Image


Jpeg compressed dct2
JPEG Compressed (DCT)

PSNR = 26.32dB @ 0.0103bpp


Jpeg2000 compressed wavelets1
JPEG2000 Compressed (Wavelets)

PSNR = 29.77dB @ 0.0103bpp


Sfq compressed wavelets1
SFQ Compressed (Wavelets)

PSNR = 29.77dB @ 0.0103bpp


Wsfq compressed
WSFQ Compressed

PSNR = 30.19dB @ 0.0102bpp


Wsfq wc code map
WSFQ WC Code Map

green=significantblue=zero tree red=contour tree



original

SFQ

JPEG2000

WSFQ


Gain over jpeg2000 cameraman
Gain Over JPEG2000 – Cameraman

40% MSE improvement

WSFQ

SFQ


Gain over jpeg2000 peppers
Gain Over JPEG2000 – Peppers

18% MSE improvement

WSFQ

SFQ


Gain over jpeg2000 lena
Gain Over JPEG2000 – Lena

14% MSE improvement

WSFQ

SFQ


Extensions
Extensions

S

Z

S

S

W

S

S

S

S

zerotree

wedgeprint

Z

D

S

S

W

S

S


Extensions1
Extensions

barprint

DCTprint

S

Z

D

S

W

B

B

B

B

zerotree

wedgeprint

Z

D

“Coifman’s

Dream”

B

B

W

B

B


Extensions2
Extensions

barprint

DCTprint

S

Z

D

S

W

V

B

B

B

zerotree

wedgeprint

Z

D

Gastprint

B

S

W

B

B


Bars ridges
Bars / Ridges

16x16 image block


Multiple wedgelet coding
Multiple Wedgelet Coding

80 bits to jointly encode 5 wedgelets


Barlet coding
“Barlet” Coding

(fat edgelet/beamlet)

22 bits to encode 1 barlet



Dctprint
DCTprint

DCT

5dB

PSNR

wavelets

# terms

32x32 block = 1024 pixels


Dctprint1
DCTprint

DCT

PSNR

wavelets

# terms

32x32 block = 1024 pixels

4x fewer coefficients


Conclusions
Conclusions

  • Capturing geometrical information in images requires new tools: vocabulary+grammar

wavelets

basis


Conclusions1
Conclusions

  • Capturing geometrical information in images requires new tools: vocabulary+grammar

wavelets

wedgelets

basis

model


Conclusions2
Conclusions

  • Capturing geometrical information in images requires new tools: vocabulary+grammar

wavelets

wedgelets

basis

model

wedgeprints


Conclusions3
Conclusions

  • Capturing geometrical information in images requires new tools: vocabulary+grammar

wavelets

wedgelets

basis

model

  • wedgelet VQ

  • adaptive wedgeprint atoms

wedgeprints


Conclusions4
Conclusions

  • Capturing geometrical information in images requires new tools: vocabulary+grammar

wavelets

wedgelets

basis

model

  • Optimal approximation of C2/C2 function class

wedgeprints


Related work
Related Work

  • Platelets, Dyadic Decision Trees, Sensor Nets, …[Nowak, Willett, Castro, Scott, Mitra]

  • Multiresolution Fourier transform[Calway, Pearson, Wilson]

  • “Prune and join” quadtree approximation[Shukla, Dragotti, Do, Vetterli]

  • Wavelet footprints[Dragotti, Vetterli]

  • Bandelets[Le Pennec, Mallat]


Future work
Future Work

dsp.rice.edu

  • Build “Coifman’s Dream” coder

  • Beyond uniform quadtree splits

  • Other transforms beyond wavelets

    • complex wavelets

    • curvelets, …

  • Extensions to EQ coder, other image coders

  • Detection, classification, …


Conclusions5
Conclusions

  • Capturing geometrical information in images requires new tools

wavelets

wedgelets

basis

model

dsp.rice.edu

wedgeprints


Transform coding2
Transform Coding

  • Quantize coefficients of an image expansion

coefficients

basis, frame

Ex: Fourier sinusoids

DCT (JPEG)

wavelets, …


Transform domain modeling3
Transform-domain Modeling

  • Transform-domain modeling and processing

transform

coefficient

model


The need for compression
The Need for Compression

  • Modern digital camera megapixels


Multiscale Geometric Image Processing

Richard Baraniuk

Rice University

dsp.rice.edu

Joint work with

Hyeokho Choi, Justin Romberg, Mike Wakin


ad
