Presentation Transcript

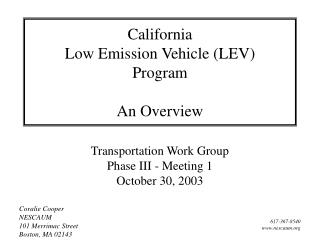

California low emission vehicle lev program an overview l.jpg

CaliforniaLow Emission Vehicle (LEV)ProgramAn Overview

Transportation Work Group

Phase III - Meeting 1

October 30, 2003

Coralie Cooper

NESCAUM

101 Merrimac Street

Boston, MA 02143

617-367-8540

www.nescaum.org


Background a l.jpg

Background (a)

  • §209(a) of the Clean Air Act (CAA) prohibits states from setting standards for new vehicles or vehicle engines.

  • §209(b) exempts any state that adopted standards before 3/30/66 -- only California meets this pioneering criterion.

  • Under the exemption, California has developed and administered state-specific standards for as long as vehicle emissions have been regulated.

Page 2


Background b l.jpg

Background (b)

  • Section 177(a) of the CAA provides authority to states to adopt California motor vehicle emission standards.

    • Implemented standards must be identical to California.

    • Two full model year (MY) lead time must be provided.

    • Case law in recent years has clarified adoption process.

    • States can adopt after CARB Board approval.

    • States can enforce after a California waiver is approved.

Page 3


Lev and nlev l.jpg

LEV and NLEV

  • Four states: NY, MA, VT, and ME have adopted the CA LEV II program

  • Four states in the NE currently participate in the National LEV (NLEV) program

    • voluntary agreement by manufacturers to reduce emissions beyond federal requirements.

    • NLEV states agreed to forebear on adoption of LEV until 2002

    • NLEV will be replaced by Tier 2 between 2004 and 2007

Page 4


Lev ii l.jpg

LEV II

  • In 1998, California implemented the second phase of their LEV program (LEV II).

  • Major changes:

    • Addition of SULEV (Super Ultra Low Emissions Vehicle) standard class.

    • Expansion of (to 8500 lbs GVW) and tightening of standards for the LDT2 class (to equal PC and LDT1).

    • Tightened NOx standards for LEV and ULEV classes.

Page 5


Fleet average nmog l.jpg

Fleet Average NMOG

Gray denotes possible alternative futures (alternatives that also meet required fleet averages).

Note effect of NLEV in closing Tier 1/LEV I gap.

Page 6


Tier 2 versus lev ii observations b l.jpg

Tier 2 versus LEV II - Observations (b)

  • Detailed studies have been conducted to quantify the emissions reductions

    • 9/03 NESCAUM study estimates 15-20% HC benefit and 20-25% toxics benefit.

  • LEV approach (declining fleet average) promotes continuing review and update. Conversely, Tier 2 is fixed across time.

    • LEV II will continue to push vehicle technology.

Page 7


Lev ii and ghg l.jpg

LEV II and GHG

  • Neither LEV II nor Tier 2 currently include specific GHG provisions.

  • However, the ZEV component of LEV promotes advanced technology vehicles, including both high efficiency hybrids and low-carbon fuel SULEVs.

    • While Tier 2 has a zero-emission Bin 1 standard, it includes no associated sales mandate.

    • 9/03 NESCAUM study estimates a 2-3% GHG benefit for LEV relative to Tier 2.

Page 8


Brief review of zev mandate a l.jpg

Brief Review of ZEV Mandate (a)

  • LEV is designed to be technology forcing, setting specific ZEV sales mandates independent of fleet average requirements.

    • As originally adopted, LEV required 2% ZEVs in MY98-MY00, 5% in MY01-MY02, and 10% in MY03-MY10.

    • Latest proposal is 10% ZEVs in MY05-MY08, 11% in MY09-MY11, 12% in MY12-MY14, 14% in MY15-MY17, and 16% in MY18+.

Page 9


Brief review of zev mandate b l.jpg

Brief Review of ZEV Mandate (b)

  • Latest proposal allows compliance with minimum number of pure ZEVs.

  • Compliance can be achieved with PZEVs (Partial ZEVs) and AT-PZEVs (Advanced Technology PZEVs).

    • Industry must make a minimum number of fuel cell vehicles (250 by MY08, increasing to 50,000 between MY15 and MY18).

    • AT-PZEVs required to account for 40% of compliance.

Page 10


Brief review of zev mandate c l.jpg

Brief Review of ZEV Mandate (c)

  • PZEV is a 150K miles SULEV with zero evap and a 15 year/150K mile warranty.

  • AT-PZEV is a PZEV that also has one or more of the following:

    • All electric range, electric vehicle componentry, high pressure gaseous storage system, low fuel-cycle propulsion system.

    • Hybrids and high pressure CNG systems most common current technology capable of high AT-PZEV credits.

Page 11


California motor vehicle ghg legislation l.jpg

California Motor Vehicle GHG Legislation

  • In 2002 former CA Governor Davis signed AB 1493 into law

  • The law requires CARB to develop passenger car GHG emissions standards

  • Regulations must be final by January of 2005 and will affect model year 2009

  • A regulatory proposal will likely be developed by CARB by this summer

Page 12


Conclusions l.jpg

Conclusions

  • The LEV II program provides criteria and CO2 emissions reductions above and beyond the Tier 2 program.

  • These benefits result from more stringent evaporative and tailpipe emission standards as well as the LEV advanced technology vehicle requirement.

  • The relative benefits of the LEV program over the federal program will increase over time as more stringent LEV regulations are developed (LEV III for example).

  • Adoption of LEV assists states in meeting air quality goals and GHG emission reduction targets.

Page 13


Additional detail and expanded explanations of technical issues l.jpg

Additional Detail and Expanded Explanations of Technical Issues

Page 14


Lev i or lev when implemented l.jpg

LEV I (or LEV when implemented)

  • When adopted in 1990, the LEV program represented a watershed approach to vehicle emissions control because:

    • (1) It included multiple levels of emission standards so that not all vehicles had to be controlled uniformly. In effect, a manufacturer could sell some “dirtier than average” vehicles, but only by also selling offsetting “cleaner than average” vehicles.

    • (2) Fuel control was recognized as an integral to emissions control and were regulated accordingly.

Page 15


Lev i vehicles l.jpg

LEV I Vehicles

  • LEV I included five vehicle types (as follows, in order of increasing emission standard stringency):

    • Tier 1 vehicles (equivalent to federal standards),

    • Transitional Low Emission Vehicles (TLEVs),

    • Low Emission Vehicles (LEVs),

    • Ultra Low Emission Vehicles (ULEVs), and

    • Zero Emission Vehicles (ZEVs).

  • An annually declined fleet average standard was also established to ensure increasing numbers of cleaner vehicles each year.

Page 16


Lev i vs the federal program l.jpg

LEV I vs. the Federal Program

  • Unlike the LEV program, the federal program of the early 1990s consisted of a single standard (the so-called Tier 1 standard) that was set to remain fixed for at least a decade.

  • Since Tier 1 was equal in stringency to the least stringent LEV standard (and since ozone compliance remained elusive), other states (for the first time) considered “opting-in” to the LEV program.

Page 17


Lev ii a l.jpg

LEV II (a)

  • In 1998, California implemented the second phase of their LEV program -- denoted as LEV II -- taking LEV beyond the standards set in LEV I.

  • Major changes:

    • Addition of SULEV (Super Ultra Low Emissions Vehicle) standard class (between ULEV and ZEV).

    • Expansion of (to 8500 lbs GVW) and tightening of standards for the LDT2 class (to equal PC and LDT1).

    • Tightened NOx standards for LEV and ULEV classes.

Page 18


Lev ii b l.jpg

LEV II (b)

  • Major changes (continued):

    • LD useful life extended to 120K miles (from 100K).

    • Extension of the declining fleet average NMOG standard through 2010 (LEV I stopped at 2003).

    • Optional 150K mile certification (provides 15% credit for fleet average compliance determination -- NMOG for fleet averaging = 0.85  50K NMOG standard).

    • Prohibition of Tier 1 certifications after 2003.

    • Tightened PM standards.

    • Expanded ZEV allowances (discussed later).

Page 19


Tier 2 versus lev ii a l.jpg

Tier 2 versus LEV II (a)

  • In 2000, EPA adopted the federal Tier 2 program that included most of the LEV II provisions.

    • First federal program to include LEV-style multiple certification levels (termed “bins” in Tier 2) and associated fleet average compliance requirements.

  • However, there are continuing differences

    • Some of these differences are fundamental and make comparing the two programs “challenging.”

Page 20


Tier 2 versus lev ii b l.jpg

Tier 2 versus LEV II (b)

  • LEV II sets a fleet average NMOG standard, while Tier 2 sets a fleet average NOx standard.

  • The LEV II fleet average standard is based on 50K mile certification levels, while Tier 2 is based on 120K mile certification.

  • Evaporative emissions standards are more stringent in the LEV II program than in the Tier 2 program.

  • Comparisons between the two programs can be made.

Page 21


Available nmog certification levels l.jpg

Available NMOG Certification Levels

Page 22


Available no x certification levels l.jpg

Available NOx Certification Levels

Page 23


Available co certification levels l.jpg

Available CO Certification Levels

Page 24


Available pm certification levels l.jpg

Available PM Certification Levels

Page 25


Fleet average nmog26 l.jpg

Fleet Average NMOG

Gray denotes possible alternative futures (alternatives that also meet required fleet averages).

Note effect of NLEV in closing Tier 1/LEV I gap.

Page 26


Fleet average no x l.jpg

Fleet Average NOx

Gray denotes possible alternative futures (alternatives that also meet required fleet averages).

Note effect of NLEV in closing Tier 1/LEV I gap.

Page 27


Fleet average co l.jpg

Fleet Average CO

Gray denotes possible alternative futures (alternatives that also meet required fleet averages).

Note effect of NLEV in closing Tier 1/LEV I gap.

Page 28


Fleet average pm l.jpg

Fleet Average PM

Gray denotes possible alternative futures (alternatives that also meet required fleet averages).

Note effect of NLEV in closing Tier 1/LEV I gap.

Page 29


Evaporative hc l.jpg

Evaporative HC

  • LEV II running loss and refueling loss standards are the same as Tier 2 (0.05 g/mi and 0.20 g/gal respectively).

  • However, LEV II diurnal+hot soak standards are substantially more stringent than Tier 2.

    • PC standards are just under 50% more stringent.

    • LDT standards are about 30% more stringent up to 6K GVW, 5% more stringent 6-8.5K GVW.

Page 30


Tier 2 versus lev ii observations b31 l.jpg

Tier 2 versus LEV II - Observations (b)
