Ipoib

IPoIB

Vivek Kashyap

[email protected]

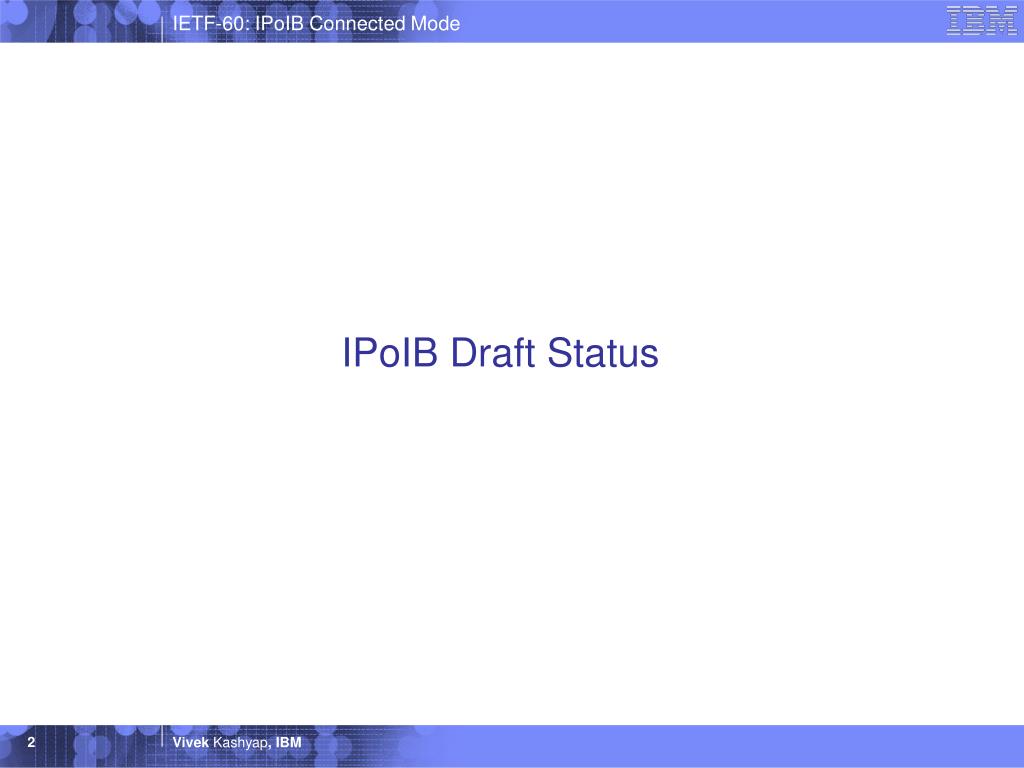

Ipoib draft status

IPoIB Draft Status

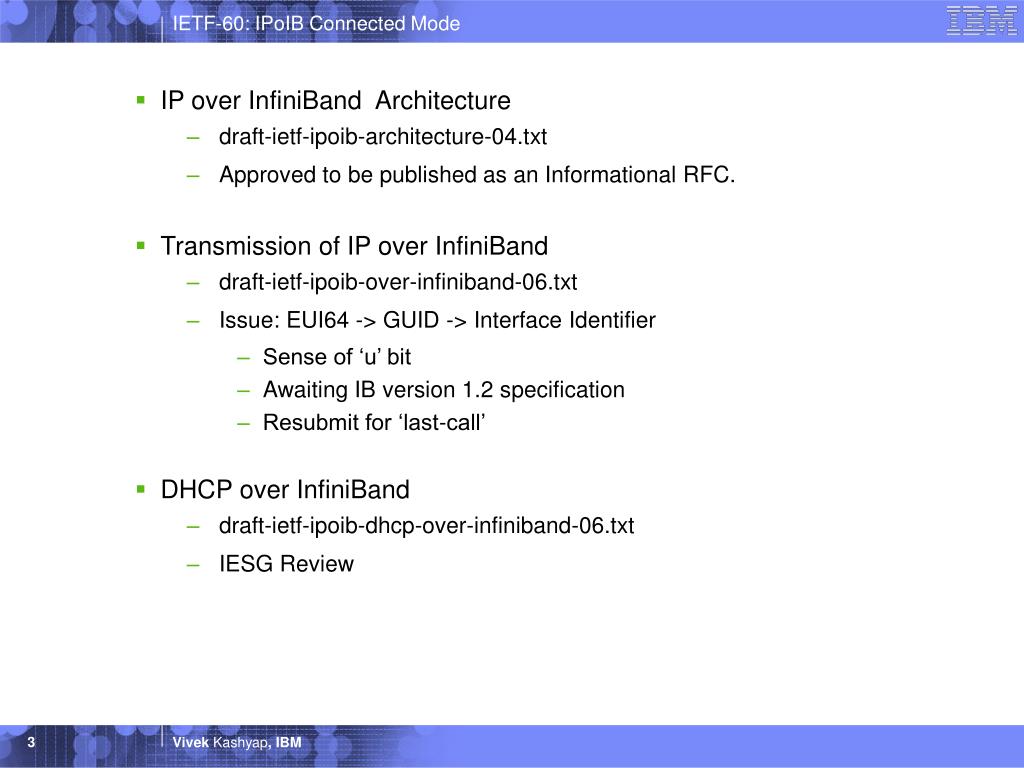

Ipoib

  • IP over InfiniBand Architecture

    • draft-ietf-ipoib-architecture-04.txt

    • Approved to be published as an Informational RFC.

  • Transmission of IP over InfiniBand

    • draft-ietf-ipoib-over-infiniband-06.txt

    • Issue: EUI64 -> GUID -> Interface Identifier

      • Sense of ‘u’ bit

      • Awaiting IB version 1.2 specification

      • Resubmit for ‘last-call’

  • DHCP over InfiniBand

    • draft-ietf-ipoib-dhcp-over-infiniband-06.txt

    • IESG Review

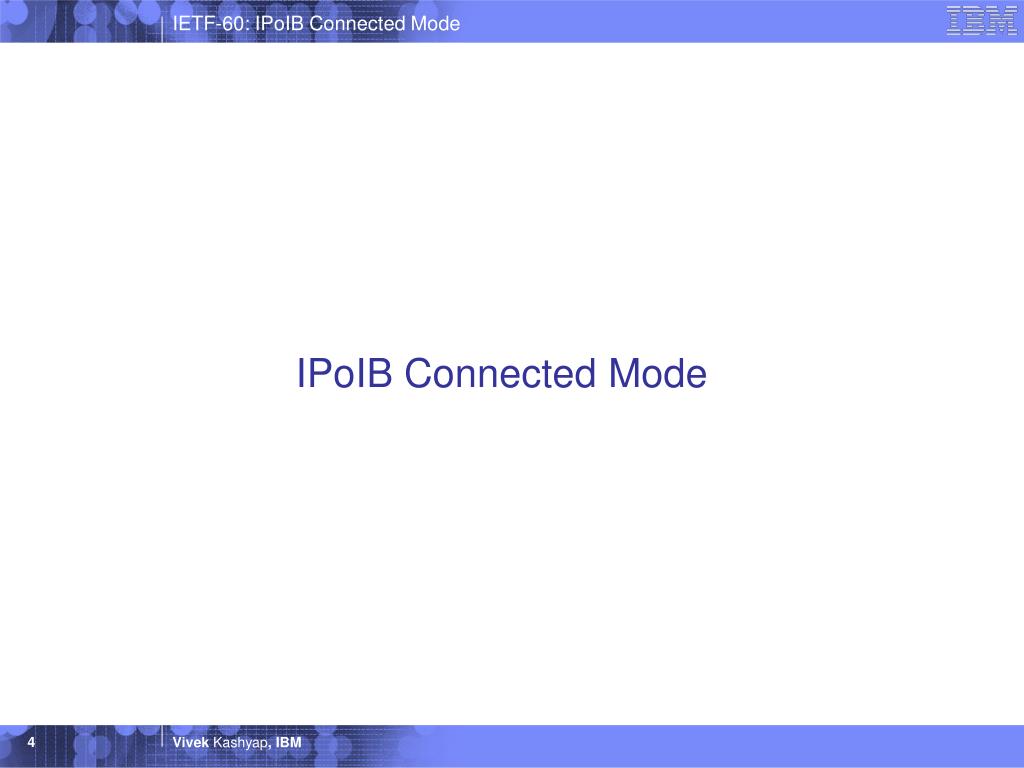

Ipoib connected mode

IPoIB Connected Mode

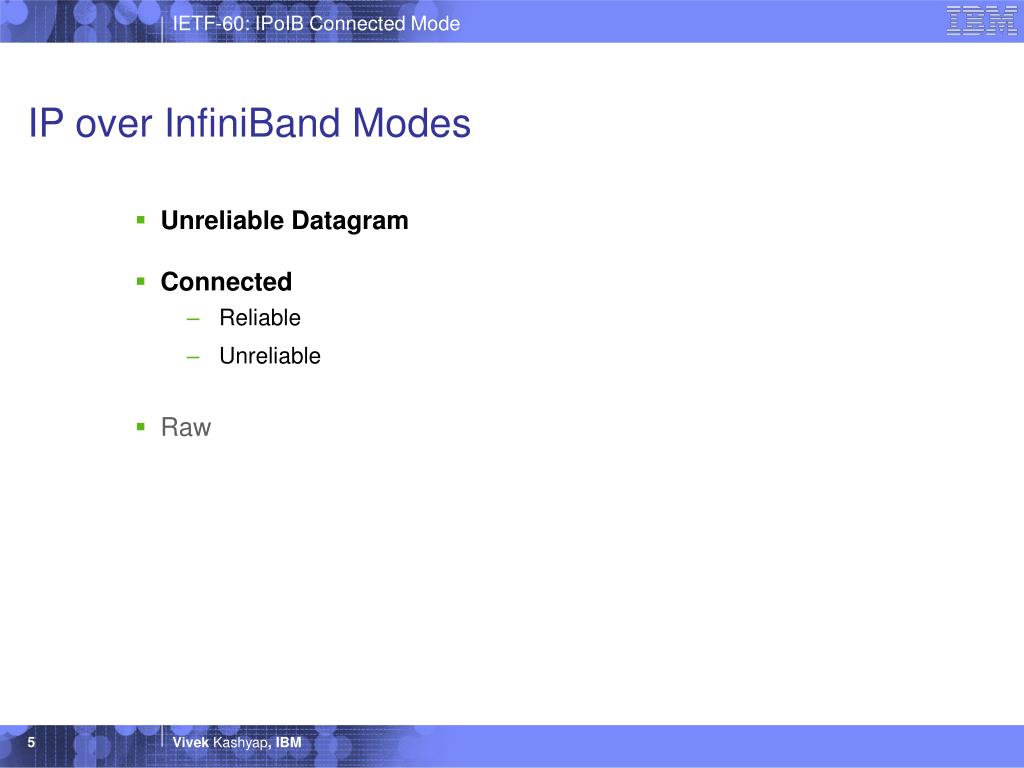

Ip over infiniband modes

IP over InfiniBand Modes

  • Unreliable Datagram

  • Connected

    • Reliable

    • Unreliable

  • Raw


Ipoib connected mode1

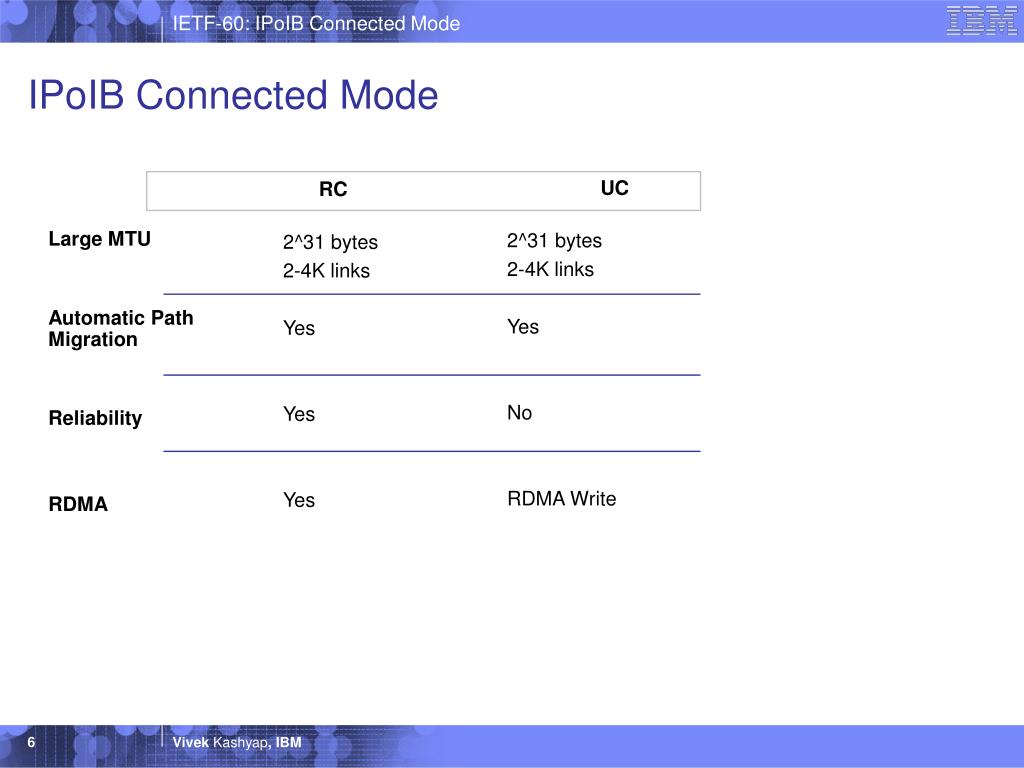

IPoIB Connected Mode

  • UC

  • 2^31 bytes

  • 2-4K links

  • Yes

  • No

  • RDMA Write

  • RC

  • 2^31 bytes

  • 2-4K links

  • Yes

  • Yes

  • Yes

Large MTU

Automatic Path Migration

Reliability

RDMA


Ipoib subnet

IPoIB Subnet

  • IPoIB-Connected subnet is formed over a Non-Broadcast Multiple Access network

    • IPoIB-UD is over an abstract broadcast link

Node A A

IPaIPp

IPq IPb

NodeB

NodeD

IPd IPs

IPr IPc

NodeC

IB switchednetwork

IPoIB UD broadcast domain

IPoIB Connected network

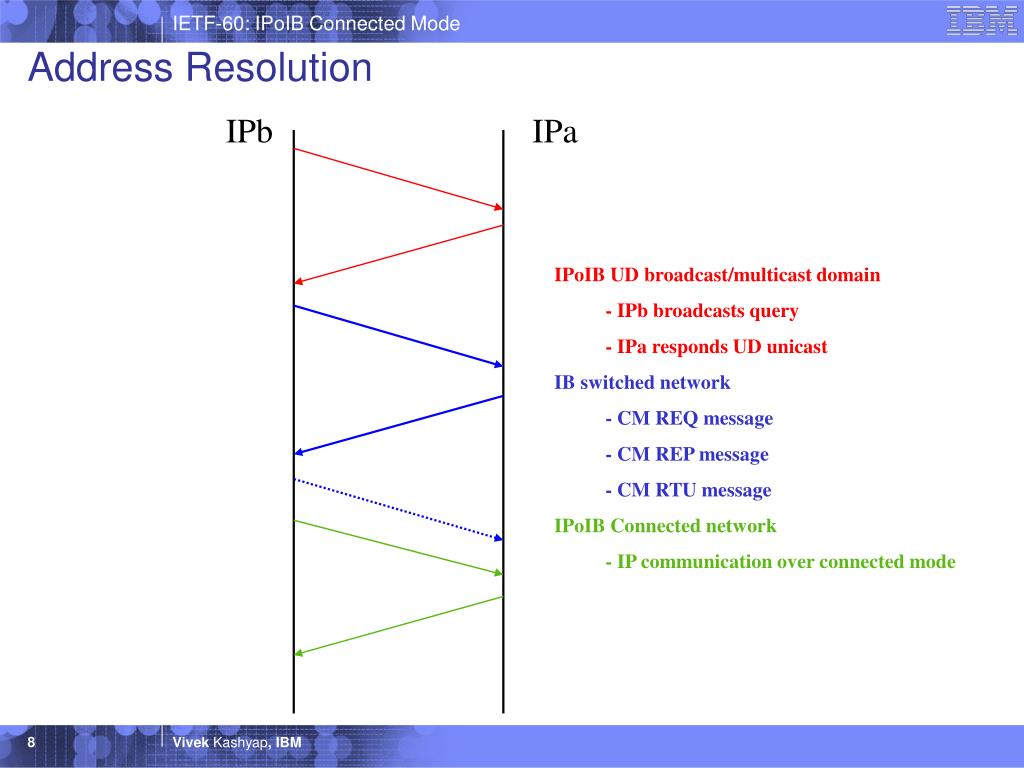

Address resolution

Address Resolution

IPb

IPa

  • IPoIB UD broadcast/multicast domain

    • - IPb broadcasts query

    • - IPa responds UD unicast

  • IB switchednetwork

    • - CM REQ message

    • - CM REP message

    • - CM RTU message

  • IPoIB Connected network

    • - IP communication over connected mode


Address resolution1

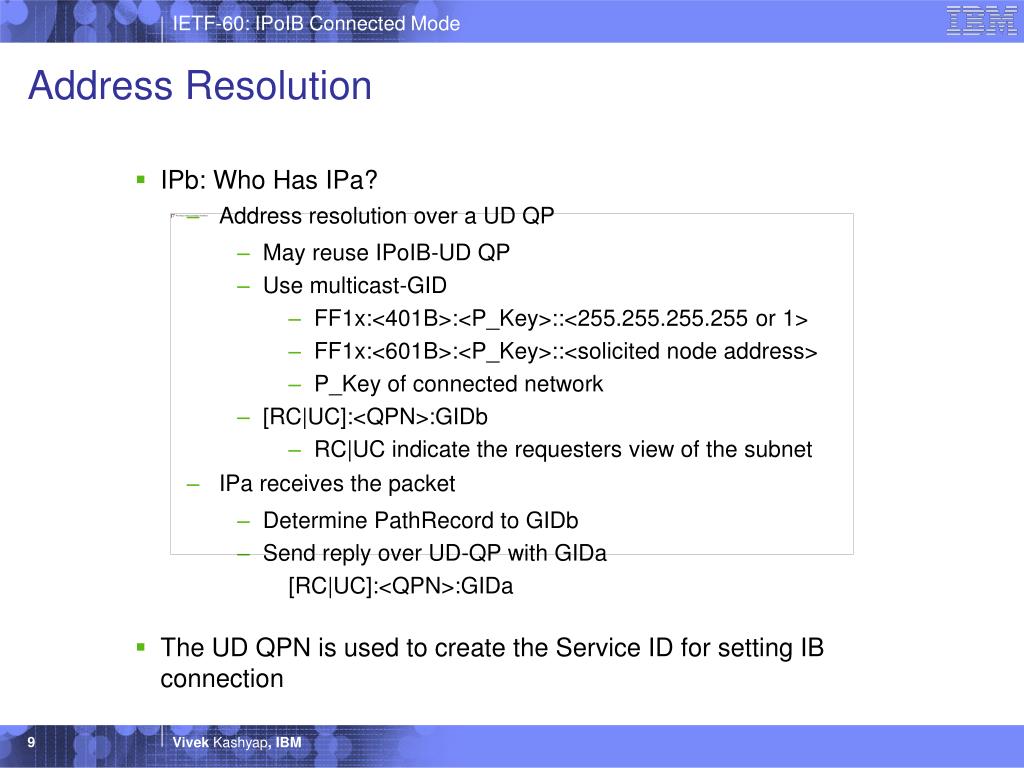

Address Resolution

  • IPb: Who Has IPa?

    • Address resolution over a UD QP

      • May reuse IPoIB-UD QP

      • Use multicast-GID

        • FF1x:<401B>:<P_Key>::<255.255.255.255 or 1>

        • FF1x:<601B>:<P_Key>::<solicited node address>

        • P_Key of connected network

      • [RC|UC]:<QPN>:GIDb

        • RC|UC indicate the requesters view of the subnet

    • IPa receives the packet

      • Determine PathRecord to GIDb

      • Send reply over UD-QP with GIDa

        • [RC|UC]:<QPN>:GIDa

  • The UD QPN is used to create the Service ID for setting IB connection


Connection setup

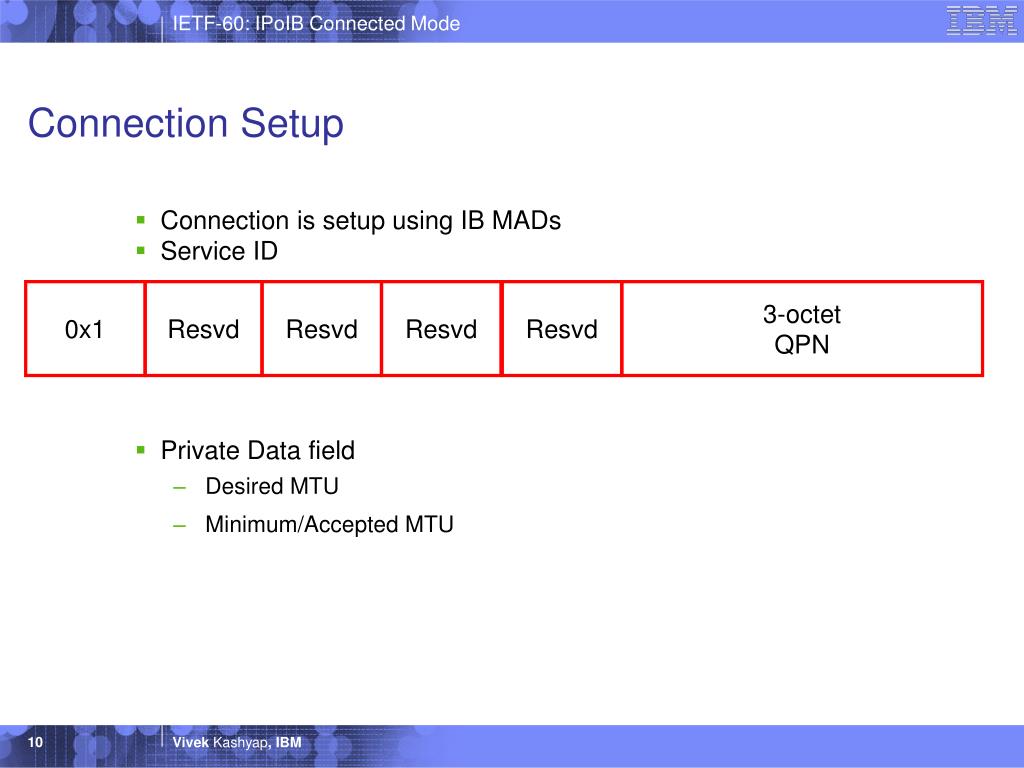

Connection Setup

  • Connection is setup using IB MADs

  • Service ID

  • Private Data field

    • Desired MTU

    • Minimum/Accepted MTU

0x1

Resvd

Resvd

Resvd

Resvd

3-octet

QPN

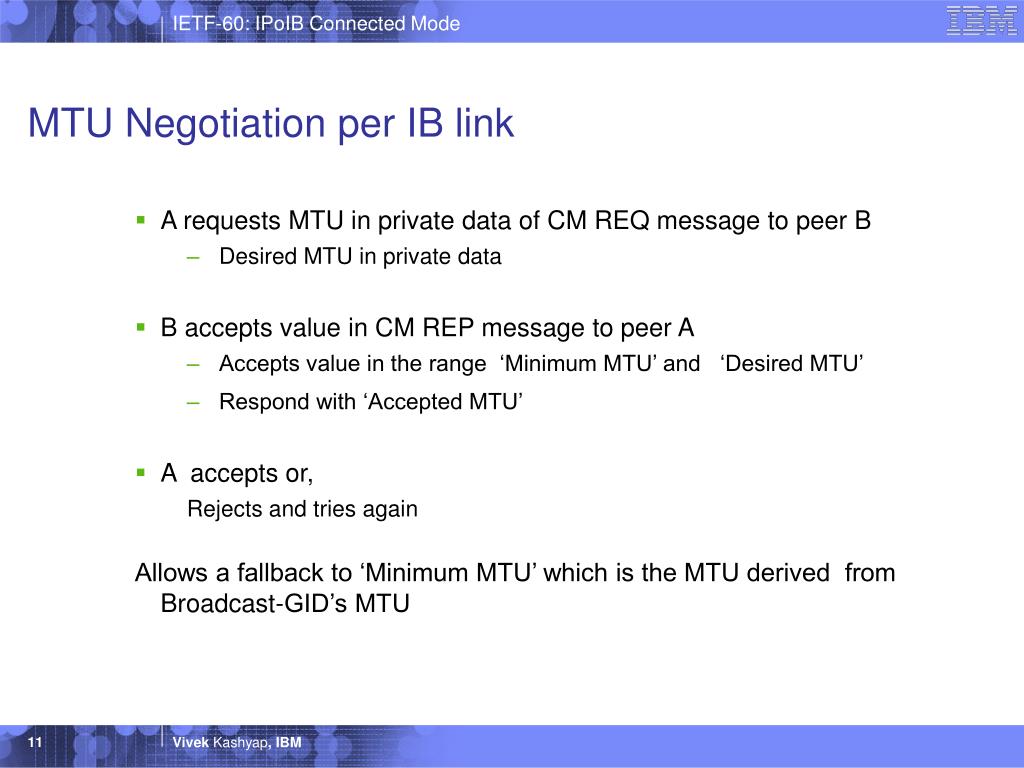

Mtu negotiation per ib link

MTU Negotiation per IB link

  • A requests MTU in private data of CM REQ message to peer B

    • Desired MTU in private data

  • B accepts value in CM REP message to peer A

    • Accepts value in the range ‘Minimum MTU’ and ‘Desired MTU’

    • Respond with ‘Accepted MTU’

  • A accepts or,

    • Rejects and tries again

      Allows a fallback to ‘Minimum MTU’ which is the MTU derived from Broadcast-GID’s MTU

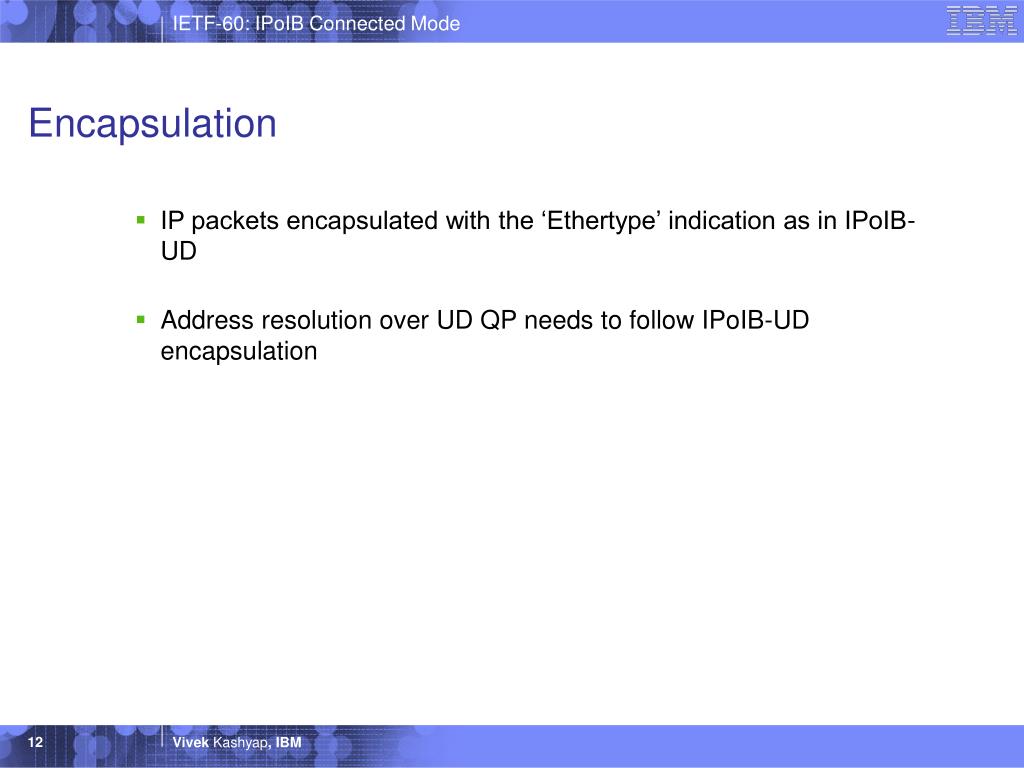

Encapsulation

Encapsulation

  • IP packets encapsulated with the ‘Ethertype’ indication as in IPoIB-UD

  • Address resolution over UD QP needs to follow IPoIB-UD encapsulation


Ongoing discussions

Ongoing discussions

  • Multiple connected mode links between peers

    • Draft says ‘SHOULD NOT’

    • Proposal:

      • Add more detail to draft

      • Multiple IB connects are allowed. But ‘user beware’.

  • Mixed UC/RC interconnects

    • Link type determined based on advertisement

    • Issue: interoperability


Questions

Questions?

Vivek Kashyap

[email protected]
