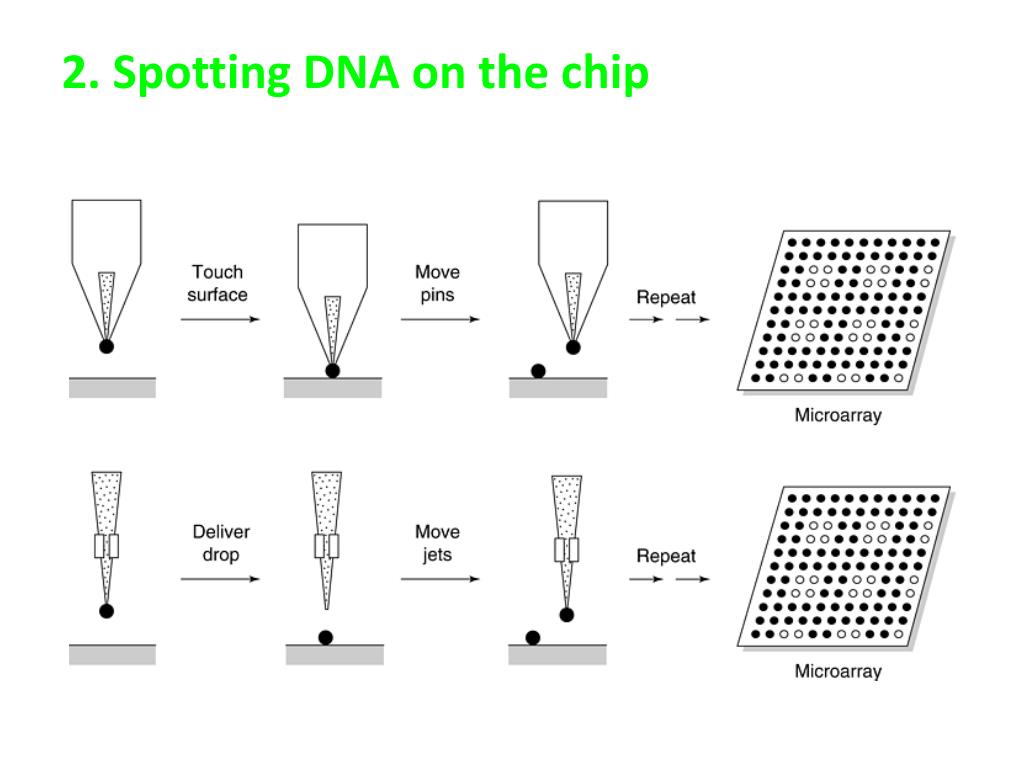

samples. mRNA. cDNA. DNA microarray. Microarray hybridization. Usually comparative Ratio between two samples Examples Tumor vs. normal tissue Drug treatment vs. no treatment Embryo vs. adult. 2. Spotting DNA on the chip. Types of printing pins. Apply small droplets on contact.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Microarray hybridization' - caldwell-dunlap


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
Microarray hybridization

samples

mRNA

cDNA

DNA

microarray

Microarray hybridization

  • Usually comparative

    • Ratio between two samples

  • Examples

    • Tumor vs. normal tissue

    • Drug treatment vs. no treatment

    • Embryo vs. adult



Types of printing pins

Apply small droplets on contact

Capillary action on contact

Spray droplets under pressure

Pin stamps DNA on contact



Comparisons of microarrays

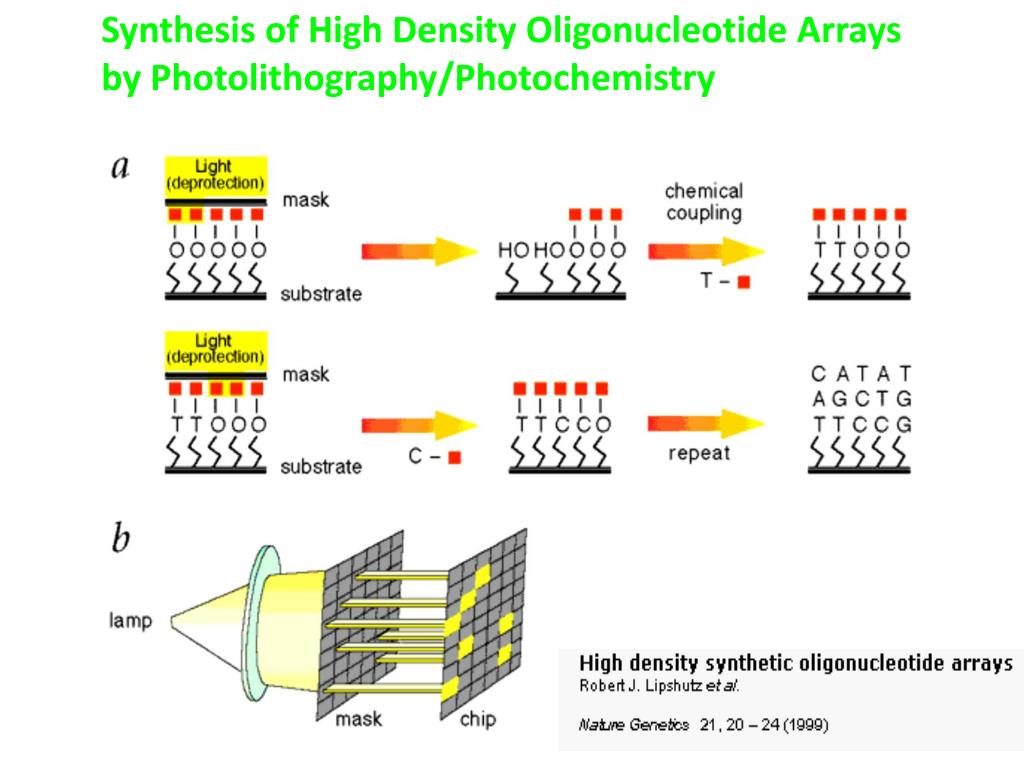

Comparisons of microarrays Photolithography/Photochemistry


Scanning of microarrays
Scanning of microarrays Photolithography/Photochemistry

laser

  • Confocal laser scanning microscopy

  • Laser beam excites each spot of DNA

  • Amount of fluorescence detected

  • Different lasers used for different wavelengths

    • Cy3

    • Cy5

detection



Target preparation and hybridization

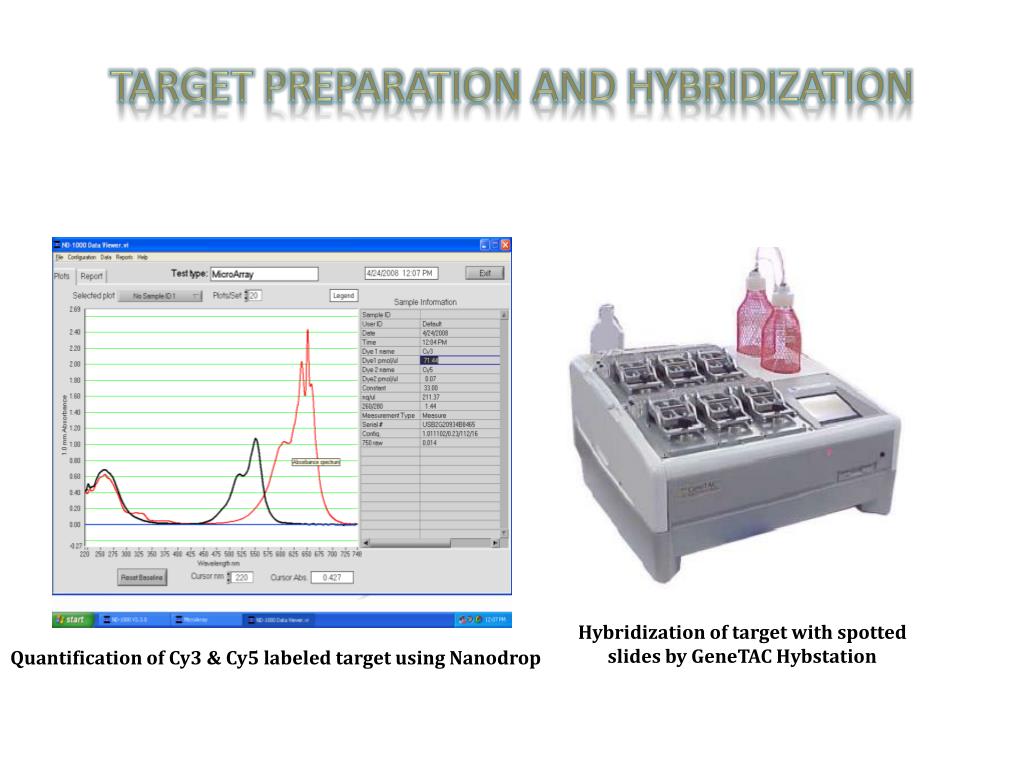

Target Preparation and Hybridization Photolithography/Photochemistry

Hybridization of target with spotted slides by GeneTAC Hybstation

Quantification of Cy3 & Cy5 labeled target using Nanodrop

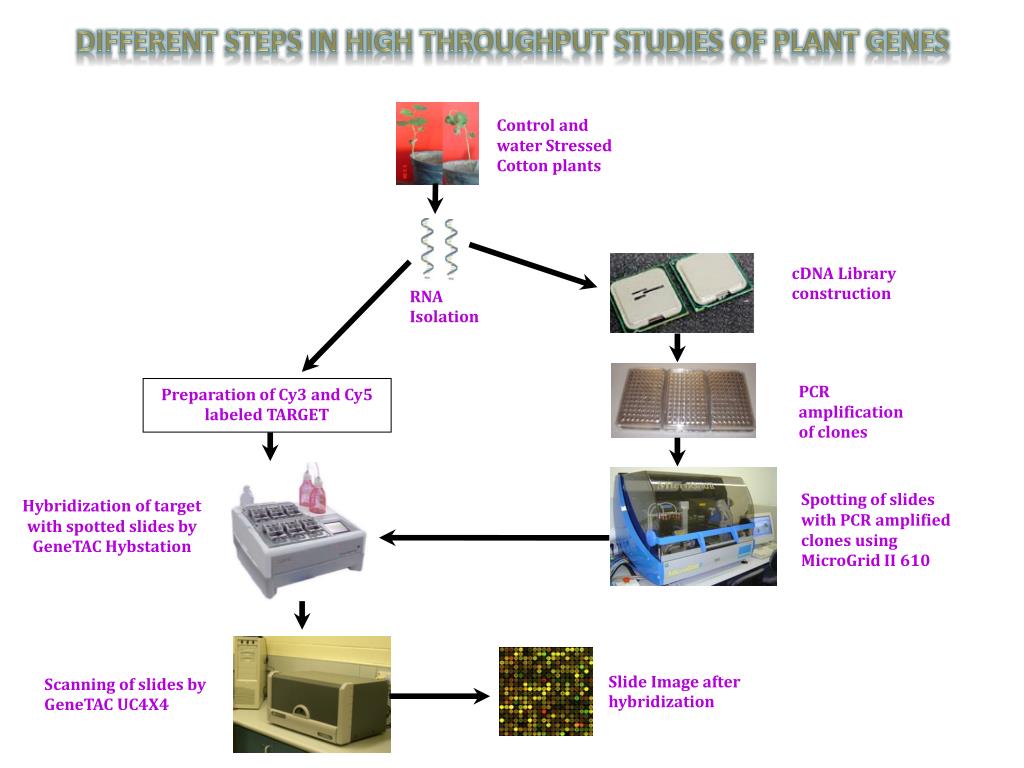

DIFFERENT STEPS IN HIGH THROUGHPUT STUDIES OF PLANT GENES Photolithography/Photochemistry

Control and water Stressed Cotton plants

cDNA Library construction

RNA Isolation

PCR amplification of clones

Preparation of Cy3 and Cy5 labeled TARGET

Spotting of slides with PCR amplified clones using MicroGrid II 610

Hybridization of target with spotted slides by GeneTAC Hybstation

Slide Image after hybridization

Scanning of slides by GeneTAC UC4X4


4 1 scanning capturing images
4.1 Scanning & capturing images Photolithography/Photochemistry


Scanning of hybridized slides
Scanning of Hybridized Slides Photolithography/Photochemistry

Co-expressed

Up-regulated

Down-regulated

Image files of hybridized slide in both Cy3 and Cy5 channels

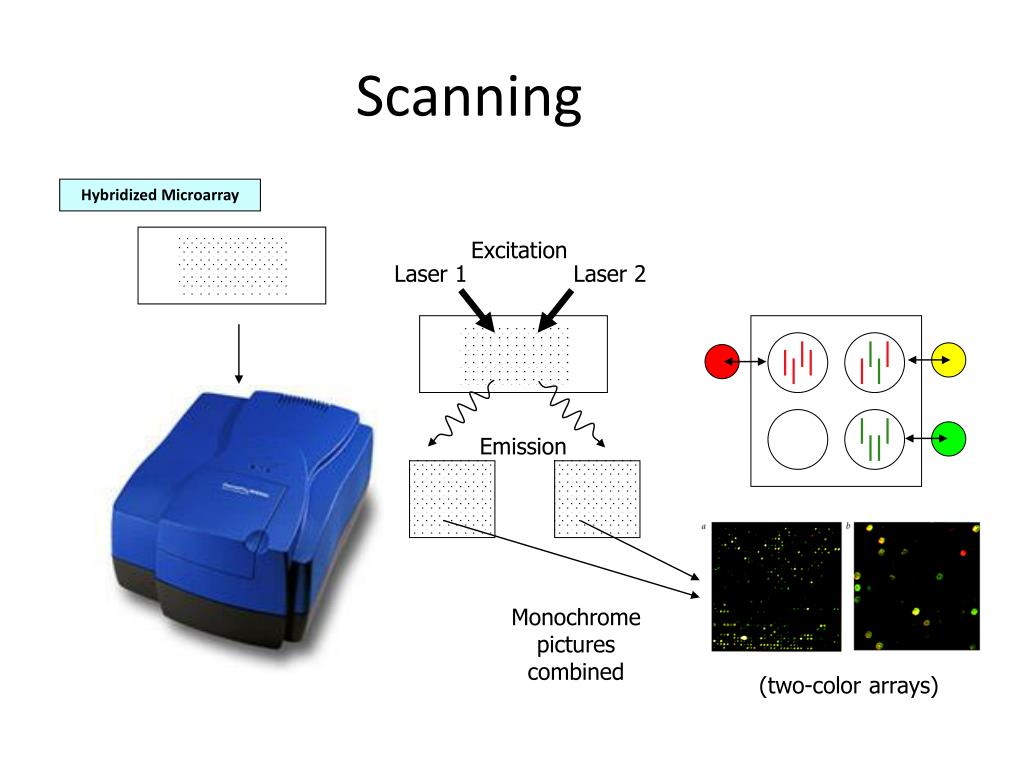

Scanning
Scanning Photolithography/Photochemistry

Hybridized Microarray

Excitation

Laser 1

Laser 2

Emission

Monochrome pictures combined

(two-color arrays)


Image segmentation

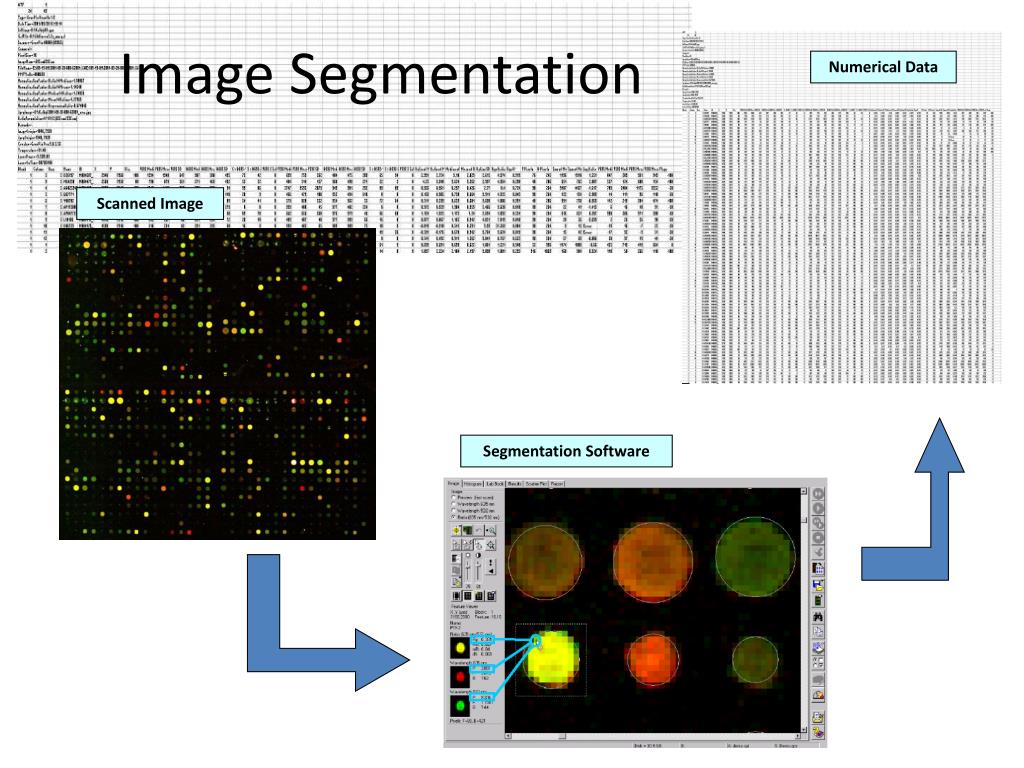

Image Segmentation Photolithography/Photochemistry

Numerical Data

Scanned Image

Segmentation Software


Analysis of hybridization

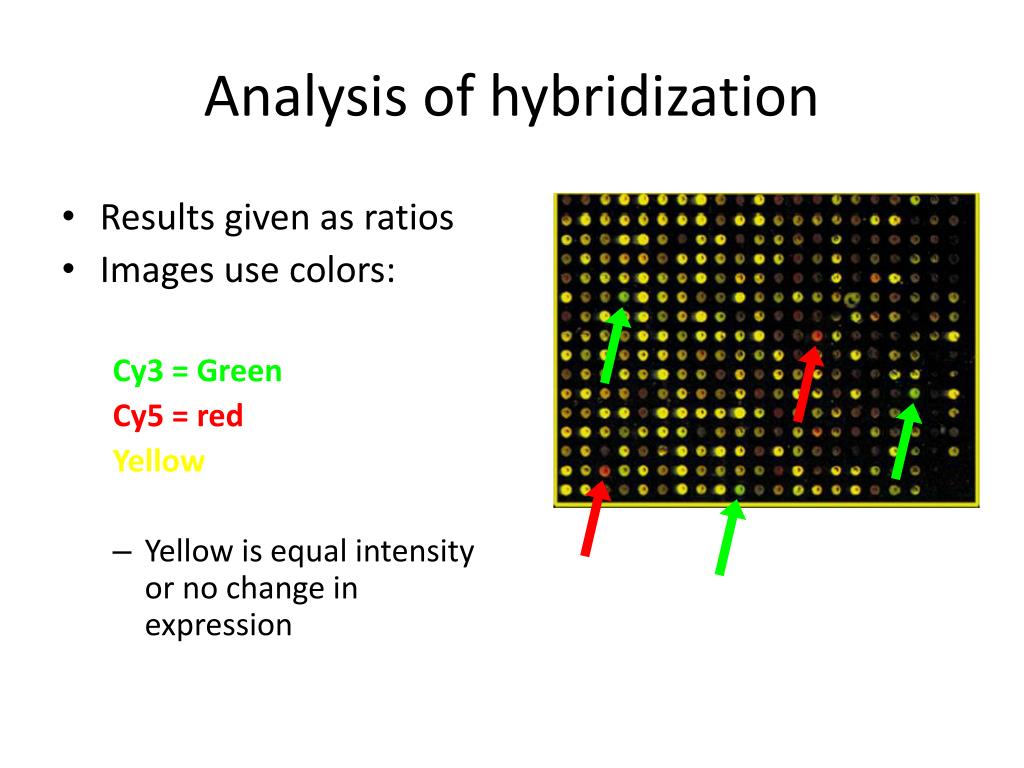

Analysis of hybridization Photolithography/Photochemistry

  • Results given as ratios

  • Images use colors:

    Cy3 = Green

    Cy5 = red

    Yellow

    • Yellow is equal intensity or no change in expression


Intensity dependent bias

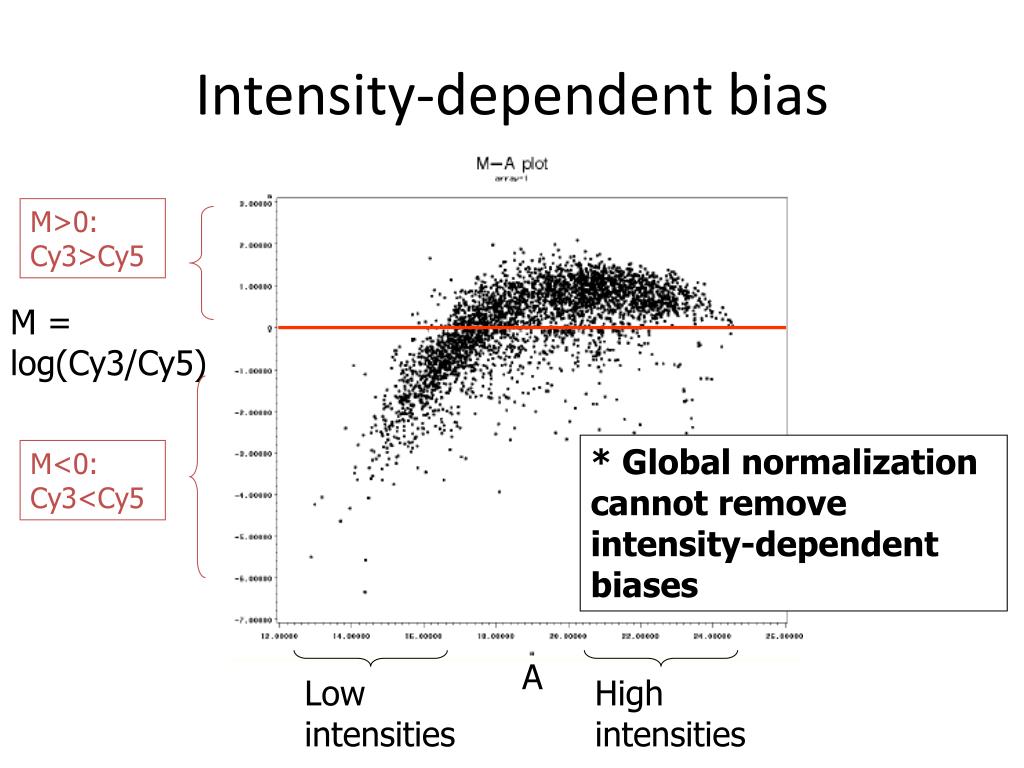

Intensity-dependent bias Photolithography/Photochemistry

M>0: Cy3>Cy5

M<0: Cy3<Cy5

Low intensities

High intensities

M = log(Cy3/Cy5)

* Global normalization cannot remove intensity-dependent biases

A


We expect the M vs A plot to look like: Photolithography/Photochemistry

M = log(Cy3/Cy5)

A


Lowess locally weighted scatterplot smoothing
LOWESS Photolithography/Photochemistry(Locally Weighted Scatterplot Smoothing)

Estimated values of log2(Cy5/Cy3) as function of log10(Cy3*Cy5)

  • Local linear regression model

  • Tri-cube weight function

  • Least Squares

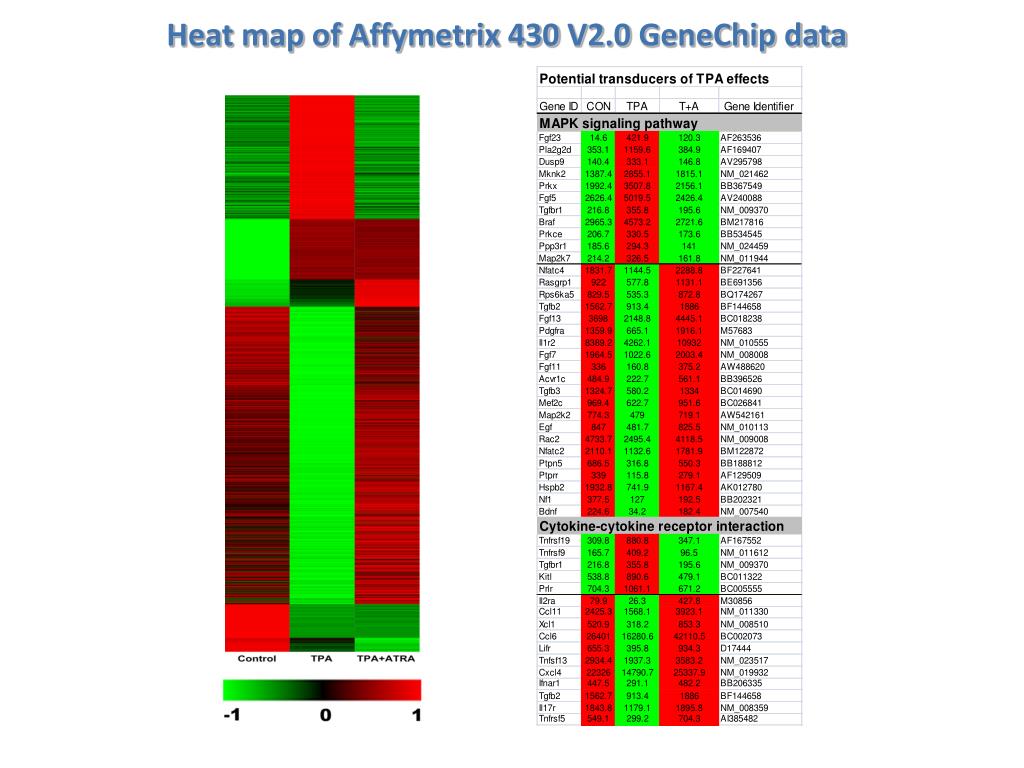

Heat map of Affymetrix 430 V2.0 GeneChip data Photolithography/Photochemistry
