  1. Lecture 19 Class Examples(Simple, Airplane, Queue, Pile)Copy vs. Clone

  2. Class Examples Simple, Airplane, Queue, Pile

  3. LB World’s Simplest Class! class Simple public Procedure setValue(dataIn isoftype in Number) // Precon: Initialization // Purpose: Sets value to dataIn // Postcon: Value is changed Function getValue returnsa Num() // Precon: Initialization // Purpose: Returns value to user // Postcon: No changes to object Procedure Initialize() // Precon: Object exists // Purpose: Initialization // Postcon: Value is defined to be zero

  4. LB (continued) protected value isoftype Num Procedure setValue(dataIn isoftype in Number) value <- dataIn endprocedure // setValue Function getValue returnsa Num() getValue returns value endfunction // getValue Procedure Initialize() value <- 0 endprocedure // Initialize endclass // Simple

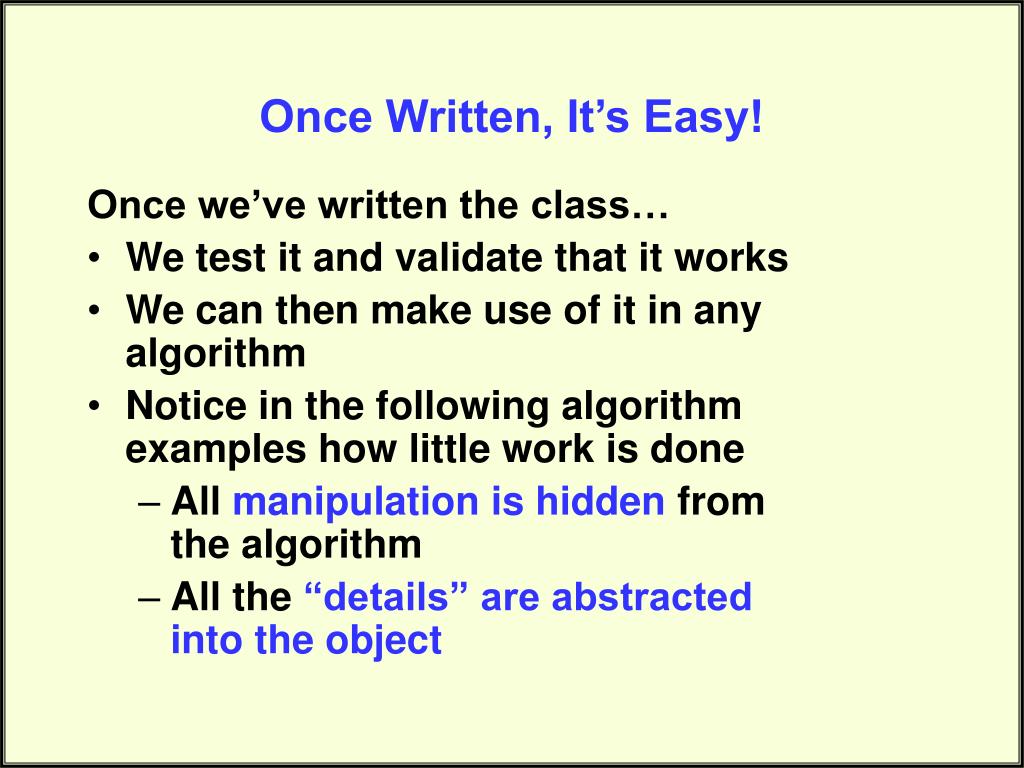

  5. Once Written, It’s Easy! Once we’ve written the class… • We test it and validate that it works • We can then make use of it in any algorithm • Notice in the following algorithm examples how little work is done • All manipulation is hidden from the algorithm • All the “details” are abstracted into the object

  6. Airplane Example An Airplane knows how to: • Take off • Land • Fly to a destination (and serve a snack) • Change its altitude It also has the following attributes • Current altitude • Whether it’s flying or not

  7. Airplane Symbolic Diagram Airplane Initialize TakeOff • InTheAir • Altitude ChangeAltitude IsFlying ServeSnack Land Fly

  8. class Airplane public procedure TakeOff // comments here procedure Land // comments here procedure ChangeAltitude (NewHeight iot in Num) // comments here function IsFying returnsa boolean // comments here procedure Initialize // comments here procedure Fly (destination iot in String) // comments here protected // create the persistent data InTheAir isoftype Boolean Altitude isoftype Num

  9. // still in the protected section procedure Initialize InTheAir <- FALSE Altitude <- 0 endprocedure // Initialize procedure TakeOff if InTheAir then print("I'm in the air!") else InTheAir <- TRUE ChangeAltitude(3000) endif endprocedure // TakeOff

  10. // still in the protected section procedure ChangeAltitude (NewHeight iot in Num) Altitude <- NewHeight endprocedure // ChangeAltitude procedure Fly (destination iot in String) print(“I’m flying to”, destination) ServeSnack endprocedure // Fly procedure ServeSnack // comments here MAKE PASSENGERS HAPPY endprocedure // ServeSnack

  11. // still in the protected section function IsFlying returnsa boolean IsFlying returns InTheAir endfunction // IsFlying procedure Land if InTheAir then InTheAir <- FALSE ChangeAltitude(0) else print("I'm not in the air!") endif endprocedure // Land endclass // Airplane

  12. Using the Airplane Class algorithm Airport uses Airplane Cessna1090 isoftype Airplane Cessna1090.Initialize Cessna1090.Takeoff Cessna1090.ChangeAltitude(30000) Cessna1090.Fly(“Baltimore”) Cessna1090.Land endalgorithm

  13. The Queue Dequeue A collection with restricted set of operations to change its state: only modified byadding to one end and deleting from the other. Enqueue

  14. NumberQueue Symbolic Diagram NumberQueue Initialize • head • tail Enqueue … Dequeue IsEmpty IsFull

  15. class NumberQueue public procedure Enqueue(value iot in Num) // contract information here procedure Dequeue(value iot out Num) // contract - queue not empty procedure Initialize // contract information here function IsEmpty returnsa Boolean // contract information here function IsFull returnsa Boolean // contract information here protected List_type definesa record data isoftype Num next isoftype Ptr toa List_type endrecord // create the persistent data head, tail isoftype Ptr toa List_type

  16. // still in the protected section procedure Enqueue(value iot in Num) temp isoftype Ptr toa List_type temp <- new(List_type) temp^.data <- value temp^.next <- NIL if(IsEmpty) then head <- temp else tail^.next <- temp endif tail <- temp endprocedure // Enqueue

  17. // still in the protected section procedure Dequeue (value iot out Num) if(IsEmpty) then // violates contract! Error! else value <- head^.data head <- head^.next if(IsEmpty) then tail <- NIL endif endif endprocedure // Dequeue

  18. // still in the protected section function IsEmpty returnsa Boolean IsEmpty returns (head = NIL) endfunction // IsEmpty function IsFull returnsa Boolean IsFull returns FALSE // dynamic endfunction // IsFull procedure Initialize // initialize the persistent data head <- NIL tail <- NIL endprocedure // Initialize endclass // NumberQueue

  19. algorithm Store uses NumberQueue temp isoftype num checkout isoftype NumberQueue checkout.Initialize . . . loop some people enter and leave store randomly exitif ((no people in store) AND (closing_time)) if (someone walks up for service) then checkout.Enqueue(person’s number) endif if (NOT checkout.IsEmpty) then checkout.Dequeue(temp) print(“Now servicing person”, temp) endif endloop endalgorithm // Store

  20. Example: Simulating the Lotto • We want to define a class that will allow us to simulate the lottery. • We want to place elements into random locations in the collection. • When we get an item from the collection, we want a random element.

  21. A “Pile” Class • A data structure in which • Items are inserted somewhere randomly in the middle of the structure • Items are removed from a random location in the structure

  22. Pile Symbolic Diagram NumPile Initialize … • Head • num_of_things StickOn DigOut Random IsEmpty

  23. class NumPile public procedure StickOn (the_thing iot in Num) // purpose: put an item on the pile. // pre: none // post: the pile has the item added to it procedure DigOut (the_thing iot out Num) // purpose: get an item off of the pile. // pre: the pile is not empty. // post: the pile has a random element// removed. function IsEmpty returnsa boolean // comments here - contract procedure Initialize // comments here - contract

  24. protected PileNode definesa Record thing isoftype Num next isoftype ptr to PileNode endrecord // PileNode head isoftype ptr toa PileNode num_of_things isoftype Num procedure Initialize num_of_things <- 0 head <- NIL endprocedure // Initialize function IsEmpty returnsa boolean IsEmpty returns (head = NIL) endfunction // IsEmpty

  25. // still in the protected section function Random returnsa Num // returns a random number <= // num_of_things endfunction // Random procedure StickOn (thing isoftype in Num) place_to_insert isoftype Num place_to_insert <- Random new_node isoftype ptr toa PileNode new_node <- new(PileNode) // loop through pile until place-to- // insert is reached, then insert node num_of_things <- num_of_things + 1 endprocedure // StickOn

  26. // still in the protected section procedure DigOut (thing isoftype out Num) thing_to_snag isoftype Num place_to_get isoftype Num place_to_get <- Random // code for looping through pile to // find right thing-to-snag, then // remove it num_of_things <- num_of_things - 1 thing <- thing_to_snag endprocedure // Dig-Out endclass // NumPile

  27. Using the Pile Class algorithm Lotto uses NumPile lotto_pile isoftype NumPile lotto_pile.Initialize ticket isoftype Num loop exitif (All Entries Purchased) Get_Entry(ticket) // get input from user lotto_pile.StickOn(ticket) endloop // Now, find one winner lotto_pile.DigOut(ticket) print ("The winning number is", ticket) endalgorithm // Lotto

  28. Summary • Writing classes involves considerable work in • Design, Implementation, & Testing • But once done, algorithms may make use of the classes • Instantiating objects and manipulating them • Hiding the details and implementation • Much of the work is done inside the object

  29. Questions?

  30. Copy vs. Clone

  31. The Scenario • Imagine we have an object of type Queue • We’d like to duplicate the contents of the object • The assignment operator (<-) duplicates variables • How do we duplicate objects?

  32. Representing Objects • Objects may have static and dynamic components. MyNumQueue \\ 9 11 13 q_head q_tail

  33. Shallow vs. Deep Duplication Copy performs a shallow duplication – duplicating only the static data. Cloning performs a deep duplication – duplicating the static and dynamic data (i.e. following pointers into the heap and duplicating the heap data)

  34. \\ 9 11 13 Create Two Objects MyNumQueue isoftype Queue(Num) YourNumQueue isoftype Queue(Num) // do some work to fill in MyNumQueue MyNumQueue YourNumQueue \\ \\ q_head q_tail q_head q_tail

  35. \\ 9 11 13 Copying an Object YourNumQueue <- copy(MyNumQueue) YourNumQueue q_head q_tail q_head q_tail MyNumQueue

  36. 9 11 13 Risk of Copying an Object YourNumQueue.Enqueue(42) YourNumQueue q_head q_tail \\ 42 q_head q_tail MyNumQueue

  37. Risk of Copying an Object MyNumQueue.Enqueue(31) YourNumQueue q_head q_tail \\ 9 11 13 42 \\ 31 q_head q_tail MyNumQueue

  38. \\ 9 11 13 Create Two Objects MyNumQueue isoftype Queue(Num) YourNumQueue isoftype Queue(Num) // do some work to fill in MyNumQueue MyNumQueue YourNumQueue \\ \\ q_head q_tail q_head q_tail

  39. \\ \\ 9 9 11 11 13 13 Cloning an Object YourNumQueue <- clone(MyNumQueue) - or – YourNumQueue <- MyNumQueue MyNumQueue YourNumQueue q_head q_tail q_head q_tail

  40. Summary • Duplication of objects: • Shallow: only duplicate static memory • Deep: duplicate static and dynamic memory • Copy is shallow duplication • Clone is deep duplication • Assignment operation on objects is clone

  41. Questions
