  1. Dynamic Memory AllocationFall 2008 Dr. David A. Gaitros dgaitros@admin.fsu.edu

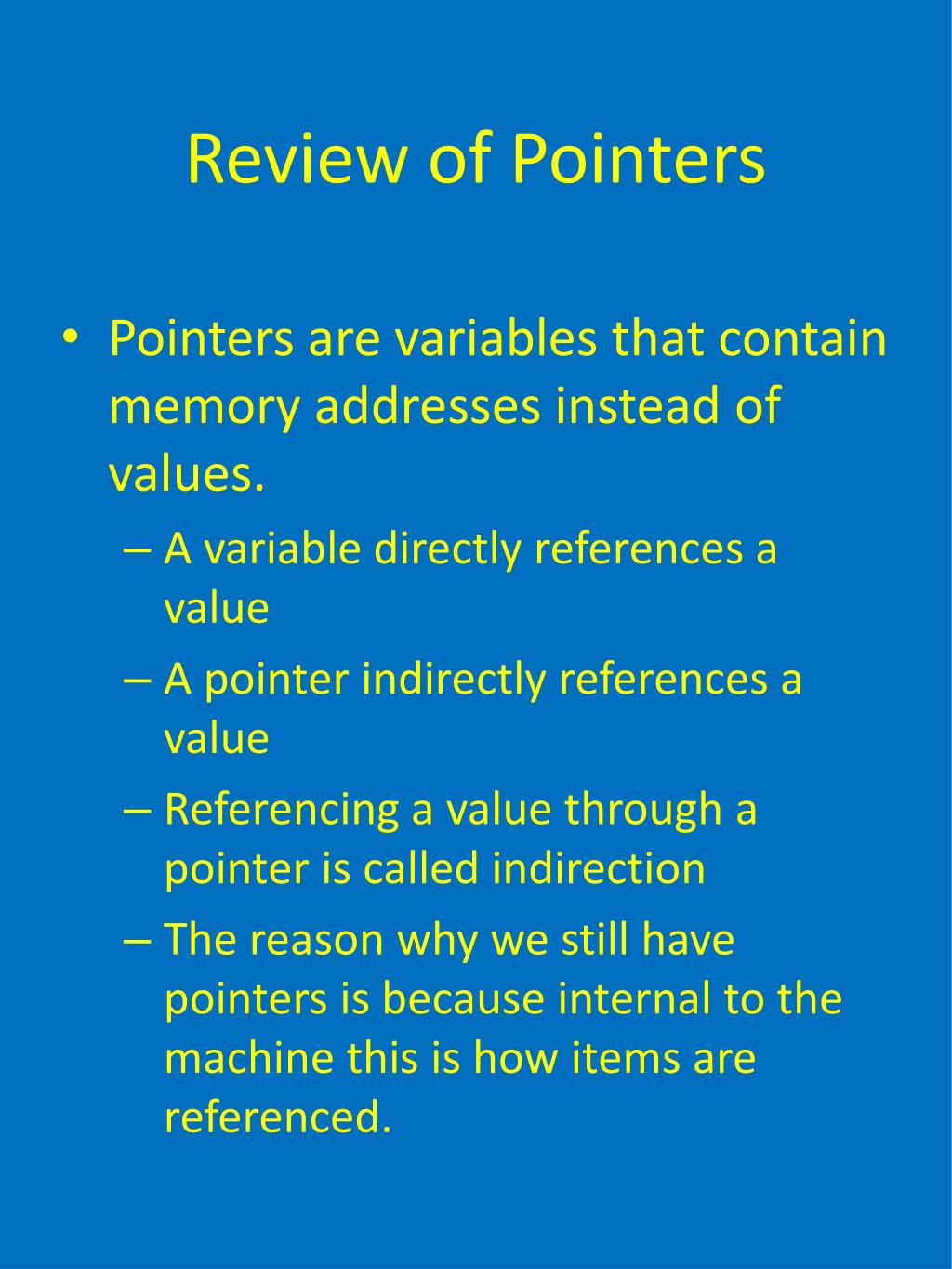

  2. Review of Pointers • Pointers are variables that contain memory addresses instead of values. • A variable directly references a value • A pointer indirectly references a value • Referencing a value through a pointer is called indirection • The reason why we still have pointers is because internal to the machine this is how items are referenced.

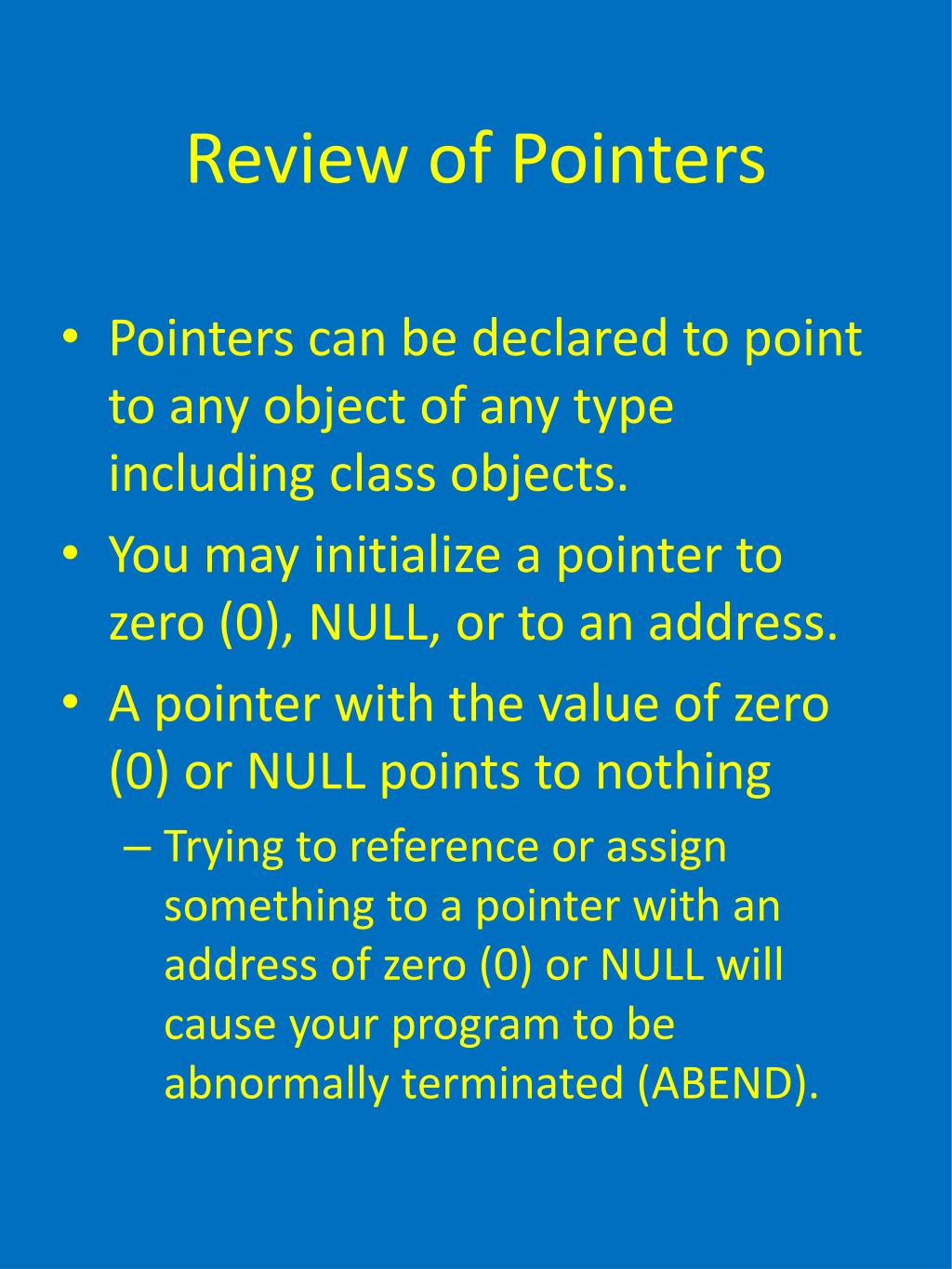

  3. Review of Pointers • Pointers can be declared to point to any object of any type including class objects. • You may initialize a pointer to zero (0), NULL, or to an address. • A pointer with the value of zero (0) or NULL points to nothing • Trying to reference or assign something to a pointer with an address of zero (0) or NULL will cause your program to be abnormally terminated (ABEND).

  4. Pointers • Example: int y=5; int *yPtr; yPtr = &y; cout << *yPtr << endl; • The unary operator “*”, or indirection operator returns the value of the object. • The unary operator “&” returns the address of an object.

  5. Pointers • Example int *countptr, count; float *xPtr, *yPtr; • The above declares countptr to hold an address that points to an integer. • count on the other hand holds the value of an integer. • Both xPtr and yPtr hold address that pointo to a floating point number.

  6. Pointers #include <iostream.h> int main(void) { int a; int *aPtr; a = 7; aPtr = &a; cout << “Address of a is “<< (&a) << endl; cout << “Value of a is “<< a << endl; cout << “Value of aPtr is “ << aPtr <<endl; cout << “Value of *aPtr is “ << *aPtr <<endl; cout << “ &*aPtr is “ << &*aPtr <<endl; cout << “ *&aPtr is “ << *&aPtr<< endl; return 0; }

  7. Pointers Output from previous program Address of a is 0x7fff1d834ee4 Value of a is 7 Value of aPtr is 0x7fff1d834ee4 Value of *aPtr is7 &*aPtr is 0x7fff1d834ee4 *&aPtr is 0x7fff1d834ee4

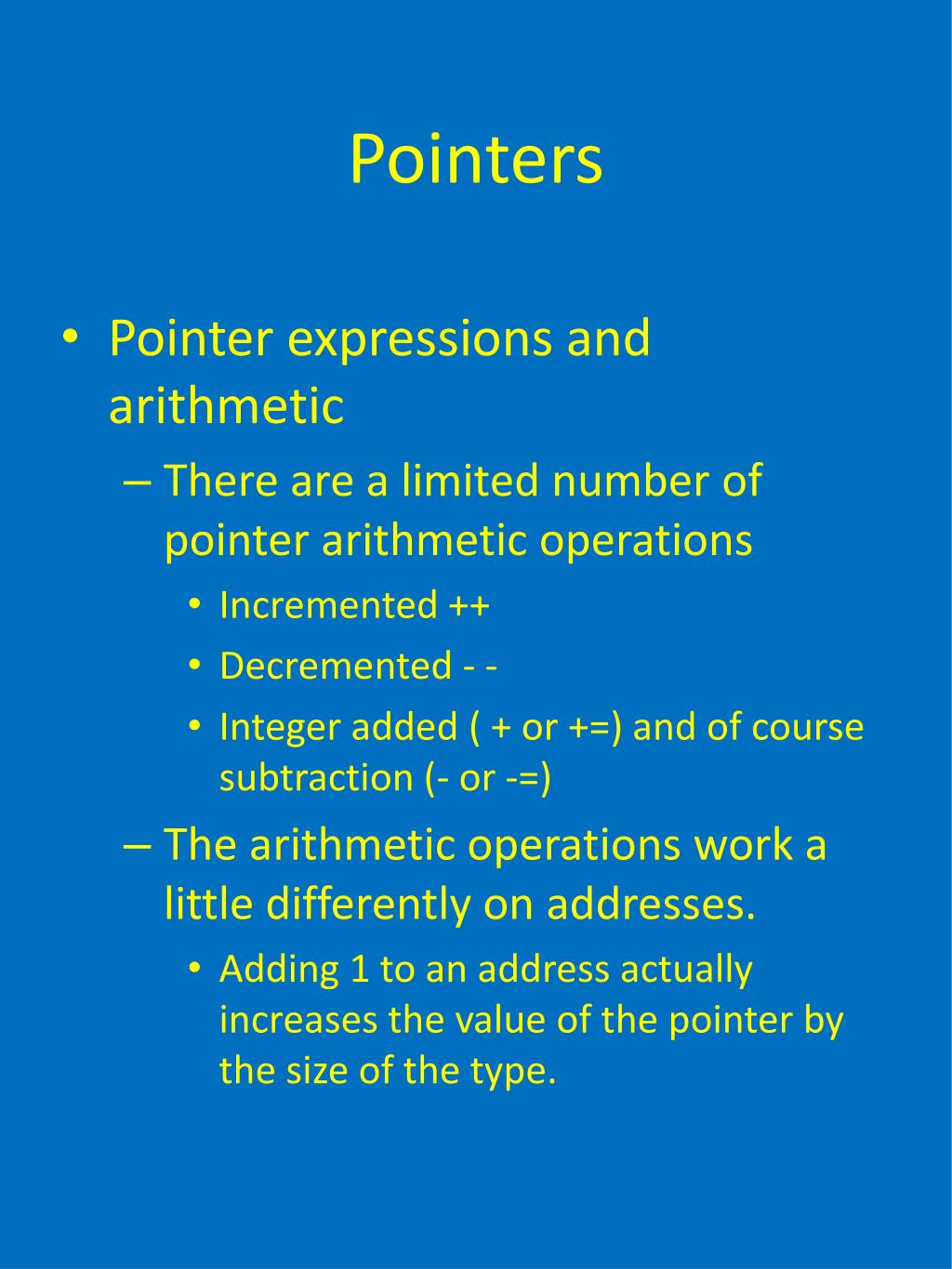

  8. Pointers • Pointer expressions and arithmetic • There are a limited number of pointer arithmetic operations • Incremented ++ • Decremented - - • Integer added ( + or +=) and of course subtraction (- or -=) • The arithmetic operations work a little differently on addresses. • Adding 1 to an address actually increases the value of the pointer by the size of the type.

  9. Pointers • Examples int v[10]; int *vPtr; // vPtr can be initialized // to point to the array v with // either of the following // statements vPtr = v; // or vptr = &v[0]; // Remember that by definition // an array is a pointer !

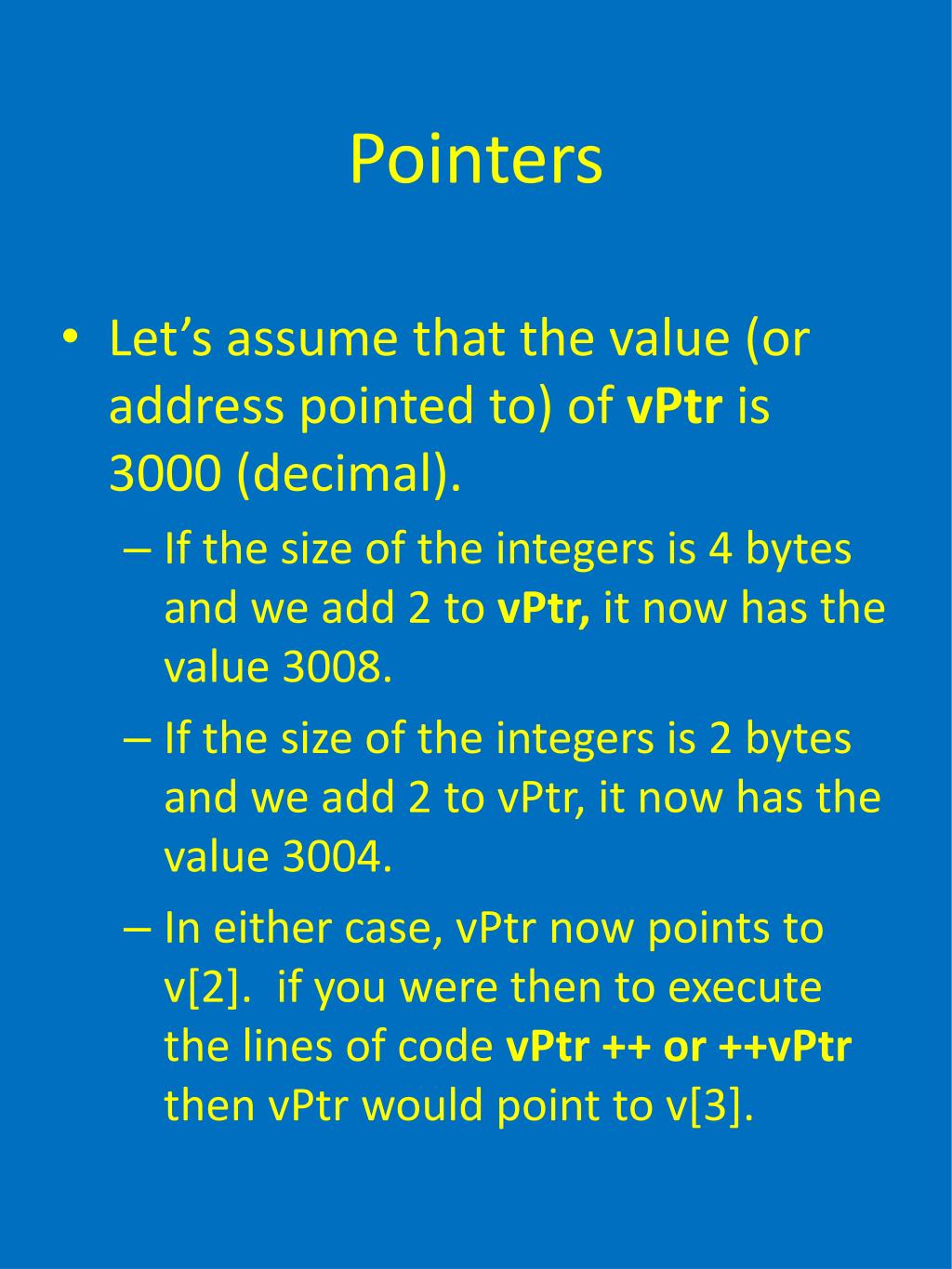

  10. Pointers • Let’s assume that the value (or address pointed to) of vPtr is 3000 (decimal). • If the size of the integers is 4 bytes and we add 2 to vPtr, it now has the value 3008. • If the size of the integers is 2 bytes and we add 2 to vPtr, it now has the value 3004. • In either case, vPtr now points to v[2]. if you were then to execute the lines of code vPtr ++ or ++vPtr then vPtr would point to v[3].

  11. Pointers • Example int x,v[10],*vPtr,*vPtr2; vPtr = &v[0]; // 1st element vPtr2 = &v[9]; // 10th element x = vPtr2 – vPtr; // x now contains the number of // array elements between v[0] // and v[9] which would be 10.

  12. Pointers • A pointer can be assigned to another pointer if and only if they are the same type. • Any pointer can be assigned a void * pointer • Comparison of pointers is only meaningful if they pointer to objects in the same array. • We commonly check to see if a pointer has the value of zero (0). In other words, does it point to a valid address.

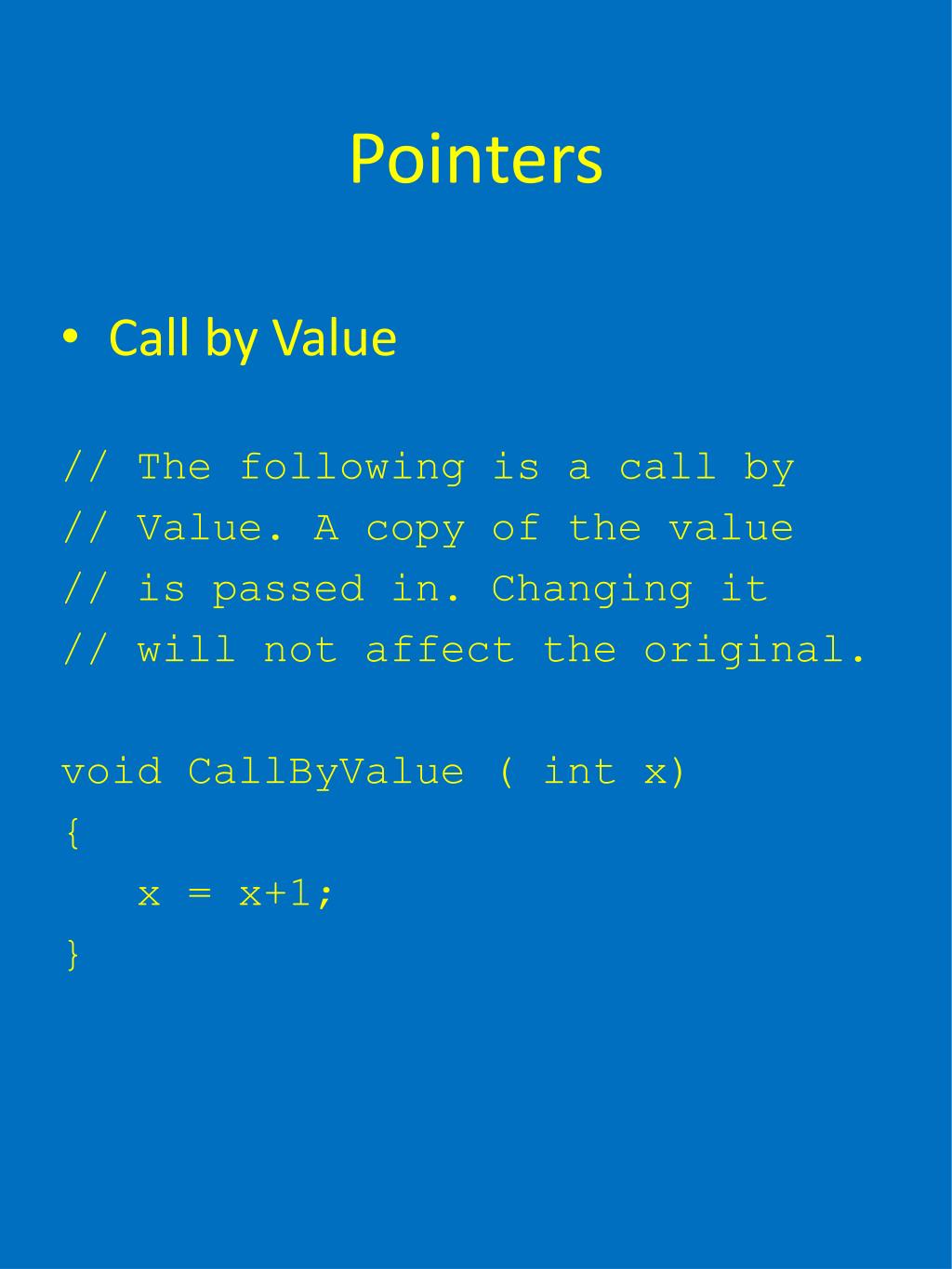

  13. Pointers • Call by Value // The following is a call by // Value. A copy of the value // is passed in. Changing it // will not affect the original. void CallByValue ( int x) { x = x+1; }

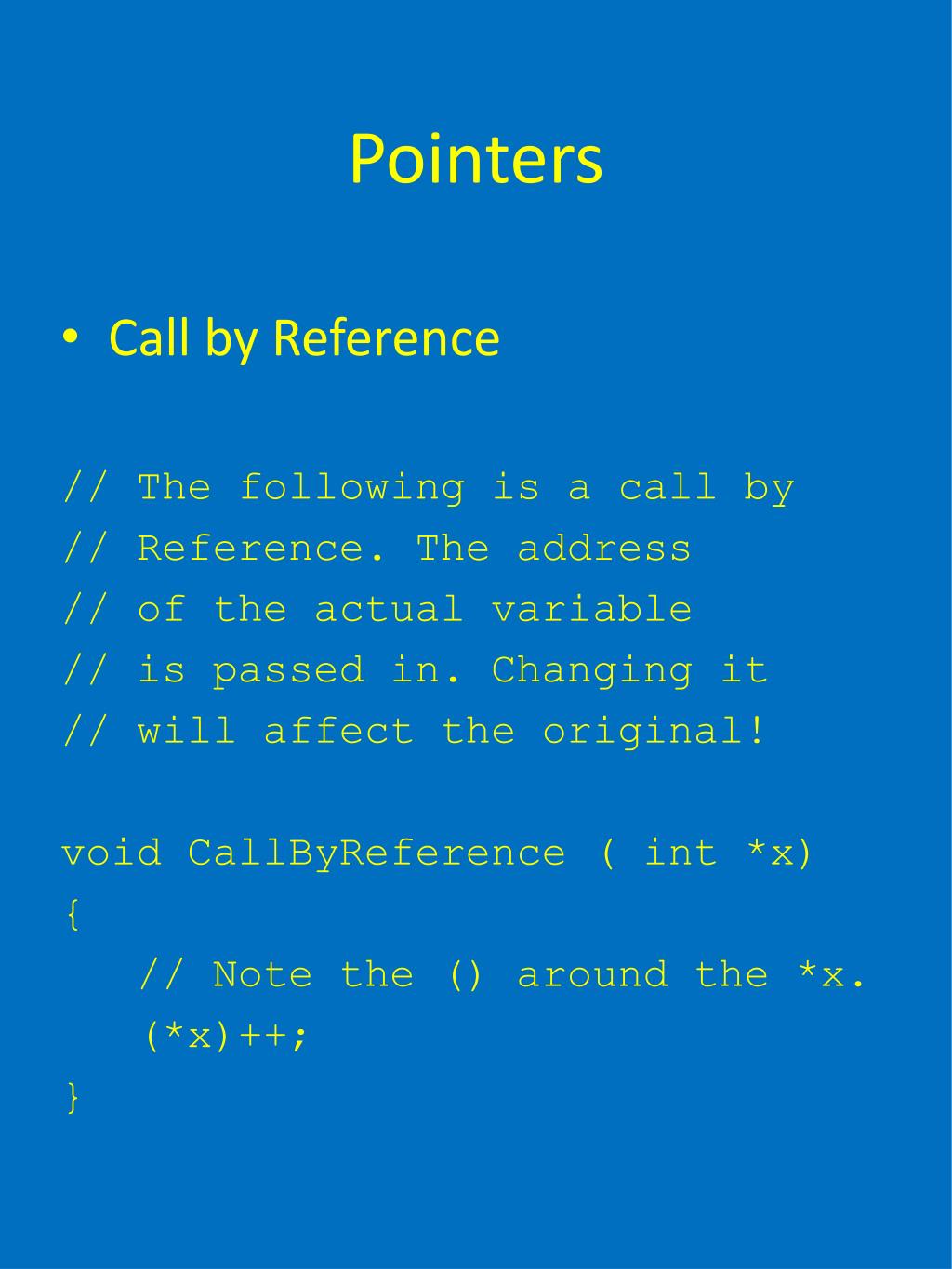

  14. Pointers • Call by Reference // The following is a call by // Reference. The address // of the actual variable // is passed in. Changing it // will affect the original! void CallByReference ( int *x) { // Note the () around the *x. (*x)++; }

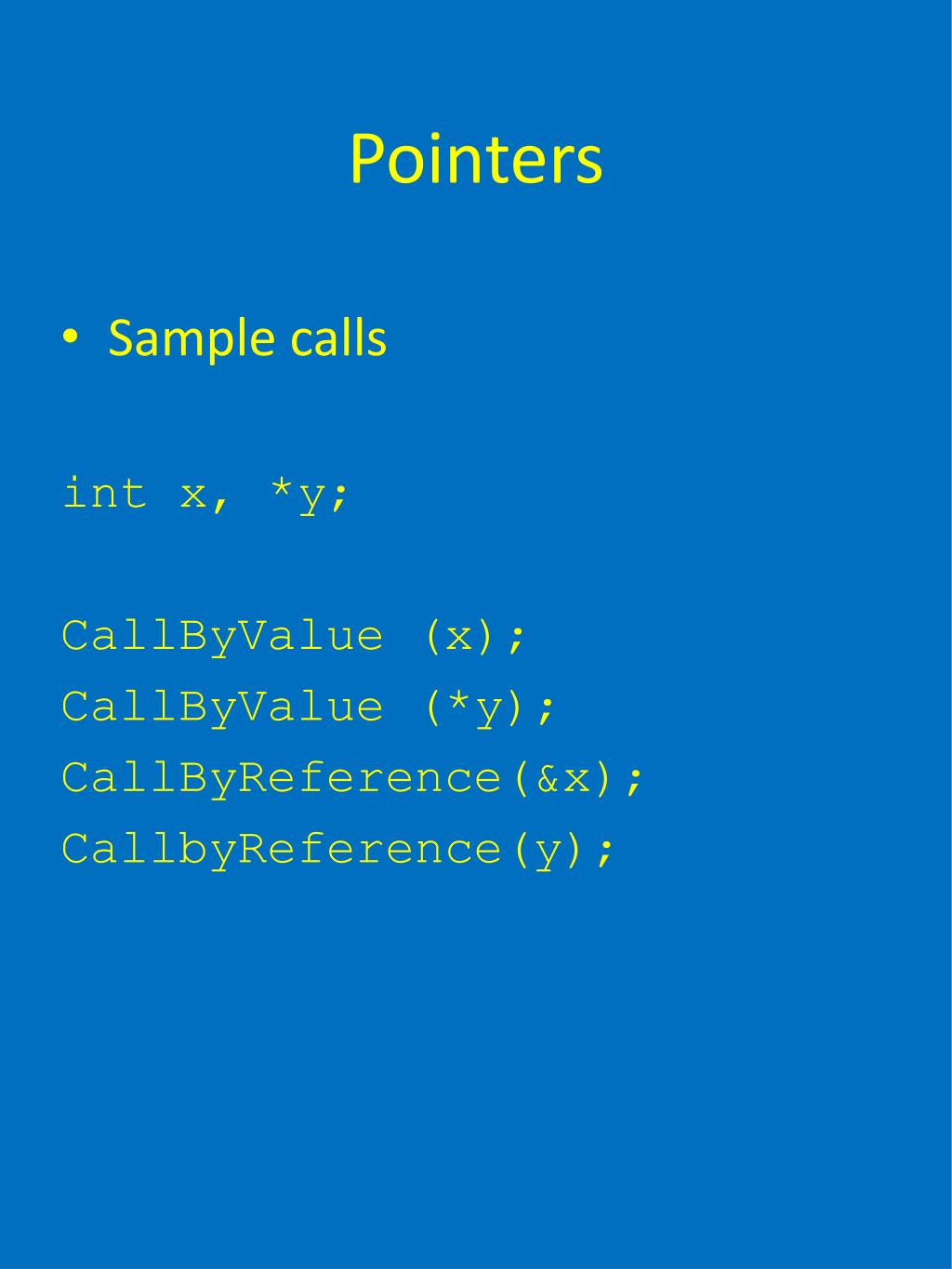

  15. Pointers • Sample calls int x, *y; CallByValue (x); CallByValue (*y); CallByReference(&x); CallbyReference(y);

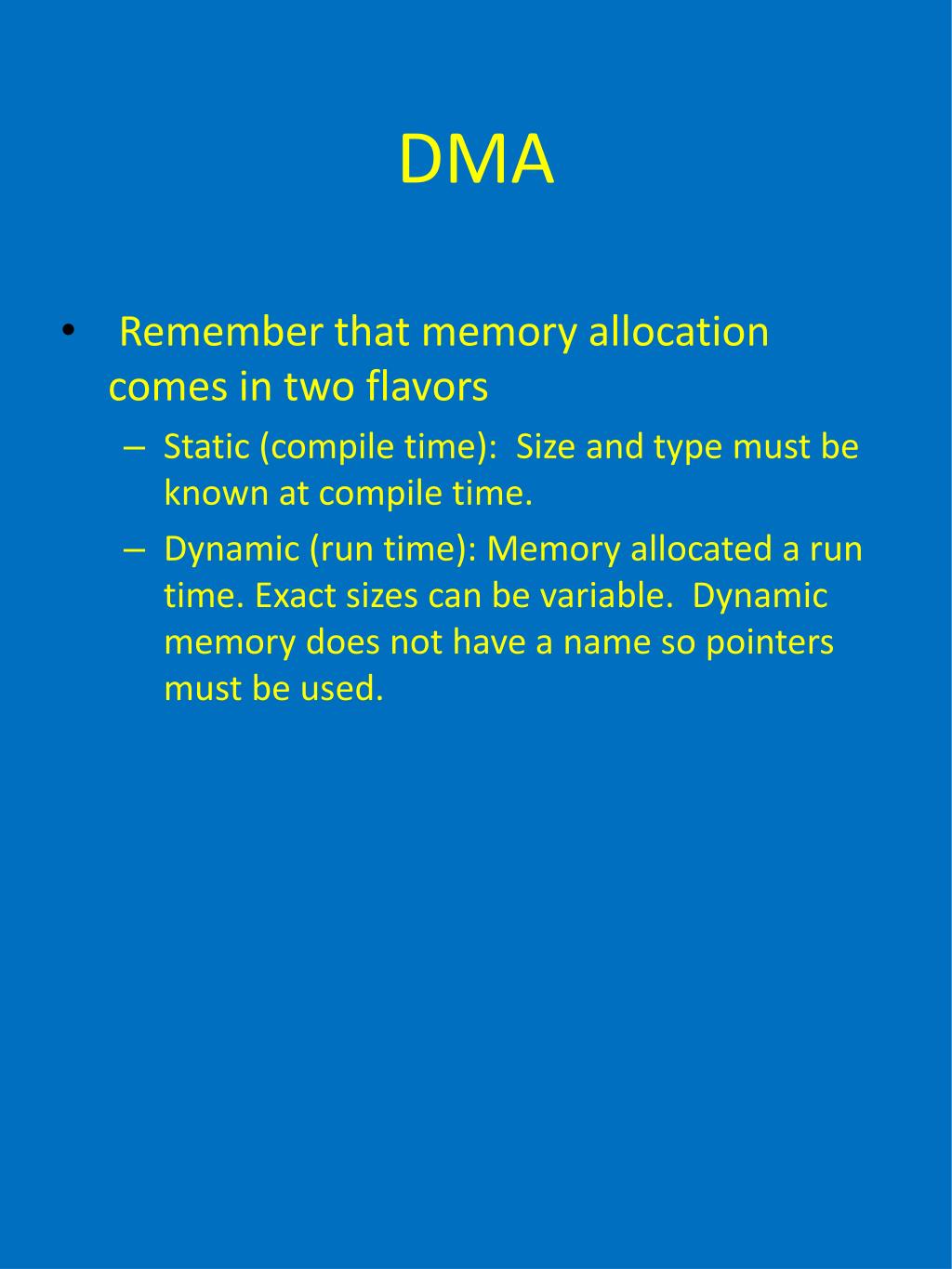

  16. DMA • Remember that memory allocation comes in two flavors • Static (compile time): Size and type must be known at compile time. • Dynamic (run time): Memory allocated a run time. Exact sizes can be variable. Dynamic memory does not have a name so pointers must be used.

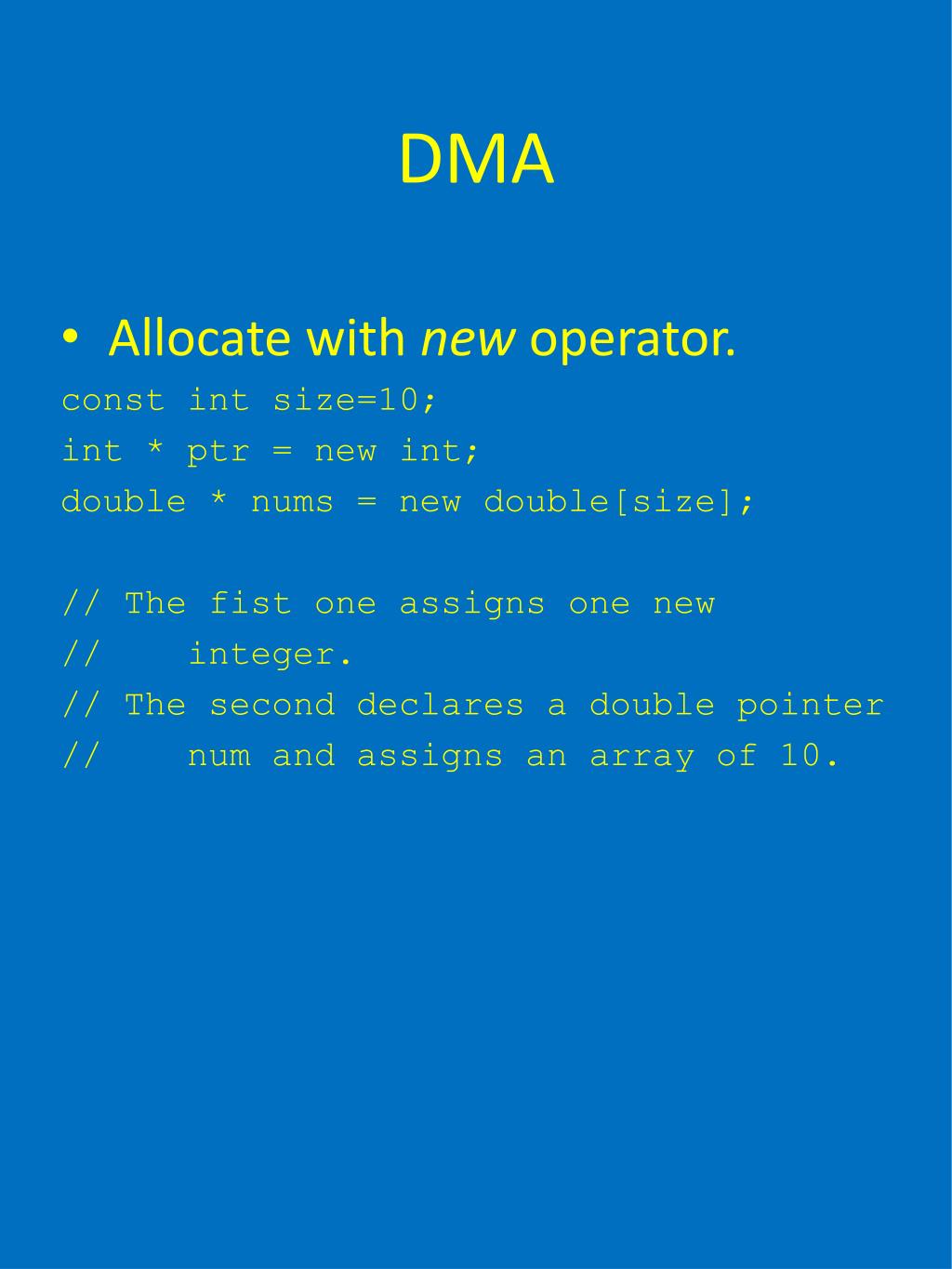

  17. DMA • Allocate with new operator. const int size=10; int * ptr = new int; double * nums = new double[size]; // The fist one assigns one new // integer. // The second declares a double pointer // num and assigns an array of 10.

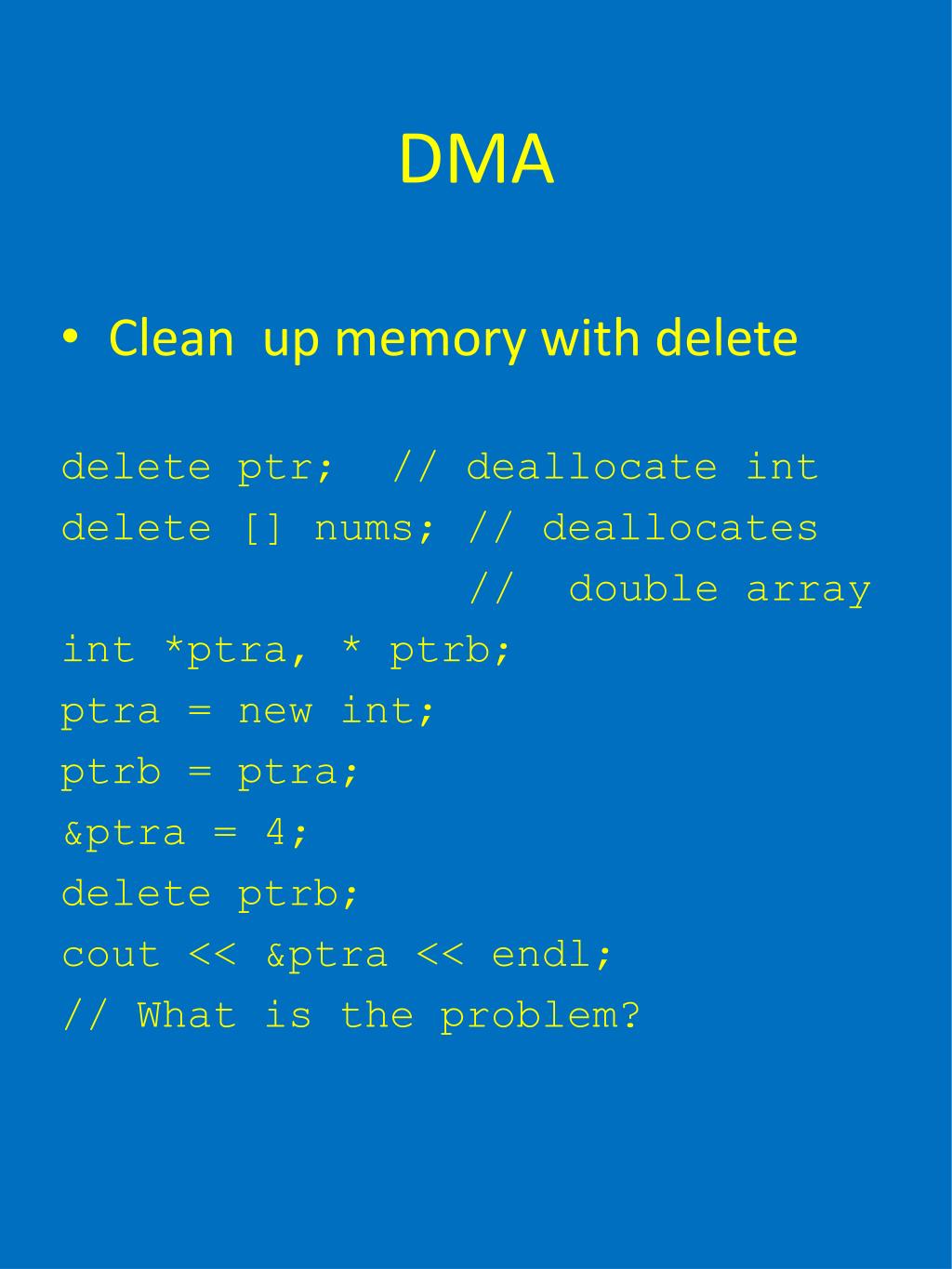

  18. DMA • Clean up memory with delete delete ptr; // deallocate int delete [] nums; // deallocates // double array int *ptra, * ptrb; ptra = new int; ptrb = ptra; &ptra = 4; delete ptrb; cout << &ptra << endl; // What is the problem?

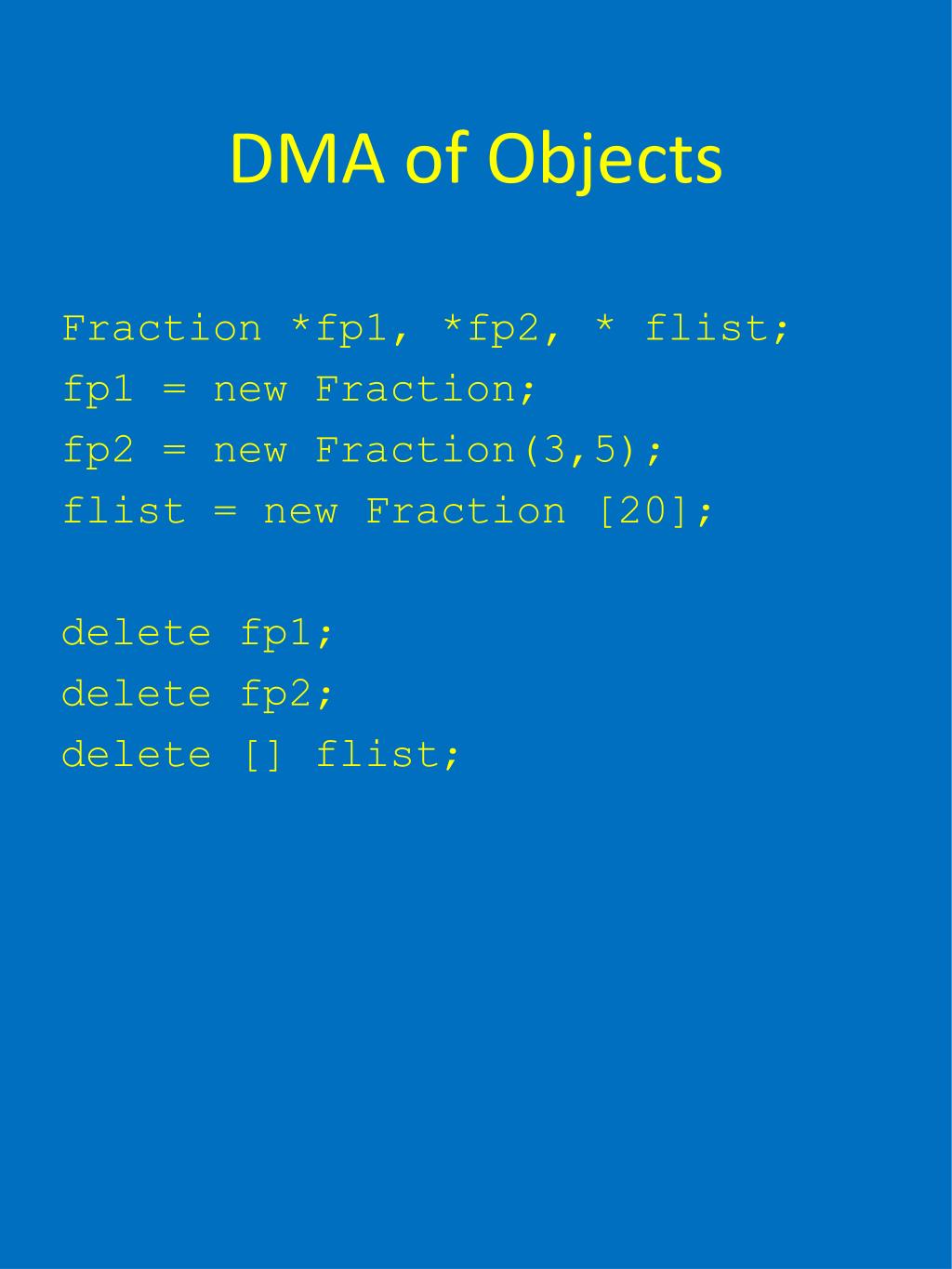

  19. DMA of Objects Fraction *fp1, *fp2, * flist; fp1 = new Fraction; fp2 = new Fraction(3,5); flist = new Fraction [20]; delete fp1; delete fp2; delete [] flist;

  20. DMA of Objects • Dot Operator vs. arrow- operator Faction fp1,flist1[10],*fp2,*flist2; fp2 = new Fraction; flist2 = new Fraction[10]; fp1.Show(); fp2->Show(); flist2[4].Show(); flist1[4].Show(); (*fp2).Show(); // Note: Array (static and dynamic // work the same way. Why?: // By definition, an array is a // pointer.

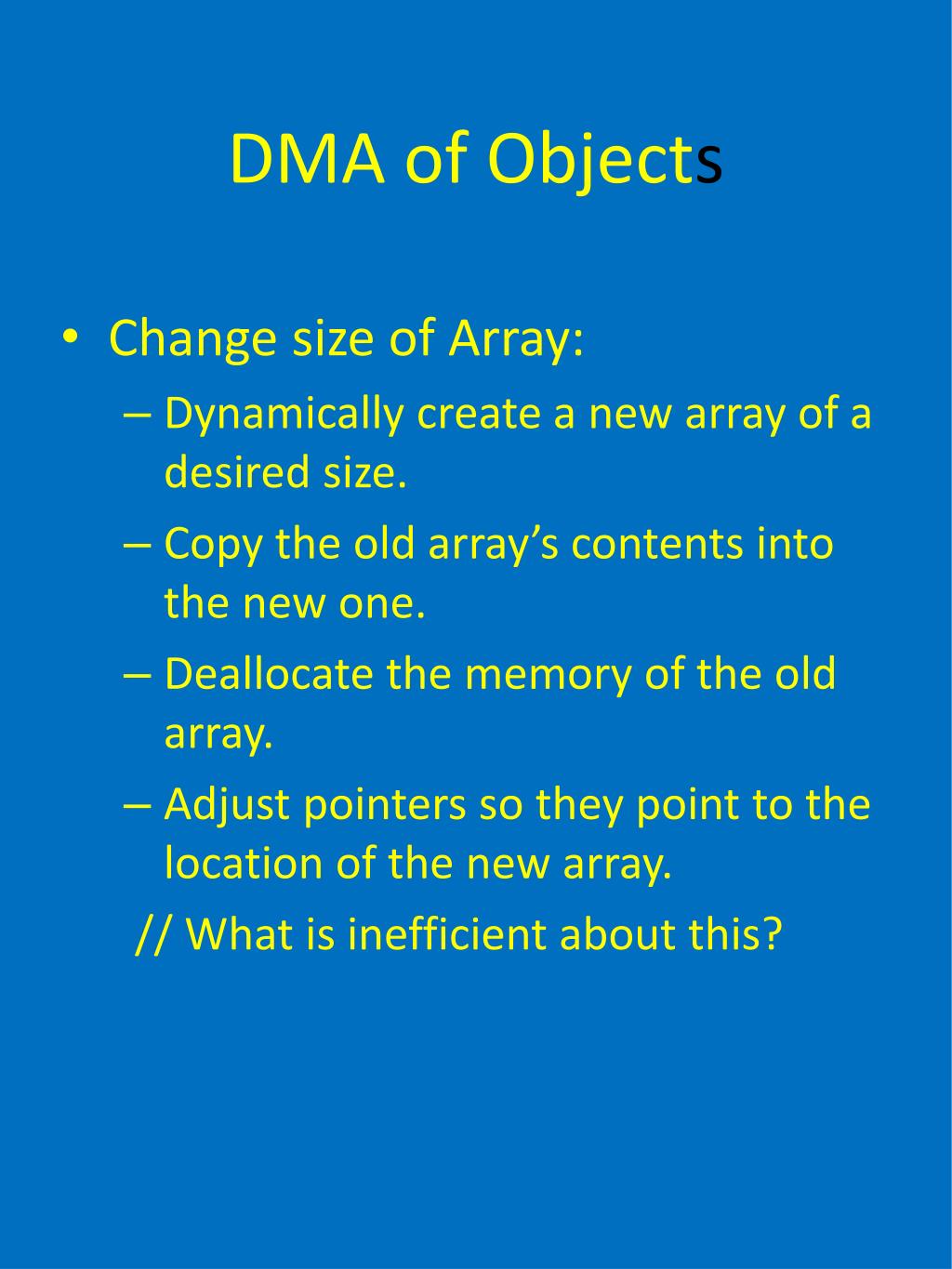

  21. DMA of Objects • Change size of Array: • Dynamically create a new array of a desired size. • Copy the old array’s contents into the new one. • Deallocate the memory of the old array. • Adjust pointers so they point to the location of the new array. // What is inefficient about this?

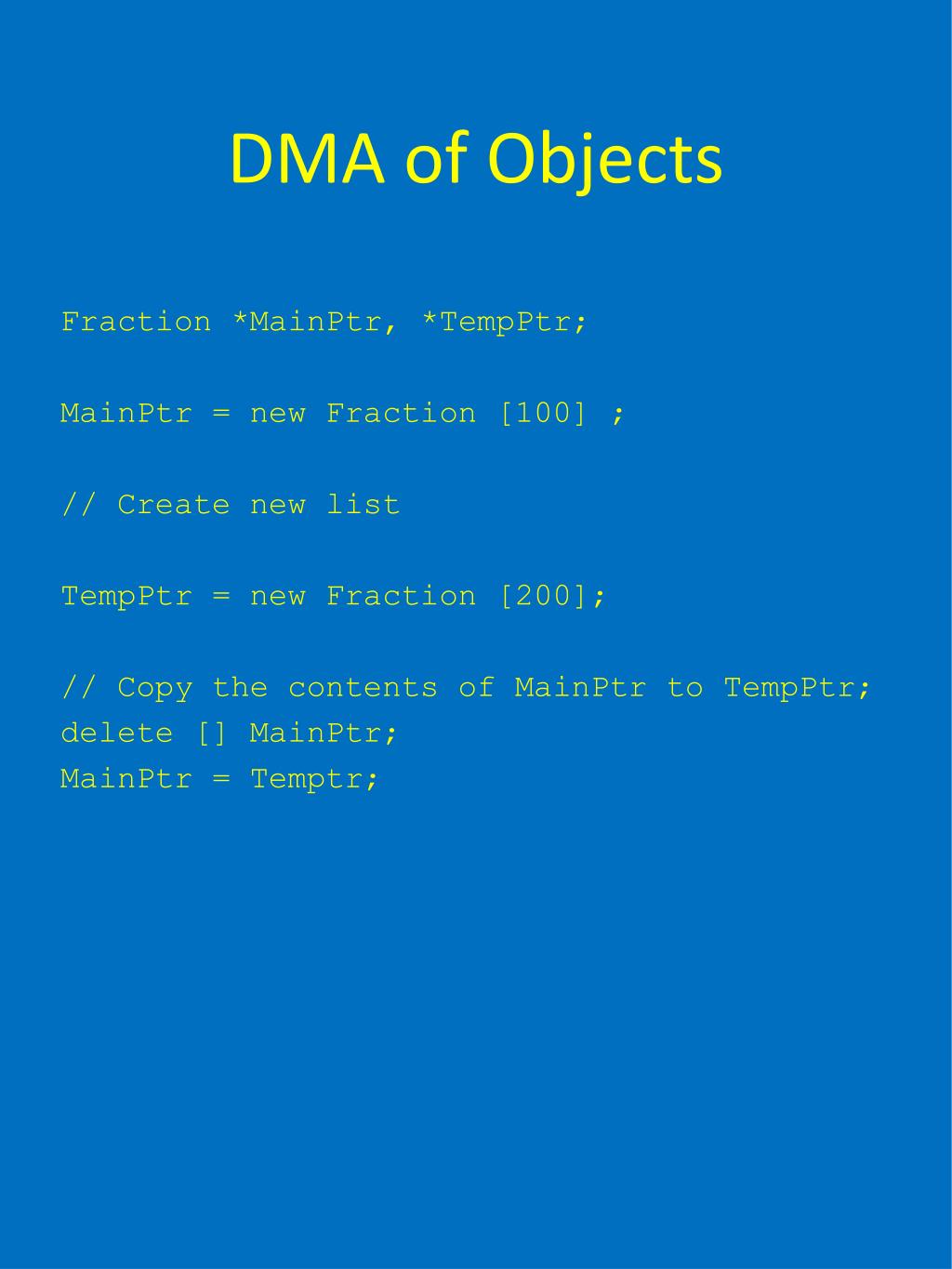

  22. DMA of Objects Fraction *MainPtr, *TempPtr; MainPtr = new Fraction [100] ; // Create new list TempPtr = new Fraction [200]; // Copy the contents of MainPtr to TempPtr; delete [] MainPtr; MainPtr = Temptr;
