Liquid liquid extractions

Chemistry 227 Laboratory

LIQUID-LIQUID EXTRACTIONS

The separation of

A solid organic acid,

A liquid organic base, and

a solid neutral compound by changing polarities.


Important concepts

Important Concepts:

What d’ya mean: POLAR??


Some important acid base concepts
Some important Acid-BaseConcepts


Preparation of the mixture

Preparation of the mixture

In about 50 mLs of methylene chloride, dissolve 2-3 g of benzoic acid, 10-15 mLs of aniline, and 4-5 g of p-dichlorobenzene.


Preparation of the extraction solvents

Preparation of the extractionsolvents:

Prepare about 50 grams each of:

10% HCl and 10% NaOH as shown above.


Part a separation of the acid

PART A-Separation of the Acid

Provide a separatory funnel, the mixture, and the 10% NaOH


Be sure your stopcock is assembled properly

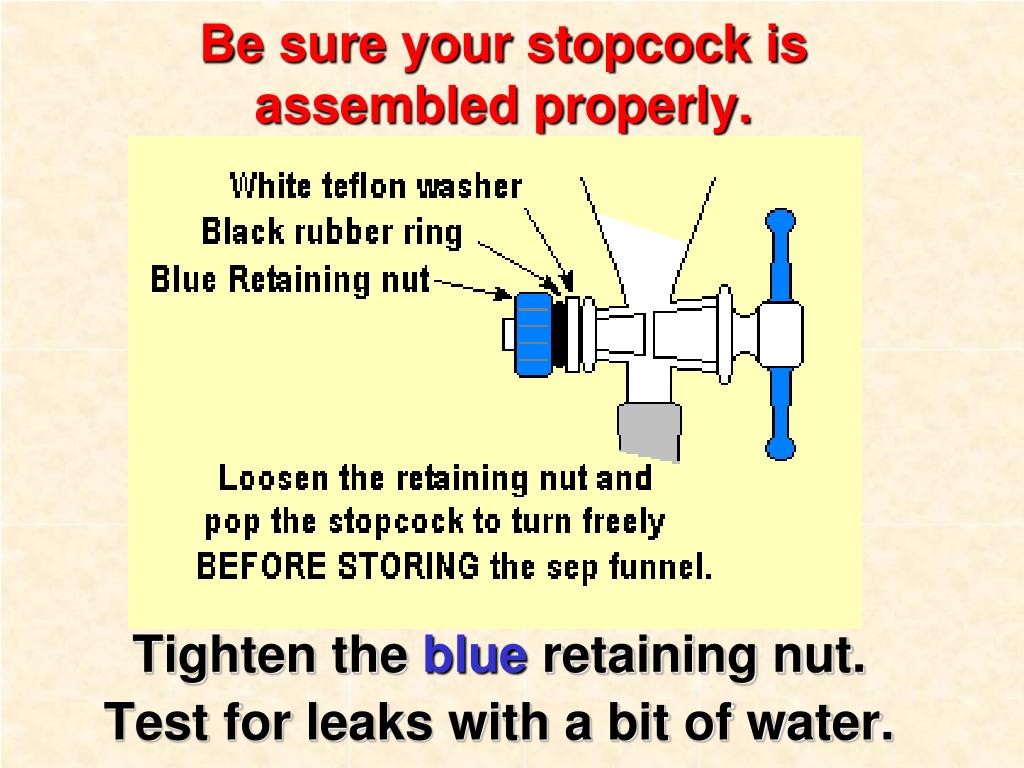

Be sure your stopcock is assembled properly.

Tighten the blue retaining nut.

Test for leaks with a bit of water.


Transfer the mixture into the separatory funnel

Transfer the mixture into the separatory funnel

Add about 15mLs of 10% NaOH . . .

It will form a separate UPPER layer


Gently rock the funnel back and forth to agitate the mixture

Gently rock the funnel back and forthto agitate the mixture.

Open the stopcock occasionally to release the pressure.


Draw off the lower organic layer

Draw off the lower organic layer.

It contains the aniline and the

p-dichlorobenzene in CH2Cl2.


Pour the remaining aqueous layer into a vessel labeled naoh extracts

Pour the remaining aqueous layer into a vessel labeled“NaOH Extracts”

Repeat the extraction twice more, with 10% NaOH.

Finally, wash with 10 mLs of water, combining all four aqueous layers.


Part b recovery of the free acid

PART B– Recovery of the free acid.

Add conc HCl until CongoRed paper turns DARK BLUE or Alkacid paper turns PURPLE..

STIR THOROUGHLY BEFORE TESTING!

The acid separates as a white solid!


Collect the crude acid on buchner w suction

Collect the crude acid on Buchner w/ suction.

Do not purify the acid! Next year’s class will recrystallize it.


Part c separation of the base

Part C-Separation of the base.

Transfer the organic layer back into the separatory funnel.


Add about 15 mls of 10 hcl

Add about 15 mLs of 10% HCl.

The aqueous acid forms the upper layer. Provide a vessel labeled “HCl Extracts”


Gently rock the funnel back and forth to agitate the mixture1

Gently rock the funnel back and forthto agitate the mixture.

Open the stopcock occasionally to release the pressure.


Draw off the lower organic layer1

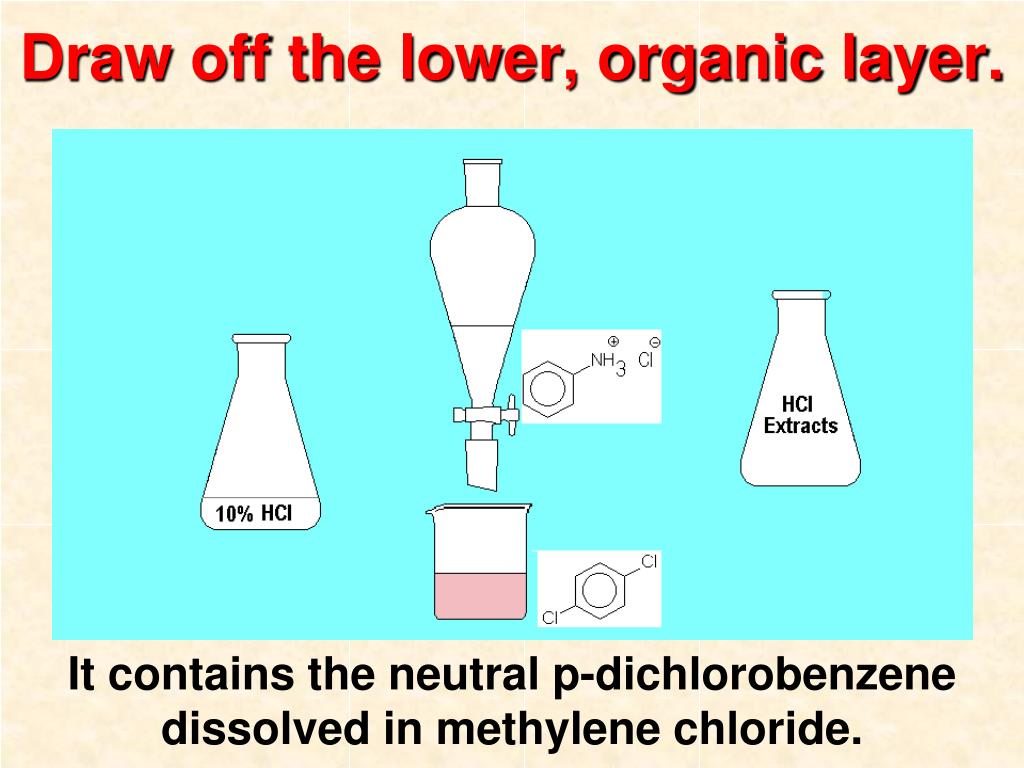

Draw off the lower, organic layer.

It contains the neutral p-dichlorobenzene dissolved in methylene chloride.


Pour the remaining aqueous layer into a vessel labeled hcl extracts

Pour the remaining aqueous layer into a vessel labeled “HCl Extracts”.

Repeat the extraction twice more, with 10% HCl.

Finally, wash with 10 mLs of water, combining all four aqueous layers.


Part e separation of the neutral compound

Part E- “HCl Extracts”.Separation of the neutral compound.

Pour the organic layer into a flask that can be stoppered. It is the

p-dichlorobenzene dissolved in “wet” methylene chloride.


Add 1 2 g of anhydous magnesium sulfate stopper the flask and swirl the contents occasionally

Add 1-2 g of “HCl Extracts”.anhydous magnesium sulfate; stopper the flask and swirl the contents occasionally.

Meanwhile, proceed with Part D, the Recovery of the Free base and the “back extraction”.

Read Zubrick, p. 135!


Part d recovery of the base

Part D- “HCl Extracts”.Recovery of the base.

Add 50% NaOH until red (pink) litmus paper

or alkacid paper turns BLUE.

STIR and TEST with a stirring rod.

The aniline separates as an oily upper layer.


The back extraction zubrick p 135

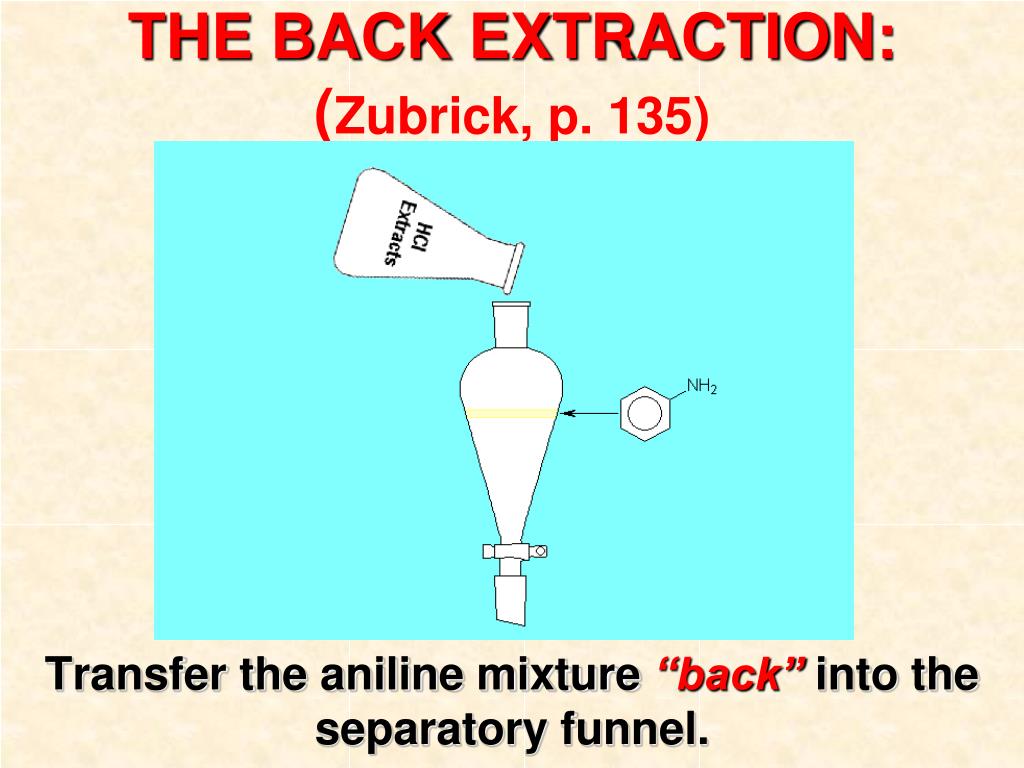

THE BACK EXTRACTION: “HCl Extracts”.(Zubrick, p. 135)

Transfer the aniline mixture “back” into the separatory funnel.


Note that the aniline is the upper layer

NOTE that the aniline is the “HCl Extracts”.upper layer.

Obtain about 45-50 mLs of methylene chloride.


Transfer 15 20 mls of methylene chloride into the funnel

Transfer 15-20 mLs of methylene chloride into the funnel “HCl Extracts”.

The methylene chloride with the aniline NOW FORMS THE LOWER LAYER.


Gently rock the funnel back and forth to agitate the mixture2

Gently rock the funnel back and forth “HCl Extracts”.to agitate the mixture

Open the stopcock occasionally to release the pressure.


Draw off the lower organic layer of “HCl Extracts”.anilinein methylene chloride. Put the upper, aqueous layer back into the sep funnel.

Extract the aqueous layer 2 – 3 more times with small portions of methylene chloride.


To the combined extracts of wet methylene chloride add 1 2 g of anhydrous magnesium sulfate

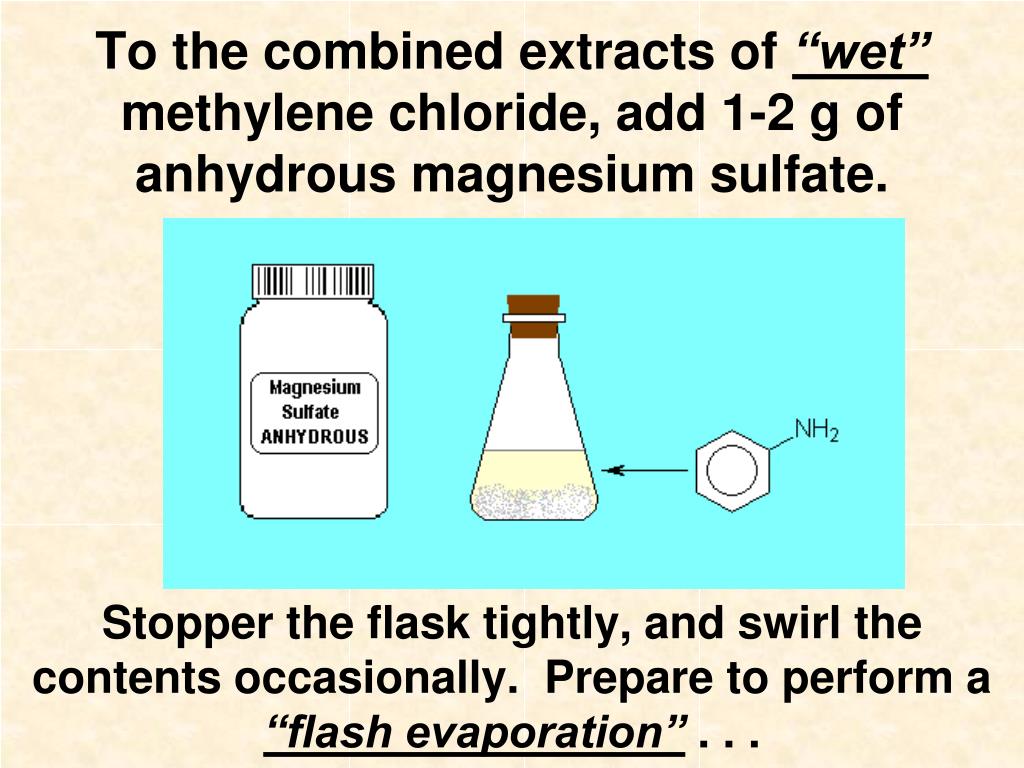

To the combined extracts of “HCl Extracts”.“wet” methylene chloride, add 1-2 g of anhydrous magnesium sulfate.

Stopper the flask tightly, and swirl the contents occasionally. Prepare to perform a “flash evaporation” . . .


At this point you should be able to account for the following items

At this point, you should be able to account for the following items.

If you have all three of the above items everything else can be discarded.

Prepare for the FLASH EVAPORATION.
