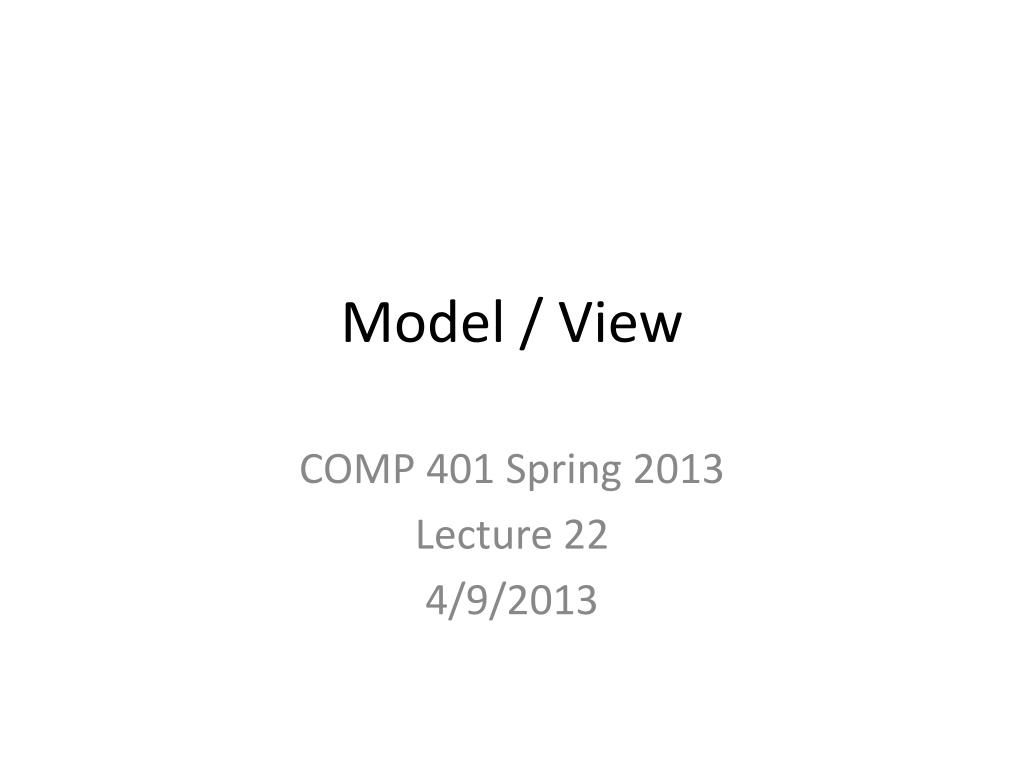

Model / View

COMP 401 Spring 2013

Lecture 22

4/9/2013

colorchooser widget review
ColorChooser Widget Review
  • lec21.v7
  • Color object embedded within the widget
    • Fine for a small piece of immutable information
    • Not so great for a complex abstraction
      • UI may not always be needed
model view pattern

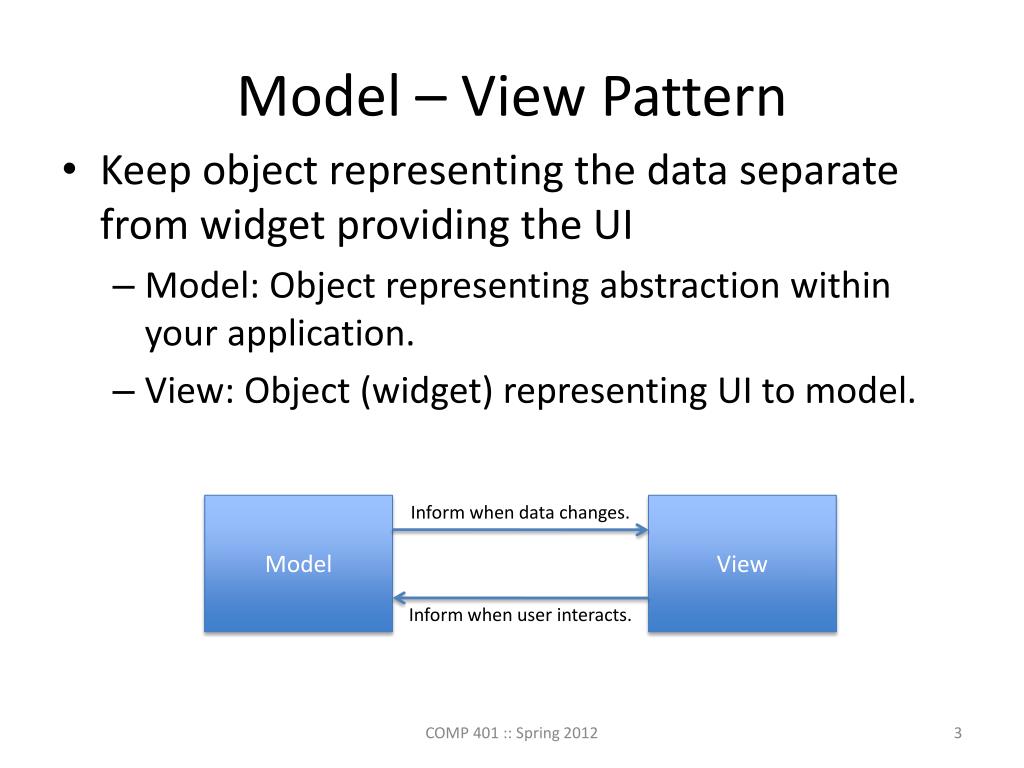

Model – View Pattern
  • Keep object representing the data separate from widget providing the UI
    • Model: Object representing abstraction within your application.
    • View: Object (widget) representing UI to model.

Inform when data changes.

Model

View

Inform when user interacts.

COMP 401 :: Spring 2012

model view example

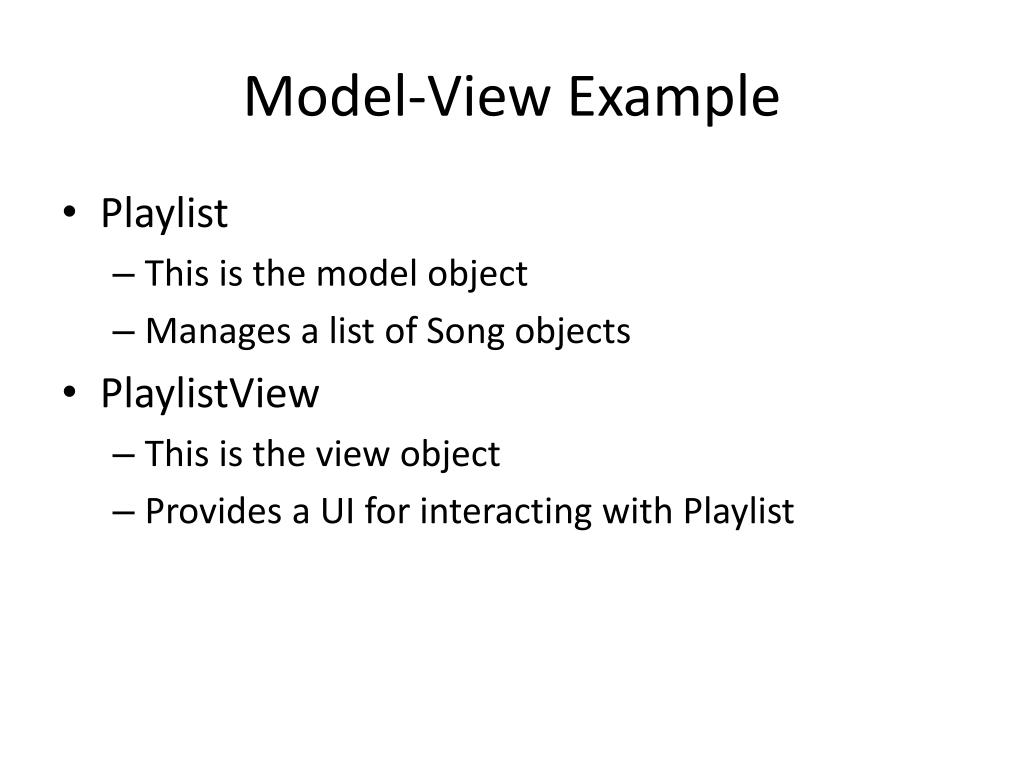

Model-View Example
  • Playlist
    • This is the model object
    • Manages a list of Song objects
  • PlaylistView
    • This is the view object
    • Provides a UI for interacting with Playlist
lec22 v1
lec22.v1
  • Playlist
lec22 v2
lec22.v2
  • PlaylistView
    • Encapsulates a reference to Playlist object
    • Builds a simple view of the playlist
lec22 v3
lec22.v3
  • AddSongWidget
    • An interface for adding a new song to the Playlist
lec22 v4
lec22.v4
  • Connecting model to view
    • Model needs to inform the view whenever it changes so that the view can rebuild to reflect any changes.
  • My approach here is to make the model observable.
    • And to register PlaylistView as an observer
  • Notes:
    • revalidate() required whenever contents of a Java Swing container are changed
lec22 v5
lec22.v5
  • Notice duplication of code in constructor when list is first built and when rebuilt when responding to model update.
    • Refactor into a helper method.
  • JScrollPane
    • Wraps another Swing component that may change size and provides scrolling view as needed.
lec22 v6
lec22.v6
  • Add a shuffle button
lec22 v7
lec22.v7
  • Create more interesting song listing
    • SongListingWidget
      • Includes a buttons for removing the song from the playlist and moving them up and down the list.
  • BorderFactory
    • Swing class for creating borders for components
  • Unicode characters
    • Lots of glyphs available
    • Changed Song to use star glyph for rating
  • Added method to playlistfor moving songs
model view1

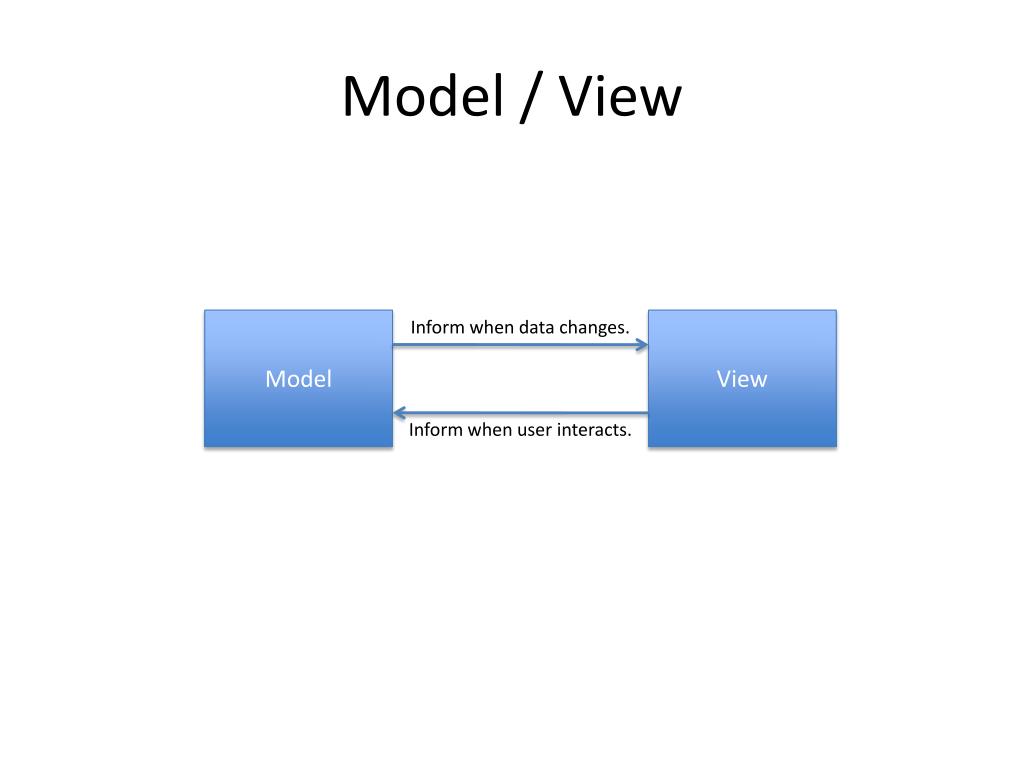

Model / View

Inform when data changes.

Model

View

Inform when user interacts.

playlist playlistview
Playlist / PlaylistView

update()

Playlist

PlaylistView

shuffle()

AddSongWidget

addSong()

SongListingWidget

SongListingWidget

removeSong(), moveSong()

SongListingWidget

SongListingWidget

SongListingWidget

SongListingWidget

model view summary

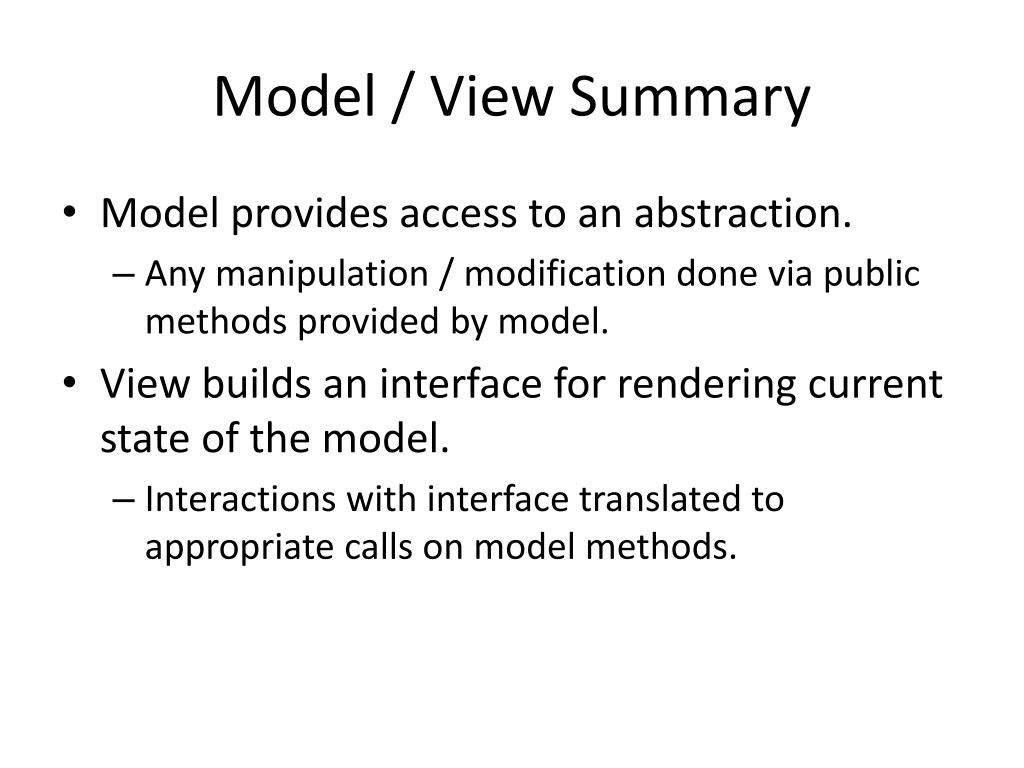

Model / View Summary
  • Model provides access to an abstraction.
    • Any manipulation / modification done via public methods provided by model.
  • View builds an interface for rendering current state of the model.
    • Interactions with interface translated to appropriate calls on model methods.
model view inadequacies

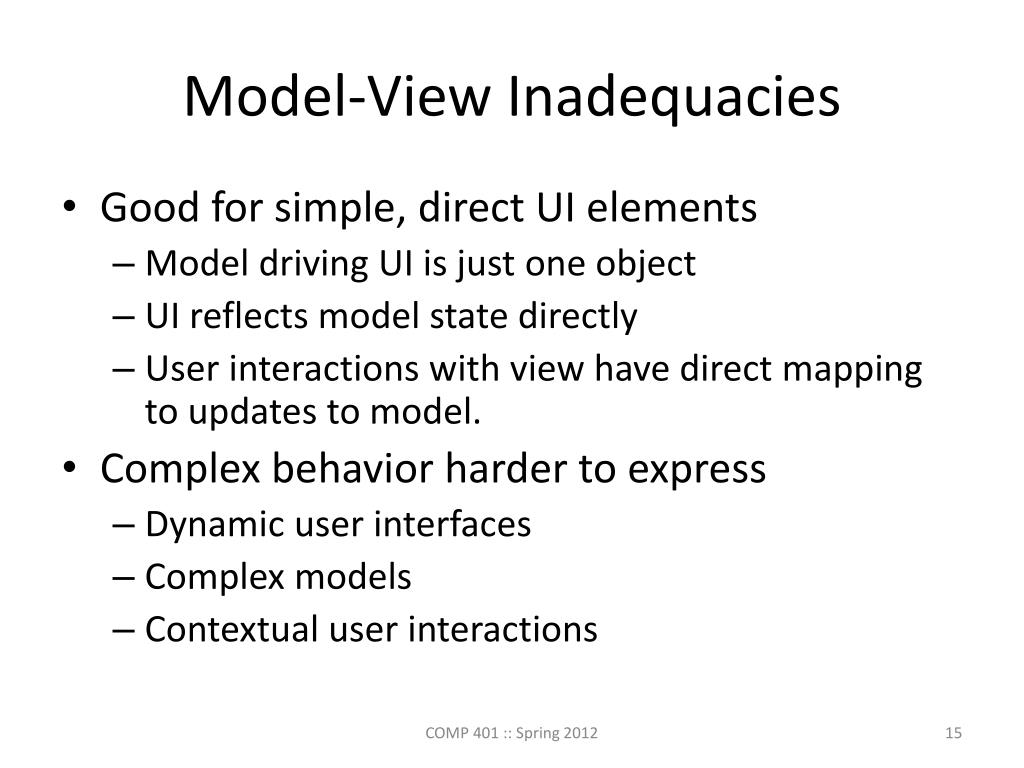

Model-View Inadequacies
  • Good for simple, direct UI elements
    • Model driving UI is just one object
    • UI reflects model state directly
    • User interactions with view have direct mapping to updates to model.
  • Complex behavior harder to express
    • Dynamic user interfaces
    • Complex models
    • Contextual user interactions

COMP 401 :: Spring 2012

classic mvc

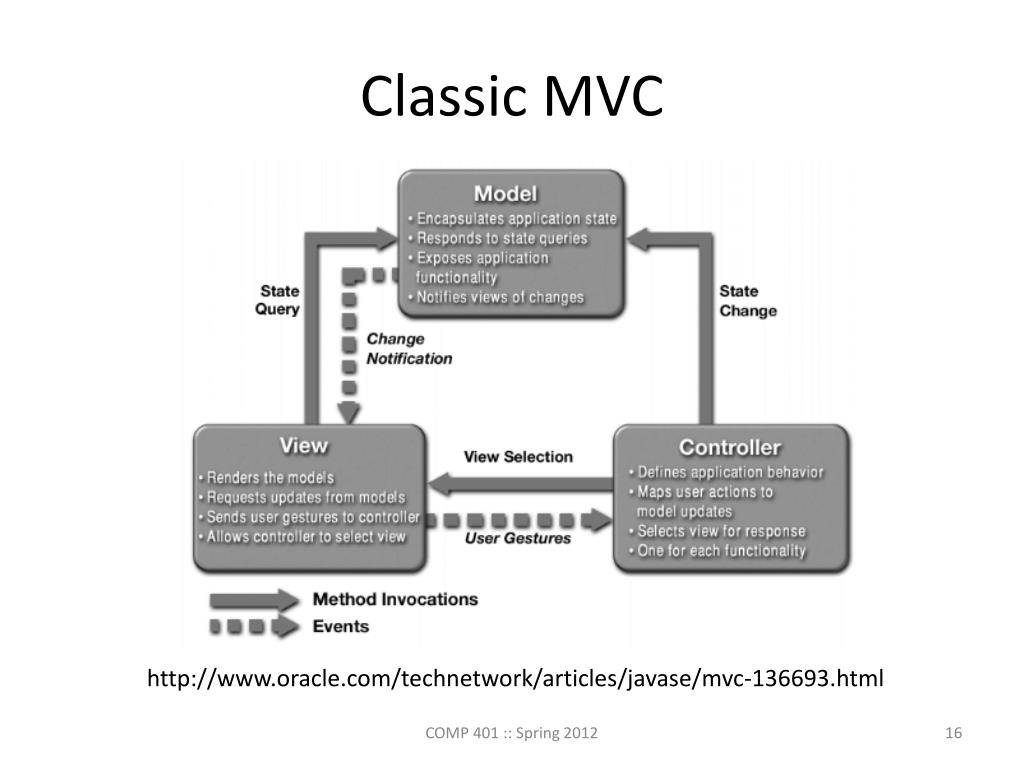

Classic MVC

http://www.oracle.com/technetwork/articles/javase/mvc-136693.html

COMP 401 :: Spring 2012

alternate mvc

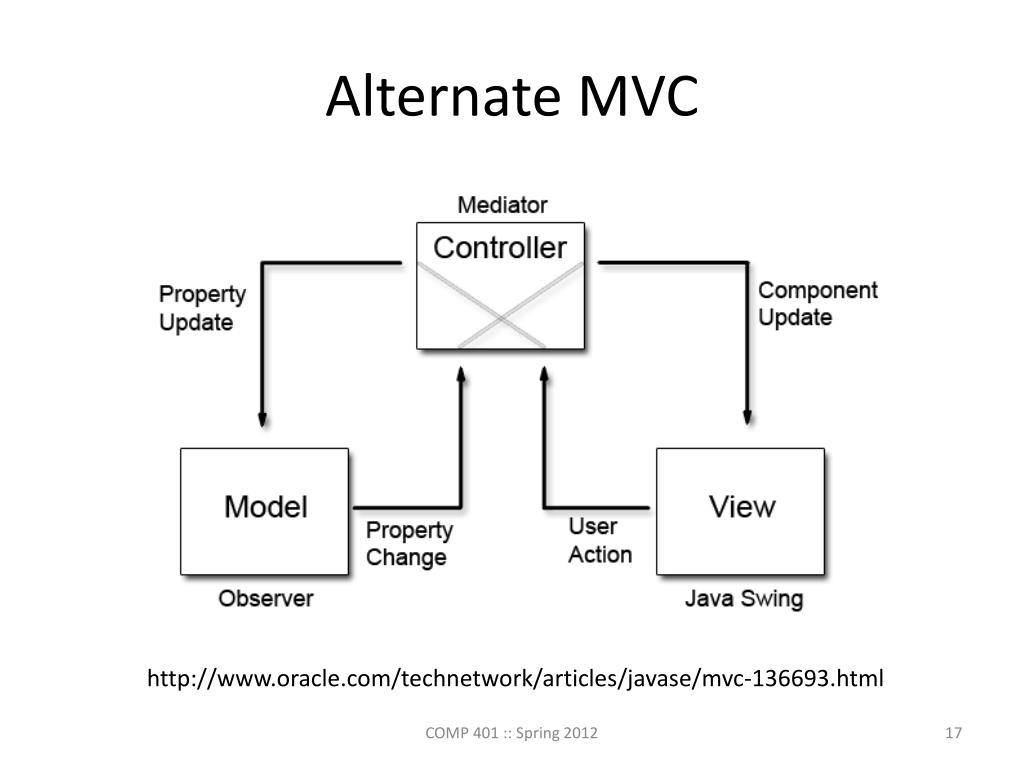

Alternate MVC

http://www.oracle.com/technetwork/articles/javase/mvc-136693.html

COMP 401 :: Spring 2012

slide18
A7
  • ChessGame, ChessPiece make up the model
  • ChessGameView is view
  • CommandLoop acts as controller

update()

ChessGame

ChessGameView

update()

ChessPiece

ChessPiece

moveAttempted()

ChessPiece

ChessPiece

ChessPiece

CommandLoop

ChessPiece

moveTo ()
