Mos channel resistance

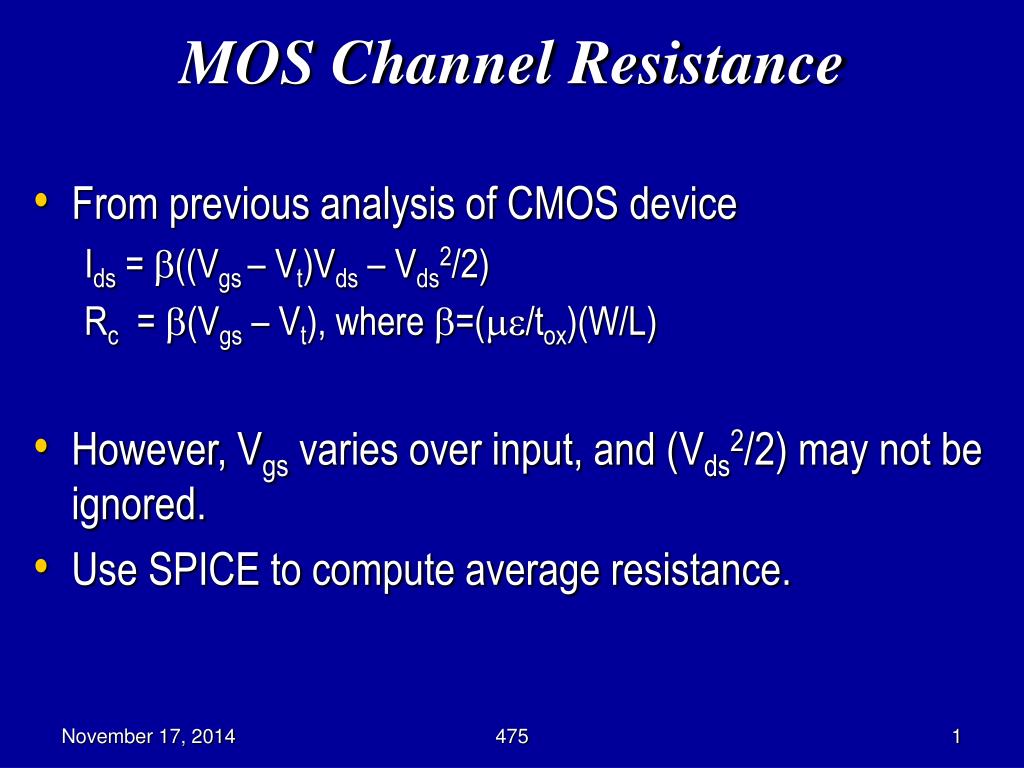

MOS Channel Resistance

  • From previous analysis of CMOS device

    Ids = ((Vgs – Vt)Vds – Vds2/2)

    Rc = (Vgs – Vt), where =(/tox)(W/L)

  • However, Vgs varies over input, and (Vds2/2) may not be ignored.

  • Use SPICE to compute average resistance.

475


Mos capacitance

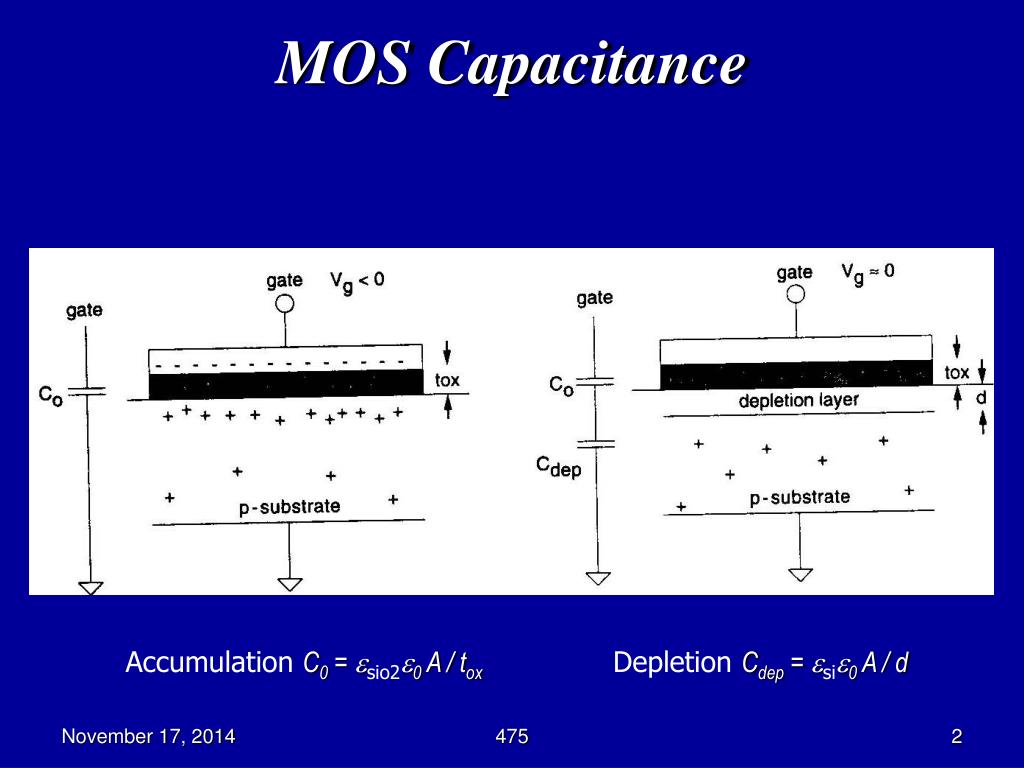

MOS Capacitance

Accumulation C0 = esio2e0 A / tox

Depletion Cdep = esie0 A / d

475


Mos capacitor

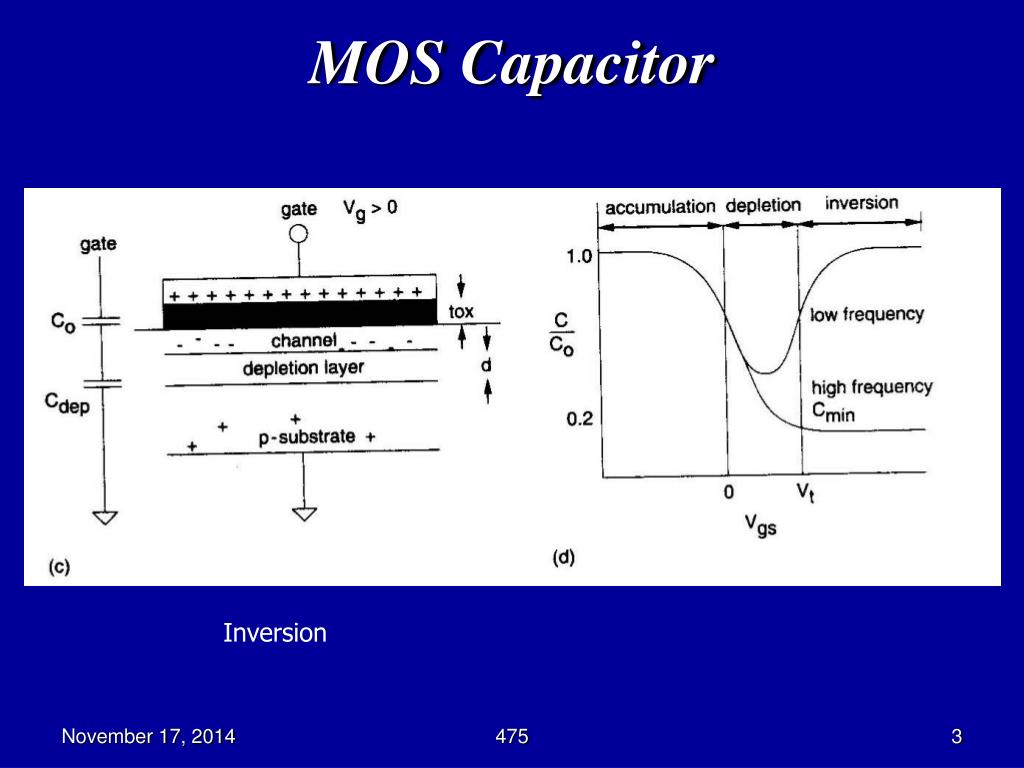

MOS Capacitor

Inversion

475


Mosfet capacitance
MOSFET Capacitance

  • Depletion Capacitance:

    Cdep = eSie0 A/d, eSi = 12, d = depletion layer depth

  • Total C between gate & substrate Cgb

  • C0in series with Cdep

  • Cgb = C0Accumulation Mode

  • Cgb = C0 Cdep /(C0 + Cdep) Depletion Mode

475


Mosfet capacitance1

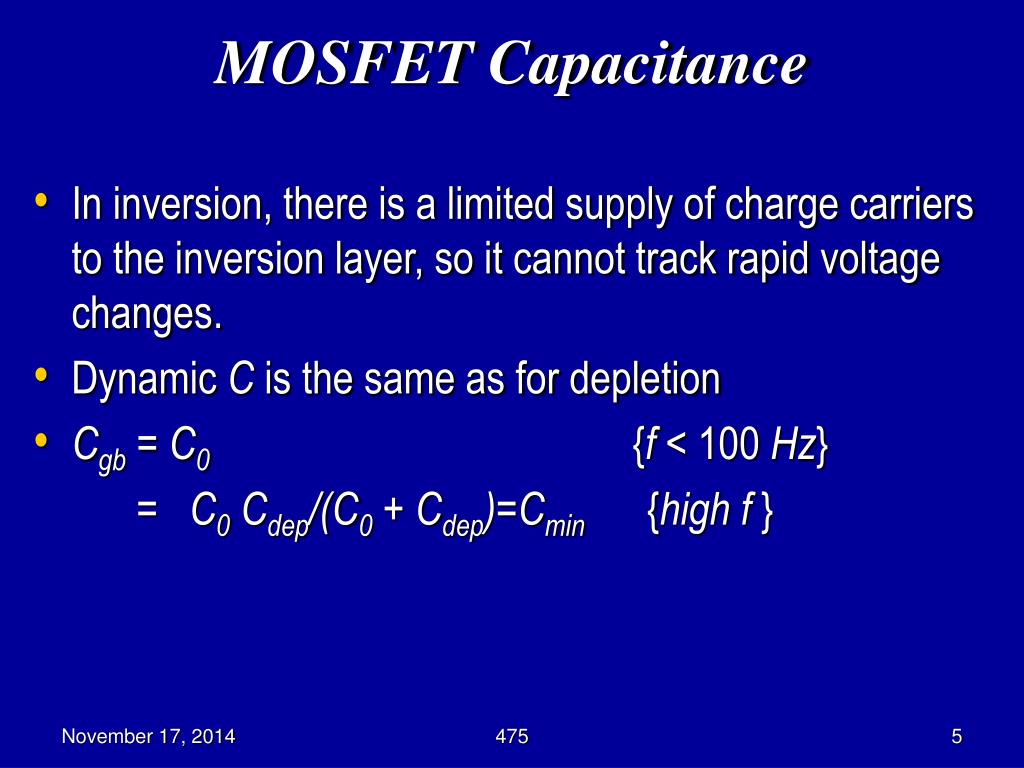

MOSFET Capacitance

  • In inversion, there is a limited supply of charge carriers to the inversion layer, so it cannot track rapid voltage changes.

  • Dynamic C is the same as for depletion

  • Cgb = C0{f < 100 Hz}

    = C0 Cdep/(C0 + Cdep)=Cmin{high f }

475


Mosfet capacitances

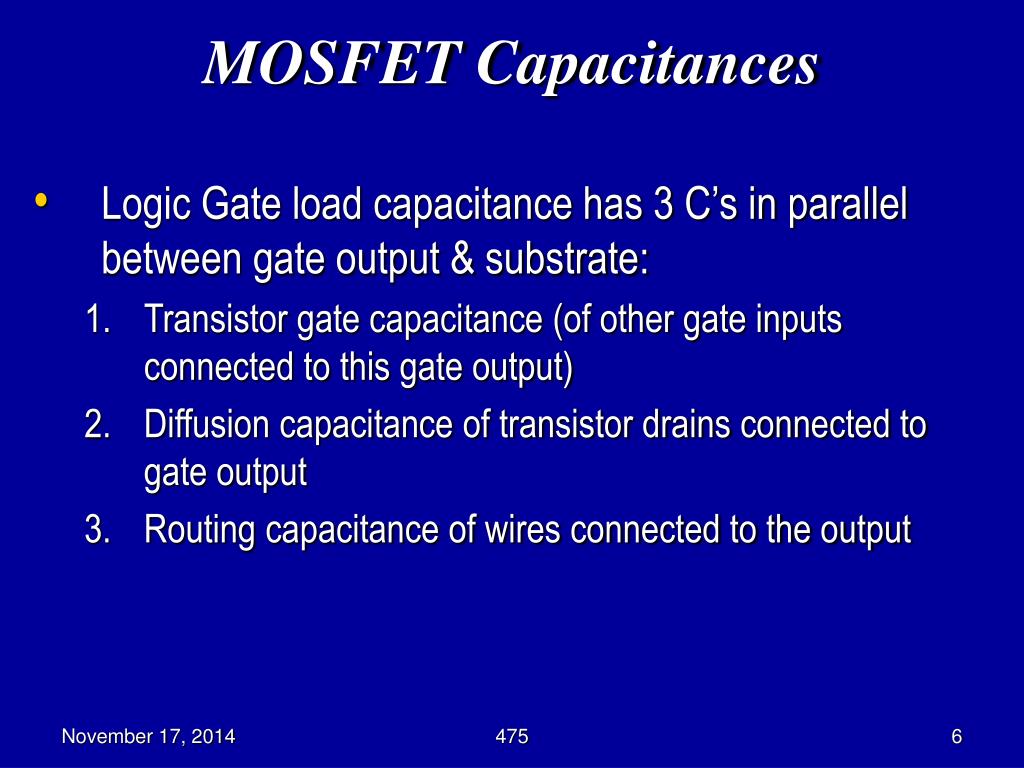

MOSFET Capacitances

  • Logic Gate load capacitance has 3 C’s in parallel between gate output & substrate:

    • Transistor gate capacitance (of other gate inputs connected to this gate output)

    • Diffusion capacitance of transistor drains connected to gate output

    • Routing capacitance of wires connected to the output

475



Capacitances

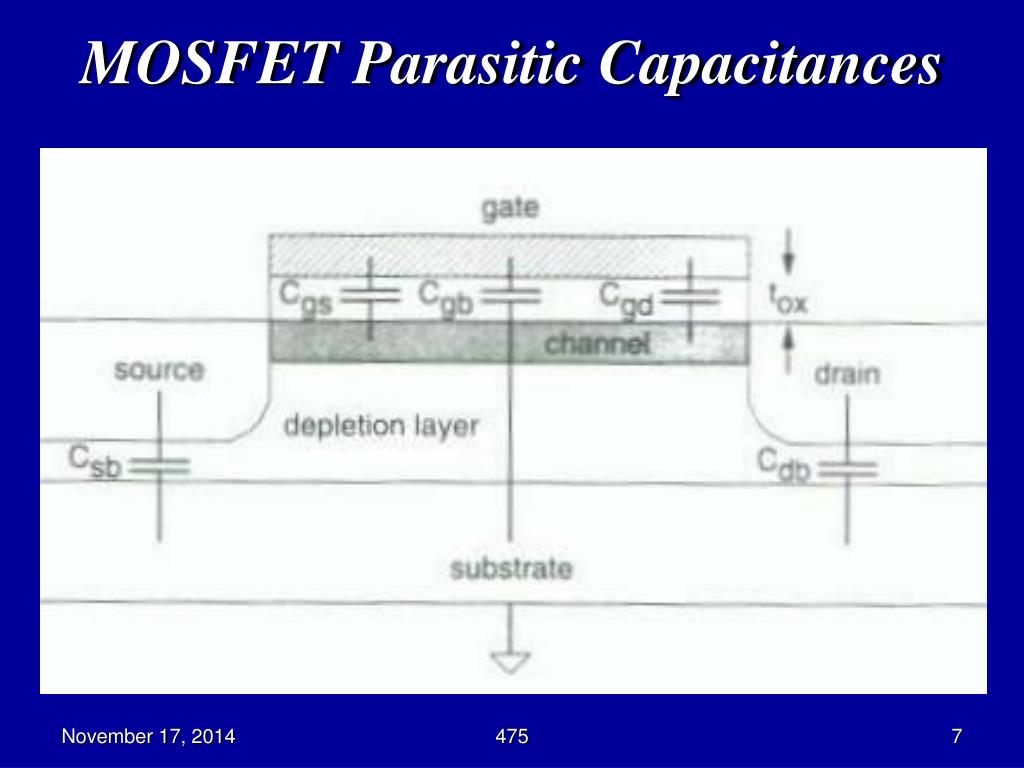

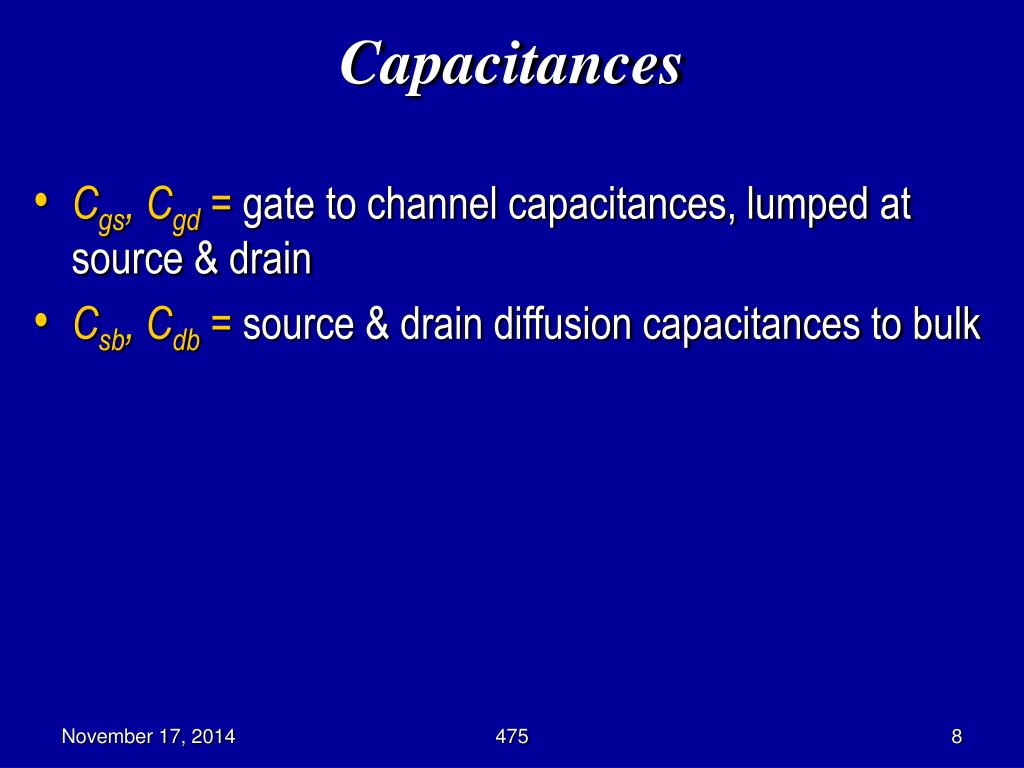

Capacitances

  • Cgs, Cgd = gate to channel capacitances, lumped at source & drain

  • Csb, Cdb = source & drain diffusion capacitances to bulk

475



Capacitance calculation

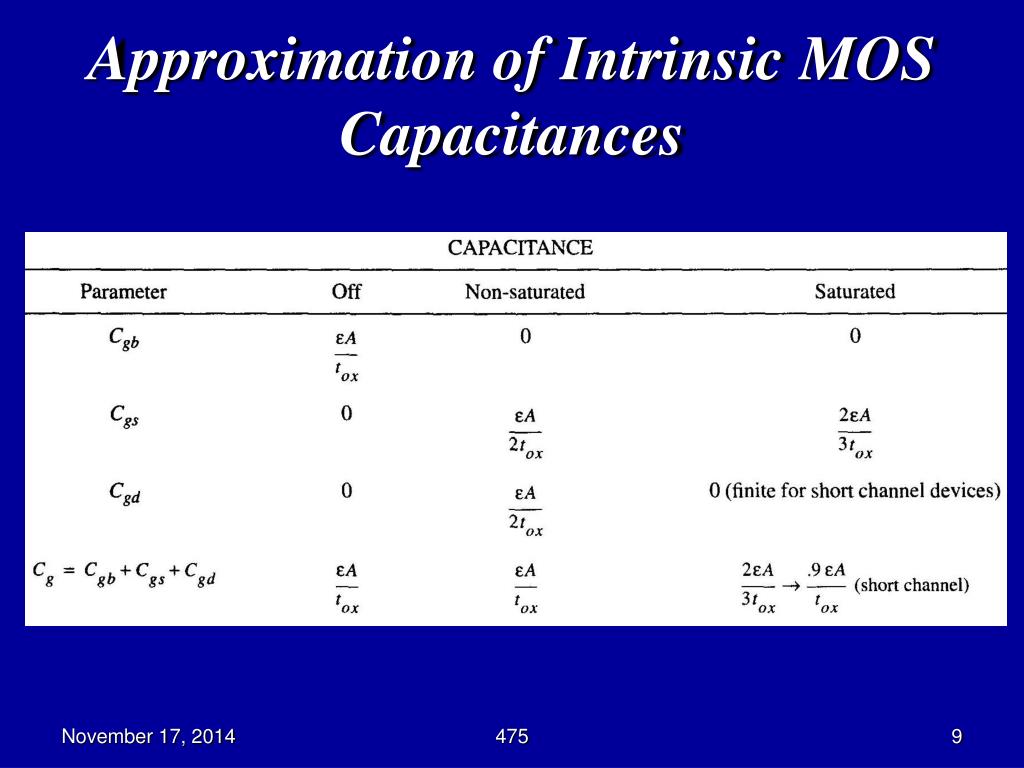

Capacitance Calculation

  • Off region, Vgs < Vt, no channel so Cgs = Cgd = 0

  • Cgb = C0 Cdep

    C0 + Cdep

  • Non-saturated (linear) region Vgs = Vt Vds

    Constant depletion layer depth, channel forms, Cgs, Cgd become significant

  • Cgd = Cgs1e0eSiO2 A

    2 tox

  • Cgb 0

(

)

475


Capacitance calculation cont d

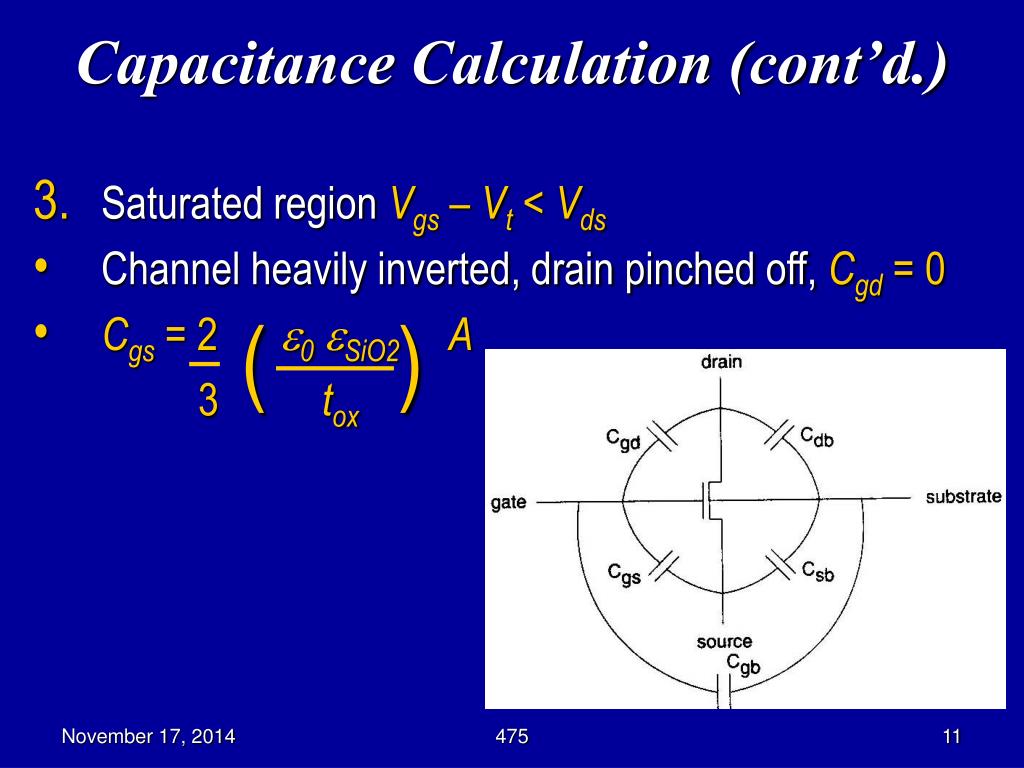

Capacitance Calculation (cont’d.)

  • Saturated region Vgs – Vt < Vds

  • Channel heavily inverted, drain pinched off, Cgd = 0

  • Cgs = 2 e0eSiO2 A

    3 tox

(

)

475




Saturation capacitance
Saturation Capacitance

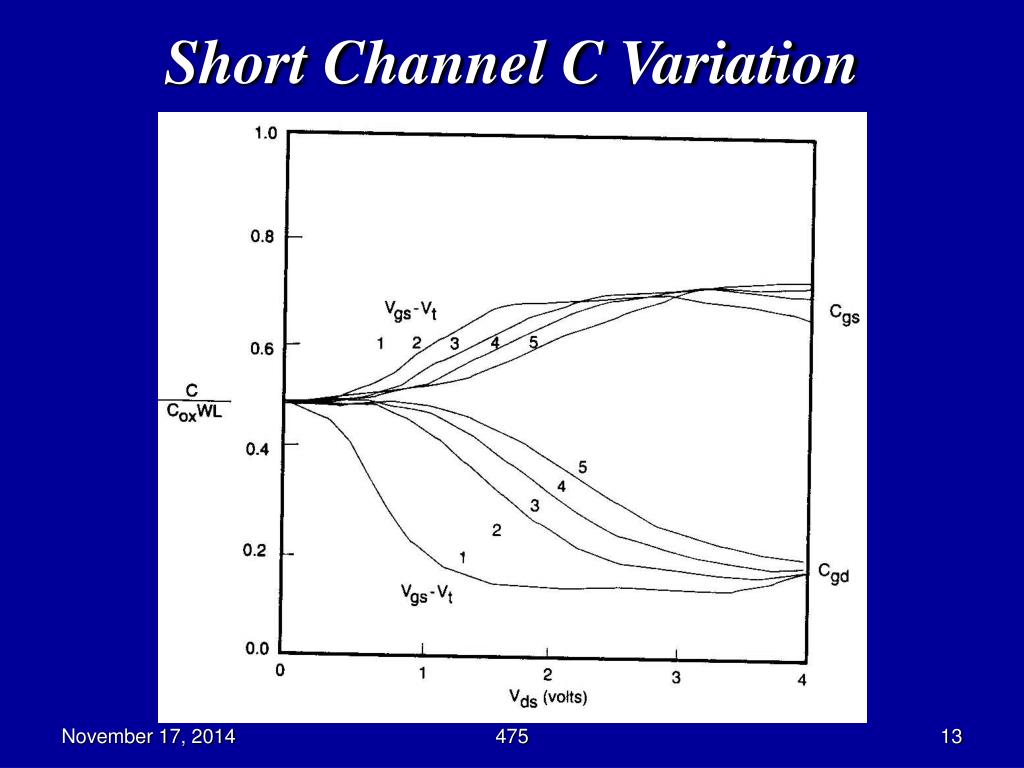

  • Cgd = finite in saturation due to channel side fringing fields between gate & drain

  • Approximate Cg as C0 = Cox A

  • Cox = e0eSiO2/tox

475


Calculation of c from geometry

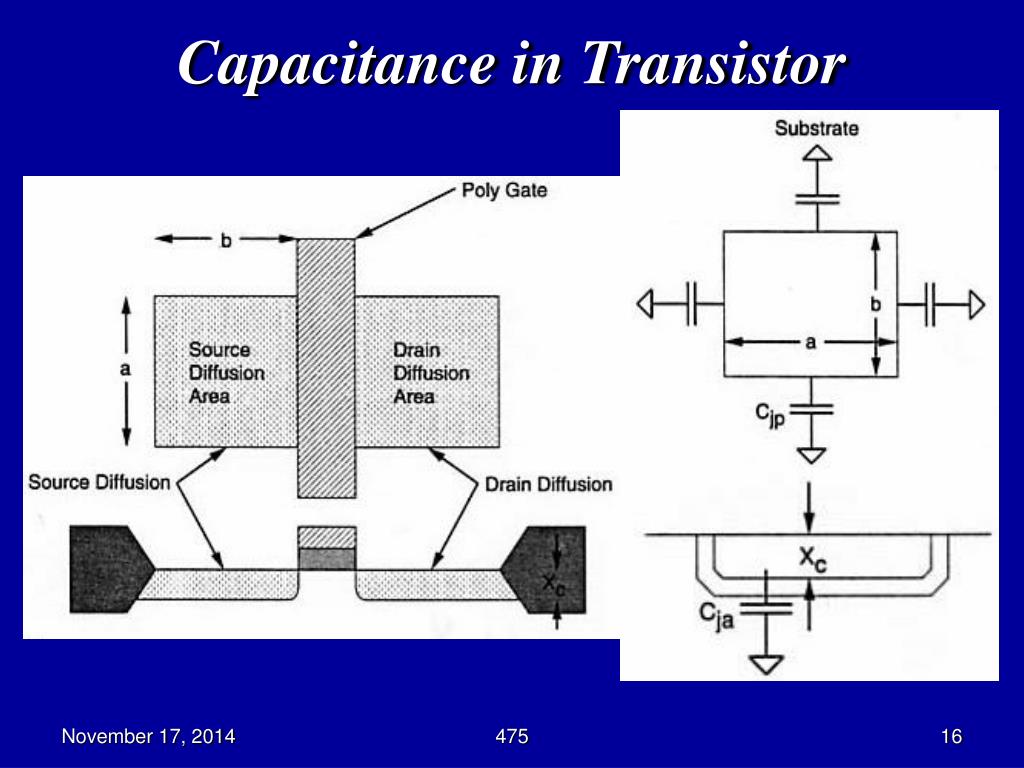

Calculation of C from Geometry

  • Unit Transistor

  • Diffusion capacitance to substrate

    Cd = Cja• (a b) + Cjp• (2a + 2b)

    Cja = junction C per mm2

    Cjp = periphery C per mm

    a = diffusion width

    b = diffusion length

475



C dependence on junction v

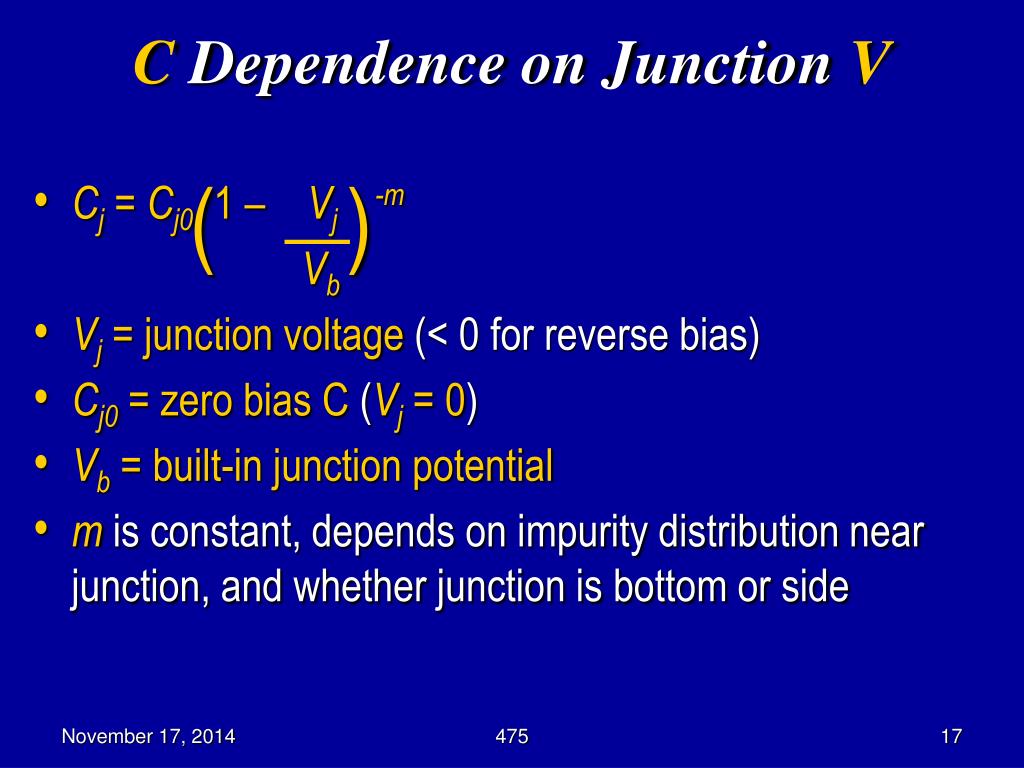

C Dependence on Junction V

(

)

  • Cj = Cj01 –Vj -m

    Vb

  • Vj = junction voltage (< 0 for reverse bias)

  • Cj0 = zero bias C (Vj = 0)

  • Vb = built-in junction potential

  • mis constant, depends on impurity distribution near junction, and whether junction is bottom or side

475


A practical method

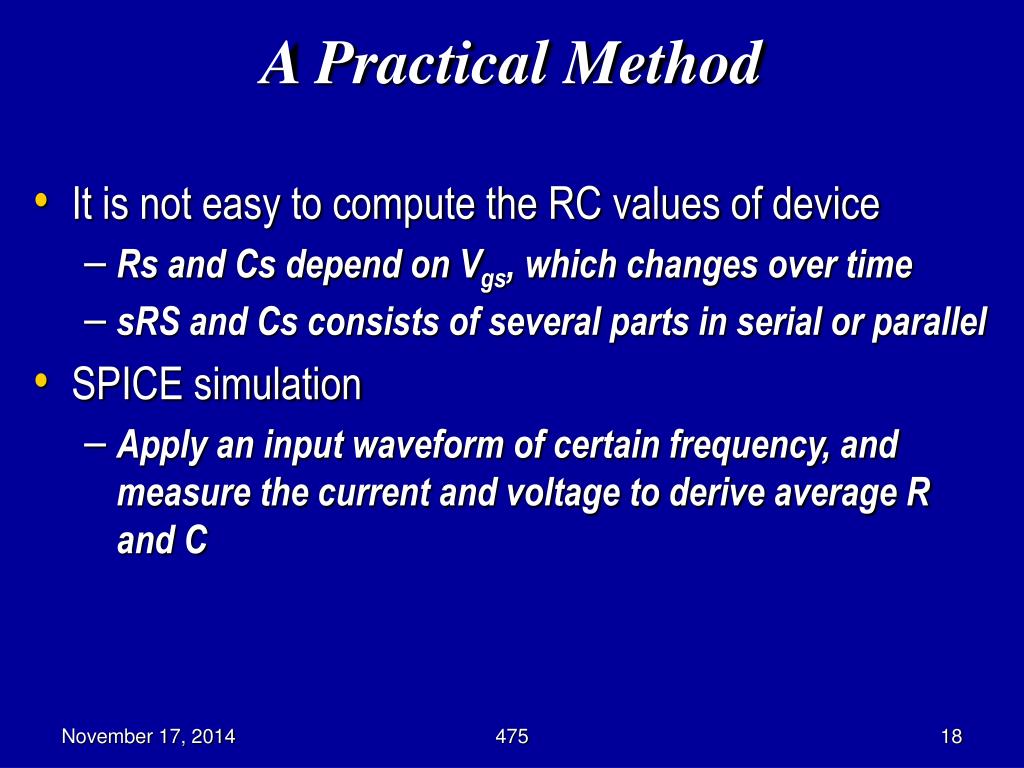

A Practical Method

  • It is not easy to compute the RC values of device

    • Rs and Cs depend on Vgs, which changes over time

    • sRS and Cs consists of several parts in serial or parallel

  • SPICE simulation

    • Apply an input waveform of certain frequency, and measure the current and voltage to derive average R and C

475


Distributed rc effects
Distributed RC Effects

  • Signal propagation along wire influenced by:

    • Distributed R and C

    • Impedance of driver

    • Impedance of load

  • Transmission line effect – very bad for poly, polysilicide, diffusion, and heavily-loaded metal wires

475


Delay equations

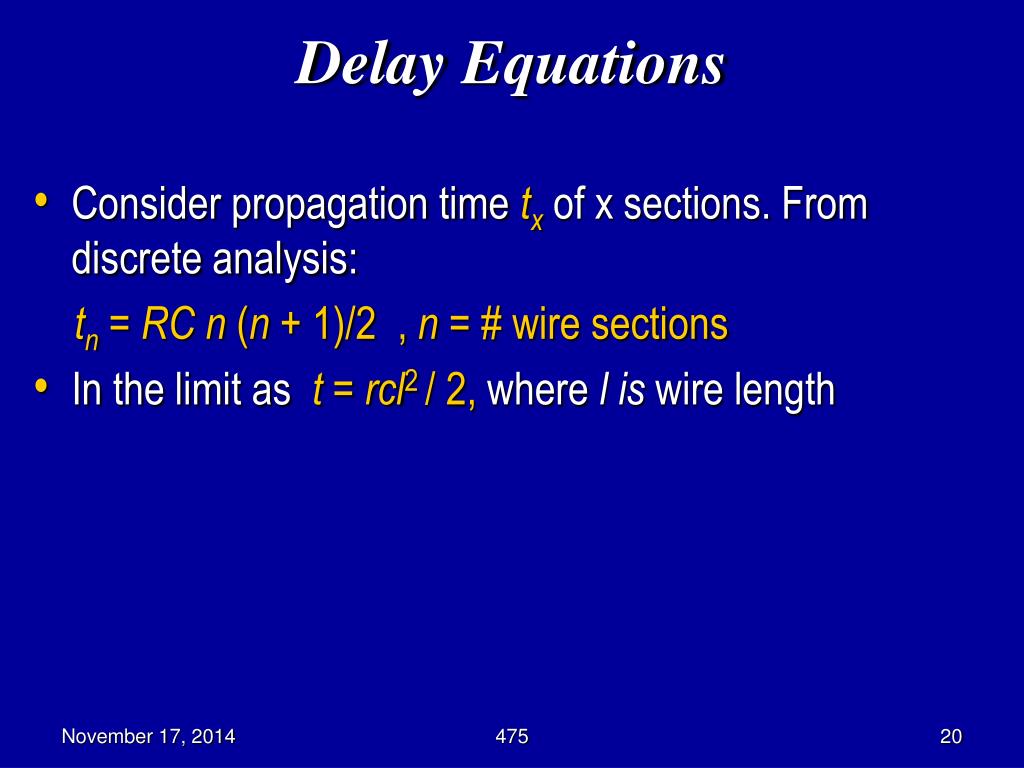

Delay Equations

  • Consider propagation time tx of x sections. From discrete analysis:

    tn = RC n (n + 1)/2 , n = # wire sections

  • In the limit as t= rcl2 / 2, where l is wire length

475



Example
Example

  • 2 mm wire with buffer of delay tbuf

  • tp = propagation delay, r = 20 W / mm

  • c = 4 X 10-4 pF / mm, r c / 2 = 4 X 10-15 sec / mm2

  • With buffer:

    tp = 4 X 10-15 (1000)2 + tbuf + 4 X 10-15 (1000)2

    = 8 nsec + tbuf

  • No buffer:

    tp = 4 X 10-15 (2000)2 = 16 nsec

  • Keep tbufsmall (a buffer is 2 cascaded inverters)

    Segmented bus with buffers can be much faster than unbuffered bus

475


Capacitance design guide

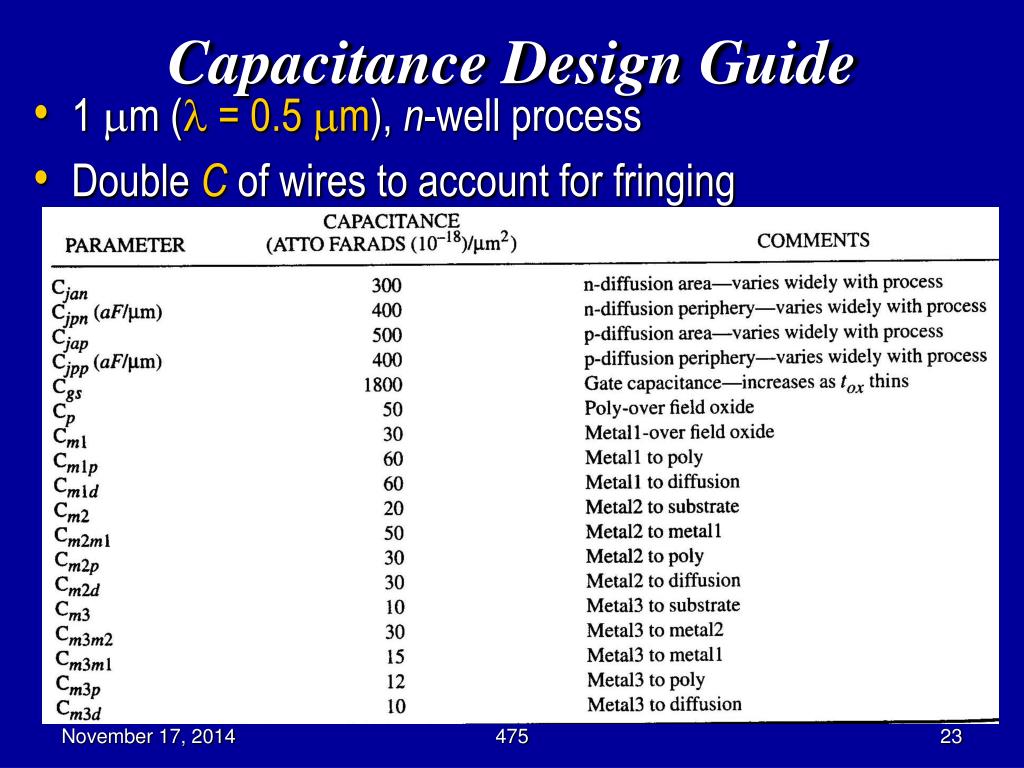

Capacitance Design Guide

  • 1 mm (l = 0.5 mm), n-well process

  • Double C of wires to account for fringing

475


Wire length guide
Wire Length Guide

  • Want twire << tgate, so l << 2 tgate

    r c

475


New vlsi component inductor
New VLSI Component -- Inductor

  • Appeared because l shank, f 2 GHz

  • Chip bond wire inductance is a problem

  • On-chip wire inductance only a problem when:

    • Signal-carrying wire runs next to noisy VDD/VSS supply wire – noise couples inductively

      • Can cause logic errors

  • Inductance of cylindrical wire above ground plane:

    • L = mln 4h (use for wire bonds and package pins)

      2p d

    • m = wire magnetic permeability ( ~ 1.257 X 10-8 H/cm)

    • h = height above ground plane

    • d = wire diameter

475


Inductance of on chip wire
Inductance of On-Chip Wire

(

)

  • L = m ln 8h + w

    2pw 4h

  • w = conductor width

  • h = height above substrate

  • Package inductance values supplied by manufacturer

  • Get an inductive voltage spike on a bond wire when you draw a large current in a short time

  • dV= L dI

    dt

  • For high-speed chips, keep inductance down so that we don’t disturb VDD

  • MUST ACCOUNT FOR THIS AT 200 MHz OR HIGHER

475


Inductance example
Inductance Example

  • For an on-chip wire, h = 1000 mm (1 mm thick chip)

  • L = 1.257 X 10-8 ln 8 X 1000 + 1

    2p 1 4000

    = 1.8 x 10-9 H/mm

  • Defeat L by:

    • Reducing height above ground plane of wire bond (use top metal layer as ground plane)

    • Increasing wire diameter

(

)
