Derived SI Units, continued Density

Section 2 Units of Measurement. Chapter 2. Derived SI Units, continued Density. Density is the ratio of mass to volume, or mass divided by volume. The derived SI unit is kilograms per cubic meter, kg/m 3. g/cm 3 or g/mL are also used.

cailean-kerrane
Download Presentation

Derived SI Units, continued Density

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Section2 Units of Measurement Chapter 2 Derived SI Units,continued Density • Densityis the ratio of mass to volume, or mass divided by volume. • The derived SI unit is kilograms per cubic meter, kg/m3 • g/cm3 or g/mL are also used • Density is a characteristic physical property of a substance.

  2. Section2 Units of Measurement Chapter 2 Derived SI Units,continued Density • Density can be used as one property to help identify a substance

  3. Section2 Units of Measurement Chapter 2 Derived SI Units,continued • Sample Problem A • A sample of aluminum metal has a mass of • 8.4 g. The volume of the sample is 3.1 cm3. Calculate the density of aluminum.

  4. Section2 Units of Measurement Chapter 2 Derived SI Units,continued • Sample Problem A Solution • Given:mass (m) = 8.4 g • volume (V) = 3.1 cm3 • Unknown:density (D) • Solution:

  5. Re-Arranging the Formula • Here is a method to help you re-arrange the formula to find another variable. • For example the density formula, which is D = m/v, can be rearranged to give the formula for mass or volume.

  6. Rearranging the formula, continued • Start by drawing a formula circle: • It should be divided into three sections by drawing a “T” in the middle. The horizontal part of the “T” represents the fraction bar. • Since the “M” is above the fraction bar • in the formula, it remains above the fraction • bar in the circle. The “D” and “V” will be written below the • fraction bar on either side of the vertical line. M D V

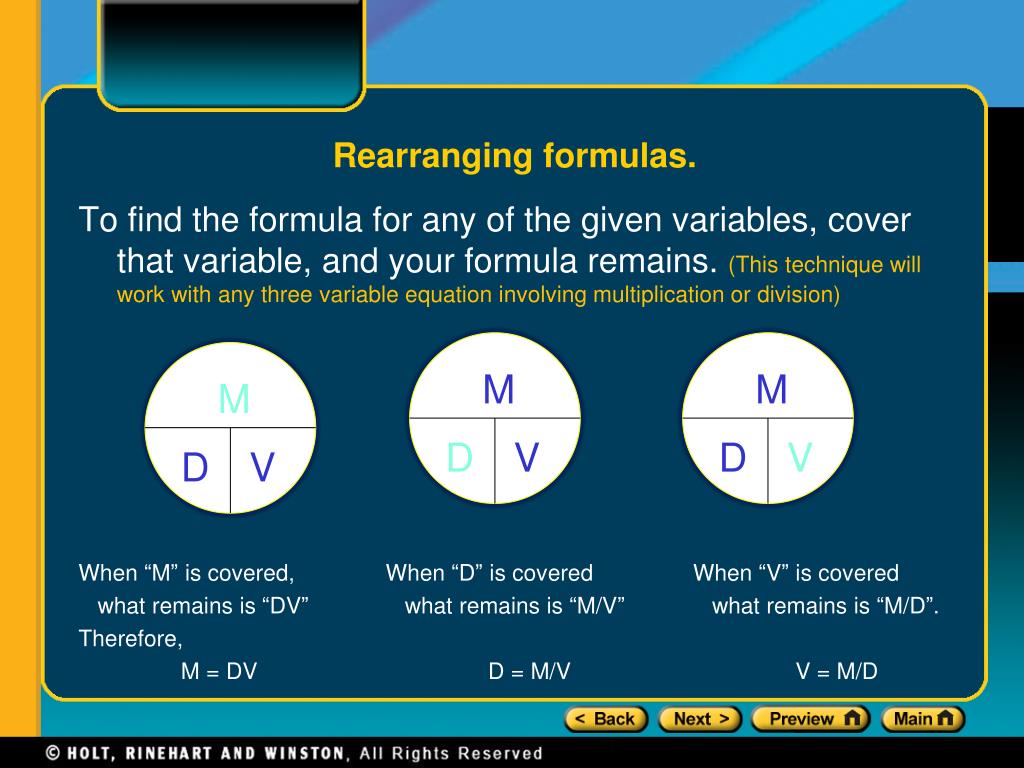

  7. Rearranging formulas. • To find the formula for any of the given variables, cover that variable, and your formula remains. (This technique will work with any three variable equation involving multiplication or division) • When “M” is covered, When “D” is covered When “V” is covered • what remains is “DV” what remains is “M/V” what remains is “M/D”. • Therefore, • M = DV D = M/V V = M/D M M M D V D V D V

  8. Density Practice Problems • Page 40 – Practice Problems (1-3) • Work these problems in your notebooks. • You will have 10 minutes to complete this exercise. • http://www.online-stopwatch.com/full-screen-stopwatch/

  9. Let’s go over the problems from page 40. • Problem 1: What is the density of a block of marble that occupies 310 cm³ and has a mass of 853 g? • From our circle, we can determine the formula to be D = M/V. • Therefore, D = 853 g / 310 cm³ • D = 2.75 g / cm³ • Notice that both units remain in the answer because they cannot be cancelled. M D V

  10. Problem 2 • Diamond has a density of 3.26 g / cm³. What is the mass of a diamond that has a volume of 0.351 cm³ ? • From our formula circle, we can see that • the formula for mass is M = DV. • Therefore, M = 3.26 g / cm³ x 0.351 cm³ • M = 1.14 g • (Notice that the cm³ units cancelled because one was under a fraction bar and one after a multiplication sign.) M D V

  11. Sample problem 3 • What is the volume of a sample of liquid mercury that has a mass of 76.2 grams, given that the density of mercury is 13.6 g/mL? • From the formula circle, we can derive that the formula for volume is M/D. Therefore, • V = M/D • V = 76.2 grams / 13.6 g/mL • V = 5.60 mL • (Grams cancels out of the answer.) M D V

  12. Review this tutorial as needed, then take the quiz labeled “Density”. • You can also practice this type of problem at the following link: • http://science.widener.edu/svb/tutorial/densitycsn7.html

  13. Mini-assessment • Density problems from textbook • Page 59 (17,18,19) • Page 61 (49) • Page 63 (9) • Let’s take fifteen minutes to complete this assessment. Be sure to show your work, beginning with writing the formula. • http://www.online-stopwatch.com/full-screen-stopwatch/ • (Trade to grade)
