  1. Silicon Rubber Tim Elsner Nate Vetsch Caleb Glantz Andy Johnson

  2. Silicon Rubber Properties • Mechanical • High tear and tensile strength • Great flexibility • Thermal • Wider range than most other rubbers • Electrical • Exceed similar materials in insulating ability • Non-conductive • Maintains dielectric strength through wide temp range

  3. Silicon Rubber Properties • Chemical • Water resistant • Chemical resistant including: • Some acids • Oxidizing agents • Ammonia • Isopropyl alcohol • Bio-Compatibility • Comply with FDA guideline for medical products • Tasteless and odorless • Doesn’t support bacteria growth • Doesn’t corrode other materials • Most importantly have superior compatibility with human tissue

  4. Tour of MN Rubber • Lead by Jeff Amundson, Operations Manager • Thank You Jeff • Litchfield Plant • Horizontal injection molding • Liquid silicone molding (LSR) • Extensive automation • Clean room finishing facilities • Thermo-set silicone injection molding • Standard products: ground rubber balls, o-rings & Quad-Ring Seals

  5. Cool things on tour • Automated visual inspection machine for deliver • Cryogenic de-flashing process • DOE to optimize with in the next year • Quality inspection room • Not just a myth, SQC is used! • O-ring defect separator • Overall cleanliness • Baffling ball grinder • Recycling of flash for profit!

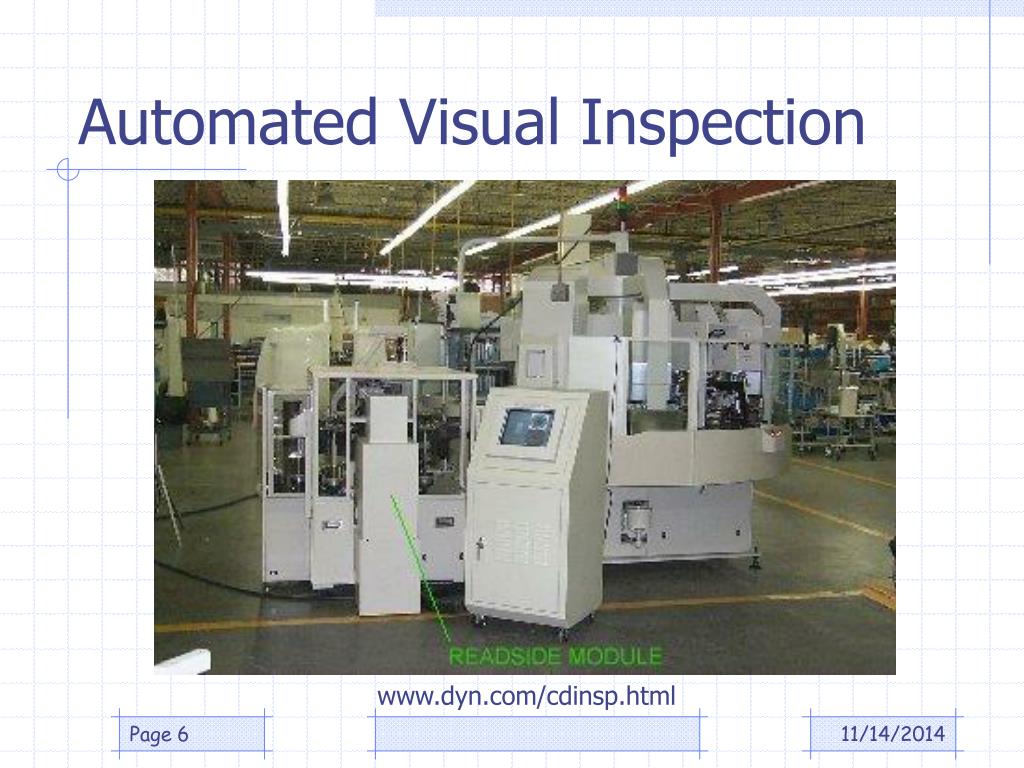

  6. Automated Visual Inspection www.dyn.com/cdinsp.html

  7. Cryogenic De-flashing Machine www.devicelink.com/company98/c/c00374.html

  8. Pampered Chef Spatulas • Minnesota Rubber • Complete in-house production • Handles injection molded plastic • “scoop” injection LSR • Nearly full automation • One man producing 500/hr www.mnrubber.com

  9. Liquid Silicon Injection • Two part silicon • Mixed in injection machine www.vestaweb.com/manufacturing/molding.htm

  10. Liquid Silicon Injection • Actual machine • Hopper is replaced by hoses to drums with silicon parts separated www.emachineshop.com/machines-molding/injection-molding.htm

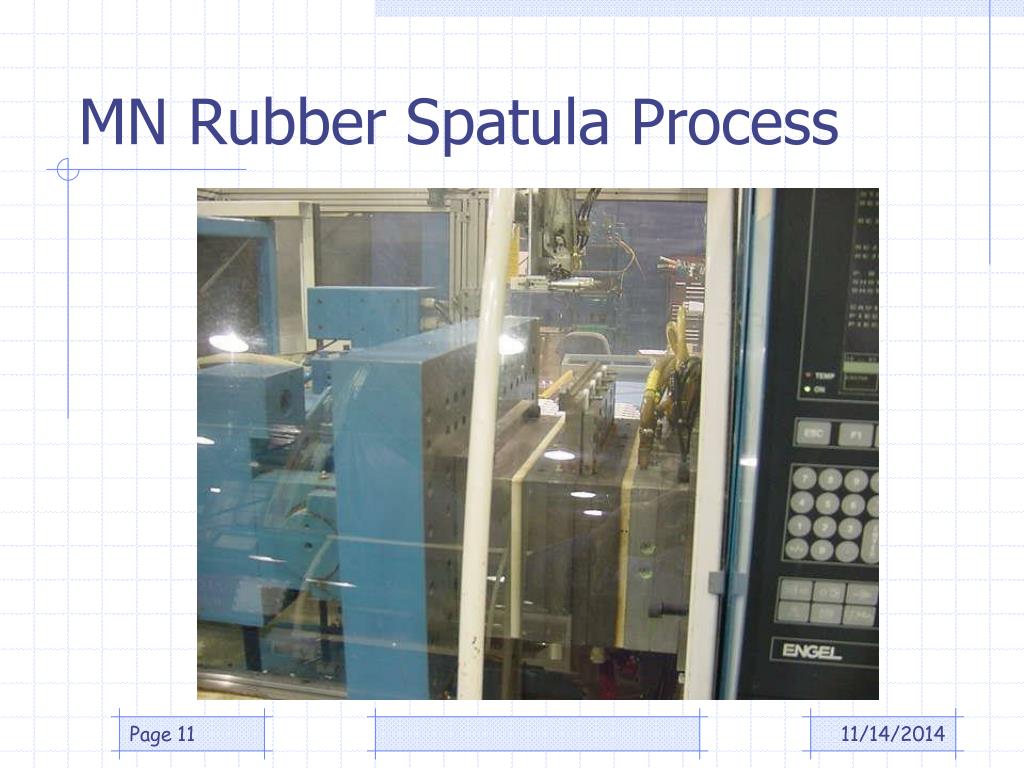

  11. MN Rubber Spatula Process

  12. MN Rubber Spatula Process

  13. MN Rubber Spatula Process

  14. Our Experiment • Received pre-mixed HTV gum rubber

  15. Our Experiment • Modeled two part injection with compression molding • Heat die • Insert precise amount of material • Compress in machine • Leave for time to set • Remove • Post bake for more complete cure

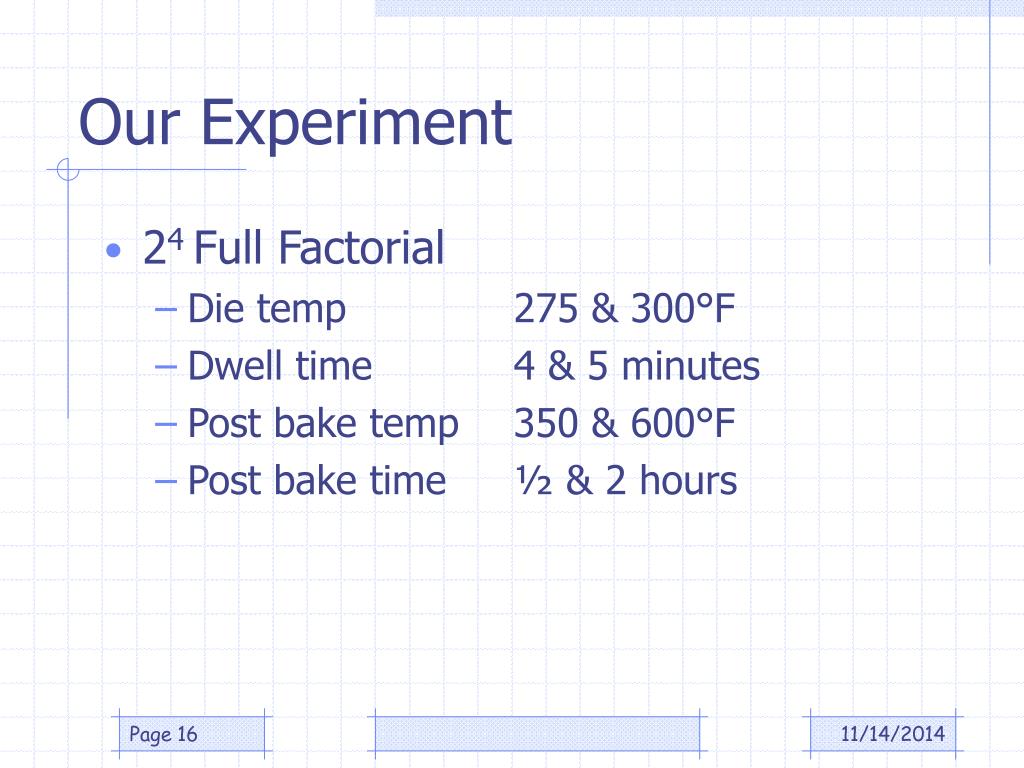

  16. Our Experiment • 24 Full Factorial • Die temp 275 & 300°F • Dwell time 4 & 5 minutes • Post bake temp 350 & 600°F • Post bake time ½ & 2 hours

  17. Our Experiment

  18. Our Experiment Results • Response variable is hardness • Durometer Shore A scale • Measured with tensile tester • Force vs. Displacement • Correlated to Shore A scale

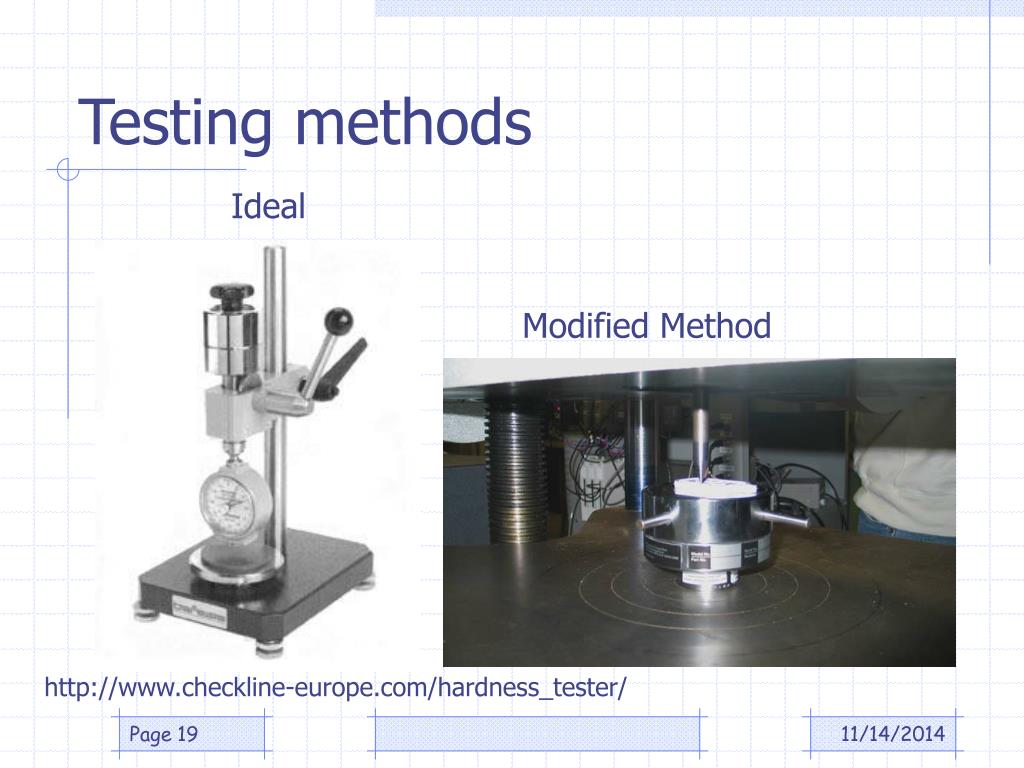

  19. Testing methods Ideal Modified Method http://www.checkline-europe.com/hardness_tester/

  20. Results • Die time and temp • Die time prob>f=.419 insignificant • Die temp prob>f=.272 insignificant • Potentially made insignificant by requiring sufficient cure for ease of release

  21. Results • Post bake time and temp • Bake time prob>f = .0036 significant • Bake temp prob>f = .0321 significant • Interaction prob>f = .0118 significant

  22. Interactions

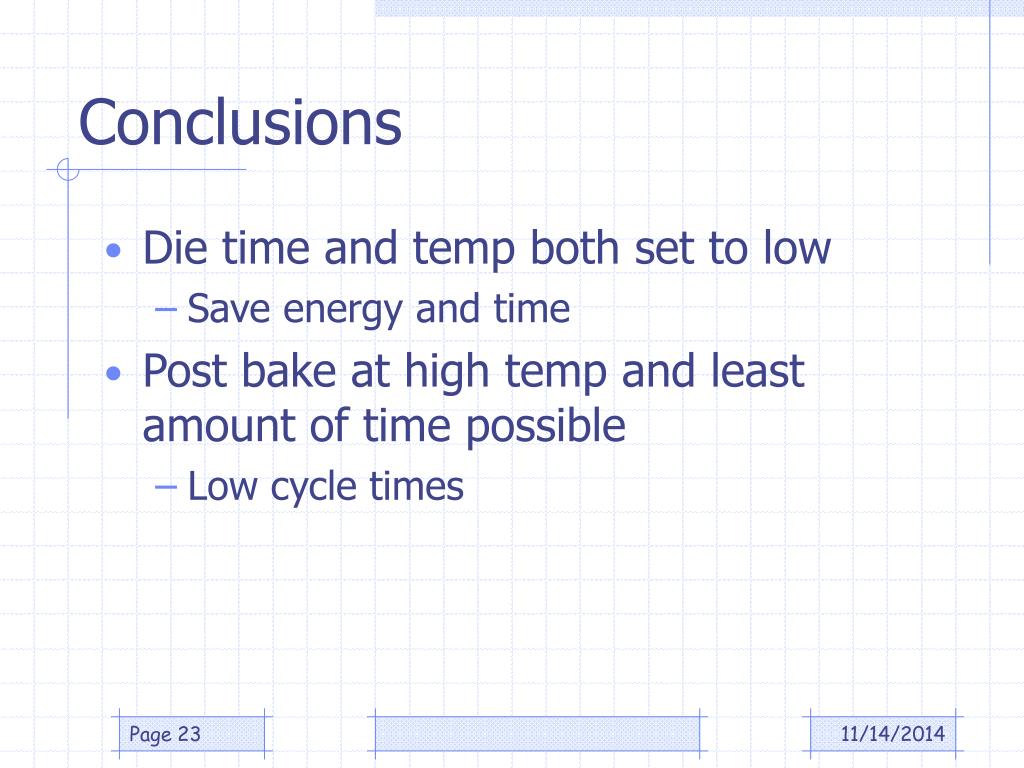

  23. Conclusions • Die time and temp both set to low • Save energy and time • Post bake at high temp and least amount of time possible • Low cycle times

  24. Thank you • Jeff Amundson for a good tour • Darryl for making test indentor • Bill for answering never ending questions • Seth for helping with lab equipment

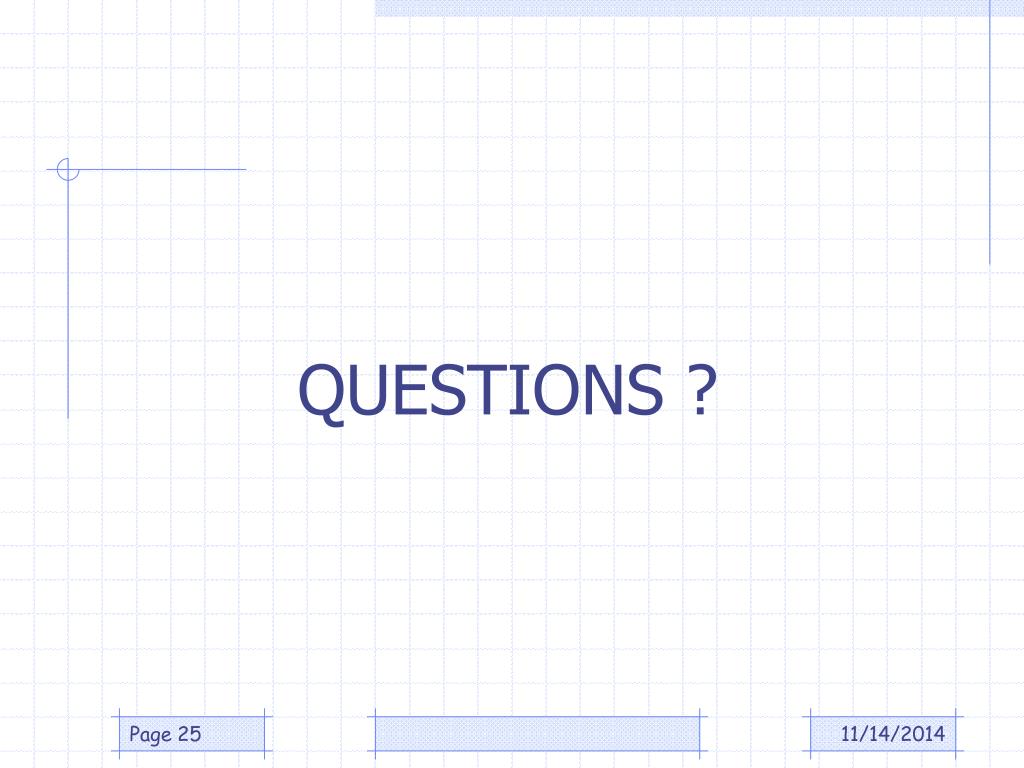

  25. QUESTIONS ?
