Presentation Transcript

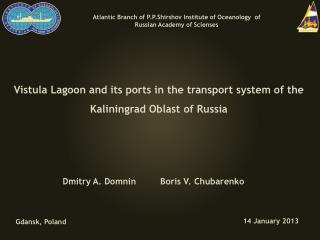

Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Atlantic Branch of P.P.Shirshov Institute of Oceanologyof

Russian Academy of Scienses

Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia

Dmitry A. DomninBoris V. Chubarenko

14January2013

Gdansk, Poland


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Marine Port Kaliningrad

Marine Port Kaliningrad has 3 part located inside of the Vistula Lagoon and 1 part located outside of theSambian Peninsula

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Inside port point - Kaliningrad

Specialization of Kaliningrad port point are the following:

bulk cargo and containers, fishery activities, river port.

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Inside port point - Svetliy

Specialization of Port Svetliy - services of oil tankers

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Inside port point - Baltiysk

Specialization of Baltiysk port point - naval base,

the container services, passenger terminal

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Outside port point - Pionerskiy

Specialization of Pionerskiyport - fishery activities

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Inside routes

Kaliningrad

Baltiysk

Elblag

Frombork

Sources of photos:

www.panoramio.com

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Small harbors and moorings

Primorsk

Yacht Club

Ushakovo

Kosa

Krasnoflotskoe

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Kaliningrad Yacht Club

Location: North-East of VL, Kaliningrad Bay

Area: 26.6 ths. m2

Wight of gate: 80 m

Wharf wall: 280 m

Specification: yacht club, children's sailing school

Underwater danger: no

Sources of photos: www.panoramio.com

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Ushakovo

Location: North-East of VL, mouth of the Prokhladnaya River

Area: 17.2 ths. m2

Wight of gate: 30 m

Wharf wall: 70 m

Specification: local using

Underwater danger:

Sources of photos: www.panoramio.com

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Krasnoflotskoe

Location: East of VL

Area: 30 ths. m2

Wight of gate: 35 m

Wharf wall: 430 m

Specification: fishing boats, local using, life-boat station

Underwater danger: yes

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Kosa

Location: North-West of VL, Vistula Spit

Area: 575 ths. m2

Wight of gate: 240 m

Wharf wall: 50 m

Specification: children's sailing school, local using

Underwater danger: yes

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Primorsk

Location: North of VL, Primorskaya Bay, mouth of Primorskaya River

Area: 5.2 / 1.4 ths. m2

Wight of gate: 25 / 6 m

Wharf wall: 160 m / no

Specification: military, local using

Underwater danger: yes

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Deepwater port in the Vistula Lagoon (under planning)

In 2001 the Government of Russia approved the construction of a deepwater port in the Kaliningrad region by the Federal Target Program “Development of transport system of Russia (2010 – 2015)” (approved by the Government of the Russian Federation, December 5, 2001 № 848)

This port, as a regional transport center, must ensure handling export and transit of containerized cargo.

Total throughput of 66-120 million tons per year (different sources).

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Possible location for deepwater port

Khmelevka

  • Possible points for

  • deepwater port:

  • Khmelevka

  • Cape Vostochniy

  • Primorskaya Bay

  • Cape Severniy

Primorskaya Bay

Cape Vostochniy

Cape Severniy

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Terms for the construction of port

Deepwater port

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Terms for the construction of port

Port area - ​​1,200 ha,

length of berths - 10 km

canal length - 11 km

canal depth - 18 m

canal width - 225/260 m

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Consequences of port construction

Opinion of different researchers: the construction of a deepwater port greatly change the state of the environment and increase the human pressure.

The construction and operation may adversely affect the water quality and biodiversity of the Vistula Lagoon.

Also problems with dredging of the canal will be. Because difference between the average depth of the Lagoon (2.5 m) and the canal (18 m) is very big.

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Conclusions

Scientific expertise in geomorphology, sedimentary, hydrography, land hydrology, meteorology will make for each small harbors of the Russian part of the Vistula Lagoon.

Construction and operation of the port will lead to major changes in natural conditions, the Vistula Lagoon.

Development of the small harbors infrastructure in the Vistula Lagoon will be the impetus for the development of the its outside area.

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013


Vistula lagoon and its ports in the transport system of the kaliningrad oblast of russia

Thank You for attention!

Atlantic Branch of P.P.Shirshov Institute of Oceanology of RAS

January,2013

Gdansk, Poland

Dmitry A. Domnin, Boris V. Chubarenko Vistula Lagoon and its ports in the transport system of the Kaliningrad Oblast of Russia, Gdansk, Poland, 14January2013
