### Rasterizing Polygons

Lecture 29

Wed, Dec 7, 2005

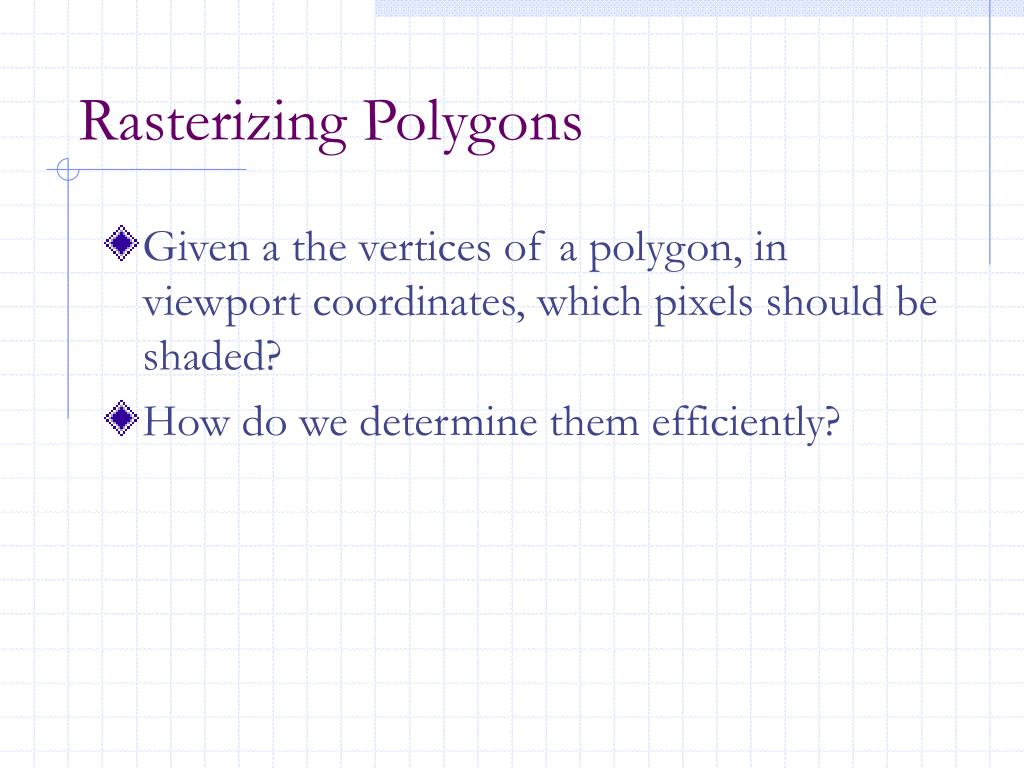

• Given a the vertices of a polygon, in viewport coordinates, which pixels should be shaded?

• How do we determine them efficiently?

• Obviously, any pixel lying entirely within the polygon should be shaded.

• What about the pixels that are partially within the polygon?

• Rule: Shade them if their center is within the polygon.

• What about the pixels whose center is exactly on the edge?

• When two polygons share an edge, which one “owns” the pixels on the edge?

• Rule

• A polygon owns all pixels whose centers are within its interior.

• A polygon owns all pixels whose centers lie on one of its left edges.

• Fill in all pixels whose centers are within the polygon.

• Fill in all pixels whose centers are on a left edge of the polygon.

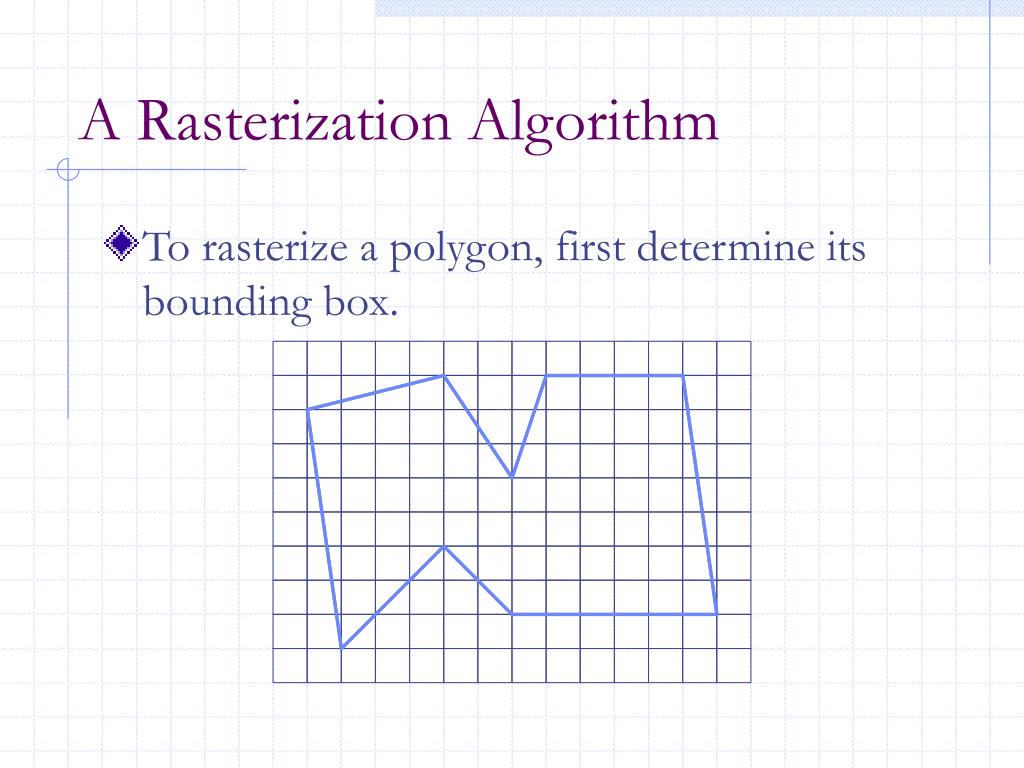

• To rasterize a polygon, first determine its bounding box.

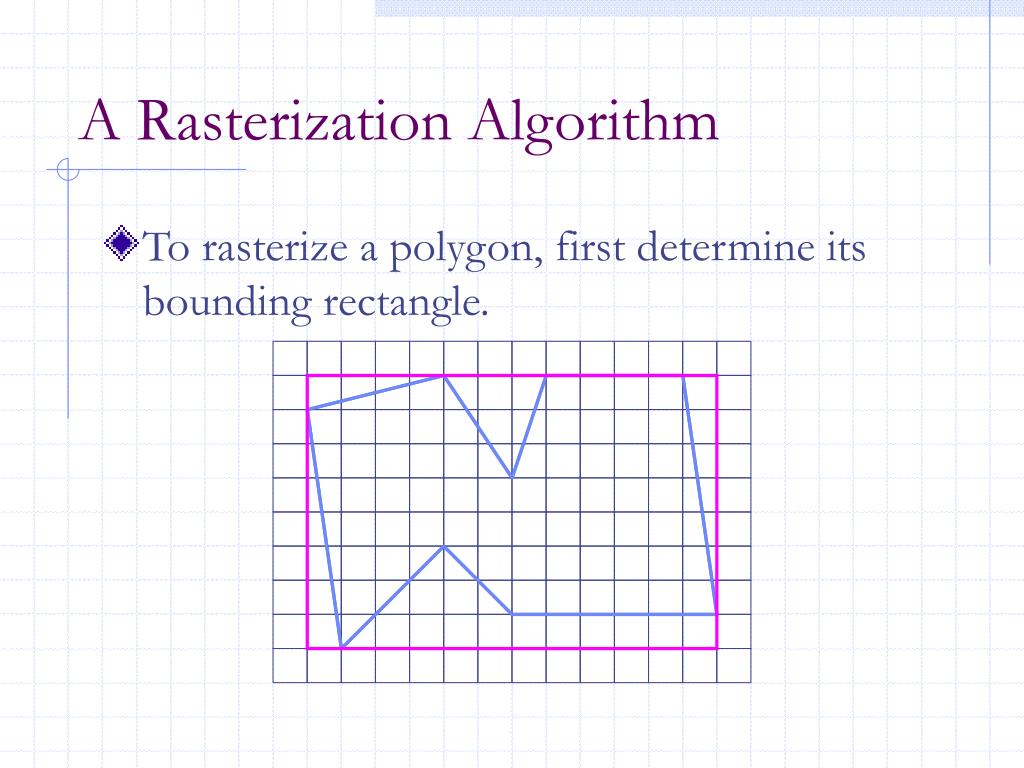

• To rasterize a polygon, first determine its bounding rectangle.

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

• When an edge is encountered,

• If we were on the outside, we move to the inside.

• If we were on the inside, we move to the outside.

• Thus, we stop or resume shading accordingly.

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

row 0

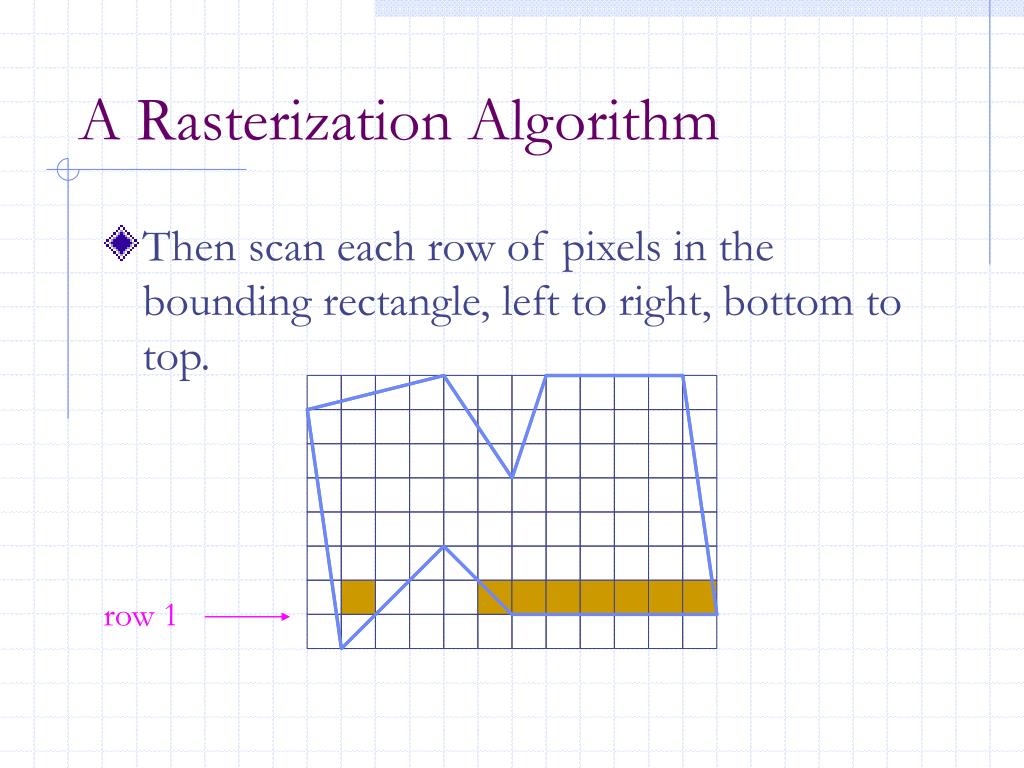

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

row 1

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

row 2

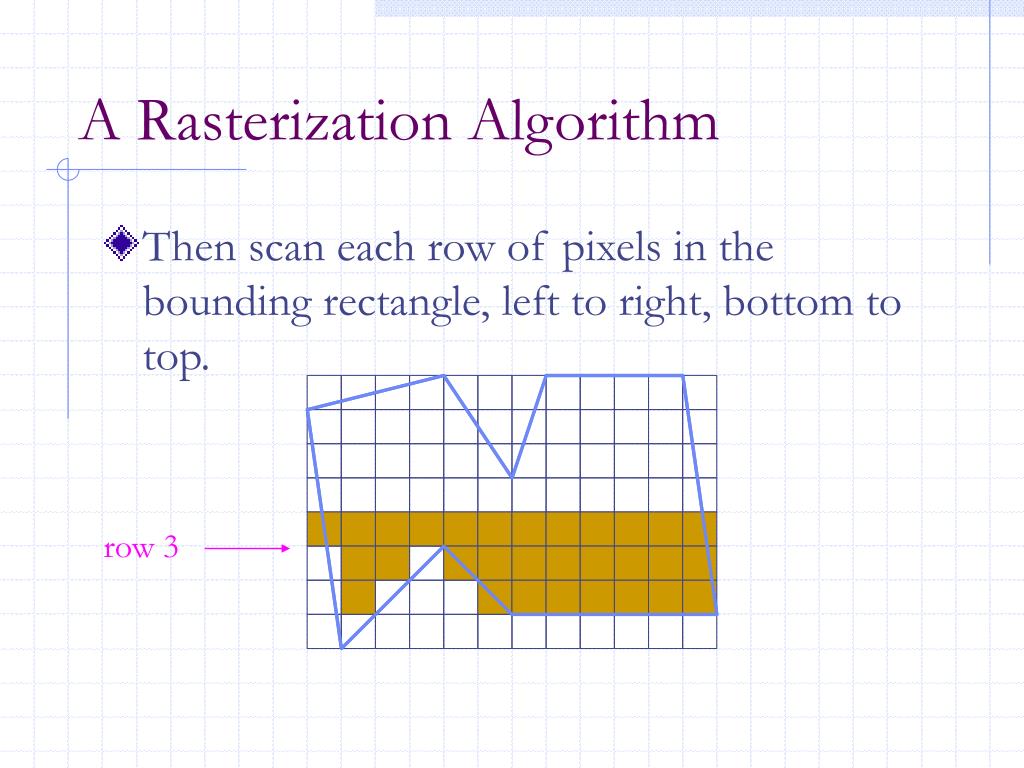

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

row 3

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

row 4

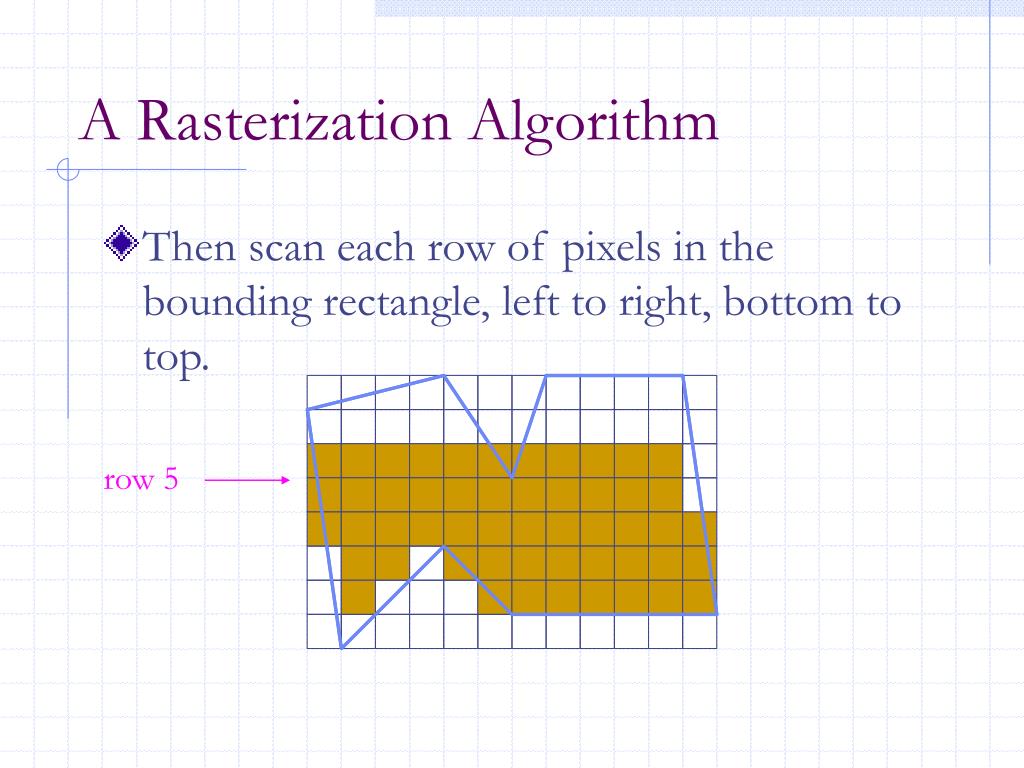

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

row 5

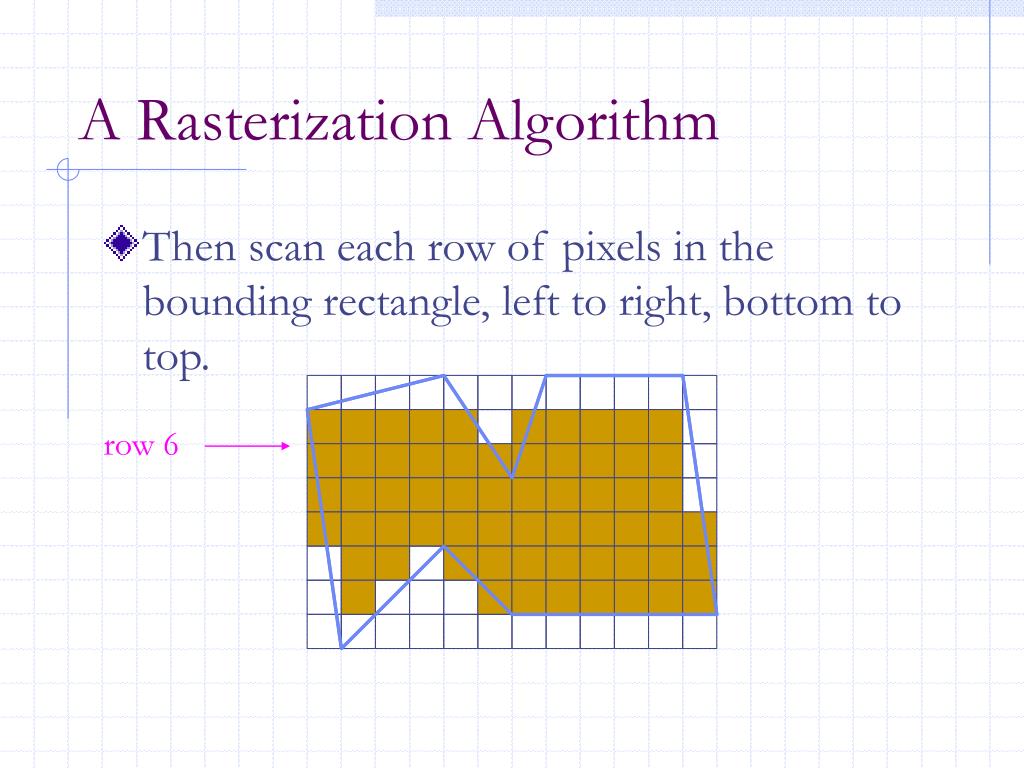

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

row 6

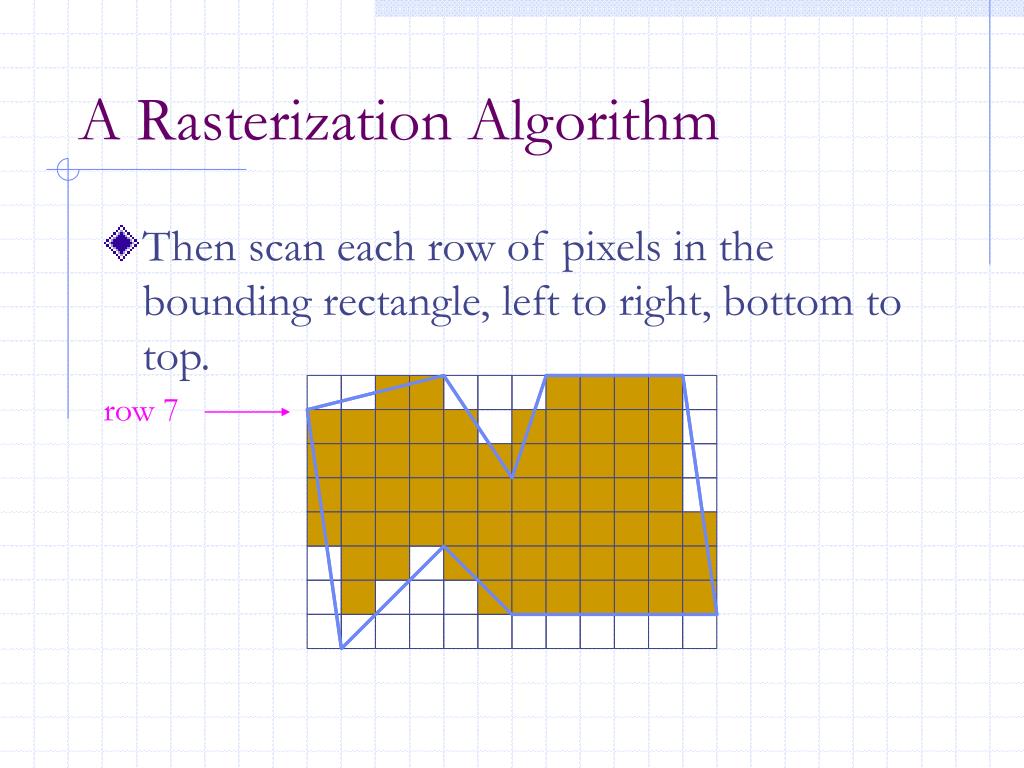

• Then scan each row of pixels in the bounding rectangle, left to right, bottom to top.

row 7

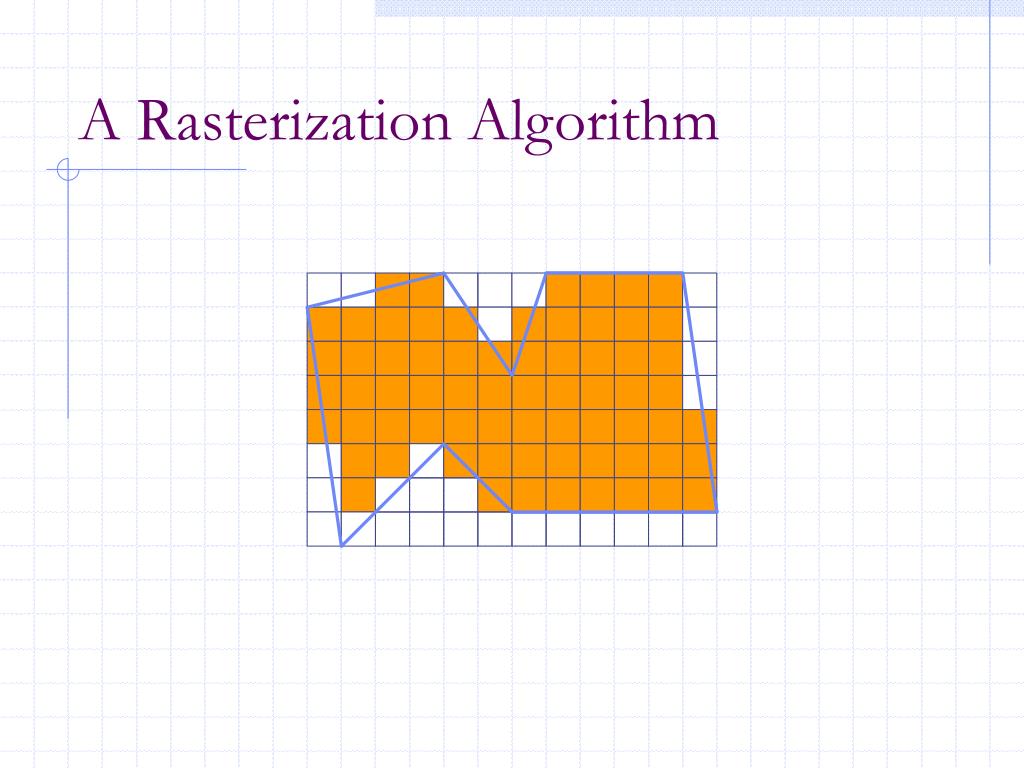

• The following algorithm is designed to allow rapid shading of the pixels.

• As the vertices are given, create a list of the vertices. (The order matters!)

• {(1, 0), (4, 3), (6, 1), (12, 1), (11, 8), (7, 8), (6, 5), (4, 8), (0, 7), (1, 0)}.

• From the list of vertices, form an edge table.

• {{(1, 0), (4, 3)}, {(4, 3), (6, 1)}, …, {(0, 7), (1, 0)}}.

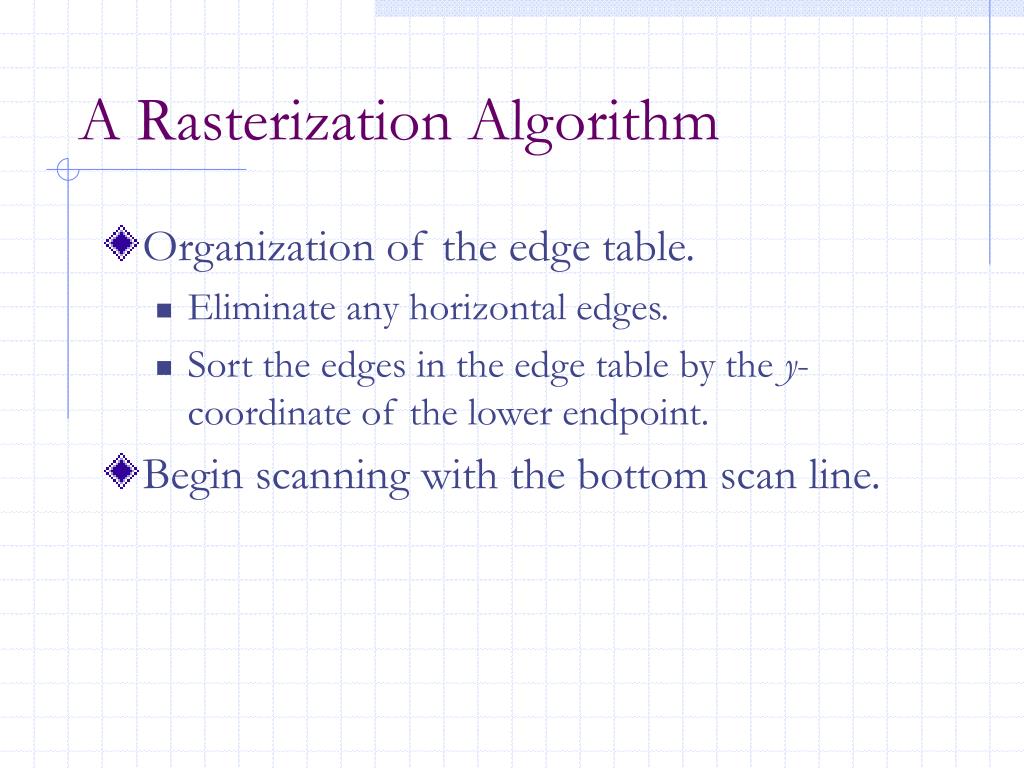

• Organization of the edge table.

• Eliminate any horizontal edges.

• Sort the edges in the edge table by the y-coordinate of the lower endpoint.

• Begin scanning with the bottom scan line.

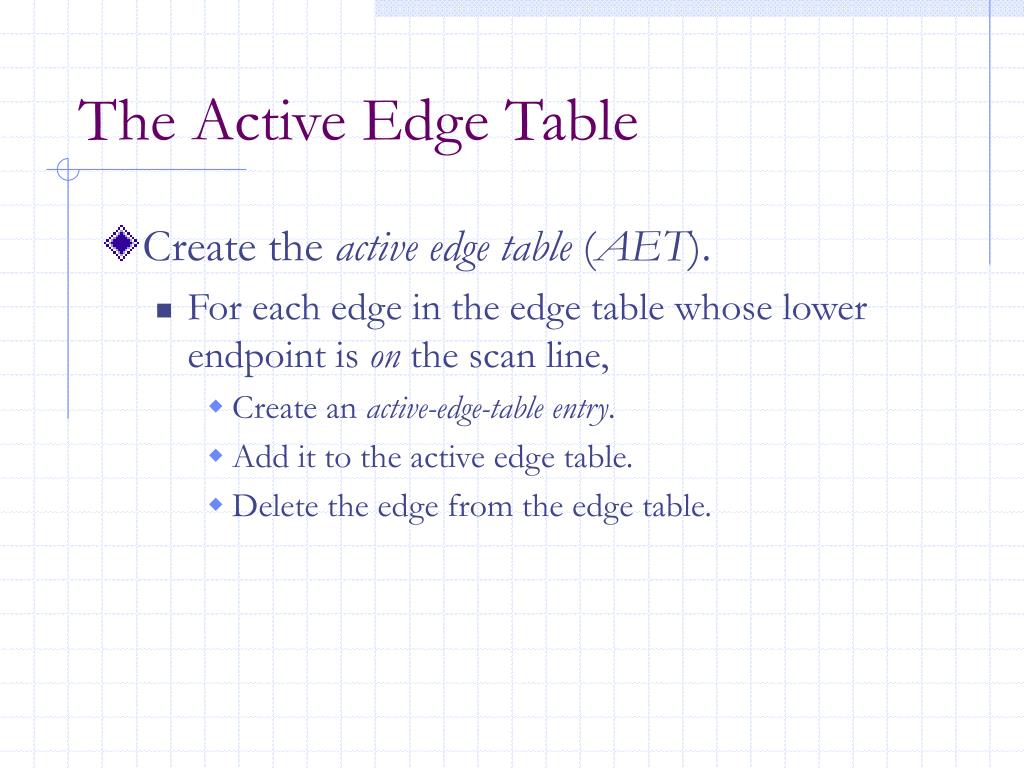

• Create the active edge table (AET).

• For each edge in the edge table whose lower endpoint is on the scan line,

• Create an active-edge-table entry.

• Add it to the active edge table.

• Delete the edge from the edge table.

• Organization of an active-edge-table entry:

• y-coordinate of upper endpoint.

• Reciprocal of the slope.

• x-intercept with the horizontal line ½ unit above the current scan line.

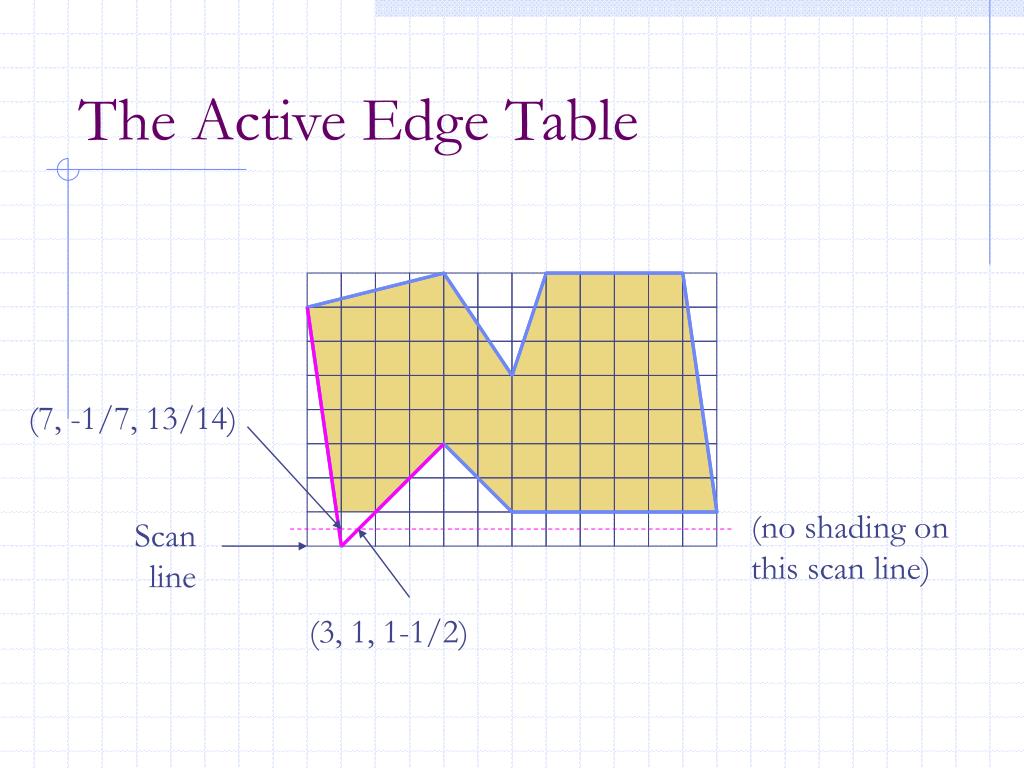

Active

edges

Scan

line

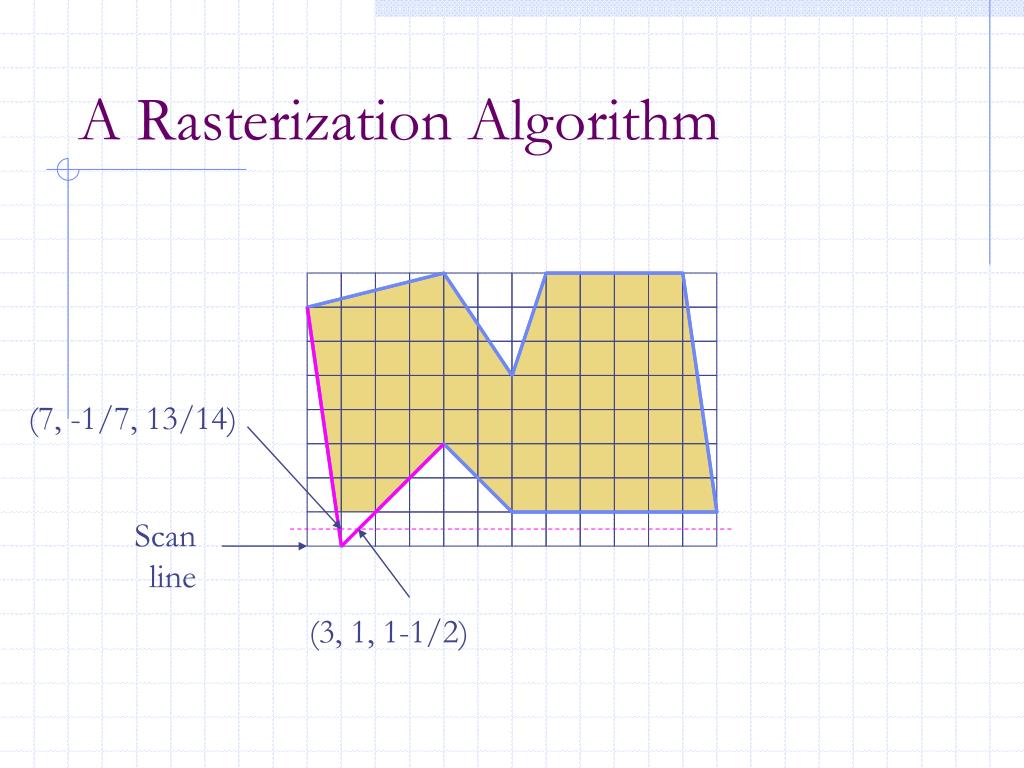

(7, -1/7, 13/14)

Scan

line

(3, 1, 1-1/2)

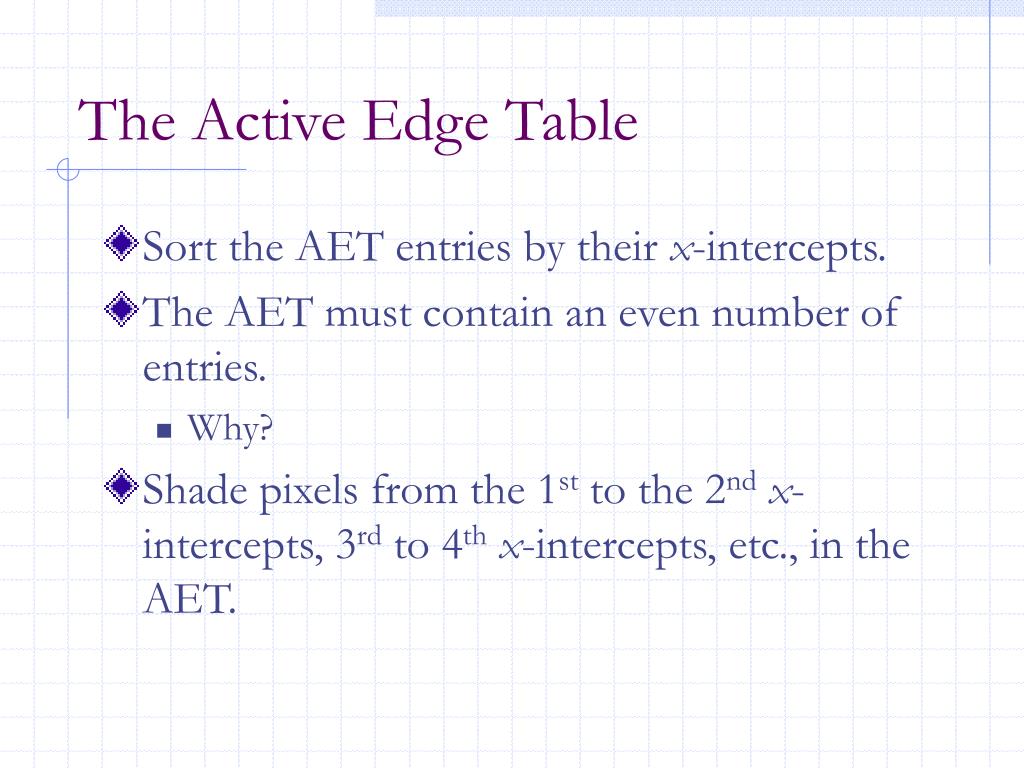

• Sort the AET entries by their x-intercepts.

• The AET must contain an even number of entries.

• Why?

• Shade pixels from the 1st to the 2ndx-intercepts, 3rd to 4thx-intercepts, etc., in the AET.

(7, -1/7, 13/14)

this scan line)

Scan

line

(3, 1, 1-1/2)

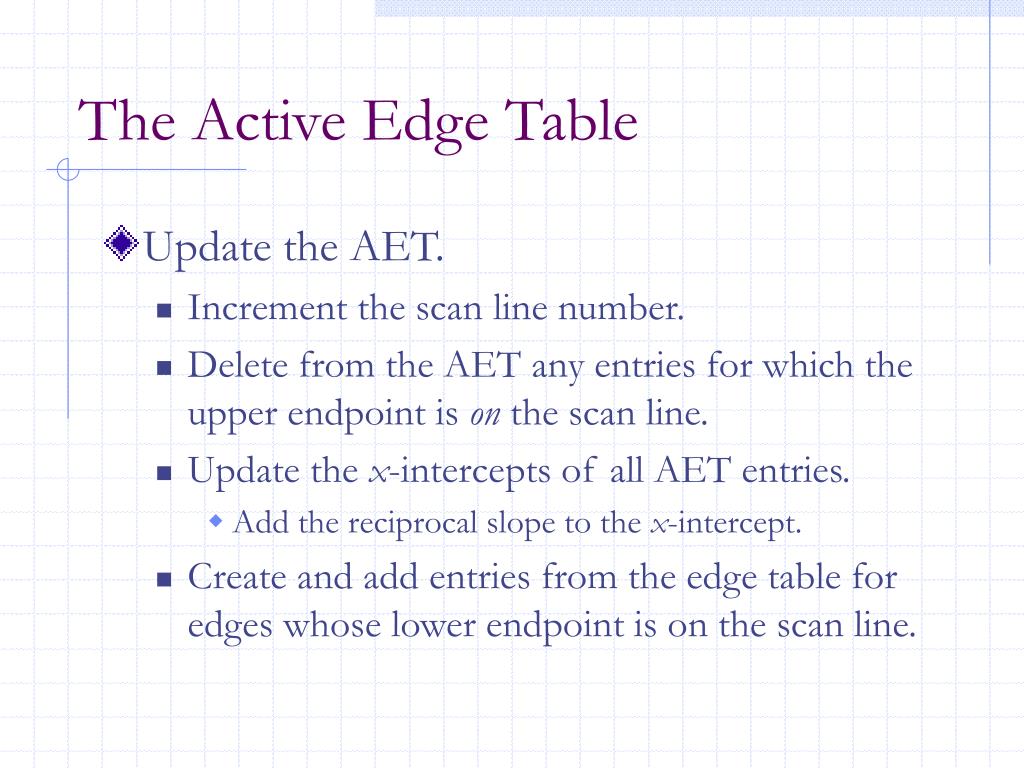

• Update the AET.

• Increment the scan line number.

• Delete from the AET any entries for which the upper endpoint is on the scan line.

• Update the x-intercepts of all AET entries.

• Add the reciprocal slope to the x-intercept.

• Create and add entries from the edge table for edges whose lower endpoint is on the scan line.

(7, -1/7, 13/14)

Scan

line

(3, 1, 1-1/2)

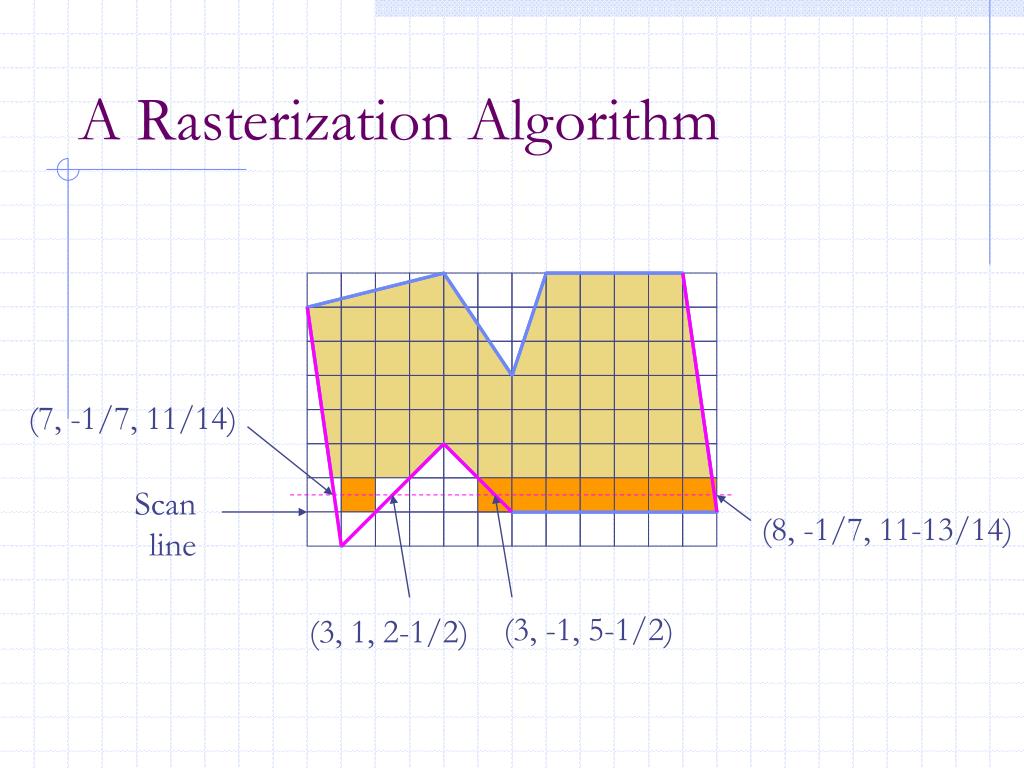

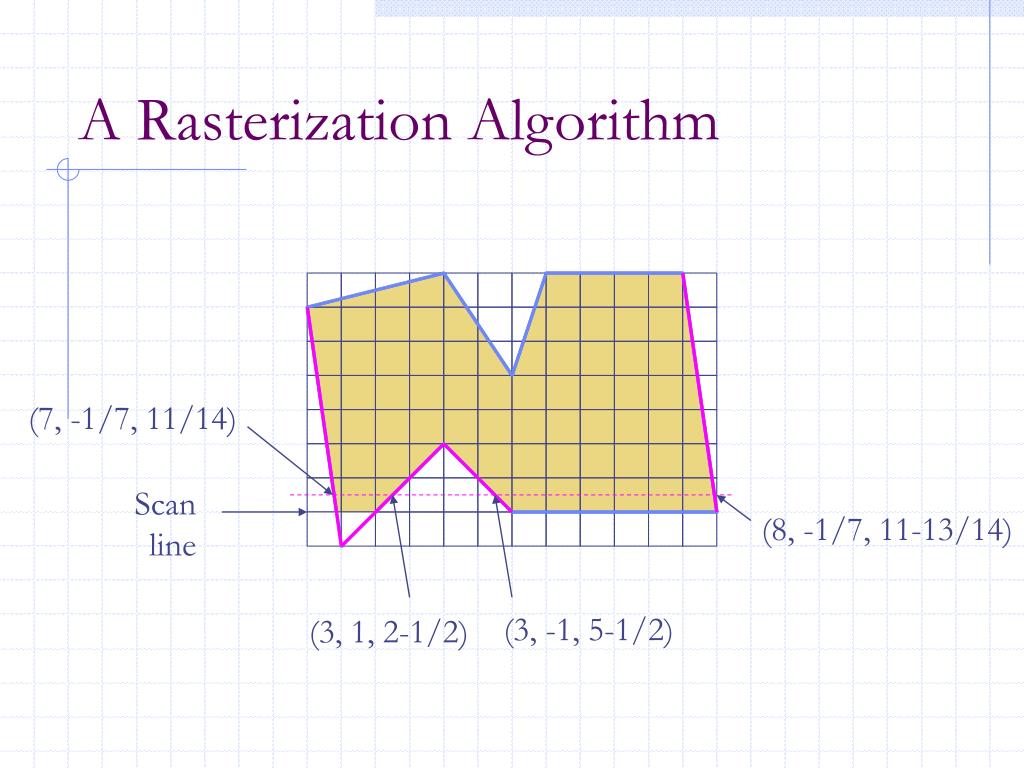

(7, -1/7, 11/14)

Scan

line

(8, -1/7, 11-13/14)

(3, -1, 5-1/2)

(3, 1, 2-1/2)

(7, -1/7, 11/14)

Scan

line

(8, -1/7, 11-13/14)

(3, -1, 5-1/2)

(3, 1, 2-1/2)

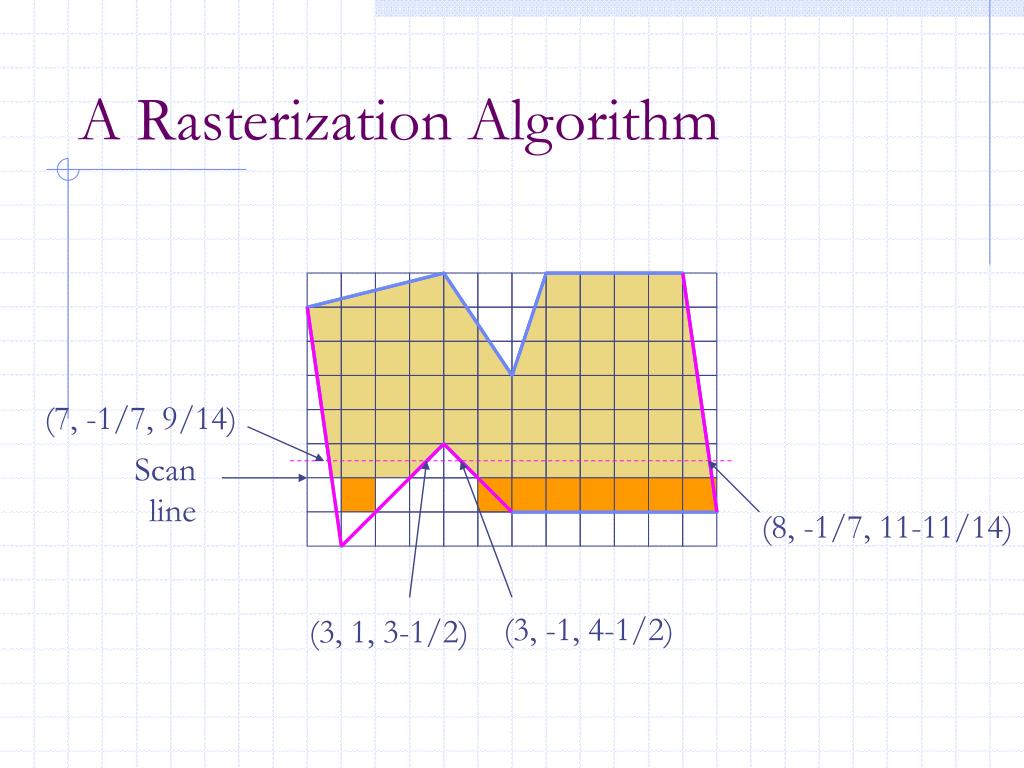

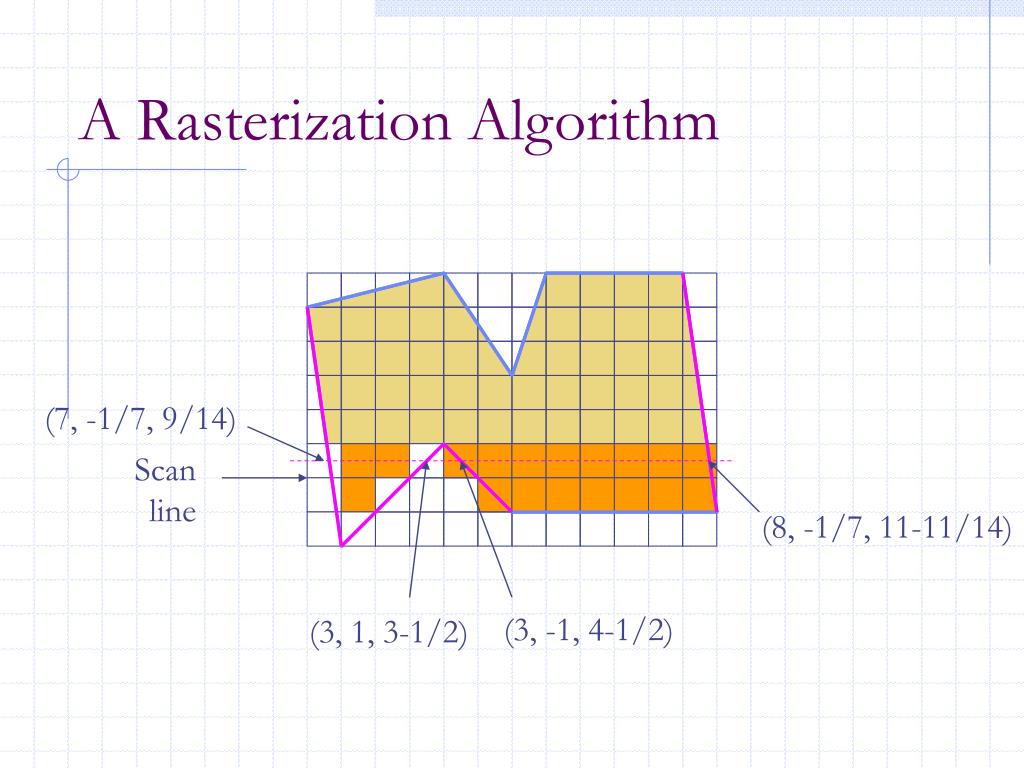

(7, -1/7, 9/14)

Scan

line

(8, -1/7, 11-11/14)

(3, -1, 4-1/2)

(3, 1, 3-1/2)

(7, -1/7, 9/14)

Scan

line

(8, -1/7, 11-11/14)

(3, -1, 4-1/2)

(3, 1, 3-1/2)

(7, -1/7, 1/2)

Scan

line

(8, -1/7, 11-9/14)

(7, -1/7, 1/2)

Scan

line

(8, -1/7, 11-9/14)

(7, -1/7, 5/14)

Scan

line

(8, -1/7, 11-1/2)

(7, -1/7, 5/14)

Scan

line

(8, -1/7, 11-1/2)

(8, -2/3, 5-5/6)

(8, 1/3, 6-1/6)

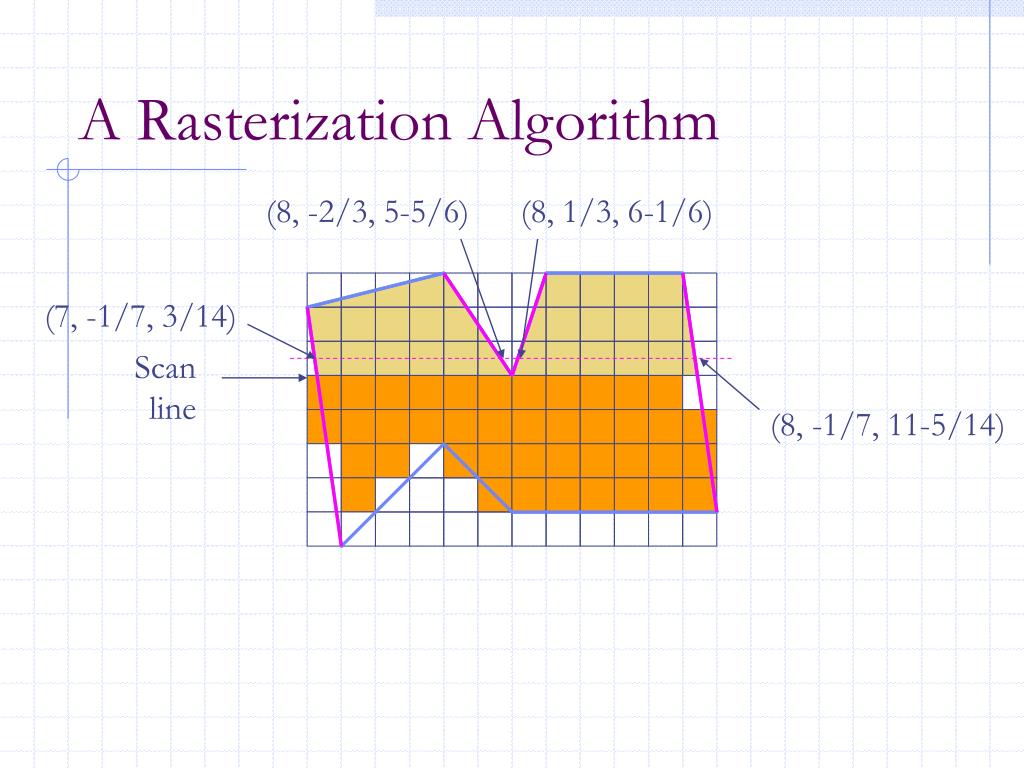

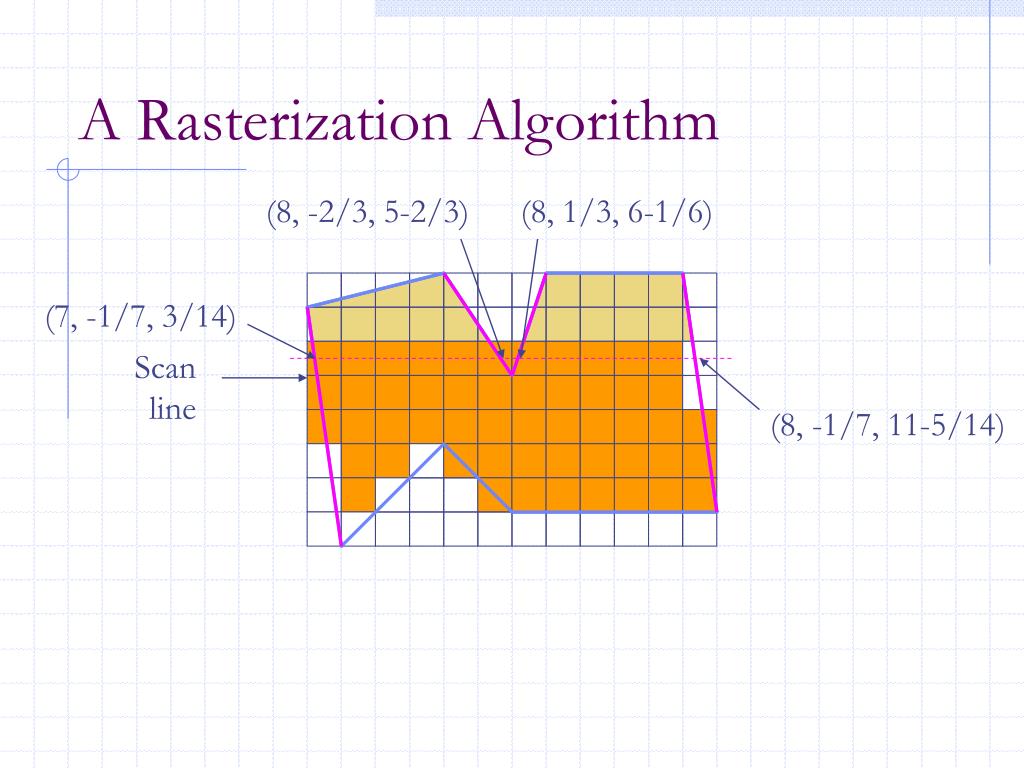

(7, -1/7, 3/14)

Scan

line

(8, -1/7, 11-5/14)

(8, -2/3, 5-2/3)

(8, 1/3, 6-1/6)

(7, -1/7, 3/14)

Scan

line

(8, -1/7, 11-5/14)

(8, -2/3, 5)

(8, 1/3, 6-1/2)

(7, -1/7, 1/14)

Scan

line

(8, -1/7, 11-3/14)

(8, -2/3, 5)

(8, 1/3, 6-1/2)

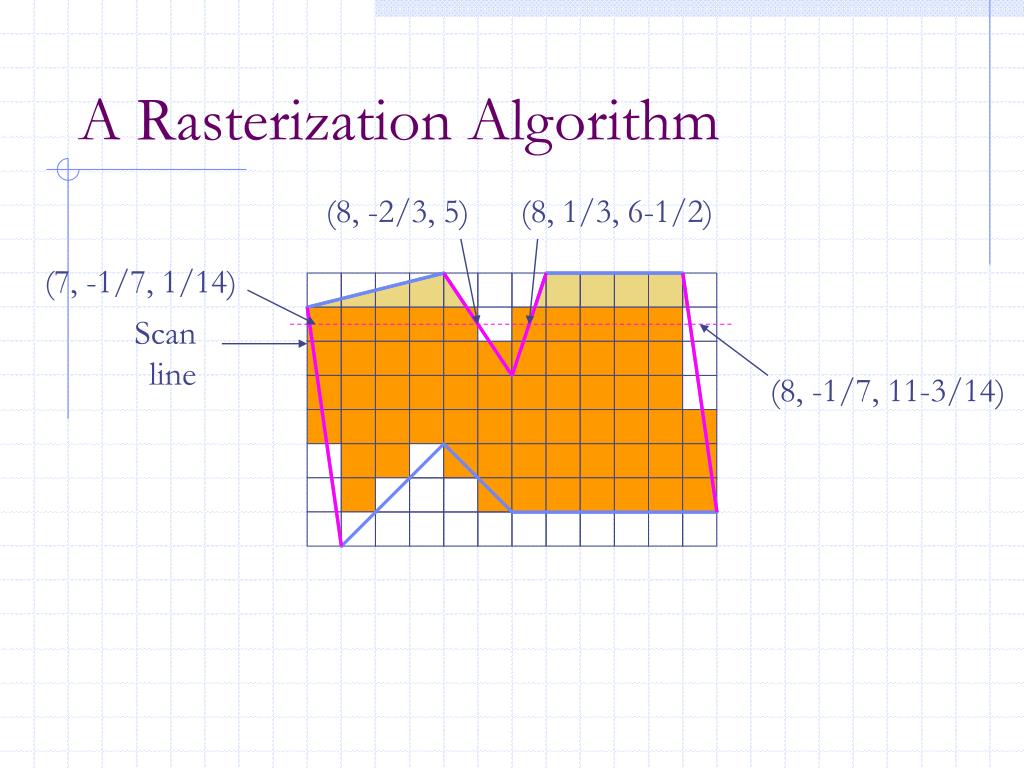

(7, -1/7, 1/14)

Scan

line

(8, -1/7, 11-3/14)

(8, -2/3, 5)

(8, 1/3, 6-1/2)

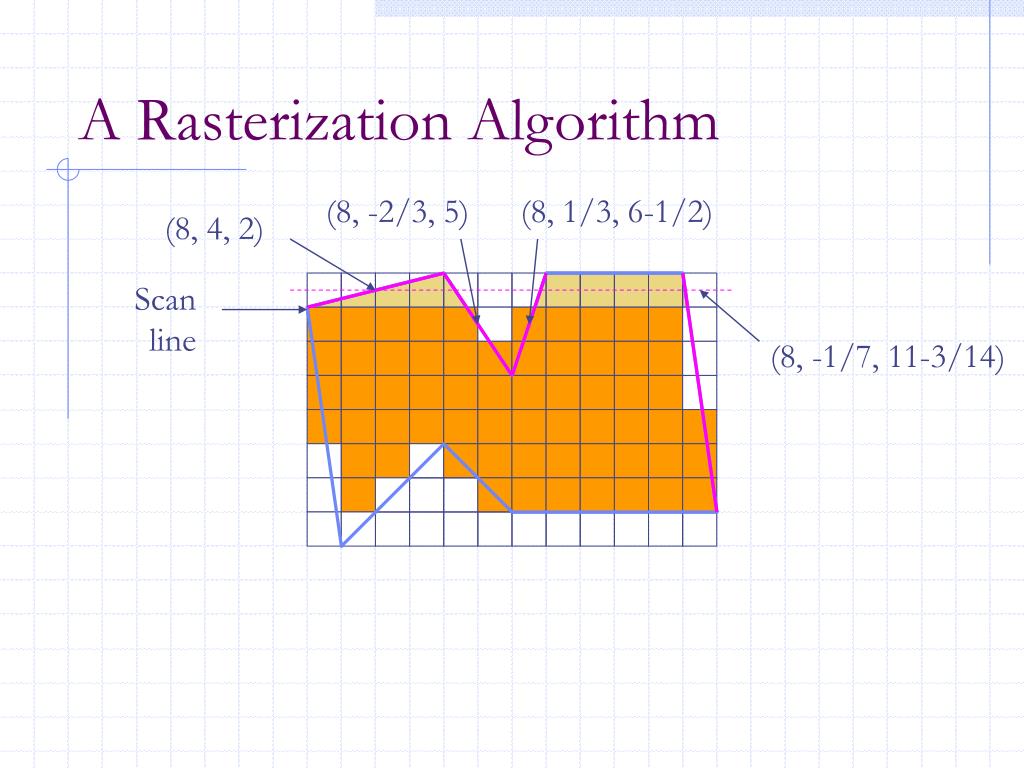

(8, 4, 2)

Scan

line

(8, -1/7, 11-3/14)

(8, -2/3, 5)

(8, 1/3, 6-1/2)

(8, 4, 2)

Scan

line

(8, -1/7, 11-3/14)
