Presentation Transcript


Dengue l.jpg

Dengue

Virus, Vector and Epidemiology


I virus l.jpg

I. Virus


Dengue virus l.jpg

Dengue Virus

  • Causes dengue and dengue hemorrhagic fever

  • Is an arbovirus

  • Transmitted by mosquitoes

  • Composed of single-stranded RNA

  • Has 4 serotypes (DEN-1, 2, 3, 4)


Dengue viruses l.jpg

Dengue Viruses

  • Each serotype provides specific lifetime immunity, and short-term cross-immunity

  • All serotypes can cause severe and fatal disease

  • Genetic variation within serotypes

  • Some genetic variants within each serotype appear to be more virulent or have greater epidemic potential


Transmission of dengue virus by aedes aegypti l.jpg

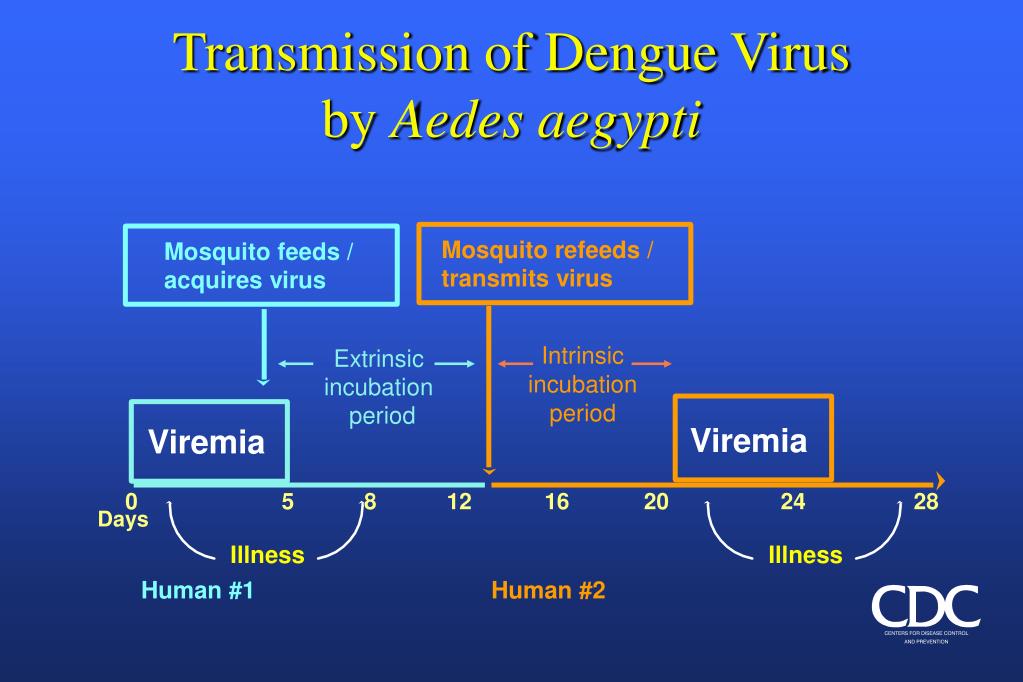

Extrinsic

incubation

period

Illness

Illness

Transmission of Dengue Virusby Aedes aegypti

Mosquito refeeds /

Mosquito feeds /

transmits virus

acquires virus

Intrinsic

incubation

period

Viremia

Viremia

0

5

8

12

16

20

24

28

Days

Human #1

Human #2


Replication and transmission of dengue virus part 1 l.jpg

1

2

4

3

Replication and Transmissionof Dengue Virus (Part 1)

1. Virus transmitted

to human in mosquito

saliva

2. Virus replicates

in target organs

3. Virus infects white

blood cells and

lymphatic tissues

4. Virus released and

circulates in blood


Replication and transmission of dengue virus part 2 l.jpg

6

7

5

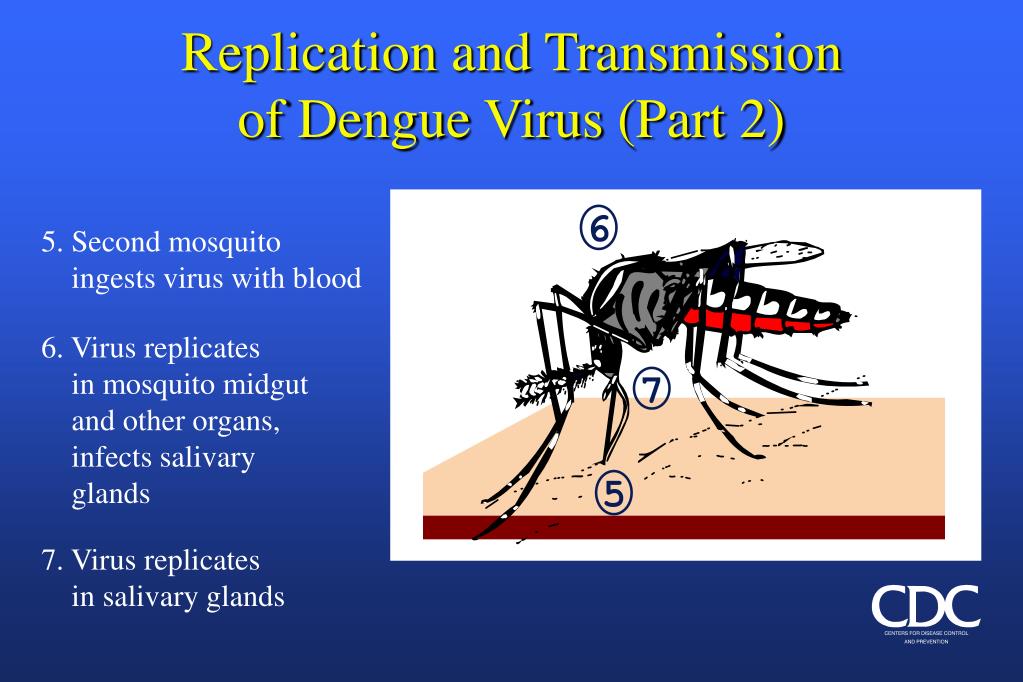

Replication and Transmissionof Dengue Virus (Part 2)

5. Second mosquito

ingests virus with blood

6. Virus replicates

in mosquito midgut

and other organs,

infects salivary

glands

7. Virus replicates

in salivary glands


Ii vector l.jpg

II. Vector


Aedes aegypti mosquito l.jpg

Aedes aegypti Mosquito


Aedes aegypti l.jpg

Aedes aegypti

  • Dengue transmitted by infected female mosquito

  • Primarily a daytime feeder

  • Lives in and around human habitation

  • Lays eggs and produces larvae preferentially in artificial containers


Aedes aegypti breeding sites l.jpg

Aedes aegypti Breeding Sites


Iii epidemiology l.jpg

III. Epidemiology


World distribution of dengue 1999 l.jpg

Areas infested with Aedes aegypti

Areas with Aedes aegypti and recent epidemic dengue

World Distribution of Dengue1999


Reported cases of dengue in the americas 1980 1998 l.jpg

Reported Cases of Denguein the Americas, 1980 - 1998

*Provisional data for 1998


Mean annual number of dhf cases thailand indonesia and vietnam by decade l.jpg

Mean Annual Number of DHF CasesThailand, Indonesia and Vietnam, by Decade

* Provisional data through 1998


Reported cases of dhf in the americas 1970 1998 l.jpg

Reported Cases of DHF inthe Americas, 1970 - 1998

* Provisional data through 1998


Distribution of den 3 in the americas 1998 l.jpg

Distribution of DEN-3in the Americas, 1998

1994

1995

1997

1998

Pan American Health Organization, 1999


Recent dengue in the u s a texas l.jpg

Recent Dengue in the U.S.A. (Texas)

  • Dengue epidemics occurred in the USA in the 1800s and the first half of the 1900s

  • Recent indigenous transmission:

    • 1980: first locally acquired cases since 1945

    • 1986: 9 cases

    • 1995: 7 cases

    • 1997: 3 cases

  • Lack of recent epidemic transmission likely due to changes in life style


Reasons for dengue expansion in the americas l.jpg

Reasons for Dengue Expansion in the Americas

  • Extensive vector infestation, with declining vector control

  • Unreliable water supply systems

  • Increasing non-biodegradable containers and poor solid waste disposal

  • Increased air travel

  • Increasing human population density in urban areas


Challenges for the future l.jpg

Challenges for the Future

  • 2.5 billion people at risk world-wide

  • In the Americas, 50-fold increase in reported cases of DHF (1989-1993 compared to 1984-1988)*

  • Widespread abundance of Aedes aegypti in at-risk areas

* Organization of American States,

Human Health in the Americas, 1996
