  1. Neutron-induced production of protons, deuterons and tritons and comparison with experimental data Hans Wenzel Geant4 Hadronic Working Group Meeting July 23rd 2014

  2. Outline • Motivation. • The test setup and the experimental data used for comparison. • Results for neutron induced production of p,d,t on Bi,Cu at angles of 54,68,90,121,164 degrees for neutron energies of 317,348,384,426,478,542 MeV, comparison with Geant 4 simulations using the FTFP_BERT and FTF_BIC physics lists. • Observations. • Availability of the data (experimental and simulation). • Plans.

  3. Motivation • In the future Fermilab plans to mainly focus on Neutrino physics  talked to the neutrino experiments to find out what experimental data sets they think are important (detector response/production target) • Test suite to validate Geant 4 against this data sets  get feedback from the Geant4 col. Improve the models • Provide guidance concerning the best physics list (both for production target and detector response) • Provide dedicated physics lists. • Steve Dytman provided feedback and a collection of experimental result he uses for validation of simulation. First Test: Neutron induced production of protons, deuterons and tritons. Data for Bi and Cu from Franz et al (Nuclear Physics A510 (1990) 774-802) extracted from the exfordatabase(http://www.nndc.bnl.gov/exfor/exfor.htm). Data for C is described in Franz et al (Nuclear Physics A510 (1987) 733-758) but couldn’t find data in ascii format no Carbon results!. • Identifying spallation reactions might provide a tool to improve hadronic energy resolution in LAr TPC’s. • Production of spallation protons  important to explain event to event compensation in a dual readout calorimeter.

  4. Motivation (cont.) • LAr TPC’s will provide an unparalleled level of detail in showers and neutrino interactions, experiments like LAriAT (Liquid Argon in a Test Beam) will expose this type of detectors soon (this summer) to various particle beams  opportunity to gain access to data and influence the data they take to validate Geant4 with. Planned measurements include: • Visible energy calibration dE/dx, Birks etc. • PID methods • e/gamma shower separation • Muon sign determination • Antiproton stars (tag spallation processes?) • …

  5. Geant 4 test set up Neutron beam Outgoing p,d,t Target materials: Cu, Bi (thin target (~1mm)) Neutron Beam Energies: 317,348,384,426,478,542 MeV Angles: 54,68,90,121,164 degrees Physics Lists: FTFP_BERT, FTF_BIC Framework: artg4tk Geant 4 version: 4.9.6.p02 Measurement: rate converted in ds/dOdE

  6. P,d,t production on Bi, Cu beamenergy 542 MeV

  7. Proton Production Target: Cu Beam: 542 MeV Green: exp. Data Blue: BIC Red: Bertini

  8. deuteron Production Target: Cu Beam: 542 MeV Green: exp. Data Blue: BIC Red: Bertini

  9. triton Production Target: Cu Beam: 542 MeV Green: exp. Data Blue: BIC Red: Bertini

  10. Proton Production Target: Bi Beam: 542 MeV Green: exp. Data Blue: BIC Red: Bertini

  11. deuteron Production Target: Bi Beam: 542 MeV Green: exp. Data Blue: BIC Red: Bertini

  12. triton Production Target: Bi Beam: 542 MeV Green: exp. Data Blue: BIC Red: Bertini

  13. Proton production at different beam energies (Bertini only)

  14. Proton Production Target: Cu Beam: 317 MeV Green: exp. Data Red: Bertini

  15. Proton Production Target: Cu Beam: 347 MeV Green: exp. Data Red: Bertini

  16. Proton Production Target: Cu Beam: 383 MeV Green: exp. Data Red: Bertini

  17. Proton Production Target: Cu Beam: 425 MeV Green: exp. Data Red: Bertini

  18. Proton Production Target: Cu Beam: 477 MeV Green: exp. Data Red: Bertini

  19. Observations • BIC overall provides better description of the data than Bertini. • Deuterons especially at low angles are not well described by either model. • Tritons BIC probably ok for larger angles. • …

  20. Availability of data

  21. Allows to select by : target secondaries reaction beamenergy ….

  22. Plans • Look into it in more detail, comparison to proton induced particle production • Add additional experimental data suggested to us and create tests to simulate it • Provide scripts to run on the grid, automate analysis  can run frequently as new releases become available. • Collect experimental data and raw simulation results in validation database. • Work close with LAriAT collaboration.

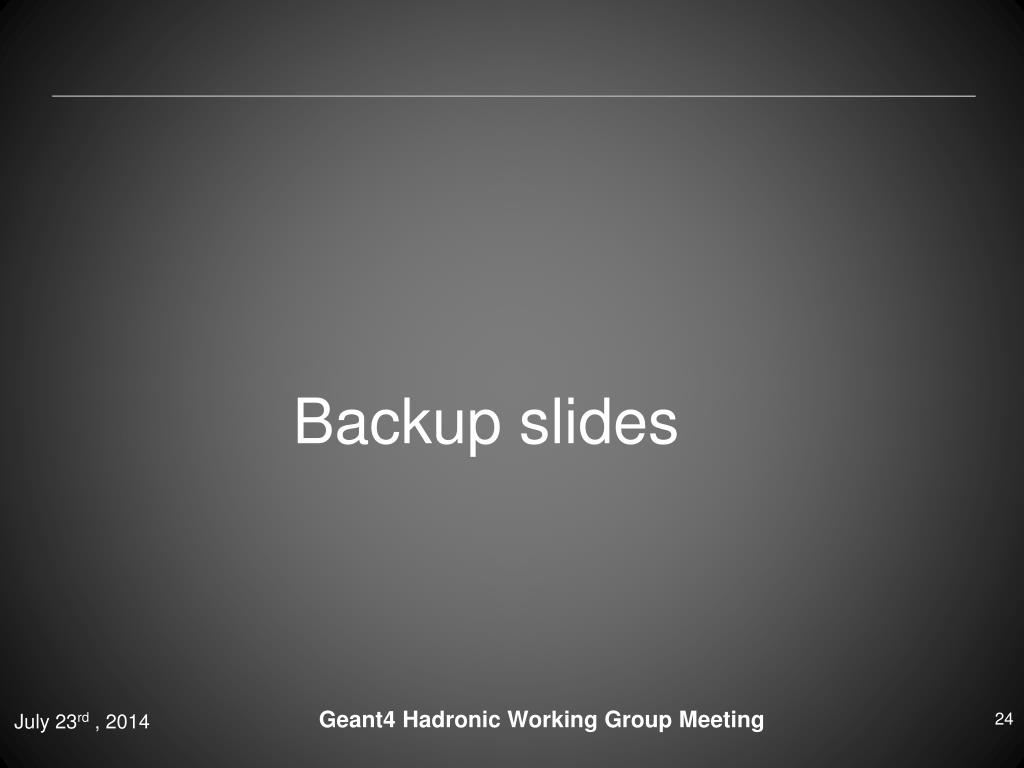

  23. Backup slides

  24. Expectation: Tell us what processes are important to you  tailor physics list to your needs • e.g. Steve Dytman proposed • that we look at various • experimental data sets • relevant to neutrino • detector response. Used • Artg4tk to implement test. • Very useful will present the plots to the experts in geant 4 hadronic working group. • will add more tests. • Results and exp. data will be stored in validation repository Neutron (542MeV) induced proton production on thin Copper. Comparison of Franz et. al. data to Bertini and binary cascade model
