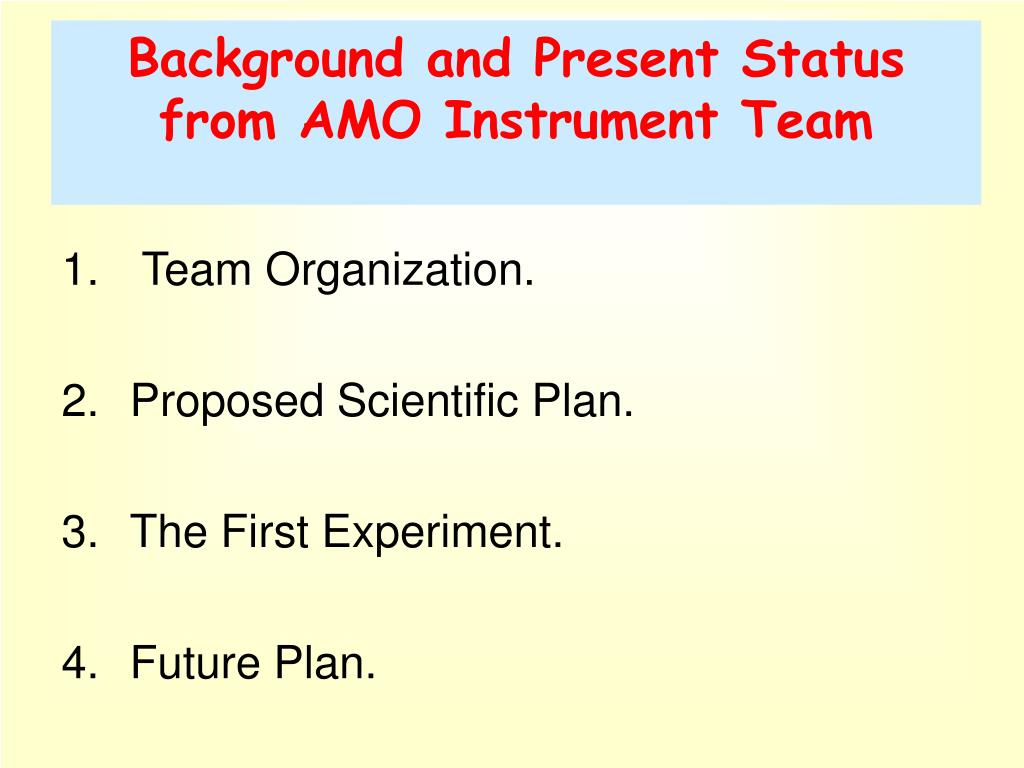

  1. Background and Present Status from AMO Instrument Team • Team Organization. 2. Proposed Scientific Plan. • The First Experiment. 4. Future Plan.

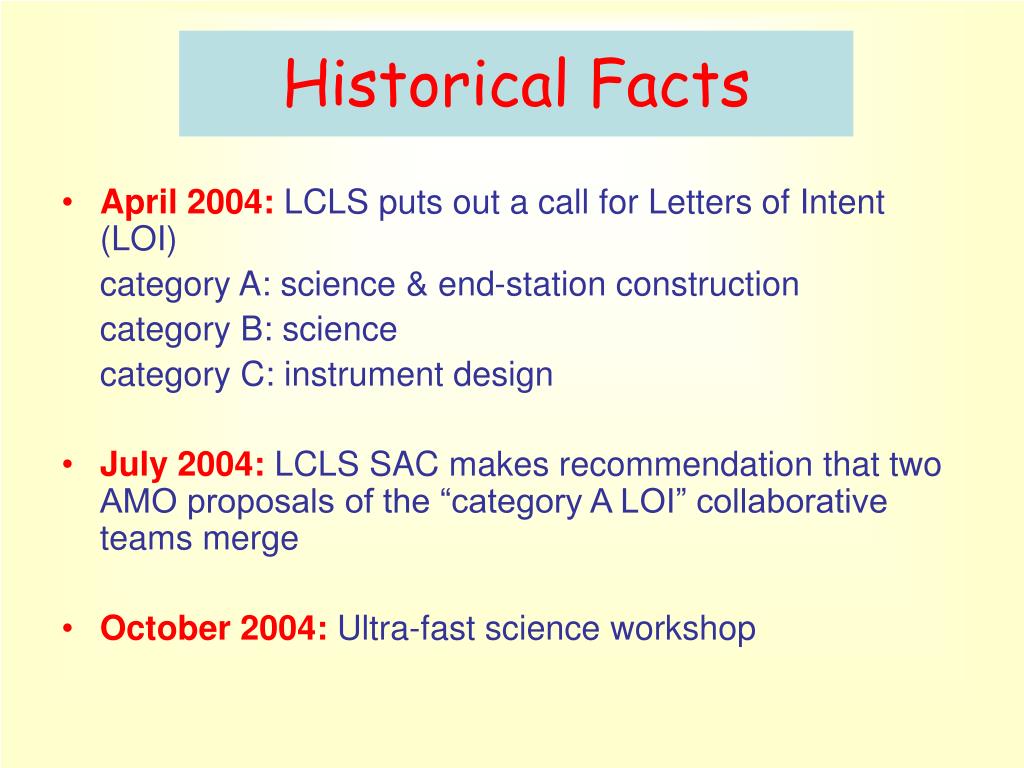

  2. Historical Facts • April 2004: LCLS puts out a call for Letters of Intent (LOI) category A: science & end-station construction category B: science category C: instrument design • July 2004: LCLS SAC makes recommendation that two AMO proposals of the “category A LOI” collaborative teams merge • October 2004: Ultra-fast science workshop

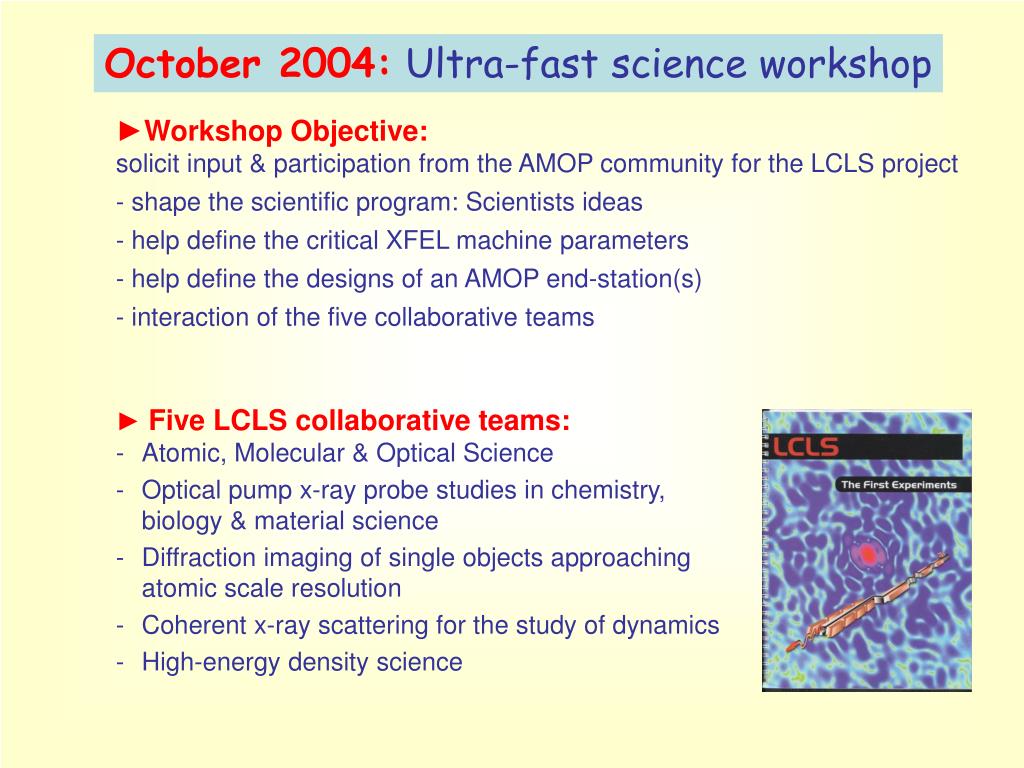

  3. October 2004: Ultra-fast science workshop • ►Workshop Objective: • solicit input & participation from the AMOP community for the LCLS project • - shape the scientific program: Scientists ideas • help define the critical XFEL machine parameters • help define the designs of an AMOP end-station(s) • - interaction of the five collaborative teams • ►Five LCLS collaborative teams: • Atomic, Molecular & Optical Science • Optical pump x-ray probe studies in chemistry, biology & material science • Diffraction imaging of single objects approaching atomic scale resolution • Coherent x-ray scattering for the study of dynamics • High-energy density science

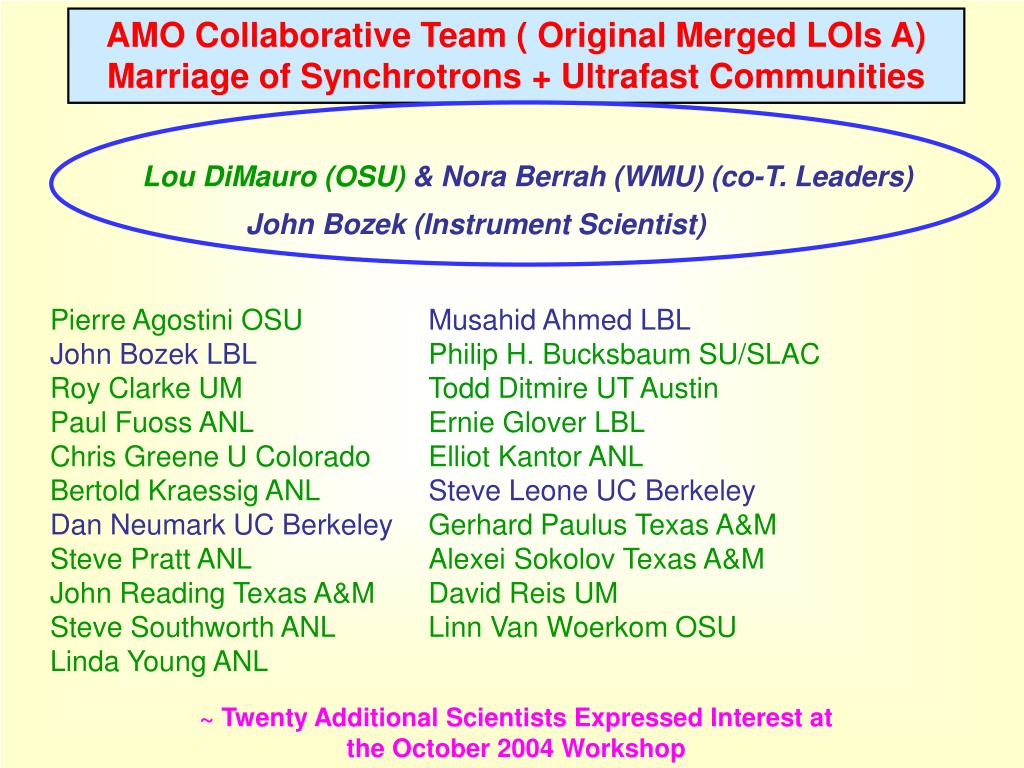

  4. AMO Collaborative Team ( Original Merged LOIs A) Marriage of Synchrotrons + Ultrafast Communities • Lou DiMauro (OSU) & Nora Berrah (WMU) (co-T. Leaders) • John Bozek (Instrument Scientist) • Pierre Agostini OSUMusahid Ahmed LBL • John Bozek LBL Philip H. Bucksbaum SU/SLAC • Roy Clarke UM Todd Ditmire UT Austin • Paul Fuoss ANL Ernie Glover LBL • Chris Greene U Colorado Elliot Kantor ANL • Bertold Kraessig ANL Steve Leone UC Berkeley • Dan Neumark UC Berkeley Gerhard Paulus Texas A&M • Steve Pratt ANL Alexei Sokolov Texas A&M • John Reading Texas A&M David Reis UM • Steve Southworth ANL Linn Van Woerkom OSU • Linda Young ANL ~ Twenty Additional Scientists Expressed Interest at the October 2004 Workshop

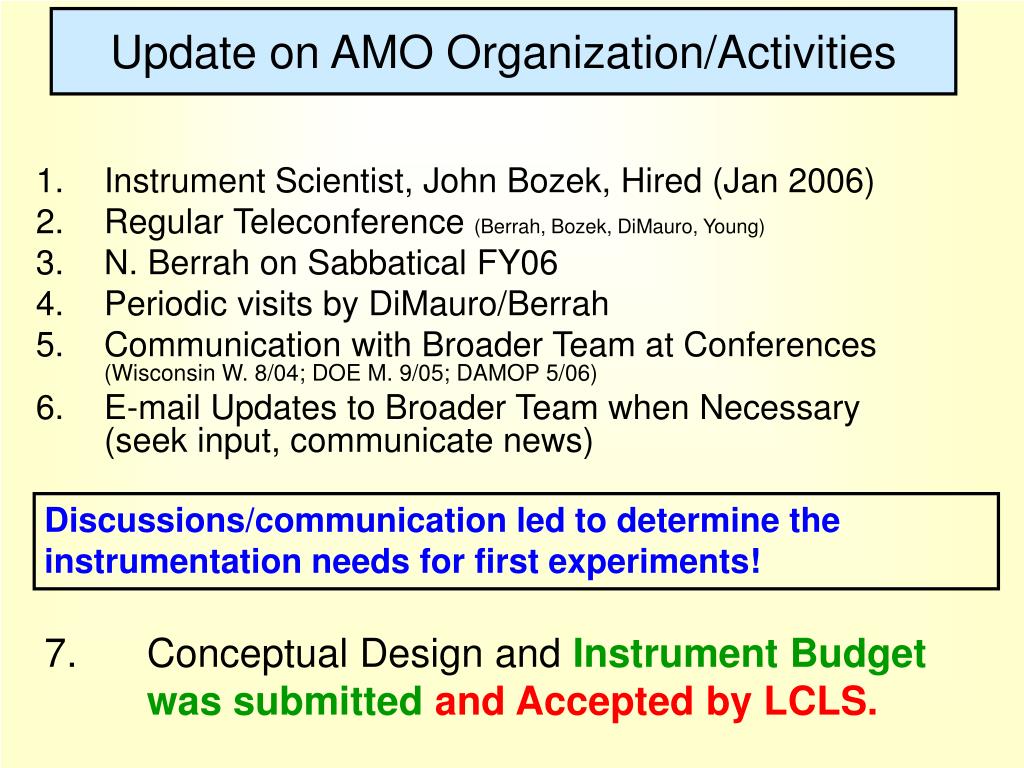

  5. Update on AMO Organization/Activities • Instrument Scientist, John Bozek, Hired (Jan 2006) • Regular Teleconference (Berrah, Bozek, DiMauro, Young) • N. Berrah on Sabbatical FY06 • Periodic visits by DiMauro/Berrah 5. Communication with Broader Team at Conferences (Wisconsin W. 8/04; DOE M. 9/05; DAMOP 5/06) 6. E-mail Updates to Broader Team when Necessary (seek input, communicate news) Discussions/communication led to determine the instrumentation needs for first experiments! 7. Conceptual Design and Instrument Budget was submitted and Accepted by LCLS.

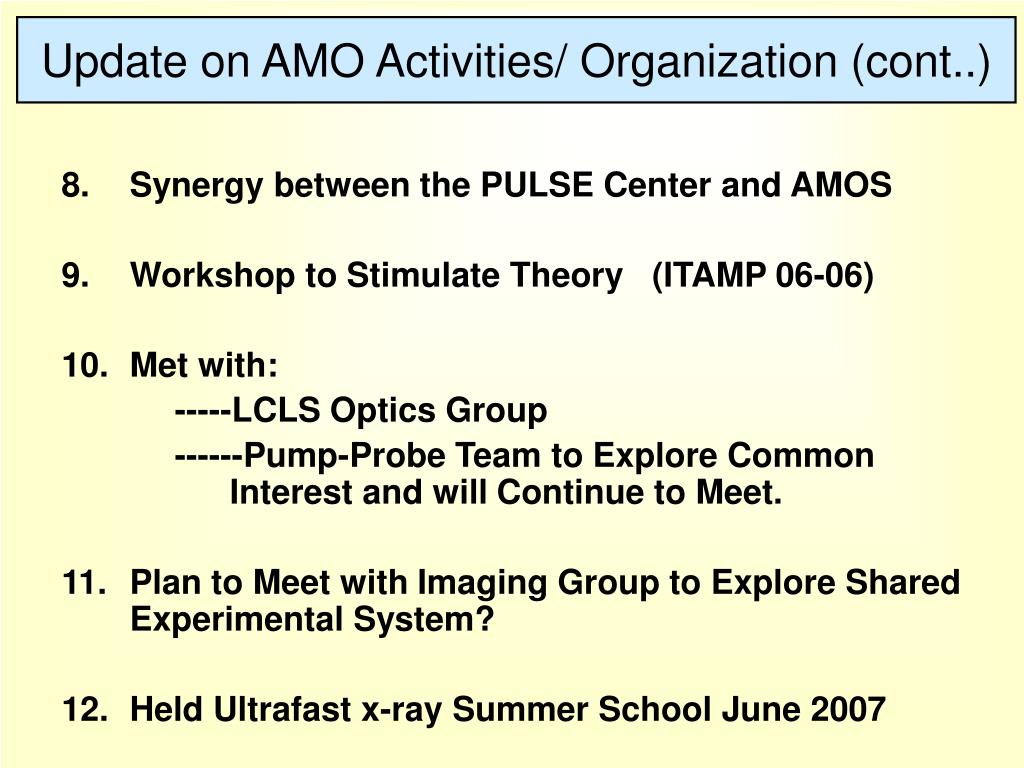

  6. Update on AMO Activities/ Organization (cont..) 8. Synergy between the PULSE Center and AMOS 9. Workshop to Stimulate Theory (ITAMP 06-06) 10. Met with: -----LCLS Optics Group ------Pump-Probe Team to Explore Common Interest and will Continue to Meet. 11. Plan to Meet with Imaging Group to Explore Shared Experimental System? 12. Held Ultrafast x-ray Summer School June 2007

  7. TeamMajor Scientific Thrusts: • Multiphoton and High-Field X-Ray Processes in Atoms, Molecules, Clusters,& Biological Molecules. • Time-Resolved Phenomena in Atoms, Molecules (bio-molecules) and Clusters using Ultrafast X-Rays

  8. AMO LOIs Collaborative Team • Science: • Multiple core excitation in atoms, molecules and clusters • 2. Timing experiments: Inner-shell side band experiments Photoionization of aligned molecules • Temporal evolution of state-prepared systems • 3. Nonlinear physics • 4. Ion (positive/negative) studies • 5. Pump-probe, X-X or X-laser or X-e • 6. Raman processes • 7. Cluster dynamics (Diffraction of size-selected clusters) • Photoionization dynamics of biomolecules

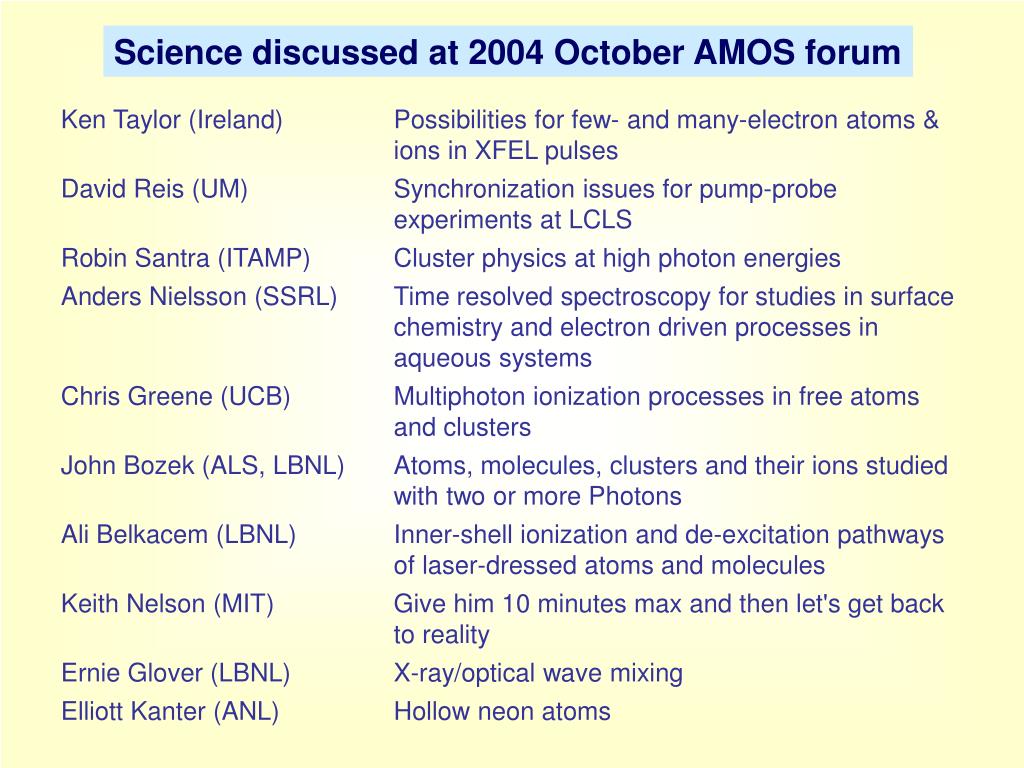

  9. Science discussed at 2004 October AMOS forum Ken Taylor (Ireland) Possibilities for few- and many-electron atoms & ions in XFEL pulses David Reis (UM) Synchronization issues for pump-probe experiments at LCLS Robin Santra (ITAMP) Cluster physics at high photon energies Anders Nielsson (SSRL) Time resolved spectroscopy for studies in surface chemistry and electron driven processes in aqueous systems Chris Greene (UCB) Multiphoton ionization processes in free atoms and clusters John Bozek (ALS, LBNL) Atoms, molecules, clusters and their ions studied with two or more Photons Ali Belkacem (LBNL) Inner-shell ionization and de-excitation pathways of laser-dressed atoms and molecules Keith Nelson (MIT) Give him 10 minutes max and then let's get back to reality Ernie Glover (LBNL) X-ray/optical wave mixing Elliott Kanter (ANL) Hollow neon atoms

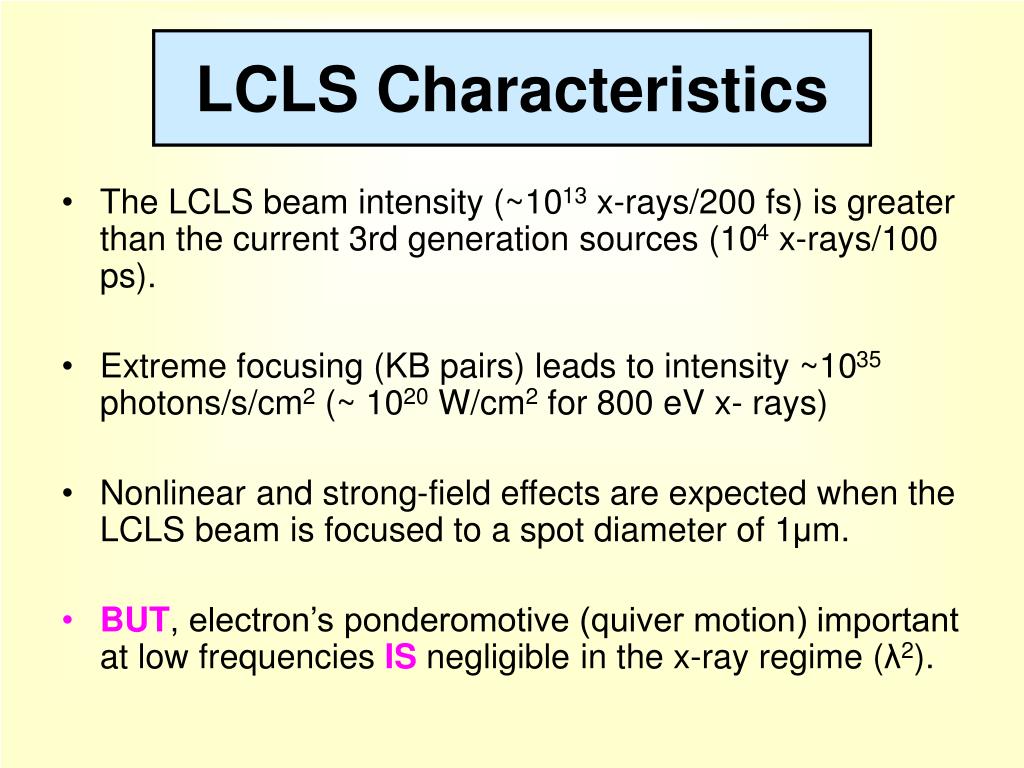

  10. LCLS Characteristics • The LCLS beam intensity (~1013 x-rays/200 fs) is greater than the current 3rd generation sources (104 x-rays/100 ps). • Extreme focusing (KB pairs) leads to intensity ~1035 photons/s/cm2 (~ 1020 W/cm2 for 800 eV x- rays) • Nonlinear and strong-field effects are expected when the LCLS beam is focused to a spot diameter of 1μm. • BUT, electron’s ponderomotive (quiver motion) important at low frequencies IS negligible in the x-ray regime (λ2).

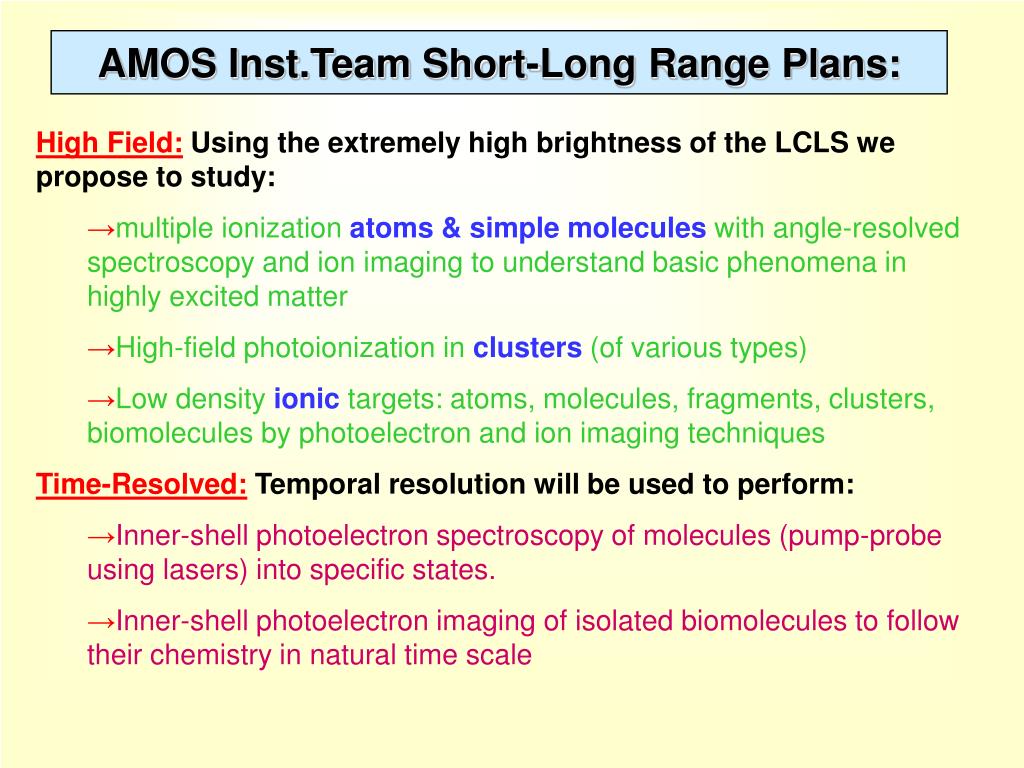

  11. AMOS Inst.Team Short-Long Range Plans: • High Field: Using the extremely high brightness of the LCLS we propose to study: • multiple ionization atoms & simple molecules with angle-resolved spectroscopy and ion imaging to understand basic phenomena in highly excited matter • High-field photoionization in clusters (of various types) • Low density ionic targets: atoms, molecules, fragments, clusters, biomolecules by photoelectron and ion imaging techniques • Time-Resolved: Temporal resolution will be used to perform: • Inner-shell photoelectron spectroscopy of molecules (pump-probe using lasers) into specific states. • Inner-shell photoelectron imaging of isolated biomolecules to follow their chemistry in natural time scale

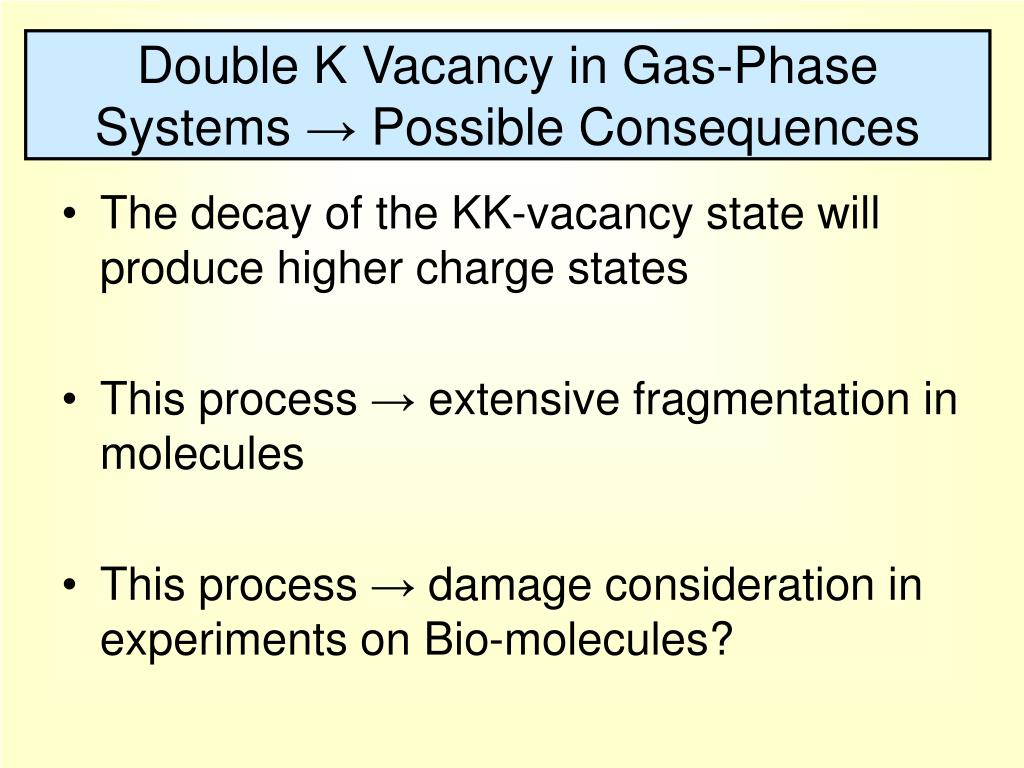

  12. Double K Vacancy in Gas-Phase Systems → Possible Consequences • The decay of the KK-vacancy state will produce higher charge states • This process → extensive fragmentation in molecules • This process → damage consideration in experiments on Bio-molecules?

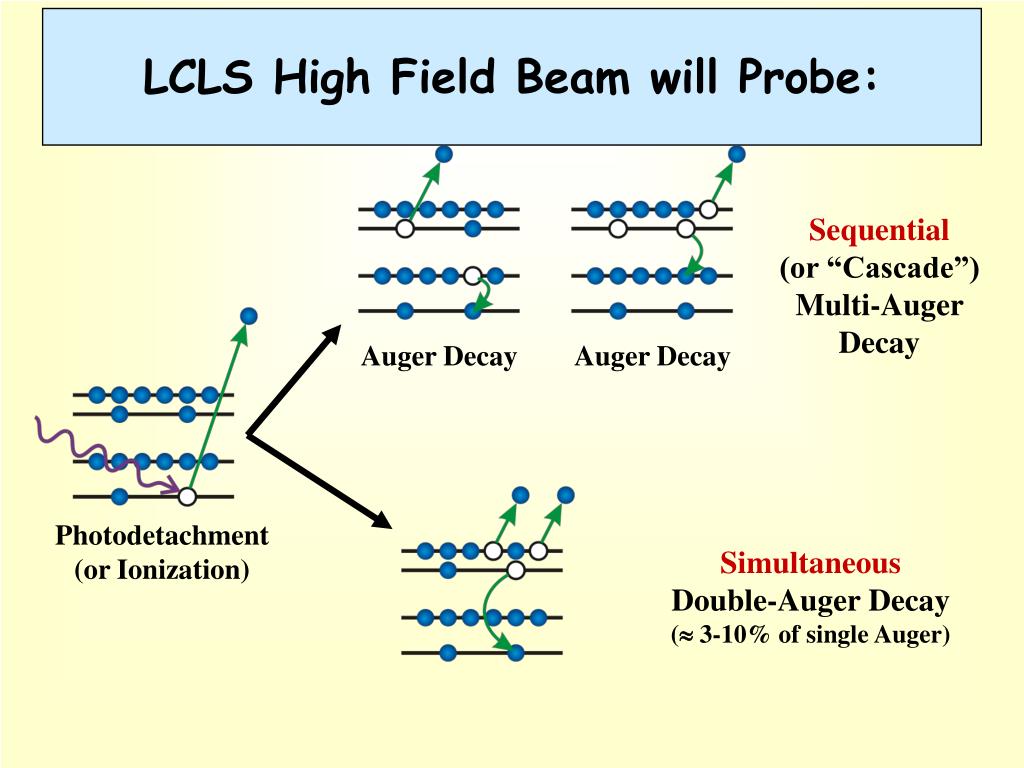

  13. Auger Decay Auger Decay LCLS High Field Beam will Probe: Sequential(or “Cascade”) Multi-Auger Decay Photodetachment (or Ionization) SimultaneousDouble-Auger Decay ( 3-10% of single Auger)

  14. Some Examples High Field Studies in Atoms

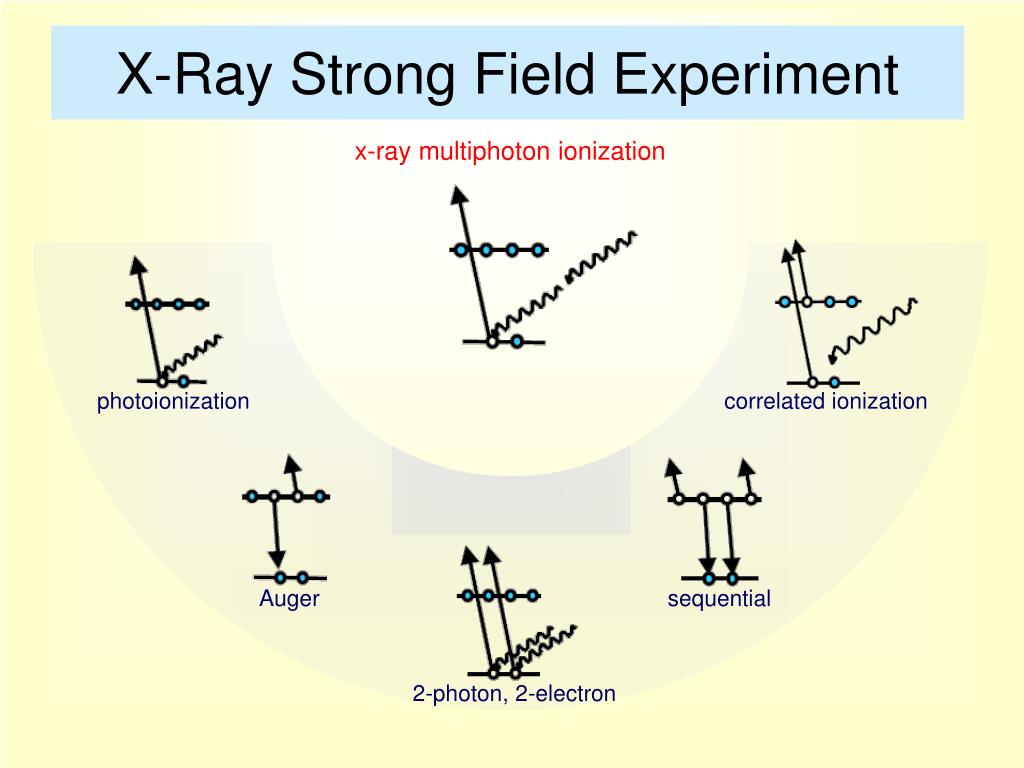

  15. photoionization correlated ionization Auger sequential 2-photon, 2-electron X-Ray Strong Field Experiment x-ray multiphoton ionization

  16. - Ip - Ip 10x20 W/cm2 1015 W/cm2 - Ip 1013 W/cm2 Low-Frequency Physics → High Frequency IR: Low frequency regime VUV FEL: Intense photon source XFEL FEL: Highly ionizing source • Angstrom wavelength • Direct multiphoton ionisation • Secondary processes • Keldysh parameter >>1 • Multi-photon ionisation • Ponderomotive energy 10 meV • Keldysh parameter <<1 • Tunnel / over the barrier ionisation • Ponderomotive energy 10 – 100 eV   Optical Frequency = (Ip/2Up)1/2 -1; Up=I/4ω2 (au) Tunneling Frequency

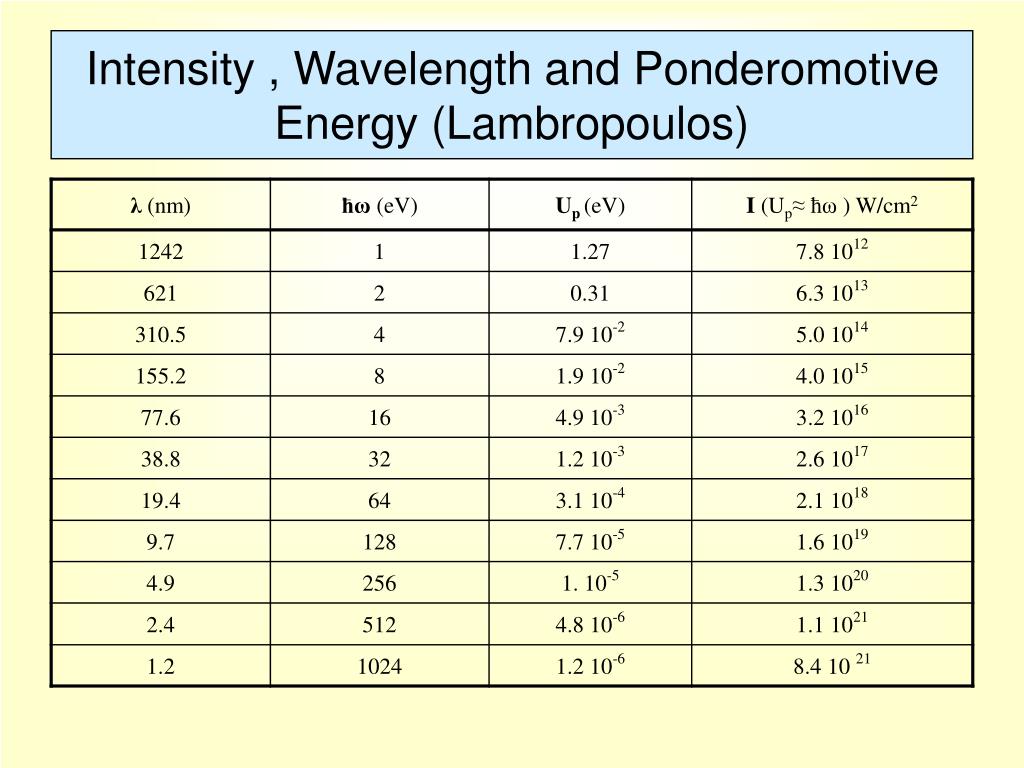

  17. Intensity , Wavelength and Ponderomotive Energy (Lambropoulos)

  18. FLASH Experiments PRL 94, 023001 (2005) Theory Available! Calculate the rate of production of highly charged Xei+ ions produced by direct multiphoton absorption, to compare with experiment.

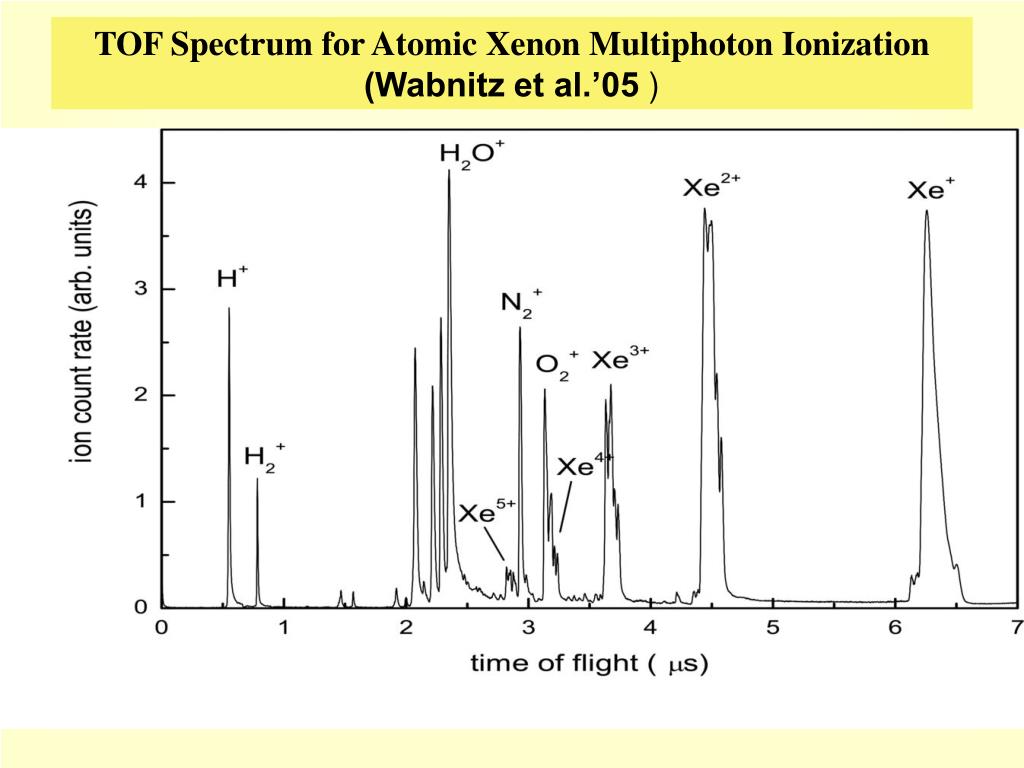

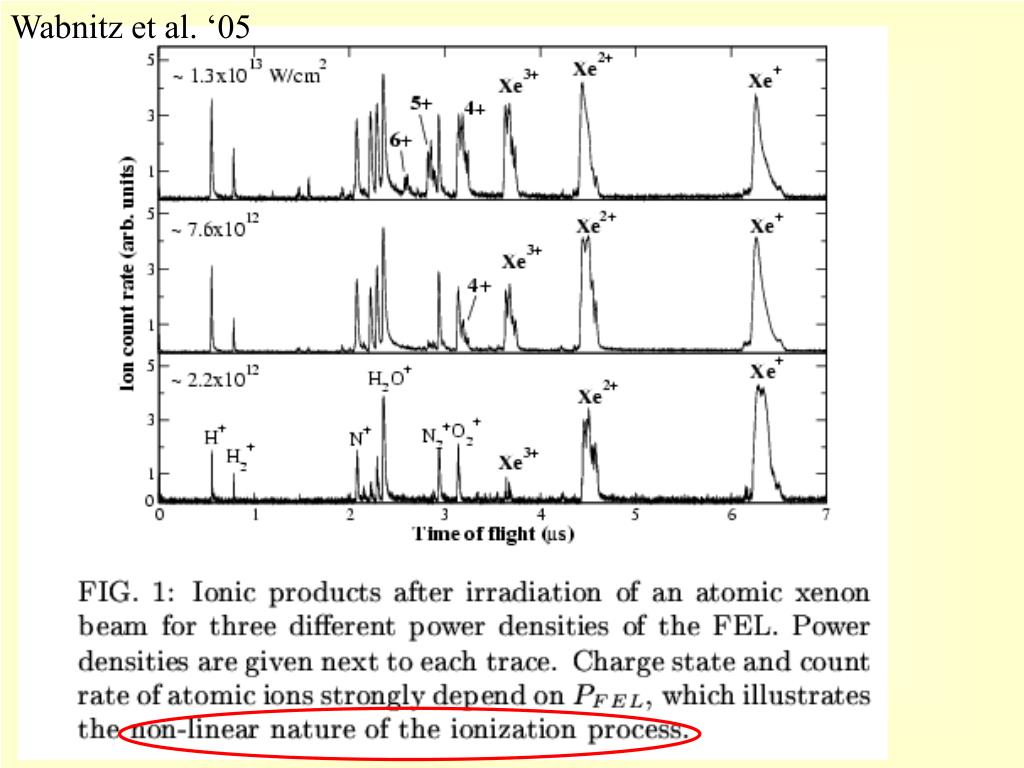

  19. TOF Spectrum for Atomic Xenon Multiphoton Ionization (Wabnitz et al.’05 )

  20. Wabnitz et al. ‘05

  21. First LCLS Experiment: K-Shell in Ne1.Photoionization2. Auger Decay3. Sequential Multiphoton Ionization4. Direct Multiphoton IonizationTheory:Double-K ionization in Ne due to absorption of 2-photons by 1 atom for hγ>932 eV is predicted to be 100% LCLS

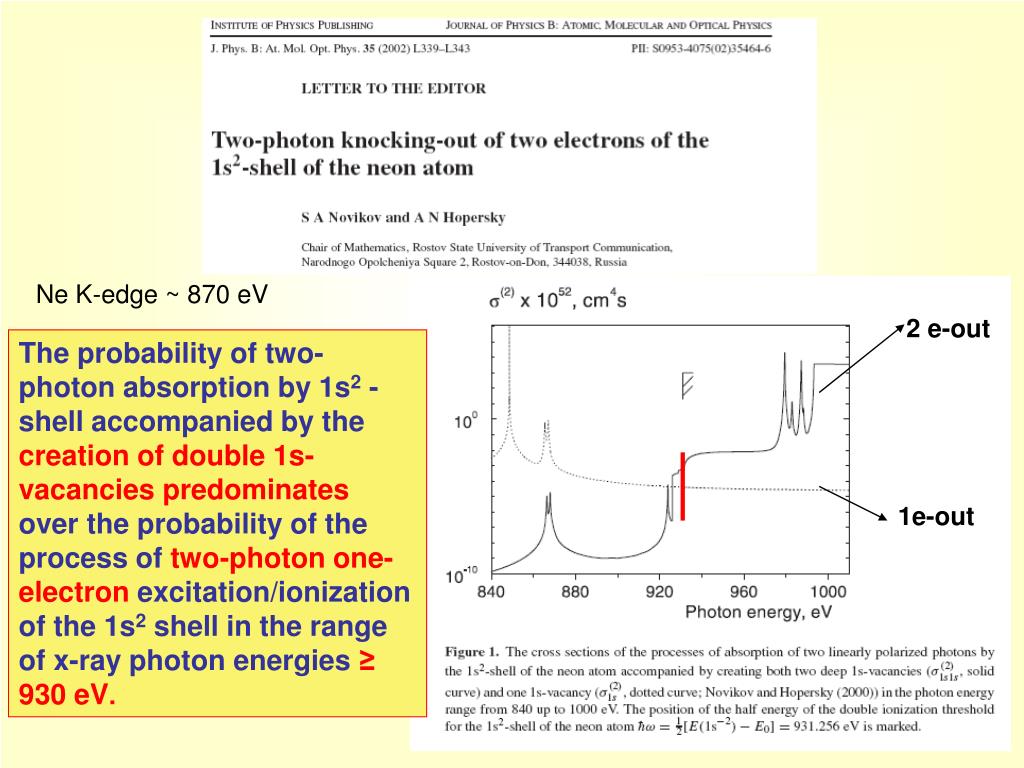

  22. Ne K-edge ~ 870 eV 2 e-out The probability of two-photon absorption by 1s2 -shell accompanied by the creation of double 1s-vacancies predominates over the probability of the process of two-photon one-electron excitation/ionization of the 1s2 shell in the range of x-ray photon energies ≥ 930 eV. 1e-out

  23. Ne Charge State vs Intensity Rohringer & Santra, PRA 76, 033416 (2007) @1050 eV

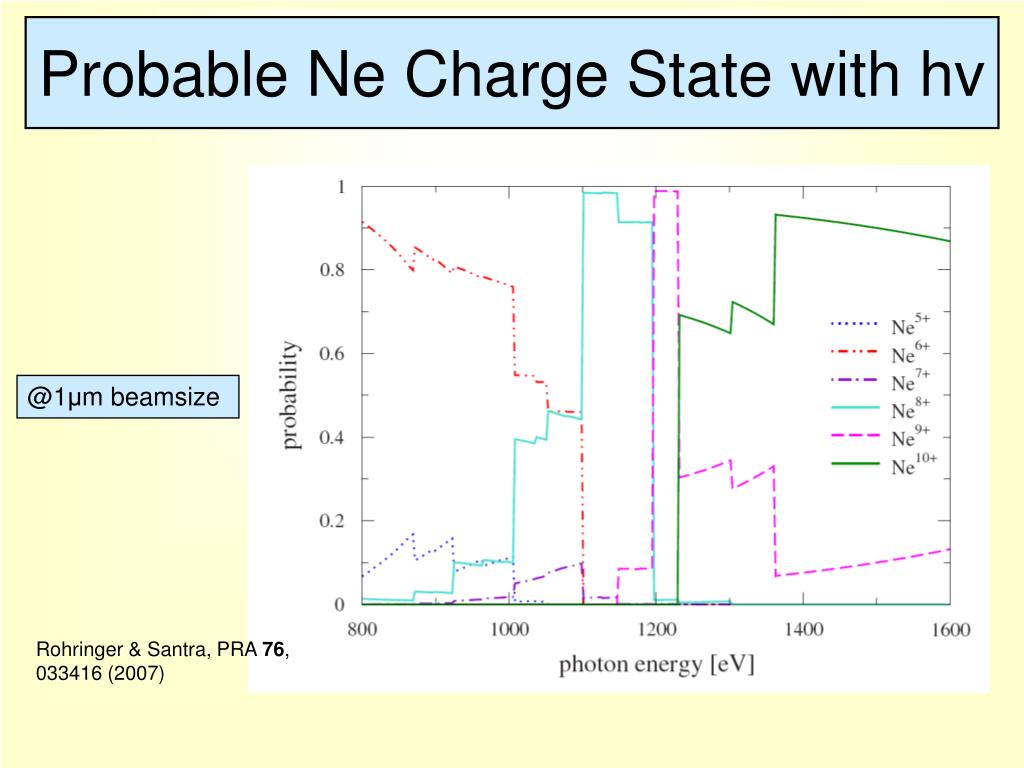

  24. Probable Ne Charge State with hv @1μm beamsize Rohringer & Santra, PRA 76, 033416 (2007)

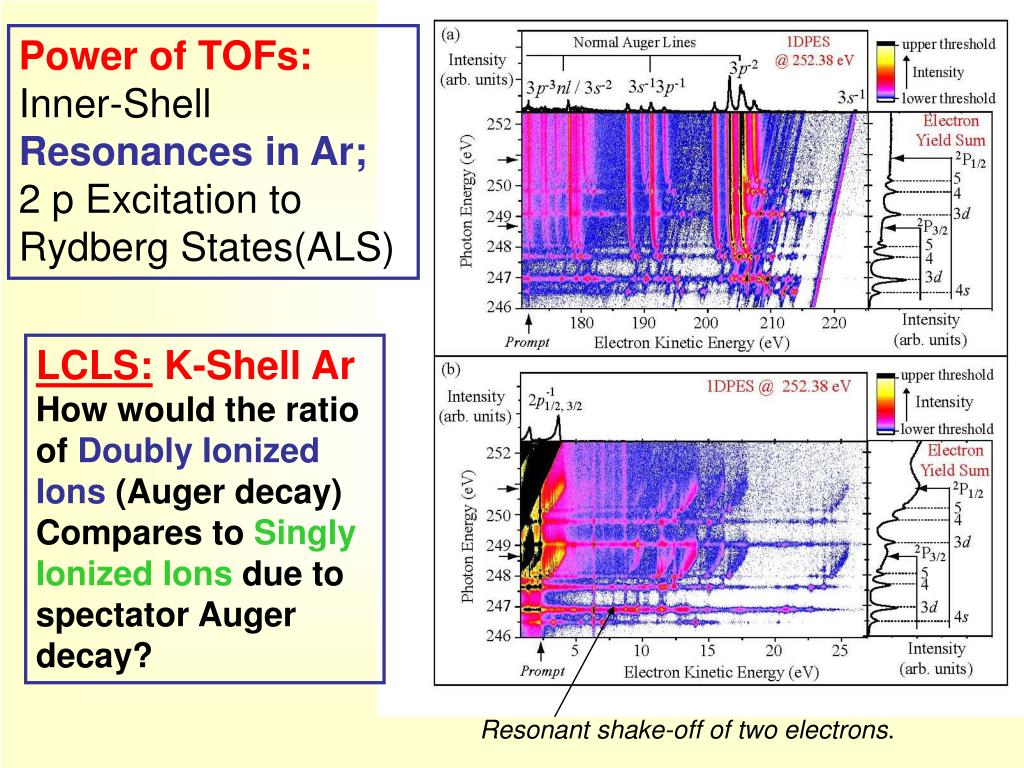

  25. Power of TOFs: Inner-Shell Resonances in Ar; 2 p Excitation to Rydberg States(ALS) LCLS: K-Shell ArHow would the ratio of Doubly Ionized Ions (Auger decay) Compares to Singly Ionized Ions due to spectator Auger decay? Resonant shake-off of two electrons.

  26. High Field Studies in Molecules

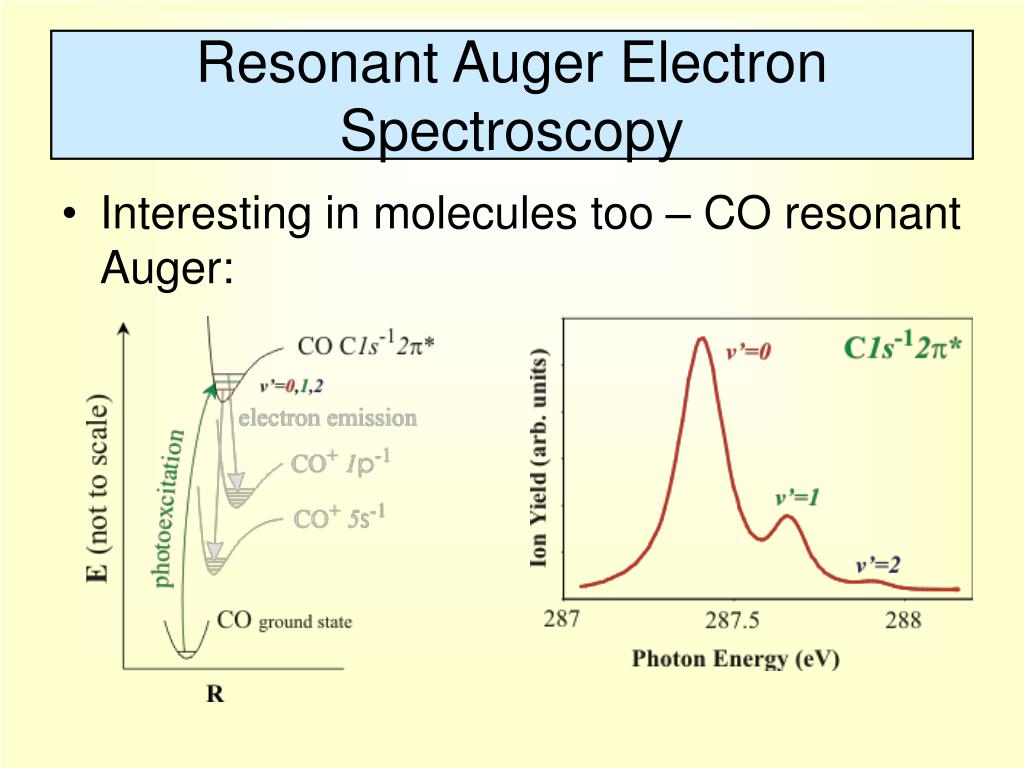

  27. Resonant Auger Electron Spectroscopy • Interesting in molecules too – CO resonant Auger:

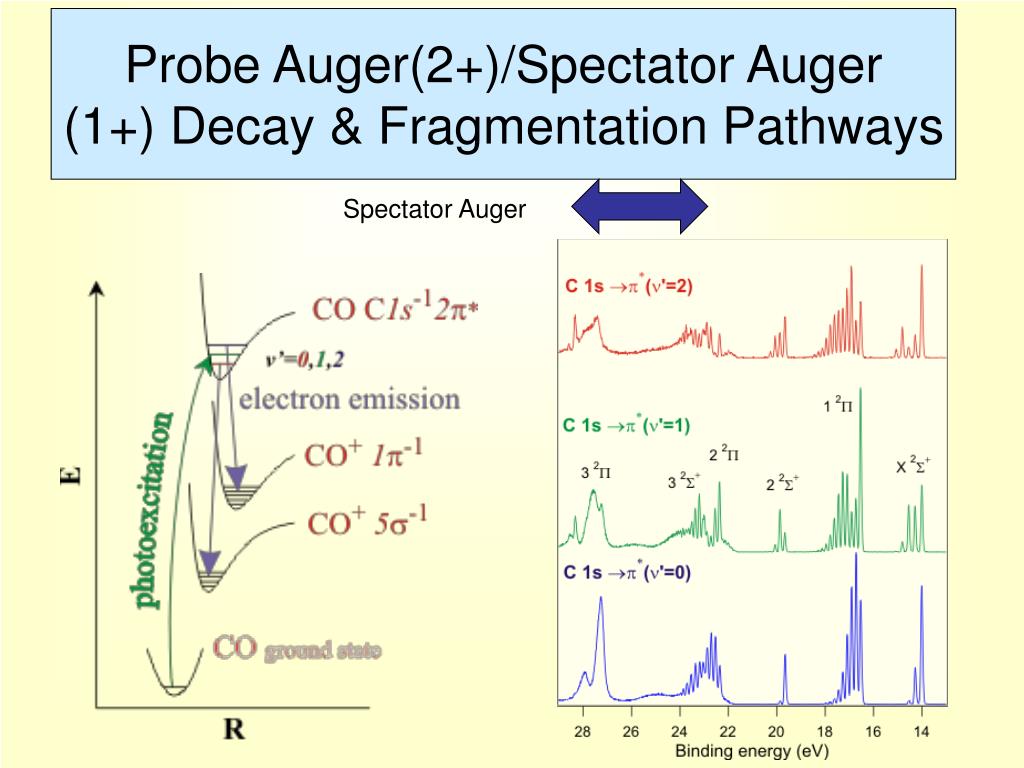

  28. Probe Auger(2+)/Spectator Auger(1+) Decay & Fragmentation Pathways Spectator Auger

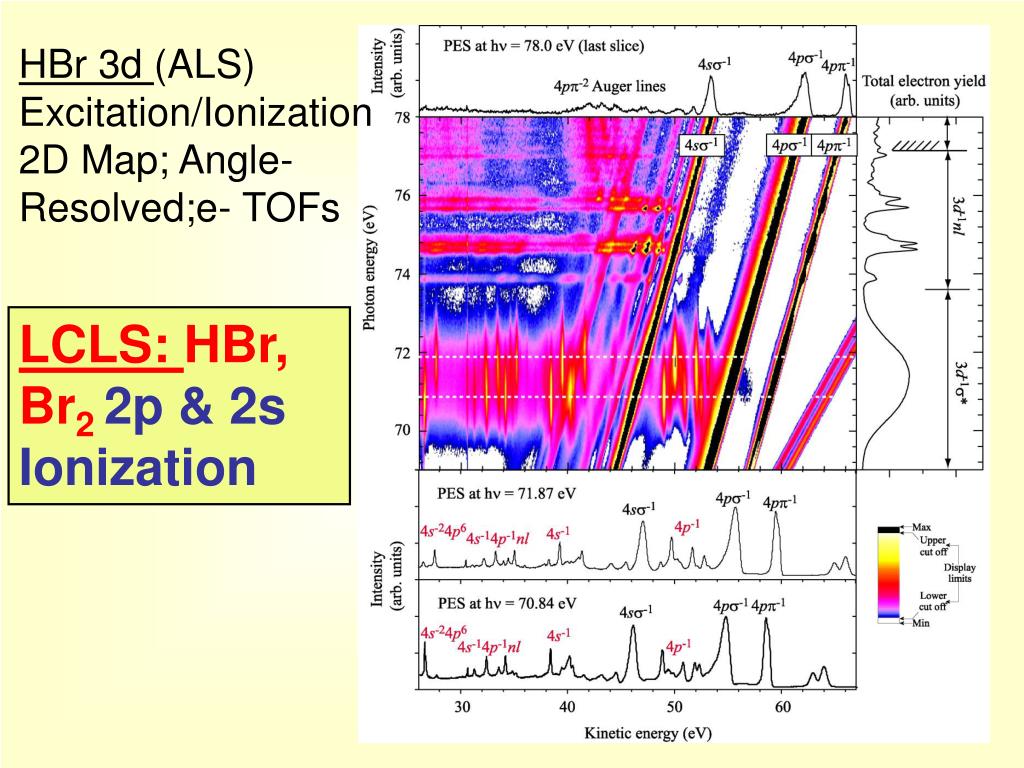

  29. HBr 3d (ALS) Excitation/Ionization2D Map; Angle-Resolved;e- TOFs LCLS: HBr, Br2 2p & 2s Ionization

  30. Ion Imaging : Fragmentation Decay Channels of CO22+ Subsequent to K-Shell Photoionization and Auger Decay of CO2. Identify different fragmentation mechanisms

  31. Fragment Momentum Correlation Plots: Fragmentation Decay Channels of CO22+ Subsequent to K-shell Photoionization and Auger Decay of CO2.

  32. High Field Studies in Clusters

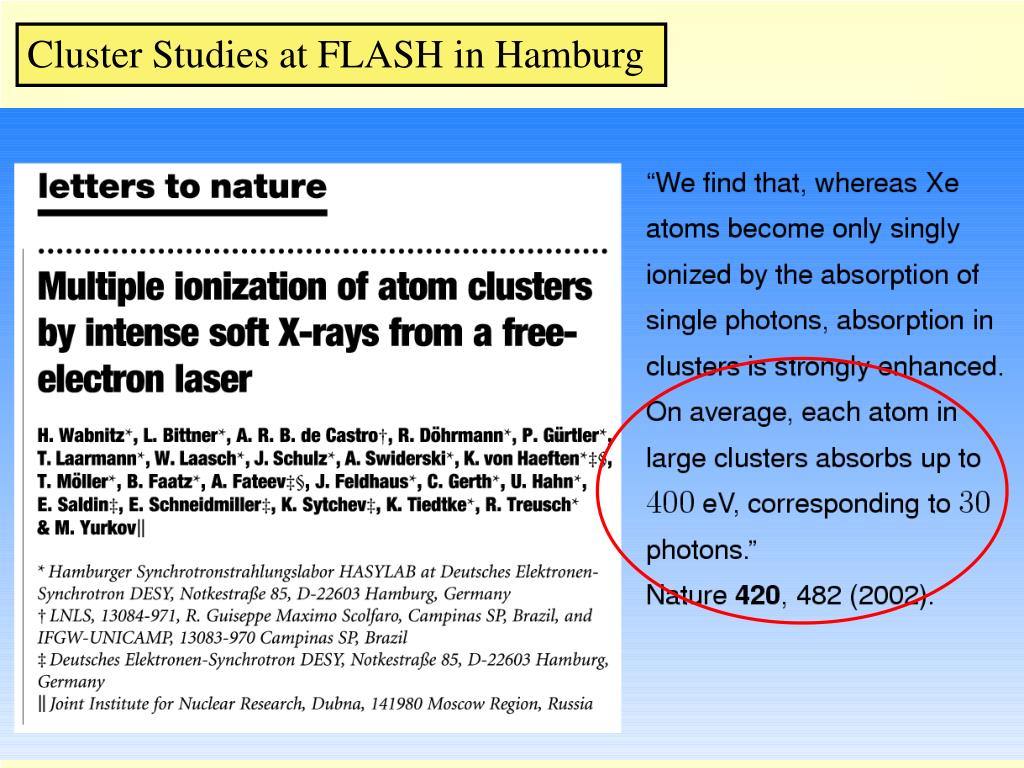

  33. Cluster Studies at FLASH in Hamburg

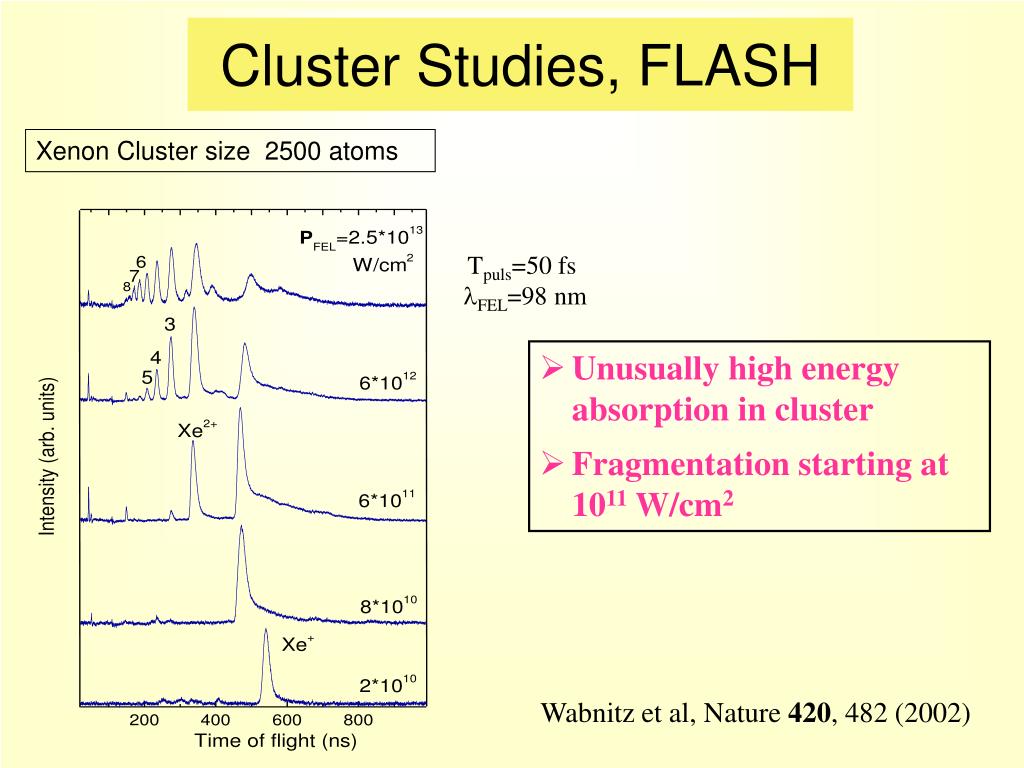

  34. Cluster Studies, FLASH Xenon Cluster size 2500 atoms Tpuls=50 fs lFEL=98 nm • Unusually high energy absorption in cluster • Fragmentation starting at 1011 W/cm2 Wabnitz et al, Nature 420, 482 (2002)

  35. Molecular dynamics simulations indicate that standard collisional heating cannot fully account for the strong energy absorption.

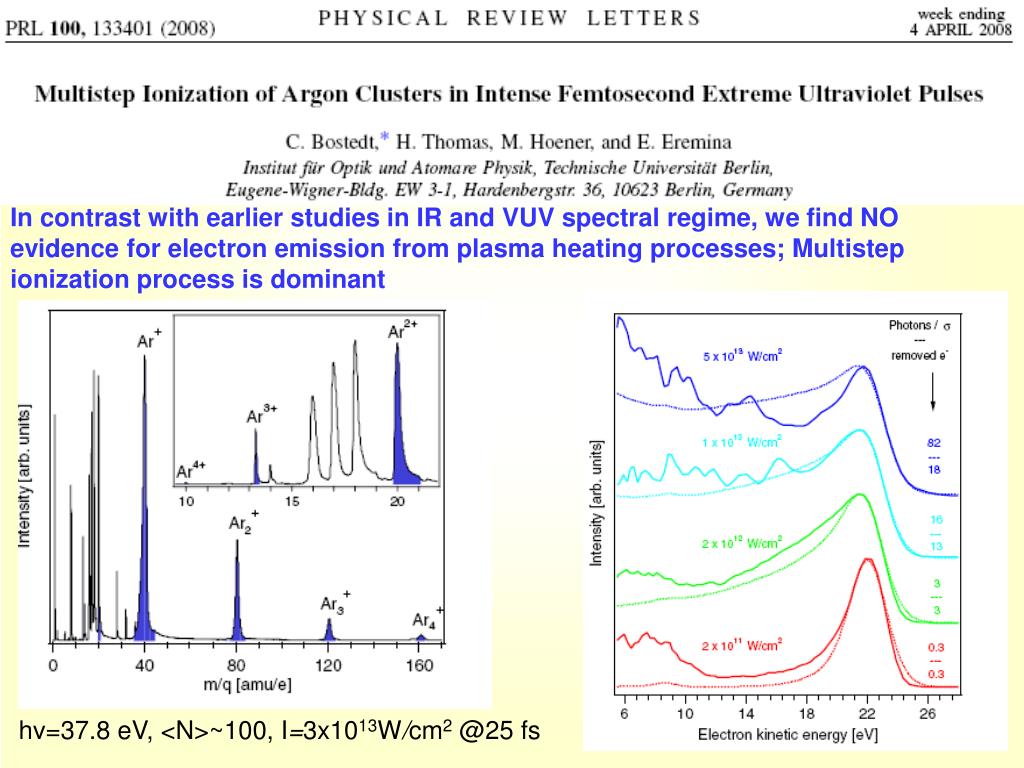

  36. In contrast with earlier studies in IR and VUV spectral regime, we find NO evidence for electron emission from plasma heating processes; Multistep ionization process is dominant hν=37.8 eV, <N>~100, I=3x1013W/cm2 @25 fs

  37. Proposed at LCLS: Ion, e-, and Scattering Experiments on Clusters • Study the Dynamics of Cluster Explosion as a Function of Cluster Size, Wavelengths, Intensity: Is it a Coulomb Explosion Picture(as in intense optical or near IR ultrafast laser pulses) OR Explosion due to Hot Nanoplasma(multiple scattering from the cluster atoms can confine electrons yielding a nanoplasma); Explosion Time can be Different OR, New mechanisms?? • Will Collective Electron Effects be important as in the dynamics of IR irradiated large clusters?

  38. 4d Photoelectron Spectrum of Xe Clusters at hn=135 eV

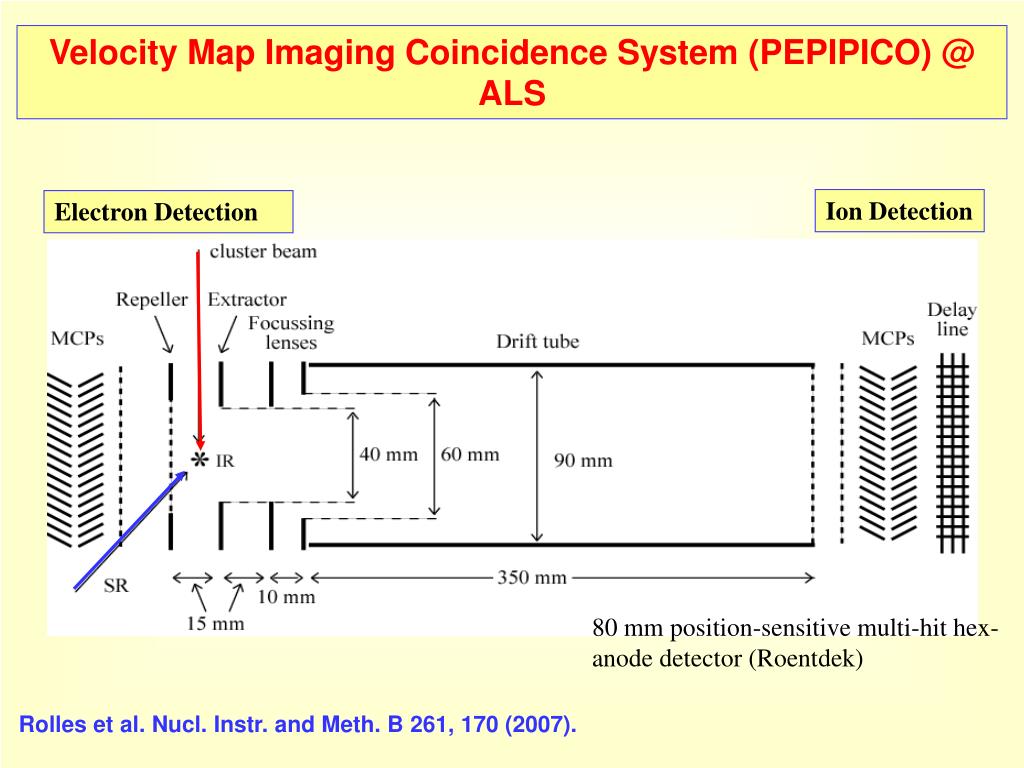

  39. Velocity Map Imaging Coincidence System (PEPIPICO) @ ALS Ion Detection Electron Detection 80 mm position-sensitive multi-hit hex-anode detector (Roentdek) Rolles et al. Nucl. Instr. and Meth. B 261, 170 (2007).

  40. Fragmentation of Rare Gas Clusters @ ALS

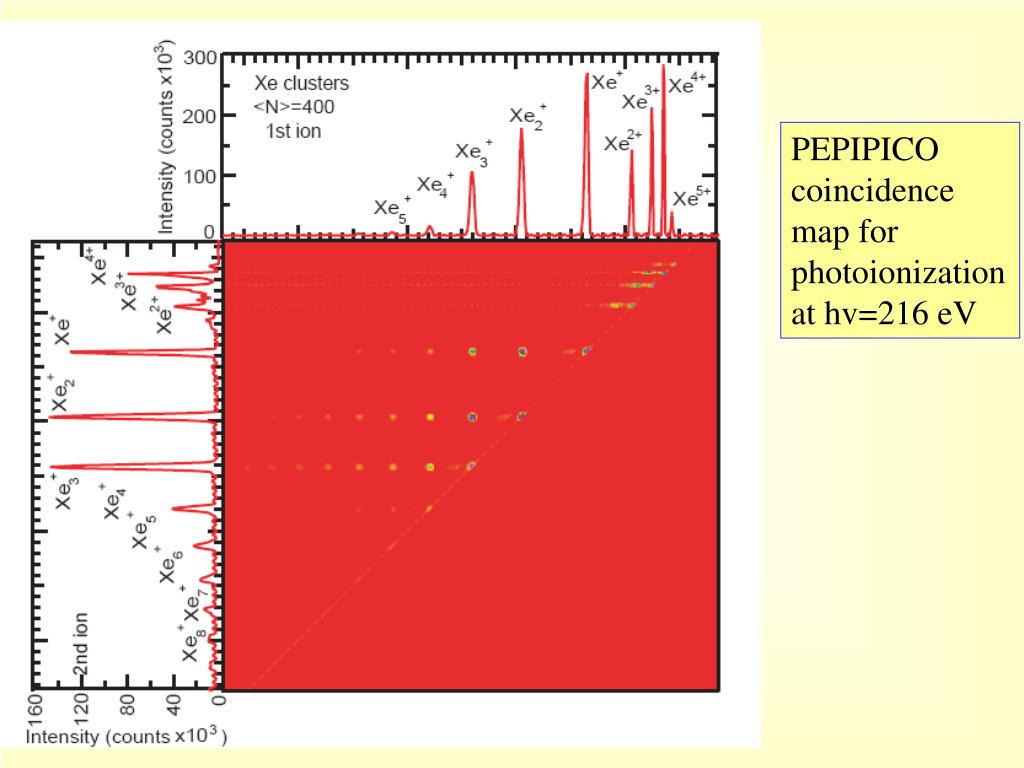

  41. PEPIPICO coincidence map for photoionization at hv=216 eV

  42. High Field Studies in Ions

  43. Movable Ion-Photon Beamline for ions & size-selected clusters Size Selected Production Size and Charge Selected Detection Absolute cross sections: measurements of overlaps, photon & ion fluxes and detector efficiencies.

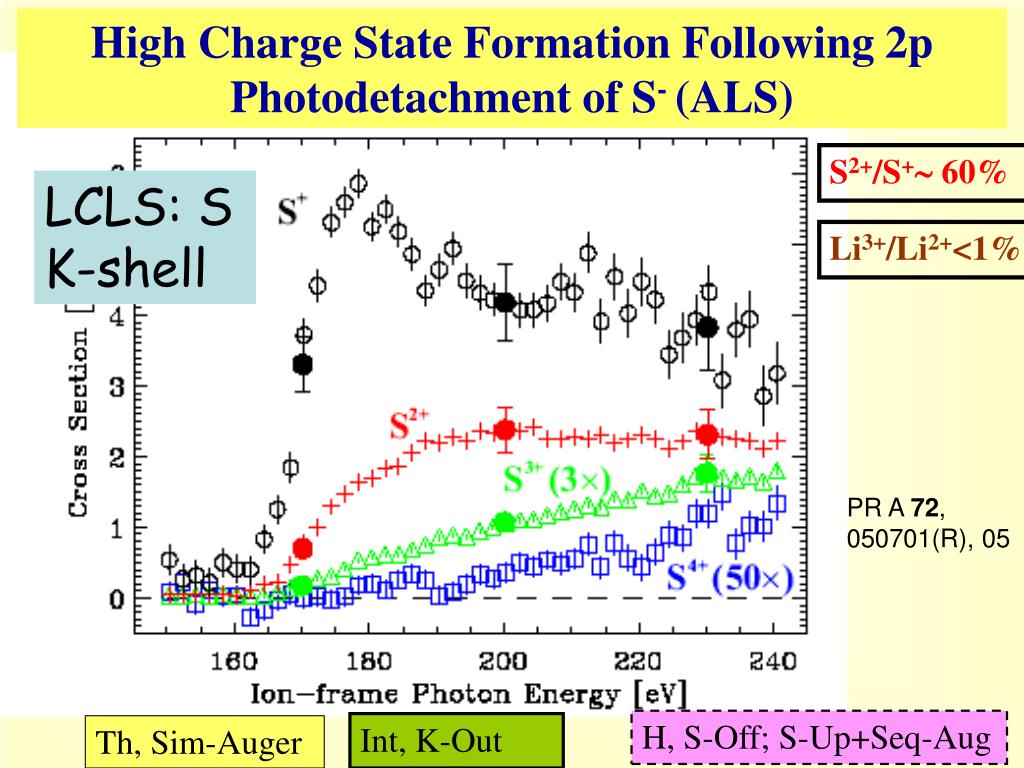

  44. High Charge State Formation Following 2p Photodetachment of S- (ALS) S2+/S+ 60% LCLS: S K-shell Li3+/Li2+<1% PR A 72, 050701(R), 05 H, S-Off; S-Up+Seq-Aug Int, K-Out Th, Sim-Auger

  45. Ion Studies: Measure electron spectra of ionic species – Si-→S+ • Si+ • Si2+ Si3+

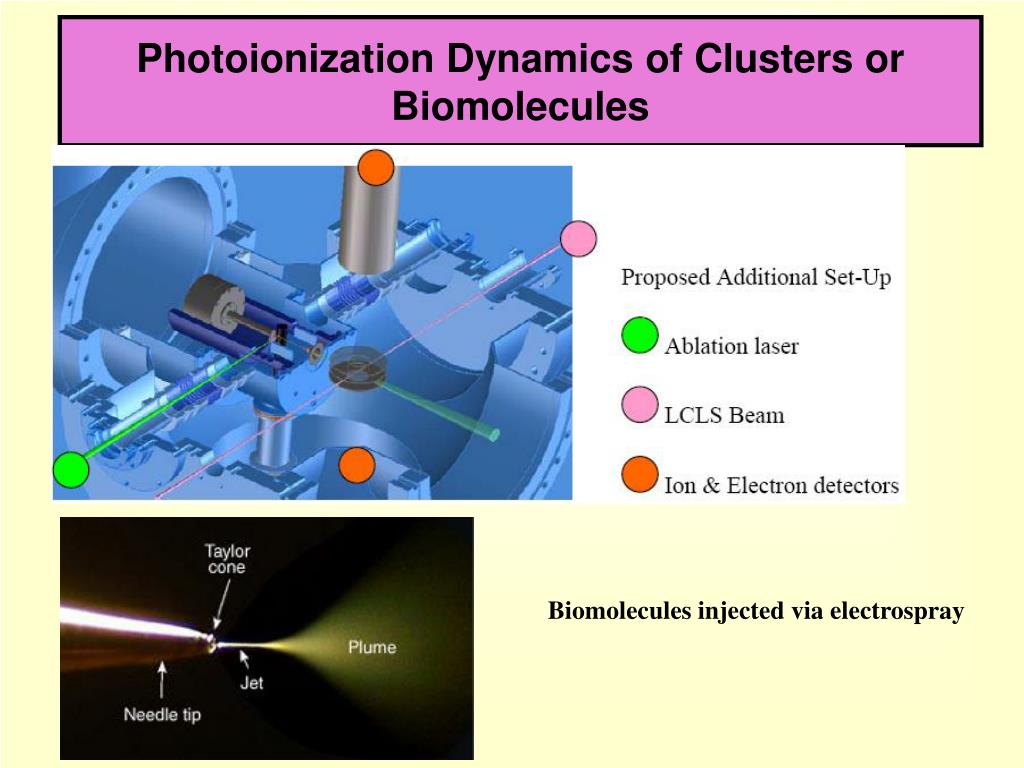

  46. Photoionization Dynamics of Clusters or Biomolecules • Biomolecules injected via electrospray

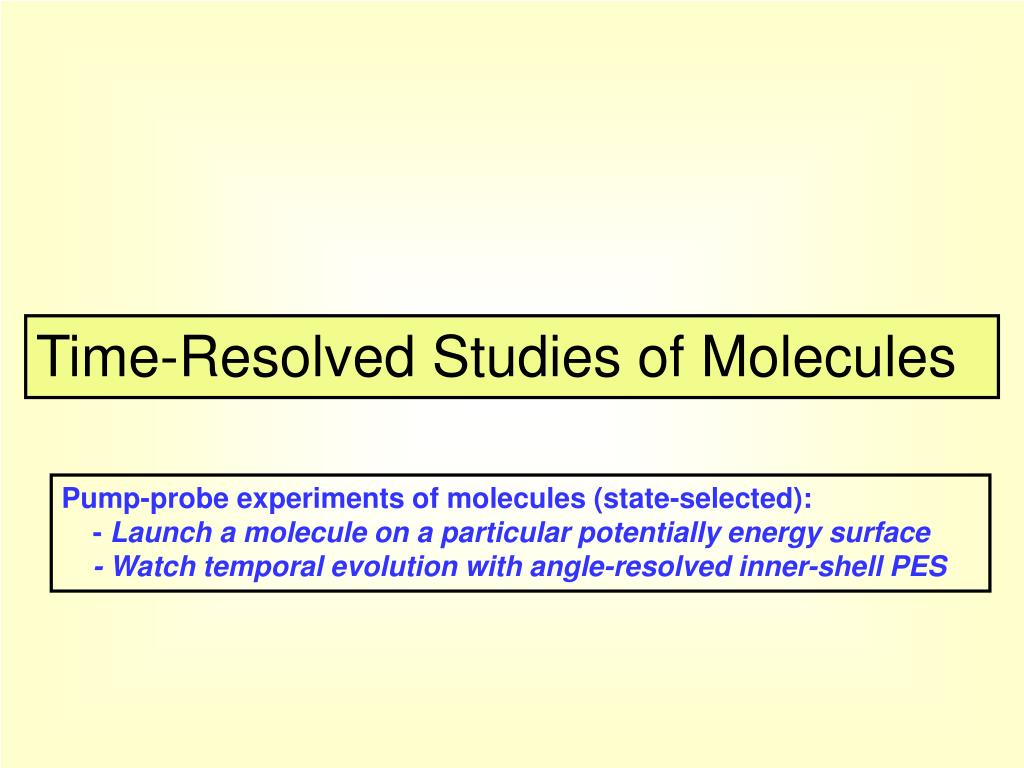

  47. Time-Resolved Studies of Molecules Pump-probe experiments of molecules (state-selected): - Launch a molecule on a particular potentially energy surface - Watch temporal evolution with angle-resolved inner-shell PES

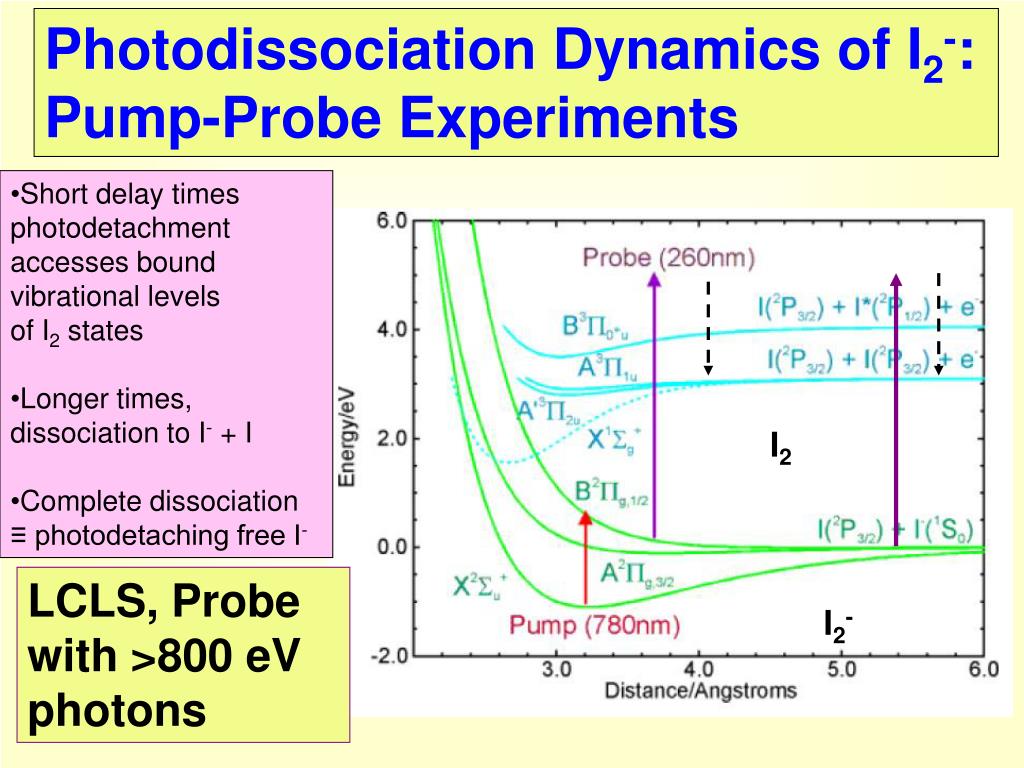

  48. Photodissociation Dynamics of I2-: Pump-Probe Experiments • Short delay times photodetachment • accesses bound vibrational levels • of I2 states • Longer times, • dissociation to I- + I • Complete dissociation • ≡ photodetaching free I- I2 LCLS, Probe with >800 eV photons I2-

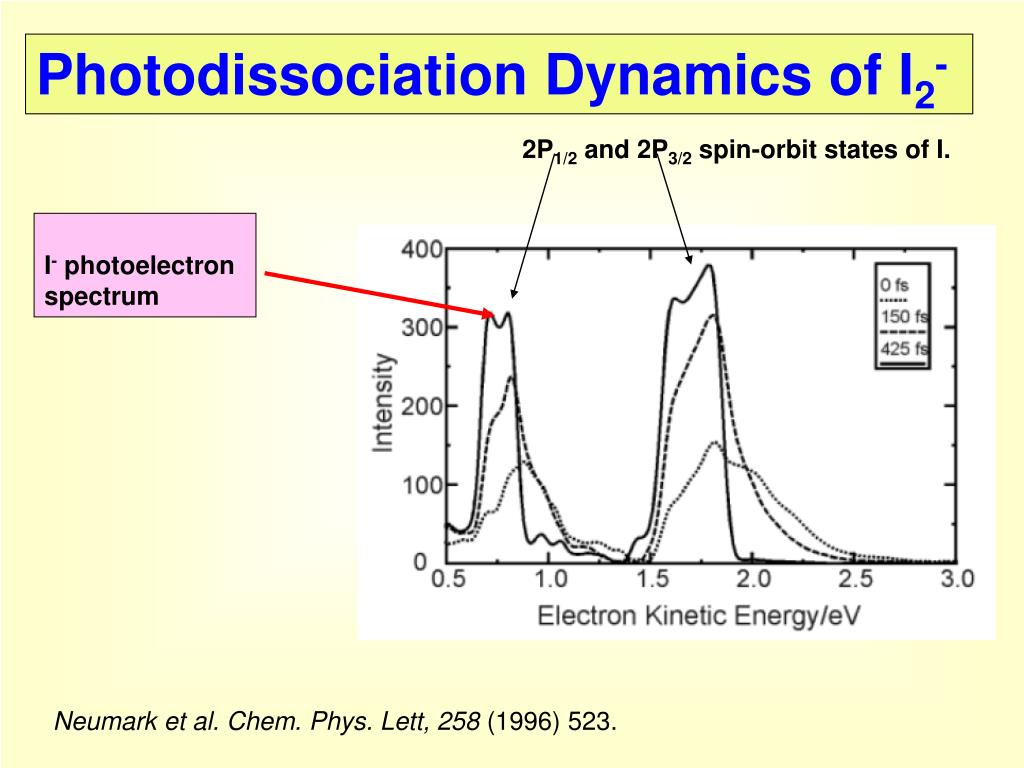

  49. Photodissociation Dynamics of I2- 2P1/2 and 2P3/2 spin-orbit states of I. I- photoelectron spectrum Neumark et al. Chem. Phys. Lett, 258 (1996) 523.

  50. Photodissociation Dynamics of I2- I 2P3/2 Dissociation Time scale: Rise time of electron signal reaches 50% of its maximum value by 100 fs. I 2P1/2
