  1. WWW.IMRUSA.COM IMR Environmental Equipment SmartGasProducts

  2. Products WWW.IMRUSA.COM

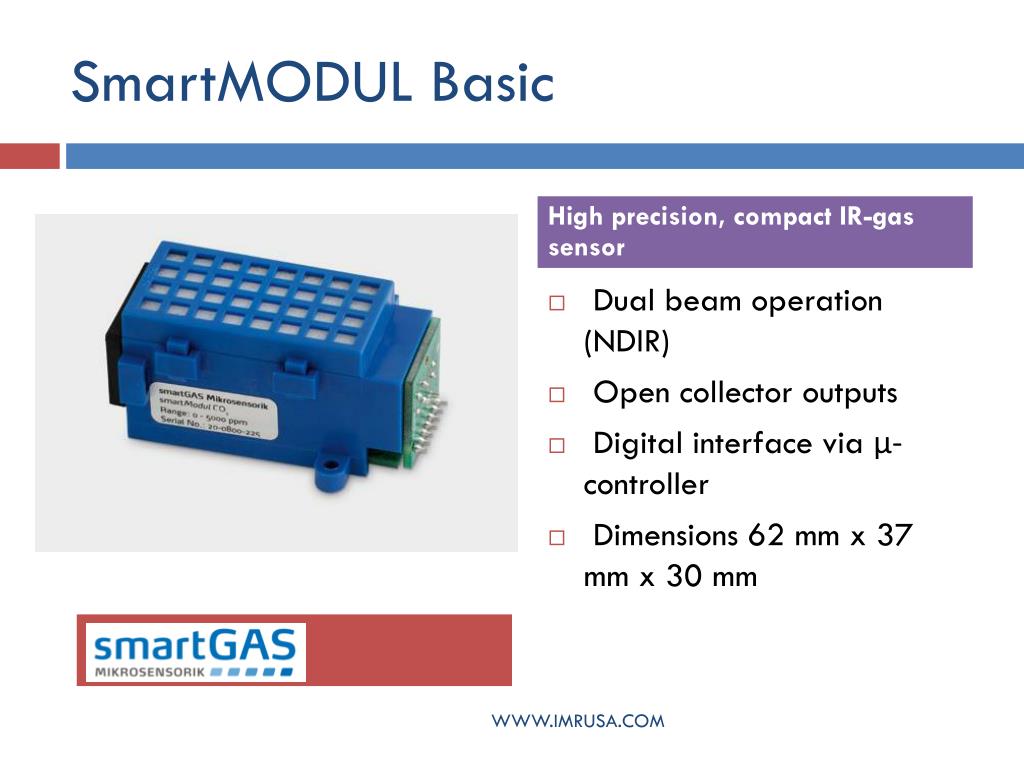

  3. SmartMODUL Basic High precision, compact IR-gas sensor • Dual beam operation (NDIR) • Open collector outputs • Digital interface via μ-controller • Dimensions 62 mm x 37 mm x 30 mm WWW.IMRUSA.COM

  4. SmartMODUL Basic Detectable Gases • Propane • Butane • Carbon Dioxide • Carbon Monoxide • Acetylene • Ethane • Methane • Sulfur Hexafluoride WWW.IMRUSA.COM

  5. SmartMODUL Connect High compatibility by integrated standard interfaces • 12 - 30 V DC • Analog interfaces (4-20 mA, 0-1 V resp. 0-2,5V) • Digital interface RS 485 with Modbus-Open-Protocol • Dimensions 72 mm x 55 mm x 33 mm WWW.IMRUSA.COM

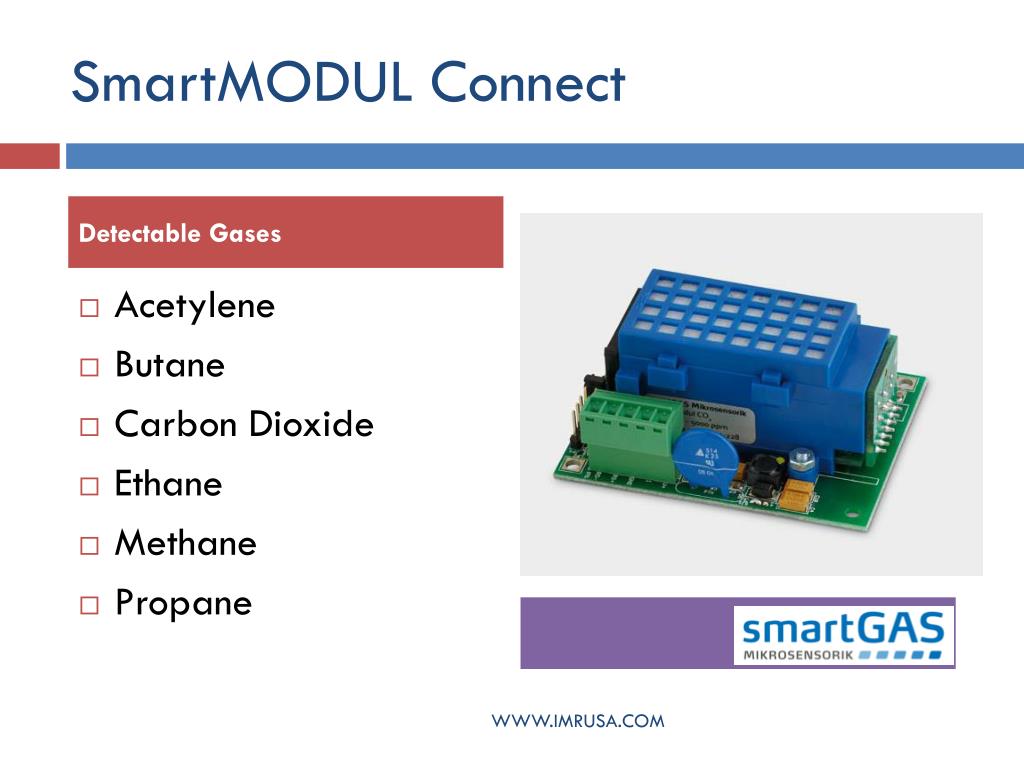

  6. SmartMODUL Connect Detectable Gases • Acetylene • Butane • Carbon Dioxide • Ethane • Methane • Propane WWW.IMRUSA.COM

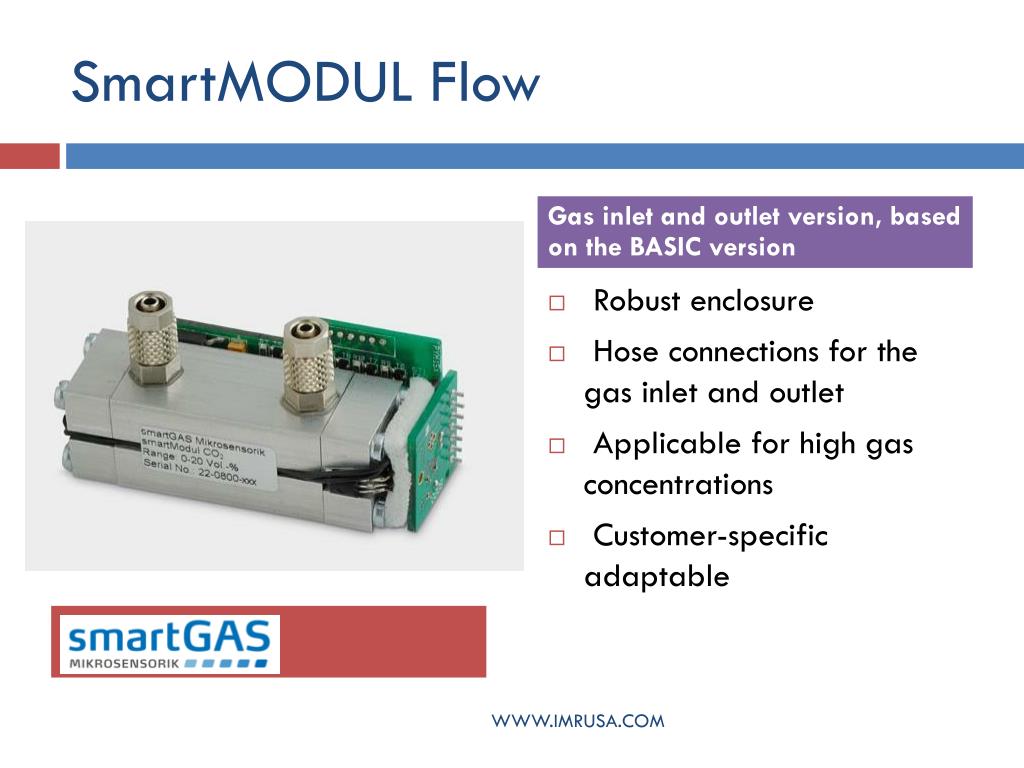

  7. SmartMODUL Flow Gas inlet and outlet version, based on the BASIC version • Robust enclosure • Hose connections for the gas inlet and outlet • Applicable for high gas concentrations • Customer-specific adaptable WWW.IMRUSA.COM

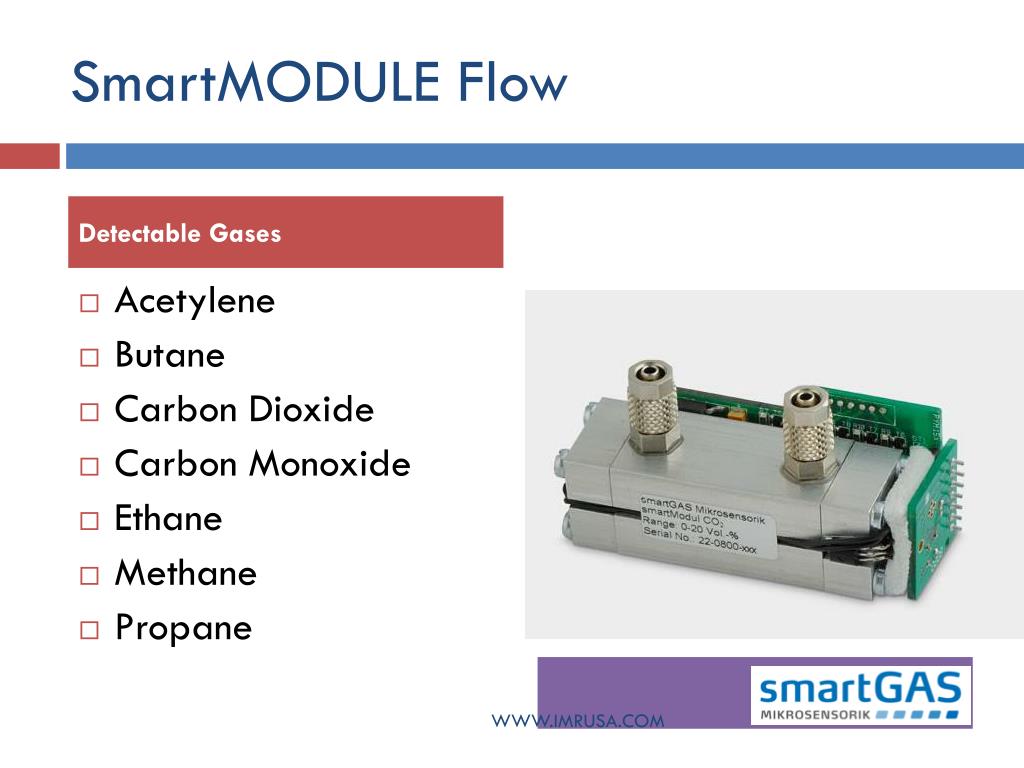

  8. SmartMODULE Flow Detectable Gases • Acetylene • Butane • Carbon Dioxide • Carbon Monoxide • Ethane • Methane • Propane WWW.IMRUSA.COM

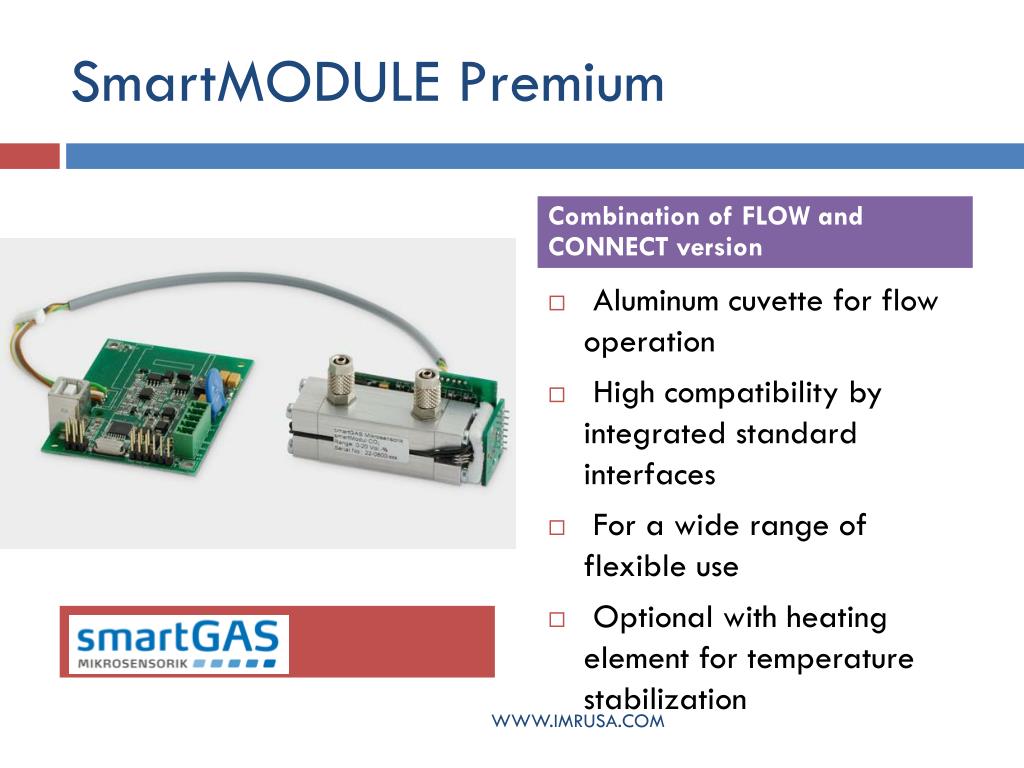

  9. SmartMODULE Premium Combination of FLOW and CONNECT version • Aluminum cuvette for flow operation • High compatibility by integrated standard interfaces • For a wide range of flexible use • Optional with heating element for temperature stabilization WWW.IMRUSA.COM

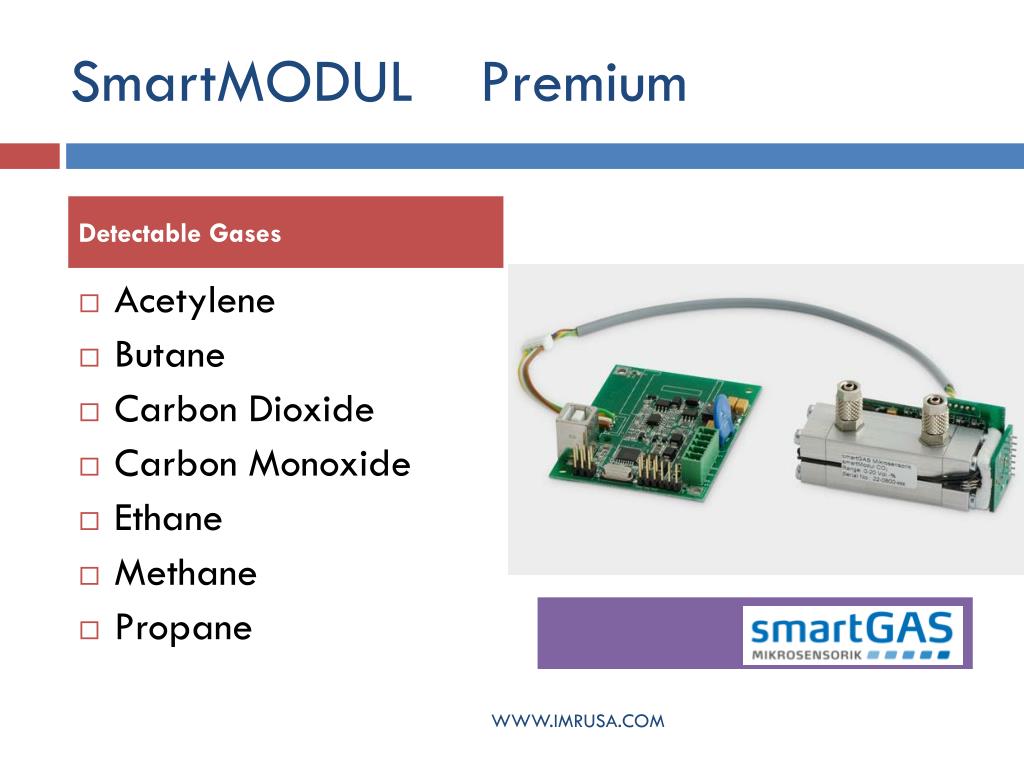

  10. SmartMODUL Premium Detectable Gases • Acetylene • Butane • Carbon Dioxide • Carbon Monoxide • Ethane • Methane • Propane WWW.IMRUSA.COM

  11. SmartALERT smartALERT™ • Natural gas sensors with infrared detection technology • DIN EN 50194 conform • Tamper-proof • Event-driven speech instructions • Valve control • Logbook function • Operational life > 10 years • SmartEXTENSION drive possible • Easy to install WWW.IMRUSA.COM

  12. SmartApplication-Kit SmartApplication-Kit • USB-Modbus Adapter • Inclusive Host-SW • Data logger-Function • Absolute value display • Easy Parameterization • Inclusive cable • Wall power supply WWW.IMRUSA.COM

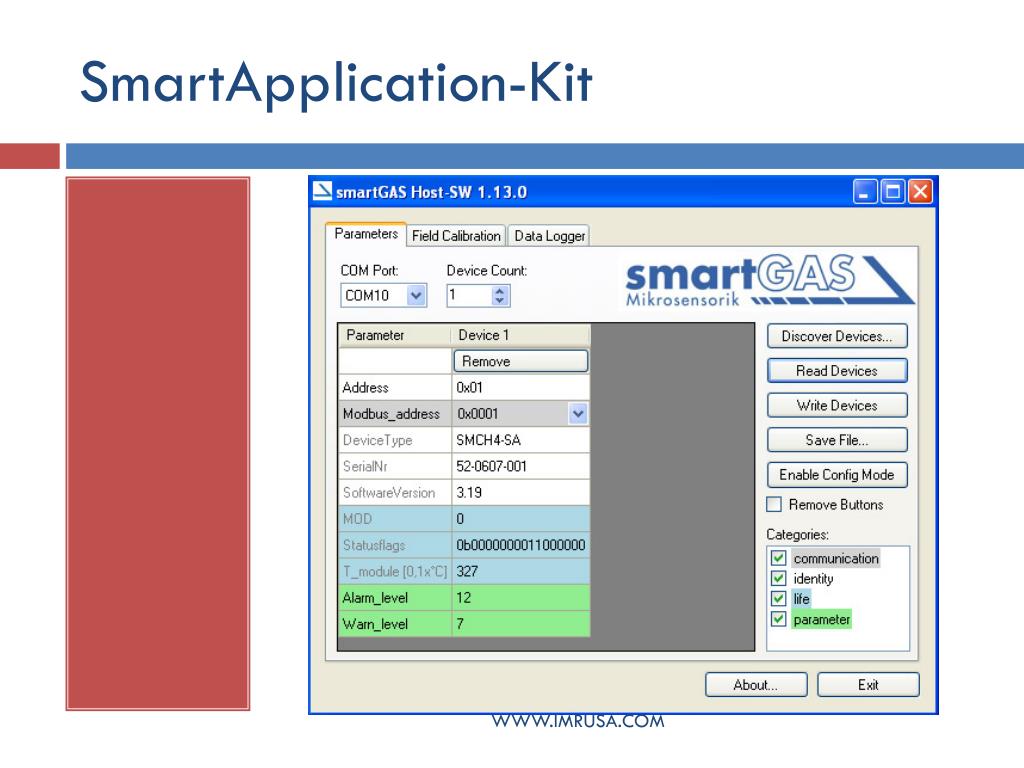

  13. SmartApplication-Kit WWW.IMRUSA.COM

  14. IMR Environmental Equipment 3634 Central Ave St. Petersburg, Fl 33711 Tel: 727-328-2818 WWW.IMRUSA.COM WWW.IMRUSA.COM
