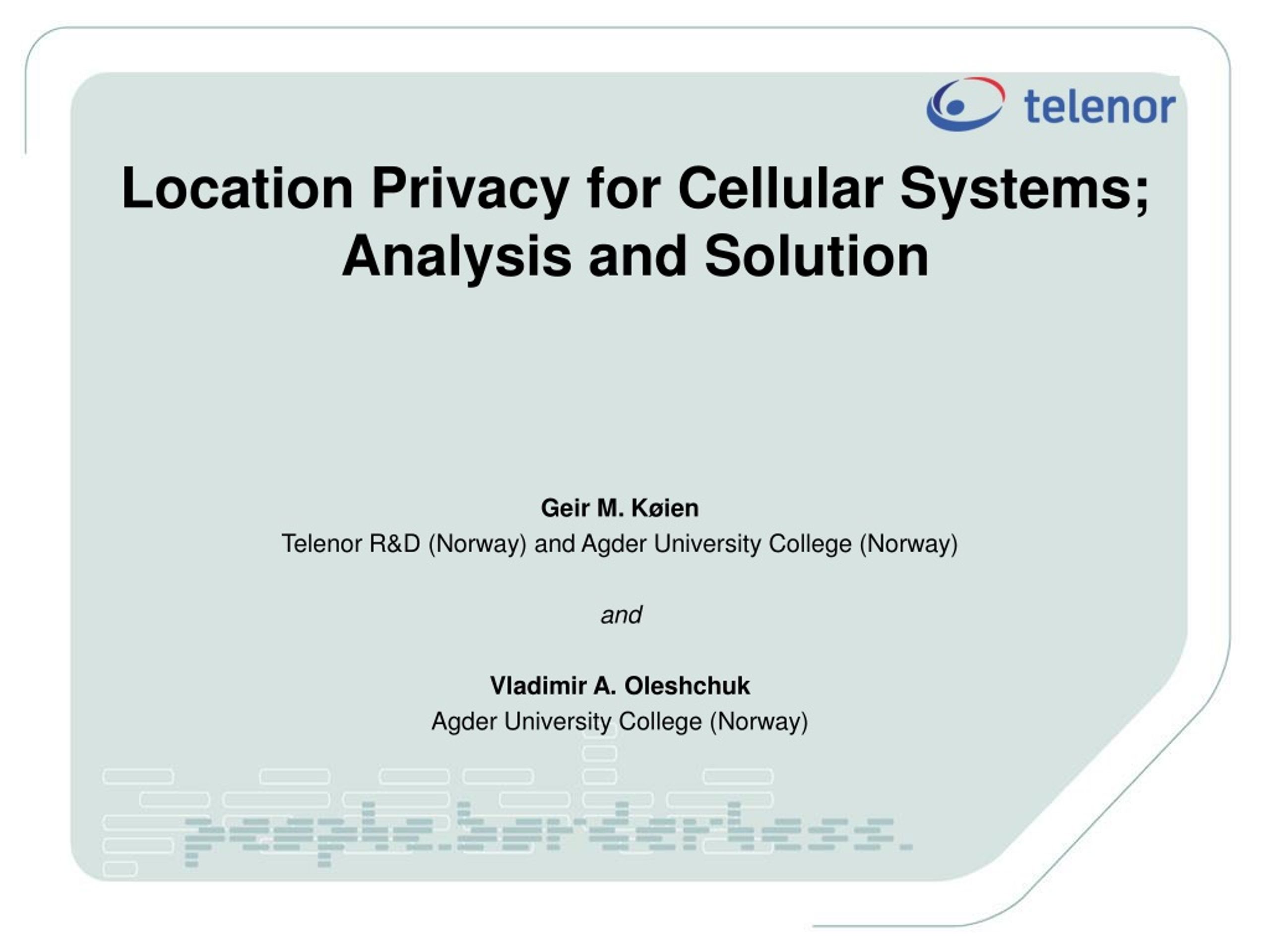

  1. Location Privacy for Cellular Systems; Analysis and Solution Geir M. Køien Telenor R&D (Norway) and Agder University College (Norway) and Vladimir A. Oleshchuk Agder University College (Norway)

  2. Background and Motivation The Principals • User Entity (UE) • The Mobile Station (MS) w/radio access • A tamper resistant security module (smartcard etc) • Serving Network (SN) • Core Network nodes • Gateways etc • Network Access Servers • Access Network • Radio network controllers • Access Points (AP) • Home Server (HS) • Home Location Register • Authentication Center etc PET 2005

  3. Background and Motivation The 2G/3G Solutions • 3G Access Security • The UMTS Authentication and Key Agreement (AKA) protocol • Off-line delegated protocol • Home network distributes complete session credentials to serving network.. • Which executes the network initiated mutual entity authentication (USIM and Network) • Authentication based on knowledge of pre-shared secret (only at USIM and HLR/AuC) • Challenge-Response with “signed” challenge to allow a one-pass scheme • Location/Identity Privacy • Permanent identity (IMSI) only used in clear “when necessary” • After initial identity presentation with IMSI in clear • the AKA protocol is executed • then encryption/integrity protection started • then the Serving Network assigns a temporary identity (TMSI) • Subsequent identity presentation with TMSI (in clear) PET 2005

  4. Background and Motivation Mobility Management • Cellular Control Model • Users subscribe to services at mobile operator (home environment/operator) • Infrastructure in control of a central authority (the “serving network” operator) • Operative control is at Serving Network, while administrative (incl. charging) control at Home • Handovers under network control (performance/QoS reasons) • 2G/3G Mobility Management • Location Registration (incl. loc. updating) • No existing UE-SN relationship  IMSI transferred in clear on common channel • Call to Mobile Station • Paging (call announcement) is in cleartext on broadcast channel (IMSI or TMSI) • Call from Mobile Station • Access in cleartext over common channel until identity is presented (IMSI or TMSI) • Handover (HO) • HO takes place during an active call/session (w/encryption on) PET 2005

  5. UMTS Authentication and Key Agreement 3G Security and Privacy: • Principals: USIM, SN and HE • Mutual off-line (delegated) challenge-response, executed between SN and USIM • Confidentiality on all user/control plane data and integrity on control plane data • Limited privacy (IMSI presented in clear, but “protected” TMSI used when possible) PET 2005

  6. Background and Motivation Privacy Issues and Location Issues • 3GPP Privacy Requirements • User Identity Confidentiality • The property that the identity cannot be eavesdropped over the radio access link • User Location Confidentiality • Presence/arrival of a user cannot be detected by eavesdropping on the radio link • User untraceability • Protection against tracking of users • Location Issues • The Serving Network (SN) will necessarily know where the subscriber is • During active calls/session through radio derived methods (this is a E112/E911 req.) • During idle time through the registration (tied to a location area) • The Home Server network will only know which SN the UE is attached to • The UE must depend on infrastructure support to determine location • Satellite (GPS), possibly with SN support (kick-start measurements and timing) • Location can also be provided by SN (commercial service) PET 2005

  7. Background and Motivation Control and Trust Issues • Trust Relationships UE – HS: UE is a subscriber with the HS. HS has security jurisdiction over UE. With current subscription models the relationships is relatively long (even for pre-paid). SN – HS: Mutual relationship based on legally binding roaming agreements. Both parties wants to limit the trust needed to maintain the relationship. UE – SN: No a priori relationship. Relationship created on-the-fly with the HS as the mediator. • Control Issues • Home Control • Large no.of serving network operators • For commercial reasons the operators sign even with “bad” operators • Particularly problematic in the delegated off-line model in current cellular systems • Remedy: On-line authentication (Home – Subscriber) • Remedy: Spatial home control may be needed for large pan-national serving networks PET 2005

  8. Enhanced Security and Privacy Requirements • Performance is King (AKA requirements) • The most critical performance aspect is temporal (real-time response) • Processing time may be significant – but Moore’s law is on our side • Message Propagation Delays – Physical laws • Important to reduce no of round-trips to a minimum • 3-Way AKA • We have three principals that all should be active in the security context • Security Context Hierarchy • Long-term contexts is the basis (Roaming agreements and Subscription contacts) • Medium-term contexts needed to establish credentials for 3-way context • Short-term session contexts needed for over-the-air protection • Computational and Communication Balance • AKA computation should be possible on secure device (smartcard) • Air-interface may have severe capacity restrictions during establishment PET 2005

  9. Enhanced Security and Privacy The Architectural Context • Minimizing Total Setup Execution Time • Typical 3G scenario for initial registration UESN: Access Request (access channels are narrow; minimal message) SNUE: “Go to control channel and identify yourself” UESN: Present IMSI; Request to be registered; SNHS: Request credentials for IMSI HSSN: Reply( Authentication Vector ) SNUE: Challenge( RAND,AUTN ) UESN: Response ( RES ) … • Identity Presentation, Initial Registration and AKA triggered by same event • Historic reasons that lead to sequential/serial procedure execution • Combined procedures means fewer round-trips • Location Privacy vs. Spatial Home Control • Problematic to allow spatial home control and provide location privacy • Spatial resolution important • Coarse grained resolution may be acceptable for both purposes • Cryptographic methods may allow other acceptable compromise PET 2005

  10. Enhanced Security and Privacy The Initiator-Responder Scheme • Combined Identity Presentation, AKA and Location Registration • Location Registration is invariably triggered by the UE • Combined procedure must therefore be trigger by UE • The Context Reference Identity (CRID) • To provide location privacy an anonymous identity should be used • Context Reference Identity: • Pseduo-random value created by UE • Valid for exactly one medium-term 3-way security context • HS must be allowed to learn both CRID and permanent identity • SN shall not learn permanent identity, but will know that HS acknowledges CRID • An additional Temporary Alias Identity (TAID) • Medium-term context valid for several sessions • TAID is (pseudo-random) session identity assigned by SN • SN and UE knows (TAID,CRID) association PET 2005

  11. Enhanced Security and Privacy Home Control • Secure Multi-party Computation (SMC) • HS defines a Validity Area (VA) were UE is permitted to be • UE location (x,y) should not be revealed to HS • Point-Inclusion scheme allows HS to receive privacy protected location E(x,y) and still determine if “is (x,y) inside VA”. Spatio-Temporal Binding of Medium-Term Security Context • SN identity tied to context • HS identity tied to context • Context Reference Identity (CRID) tied to context • Area identity (large area) tied to context • Validity period tied to context PET 2005

  12. Privacy Preserving 3-Way AKA Cryptographic basis • Secure Multi-party Computation (SMC) • Homomorphic crypto • Operation Xon encrypted data is equivalent to some operation Y on cleartext data • Identity-Based Encryption (IBE) • Identity string used as public-key key (for instance bob@operator.net) • Alice must know system parameters before she can encrypt with ID • Private Key Generator (PKG) creates corresponding private key • Bob receives private key from PKG • No authentication in basic scheme • Challenge-Response • Two-way challenge-response between UE and HS • Symmetric MAC “signed” response (based on long-term pre-shared secret) • Diffie-Hellman (DH) Exchange • DH used for generation of medium-term shared secret • DH exchange between SN and HS, but used between SN and UE PET 2005

  13. Privacy Preserving 3-Way AKA Secure 2-Party Location Inclusion Protocol (S2PLIP) • The S2PLIP concept • Executed between SN and HS • SN provides UE position (x,y), HS provides polygon P • SN does not want HS to learn (x,y) and HS do not want to disclose P • The S2PLIP protocol 0. Distribution of public-key pair from Bob (HS) to Alice (SN). Use same E/D. Location z = (x,y); Polygon P = {ai,bi | i = 1,2,..n} • HSSN: E(P) • SNHS: “Please decrypt parameter ύ (for some i)” • HSSN: D(ύ) • SNHS: Vector of valuese • HS: Iff D(e)>0 for all e then z is inside P HS-SN Interface is high capasity S2PLIP has few round-trips PET 2005

  14. Privacy Preserving 3-Way AKA Outline of the PP3WAKA protocol • Always initiated by UE • UE generates CRID • IBE to provide confidentiality (UESN and UEHS) • Challenge-Response (UEHS) • DH over SN-HS interface • SMC to protect location while allowing spatial home control PET 2005

  15. Privacy Preserving 3-Way AKA Outline of the PP3WAKA protocol 1: UE prepares PP3WAKA Prf()  CRID Generate UEHS challenge/response data incl. keys HSK = HSID||SNID||LONG_TERM_PERIOD (HS IBE public key) ID = HSID||SNID||Hashed_Area_Code||PERIOD (SN IBE public key) EID(CRID)  A EHSK(UEID,CRID,Challenge)  B UESN: (A,B,PERIOD,HSID) 2: SN prepares to contact HS SN observes UE location (x,y) (we presume polygon E(P) present at SN) SN generates ύ SN generates DH value DHA C = PERIOD||HAC|| ύ ||DHA SNHS: {B,C}BKEY PET 2005

  16. Privacy Preserving 3-Way AKA 3: HS responds Validity of PERIOD verified. HS constructs ID and HSK, and generates corresponding private keys dID and dHSK. Decrypt B. Associate CRID-UEID. Compute response to UE. Generate challenge to UE. Generate UE-HS shared key, and use it to protect data sent to UE. EUE-HS key(Challenge, Response,DH secret s)  D In parallel: S2PLIP continues (HS return decrypt ύ)) HSSN: {D,DHB,dID,CRID, ύ}BKEY 4: SN receives HS response and continues setup with UE SN, which now has dID , decrypts A to get CRID. Continue iff (CRIDUE = CRIDHS). Compute DH secret s. Generate pseudo-random key derivation element RNDSN. Derive session keys: KeyGens(CRID,RNDSN)  KSN Generate TAID; protect and bind to CRID: EKsn(CRID,TAID)  E In parallel: S2PLIP continues (SN start computation of e-values) SNUE: (D,RNDSN,E) PET 2005

  17. Privacy Preserving 3-Way AKA 5: UE responds Decrypts D. Then verify HS response, and compute own response to HS. UE accepts s, and generates session keys:KeyGens(CRID,RNDSN)  KSN KSN is used to decrypt E. UE then gets CRID,TAID. Generate pseudo-random key derivation element RNDUE. Derive session keys: KeyGens(CRID,RNDUE)  KUE EKue(TAID,RESHE)  F UE believes that SN has possession of s. With msg-5 the UE has demonstrated possession of s to SN. UE and SN also believe that KSN and KUE are shared session keys. UESN: (RNDUE,F) 6: SN receives UE response and forward response to HS Derive session keys: KeyGens(CRID,RNDUE)  KUE Decrypt F. Verify TAID. Forward RESUE. SN now believes that s is a shared secret for CRID. Only outstanding is a verification that HS has authenticated CRID(and thereby UE). S2PLIP continues (SN forwards e-values) SNHS: {CRID,RESSN,e-values}BKEY PET 2005

  18. Privacy Preserving 3-Way AKA 7: HS responds to SN HS verifies UE response. HS now considers UE to be authenticated and CRID a valid UE identity. It then completes spatial verification (of e-values). Message 7 is sent to SN to verify that HS acknowledges CRID. HSSN: {CRID,’success’}BKEY 8: SN receives HS acknowledge SN now has assurance that HS acknowledges CRID. UE has not yet verification that HS accepted its response, but UE can continue without this knowledge (any subsequent SN usage of the PP3WAKA credentials will demonstrate SN belief in the credentials). PET 2005

  19. Analysis of the PP3WAKA protocol Complexity • The PP3WAKA protocol is complex (by necessity) • Computation: • feasible on advanced smartcards • Pre-computation possible for SN and HS • Communication: • Over-the-air message sizes seems feasible • Round-trip count OK due to combined Mobility Mngt and Security procedures • Hard to convince one self of correctness • Difficult to apply formal methods • Privacy not easy to model in most formalisms • 3-Way protocols not easy to model • IBE not easy to model (easy to “assume too much”) • SMC not easy to model (again, what is correct assumptions to be made) • But formal verification is on our agenda! • Even inadequate model may be beneficial • Primary goal might be insight and not proofs per see PET 2005

  20. Analysis of the PP3WAKA protocol Privacy • Permanent UE identity is never revealed over the air or to the SN • Context Reference Identity (CRID): • Known to UE,SN,HS • Relatively short-lived • Never revealed over the air (or elsewhere) • The Temporary Alias Identity • Not know by HS • Very short lifespan • Will be revealed over the air (paging and access request) • Location information • SN knows location, but SN can only associate it with CRID/TAID • HS will only be given very coarse grained information (SN area) • Adversary: • Can now that there is a subscriber at location (x,y) • But will not be able to deduce identity or track user when CRID/TAID changes PET 2005

  21. Analysis of the PP3WAKA protocol Security • An informal argument • DH-exchange and Challenge-Response are well know mechanisms • We assume security of IBE (and SMC) • UE-HS authentication • By means of online challenge-response (MAC with pre-shared secret) • SN assurance of CRID • SN-HS relationship exists • HS received CRID from UE (IBE protected and tied to challenge-response) • HS assert that CRID is a valid identity (over protected channel) • Belief in DH-secret • Created online over protected channel (SN and HS believes in s) • HS has jurisdiction over UE • UE knows that CRID is fresh and so it believes that s is a valid shared secret • Belief in session keys • Session keys derived from s • Session keys are fresh since RND elements are fresh PET 2005

  22. Privacy Preserving 3-Way AKA Conclusion • PP3WAKA • Successfully provides credible subscriber location/identity privacy • Successfully provides a 3-way security context (UE,SN,HS) • Successfully provides a flexible session key scheme (UE-SN) • Successfully provides a measure of Spatial Home Control • Intelligent combination of Mobility Management and Security procedures • Efficient in terms of round-trips (total execution time) • Good balance in terms of computation requirements between principals • Good balance in terms of communication requirements over interfaces • Outstanding issues • Formalize security arguments • Formalize privacy arguments • Get some experience (pilot implementation) PET 2005
