Ling 388 language and computers

LING 388: Language and Computers

Sandiway Fong

Lecture 17: 10/25


Administrivia

Administrivia

  • Heads-up:

    • there may be a computer lab scheduled for next Wednesday

    • I’ll keep you posted ...


Last time

sbar

np

s[objectwh]

aux

what

np

did

vp [objectwh]

v

john

buy

Last Time

  • English wh-questions

    • subject wh-questions: simple

    • object wh-questions: complex

      • wh-word fronting

      • do-support

      • tense goes with do

  • Technology employed

    • extra argument

    • nonterminal renaming


Today s topic

Today’s Topic

  • Components:

    • English Grammar

    • Japanese Grammar

  • Putting it all together...

    • Machine Translation (MT)


Japanese data

Japanese: Data

  • Declarative

    • Taroo-ga hon-o katta

    • John a book bought

      • ga = nominative case marker

      • o = accusative case marker

  • Wh-questions

    • Taroo-ga nani-o katta ka

      • nani: means what

      • ka: sentence-final question particle

    • dare-ga hon-o katta ka

      • dare: means who


Japanese grammar

Japanese: Grammar

  • DCG rules:

    • s(s(Y,Z)) --> np(Y,Q1), nomcase, vp(Z,Q2), sf(Q1,Q2).

    • vp(vp(Z,Y),Q) --> np(Z,Q), acccase, transitive(Y).

    • transitive(v(katta)) --> [katta].

    • nomcase --> [ga].

    • acccase --> [o].

    • np(np(taroo),notwh) --> [taroo].

    • np(np(hon),notwh) --> [hon].

    • np(np(dare),wh) --> [dare].

    • np(np(nani),wh) --> [nani].

    • sf(wh,notwh) --> [ka].

    • sf(notwh,wh) --> [ka].

    • sf(notwh,notwh) --> [].

    • sf(wh,wh) --> [ka].

can both parse

and generate

with this

simple grammar


Japanese grammar1

Japanese: Grammar

  • DCG rules:

    • js(s(Y,Z)) --> jnp(Y,Q1), nomcase, jvp(Z,Q2), sf(Q1,Q2).

    • jvp(vp(Z,Y),Q) --> jnp(Z,Q), acccase, jtransitive(Y).

    • jtransitive(v(katta)) --> [katta].

    • nomcase --> [ga].

    • acccase --> [o].

    • jnp(np(taroo),notwh) --> [taroo].

    • jnp(np(hon),notwh) --> [hon].

    • jnp(np(dare),wh) --> [dare].

    • jnp(np(nani),wh) --> [nani].

    • sf(wh,notwh) --> [ka].

    • sf(notwh,wh) --> [ka].

    • sf(notwh,notwh) --> [].

    • sf(wh,wh) --> [ka].

rename Japanese

nonterminals to not

clash with English

grammar – we’re going

to be loading them both

at the same time


English data

English: Data

  • Declarative:

    • John bought a book

  • Wh-Questions:

    • Who bought a book?(subject wh-phrase)

    • *John bought what?(only possible as an echo-question)

    • What did John buy?(object wh-phrase)


English grammar

DCG rules:

sbar(sbar(X,A,Y)) --> np(X,wh), do(A), s_objectwh(Y).

sbar(S) --> s(S).

s_objectwh(s(Y,Z)) --> np(Y,_), vp_objectwh(Z).

s(s(Y,Z)) --> np(Y,_), vp(Z).

np(np(Y),Q) --> pronoun(Y,Q).

np(np(Y),notwh) --> proper_noun(Y).

np(np(D,N),Q) --> det(D,Number), common_noun(N,Number,Q).

det(det(the),_) --> [the].

det(det(a),sg) --> [a].

common_noun(n(ball),sg,notwh) --> [ball].

common_noun(n(man),sg,notwh) --> [man].

common_noun(n(men),pl,notwh) --> [men].

common_noun(n(book),sg,notwh) --> [book].

pronoun(who,wh) --> [who].

pronoun(what,wh) --> [what].

pronoun(i,notwh) --> [i].

pronoun(we,notwh) --> [we].

pronoun(me,notwh) --> [me].

proper_noun(john) --> [john].

vp(vp(Y)) --> unergative(Y).

vp(vp(Y,Z)) --> transitive(Y,_), np(Z,_).

vp(vp(A,V)) --> aux(A), transitive(V,en).

vp_objectwh(vp(Y)) --> transitive(Y,root).

unergative(v(ran)) --> [ran].

transitive(v(hit),_) --> [hit].

transitive(v(eat),root) --> [eat].

transitive(v(eats),s) --> [eats].

transitive(v(ate),ed) --> [ate].

transitive(v(eaten),en) --> [eaten].

transitive(v(buy),root) --> [buy].

transitive(v(bought),ed) --> [bought].

aux(aux(was)) --> [was].

do(aux(did)) --> [did].

do(aux(does)) --> [does].

do(aux(do)) --> [do].

English: Grammar


English grammar1

English: Grammar

  • We can also generate with this grammar

    • like with the Japanese grammar

  • Examples:

    • ?- sbar(s(np(john),vp(v(bought),np(det(a),n(book)))),Y,[]).

    • Y = [john,bought,a,book]

    • ?- sbar(sbar(np(what),aux(did),s(np(john),vp(v(buy)))),Y,[]).

    • Y = [what,did,john,buy]

    • ?- sbar(s(np(who),vp(v(bought),np(det(a),n(book)))),Y,[]).

    • Y = [who,bought,a,book]

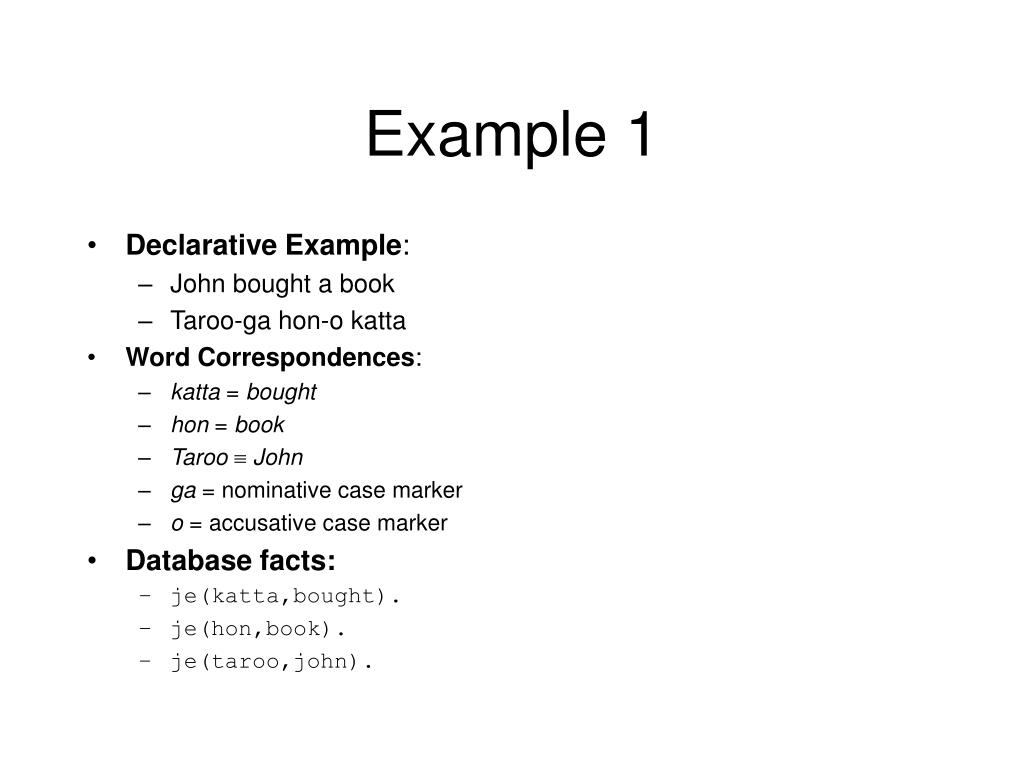

Example 1

Example 1

  • Declarative Example:

    • John bought a book

    • Taroo-ga hon-o katta

  • Word Correspondences:

    • katta = bought

    • hon = book

    • Taroo John

    • ga = nominative case marker

    • o = accusative case marker

  • Database facts:

    • je(katta,bought).

    • je(hon,book).

    • je(taroo,john).


Example 11

Example 1

  • Declarative Example:

    • John bought a book

    • Taroo-ga hon-o katta

  • Database facts:

    • je(katta,bought).

    • je(hon,book).

    • je(taroo,john).

  • Parse trees:

    • ?- sbar(X,[john,bought,a,book],[]).

    • X = s(np(john),vp(v(bought),np(det(a),n(book))))

    • ?- js(X,[taroo,ga,hon,o,katta],[]).

    • X = s(np(taroo),vp(np(hon),v(katta)))

  • Translator (top-level):

    • ?- sbar(X,EnglishSentence,[]),maptree(X,Y),js(Y,JapaneseSentence,[]).

    • Problem reduces to:

      • How to write maptree/2 ?

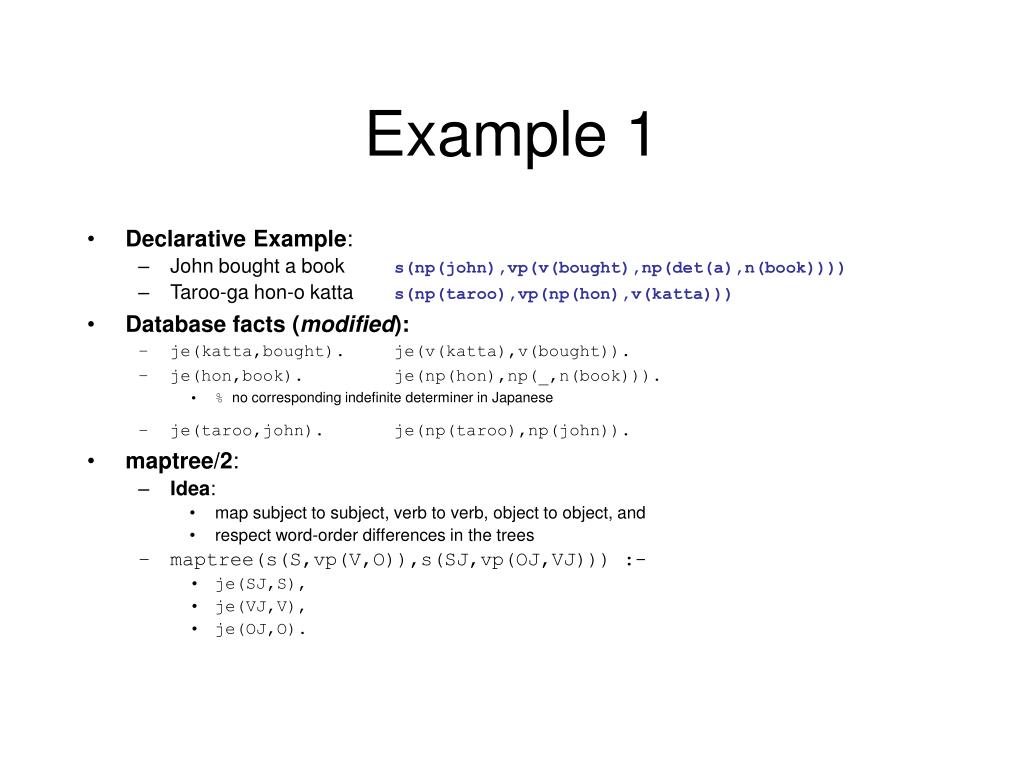

Example 12

Example 1

  • Declarative Example:

    • John bought a books(np(john),vp(v(bought),np(det(a),n(book))))

    • Taroo-ga hon-o kattas(np(taroo),vp(np(hon),v(katta)))

  • Database facts (modified):

    • je(katta,bought).je(v(katta),v(bought)).

    • je(hon,book).je(np(hon),np(_,n(book))).

      • % no corresponding indefinite determiner in Japanese

    • je(taroo,john).je(np(taroo),np(john)).

  • maptree/2:

    • Idea:

      • map subject to subject, verb to verb, object to object, and

      • respect word-order differences in the trees

    • maptree(s(S,vp(V,O)),s(SJ,vp(OJ,VJ))) :-

      • je(SJ,S),

      • je(VJ,V),

      • je(OJ,O).

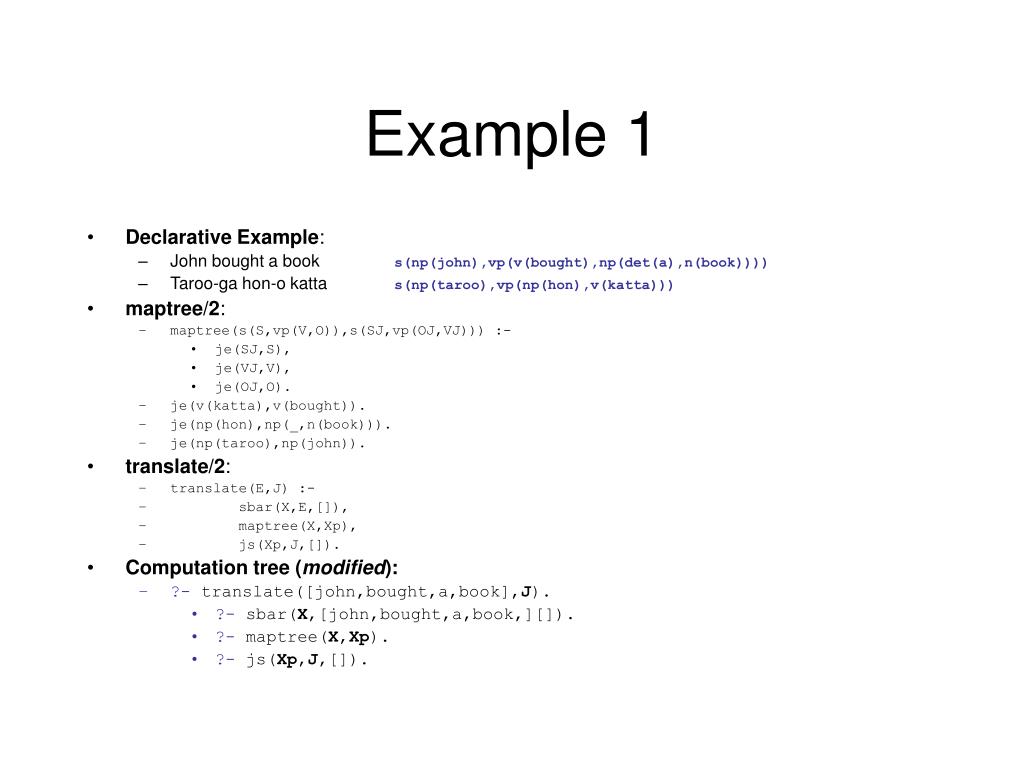

Example 13

Example 1

  • Declarative Example:

    • John bought a books(np(john),vp(v(bought),np(det(a),n(book))))

    • Taroo-ga hon-o kattas(np(taroo),vp(np(hon),v(katta)))

  • maptree/2:

    • maptree(s(S,vp(V,O)),s(SJ,vp(OJ,VJ))) :-

      • je(SJ,S),

      • je(VJ,V),

      • je(OJ,O).

    • je(v(katta),v(bought)).

    • je(np(hon),np(_,n(book))).

    • je(np(taroo),np(john)).

  • translate/2:

    • translate(E,J) :-

    • sbar(X,E,[]),

    • maptree(X,Xp),

    • js(Xp,J,[]).

  • Computation tree (modified):

    • ?- translate([john,bought,a,book],J).

      • ?- sbar(X,[john,bought,a,book,][]).

      • ?- maptree(X,Xp).

      • ?- js(Xp,J,[]).


Example 14

Example 1

  • Declarative Example:

    • John bought a books(np(john),vp(v(bought),np(det(a),n(book))))

    • Taroo-ga hon-o kattas(np(taroo),vp(np(hon),v(katta)))

  • maptree/2:

    • maptree(s(S,vp(V,O)),s(SJ,vp(OJ,VJ))) :-

      • je(SJ,S), je(VJ,V), je(OJ,O).

    • je(v(katta),v(bought)).

    • je(np(hon),np(_,n(book))).

    • je(np(taroo),np(john)).

  • Computation tree (modified):

    • ?- translate([john,bought,a,book],J).

      • ?- sbar(X,[john,bought,a,book,][]).

        • X =s(np(john),vp(v(bought),np(det(a),n(book))))

      • ?- maptree(s(np(john),vp(v(bought),np(det(a),n(book)))),Xp).

      • ?- js(Xp,J,[]).

    • ?- maptree(s(np(john),vp(v(bought),np(det(a),n(book)))),Xp).

      • S = np(john) V = v(bought) O = np(det(a),n(book)) Xp = s(SJ,vp(OJ,VJ)

      • ?- je(SJ,np(john)).

        • SJ = np(taroo)

      • ?- je(VJ,v(bought)).

        • VJ = v(katta)

      • ?- je(OJ,np(det(a),n(book))).

        • OJ = np(hon)

    • ?- js(s(np(taroo),vp(np(hon),v(katta))),J,[]).

    • J = [taroo,ga,hon,o,katta]

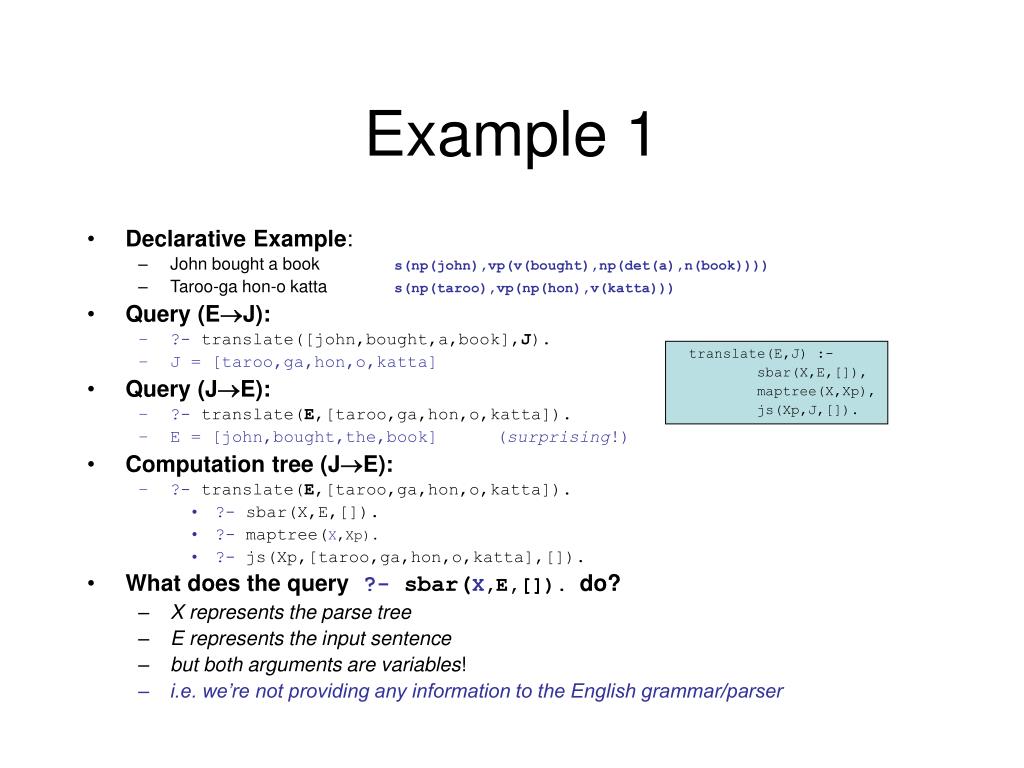

Example 15

Example 1

  • Declarative Example:

    • John bought a books(np(john),vp(v(bought),np(det(a),n(book))))

    • Taroo-ga hon-o kattas(np(taroo),vp(np(hon),v(katta)))

  • Query (EJ):

    • ?- translate([john,bought,a,book],J).

    • J = [taroo,ga,hon,o,katta]

  • Query (JE):

    • ?- translate(E,[taroo,ga,hon,o,katta]).

    • E = [john,bought,the,book](surprising!)

  • Computation tree (JE):

    • ?- translate(E,[taroo,ga,hon,o,katta]).

      • ?- sbar(X,E,[]).

      • ?- maptree(X,Xp).

      • ?- js(Xp,[taroo,ga,hon,o,katta],[]).

  • What does the query ?- sbar(X,E,[]). do?

    • X represents the parse tree

    • E represents the input sentence

    • but both arguments are variables!

    • i.e. we’re not providing any information to the English grammar/parser

  • translate(E,J) :-

  • sbar(X,E,[]),

  • maptree(X,Xp),

  • js(Xp,J,[]).

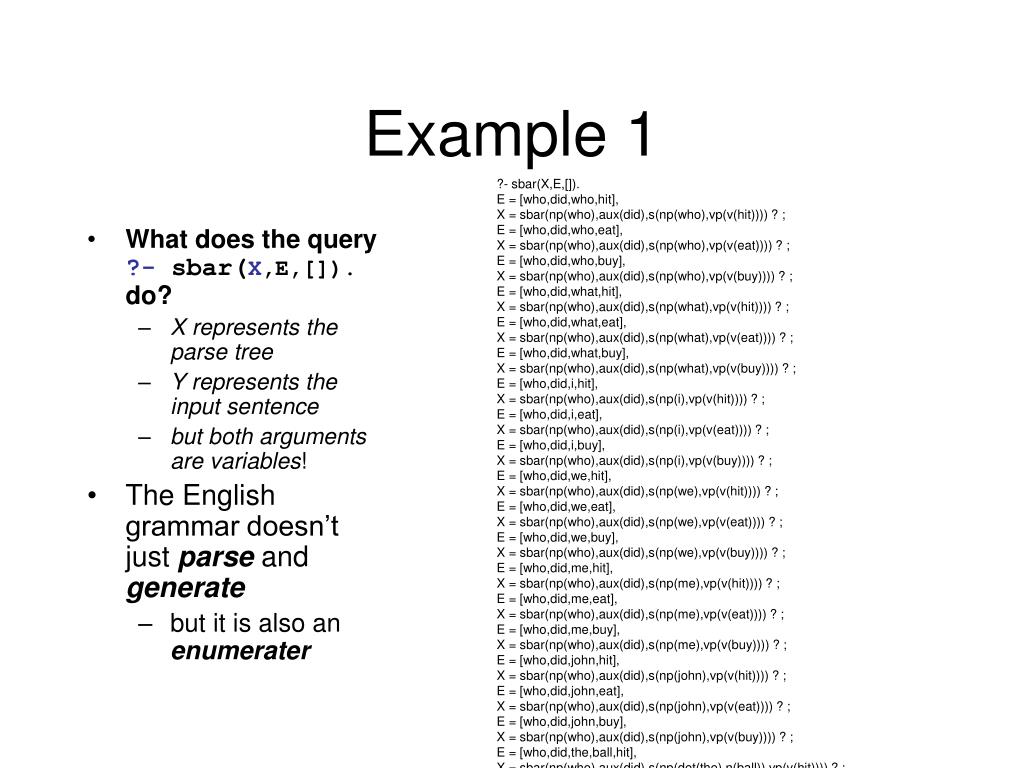

Example 16

Example 1

?- sbar(X,E,[]).

E = [who,did,who,hit],

X = sbar(np(who),aux(did),s(np(who),vp(v(hit)))) ? ;

E = [who,did,who,eat],

X = sbar(np(who),aux(did),s(np(who),vp(v(eat)))) ? ;

E = [who,did,who,buy],

X = sbar(np(who),aux(did),s(np(who),vp(v(buy)))) ? ;

E = [who,did,what,hit],

X = sbar(np(who),aux(did),s(np(what),vp(v(hit)))) ? ;

E = [who,did,what,eat],

X = sbar(np(who),aux(did),s(np(what),vp(v(eat)))) ? ;

E = [who,did,what,buy],

X = sbar(np(who),aux(did),s(np(what),vp(v(buy)))) ? ;

E = [who,did,i,hit],

X = sbar(np(who),aux(did),s(np(i),vp(v(hit)))) ? ;

E = [who,did,i,eat],

X = sbar(np(who),aux(did),s(np(i),vp(v(eat)))) ? ;

E = [who,did,i,buy],

X = sbar(np(who),aux(did),s(np(i),vp(v(buy)))) ? ;

E = [who,did,we,hit],

X = sbar(np(who),aux(did),s(np(we),vp(v(hit)))) ? ;

E = [who,did,we,eat],

X = sbar(np(who),aux(did),s(np(we),vp(v(eat)))) ? ;

E = [who,did,we,buy],

X = sbar(np(who),aux(did),s(np(we),vp(v(buy)))) ? ;

E = [who,did,me,hit],

X = sbar(np(who),aux(did),s(np(me),vp(v(hit)))) ? ;

E = [who,did,me,eat],

X = sbar(np(who),aux(did),s(np(me),vp(v(eat)))) ? ;

E = [who,did,me,buy],

X = sbar(np(who),aux(did),s(np(me),vp(v(buy)))) ? ;

E = [who,did,john,hit],

X = sbar(np(who),aux(did),s(np(john),vp(v(hit)))) ? ;

E = [who,did,john,eat],

X = sbar(np(who),aux(did),s(np(john),vp(v(eat)))) ? ;

E = [who,did,john,buy],

X = sbar(np(who),aux(did),s(np(john),vp(v(buy)))) ? ;

E = [who,did,the,ball,hit],

X = sbar(np(who),aux(did),s(np(det(the),n(ball)),vp(v(hit)))) ? ;

  • What does the query ?- sbar(X,E,[]). do?

    • X represents the parse tree

    • Y represents the input sentence

    • but both arguments are variables!

  • The English grammar doesn’t just parse and generate

    • but it is also an enumerater

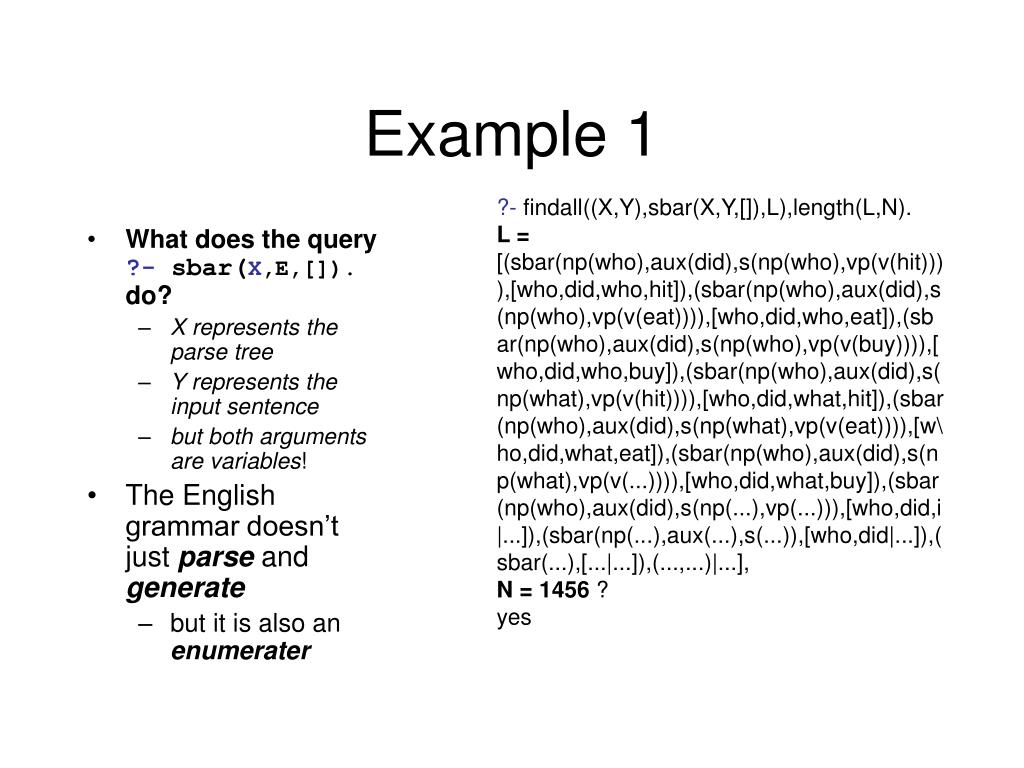

Example 17

Example 1

?- findall((X,Y),sbar(X,Y,[]),L),length(L,N).

L = [(sbar(np(who),aux(did),s(np(who),vp(v(hit)))),[who,did,who,hit]),(sbar(np(who),aux(did),s(np(who),vp(v(eat)))),[who,did,who,eat]),(sbar(np(who),aux(did),s(np(who),vp(v(buy)))),[who,did,who,buy]),(sbar(np(who),aux(did),s(np(what),vp(v(hit)))),[who,did,what,hit]),(sbar(np(who),aux(did),s(np(what),vp(v(eat)))),[w\

ho,did,what,eat]),(sbar(np(who),aux(did),s(np(what),vp(v(...)))),[who,did,what,buy]),(sbar(np(who),aux(did),s(np(...),vp(...))),[who,did,i|...]),(sbar(np(...),aux(...),s(...)),[who,did|...]),(sbar(...),[...|...]),(...,...)|...],

N = 1456 ?

yes

  • What does the query ?- sbar(X,E,[]). do?

    • X represents the parse tree

    • Y represents the input sentence

    • but both arguments are variables!

  • The English grammar doesn’t just parse and generate

    • but it is also an enumerater

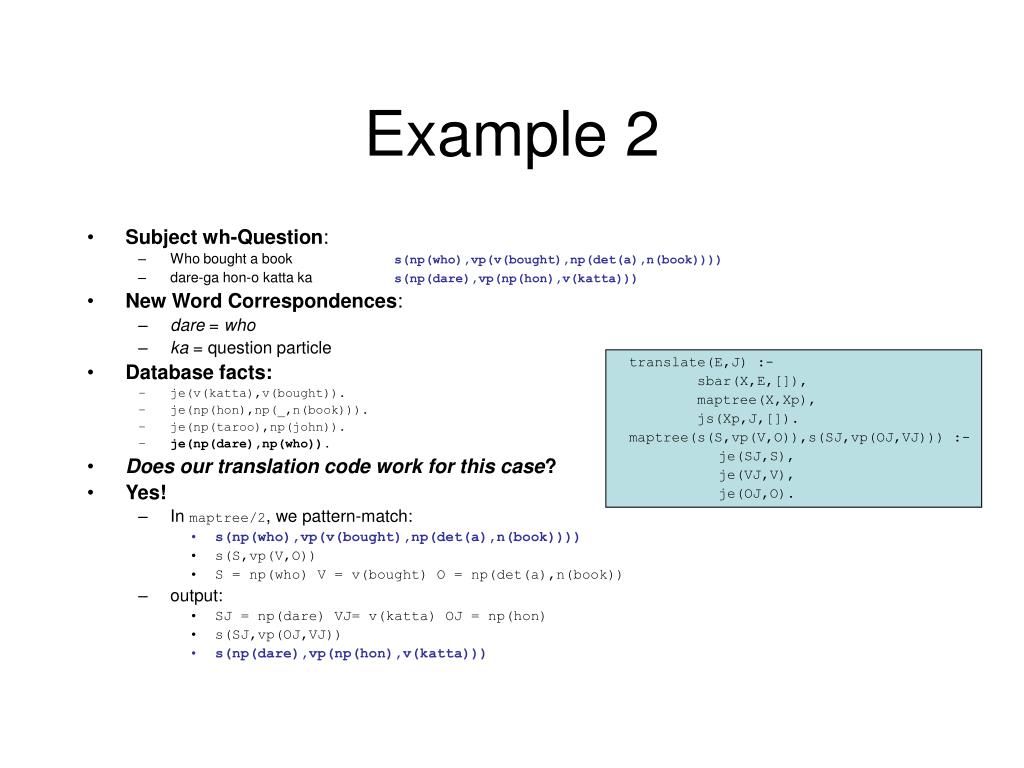

Example 2

Example 2

  • Subject wh-Question:

    • Who bought a books(np(who),vp(v(bought),np(det(a),n(book))))

    • dare-ga hon-o katta kas(np(dare),vp(np(hon),v(katta)))

  • New Word Correspondences:

    • dare = who

    • ka = question particle

  • Database facts:

    • je(v(katta),v(bought)).

    • je(np(hon),np(_,n(book))).

    • je(np(taroo),np(john)).

    • je(np(dare),np(who)).

  • Does our translation code work for this case?

  • Yes!

    • In maptree/2, we pattern-match:

      • s(np(who),vp(v(bought),np(det(a),n(book))))

      • s(S,vp(V,O))

      • S = np(who) V = v(bought) O = np(det(a),n(book))

    • output:

      • SJ = np(dare) VJ= v(katta) OJ = np(hon)

      • s(SJ,vp(OJ,VJ))

      • s(np(dare),vp(np(hon),v(katta)))

  • translate(E,J) :-

  • sbar(X,E,[]),

  • maptree(X,Xp),

  • js(Xp,J,[]).

  • maptree(s(S,vp(V,O)),s(SJ,vp(OJ,VJ))) :-

    • je(SJ,S),

    • je(VJ,V),

    • je(OJ,O).


Example 21

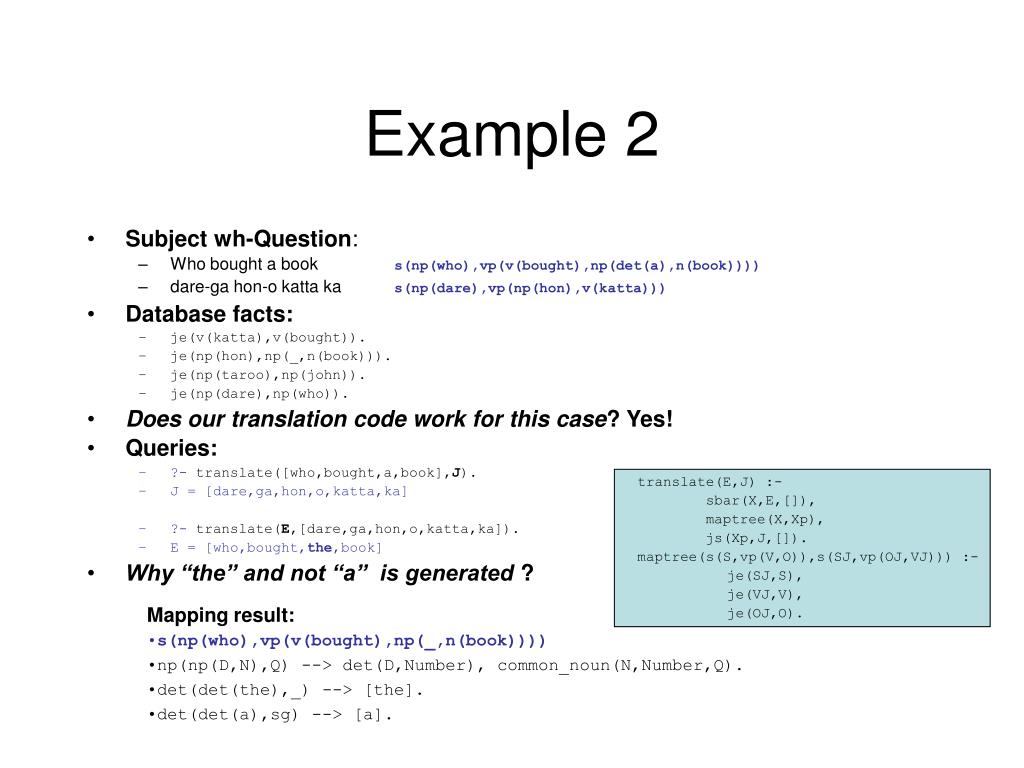

Example 2

  • Subject wh-Question:

    • Who bought a books(np(who),vp(v(bought),np(det(a),n(book))))

    • dare-ga hon-o katta kas(np(dare),vp(np(hon),v(katta)))

  • Database facts:

    • je(v(katta),v(bought)).

    • je(np(hon),np(_,n(book))).

    • je(np(taroo),np(john)).

    • je(np(dare),np(who)).

  • Does our translation code work for this case? Yes!

  • Queries:

    • ?- translate([who,bought,a,book],J).

    • J = [dare,ga,hon,o,katta,ka]

    • ?- translate(E,[dare,ga,hon,o,katta,ka]).

    • E = [who,bought,the,book]

  • Why “the” and not “a” is generated ?

  • translate(E,J) :-

  • sbar(X,E,[]),

  • maptree(X,Xp),

  • js(Xp,J,[]).

  • maptree(s(S,vp(V,O)),s(SJ,vp(OJ,VJ))) :-

    • je(SJ,S),

    • je(VJ,V),

    • je(OJ,O).

  • Mapping result:

  • s(np(who),vp(v(bought),np(_,n(book))))

  • np(np(D,N),Q) --> det(D,Number), common_noun(N,Number,Q).

  • det(det(the),_) --> [the].

  • det(det(a),sg) --> [a].


Next time

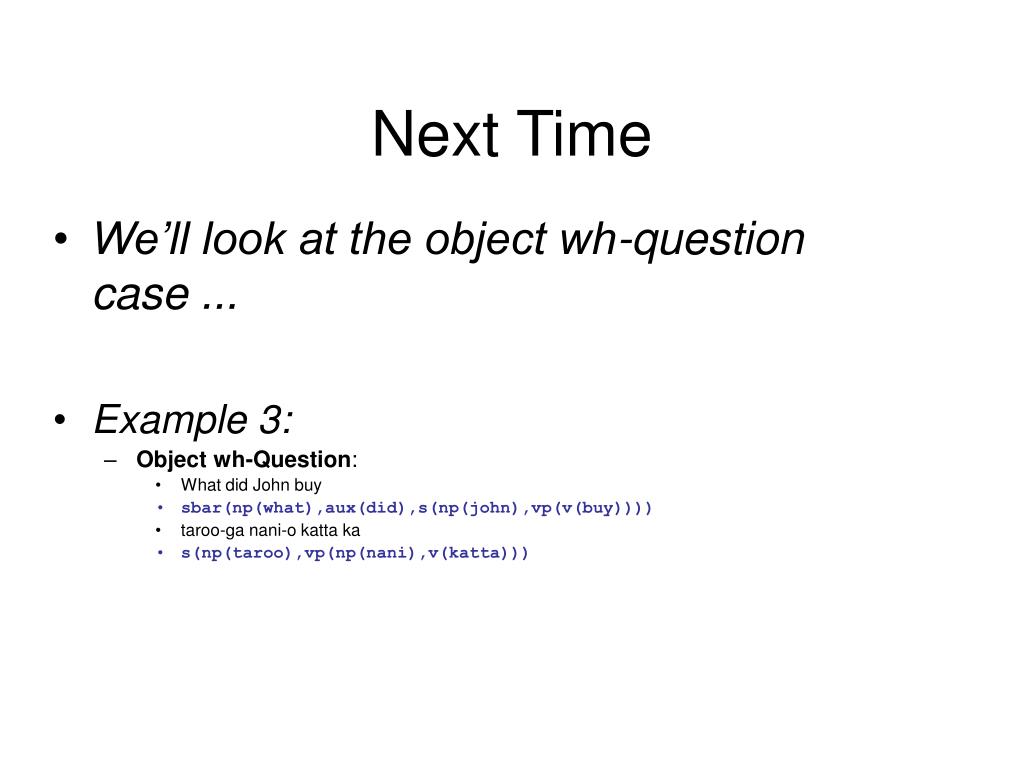

Next Time

  • We’ll look at the object wh-question case ...

  • Example 3:

    • Object wh-Question:

      • What did John buy

      • sbar(np(what),aux(did),s(np(john),vp(v(buy))))

      • taroo-ga nani-o katta ka

      • s(np(taroo),vp(np(nani),v(katta)))


  • Login
