  1. ECOFLOOR TRAINING

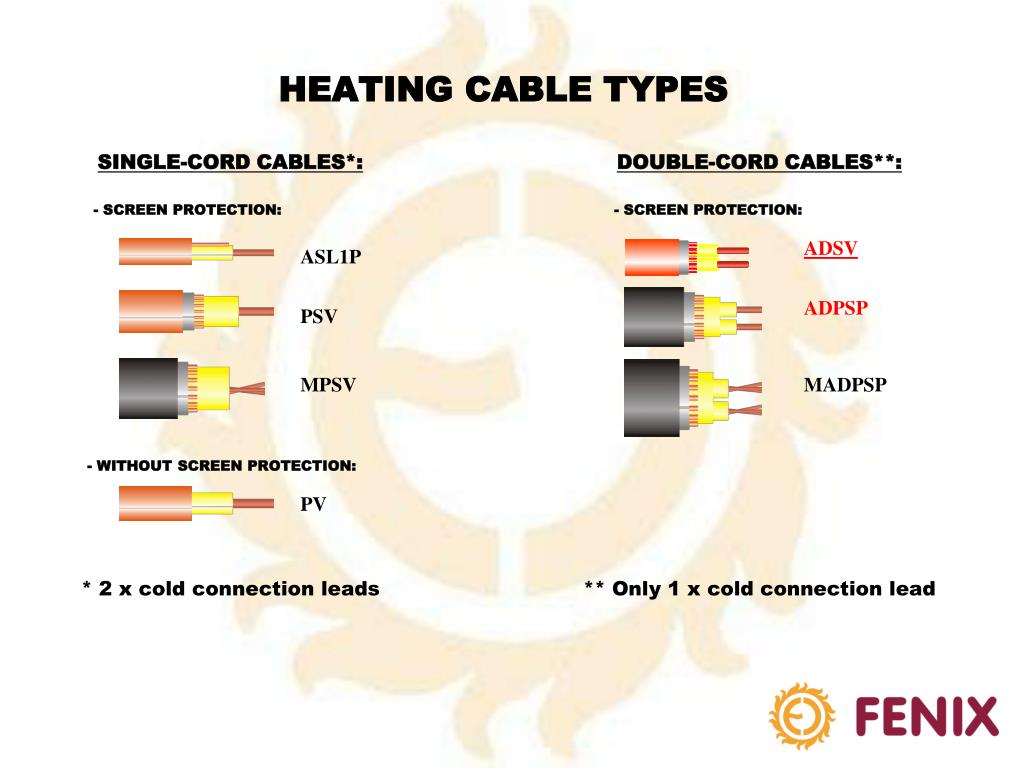

  2. HEATING CABLE TYPES SINGLE-CORD CABLES*: DOUBLE-CORD CABLES**: - SCREEN PROTECTION: - SCREEN PROTECTION: ADSV ASL1P ADPSP PSV MPSV MADPSP - WITHOUT SCREEN PROTECTION: PV * 2 x cold connection leads ** Only 1 x cold connection lead

  3. HEATING CABLE TYPES ADSV: 1 - DOUBLE-CORD CABLE 2 – FULL SCREEN PROTECTION (14 tinned copper wires  0,3 mm + AlPET foil) 3 - FEP INSULATION 4 - PVC JACKET 4 2 1 1 3 EL.CONNECTION: 1 x 3m COLD CONNECTION LEAD

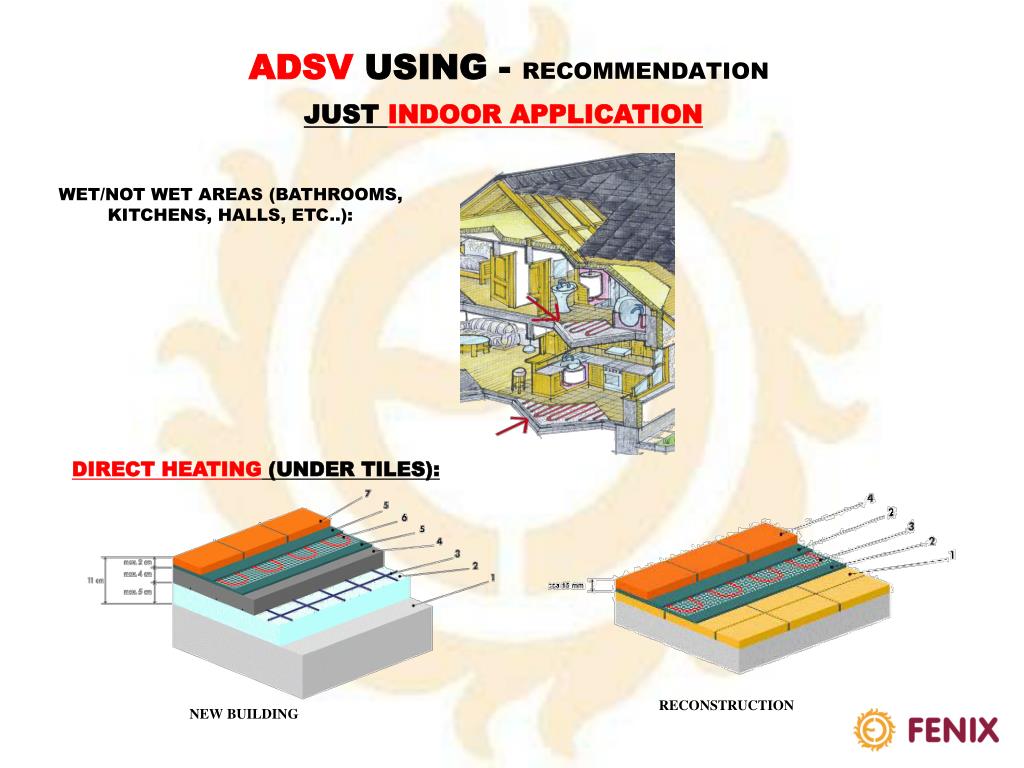

  4. ADSV USING - RECOMMENDATION JUST INDOOR APPLICATION WET/NOT WET AREAS (BATHROOMS, KITCHENS, HALLS, ETC..): DIRECT HEATING (UNDER TILES): RECONSTRUCTION NEW BUILDING

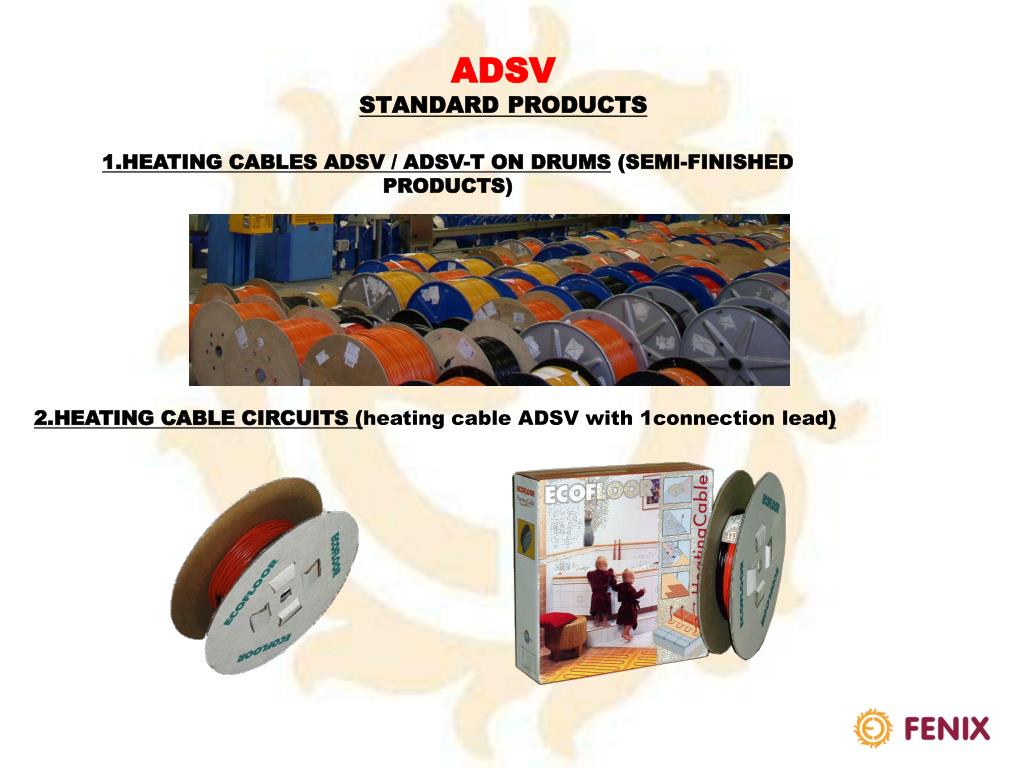

  5. ADSVSTANDARD PRODUCTS 1.HEATING CABLES ADSV / ADSV-T ON DRUMS (SEMI-FINISHED PRODUCTS) 2.HEATING CABLE CIRCUITS (heating cable ADSV with 1connection lead)

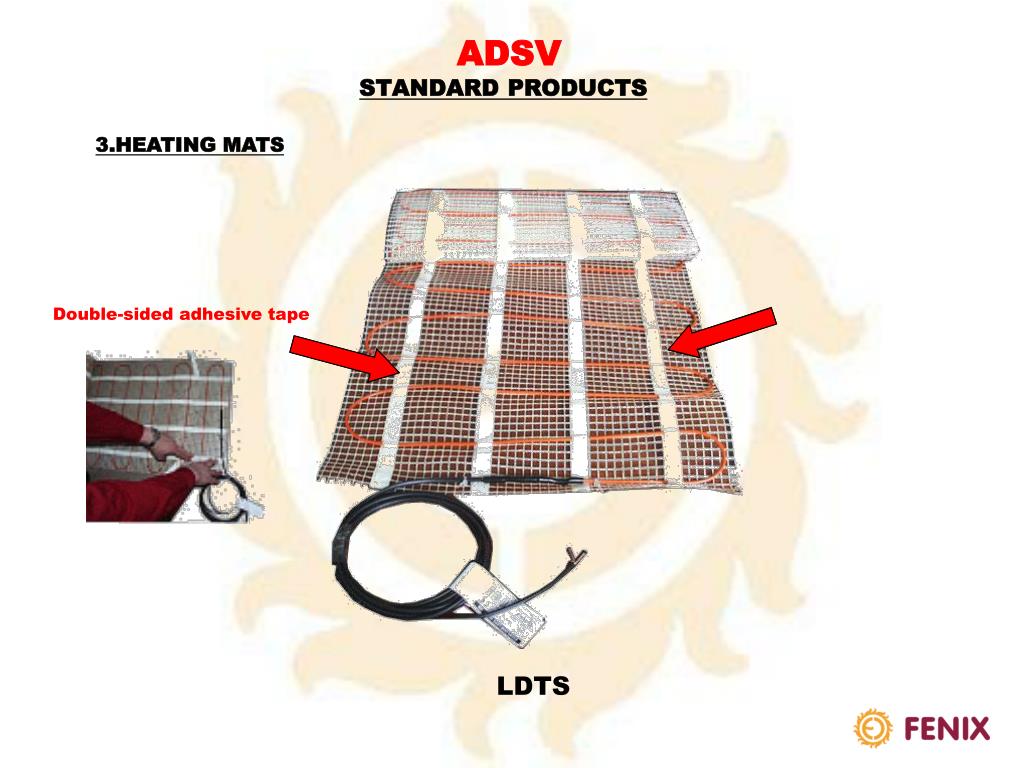

  6. ADSVSTANDARD PRODUCTS 3.HEATING MATS Double-sided adhesive tape LDTS

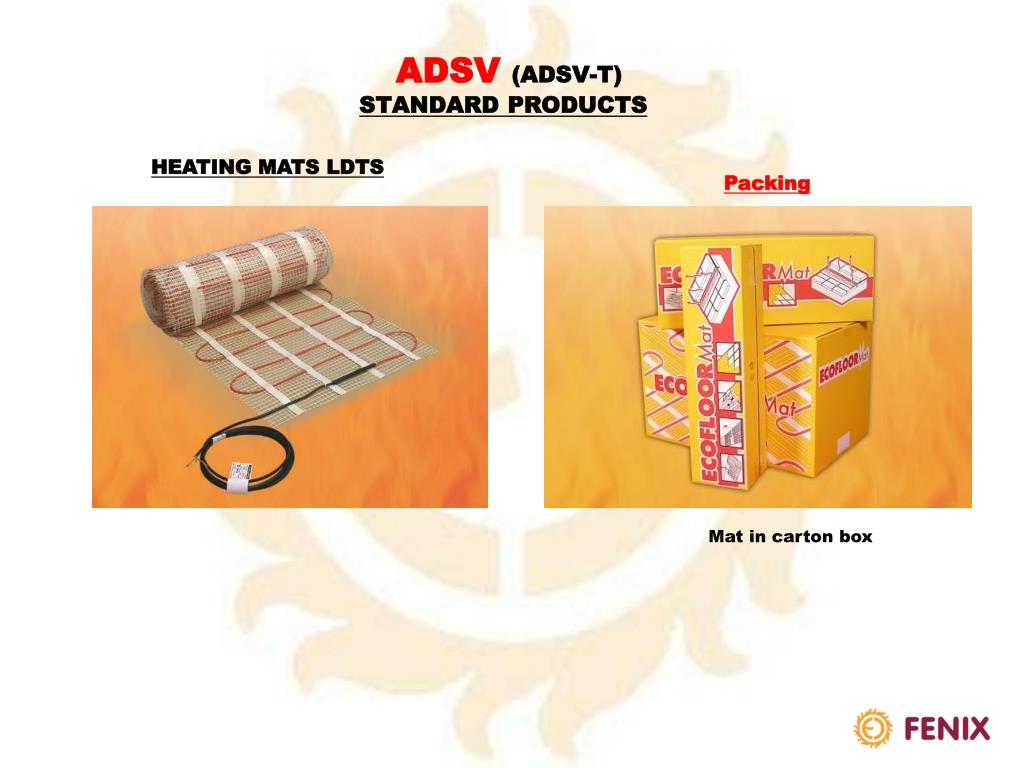

  7. ADSV (ADSV-T)STANDARD PRODUCTS HEATING MATS LDTS Packing Mat in carton box

  8. ADSV (ADSV-T)STANDARD PRODUCTS SELF-ADHESIVE MATS LSDTS Packing Mat in carton box

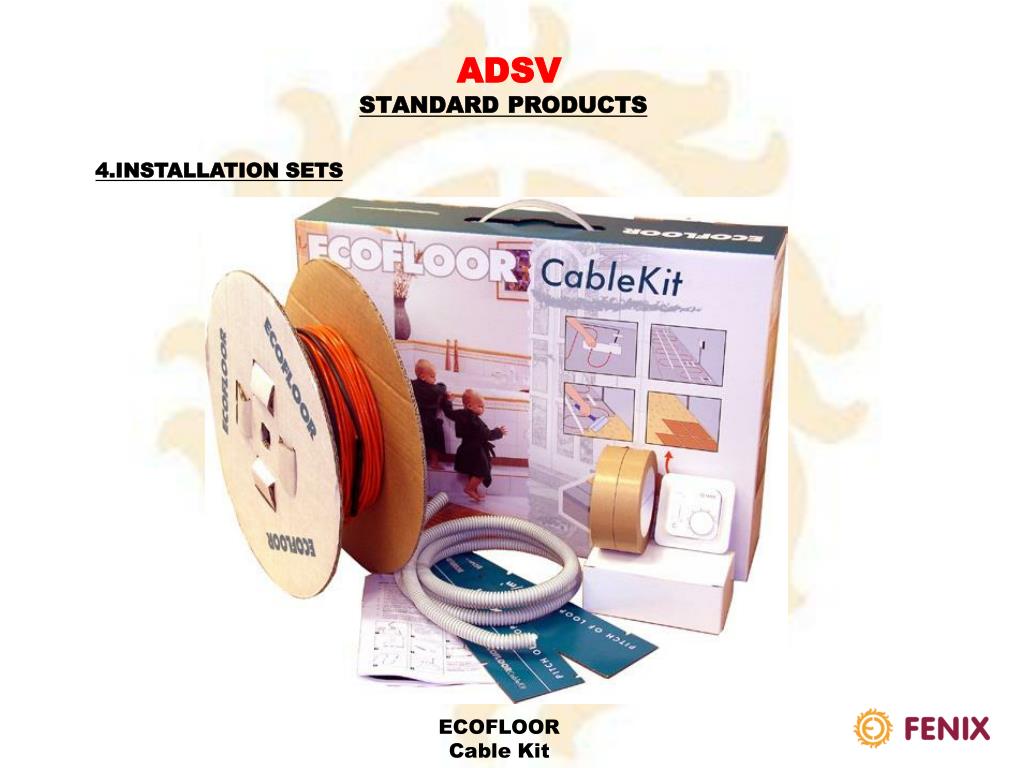

  9. ADSVSTANDARD PRODUCTS 4.INSTALLATION SETS ECOFLOOR Cable Kit

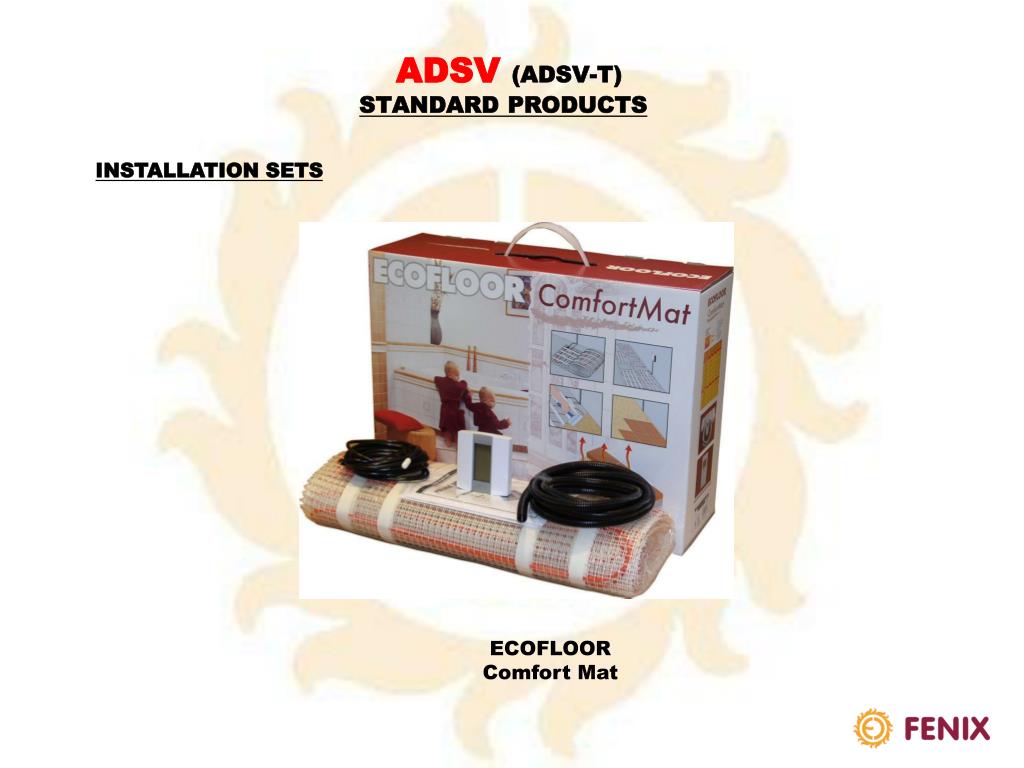

  10. ADSV (ADSV-T)STANDARD PRODUCTS INSTALLATION SETS ECOFLOOR Comfort Mat

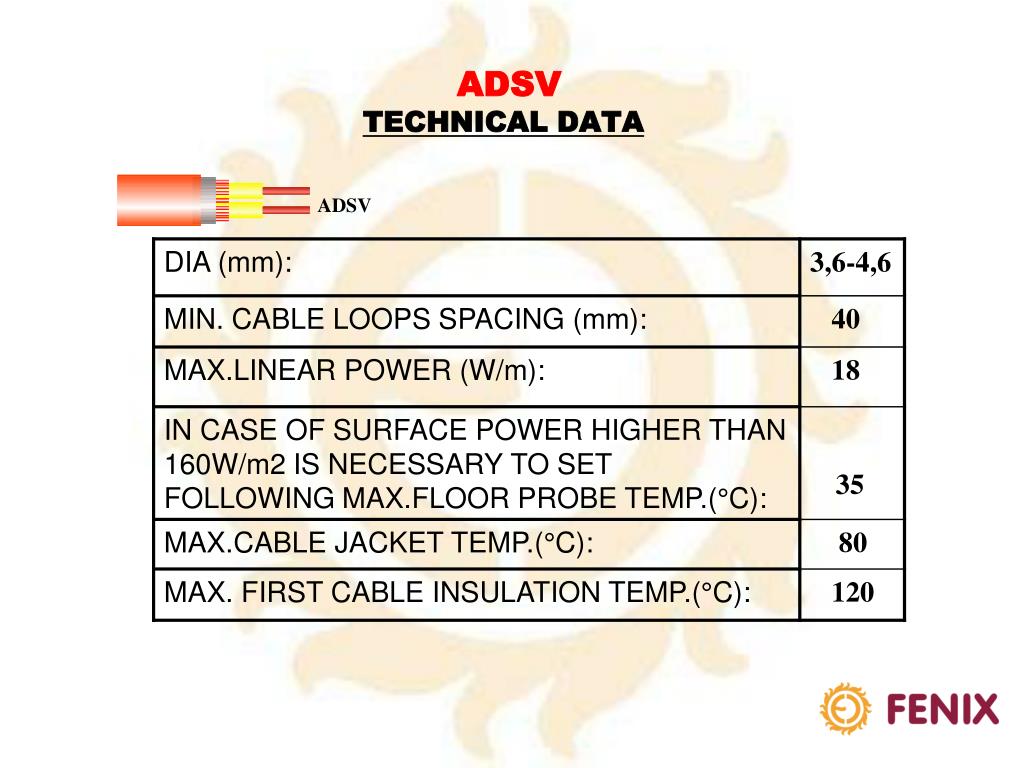

  11. ADSVTECHNICAL DATA ADSV

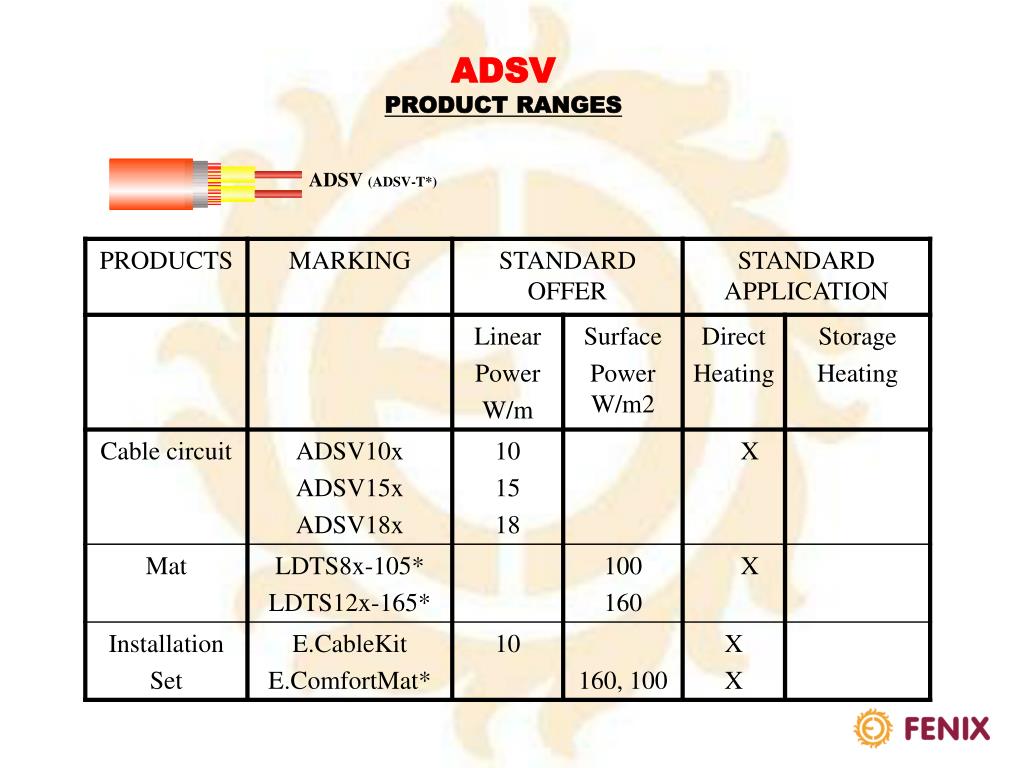

  12. ADSVPRODUCT RANGES ADSV (ADSV-T*)

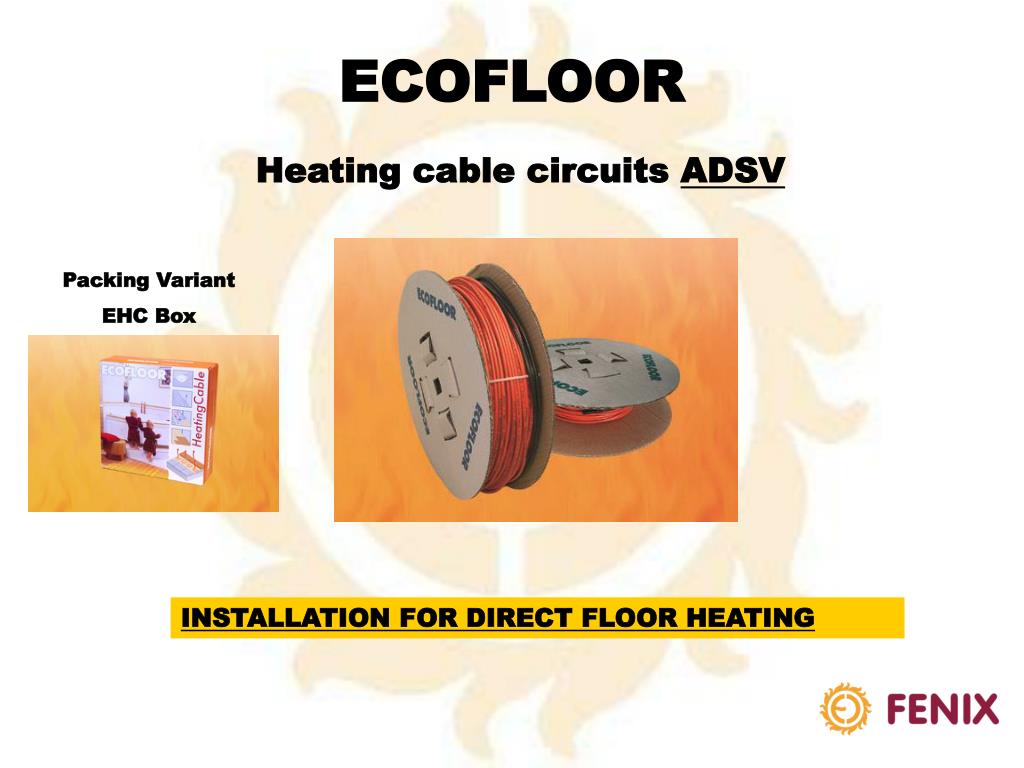

  13. ECOFLOOR Heating cable circuits ADSV Packing Variant EHC Box INSTALLATION FOR DIRECT FLOOR HEATING

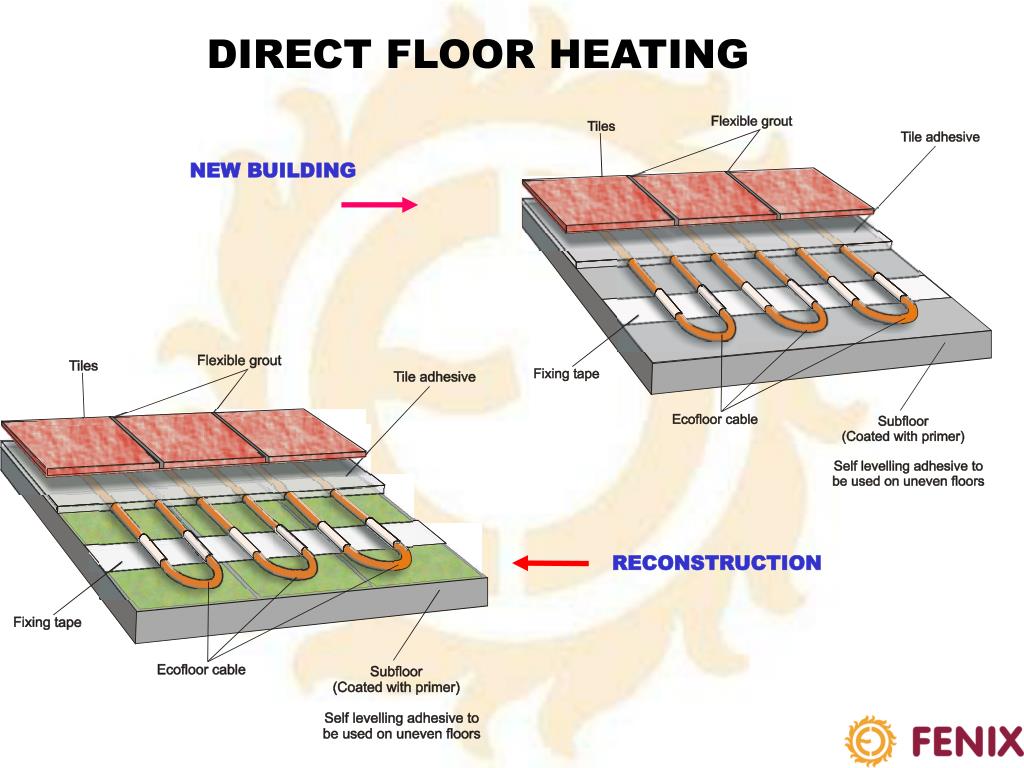

  14. DIRECT FLOOR HEATING NEW BUILDING RECONSTRUCTION

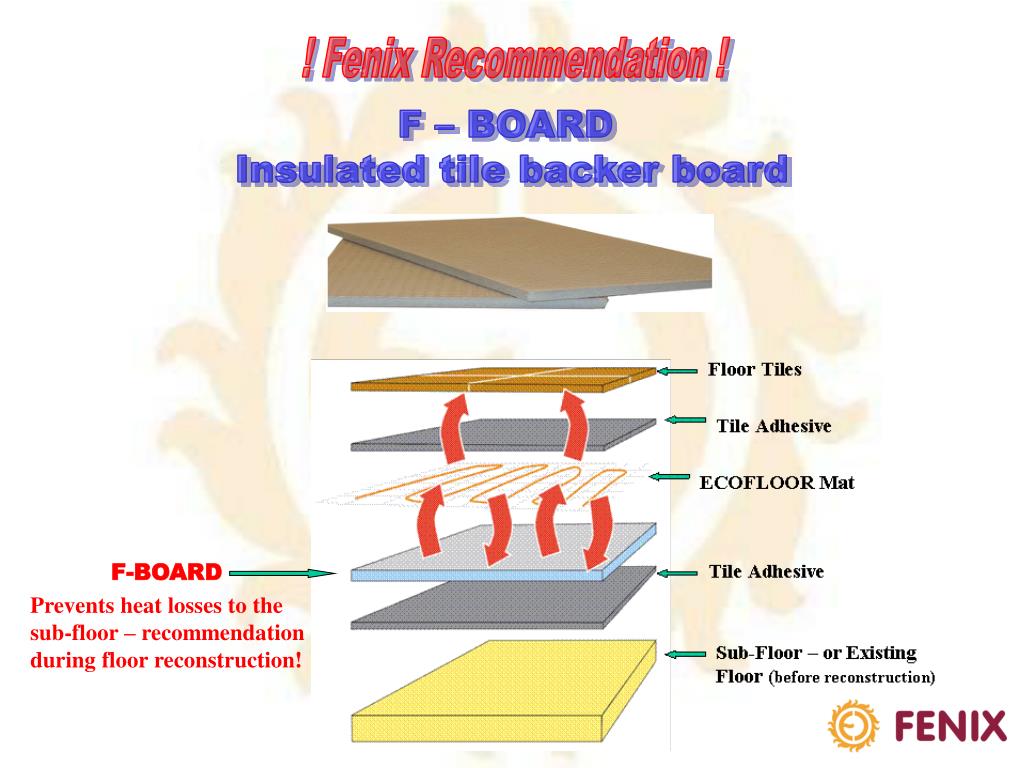

  15. ! Fenix Recommendation ! F – BOARD Insulated tile backer board F-BOARD Prevents heat losses to the sub-floor – recommendation during floor reconstruction!

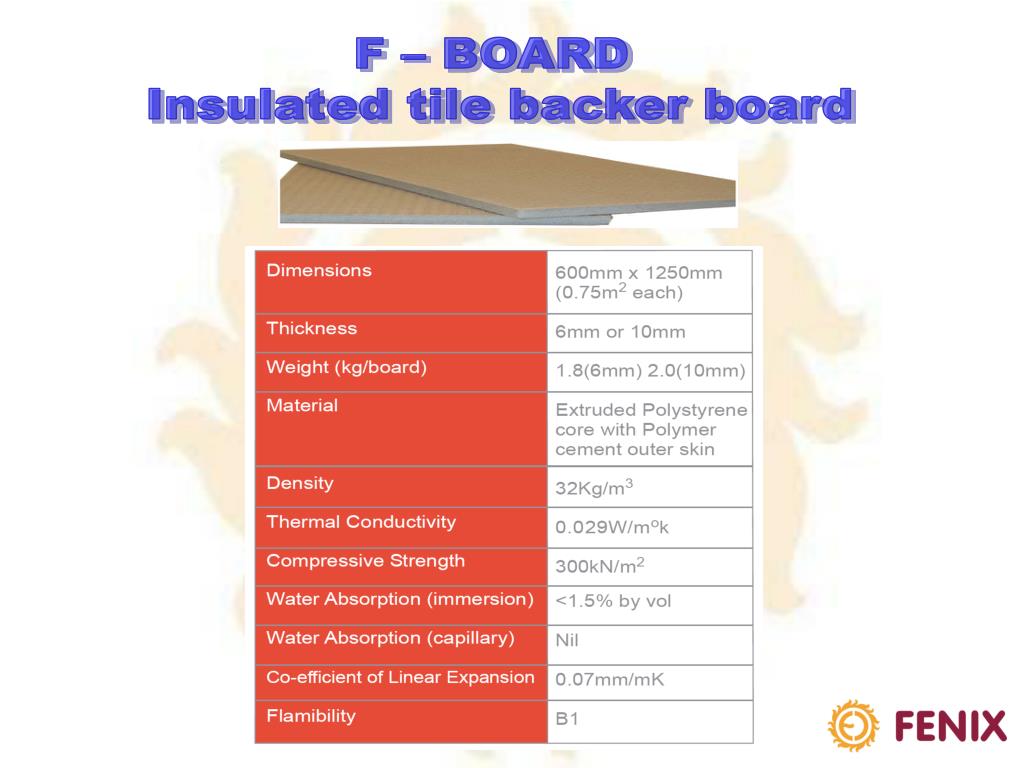

  16. F – BOARD Insulated tile backer board

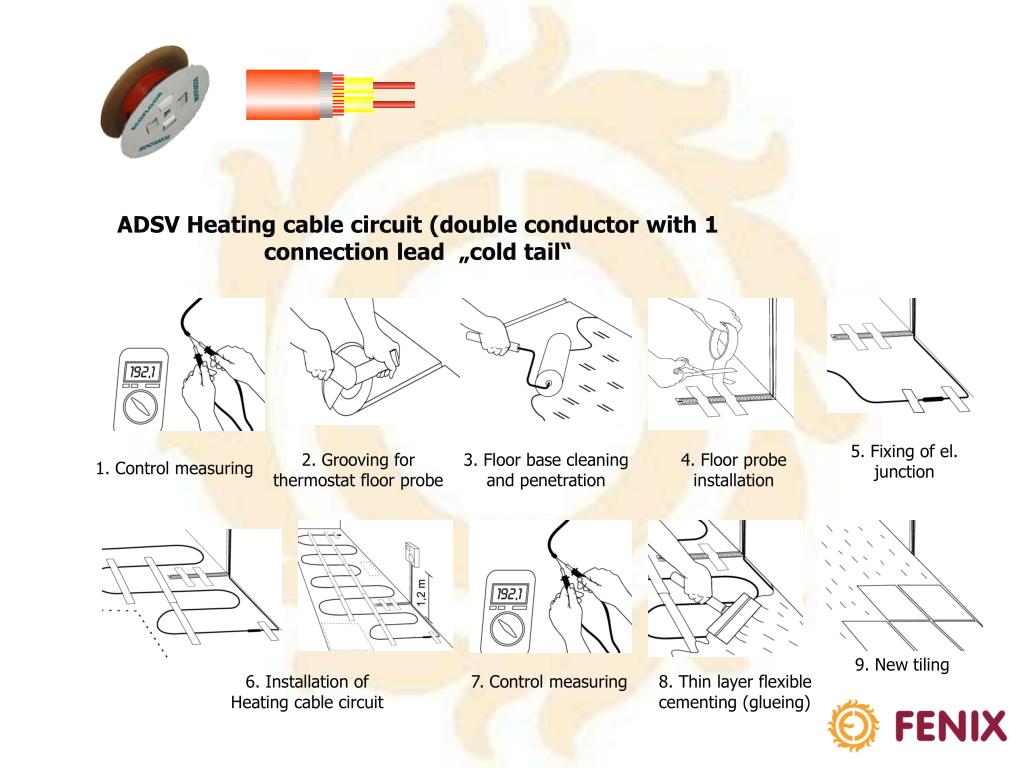

  17. ADSV Heating cable circuit (double conductor with 1 connection lead „cold tail“ 5. Fixing of el. junction 2. Grooving for thermostat floor probe 3. Floor base cleaning and penetration 4. Floor probe installation 1. Control measuring 9. New tiling 6. Installation of Heating cable circuit 7. Control measuring 8. Thin layer flexible cementing (glueing)

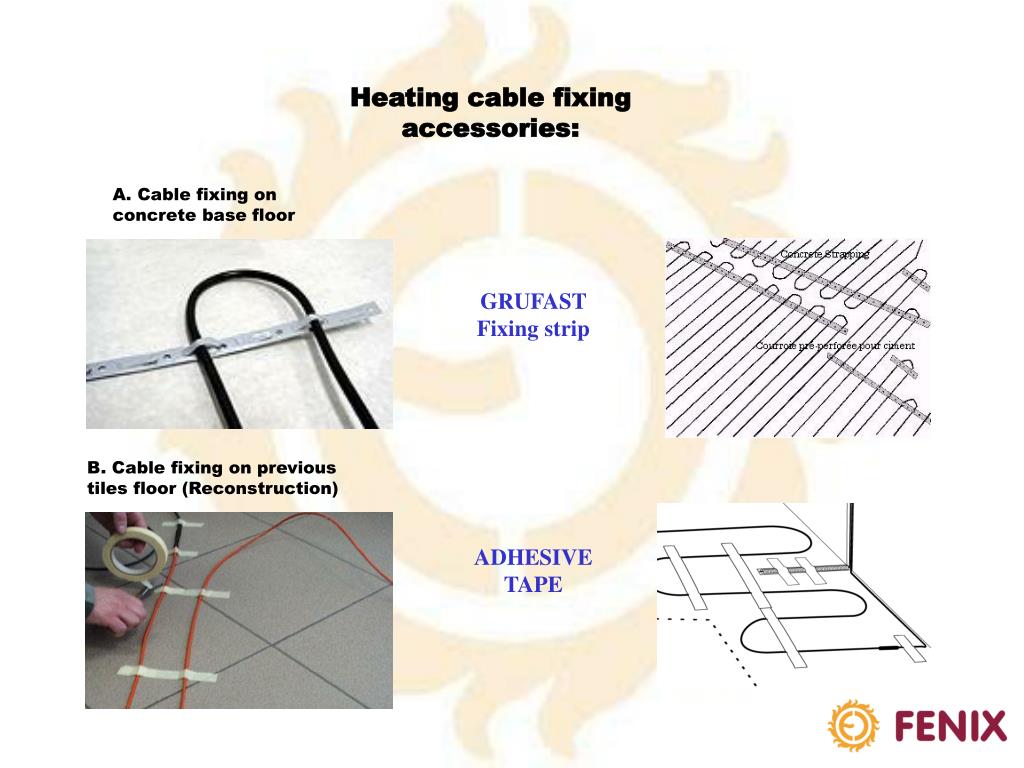

  18. Heating cable fixing accessories: A. Cable fixing on concrete base floor GRUFAST Fixing strip B. Cable fixing on previous tiles floor (Reconstruction) ADHESIVE TAPE

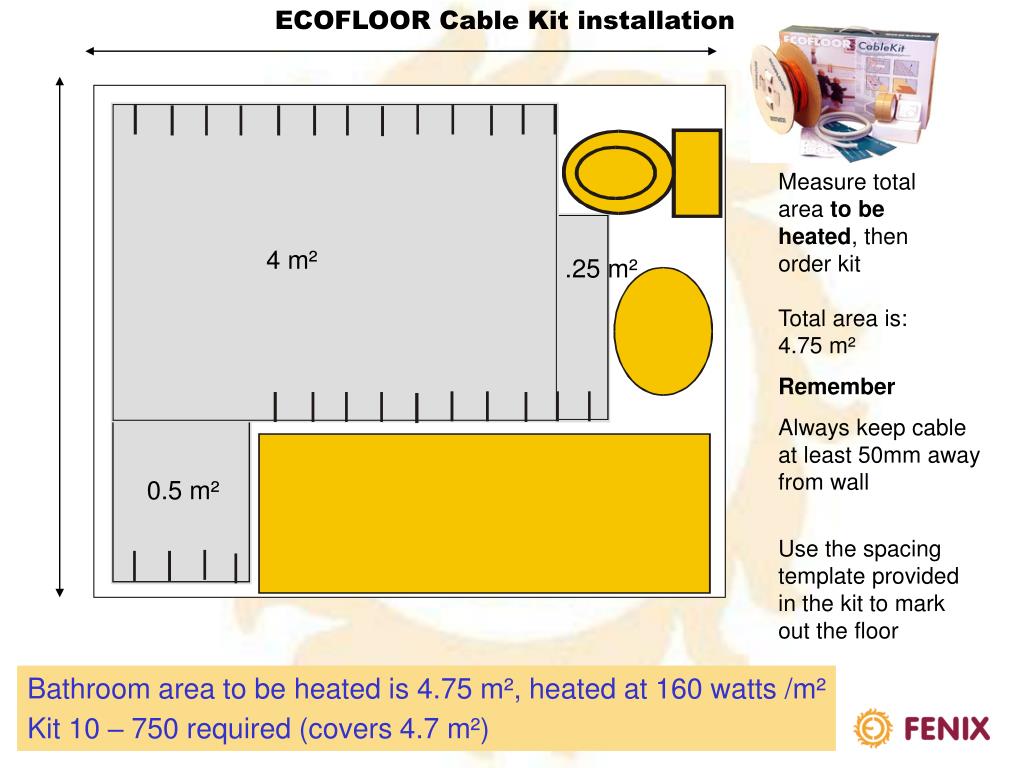

  19. ECOFLOOR Cable Kit installation Measure total area to be heated, then order kit 4 m² .25 m² Total area is: 4.75 m² Remember Always keep cable at least 50mm away from wall 0.5 m² Use the spacing template provided in the kit to mark out the floor Bathroom area to be heated is 4.75 m², heated at 160 watts /m² Kit 10 – 750 required (covers 4.7 m²)

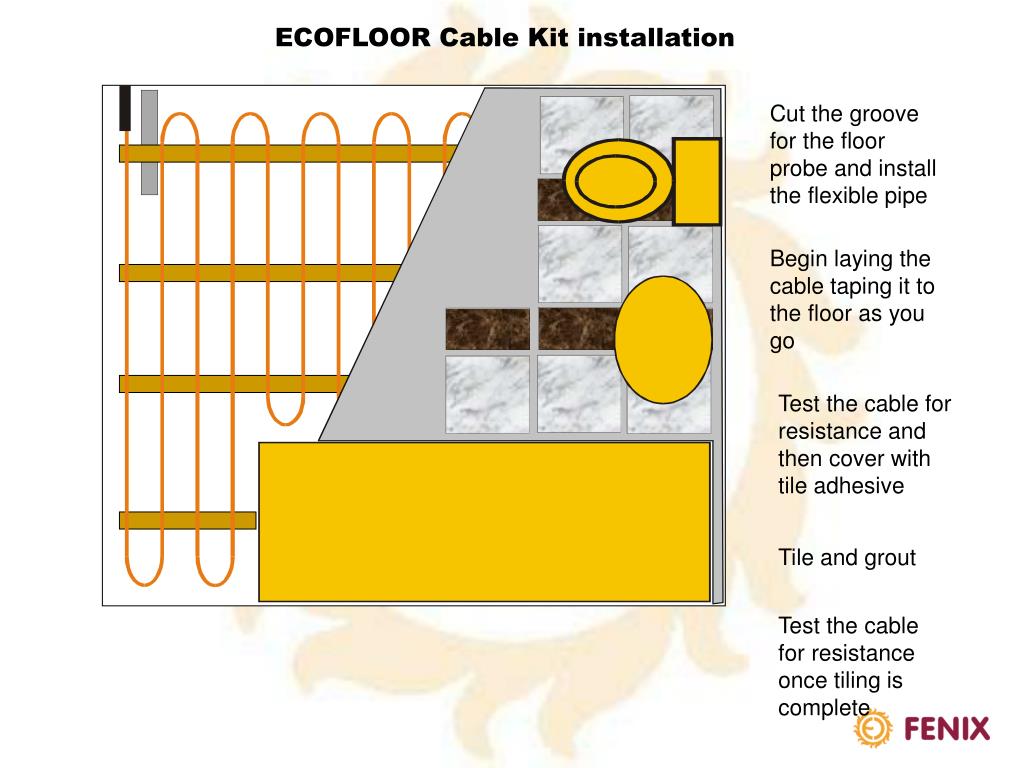

  20. ECOFLOOR Cable Kit installation Cut the groove for the floor probe and install the flexible pipe Begin laying the cable taping it to the floor as you go Test the cable for resistance and then cover with tile adhesive Tile and grout Test the cable for resistance once tiling is complete

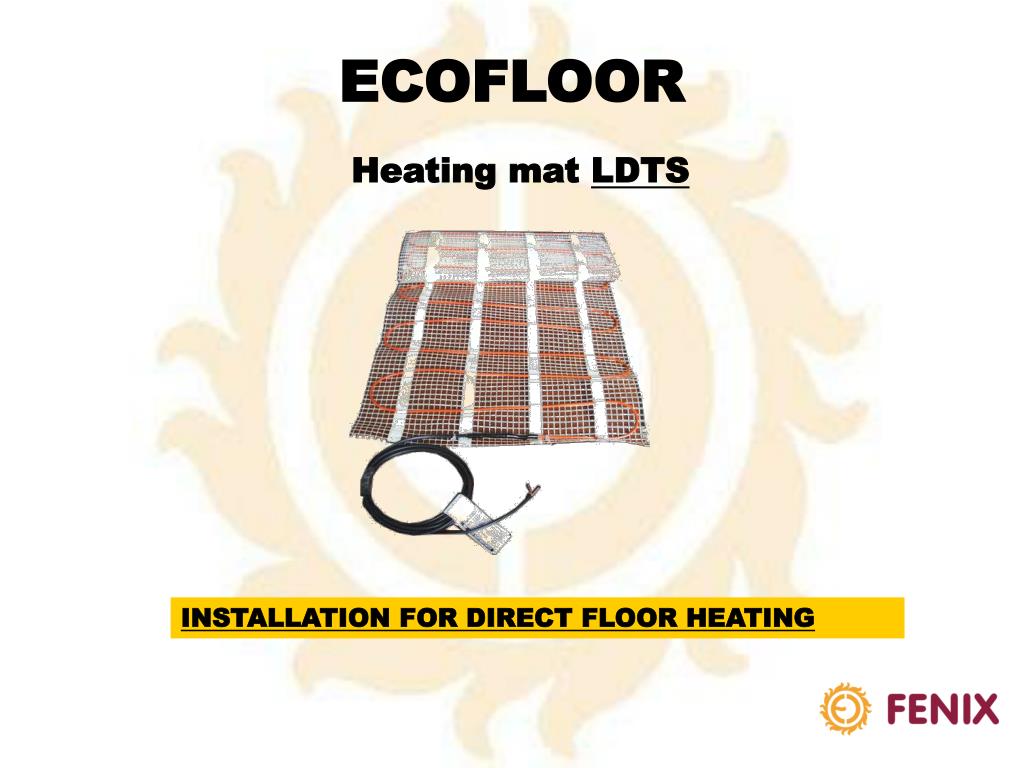

  21. ECOFLOOR Heating mat LDTS INSTALLATION FOR DIRECT FLOOR HEATING

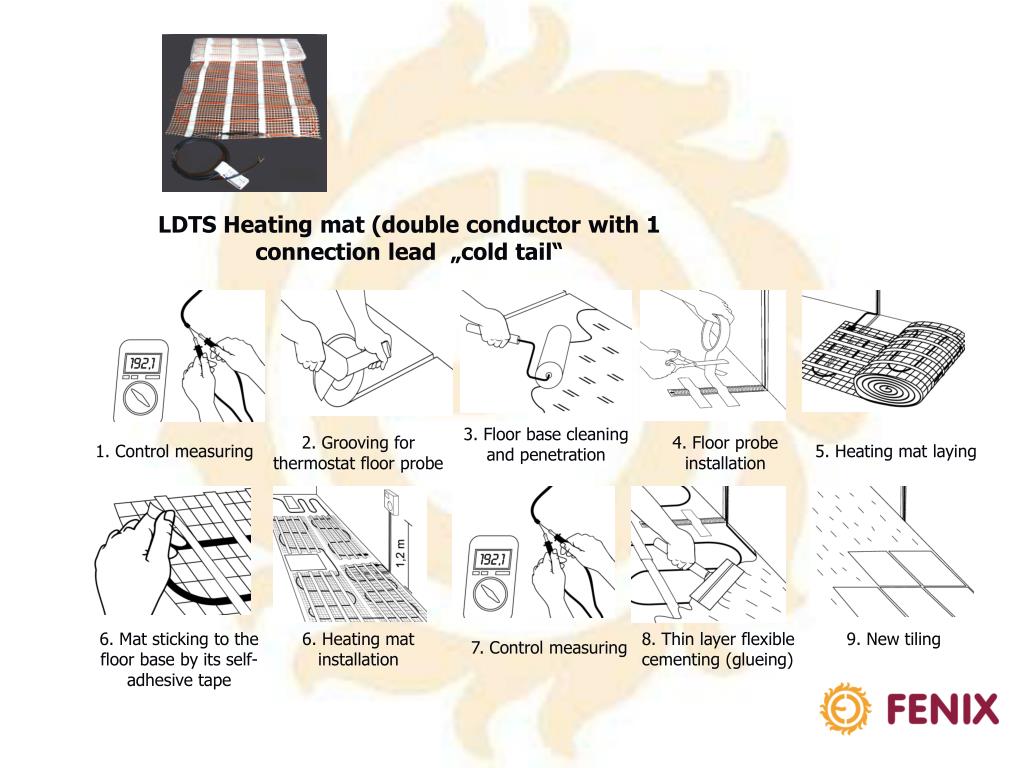

  22. LDTS Heating mat (double conductor with 1 connection lead „cold tail“ 3. Floor base cleaning and penetration 2. Grooving for thermostat floor probe 4. Floor probe installation 1. Control measuring 5. Heating mat laying 6. Mat sticking to the floor base by its self-adhesive tape 6. Heating mat installation 8. Thin layer flexible cementing (glueing) 9. New tiling 7. Control measuring

  23. ECOFLOOR Comfort Mat

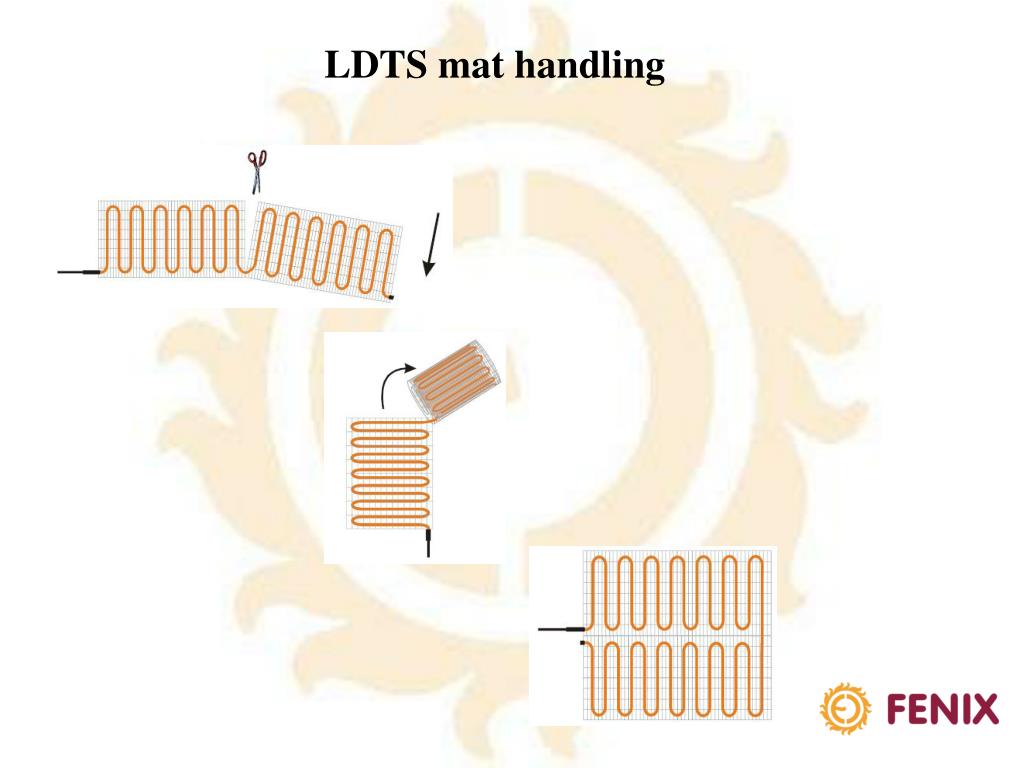

  24. LDTS mat handling

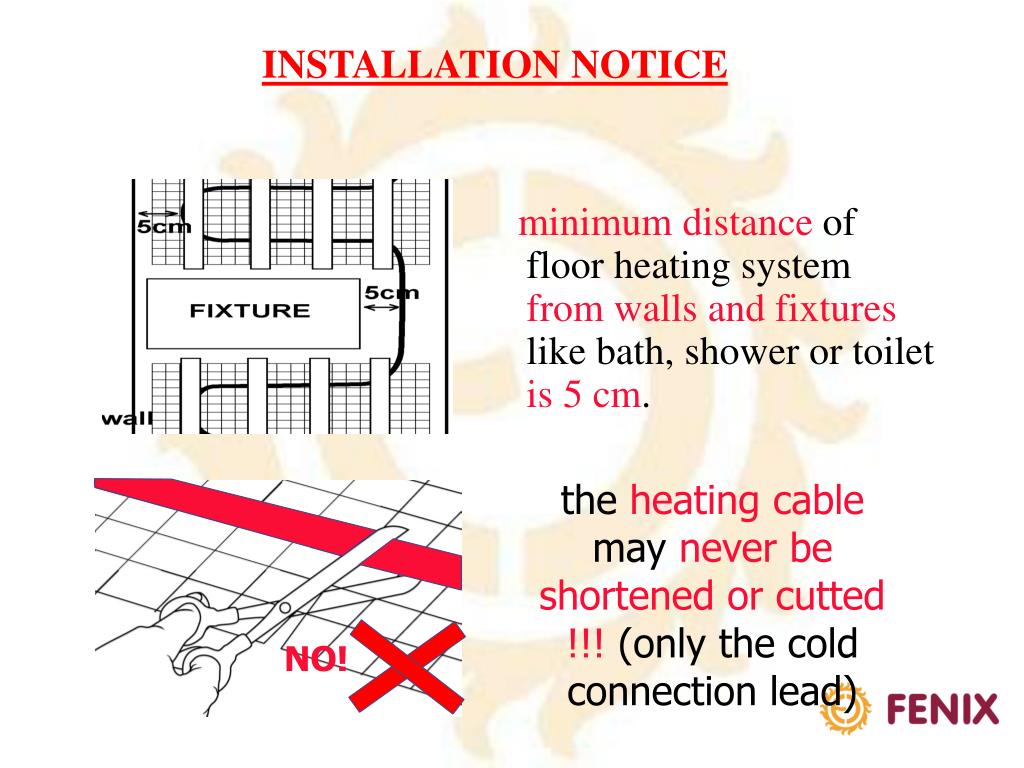

  25. INSTALLATION NOTICE minimum distance of floor heating system from walls and fixtures like bath, shower or toilet is 5 cm. the heating cable may never be shortened or cutted !!! (only the cold connection lead)

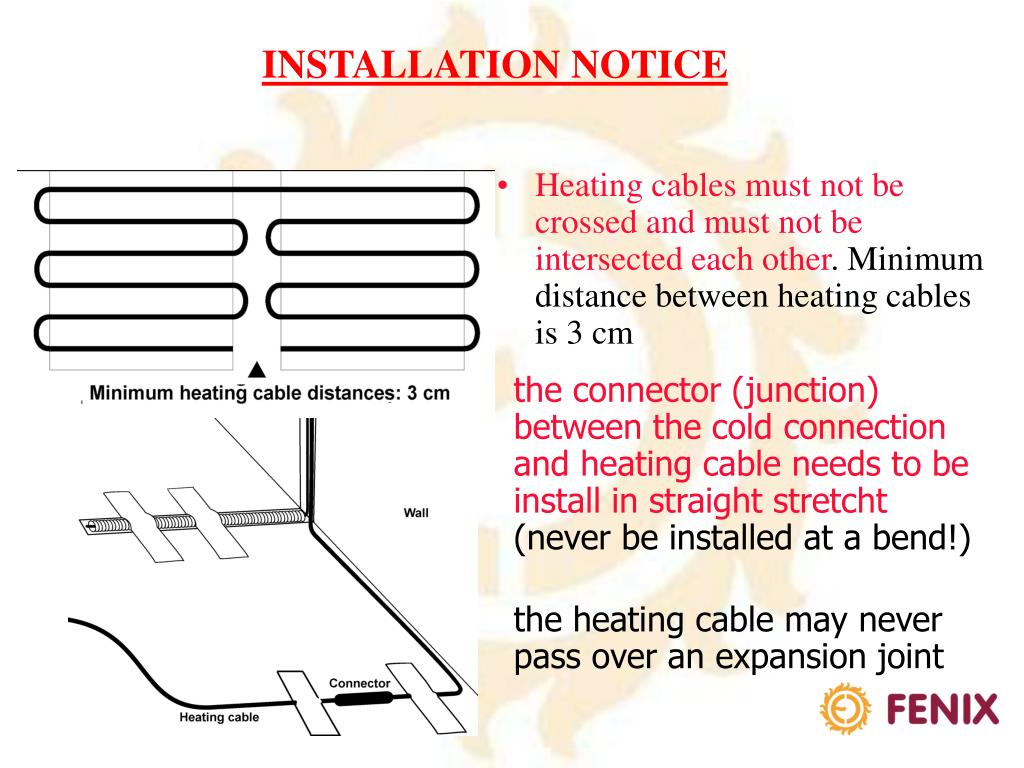

  26. INSTALLATION NOTICE • Heating cables must not be crossed and must not be intersected each other. Minimum distance between heating cables is 3 cm the connector (junction) between the cold connection and heating cable needs to be install in straight stretcht (never be installed at a bend!) the heating cable may never pass over an expansion joint

  27. TEMPERATURE CONTROLS For floor heating are suitable following thermostats: Fenix Therm 100 Eberle FR-E 52531 Eberle Instat 8 TH 132-AF

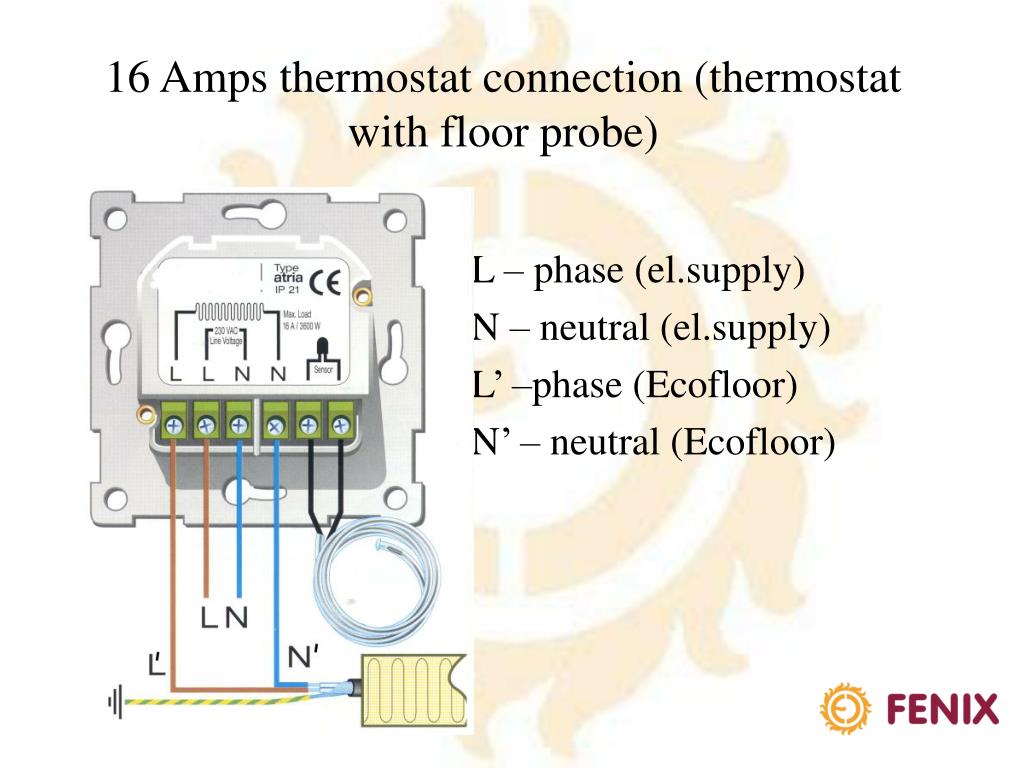

  28. 16 Amps thermostat connection (thermostat with floor probe) L – phase (el.supply) N – neutral (el.supply) L’ –phase (Ecofloor) N’ – neutral (Ecofloor)

  29. Electrical installation directly throught the thermostat

  30. Electrical installation throught the el.box and contactor (1 thermostat controls 2 Ecofloor units (cables/mats) through the contactor to prevent thermostat switch current overloading)

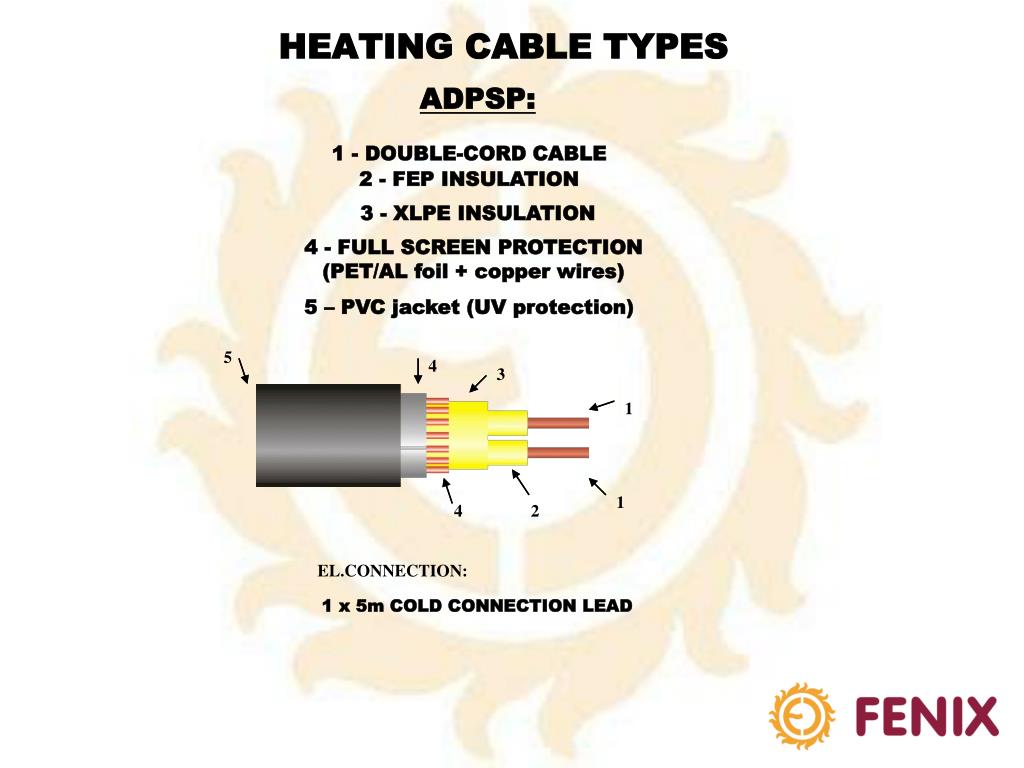

  31. HEATING CABLE TYPES ADPSP: 1 - DOUBLE-CORD CABLE 2 - FEP INSULATION 3 - XLPE INSULATION 4 - FULL SCREEN PROTECTION (PET/AL foil + copper wires) 5 – PVC jacket (UV protection) 5 4 3 1 1 4 2 EL.CONNECTION: 1 x 5m COLD CONNECTION LEAD

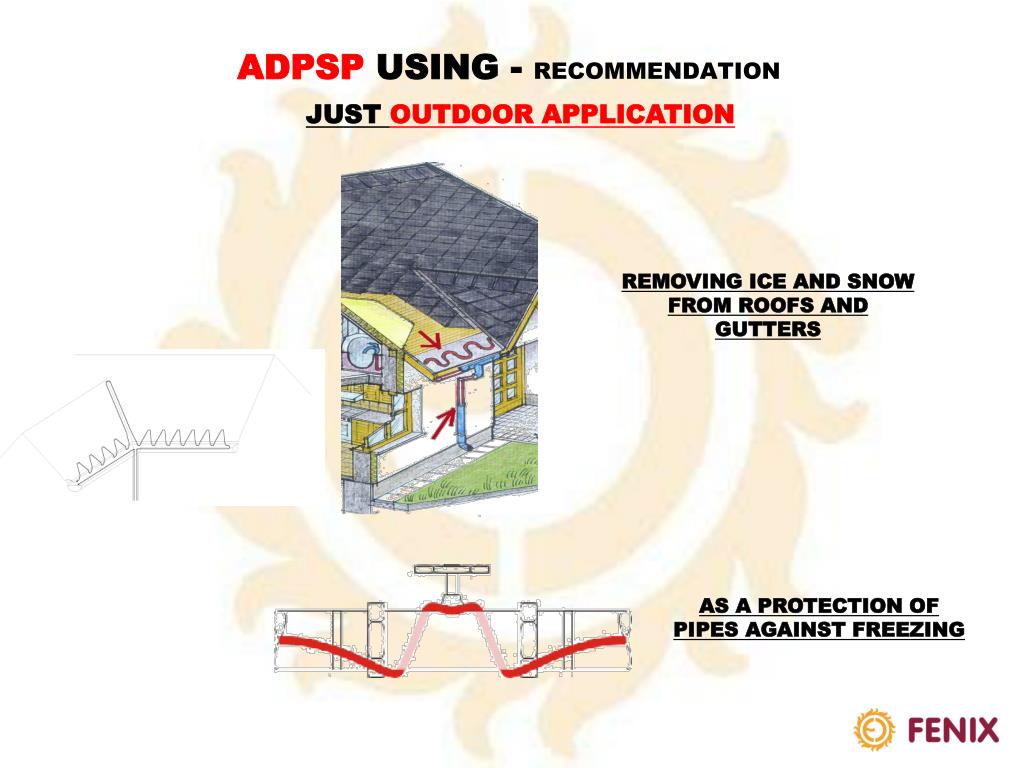

  32. ADPSP USING - RECOMMENDATION JUST OUTDOOR APPLICATION REMOVING ICE AND SNOW FROM ROOFS AND GUTTERS AS A PROTECTION OF PIPES AGAINST FREEZING

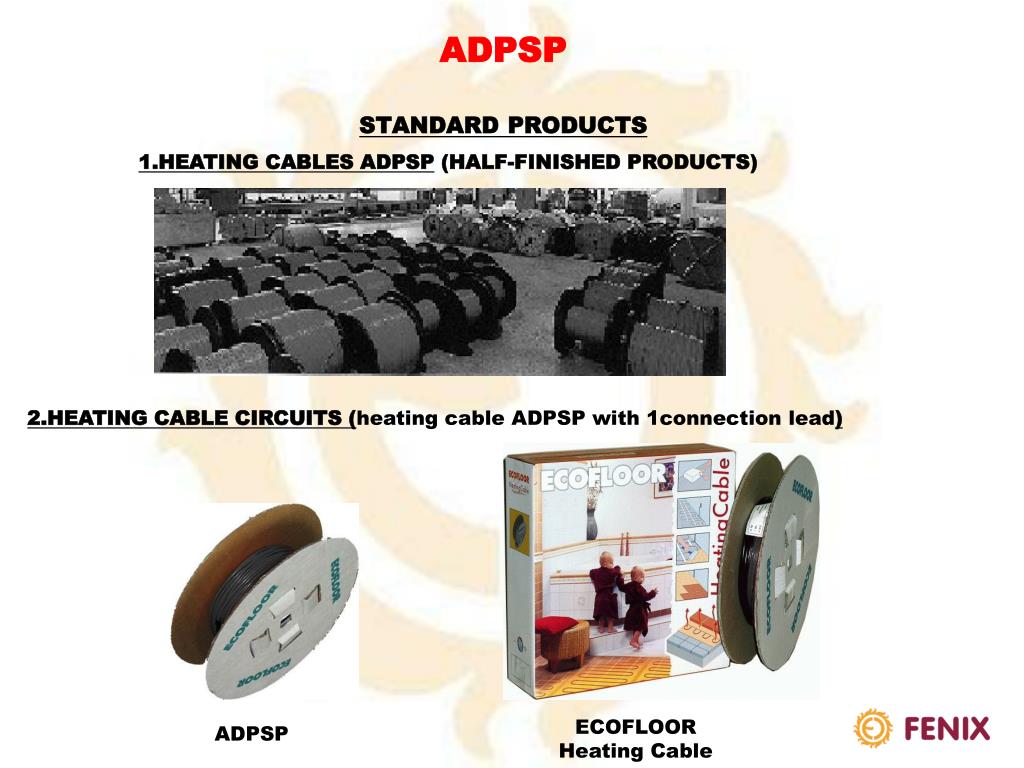

  33. ADPSPSTANDARD PRODUCTS 1.HEATING CABLES ADPSP (HALF-FINISHED PRODUCTS) 2.HEATING CABLE CIRCUITS (heating cable ADPSP with 1connection lead) ECOFLOOR Heating Cable ADPSP

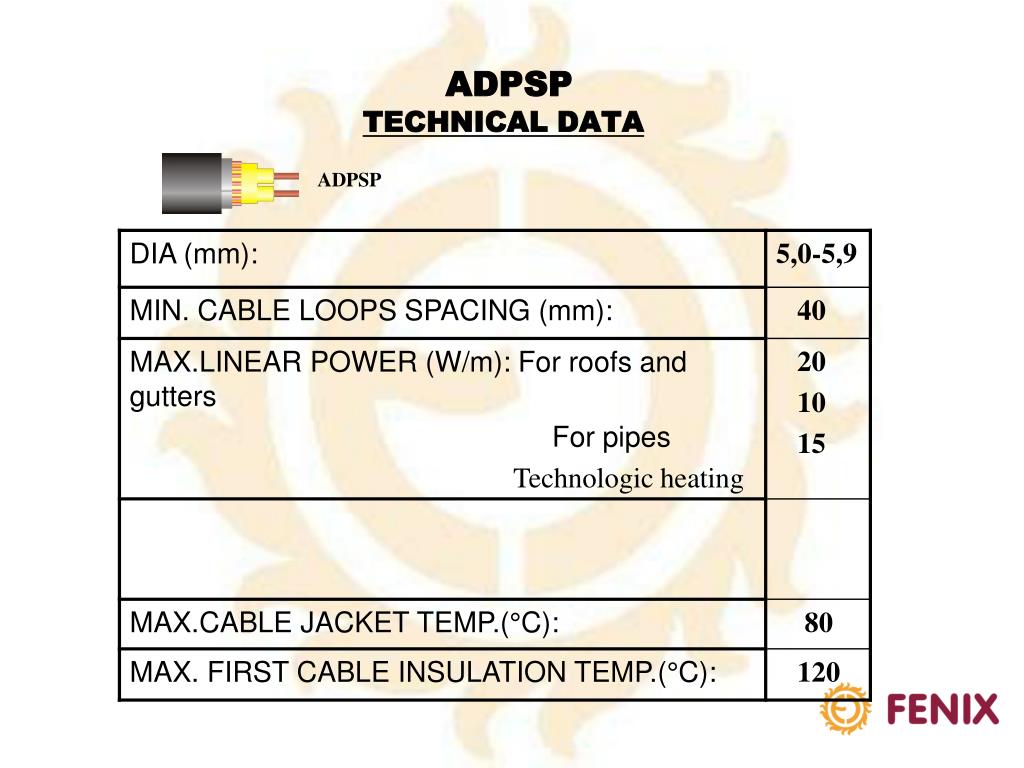

  34. ADPSPTECHNICAL DATA ADPSP

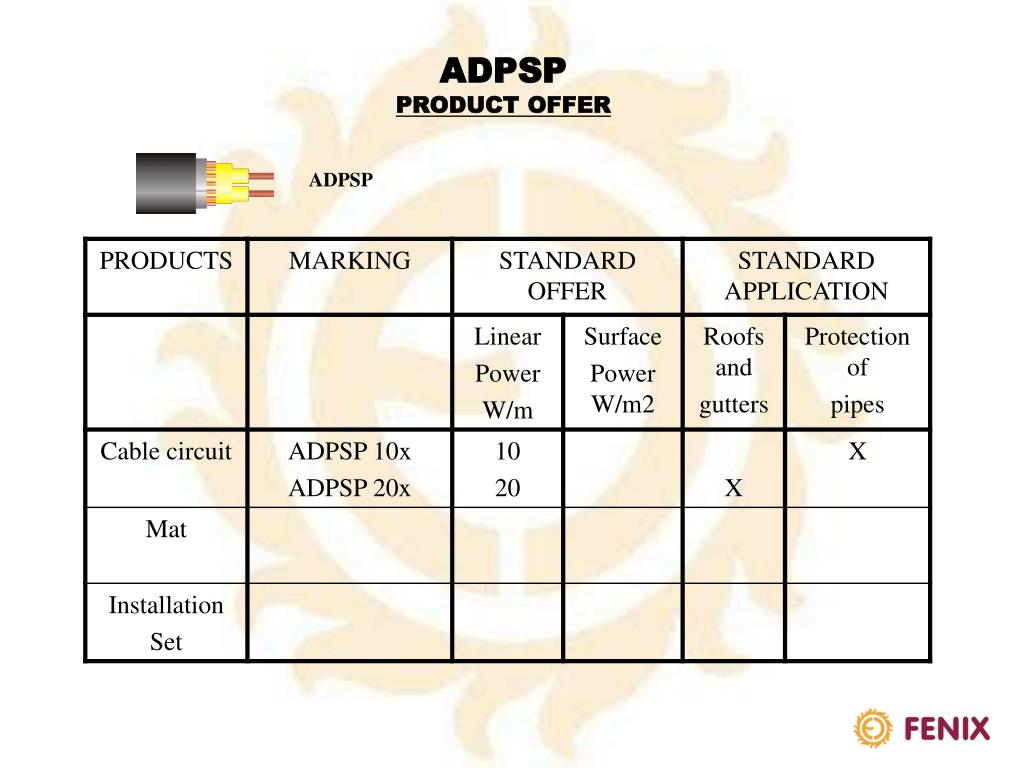

  35. ADPSPPRODUCT OFFER ADPSP

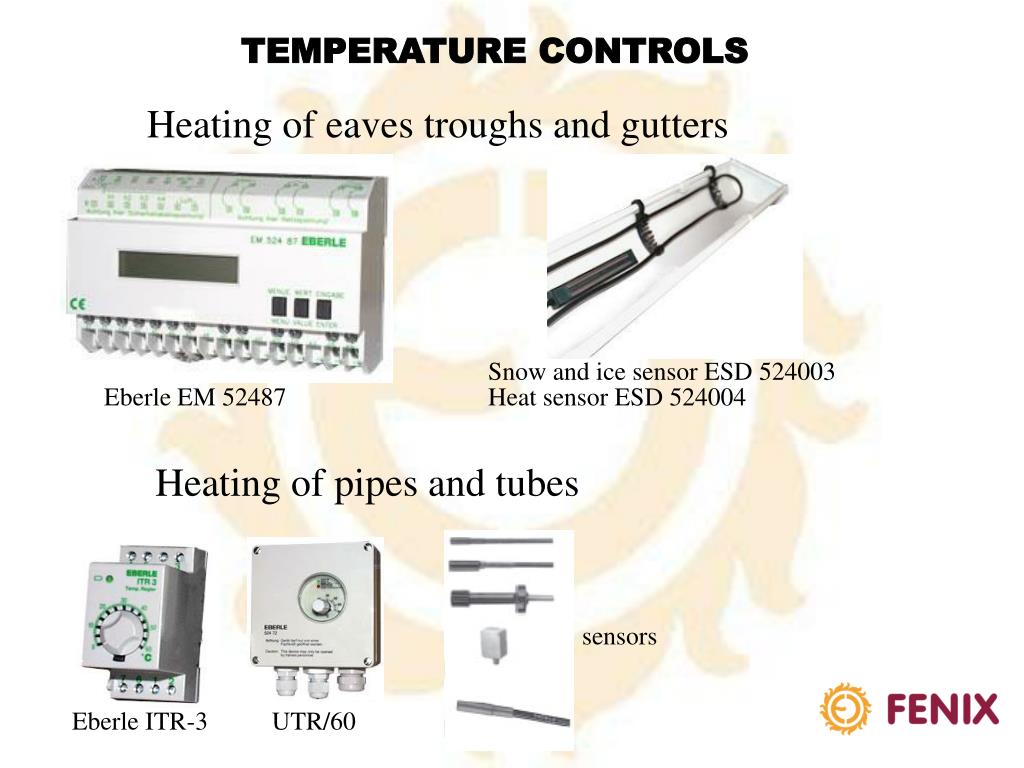

  36. TEMPERATURE CONTROLS Heating of eaves troughs and gutters Snow and ice sensor ESD 524003 Eberle EM 52487 Heat sensor ESD 524004 Heating of pipes and tubes sensors Eberle ITR-3 UTR/60

  37. ANOTHER ECOFLOOR APPLICATIONS

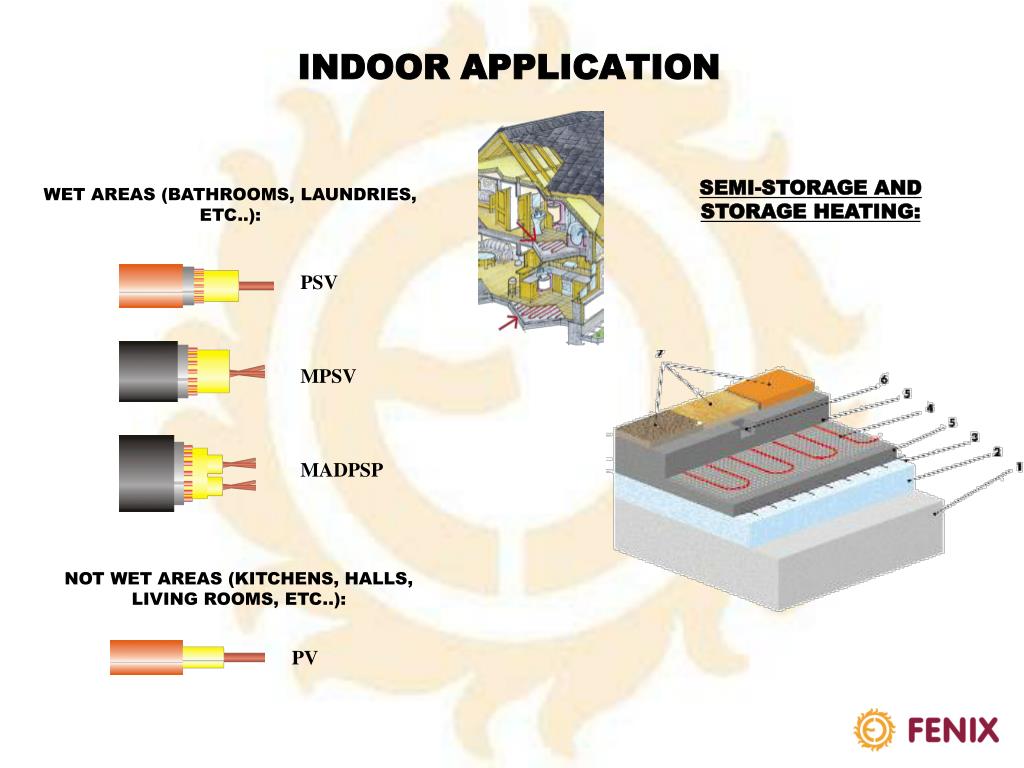

  38. INDOOR APPLICATION SEMI-STORAGE AND STORAGE HEATING: WET AREAS (BATHROOMS, LAUNDRIES, ETC..): PSV MPSV MADPSP NOT WET AREAS (KITCHENS, HALLS, LIVING ROOMS, ETC..): PV

  39. OUTDOOR APPLICATION OUTDOOR SURFACE WARMING MPSV MADPSP

  40. SPECIAL APPLICATION GRASS WARMING ON FOOTBALL STADIUM MADPSP

  41. Thank you for your time and interest Contact us : FENIX Trading s.r.o. Slezska 2 79001 Jesenik, Czech Rep. Tel/Fax: +420 584 495 304/303 E-mail: fenix@fenixgroup.cz Web: www.fenixgroup.cz
