WP3 Étude et modélisation de l’ordonnancement et du déploiement des applications 7/5/2009. WP3: Overview. Les tâches T3.1: Etude et modélisation T3.2: Mise en œuvre Bilan. Ordonnancement. Ocean-Atmosphere scheduling within DIET. Improve performances in a climate prediction application

Download Presentation

WP3 Étude et modélisation de l’ordonnancement et du déploiement des applications 7/5/2009

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Wp3 tude et mod lisation de l ordonnancement et du d ploiement des applications 7 5 2009

WP3 Étude et modélisation de l’ordonnancement et du déploiement des applications

7/5/2009


Wp3 overview

WP3: Overview

  • Les tâches

    • T3.1: Etude et modélisation

    • T3.2: Mise en œuvre

  • Bilan


Ordonnancement

Ordonnancement

E. Caron - Réunion #11 - 7/5/09


Ocean atmosphere scheduling within diet

Ocean-Atmosphere scheduling within DIET

  • Improve performances in a climate prediction application

  • Modelization of the application

  • Proof of usage of Grid’5000 and DIET

    • Scheduling on real application

  • Scheduling done at two levels

    • Groups of processors at cluster level

    • Distribution of scenarios at grid level

  • Real implementation suffered from technical limitations

  • Simulations are quite precise but we need to keep one resource for post-processing tasks

E. Caron - Ocean-Atmosphere scheduling within DIET - APDCT-08


Cluster level scheduling experimental result

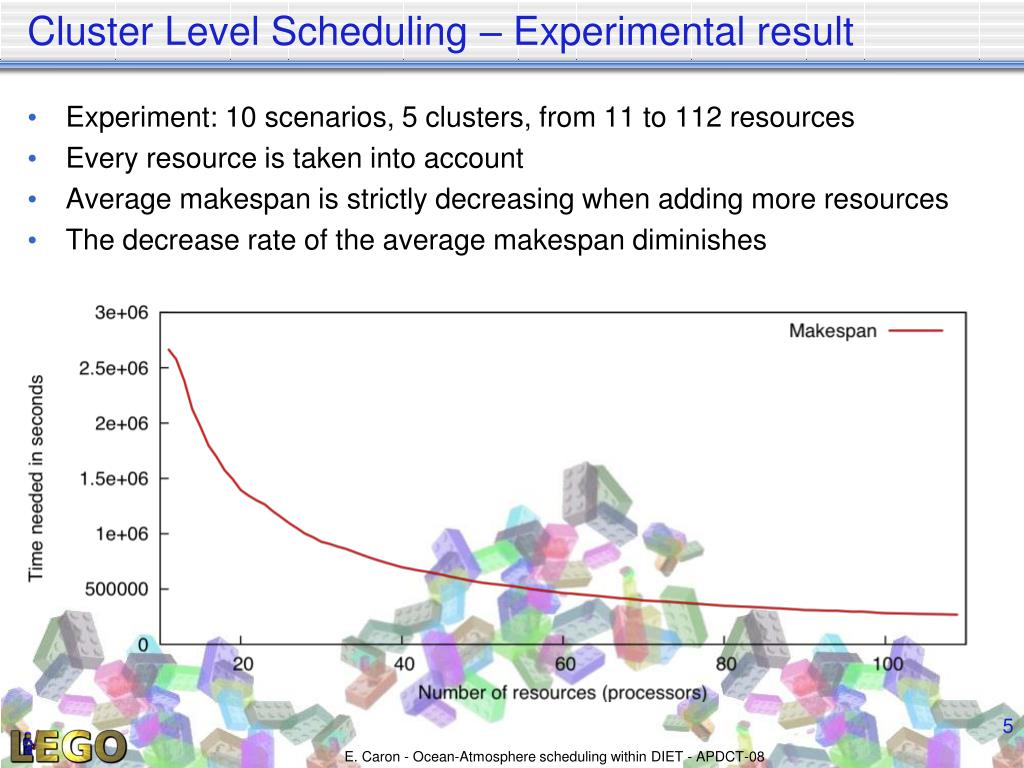

Cluster Level Scheduling – Experimental result

Experiment: 10 scenarios, 5 clusters, from 11 to 112 resources

Every resource is taken into account

Average makespan is strictly decreasing when adding more resources

The decrease rate of the average makespan diminishes

E. Caron - Ocean-Atmosphere scheduling within DIET - APDCT-08


Result grid level scheduling

Result Grid Level Scheduling

Comparison with Round Robin on 5 clusters

Maximum speedup: 25%

With a higher load, the

algorithm behaves better

with a few resources

Convergence on gains

Gain of 25% ≈ 230h on

a ≈ 822h long experiment

E. Caron - Ocean-Atmosphere scheduling within DIET - APDCT-08


Workflow management

Workflow Management

  • Workflow representation

    • Direct Acyclic Graph (DAG)

      • Each vertex is a task

      • Each directed edge represents communication between tasks

  • Goals

    • Build and execute workflows

    • Use different heuristics to solve scheduling problems

    • Extensibility to address multi-workflows submission and large grid platform

    • Manage heterogeneity and variability of environment

  • Research topics addressed

    • Workflow scheduling with parallel tasks

    • Multiple workflows scheduling (makespan minimization and fairness optimization)


Architecture with ma dag

Architecture with MA DAG

  • Specific agent for workflow management (MA DAG)

  • Two modes:

    • MA DAG defines a complete scheduling of the workflow (ordering and mapping)

    • MA DAG defines only an ordering for the workflow execution, the mapping is done in the next step by the client which pass by the Master Agent to find the server where execute the workflow services.

  • Design of heuristics for mixed parallelism


Parallel and batch submissions

Parallel and batch submissions

agent

SeD_parallel

agent

SeD_batch

SeD_seq

GLUE

OAR

SGE

LSF

PBS

Loadleveler

  • Parallel & sequential jobs → transparent for the user

  • Submit a parallel job→ system dependent

    • NFS: copy the code?

    • Numerous batch systems

    • Batch schedulers behaviour(queues, scripts, etc.)

    • Information about theinternal scheduling process

      • Monitoring& Performance prediction

      • Simulation (Simbatch)

Front-end

NFS


Task reallocation in a grid environment

Task reallocation in a grid environment

  • Batch simulator: Simbatch [Y. Caniou, J.S. Gay]

    • Validated against OAR (less than 2% error)

    • Based on Simgrid

  • Grid simulated by Simgrid with several Simbatch instances

  • Different algorithms studied: MCT MinMin MaxMin on batchs using FCFS or CBF - MaxMin and MinMin can not try to reschedule more than 30 jobs at each reallocation (choose oldest or youngest jobs)

  • Comparison of jobs completion time with and without reallocation


Task reallocation in a grid environment1

Task reallocation in a grid environment

Reschedule

Meta - Scheduler

Submit

Cancel

Get waiting

jobs

Batch 1

Batch 2

Traces of one month from Grid’5000 (january to june 2008) on three sites

Reallocation triggered every hour


D ploiement

Déploiement

E. Caron - Réunion #11 - 7/5/09


Deployment brick adage

Deployment Brick: ADAGE

  • Automatic deployment tool for grid environment

  • Only one command to deploy

    • 3 kinds of input information

      • Resource description

      • application description

      • control parameter

        • Planning model (random, round-robin), …

  • Plug-in for generic application mapping

    • RR, Random, DIET, Graal-heuristics

  • Plug-in for each application kind

    • Description convector

    • Configuration of application

    • CCM, MPI, JXTA, P2P, DIET, GFARM, SEQ

      • Plug-in: from 400 to 4700 C++ lines

    • META

      • Enable constraints between any other application kinds (at the generic level)


Identification of the steps of automatic deployment

Identification of the steps of Automatic Deployment

MPI Application Description

CCM Application Description

Resource Description

Generic Application Description

Control Parameters

Deployment Planning

Static Applications

Deployment Tool

Deployment Plan Execution

Application Configuration


Comparaison godiet adage

Comparaison GoDIET / Adage

  • Déploiement sur Grid’5000 :

    • Entre 25 et 305 nœuds

    • Entre 1 et 8 grappes

    • Heuristique pour créer automatiquement la hiérarchie DIET


Comparaison godiet adage1

Comparaison GoDIET / Adage

Hiérarchie DIET générée


Adage lego

ADAGE & LEGO

  • Clean implementation of the Adage model

    • UML-like based specifications

    • Separations of planner and application plugins from core

  • Extension of the internal generic model (GADe)

    • Support of graph-like generic description

      • In particular recursive structures like trees (for DIET)

  • Support of pseudo-dynamic re-deployment

  • Support of the G5K API

  • Working and stable tool

    • Use to deploy CCM, JuxMem & DIET elements

    • Cf Demonstrator talk


Wp3 tude et mod lisation de l ordonnancement et du d ploiement des applications 7 5 2009

Grid'5000 Reservation Utility for Deployment Usage

  • Web: http://grudu.gforge.inria.fr


Grudu resources allocation

GRUDU – Resources Allocation

We are able to reserve ressources (OAR1 & OAR2)

Time parameters, date and reservation walltime

Queue

OARGrid sub behaviour/ Script to launch


Grudu monitoring

GRUDU – Monitoring

We are able to monitor the status of the grid/site/a job.

We are able to get instantaneous/historical data with Ganglia


Grudu kadeploy jftp

GRUDU - KaDeploy/JFTP

GUI for KaDeploy jobs deployment

File Transfert interface (local<->remote/rsync on Grid'5000)


Wp3 bilan

WP3: Bilan

  • Réalisations principales

    • Délivrable D3.2

      • ADAGE

      • DIET 2.3

    • GRUDU

  • Perspectives

    • Prise en compte automatique de la plateforme pour le planning

      • Clustering auto-stabilisant

    • ADAGE ?

    • Utilisation de l’ordonnancement de l’application du CERFACS pour un modèle régional atmosphérique: CRIP UJF (IMAG. Grenoble)

    • D’autres classes d’applications à ordonnancer

      • Ordonnancement et gestion de données: création et utilisation de DAGDA

  • Collaborations

    • Salomé (EDF) [thèse en cours]

    • Université de Picardie Jules Verne

    • Université du Nevada Las Vegas

    • Université d’Hawaii


  • Login
