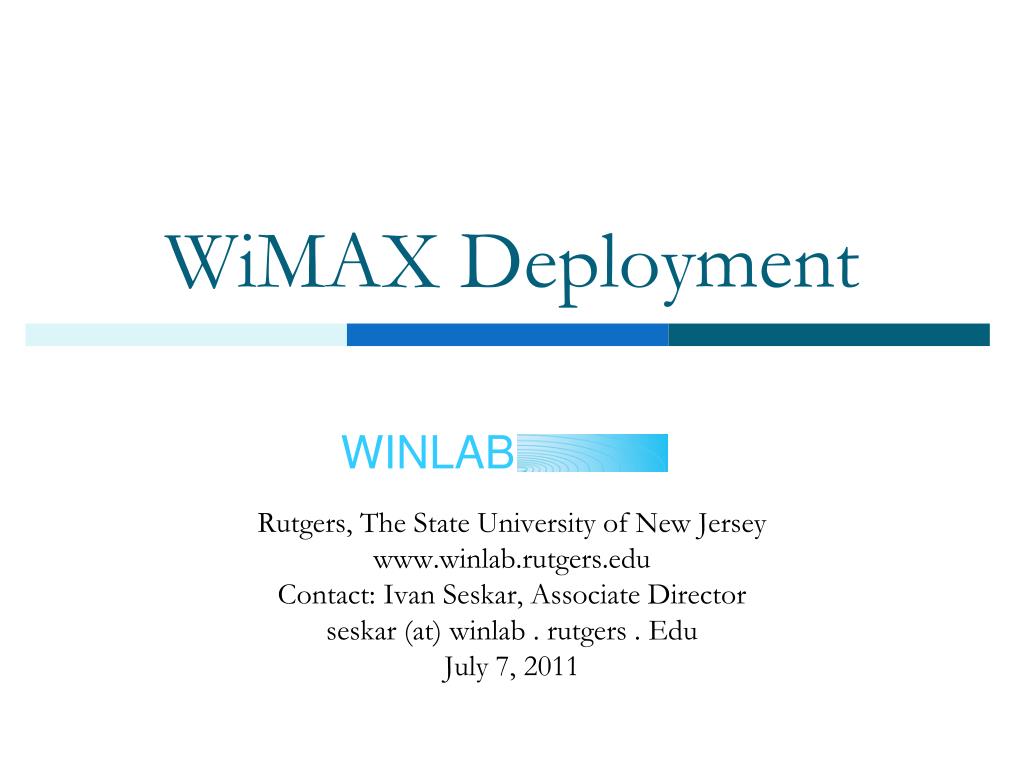

  1. WiMAXDeployment Rutgers, The State University of New Jersey www.winlab.rutgers.edu Contact: Ivan Seskar, Associate Director seskar (at) winlab . rutgers . Edu July 7, 2011

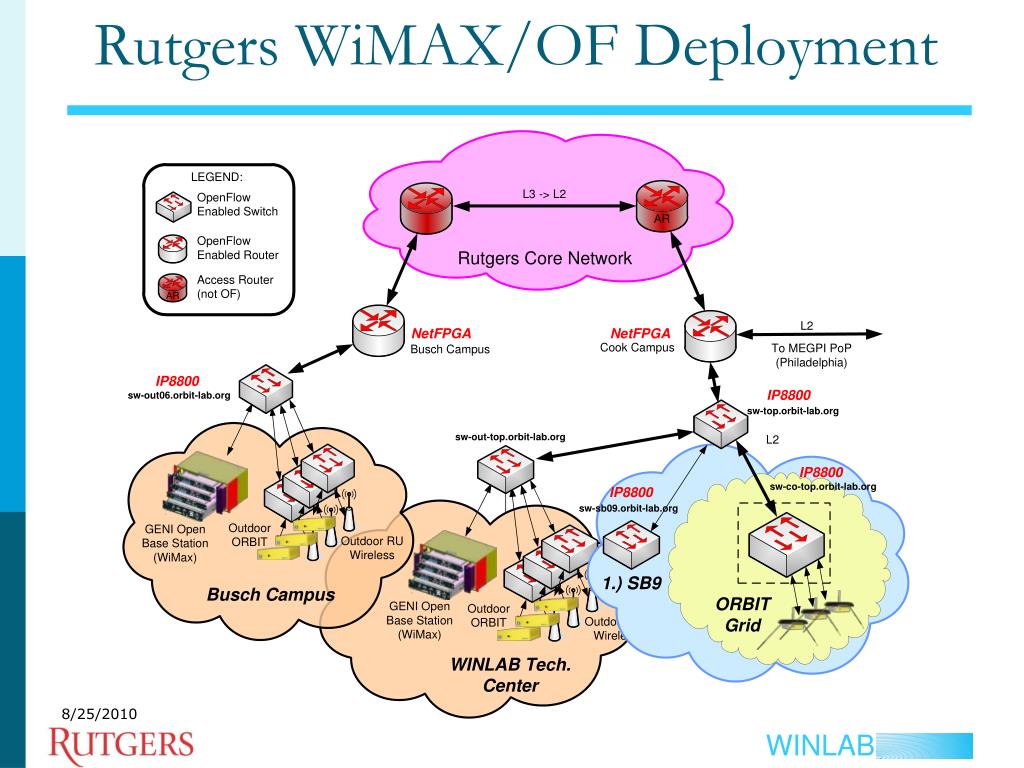

  2. Rutgers WiMAX/OF Deployment 8/25/2010

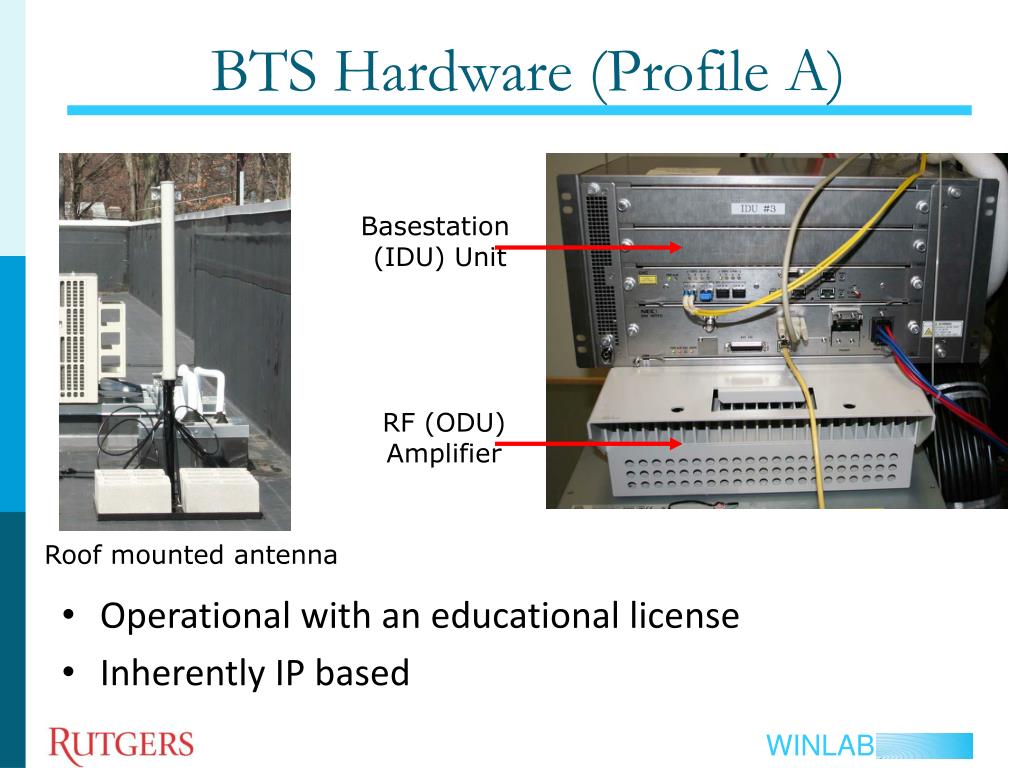

  3. BTS Hardware (Profile A) Basestation (IDU) Unit RF (ODU) Amplifier Roof mounted antenna • Operational with an educational license • Inherently IP based

  4. WiMAX Basestation Supported Service Classes

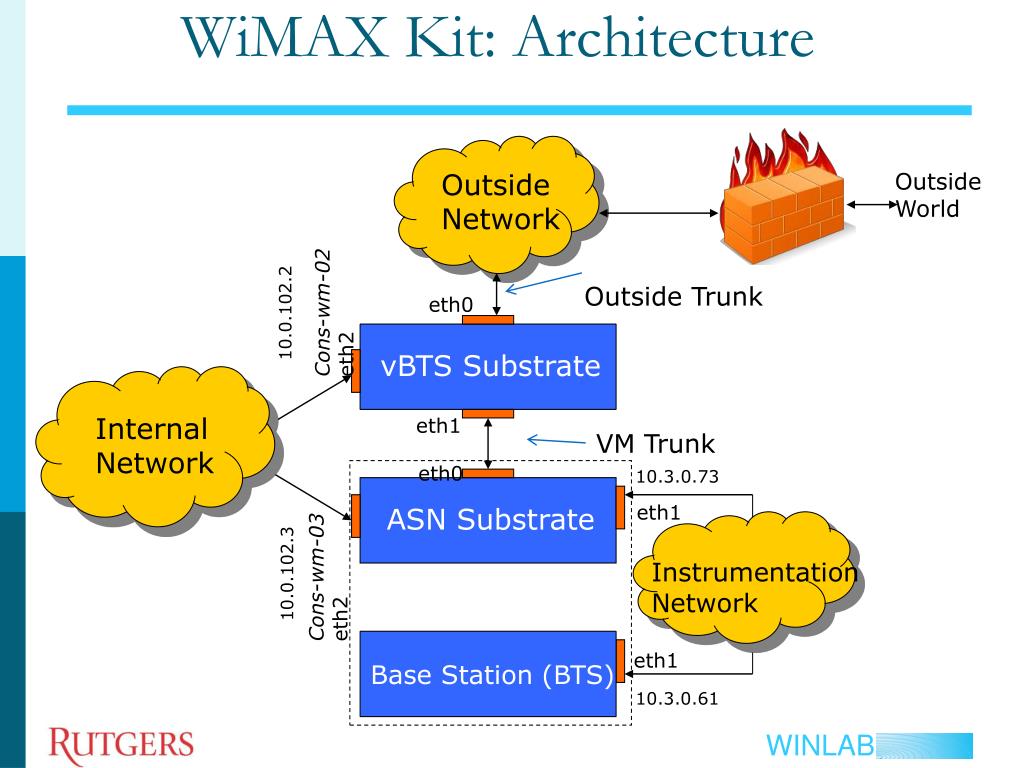

  5. WiMAX Kit: Architecture Outside Network Outside World Outside Trunk eth0 Cons-wm-02 eth2 10.0.102.2 vBTS Substrate Internal Network eth1 VM Trunk eth0 10.3.0.73 eth1 ASN Substrate Instrumentation Network Cons-wm-03 eth2 10.0.102.3 Base Station (BTS) eth1 10.3.0.61

  6. Student Center Core Building

  7. Coverage Map (Tech. Center Base Station) Measured RSSI

  8. WiMAXMeso-scale Deployments
