Morphology

Morphology. Morphology deals with form and structure Mathematical morphology is a tool for extracting image components useful in: representation and description of region shape (e.g. boundaries) pre- or post-processing (filtering, thinning, etc.) Based on set theory. Morphology.

bruno-rojas
Download Presentation

Morphology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

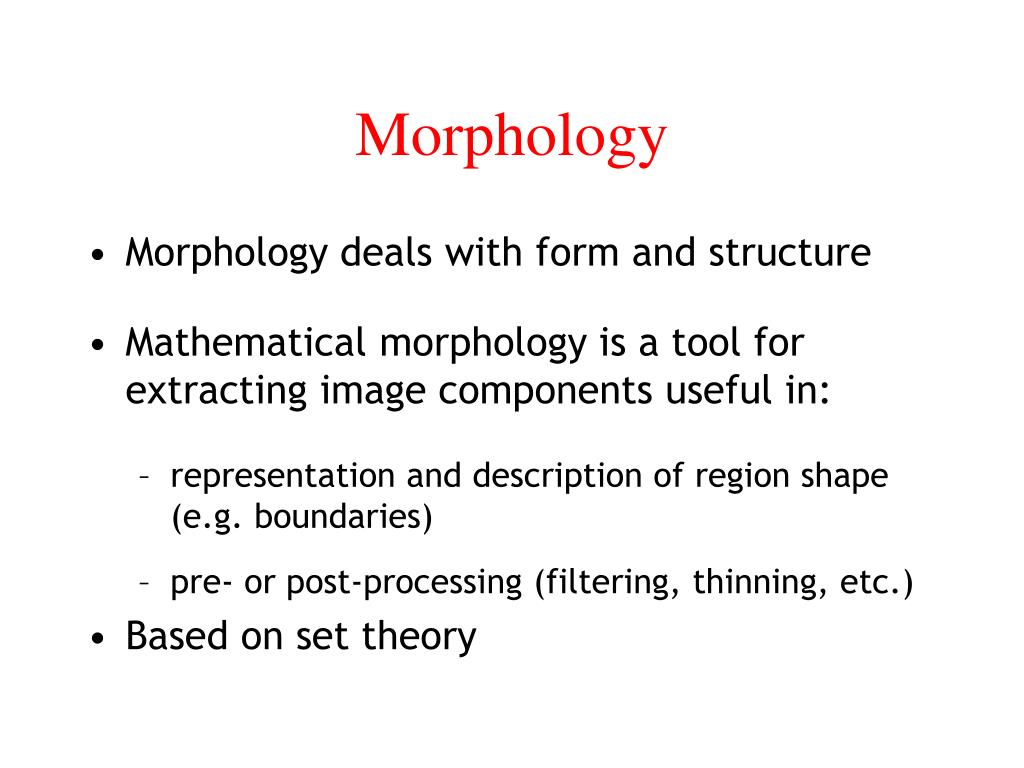

  1. Morphology • Morphology deals with form and structure • Mathematical morphology is a tool for extracting image components useful in: • representation and description of region shape (e.g. boundaries) • pre- or post-processing (filtering, thinning, etc.) • Based on set theory

  2. Morphology • Sets represent objects in images • Sets in binary images  (x,y) • Sets in gray scale images  (x,y,g) • Some morphological operations: Dilation & Erosion Opening & Closing Hit-or-Miss Transform Basic Algorithms

  3. Basic Concepts of Set Theory • A is a set in , a=(a1,a2) an element of A, aA • If not, then aA • : null (empty) set • Typical set specification: C={w|w=-d, for d  D} • A subset of B: AB • Union of A and B: C=AB • Intersection of A and B: D=AB • Disjoint sets: AB=  • Complement of A: • Difference of A and B: A-B={w|w  A, w  B}= • Reflection of B: • Translation of A by z=(z1,z2):

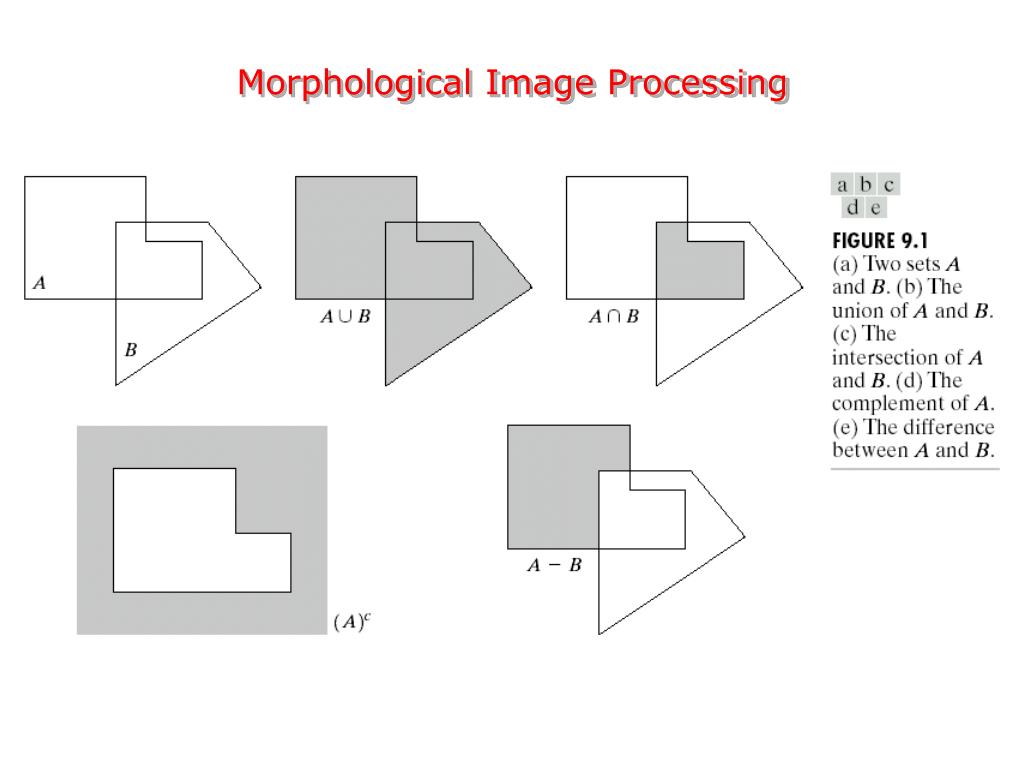

  4. Morphological Image Processing

  5. Morphological Image Processing

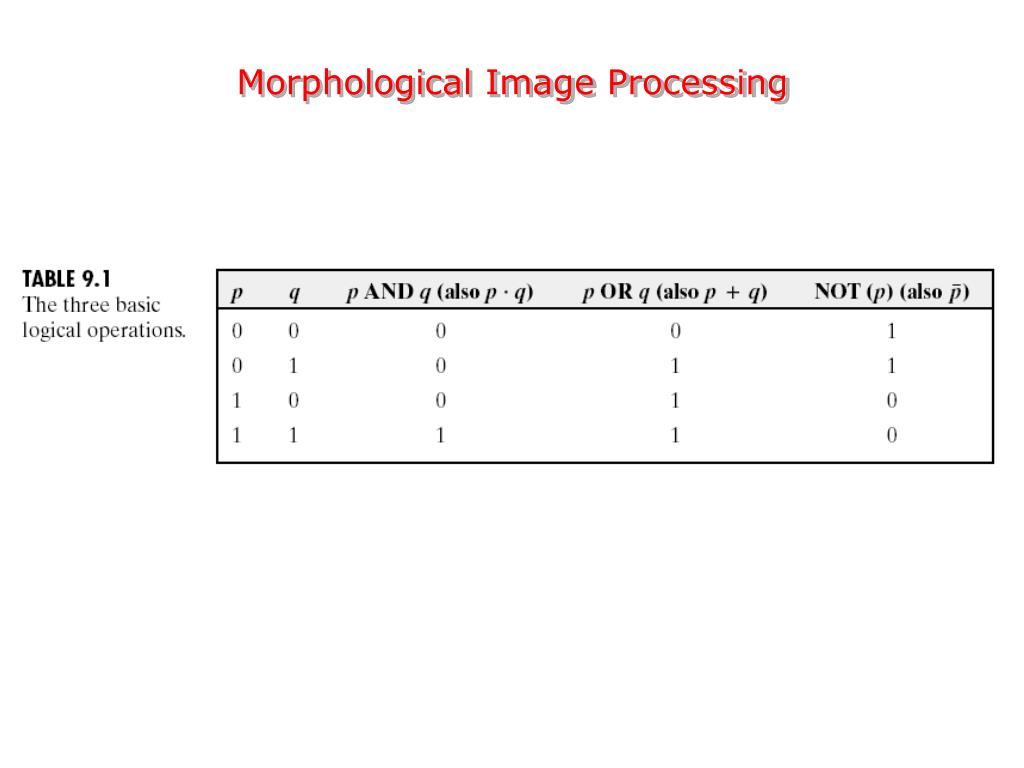

  6. Morphological Image Processing

  7. Dilation & Erosion • Basic definitions: • A,B: sets in Z2 with components a=(a1,a2) and b=(b1,b2) • Translation of A by x=(x1,x2), denoted by (A)x is defined as: (A)x = {c| c=a+x, for a∈A}

  8. Dilation & Erosion • More definitions: Reflection of B: = {x|x=-b, for b∈B} Complement of A: Ac = {x|xA} Difference of A & B: A-B = {x|x∈A, x  B} = A∩Bc

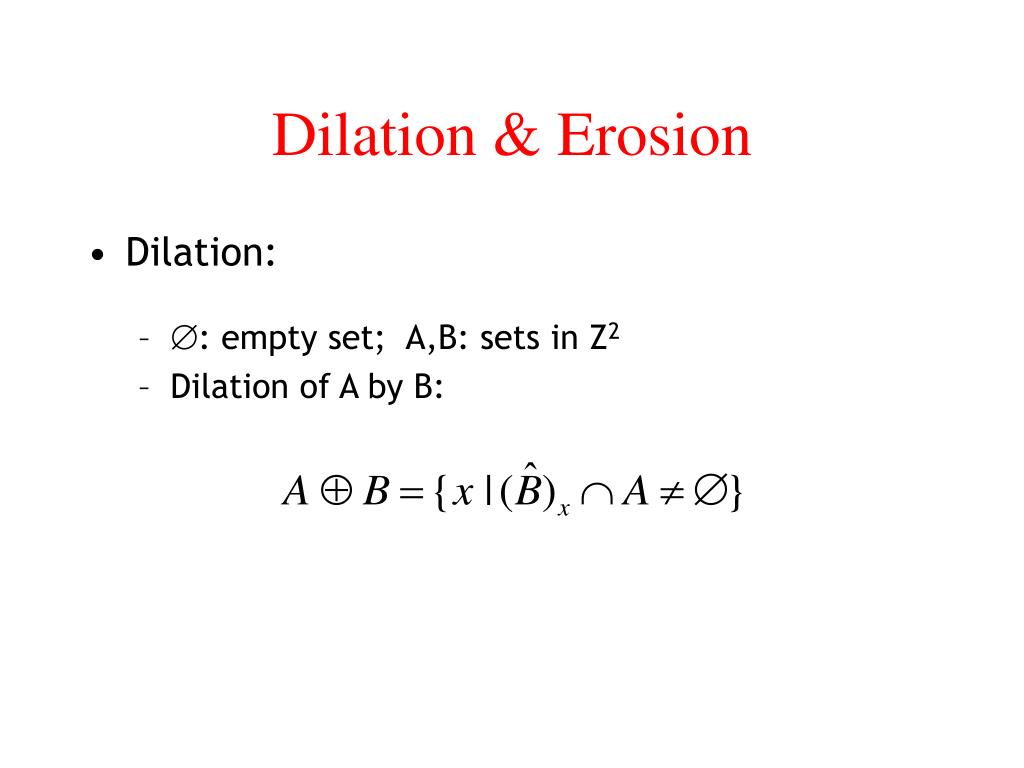

  9. Dilation & Erosion • Dilation: • : empty set; A,B: sets in Z2 • Dilation of A by B:

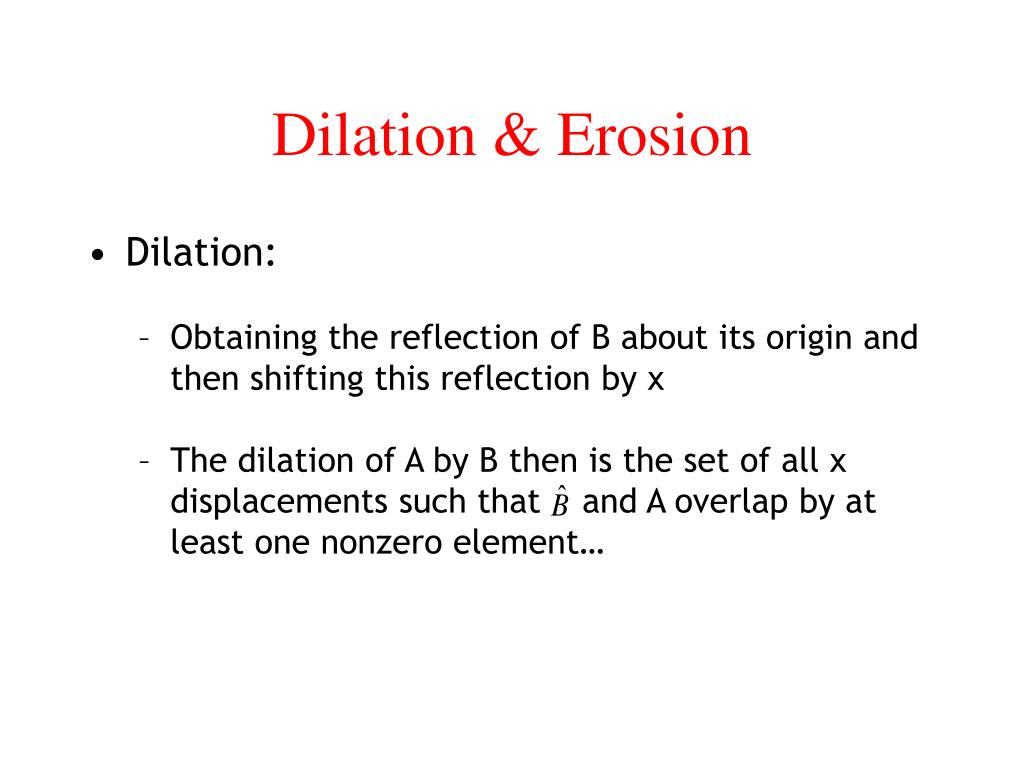

  10. Dilation & Erosion • Dilation: • Obtaining the reflection of B about its origin and then shifting this reflection by x • The dilation of A by B then is the set of all x displacements such that and A overlap by at least one nonzero element…

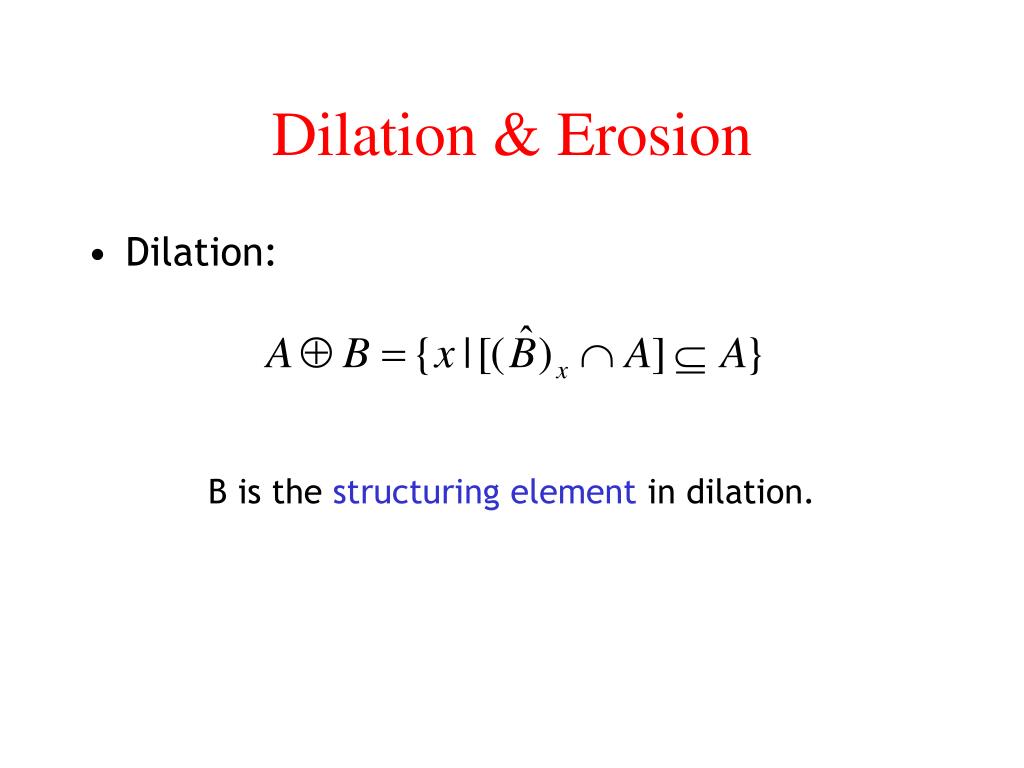

  11. Dilation & Erosion • Dilation: B is the structuring element in dilation.

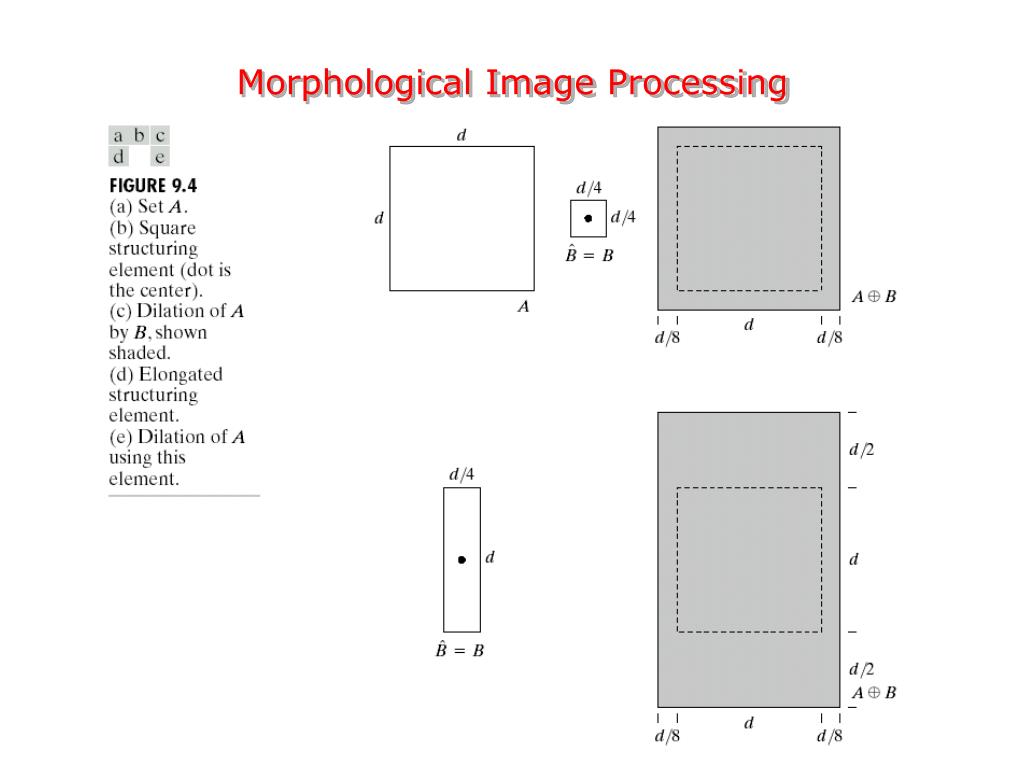

  12. Morphological Image Processing

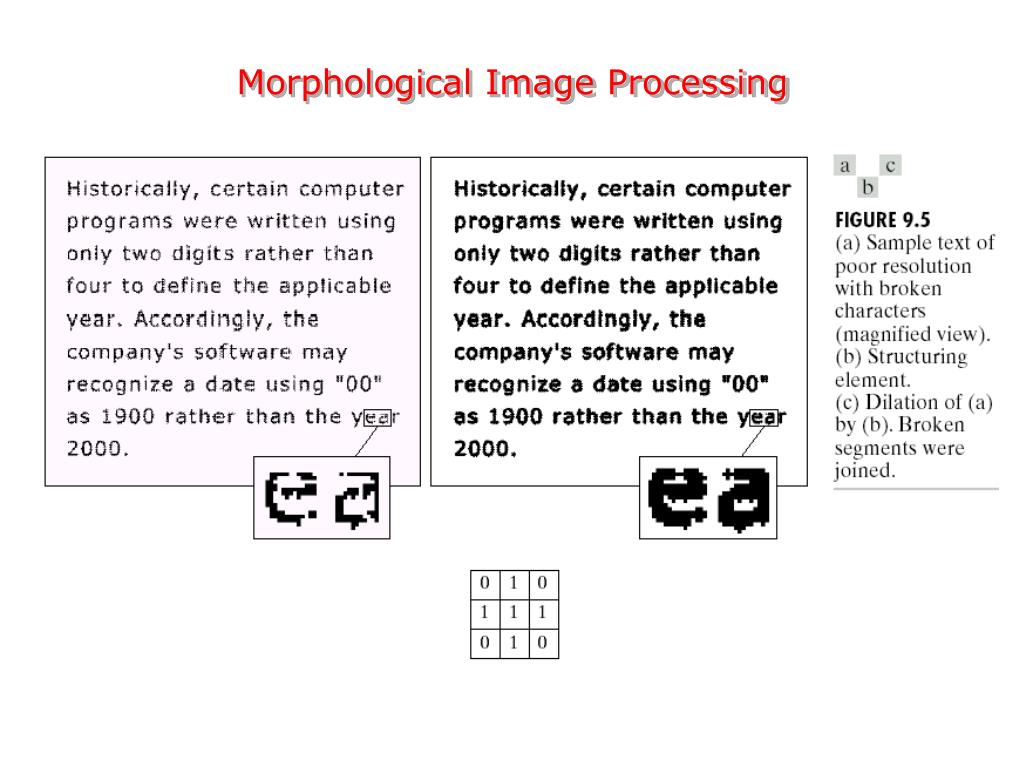

  13. Morphological Image Processing

  14. Dilation & Erosion • Erosion: i.e. the erosion of A by B is the set of all points x such that B, translated by x, is contained in A. In general:

  15. Morphological Image Processing

  16. Morphological Image Processing

  17. Opening & Closing • In essence, dilation expands an image and erosion shrinks it. • Opening: • generally smoothes the contour of an image, breaks isthmuses, eliminates protrusions. • Closing: • smoothes sections of contours, but it generally fuses breaks, holes, gaps, etc.

  18. Opening & Closing • Opening of A by structuring element B: • Closing:

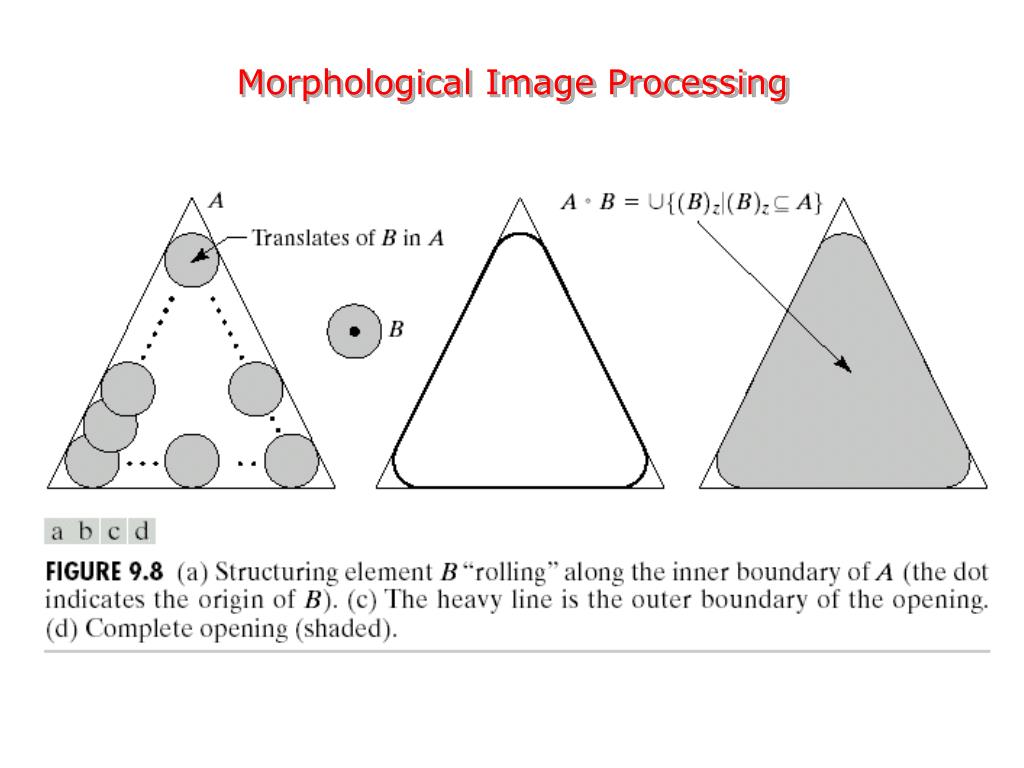

  19. Morphological Image Processing

  20. Morphological Image Processing

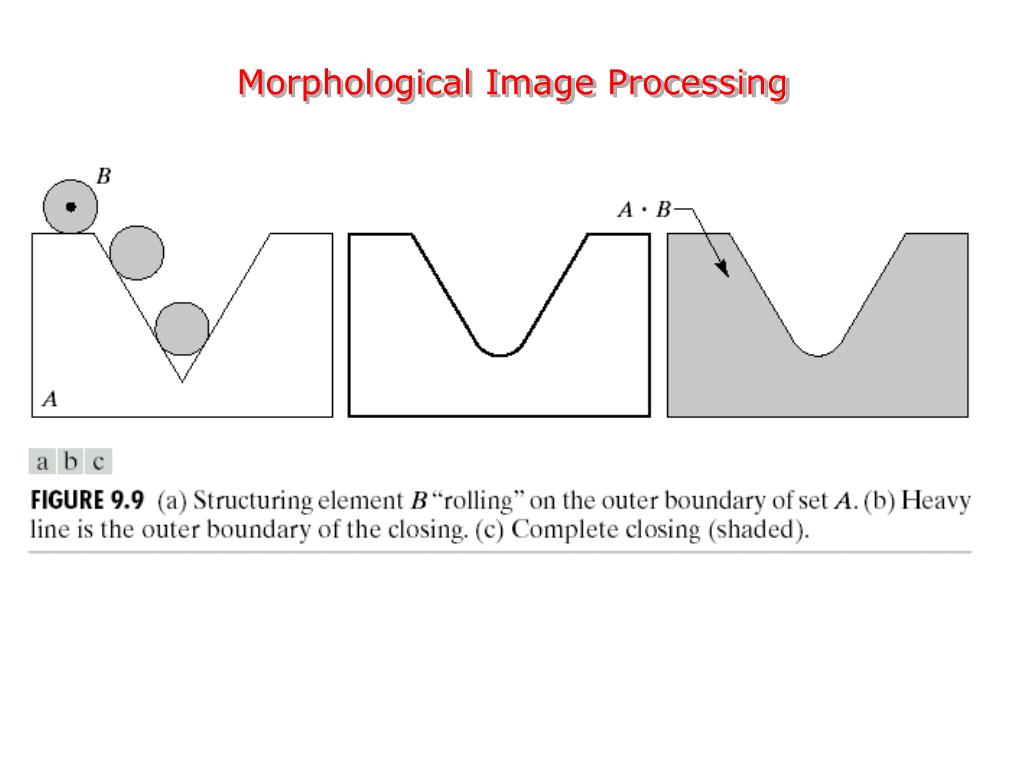

  21. Morphological Image Processing

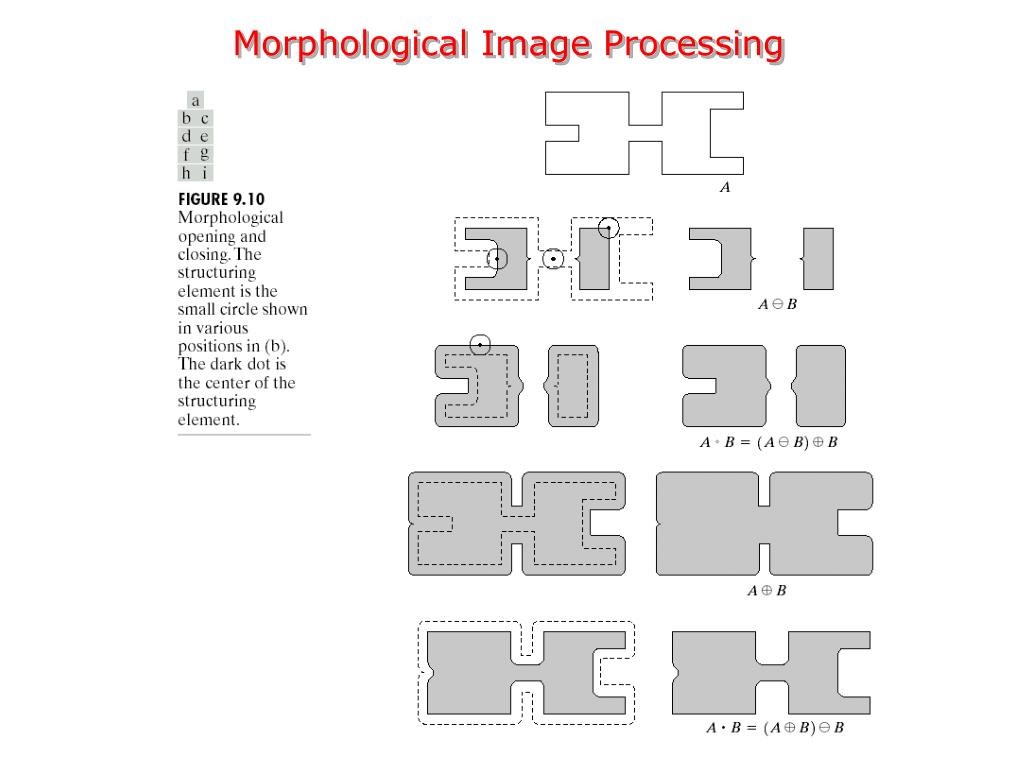

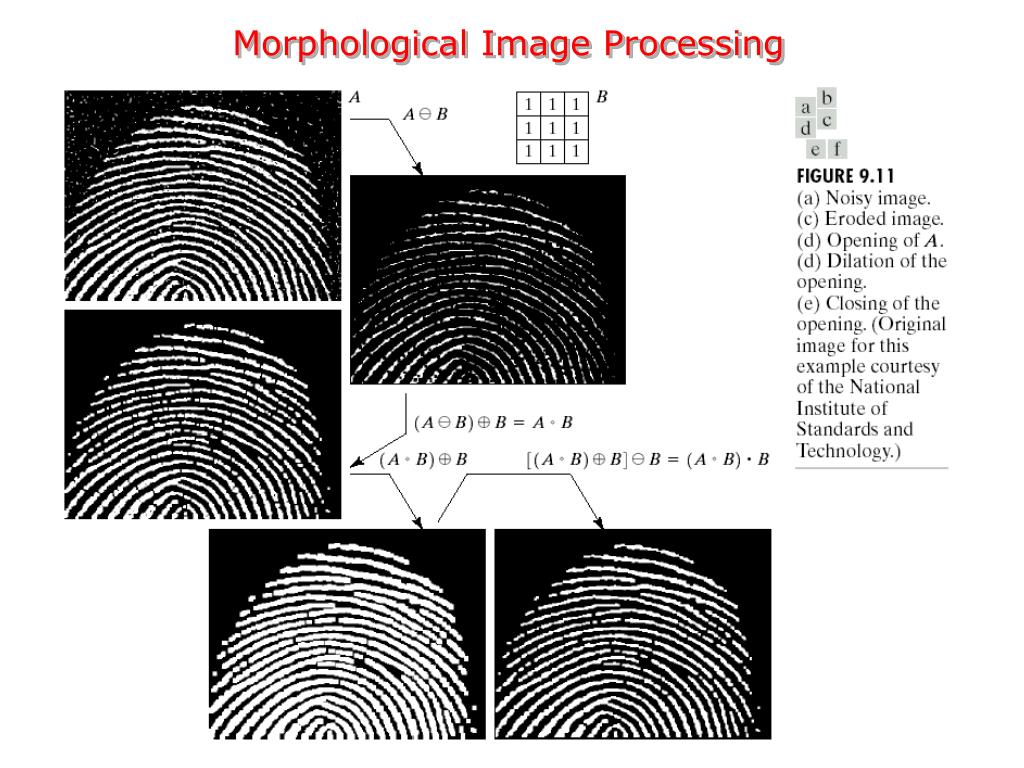

  22. Morphological Image Processing
