  1. Data for Environmental Modeling (D4EM)Automated Data Retrieval and Processing in Support of Integrated Environmental Modeling

  2. Motivation • Most environmental models are not aware of data sources and data preprocessing requirements • Model user is responsible for : • Determining data requirements • Locating data sources • Retrieving data • Processing data (including geo-processing) per model requirements • Logging metadata (data gathering and processing operations)

  3. Motivation • The problem amplifies when feeding an integrated modeling system as compared to a single model. • High cost of retrieving and processing data.

  4. 3MRA contains 17 linked science models Project included data collection for 201 sites at a cost of > $1 million Adding a new site to database costs remains a challenge

  5. Data access and pre-processing issues for Integrated Environmental Modeling System • Heterogeneous data sources • USGS, EPA, NOAA, … • Heterogeneous data types • jpeg, text, GeoTIFF, xml, netCDF, raster, vector, … • Multiple geographic projections • UTM, Geographic, … • Multiple access protocols • SOAP, WMS, OPeNDAP, ftp, HTTP screen scraping, …

  6. Data access and pre-processing issues for Integrated Environmental Modeling System • Inconsistency in data retrieval and pre-processing operations across models may introduce uncertainty in an integrated modeling application. • Model comparisons difficult without consistent data sources and pre-processing algorithms.

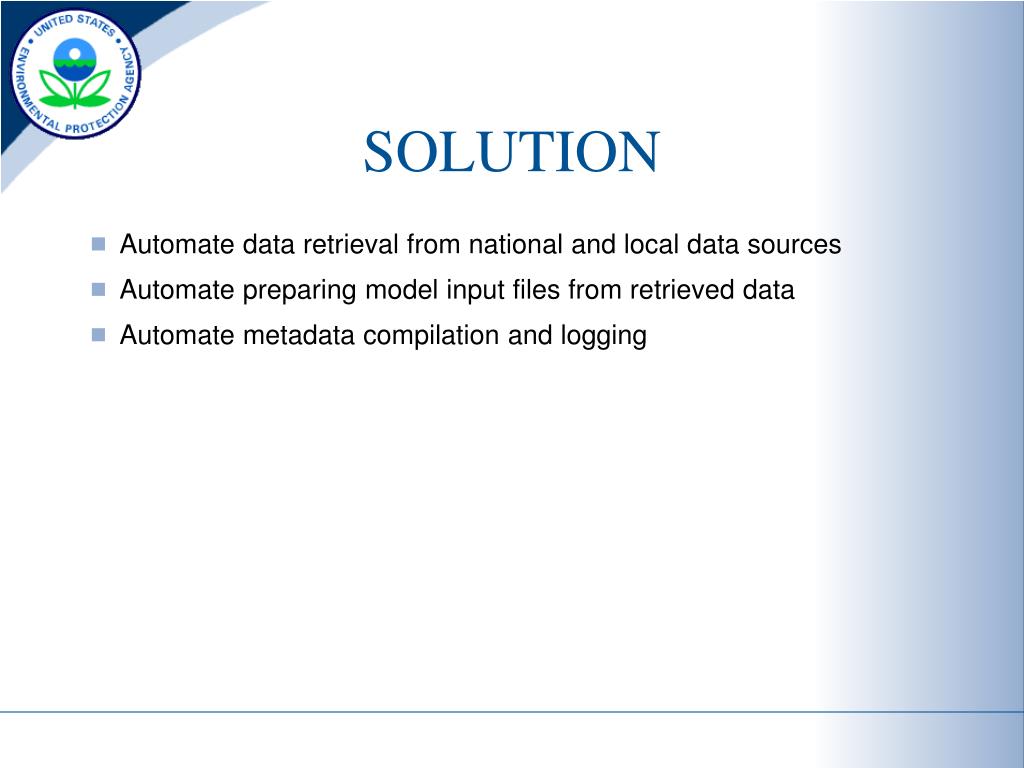

  7. SOLUTION • Automate data retrieval from national and local data sources • Automate preparing model input files from retrieved data • Automate metadata compilation and logging

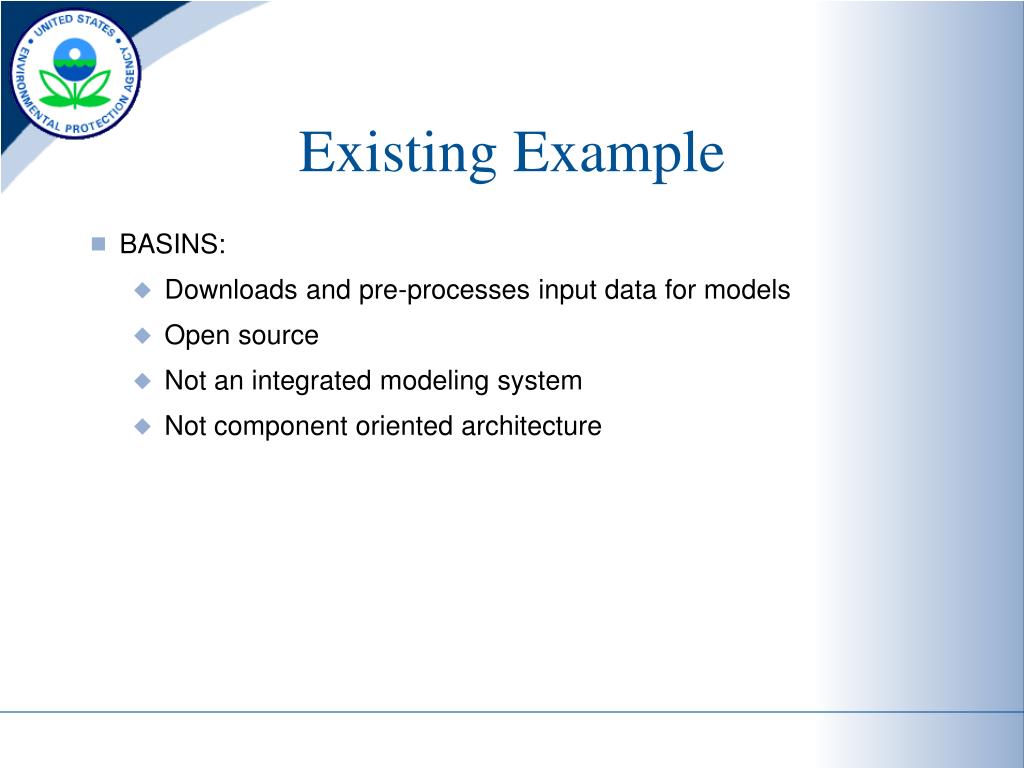

  8. Existing Example • BASINS: • Downloads and pre-processes input data for models • Open source • Not an integrated modeling system • Not component oriented architecture

  9. Requirements • Develop a software library that can be incorporated into models and modeling frameworks • Open source • Include open source geo-processing • Include statistical processing • Extensible architecture to allow easy addition of new data sources • Transparent (logging of all operations) to allow quality assurance

  10. Data Sources NLCD NHD Plus BASINS STORET NWIS <…> Custom Application Interfaces Data Access Layer Support Libraries MRLC Data Adapter NHDPlus Data Adapter BASINS Data Adapter STORET Data Adapter NWIS Data Adapter <….>Data Adapter Graphing Compression Downloading Local Cache BASINS APES/SDM Workflow Batch Data Processing Layer Geoprocessing Reprojection Clipping Overlays Merging Stream network & watershed processing Define minimum stream length Combine stream segments Delineation < …. > Statistical processing Averaging, Interpolation Data Store Raster files Databases Metadata Vector files ASCII/XML files Model Interface Layer SWAT Data Adapter HSPF Data Adapter WASP Data Adapter 3MRA Data Adapter <…> Data Adapter SWAT HSPF WASP 3MRA <….> Model

  11. DotSpatial • Light weight GIS • Open source • Extensible/Plug-in architecture • Geo-processing separated from visualization • Can be incorporated as a component into a model or a model can be housed inside DotSpatialapplication

  12. Data sources span the range from remotely hosted national databases to state or regional databases to local application specific databases. • Web maps • Open Street Maps • Google • Bing • NWIS • STORET • NLCD (1992, 2001, 2006) • BASINS • Land use/land cover • Urbanized areas • Populated place locations • Reach File version 1 (RF1) • Elevation (DEM) • National Elevation Dataset (NED) • Major roads • USGS HUC boundaries • Accounting unit • Cataloging unit • Dam sites • EPA regional boundaries • State boundaries • County boundaries • Federal and Indian lands • Ecoregions • STATSGO • NHD Plus • National Data Buoy center • Planned • Soils (SSURGO)

  13. Future Work (Potential) • Add more data sources • Add more models • Data Mining / Data Discovery / Business Intelligence • Multi-dimensional data analysis • Identify trends/patterns in input and output data • Characterize uncertainty in input data

  14. D4EM Software Download d4em.webdev.ord.epa.gov (intranet, coming soon) http://code.google.com/p/d4em/
