Presentation Transcript


Ansi isa s88 01 batch standard

ANSI/ISA S88.01 Batch Standard

Greg Skovira

President

EZSoft Inc.

Daren Moffatt

Solution Architect

Invensys Foxboro

(Výběr pro Počítačové řídicí systémy 2012)

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Batch process example

Batch Process Example

Material

Storage 1

Material

Storage 2

Material

Storage 3

Minor Additions

Mixer

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004

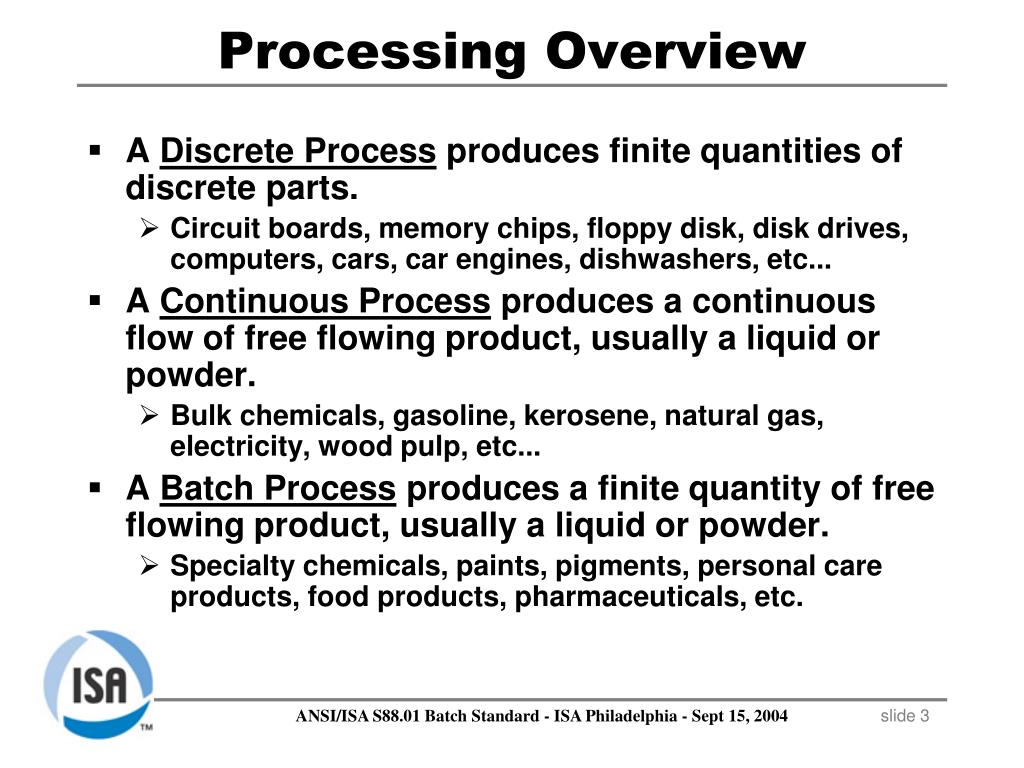

Processing overview

Processing Overview

  • A Discrete Process produces finite quantities of discrete parts.

    • Circuit boards, memory chips, floppy disk, disk drives, computers, cars, car engines, dishwashers, etc...

  • A Continuous Process produces a continuous flow of free flowing product, usually a liquid or powder.

    • Bulk chemicals, gasoline, kerosene, natural gas, electricity, wood pulp, etc...

  • A Batch Process produces a finite quantity of free flowing product, usually a liquid or powder.

    • Specialty chemicals, paints, pigments, personal care products, food products, pharmaceuticals, etc.

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Batch process example1

Batch Process Example

Material

Storage 1

Material

Storage 2

Material

Storage 3

Feed

Tank 1

Feed

Tank 2

Minor Additions

Mixer

Spray

Dryer 2

Spray

Dryer 1

BATCH

CONTINUOUS

Packaging Line 1

Packaging Line 2

DISCRETE

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Batch processing characteristics

Batch Processing Characteristics

Material

Storage 1

Material

Storage 2

Material

Storage 3

Mixer 2

Mixer 1

Reactor 2

Reactor 1

Storage

Tank 1

Storage

Tank 2

Storage

Tank 3

  • Number of Products

    • Single product

    • Multiple products

  • Physical Layout

    • Single stream

    • Multi-stream

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Standards organizations

Standards & Organizations

  • ISA S88 Committee

    • S88.01

    • S88.00.02

    • S88.00.03

  • World Batch Forum

    • BatchML

    • B2MML

  • OPC for Batch

www.isa.org

www.wbf.org

www.opcfoundation.org

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Isa 88 01 iec 61512 1

ISA 88.01/ IEC 61512-1

  • Terminology and models that apply to all types of control systems

  • A modular structure that promotes reuse

  • A structure that applies to both automated and manually-controlled batches

  • Separates the recipe that describes how the batch is to be made from the equipment used to make the batch

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Ansi isa 88 01 1995 iec 61512 1

ANSI/ISA-88.01-1995 / IEC 61512-1

  • Standard covers four basic concepts:

    • How to depict what you have in the plant (physical model)

    • How to define what you would like to accomplish in the plant (recipe)

    • Implementation of what you can do in the plant (equipment logic)

    • How to put the three pieces mentioned above together in an intelligent, reusable and successful way

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 physical hierarchy

Enterprise / Site / Area

Process Cell

The entire collection of equipment needed to execute a single recipe from start to finish batch

Consists of one or more units

Unit

Usually centered on a major piece of process equipment

Frequently operates on or contains the complete batch

May operate on or contain only a portion of the complete batch

Cannot operate on or contain more than one batch at a time

S88.01 Physical Hierarchy

Process Cell

Unit

Equipment Module

Control Module

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 physical hierarchy1

Equipment Module

A collection of control modules or other equipment modules

Can carry out a finite number of minor processing activities, i.e., phases

Contains all the necessary processing equipment to carry out these processing activities

Control Module

A collection of sensors, actuators, other control modules, and associated processing equipment

Acts as a single entity from a control standpoint

Is the direct connection to the process through its sensor and actuators

Procedures do not run on control modules

S88.01 Physical Hierarchy

Process Cell

Unit

Equipment Module

Control Module

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004

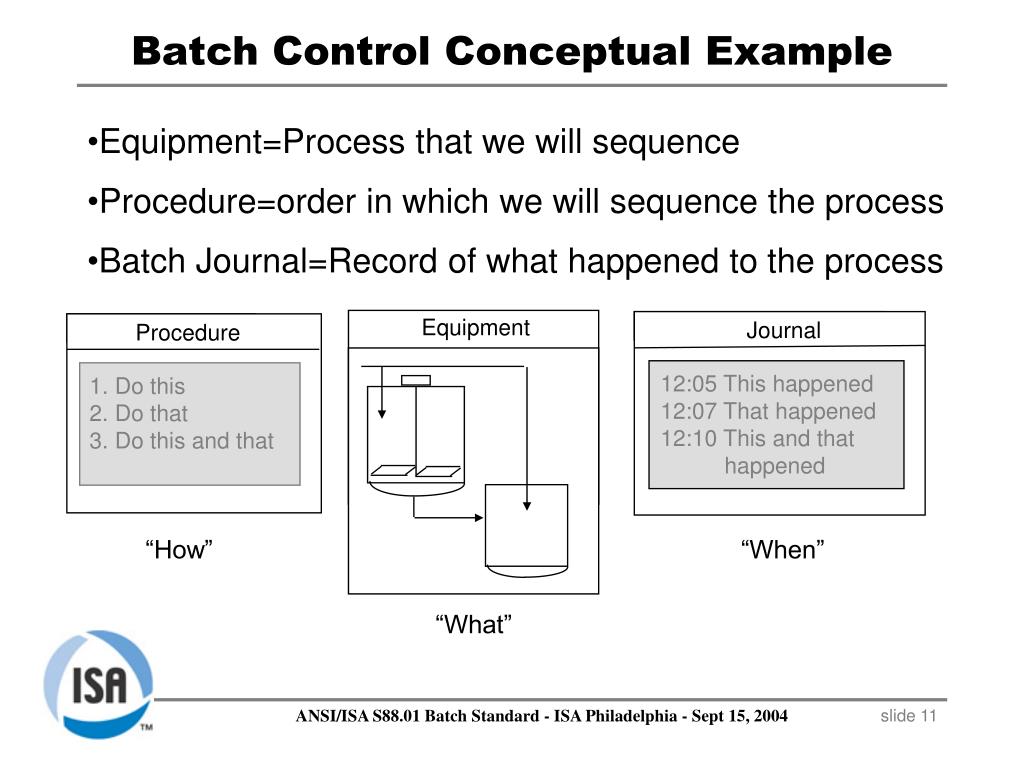

Batch control conceptual example

Batch Control Conceptual Example

  • Equipment=Process that we will sequence

  • Procedure=order in which we will sequence the process

  • Batch Journal=Record of what happened to the process

Equipment

Journal

Procedure

12:05 This happened

12:07 That happened

12:10 This and that

happened

1. Do this

2. Do that

3. Do this and that

“How”

“When”

“What”

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Batch control conceptual example1

Batch Control Conceptual Example

Equipment Examples Illustration

Valve

Pump

Motor

Pressure Controller

Control Module

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004

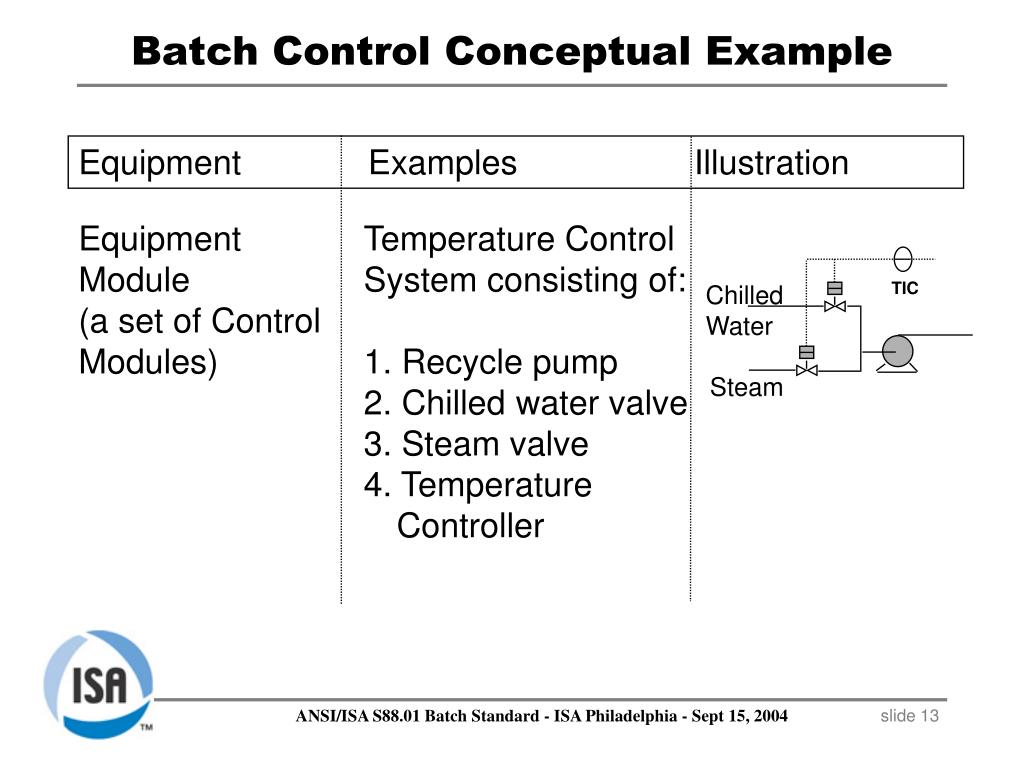

Batch control conceptual example2

Batch Control Conceptual Example

TIC

Equipment Examples Illustration

Equipment

Module

(a set of Control

Modules)

Temperature Control

System consisting of:

1. Recycle pump

2. Chilled water valve

3. Steam valve

4. Temperature Controller

Chilled

Water

Steam

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Batch control conceptual example3

Batch Control Conceptual Example

TIC

Equipment Examples Illustration

Unit

(a set of Equipment

Modules)

Reactor

consisting of:

1. Temperature control system

2. Agitation system

3. Material addition systems

4. Discharge system

5. Analysis system

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Recipe management

The Recipe is the necessary set of information that uniquely defines the production requirements for a specific product

Recipe Management

General

Recipe

Processing

Information

Site

Recipe

Site-specific

Information

Master

Recipe

Process Cell

Specific Info

Batch

Specific Info

Control

Recipe

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


General site recipes

General & Site Recipes

One General Recipe per produced material, maintained at the enterprise level

(1000 company wide products)

One Site Recipe per site and produced material, maintained at the site for local materials, language, or segment of production

(10,000 site recipes for 10 sites)

One Master Recipe per Process Cell and produced material

(50,000 master recipes for 5 cells per site)

One Control Recipe per batch that describes the custom options and formula values for one specific batch of product

(1,000,000 batches per year)

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Recipe information categories

Recipe Information Categories

Recipe

Header

Other

Information

Equipment

Requirements

Formula

Procedure

Process

Parameters

Process

Inputs

Process

Outputs

Formula

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 procedure hierarchy

Procedure (recipe level)

The overall strategy for making a batch

Consists of an ordered sequence of unit procedures

Unit Procedure

The subset of a procedure that occurs within a single unit

Consists of an ordered sequence of (one or more) operations

S88.01 Procedure Hierarchy

Procedure

Unit Procedure

Operation

Phase

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 procedure hierarchy1

Operation

A sequence that causes a significant physical or chemical change within the batch

Consists of an ordered sequence of (one or more) phases

Phase

The smallest element of procedural control, capable of causing one or more actions

S88.01 Procedure Hierarchy

Procedure

Unit Procedure

Operation

Phase

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Typical procedure using the hierarchy

Typical Procedure using the Hierarchy

Procedure

Unit Procedure

Unit Procedure

Operation

Operation

Phase

Phase

Phase

Note parent / child relationships as you move down and to the right in this procedure tree

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004

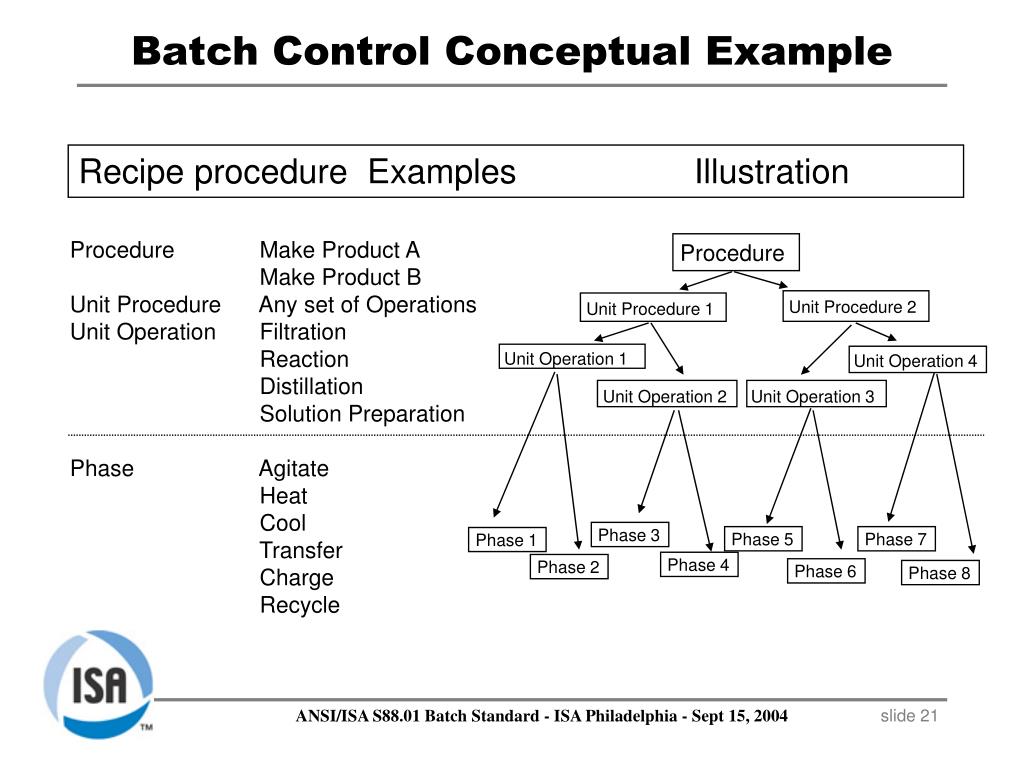

Batch control conceptual example4

Batch Control Conceptual Example

Recipe procedure Examples Illustration

ProcedureMake Product A

Make Product B

Unit ProcedureAny set of Operations

Unit OperationFiltration

Reaction

Distillation

Solution Preparation

PhaseAgitate

Heat

Cool

Transfer

Charge

Recycle

Procedure

Unit Procedure 2

Unit Procedure 1

Unit Operation 1

Unit Operation 4

Unit Operation 2

Unit Operation 3

Phase 3

Phase 5

Phase 7

Phase 1

Phase 4

Phase 2

Phase 6

Phase 8

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004

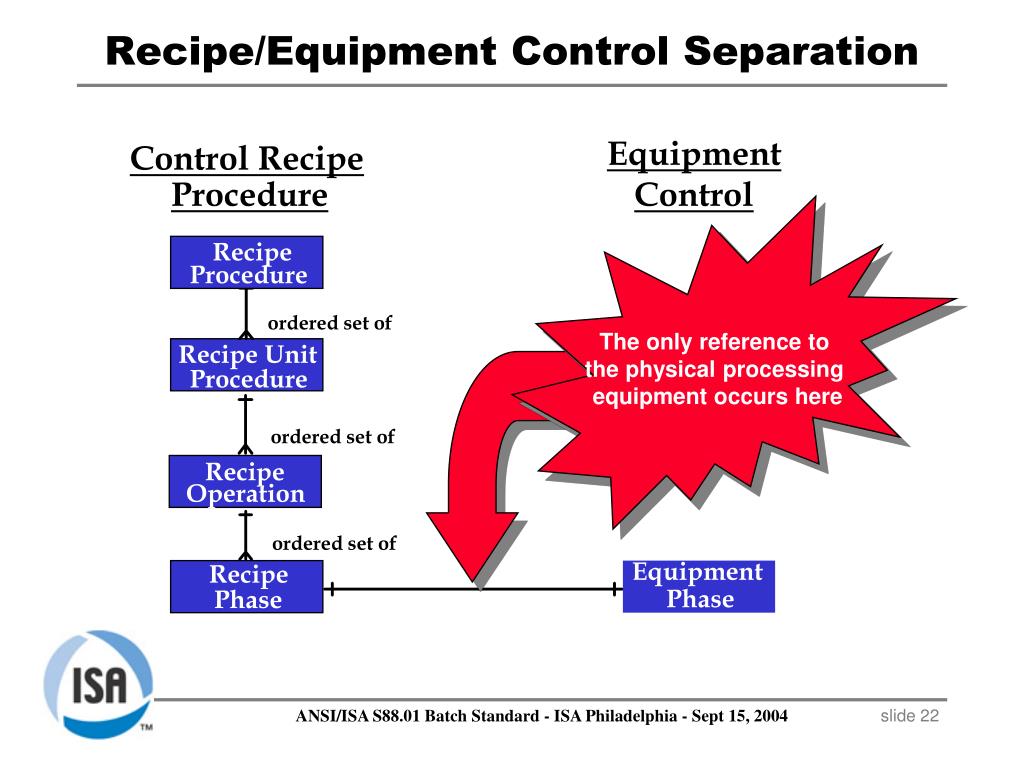

Recipe equipment control separation

Recipe/Equipment Control Separation

Equipment

Control

Control Recipe

Procedure

The only reference to

the physical processing

equipment occurs here

Recipe

Procedure

ordered set of

Recipe Unit

Procedure

ordered set of

Recipe

Operation

ordered set of

Equipment

Recipe

Phase

Phase

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Typy zen

Typy řízení

  • základní řízení

    • regulace

    • blokace nesprávné činnosti (interlocking)

    • sledování překročení mezí

    • reakce na alarmy

    • manuální řízení

  • procedurální řízení

  • koordinační řízení

    • řízení zdrojů zařízení

    • výběr procedurálních prvků pro běh

    • propagace režimů

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Key batch system components

Supervisory Level

Recipe Maintenance/Editing

Batch Management

Data Acquisition

Event based

Time based

Reporting

Operator Interface

Real Time Control

Key Batch System Components

Př.: Wonderware

InBatch

InTouch

PLCs

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


The 10 000 ft view

Information

Level 4

Business Logistics Systems

Plant Production Scheduling

and Operational Management

Planning (MRP II, Financials, etc.)

The 10,000 Ft View

Level 3

Manufacturing Control Systems

Area Supervision, Production

Scheduling, Reliability Assurance

Manufacturing Execution

Integration

Levels

2, 1, 0

Batch

Control

Systems

Continuous

Control

Systems

Discrete

Control

Systems

Process Control

Control

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Typical system architecture

Typical System Architecture

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


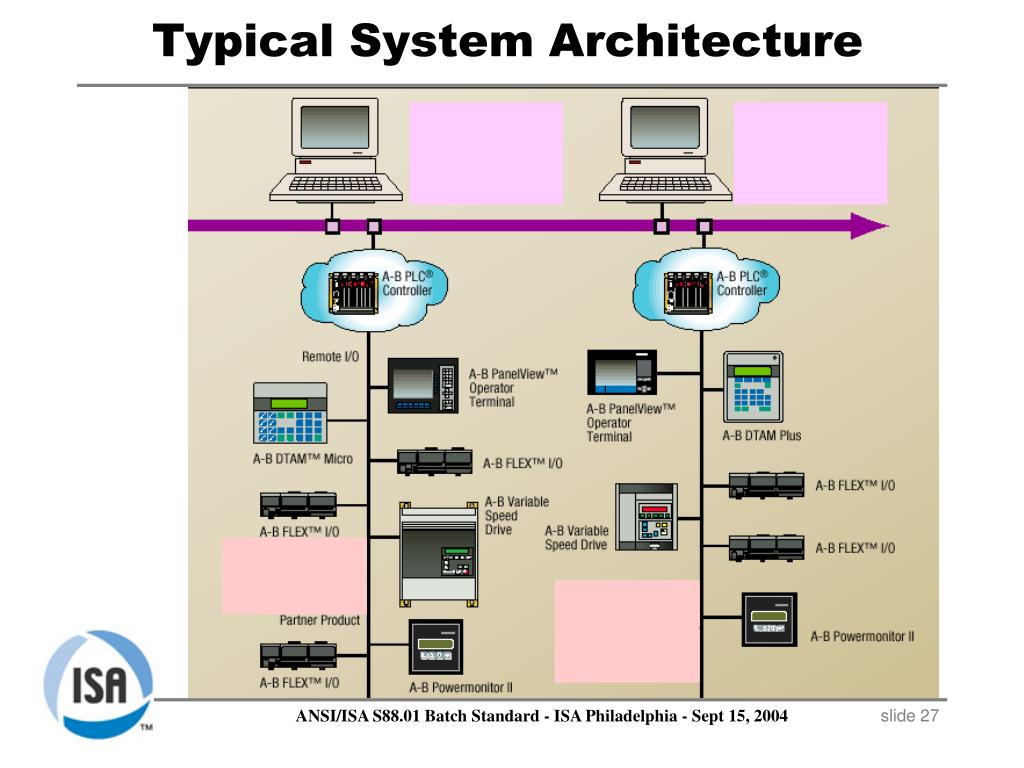

Typical system architecture1

Typical System Architecture

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004

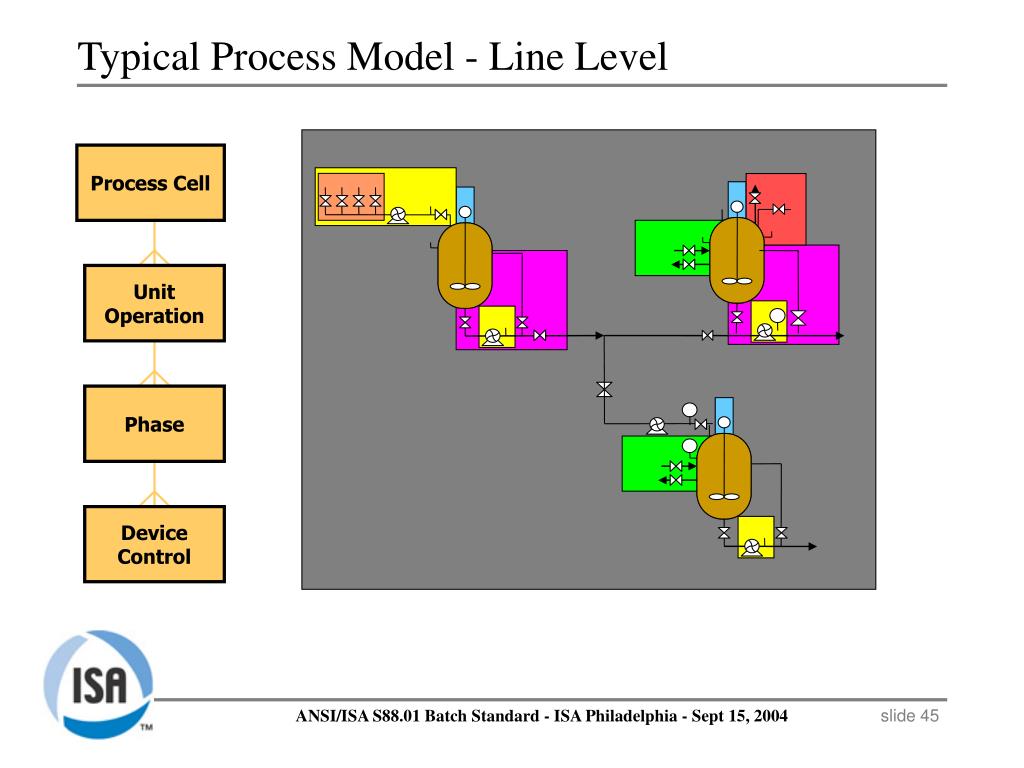

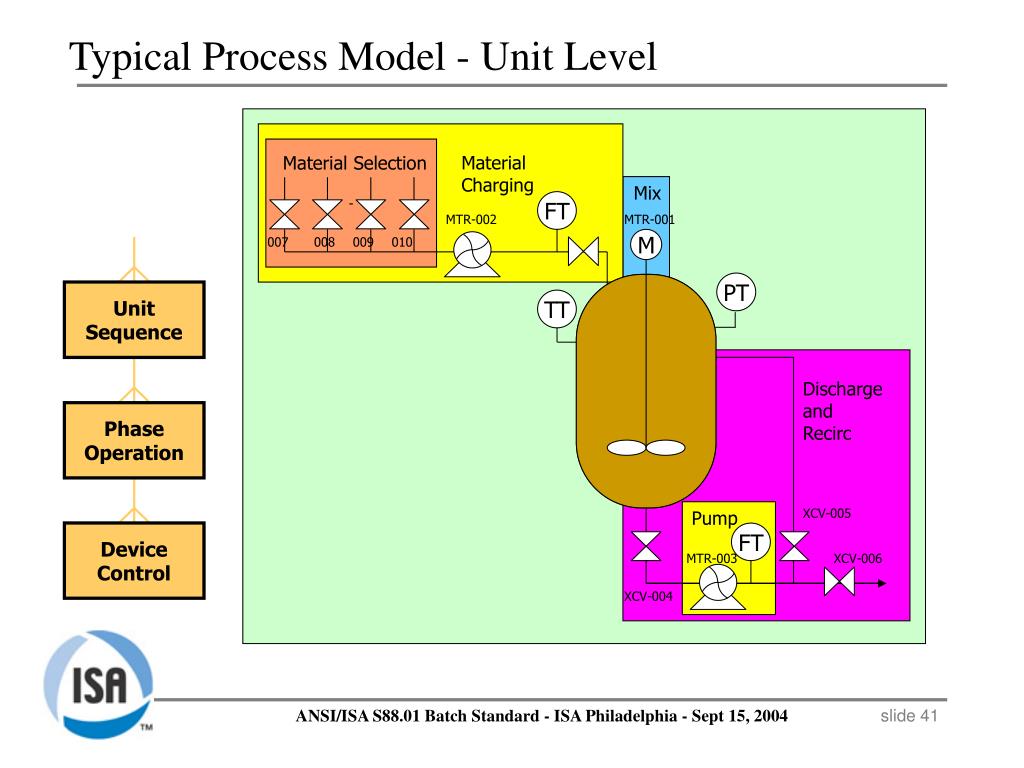

The model

Process level

The Model

Unit level control

Phase level control

Device level control

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


The 2 000 ft view

The 2,000 Ft View

From the Bottom Up

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 physical hierarchy2

Equipment Module

A collection of control modules or other equipment modules

Can carry out a finite number of minor processing activities, i.e., phases

Contains all the necessary processing equipment to carry out these processing activities

Control Module

A collection of sensors, actuators, other control modules, and associated processing equipment

Acts as a single entity from a control standpoint

Is the direct connection to the process through its sensor and actuators

Procedures do not run on control modules

S88.01 Physical Hierarchy

Process Cell

Unit

Equipment Module

Control Module

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Ansi isa s88 01 batch standard

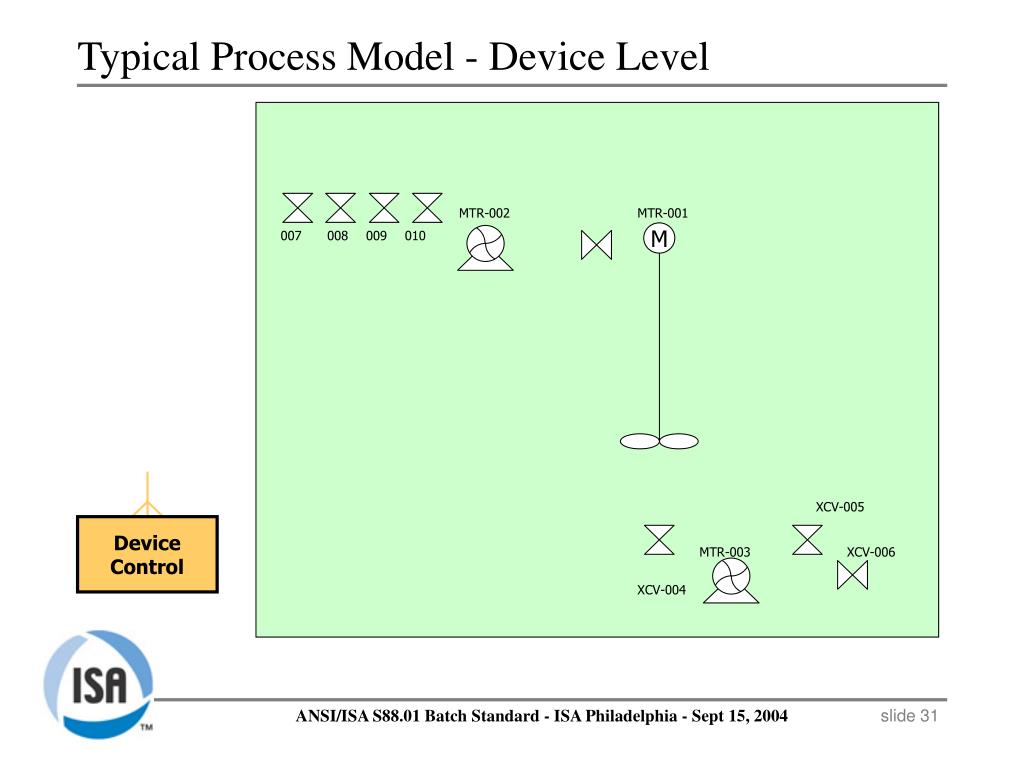

Typical Process Model - Device Level

MTR-002

MTR-001

007

008

009

010

M

XCV-005

Device

Control

MTR-003

XCV-006

XCV-004

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004

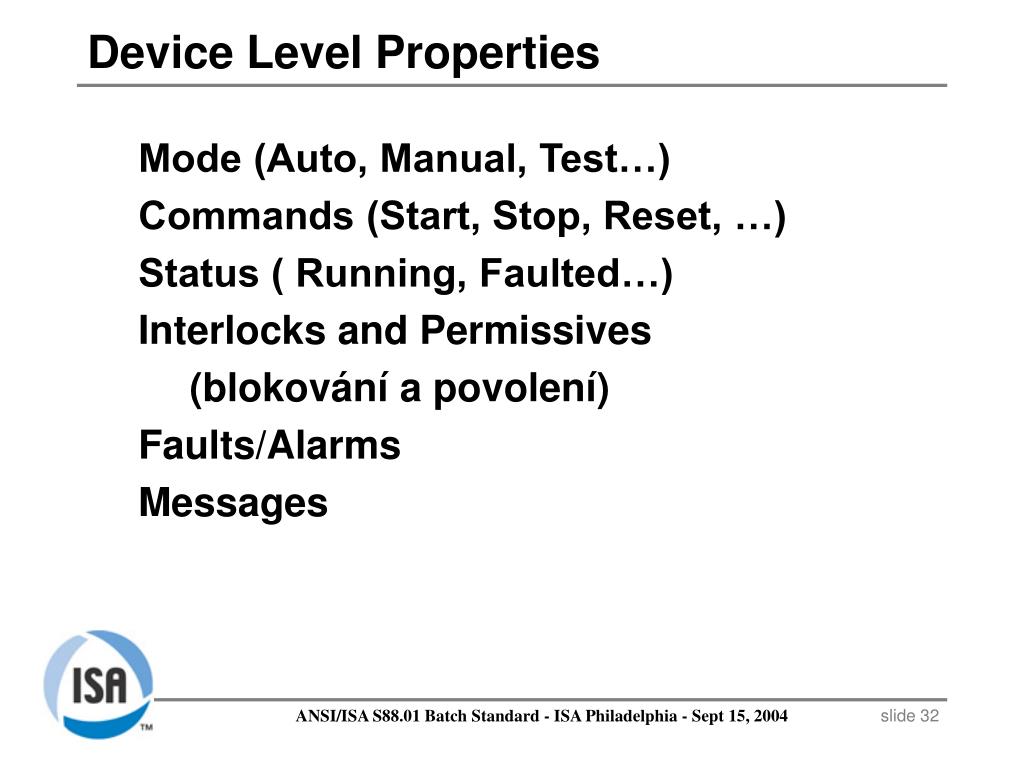

Device level properties

Mode (Auto, Manual, Test…)

Commands (Start, Stop, Reset, …)

Status ( Running, Faulted…)

Interlocks and Permissives

(blokování a povolení)

Faults/Alarms

Messages

Device Level Properties

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Device level

Device Level

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 physical hierarchy3

Equipment Module

A collection of control modules or other equipment modules

Can carry out a finite number of minor processing activities, i.e., phases

Contains all the necessary processing equipment to carry out these processing activities

Control Module

A collection of sensors, actuators, other control modules, and associated processing equipment

Acts as a single entity from a control standpoint

Is the direct connection to the process through its sensor and actuators

Procedures do not run on control modules

S88.01 Physical Hierarchy

Process Cell

Unit

Equipment Module

Control Module

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 procedure hierarchy2

Operation

A sequence that causes a significant physical or chemical change within the batch

Consists of an ordered sequence of (one or more) phases

Phase

The smallest element of procedural control, capable of causing one or more actions

S88.01 Procedure Hierarchy

Procedure

Unit Procedure

Operation

Phase

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Ansi isa s88 01 batch standard

-

Material Selection

Material Charging

Mix

Discharge

and

Recirc

Phase

Operation

Pump

Device &

Regulatory

Control

Typical Process Model - Phase Level

FT

MTR-002

MTR-001

007

008

009

010

M

XCV-005

FT

MTR-003

XCV-006

XCV-004

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Phase level properties

Mode (Auto,Manual,…)

Commands (Start, Stop, Reset, …)

Status ( Running, Faulted, Paused…)

Interlocks and Permissives

Faults/Alarms

Messages

Phase Level Properties

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 state transition diagram

S88.01 State Transition Diagram

Complete

Paused

Held

Restart

Reset

Hold

Start

Pause

Idle

(Initial State)

Resume

Holding

Running

Aborting

Stopping

Restarting

Pausing

Abort

Stop

Final States

Aborted

Stopped

Quiescent States

Reset

Transient States

Reset

State Transition Diagram for Example States for Procedural Elements

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Phase level

Phase Level

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 procedure hierarchy3

Operation

A sequence that causes a significant physical or chemical change within the batch

Consists of an ordered sequence of (one or more) phases

Phase

The smallest element of procedural control, capable of causing one or more actions

S88.01 Procedure Hierarchy

Procedure

Unit Procedure

Operation

Phase

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Ansi isa s88 01 batch standard

-

Material Selection

Material Charging

Mix

Unit

Sequence

Discharge

and

Recirc

Phase

Operation

Pump

Device

Control

Typical Process Model - Unit Level

FT

MTR-002

MTR-001

007

008

009

010

M

PT

TT

XCV-005

FT

MTR-003

XCV-006

XCV-004

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Unit level

Mode (Auto, Manual, Test…)

Commands (Start, Stop, Reset, …)

Status ( Running, Faulted…)

Interlocks and Permissives

Faults/Alarms

Messages

Unit Level

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Unit level1

Unit Level

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Typical procedure using the hierarchy1

Typical Procedure using the Hierarchy

Procedure

Unit Procedure

Unit Procedure

Operation

Operation

Phase

Phase

Phase

Note parent / child relationships as you move down and to the right in this procedure tree

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Ansi isa s88 01 batch standard

Unit

Operation

Phase

Device

Control

Typical Process Model - Line Level

Process Cell

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Process cell

Process Cell

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Recipe equipment control separation1

Recipe/Equipment Control Separation

Equipment

Control

Control Recipe

Procedure

The only reference to

the physical processing

equipment occurs here

Recipe

Procedure

ordered set of

Recipe Unit

Procedure

ordered set of

Recipe

Operation

ordered set of

Equipment

Recipe

Phase

Phase

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


S88 01 state transition diagram1

S88.01 State Transition Diagram

Complete

Paused

Held

Restart

Reset

Hold

Start

Pause

Idle

(Initial State)

Resume

Holding

Running

Aborting

Stopping

Restarting

Pausing

Abort

Stop

Final States

Aborted

Stopped

Quiescent States

Reset

Transient States

Reset

State Transition Diagram for Example States for Procedural Elements

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


D vkov dic syst m

Dávkový řídicí systém

The Control Activity Model – CACTUS model

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Cactus model

CACTUS model

  • Správa receptur

  • Plánování a rozvrhování výroby

  • Správa informací o výrobě

  • Správa procesů

  • Řízení jednotek

  • Řízení procesů

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


Other s88 01 topics

Other S88.01 Topics

  • Batch control activities and functions

  • Allocation and arbitration

  • Production planning and scheduling

  • Production information management

  • Process management

  • Unit supervision

  • Process control

  • Personnel and environmental protection

ANSI/ISA S88.01 Batch Standard - ISA Philadelphia - Sept 15, 2004


  • Login
