Skyview radio society digital elmer night digital sound card modes and operation

Skyview Radio Society Digital Elmer Night

Digital Sound Card Modes and Operation

UR report… 599 599 fb copy on all, 100% print


Advantages of digital modes

Advantages of Digital Modes:

  • Great for reliable rag-chew

  • Many modes - choose your mode depending on conditions

  • Emergency Communications

  • It’s FUN

  • Bottom of the solar cycle - works well, even under very poor conditions where phone QSO’s would be impossible!

Olivia 500Hz/

16 tones

Olivia 500Hz/

16 tones

MFSK16

PSK31

  • Low Power - never need to run over 50 watts, 5 -30 watts is almost always sufficient (try 500mw… you may be surprised!)

  • Spectrum efficiency


Hardware

Hardware

Windows Computer

HF Radio/Antenna

Sound Card Interface?

Or, maybe just a $8 computer microphone?

To start playing around... all you need is an inexpensive computer microphne! Just plug a mic into your sound card mic input and place the mic element somewhere near your radio speaker. Listen and watch your display and practice differentiating the various modes.


Skyview radio society digital elmer night digital sound card modes and operation

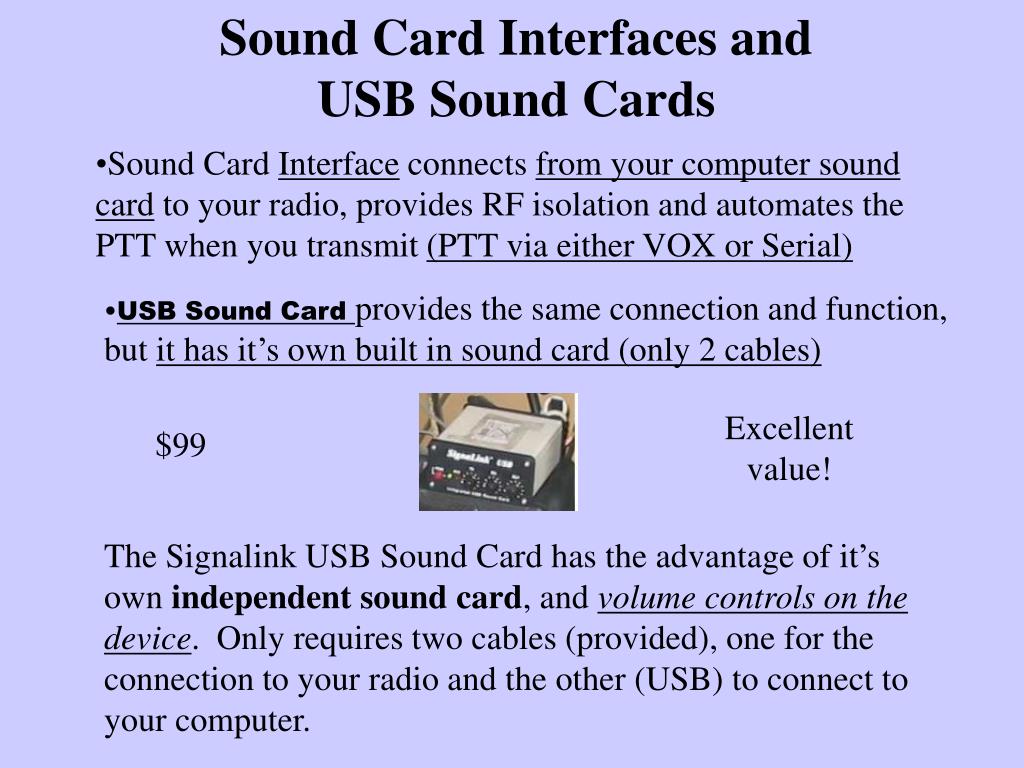

Sound Card Interfaces and USB Sound Cards

  • Sound Card Interface connects from your computer sound card to your radio, provides RF isolation and automates the PTT when you transmit (PTT via either VOX or Serial)

  • USB Sound Card provides the same connection and function, but it has it’s own built in sound card (only 2 cables)

Excellent value!

$99

The Signalink USB Sound Card has the advantage of it’s own independent sound card, and volume controls on the device. Only requires two cables (provided), one for the connection to your radio and the other (USB) to connect to your computer.


Skyview radio society digital elmer night digital sound card modes and operation

Is this is a Waterfall?

Here is a REAL waterfall...

Live waterfall demonstration…


Basic sound card digital modes

MFSK

16

Basic Sound Card Digital Modes

  • PSK31 - easiest and most common mode

  • PSK63 - twice as wide… twice as fast

PSK31

  • MFSK(16) - 8 times wider than PSK31, same speed

PSK63

Why not always use the fastest , most narrow mode?

Why use the much wider (250Hz) MFSK16 mode if it is the same speed as the very narrow (31 Hz) PSK31 mode?

  • MFSK(16) - Better for weak signals and motors right through static crashes!

Accuracy, speed and audio bandwidth all come into play and various modes all have their advantages and disadvantages!


Psk31

PSK31


Skyview radio society digital elmer night digital sound card modes and operation

PSK31

  • USB or LSB - polarity doesn’t matter, but your radio should always be set to USB (standard for all digital modes)

  • Sound card calibration is not critical (more on this later)

  • Almost always... someone, somewhere running PSK31

Where to listen for PSK31 and PSK63:

20m USB - 14.070 MHz40m USB - 7.070 MHz80m USB - 3.580 MHz

And, don’t forget about 30m - 10.140 MHz


Skyview radio society digital elmer night digital sound card modes and operation

PSK31 IMDTurn that thing down!

Inter Modulation Distortion, or IMD is caused by overdriving your sound card audio into your radio and it makes a mess on the waterfalls of receiving stations!

  • Set your radio to full power

  • Adjust your sound card master volume and wav volume down (double-click the speaker icon)

  • Set your radio meter to ALC (Auto Level Control)

  • Transmit, then adjust your master and wav volume to where the ALC meter just begins to register

Check out www.youtube.com for great instructional videos!Keyword search: PSK31 Transmitter Level Adjustment


Skyview radio society digital elmer night digital sound card modes and operation

PSK31 IMDTurn that thing down!

Here’s a fellow ham in a QSO elmering another ham on the subject of IMD.

Ask other hams how your IMD looks. And don’t be afraid to elmer other hams on their IMD. You’re not doing them any favor by ignoring the problem!


Skyview radio society digital elmer night digital sound card modes and operation

PSK31 IMDTurn that thing down!

IMD measurements can only be made when receiving a signal with no text. A -20 dB or lower IMD is what we should all be shooting for.

Ask the other operator to transmit a bit without typing so you can get an accurate IMD reading. Do the same if you ask someone for your IMD reading.


Skyview radio society digital elmer night digital sound card modes and operation

PSK31/63 Software

  • Digipan - free, easy to use


Skyview radio society digital elmer night digital sound card modes and operation

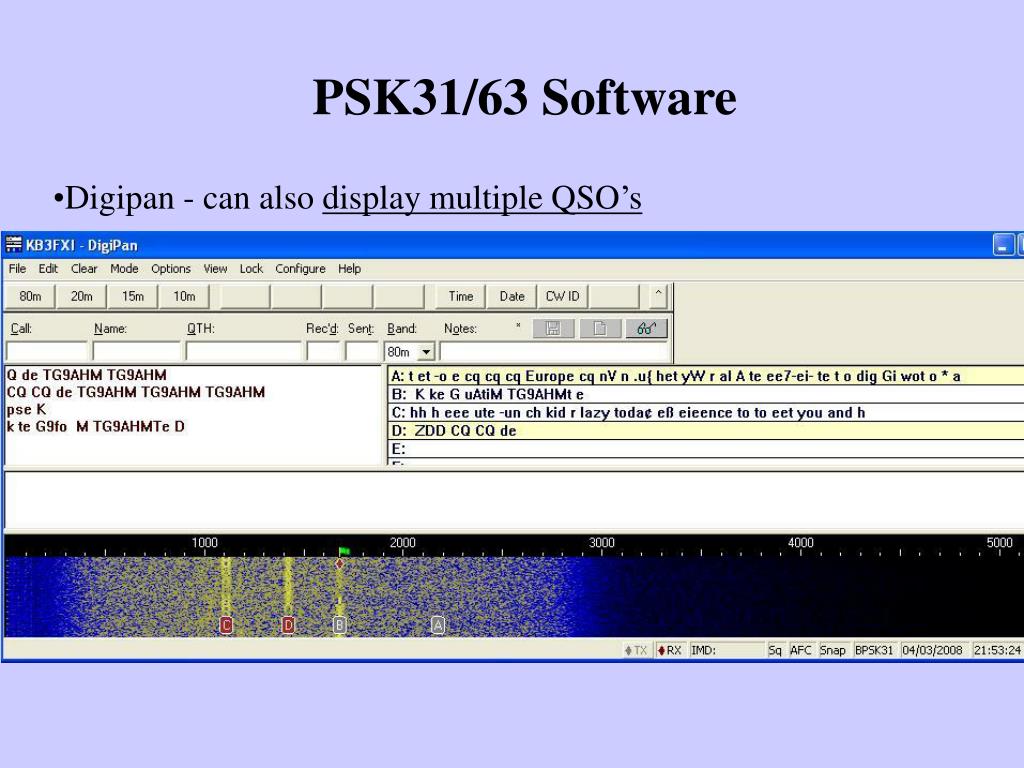

PSK31/63 Software

  • Digipan - can also display multiple QSO’s


Skyview radio society digital elmer night digital sound card modes and operation

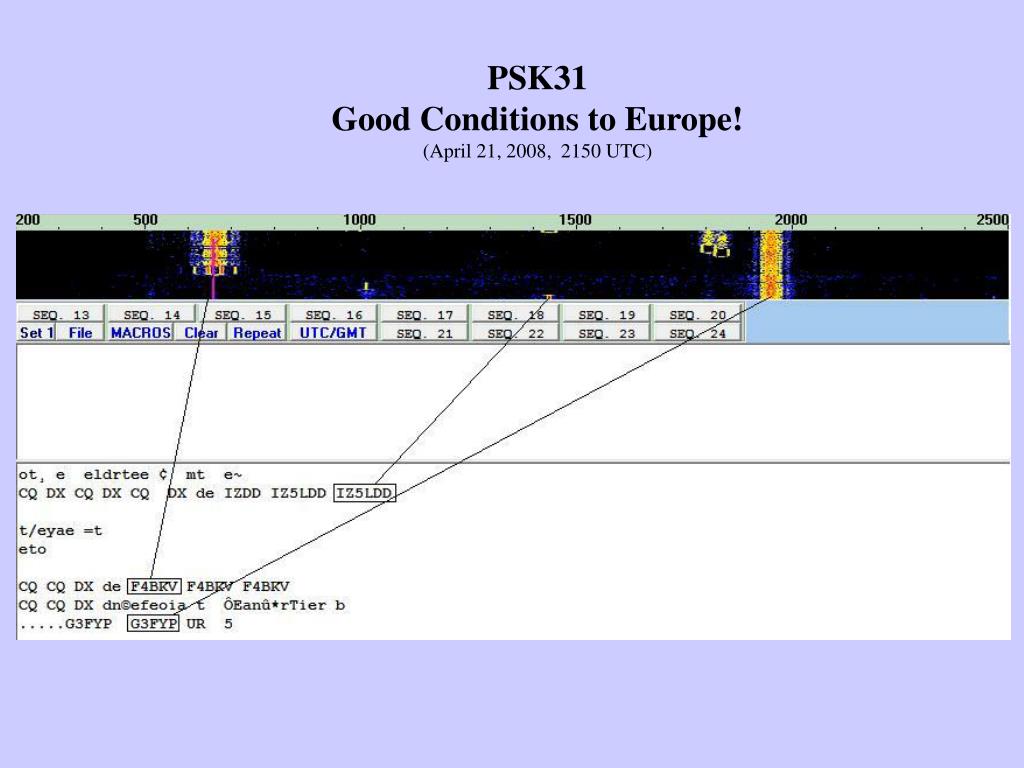

PSK31

Good Conditions to Europe!

(April 21, 2008, 2150 UTC)


Skyview radio society digital elmer night digital sound card modes and operation

MFSK(16)


Skyview radio society digital elmer night digital sound card modes and operation

MFSK(16)Multiple Frequency Shift Key - 16 tones

The fade in the MFSK signal as seen on the waterfall below had no effect on the decoding of the text (or print). PSK31 or 63 would have suffered serious data loss under the same conditions. Forward error correction (FEC) and interleaving provides very good copy under week conditions.

The trade off (you never get something for nothing) is speed and bandwidth as compared to PSK31 or 63.

Note: this MFSK signal was inverted, or reversed… more on this shortly


Skyview radio society digital elmer night digital sound card modes and operation

MFSK(16)Software for MFSK

  • Free:

  • NBEMS (VBDIGI)

  • Ham Radio Deluxe (HRD DM780)

  • MultiPSK (for advanced digital operators)

  • Purchase:

  • MixW - $50 (and runs almost all modes)

My opinion… NBEMS and MixW are the easiest to use, best designed, multi-mode digital software packages.


Skyview radio society digital elmer night digital sound card modes and operation

MFSK(16)

  • When to use:

  • Whenever you want to!

  • When conditions are too weak to carry on a PSK31 QSO (ask to change modes!)

  • For longer rag-chews, in case conditions deteriorate

  • During conditions with static crashes and light fading

  • Where to use:

  • Most commonly found just above the PSK31 frequencies

  • 80m 3.581 - 3.585 and 20m 14.073 - 14.075 are where you will see the most activity

  • Tips:

  • Tuning is more critical than PSK31. When you adjust the position on the waterfall, do so slightly. WAIT at least 2 seconds (FEC – Forward Error Correction delay) to see if the adjustment results in accurate print before readjusting

  • Make sure your radio is set to USB and the software “inverse” or “reverse” is not activated. If you can’t decode, try the “inverse” or “reverse” setting. If that doesn’t work, the signal may be olivia 250hz

  • Make sure your sound card is properly calibrated


Skyview radio society digital elmer night digital sound card modes and operation

MFSK(16) Screen ShotMarker Tone

When properly polarized (USB), the leading (and usually the trailing) edges of MFSK16 taper off to the left. If you see this pattern, you’re almost certainly looking at an MFSK16 Signal.


Skyview radio society digital elmer night digital sound card modes and operation

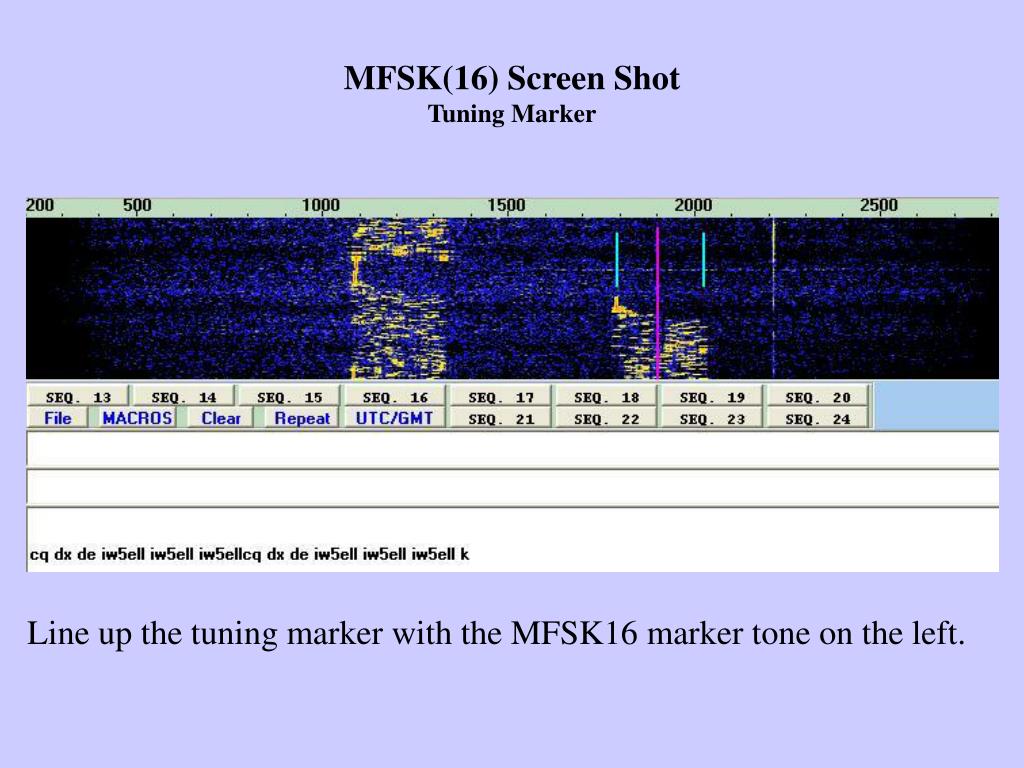

MFSK(16) Screen ShotTuning Marker

Line up the tuning marker with the MFSK16 marker tone on the left.


Skyview radio society digital elmer night digital sound card modes and operation

MFSK(16) Screen ShotPicture Mode

MFSK(16) also has a small picture mode that is extremely easy to use. The software automatically switches into picture mode on RX.


Skyview radio society digital elmer night digital sound card modes and operation

Sound Card CalibrationCheckSRhttp://www.mixw.net/files/CheckSR.exe

Sound card accuracy is much more critical for the MFSK modes (MFSK16, Olivia) and other modes such as MT63. The difference between your sound card transmit and receive accuracy is measured in parts per million (PPM) based on a given sample rate. If there is a discrepancy between your tx and rx sample rate, the result is the person on the other end of the QSO has to retune to your signal after every exchange.

CheckSR is a free program that makes the calculation for your given sound card offset error. Run the CheckSR application with either 8000 or 11025 set for the sampling rate depending on what program you are running. Let the program run for about 5 minutes, then click stop and record the numbers.

Almost all of the software has a configuration setting for entering in the numbers from CheckSR. Many other programs such as MultiPSK have built in applications that will make the adjustments automatically.


Skyview radio society digital elmer night digital sound card modes and operation

PSK Signals

Sound Card error shift as a result of improper sound card calibration

Most PSK31/63 software will automatically track slight shifts with the AFC (Automatic Frequency Control) setting.


Skyview radio society digital elmer night digital sound card modes and operation

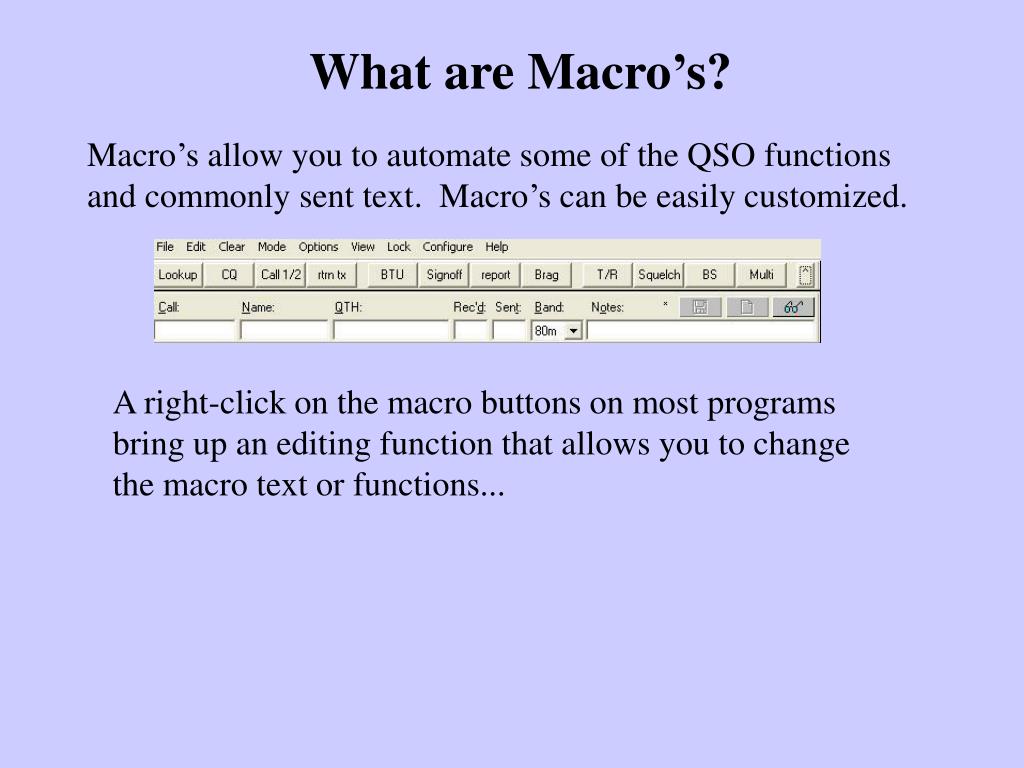

What are Macro’s?

Macro’s allow you to automate some of the QSO functions and commonly sent text. Macro’s can be easily customized.

A right-click on the macro buttons on most programs bring up an editing function that allows you to change the macro text or functions...


Skyview radio society digital elmer night digital sound card modes and operation

Customize your Macro’s

After you right-click, an edit box comes up...

… program controls (TX and RX) as well as your call sign or the other operator’s call sign can all be configured so that one click on a macro button, for example, will key up your radio, insert the other stations’ call followed by your call and then put the radio and the software back into receive mode.


Skyview radio society digital elmer night digital sound card modes and operation

Macro Tip

TIP: Add 3 periods followed by a hard return to your response macros (after the TX command). This helps distinguish your return transmission from random characters that appear on the other stations’ screen (diddle).


Skyview radio society digital elmer night digital sound card modes and operation

Some Waterfall Screen Shots…


Skyview radio society digital elmer night digital sound card modes and operation

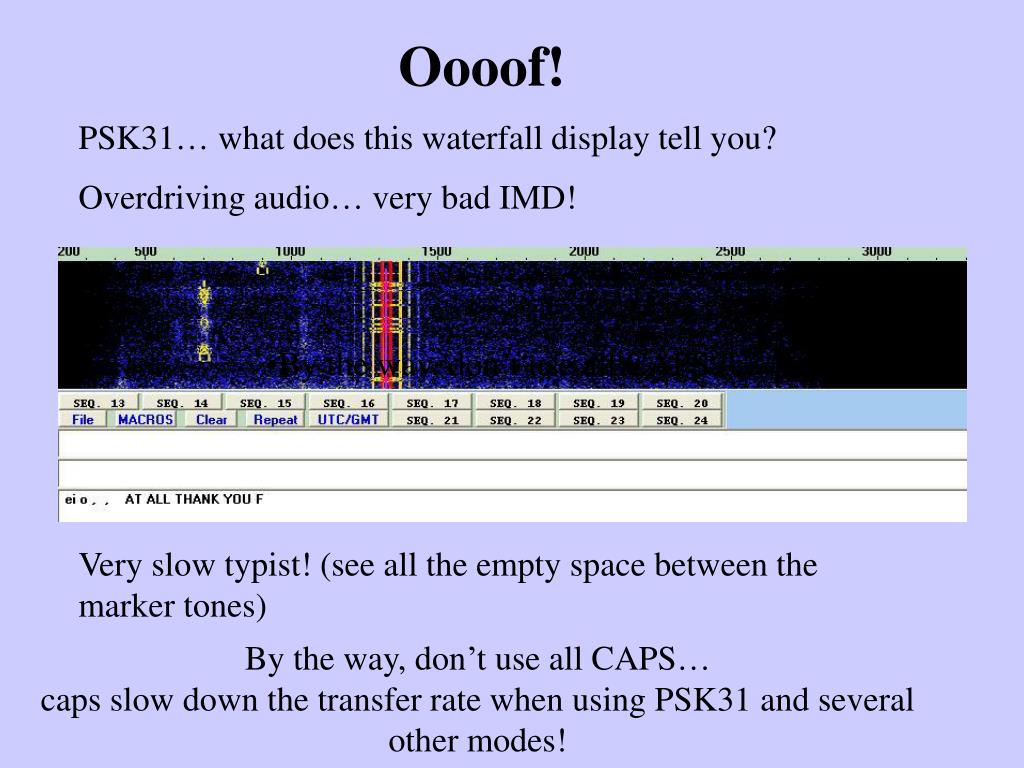

Oooof!

PSK31… what does this waterfall display tell you?

Overdriving audio… very bad IMD!

  • By the way, don’t use all CAPS…

Very slow typist! (see all the empty space between the marker tones)

By the way, don’t use all CAPS… caps slow down the transfer rate when using PSK31 and several other modes!


Skyview radio society digital elmer night digital sound card modes and operation

Advanced Modes Teaser

Olivia – 250, 500 or 1000 Hz

8, 16 or 32 tones

Common Olivia operations are transmitted in 250, 500 and 1000Hz bandwidths. The screen shot above is Olivia 1000Hz/32 tones near the 20m frequency of 14.106 MHz. Tuning and sound card calibration are critical on this mode, but as you can see, Olivia is capable of maintaining near 100% copy under extremely adverse conditions.

All Olivia signals can be identified by two sets of alternating marker tones at the beginning of each transmission, unlike MFSK which transmits only the lower marker tone. The trick to decoding Olivia is determining the proper combination of bandwidth and tone settings.


Skyview radio society digital elmer night digital sound card modes and operation

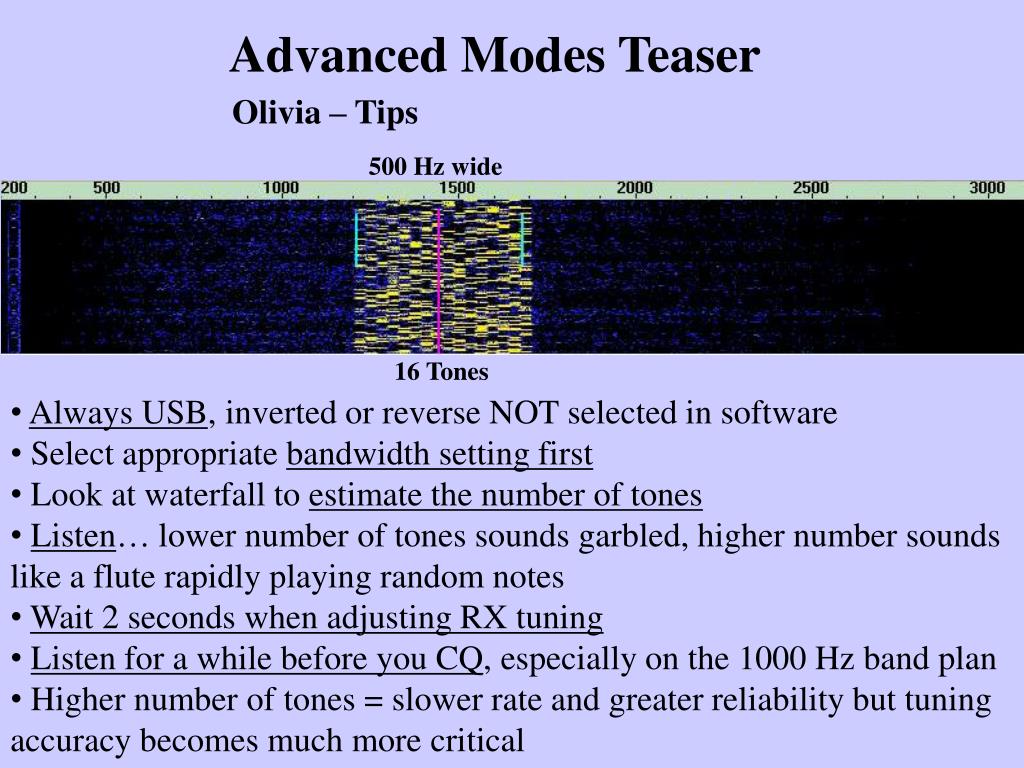

Advanced Modes Teaser

Olivia – Tips

500 Hz wide

16 Tones

  • Always USB, inverted or reverse NOT selected in software

  • Select appropriate bandwidth setting first

  • Look at waterfall to estimate the number of tones

  • Listen… lower number of tones sounds garbled, higher number sounds like a flute rapidly playing random notes

  • Wait 2 seconds when adjusting RX tuning

  • Listen for a while before you CQ, especially on the 1000 Hz band plan

  • Higher number of tones = slower rate and greater reliability but tuning accuracy becomes much more critical


Skyview radio society digital elmer night digital sound card modes and operation

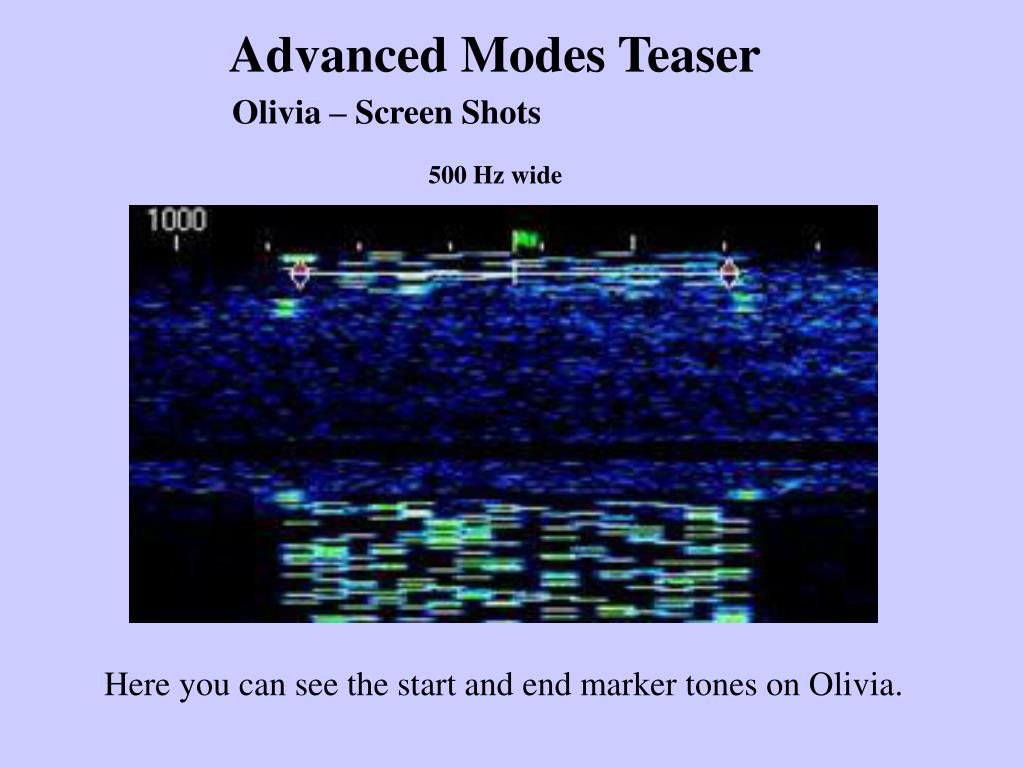

Advanced Modes Teaser

Olivia – Screen Shots

500 Hz wide

Here you can see the start and end marker tones on Olivia.


Skyview radio society digital elmer night digital sound card modes and operation

Advanced Modes Teaser

Olivia – Screen Shots

500 Hz wide

Here’s a DEEP fade with no loss on text!


Skyview radio society digital elmer night digital sound card modes and operation

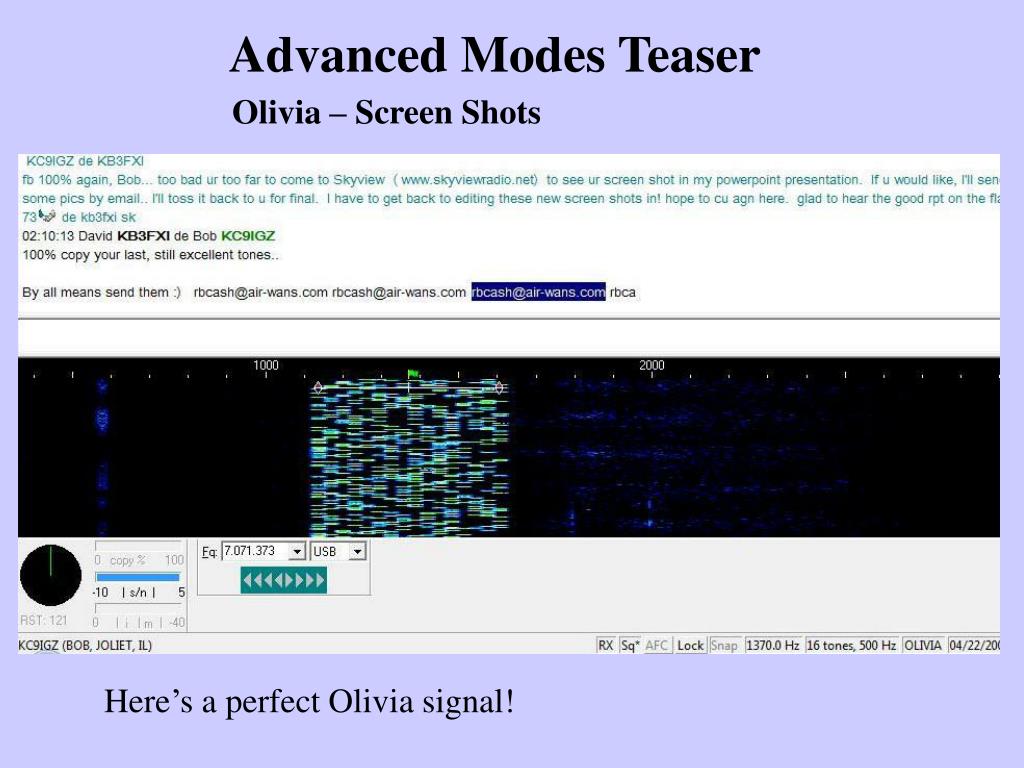

Advanced Modes Teaser

Olivia – Screen Shots

500 Hz wide

Here’s a perfect Olivia signal!


Skyview radio society digital elmer night digital sound card modes and operation

Thank you for viewing, and I hope to see you on the waterfall!

This presentation may be distributed or used freely, without modification.

Feel free to contact the author of this presentation, David J. Kleber (KB3FXI). with any questions, comments or corrections.

Contact information is current on QRZ.com
