Src ismt force factory operations research center task nj 877

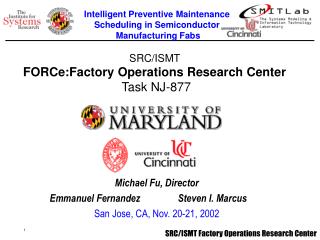

SRC/ISMT FORCe:Factory Operations Research CenterTask NJ-877

Michael Fu, Director

Emmanuel Fernandez Steven I. Marcus

San Jose, CA, Nov. 20-21, 2002

Intelligent Preventive Maintenance

Scheduling in Semiconductor

Manufacturing Fabs


Src ismt force factory operations research center task nj 877

CONTENTS

  • Project Overview/Status -Michael Fu, Project Director

  • Overview of Software Tools and Summer Internships

  • -Emmanuel Fernandez

  • Simulation Studies and Model Validation: Intel, Chandler

    • Jason Crabtree

  • Simulation Studies and Model Validation: AMD, Austin

    • Jose A. Ramirez

  • Research on Stochastic Models - Xiaodong Yao

  • Commercialization Plans - Emmanuel Fernandez


  • Michael fu ph d institute for systems research university of maryland project overview status

    Michael Fu, Ph.D.Institute for Systems ResearchUniversity of MarylandProject Overview/Status

    Summary


    Src ismt force factory operations research center task nj 877

    Research Plan (Proposed)

    (1) Develop, test, and transfer software tools for optimal

    PM planning and scheduling;

    (2) Research and validate the models, methods and

    algorithms for software development in (1);

    (3) Facilitate the transfer of models, algorithms and tools

    to 3rd party commercial software vendors.


    Executive summary

    Executive Summary

    • “Report on Models and algorithms to cover major bottleneck tool sets in a semiconductor manufacturing fab” Delivered:

      • 29-Jul-2002, SRC Pub P004304.

    • “Preventive Maintenance Scheduling Model and Generic Implementation: Mathematical Programming Modeling Languages and Solvers” Report Delivered:

      • 29-Jul-2002, SRC Pub P004306.

    • Paper (presented at MASM 2002) Delivered:

      • Incorporating Production Planning into Preventive Maintenance Scheduling in Semiconductor Fabs

    • Two invited “Operational Models in Semiconductor Manufacturing I-II” sessions organized and chaired within Applied Probability Cluster at INFORMS 2002 Annual Meeting.


    Executive summary1

    Executive Summary

    • Two presentations delivered at “Operational Models in Semiconductor Manufacturing I-II” sessions, INFORMS 2002 Annual Meeting.

    • Developed and Beta tested a software tool (PMOST) for:

      • Generic Scheduling Simulation Engine

      • Generic Implementation of PM Scheduling Algorithm

        • Beta Version and Draft Report ready.

    • Two summer internships (AMD & Intel) successfully completed.

      • AMD in process of making tools operational in fab.

    • Stochastic PM Planning Models (Analytical and Simulation-Based) research advanced. Ph.D. dissertation (Yao) near completion.

    • Commercialization feasibility discussions: Brooks, Adexa, Ibex Processes.

    • Worked with Swee Leong in obtaining seed funding from NIST

    • Teleconferences with Liaisons


    Industrial liaisons

    Industrial Liaisons

    • Matilda O'Connor, Advanced Micro Devices, Inc.

    • Nipa Patel,Advanced Micro Devices, Inc. (sign in SRC list)

    • Man-Yi Tseng, Advanced Micro Devices, Inc.

    • Ying Tat Leung,IBM Corporation

    • Wayne F. Carriker, Intel Corporation

    • Robin L. Hoskinson, Intel Corporation

    • Ben-Rachel Igal, Intel Corporation

    • Mani Janakiram, Intel Corporation

    • Madhav Rangaswami,Intel Corporation

    • Sidal Bilgin, LSI (sign in SRC list)

    • Ramesh Rao, National Semiconductor Corporation

    • Jan Verhagen, Philips Corporation(sign in SRC list)

    • K.J. Stanley, Motorola (sign in SRC list)

    • Gurshaman S. Baweja, Texas Instruments Incorporated

    • Marcellus Rainey, Texas Instruments Incorporated


    Industrial liaisons new members

    Industrial LiaisonsNew Members

    • Jason Wang, Taiwan Semiconductor Manufacturing Company

    • James Yang, Taiwan Semiconductor Manufacturing Company

    • Giant Kao, Taiwan Semiconductor Manufacturing Company

    • Jacky Fan, Taiwan Semiconductor Manufacturing Company

    • Russell Whaley,LSI Logic(sign in SRC list)


    Research personnel

    Research Personnel

    Faculty:

    • Michael Fu, Maryland

    • Steve Marcus, Maryland

    • Emmanuel Fernandez, Cincinnati

      Students:

    • Xiaodong Yao, Maryland (near completion of PhD)

    • Ying He, Maryland (PhD completed, summer 2002)

    • Jiaqiao Hu, Maryland (2nd year PhD)

    • Jason Crabtree, Cincinnati (near completion of MS)

    • Jose Ramirez, Cincinnati (2nd year PhD)

    • Sumita Jagannathan, Cincinnati (2nd year MS)


    Project management

    Project Management

    • Weekly Site Meetings at Maryland & Cincinnati

    • Weekly Teleconferences between Maryland & Cincinnati

    • Monthly Teleconferences With Liaisons and PI’s

    • Project Website

      • http://www.smitlab.uc.edu


    Task description proposed

    Task Description(Proposed)

    Year 1-Implementing the PM scheduling algorithm; developing, distributing, and analyzing PM practice survey to drive PM planning models and algorithms; literature review of research on analytical and simulation-based models for PM planning with production considerations.

    Year 2 -Developing generic implementation platform for PM scheduling algorithm to facilitate possible transfer to 3rd party software provider; developing, testing, and validating PM planning models and algorithms.

    Year 3 –Implementing PM planning models and algorithms, validating and testing; training workshop to facilitate transfer to 3rd party software vendor.


    Src ismt force factory operations research center task nj 877

    Deliverables to Industry

    (Proposed)

    1.Survey of current PM practices in industry

    (Report) (P:15-DEC-2001)

    2. Models and algorithms to cover bottleneck

    tool sets in a fab(Report) (P:31-MAR-2002)

    3.Simulation engine implemented in commercially available

    software, with case studies and benchmark data (Report) (P:30-SEP-2002)

    4. PM planning/scheduling software tools, with accompanying

    simulation engine (Software, Report) (P:30-JUN-2003)

    5. Installation and evaluation, workshop and consultation

    (Report) (P:31-DEC-2003)


    Src ismt force factory operations research center task nj 877

    Overview

    SRC Deliverables List

    • Annual review presentation (Completed: 12-Dec-2001), Presentation(s) and Related Publication(s): P003262

    • Survey of current PM practices in industry, conducted via Web and electronic mail (Completed: 17-Jan-2002), Presentation(s) and Related Publication(s): P003461

    • Review presentation (Completed: 26-Apr-2002), Presentation(s) and Related Publication(s): P003862

    • Report on models and algorithms to cover bottleneck tool sets in a fab (Completed: 29-Jul-2002), Presentation(s) and Related Publication(s): P004304,  P004306

    • Report on the simulation engine implemented in commercially available software, covering major bottleneck tool sets (Planned: 31-Dec-2002)

    • Annual review presentation (Planned: 31-Jan-2003)

    • Report on the intelligent PM scheduling software tools, with accompanying simulation engine (Planned: 30-Jun-2003)

    • Final report summarizing research accomplishments and future direction (Planned: 31-Dec-2003)

    • Report on the installation and evaluation services for transfer to semiconductor industry and 3rd party software vendors (Planned: 31-Dec-2003)


    To do in 2002 2003

    To do in 2002-2003

    • Complete and transfer report and software:

      • PMOST 1.0.

      • Graphical interface and output

    • Refine and extend model: objective function, etc.

    • Investigate potential feasibility studies and implementation at other SRC/ISMT member companies

    • Continue discussions on transfer of models/software to commercial vendors

    • Continue development of (stochastic) MDP and queueing models, in conjunction with simulation-based approaches, for PM planning problem.


    Src ismt force factory operations research center task nj 877

    Emmanuel Fernandez, Ph.D.ECECS DepartmentUniversity of CincinnatiOverview of Software Tools and Summer Internships

    Summary


    Src ismt force factory operations research center task nj 877

    Outline

    • PMOST: Preventive Maintenance Optimal Scheduling Tool

    • Summer Internships:

      • Jason Crabtree at Intel, Chandler, AZ

      • Jose Ramirez at AMD, Austin, TX.


    Src ismt force factory operations research center task nj 877

    “Recent Accomplishments” List:

    April 2002 Review

    • PM Best Practices Survey report delivered (appended).

    • Paper for MASM delivered (appended).

    • Progress on development of generic implementation of PM Scheduling Algorithm and IT implementation: new deliverable (report, draft appended). Completed Beta Version, report draft

    • Progress on development of generic ASAP simulation engine of PM Scheduling Algorithm for key tools. Completed Beta Version, report draft

    • Investigated analytical (MDP models and queueing models) and simulation-based approaches to PM planning: dissertation.Done

    • Two student internships at member company for this summer, one or two more possible: Two Successfully Completed

      • Test and validated with ASAP fab simulation and real data,

      • Implement PM scheduling algorithm,

      • integrated with MES and PM monitoring databases.


    Src ismt force factory operations research center task nj 877

    Overview

    SRC Publications List

    Nanostructure & Integration Sciences

    Deliverable Report: Report on Models and Algorithms to Cover Major Bottleneck Tool Sets in a Semiconductor Manufacturing Fab; X. Yao, M. Fu, S. Marcus and E. Fernandez; Univ. of Maryland; 29-Jul-2002; 4pp.; (Pub P004304); Task 877.001[Abstract] [Document]   (316k)

    Presentation: Preventive Maintenance Scheduling Model and Generic Implementation, Mathematical Programming Modeling Languages and Solvers; X. Yao, M. Fu, S. Marcus and E. Fernandez; Univ. of Maryland; 29-Jul-2002; 6pp.; (Pub P004306); Task 877.001[Abstract] [Document]   (786k)


    Src ismt force factory operations research center task nj 877

    PMOST

    Overview

    • Preventive Maintenance Optimal Scheduling Tool

    • (PMOST)

    • Beta Version

    • Completed ahead of schedule in preparation for internships

    • Software implementation of our algorithms ready to transfer to fab systems

      • Standard data structures and formats defined

    • Can be used in conjunction with ASAP fab models as a simulation engine

    • Report ready, data structures and formats report ready

    • Refinements and user interface modification being done

    • Demo


    Src ismt force factory operations research center task nj 877

    PMOST Overview

    • PMOST accepts a set of parameters, e.g.,

      • planning horizon,

      • number of resources for the PM tasks,

      • cost coefficient related to the PM tasks, etc..

    • PMOST obtains an optimal solution for that problem via the use of mathematical programming solvers for Linear Programming/Mixed Integer Programming problems. The PMOST system was designed to work with different types of mathematical programming solvers, such as IBM OSL, CPLEX.

    • The system requires a set of data files, defined under specific (standard) formats, used in the optimization process.

    • Another characteristic of PMOST is the possibility to generate scheduling files containing the optimal schedule (PM orders) to perform simulation with AutoSched AP, and the generation of Mathematical Programming System files that can be used as input to mathematical programming solvers.


    Src ismt force factory operations research center task nj 877

    PMOST

    Diagram


    Src ismt force factory operations research center task nj 877

    PMOST

    • The “START” process, implemented within the main.c file, configures the optimization problem. It also orchestrates all function calls throughout the entire execution cycle.

    • Once the system is initialized, a process of reading (“READ INPUT DATA”) is performed over the tool/PM file (.fam), PM schedule files (.sch) and work in process files (.wip).

    • There is an additional file write_sch_file.c that can be used when dealing with ASAP simulations. This file takes a pm schedule from an ASAP simulation customization and writes a schedule file in the .sch format for use with the software.

    • Several files including .fam, .pm, .sch and .wip files have a customized format designed by us with the objective to facilitate the data handling.


    Src ismt force factory operations research center task nj 877

    PMOST

    • The “Write MPS file” block produces the MPS format file corresponding to the data related to the current optimization problem. This block, written in C, makes our software independent from any specific the mathematical programming solver.

    • After the MPS file is generated a process to obtain the optimized schedule starts, this is represented by the “LP/MIP SOLVER” block in the diagram.

    • In this case a call is made from the main program (main.c) to the current/selected solver in the system (IBM OSL, CPLEX, etc). The solver accepts the MPS file as its input and generates a solution for the mathematical programming problem.

    • The solution file is called “pm_solution.txt”. If the user wants to use the optimal solution in an ASAP simulation, then the functions in the file write_pm_order_file.c can be used to create a pm order file. This file is called “pm_order.txt” and its format is compatible with the simulation engine AutoSched AP (“ASAP” block). Then, such file could then be used in an ASAP simulation.


    Src ismt force factory operations research center task nj 877

    Executable Version of PMOST

    • PMOST directory structure

    • PMOST requires the use of the following directories and files for its execution:

      • pmost.exe and optimize.exe files: These files correspond to the executables files in the PMOST system. The user will use pmost_main.exe as main program.

      • input_files directory: This directory contains the <file_name>.fam, <file_name>.sch, <file_name>.wip and <file_name>.data files that contains the parameters of the system.

      • output_files directory: This directory will receive the solution files generated after the optimization process by the solver and PMOST. These files include: debug.txt, pm_order.txt, pm_solution.txt and <solver>_solution.txt

      • mps_files directory: In this directory the final MPS format file for the actual problem will be written as well as the necessary data files used to generate it.


    Src ismt force factory operations research center task nj 877

    PMOSTDemo Screen Views

    • The input data used for this exercise was artificially created for illustration purposes only.

    • The user executes the file pmost.exe and the following prompt will be shown:


    Src ismt force factory operations research center task nj 877

    PMOSTDemo Screen Views

    • After that, the user will define the “Start Date” and “End Date” in the format requested in the following screenshot:


    Src ismt force factory operations research center task nj 877

    PMOSTDemo Screen Views

    • Finally, PMOST will ask for the number of technicians assigned to each period in the planning horizon defined by the “Start Date” and the “End Date”, as follows:


    Src ismt force factory operations research center task nj 877

    PMOSTDemo Screen Views

    • PMOST will then produce the MPS file, and finally it will communicate this MPS to the solver selected. The solver will compute the optimal solution that will be decoded by PMOST and written in the output_files directory. The messages presented by PMOST are as follows:


    Src ismt force factory operations research center task nj 877

    PMOSTDemo Results

    • For this example in particular, the pm_solution.txt file will looks as follows:

    • Tool Name PM Name Old Due Date Optimal Due Date

    • CT01 7 DAY PM 01/06/2002 07:00:00 01/05/2002 07:00:00

    • CT02 14 DAY PM 01/05/2002 07:00:00 01/06/2002 07:00:00

    • CT03 28 DAY PM 01/04/2002 07:00:00 01/02/2002 07:00:00

    • CT04 56 DAY PM 01/03/2002 07:00:00 01/03/2002 07:00:00

    • CT04 PMCH1 01/01/2002 07:00:00 01/03/2002 07:00:00

    • CT05 PMCH4 01/02/2002 07:00:00 01/03/2002 07:00:00

    • CT06 PMCH5 01/03/2002 07:00:00 01/06/2002 07:00:00

    • CT07 PMCH2 01/04/2002 07:00:00 01/06/2002 07:00:00

    • CT08 PMCH3 01/02/2002 07:00:00 01/04/2002 07:00:00

    • CT09 KIT CH2 01/05/2002 07:00:00 01/05/2002 07:00:00

    • CT10 KIT CH3 01/01/2002 07:00:00 01/01/2002 07:00:00

    • CT02 7 DAY PM 01/02/2002 07:00:00 01/01/2002 07:00:00

    • CT04 14 DAY PM 01/03/2002 07:00:00 01/03/2002 07:00:00

    • CT01 28 DAY PM 01/04/2002 07:00:00 01/05/2002 07:00:00

    • CT05 56 DAY PM 01/01/2002 07:00:00 01/03/2002 07:00:00

    • CT01 PMCH1 01/05/2002 07:00:00 01/05/2002 07:00:00

    • CT10 PMCH4 01/01/2002 07:00:00 01/01/2002 07:00:00

    • CT04 PMCH5 01/02/2002 07:00:00 01/03/2002 07:00:00

    • CT06 PMCH2 01/05/2002 07:00:00 01/06/2002 07:00:00

    • CT05 PMCH3 01/03/2002 07:00:00 01/03/2002 07:00:00

    • CT03 KIT CH2 01/02/2002 07:00:00 01/02/2002 07:00:00

    • CT09 KIT CH3 01/01/2002 07:00:00 01/01/2002 07:00:00


    Src ismt force factory operations research center task nj 877

    PMOSTDemo Results

    • Also, a pm_order.txt file can be generated for use it in AutoSched AP simulations as PM orders:PMORDER STNDUEDATE PTIME PTUNITS

    • order1CT0101/05/2002 07:00:008.000000hr

    • order2CT0201/06/2002 07:00:0012.000000hr

    • order3CT0301/02/2002 07:00:0055.000000hr

    • order4CT0401/03/2002 07:00:0055.000000hr

    • order5CT0401/03/2002 07:00:0048.000000hr

    • order6CT0501/03/2002 07:00:005.000000hr

    • order7CT0601/06/2002 07:00:005.000000hr

    • order8CT0701/06/2002 07:00:0050.000000hr

    • order9CT0801/04/2002 07:00:0050.000000hr

    • order10CT0901/05/2002 07:00:0024.000000hr

    • order11CT1001/01/2002 07:00:0024.000000hr

    • order12CT0201/01/2002 07:00:008.000000hr

    • order13CT0401/03/2002 07:00:0012.000000hr

    • order14CT0101/05/2002 07:00:0055.000000hr

    • order15CT0101/05/2002 07:00:0048.000000hr

    • order17CT1001/01/2002 07:00:005.000000hr

    • order18CT0401/03/2002 07:00:005.000000hr

    • order19CT0601/06/2002 07:00:0050.000000hr

    • order20CT0501/03/2002 07:00:0050.000000hr

    • order21CT0301/02/2002 07:00:0024.000000hr

    • order22CT0901/01/2002 07:00:0024.000000hr


    Src ismt force factory operations research center task nj 877

    Jason Crabtree

    M.S. Student, Univ. of Cincinnati


    Outline

    Outline

    • Completed Work (April-June 2002)

    • Summer 2002 Internship, Intel Chandler, AZ

    • Current Work


    Completed work april june 2002

    Completed WorkApril-June 2002

    • Work for internship started in April 2002

      • Developed generic version of PM scheduling software “PMOST”

        • Frontend for PM optimization

        • Created using experience from past internships (Yao, Crabtree)

        • Designed for portability from one company to another

        • Collects and processes input data for the PM optimization

        • Generates MPS file for use with mathematical solver (Jose Ramirez)

        • Currently adding more features to handle output data from optimization


    Summer 2002 internship intel chandler az

    Summer 2002 InternshipIntel Chandler, AZ

    • Objectives

      • Validate PM optimization through simulation studies

        • Run optimization based on historical data

        • Optimized PM schedule can then be compared to best-in-practice PM schedule through simulation of fab

      • Lay groundwork for integration of PM optimization into production environment

        • Accomplished, but not discussed here due to proprietary reasons


    Team members

    Team Members

    • Jason Crabtree – CAS (Factory Automation and Support Group)

    • Robin Hoskinson - CAS

    • Paul Flores - CAS

    • Bob Madson - CAS

    • John Braunbeck –ODST (Factory Optimization/Simulation Group)

    • Madhav Rangaswami - ODST

    • Mani Janakiram – ODST

    • Emmanuel Fernandez – University of Cincinnati

      Thanks to:

    • Jack Fan – Fab12 Litho

    • Todd Ireland – Fab 12 IE

    • John Williams – F12 Thin Films

    • Kaeti Hendrickson – F12 Thin Films

    • Sharon Ramsey – Fab 12 IE

    • Megan Walsh – ODST

    • Jim Dempsey - ODST

    • Kowdle Prasad - CAS


    Simulation studies

    Simulation Studies

    • Overview

      • Two simulation studies were performed during the internship

        • Initial study involved lithography tools

        • Second study involved thin film tools

      • The performance of each optimization was evaluated using AutoSched AP (ASAP) simulation software

      • An existing tactical (i.e. short term, high detail) simulation model was used for the studies


    Simulation studies1

    Simulation Studies

    • Initial Study

      • A set of litho tools (steppers & tracks) was selected for the initial study

        • PMs included only calendar-based PM activities

        • 25 tools were involved in the study (25 steppers, 25 tracks)

        • Each corresponding stepper and track were modeled as 2 chambers (Stepper and Track) of a single tool

          • Optimization looks to consolidate PMs between the stepper and track


    Simulation studies2

    Simulation Studies

    • Second Study

      • A set of thin film tools was selected for the second study

        • PMs included both calendar and wafer-based

          • Wafer-based PMs were converted to equivalent calendar-based PMs using simple average run-rate rule

        • 16 tools were involved in the study

        • Tools modeled as 2-chambered cluster tools

          • Ideal model would include 4 chambers

          • Problems with data collection forced simplification

          • Optimization potential therefore reduced (less chance for PM consolidation)


    Simulation studies3

    Simulation Studies

    • Process Overview

      • Collect optimization data from fab systems and engineers

      • Run optimization

      • Collect simulation data from fab systems and engineers

      • Run simulations using “actual” and optimized PM schedules

        • “actual” PM schedule refers to the schedule implemented by the tool manager (not necessarily the nominal PM schedule)

      • Compare results and report out


    Simulation studies4

    Simulation Studies

    • Optimization/Simulation Setup: General

      • 2 simulations runs per study

        • First run used actual PM schedule employed in fab during historical scheduling horizon

        • Second run used optimal PM schedule output from MIP

      • Each simulation run was replicated 10 times and statistics were taken (e.g. average, standard deviation)

      • Unscheduled down events were included in simulation


    Simulation studies5

    Simulation Studies

    • Optimization/Simulation Setup: Initial Study

      • Four setups used

        • 1-week horizon, normal WIP

        • 1-week horizon, inflated WIP

        • 2-week horizon, normal WIP

        • 2-week horizon, inflated WIP


    Simulation studies6

    Simulation Studies

    • Optimization/Simulation Setup: Second Study

      • One setup used (due to time constraints)

        • 2-week horizon, normal WIP

      • Nominal PM dates had to be used for several PMs due to lack of data and time constraints


    Simulation studies7

    Simulation Studies

    • Results: Initial Study

      • Neither horizon length nor WIP conditions significantly affected results

      • Optimization made logical decisions, matching current best-in-practice methods

      • Slight improvements were shown in individual tool utilization (up to 1%)

      • No PM consolidations could be made by optimization

        • Already made by tool manager

      • Improvements due to scheduling PMs around periods of high incoming WIP


    Simulation studies8

    Simulation Studies

    • Results: Second Study

      • Optimization made logical decisions and showed better performance gains than initial study

      • Improvements were shown in individual tool utilization (up to 5%)

      • Improvements were shown in individual tool availability (up to 5%)

      • Several PM consolidations made by optimization

        • Primary reason for increased improvements


    Simulation study conclusions

    Simulation Study Conclusions

    • First off, thanks to everyone I worked with at Intel this past summer

    • Two simulation studies performed on lithography and thin film tool groups

    • PM optimization showed promising results, especially in second study

    • Groundwork laid for implementation of PM optimization into production environment


    Current work

    Current Work

    • Continuing to advise Intel team to further validate optimization through more simulations (higher WIP)

    • Continuing to refine optimization model and software at UC

      • Looking at modification of objective function to include part life component (e.g. maximizing part life may outweigh gains from PM consolidation)

      • Increasing portability of PMOST

      • Adding functionality to PMOST (Demo)

        • Wafer-based PM conversion (Jose Ramirez)

        • PM Optimization output handling


    Src ismt force factory operations research center task nj 877

    José A. RamírezPh.D. Student, University of Cincinnati


    Src ismt force factory operations research center task nj 877

    Outline

    • Completed work: April – June 2002

    • Summer internship: AMD, Inc.

    • Current work / Future tasks: September – present


    Src ismt force factory operations research center task nj 877

    Completed Work

    • The SMITLab group developed code and software PM Optimization Scheduling Tool (PMOST) implementing calendar-based PM scheduling methodology.

    • I worked specifically in the MPS generator:

      -Code in C to generate .mps files that can be used to compute optimal solutions with different solvers (e.g. OSL, CPLEX, etc.)

      -Makes PMOST independent from third party Model Description Language Tools (MDL’s).

    • Integration and test

    • Finished MDL/Solvers report

    • Prepared and successfully completed Ph.D. qualification exams.


    Src ismt force factory operations research center task nj 877

    Summer Internship

    • Internship from June to September 2002, AMD, Inc. Austin, Texas.

    • 3rd internship at this Member Company (Yao 2000, Yao & Crabtree 2001)

    • General objectives:

      • Quantify impact of optimized calendar-based PM scheduling through:

      • -Simulation analysis.

      • -Real-world comparison of optimized PM scheduling vs. actual PM scheduling on selected tool sets.

      • Enhance PM scheduling tool and models to include Wafer based PMs:-Determine model to translate into equivalent calendar estimates.

      • -Test by simulation and quantify impact of optimized PM scheduling, Develop code and integrate.


    Src ismt force factory operations research center task nj 877

    Summer Internship

    • First optimization tool (OPMST) installed in summer internship 2001 handled only calendar-based PMs.

    • Idea: convert wafer-count targets to equivalent calendar targets, then use already existing optimization tools.

    • Met with several modules (groups) to discuss wafer-based PMs, their scheduling and approaches and logic.

    • Results include a conversion algorithm to estimate due dates for wafer-based PMs.

    • The resulting conversion system is completely integrated with the existing scheduling tool.

    • Most of the required data is automatically extracted from the Fab information systems.


    Src ismt force factory operations research center task nj 877

    Wafer to Calendar-based PMs conversion

    • Current procedure in the algorithm consists of estimating the due dates for the wafer-based PM’s.

    • Two approaches:

      • Using averages: tools utilization.

      • Using all WIP information available and tool parameters.

  • Work focused on the second approach, this procedure involves several steps:

    • Define a planning horizon to perform the estimation.

    • Use actual data about wafers processed per tool at the beginning of the planning horizon, throughput rate, tool availability, and incoming WIP.

    • Chamber configuration per tool (e.g. parallel, serial, etc.).

  • Data sources used in this process:

    • Incoming WIP reports, throughput rate, and tool availability.

    • PM tasks, tool and chambers related.

    • Tool experts: chamber configuration data.


  • Src ismt force factory operations research center task nj 877

    Wafer to Calendar-based PMs conversion

    Wafer-Based PM window definition in time/wafer line:


    Src ismt force factory operations research center task nj 877

    Wafer to Calendar-based PMs conversion

    • Example, PM 300

    400

    200

    300

    .

    . .

    . . .

    tP+1

    tP

    100

    . . .

    . . .

    . . .

    09/06/2002

    Estimated dates

    09/04/2002

    09/07/2002

    09/01/2002

    09/02/2002

    t0

    Throughput rate (wafers/hour)

    WIP(hours)


    Src ismt force factory operations research center task nj 877

    Inputs and Outputs

    Additional Information obtained:

    • Estimated due dates for wafer-based PM’s.

    A set of tools

    Initial PM schedule*

    Planning horizon

    Projected Incoming WIP

    Chambers configurationTool Parameters

    Optimization

    Scheduling

    Model/algorithm

    Optimized PM Schedule

    Estimated Availability

    Estimated WIP

    *Estimated for wafer-based PM’s


    Src ismt force factory operations research center task nj 877

    Algorithm Flow Chart

    Begin

    .ini file;

    .tool file;

    .item file;

    System Initialization

    and selecting a

    machineFamily

    Generating consolidated tasks vector set {v}

    Specifying a planning horizon

    .chm file

    (Chamber Scenario)

    Computing availability loss and resources requirement for each task vector.

    Wafer to calendar-based PM’s conversion process

    Reading in Fab database, performing data filtering

    Fab

    database

    SIMPLEX and Branch-and-Bound algorithms are used in the default solver

    Generating MIP model instance in a standard format

    wip file

    Reading in projected WIP

    Invoking OSL default solver to solve

    the MIPmodel

    Resource

    Data File

    (manpower.txt)

    Reading in projected resource

    Parsing model solution and interpreting the

    result to users

    Fab

    database

    End


    Wafer to calendar based pm s conversion process

    Wafer to Calendar-based PM’s conversion process

    Conversion process: software flow diagram

    Begin

    Generates and read wafer-based PM windows file, count number of PM tasks

    Inputs:

    -

    Planning Horizon

    -

    Tool Family definition

    Compute number of

    Compute the planning horizon time length

    periods in the

    planning horizon

    Compute warning, due and late dates estimations

    WIP file

    incomplete

    Check and

    End

    read WIP file

    WIP file OK

    Write a new Fabdatabase containing estimated due dates

    Read number of tools

    End

    and chamber

    configuration file

    Read

    Fab

    Database


    Wafer to calendar based pm s conversion process1

    Wafer to Calendar-based PM’s conversion process

    Begin

    Select Tool Group

    Confirm PM Items

    Enter Planning Dates

    LP Solved On Remote Server

    Wafer-Based PM’s Conversion Process

    Confirm Optimal Schedule

    Enter Manpower Schedule

    Update Fab Database Records

    Run Optimization

    End


    Src ismt force factory operations research center task nj 877

    Simulation Study

    • Objective: quantify the impact of optimal schedule on tool availability.

    • Simulation studies conducted to compare model-based optimized PM schedule and base-line or historical (“best in practice”) PM schedules.

      • Semiconductor Fab model from the liaison company (AutoSched AP)

      • Calendar based PM study for Lithographic Process Tools (optimized vs. “best in practice” and base-line).

      • Wafer based PM study for Metal Deposition Tools (optimized vs. base-line).

      • Optimized schedules obtained using PMOST.


    Src ismt force factory operations research center task nj 877

    Simulation Study

    Calendar based PMs – Lithographic Process

    • Work week 28 WIP and Starts data in model

    • Included PMs for one week

    • Output evaluated

      • Shows positive change in tool availability (up to 1%).

      • Due to rather low loads currently in the Fab, no major improvements were observed for calendar-based scheduling, which performed as well ascurrent "best-in-practice" methods.

    • Most of the PMs included in the study were short term and they do not represent a big challenge for the optimization tool or “humans”.

    • Results validate robustness of the optimization tool.


    Src ismt force factory operations research center task nj 877

    Simulation Study

    Wafer based PMs – Metal Deposition tools

    • Work week 36** WIP and starts in model

      • Showed 3% improvement in tool availability on average (max. improvement of 5.8% on a tool)

    • Work week 32 Model

      • Showed 2% Improvement in tool availability

    • Work week 34 Model

      • Showed 1% Improvement in tool availability on average (max improvement of 3% on a tool)

        **This work week have a more complex scenario for PM tasks.


    Src ismt force factory operations research center task nj 877

    Conclusions

    • Simulation study has shown improvements on tools’ availability by applying an optimized schedule and validate the optimization tool robustness.

    • Successfully documented implementation procedures for PM scheduling software. Methodology and code was extended to handle wafer-based PMs.

    • AMD is currently going through the authorization processes to make operational" in FAB 25 tools developed during internships implementing our models.


    Src ismt force factory operations research center task nj 877

    Current work and Future Tasks

    Current work:

    • Extend conversion algorithm to different types of PMs:

      • Processing time-based and Energy-based PMs: First report completed with logic and mathematical model.

      • Code developed to integrate with PMOST environment.

      • Developed Matlab testing platform for conversion algorithms (Demo).

        Future Work:

      • Write papers.

      • Simulation of mixed scenarios with calendar, wafer and processing time based PMs.

      • Research in how to incorporate risk factors in decision taking about PM scheduling in the optimization process (PMs scheduled early or late.)

      • Research in hot lots and Optimal PM Scheduling.


    Src ismt force factory operations research center task nj 877

    Xiaodong YaoPh.D. Student, Univ. of MarylandOptimal Preventive Maintenance Policy for Unreliable Queueing systems with Applications to Semiconductor Manufacturing Fabs


    Src ismt force factory operations research center task nj 877

    Outline

    • Study of time-window policies for single machine

    • Combined PM and production policy

    • Numerical study for M/G/1 unreliable queueing systems


    Src ismt force factory operations research center task nj 877

    Time-window policy: PM conducted within a time window,

    according to a distribution

    Example: uniform distribution.

    Problem Setting

    failure

    PM

    Tp

    Tf

    T

    t

    Machine

    newest

    state

    Machine

    newest

    state

    Machine

    newest

    state

    Consider an unreliable machine,

    Objective: determine PM policy G(t) to minimize long-term average cost


    Src ismt force factory operations research center task nj 877

    Optimality of Non-Randomized Policy

    For the case of instantaneous repairs and PMs, i.e., Tf=Tp=0,

    Barlow and Proschan (1965) derive a non-randomized optimal policy.

    We have extended this result to our setting.

    By renewal theory, the average cost is

    Proposition: There exists a non-randomized optimal policy that minimizes the

    average cost, i.e., the distribution function G(t) degenerates to a point mass

    at (can be infinite).


    Src ismt force factory operations research center task nj 877

    u

    d

    Combined PM and Production Policy

    for Unreliable Production Systems

    • machine experiences time-dependent failures

    • flexible production rate,

    • inventory consumed by a constant demand d, and backlog allowed

    • Upon machine failures, repair has to be initiated with cost cr, and time

    • for repair is a r.v.

    • Before machine failures, PM can be applied with cost cp, and time for

    • PM is a r.v. as well

    • inventory holding cost g(·), piecewise linear function of inventory level

    • Objective: find PM / production policy to minimize discounted cost


    Src ismt force factory operations research center task nj 877

    Some Structural Results

    Property 1: When there is backlog, if choose not to do PM, then optimal

    production rate is at least as large as demand rate.

    Property 2: Under the following conditions:

    (1) machine failures is IFR;

    (2)

    (3) times for repair and PM are stochastically equivalent

    or machine failure rate is constant.

    For fixed inventory level, optimal PM policy has control-limit

    form.

    Property 3: For fixed age, there exists an inventory threshold level such that

    above the threshold, it is not optimal to produce.


    Src ismt force factory operations research center task nj 877

    u

    d

    Operation-Dependent Failures

    Operation-dependent failures:

    Machine deteriorates only when it is producing, and

    can not fail while idle;

    Time-dependent failures:

    Machine deteriorates whether or not producing, and

    can fail while idle.

    Then we can show property 2 (control-limit policy) is preserved under

    relaxed condition (3), i.e., hazard rate ordering between times for PM and

    for repair, in addition to other two conditions.


    Src ismt force factory operations research center task nj 877

    M/G/1 with Unreliable Server

    Gs(·)

    • Server deteriorates over the time horizon

    • Conditional probability of server failure is qnwhen the nth job is just finished

    • Two types of maintenance, i.e., CM (Corrective Maintenance) and PM

    • Generally distributed times for CM/PM, Gp(·), Gr(·)

    • PM setup cost cp, running cost rate rcp

    • CM setup cost cr, running cost rate rcr

    • Inventory holding cost rate h, and lost demand penalty ld

    • Yield rate yn at state n, unit revenue R

    • Objective is to maximize average revenue over an infinite horizon.


    Src ismt force factory operations research center task nj 877

    Optimal vs. Heuristic Policies

    Optimal policy: The policy derived from Bellman Equations.

    Double-Threshold policy: characterized by (n,N,k). If age is greater or equal

    to N, or if age is between [n,N) and the buffer level is less than k, then

    perform PM; otherwise do not perform.

    Single-Threshold policy (time-window policy): characterized by (n,N). If age

    is greater than N, then perform PM; if age is between [n,N), then perform

    PM uniformly within the window; if age is less than n, then do not perform

    PM.


    Src ismt force factory operations research center task nj 877

    Numerical Study: M/M/1 Queue

    Representative Results:

    Summary: optimality gap < 1% for optimal double-threshold policy

    ~ 4% for optimal single-threshold policy.


    Src ismt force factory operations research center task nj 877

    Appendix: Discrete-Time Model for

    Unreliable Production System


    Src ismt force factory operations research center task nj 877

    Bellman Equations


    Src ismt force factory operations research center task nj 877

    Structural Results with J Function


    Src ismt force factory operations research center task nj 877

    Emmanuel Fernandez, Ph.D.ECECS DepartmentUniversity of CincinnatiTransfer to Commercialization Plan

    Commercialization


    Src ismt force factory operations research center task nj 877

    Commercialization

    • Models and algorithms: Publications

    • PMOST: Preventive Maintenance Optimal Scheduling Tool

    • Summer Internships: Proof of concept and implementation

      • AMD: 2000 (Yao), 2001 (Yao, Crabtree), 2002 (Ramirez)

      • Intel: 2002 (Crabtree, Fernandez)


    Src ismt force factory operations research center task nj 877

    Commercialization

    • What to transfer?

      • Model & Algorithms implementation know-how

      • Data specification and structures

      • Software tools

      • Buy-in by industry


    Src ismt force factory operations research center task nj 877

    Commercialization

    Brooks

    • Talked to Joey Skinner (December 2001), and to Randy (?) in April, 2002.

      • They: Have first buy-in from several companies (develop market and tools for them)

      • Us: Does not appear to fit within what they offer.

      • Us: our tools may just need to work well with ASAP.


    Src ismt force factory operations research center task nj 877

    Commercialization

    Adexa

    • Initial discussion with Lia Minelli (Bockert), April:

      • May fit well within their “Factory Planning and Scheduling” solutions

      • Their tools use optimization procedures

    • Second round of discussions involving Simon Tunmore, VP of Strategic Enterprise.

      • NDA signed, papers exchanged, discovery phase initiated: May 13 …

      • November 11: willing to continue talks …


    Src ismt force factory operations research center task nj 877

    Commercialization

    Ibex Processes

    • Start-up Company (2-3 year-old, 16 employees):

      • www.ibexprocess.com

    • Has an ISMT sponsored project on “Predictive Maintenance,” based on neural network/statistical techniques.

      • Our tools could work with theirs, or be stand-alone complements.

      • Made connection by referral from ST Micro Electronics in Phoenix.

      • Several teleconferences: CEO, COB, Chief Scientist.

      • Meeting at San Jose Informs.

    • Significant level of interest.


    Src ismt force factory operations research center task nj 877

    Commercialization

    Plan

    • Clarify what is proprietary information and what is “transferable”

    • Clarify license and IP transfer legal issues with SRC and Universities

    • Continue talks with Adexa and Ibex

    • Other?


  • Login
