  1. Oracle Converged Infrastructure - Technical Overview November 2013

  2. The workforce is changing • Access to information, anytime & anywhere • Ability to try and “succeed or fail” quickly • Business virtualization enables companies to compete anytime & anywhere • Business is becoming collaboration focused rather than location focused • Exploit advanced data models and analytics Business innovation is technology dependent

  3. TOP BUSINESS IMPERATIVES and IT PROJECTS Enterprise Growth Operational Efficiency Reduce Costs Attract and Retain Customers Improved IT Applications and Infrastructures LINE OF BUSINESS IT TEAM Rapid provisioning of new services Agile and automated infrastructure Application flexibility and cost transparency Shared infrastructure for all apps Always-on IT systems Resilient and scalable infrastructure IMPERATIVES: AGGREGATION/CONSOLIDATION OF PROJECTS – APPLICATION MODERNIZATION/RATIONALIZATION & BI ANALYTICS – Rethinking database investments

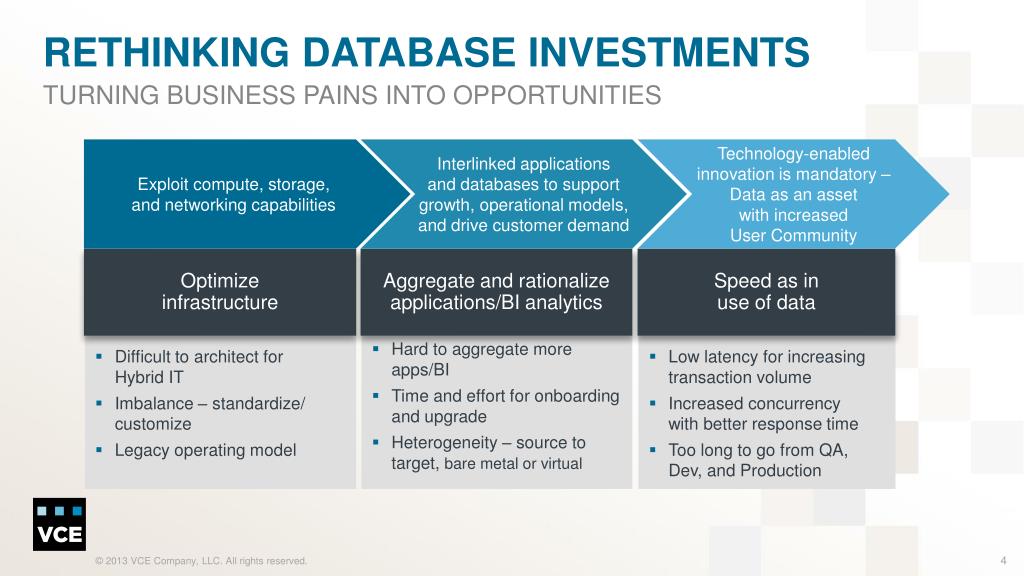

  4. Rethinking database investments • Turning Business pains into opportunities Exploit compute, storage, and networking capabilities Interlinked applications and databases to support growth, operational models, and drive customer demand Technology-enabled innovation is mandatory – Data as an asset with increased User Community • Optimize infrastructure • Aggregate and rationalize applications/BI analytics • Speed as in use of data • Difficult to architect for Hybrid IT • Imbalance – standardize/ customize • Legacy operating model • Hard to aggregate more apps/BI • Time and effort for onboarding and upgrade • Heterogeneity – source to target, bare metal or virtual • Low latency for increasing transaction volume • Increased concurrency with better response time • Too long to go from QA, Dev, and Production

  5. VblockTM Converged Infrastructure. Single Product. Single Point Of Management. Single Point Of Support.

  6. VblockTM New OLTP & Data Warehouse 3.7 Million Read IOPS 0.5mS Latency

  7. Why Migrate And Virtualize workloads Upside of VCE + Virtualization Upside of Virtualization • Consolidation • Allows multiple application servers to be consolidated onto single machines • Ease of Provisioning • Virtual images are easily duplicated/moved • Manageability • Migration tools such as vMotion allow for seamless, zero-downtime management of all application tiers • Availability • Integrated High Availability capabilities increase service level agreements (SLAs) • All Benefits of Virtualization PLUS • Faster Procurement Times • Solutions is pre-integrated, pretested, and • pre-validated for faster time to market • Reduced Management Complexity • Unified management frameworks reduces • the complex activity of managing Tier-1 • landscapes • Seamless Support • Comprehensive, integrated support that • encompasses all aspects of Vblock • Infrastructure Platforms

  8. Why Customers Run Oracle on Vblock™ Systems Today? Virtualization VblockSystems Reduce HW/SW costs Speed deployment Consolidate licenses Aggregate workloads Increase utilization Optimize and standardize infrastructure Provision faster Lower operational cost Improve quality of service and availability Secure environment Promote innovation Pre-Engineered,Pre-Validated, Pretested

  9. Providing Simple Scalability What We Do… • Physical Build • What equipment is used in system • How equipment is racked in system • Base Logical Build • What software is used on system components • How software base configuration is deployed • How equipment is connected in system • Logical Build Customization • How the systems advanced configuration is implemented for customer standards / requirements • How the systems advanced configuration is optimized for customer application/workload Pre-Engineered Pre-integrated Accelerates The Journey

  10. VCE customer benefits • Results of September 2013 IDC research study • 4X FASTER TIME TO DEPLOYMENT • 5X FASTER TIME FORNEW SERVICES • 25 days down to 5 days • 160 days down to 40 • 79% less staff effort • 96% REDUCTION • IN DOWN TIME • 50% REDUCTION • OF ANNUAL DATA CENTER COSTS

  11. Vblock™ Systems • True Converged Infrastructure SOLUTIONS & SERVICES VCE & PARTNERS SYSTEM720 SYSTEM100 SYSTEM200 SYSTEM340 SPECIALIZEDSYSTEMS VCE Vision™ Intelligent Operations software

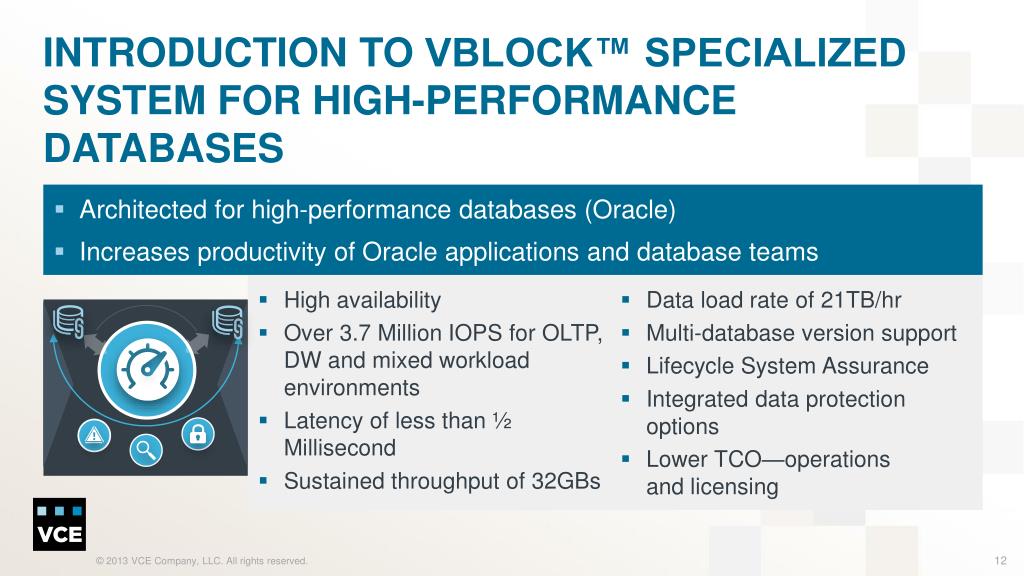

  12. Introduction to Vblock™ Specialized System for High-Performance Databases Architected for high-performance databases (Oracle) Increases productivity of Oracle applications and database teams • High availability • Over 3.7 Million IOPS for OLTP, DW and mixed workload environments • Latency of less than ½ Millisecond • Sustained throughput of 32GBs • Data load rate of 21TB/hr • Multi-database version support • Lifecycle System Assurance • Integrated data protection options • Lower TCO—operationsand licensing

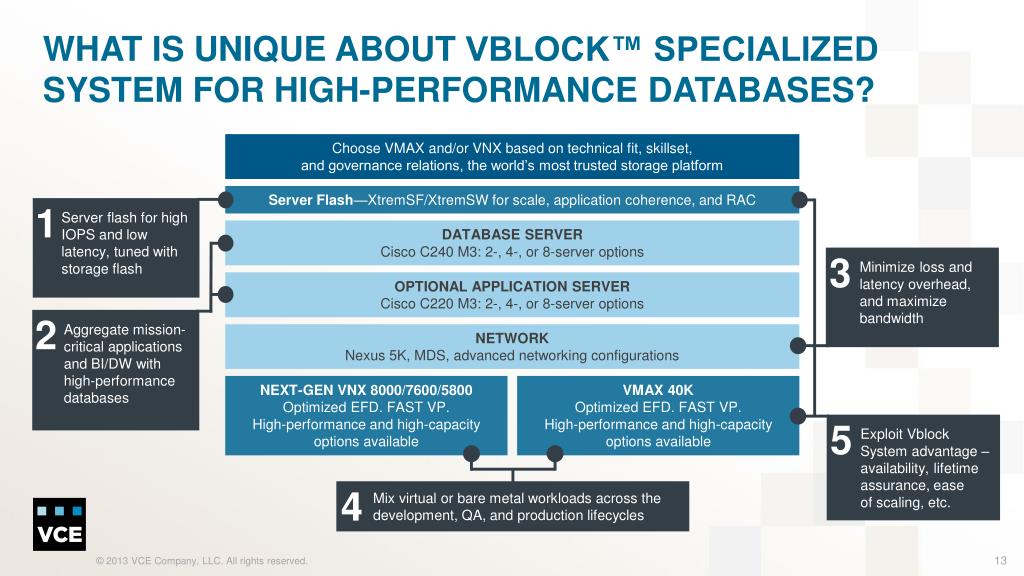

  13. What is Unique about Vblock™ Specialized System for High-Performance Databases? Choose VMAX and/or VNX based on technical fit, skillset,and governance relations, the world’s most trusted storage platform Server Flash—XtremSF/XtremSWfor scale, application coherence, and RAC 1 Server flash for high IOPS and low latency, tuned with storage flash DATABASE SERVER Cisco C240 M3: 2-, 4-, or 8-server options 3 Minimize loss and latency overhead, and maximize bandwidth OPTIONAL APPLICATION SERVER Cisco C220 M3: 2-, 4-, or 8-server options 2 Aggregate mission- critical applications and BI/DW with high-performance databases NETWORK Nexus 5K, MDS, advanced networking configurations NEXT-GEN VNX 8000/7600/5800 Optimized EFD. FAST VP. High-performance and high-capacity options available VMAX 40K Optimized EFD. FAST VP. High-performance and high-capacity options available 5 Exploit Vblock System advantage – availability, lifetime assurance, ease of scaling, etc. 4 Mix virtual or bare metal workloads across the development, QA, and production lifecycles

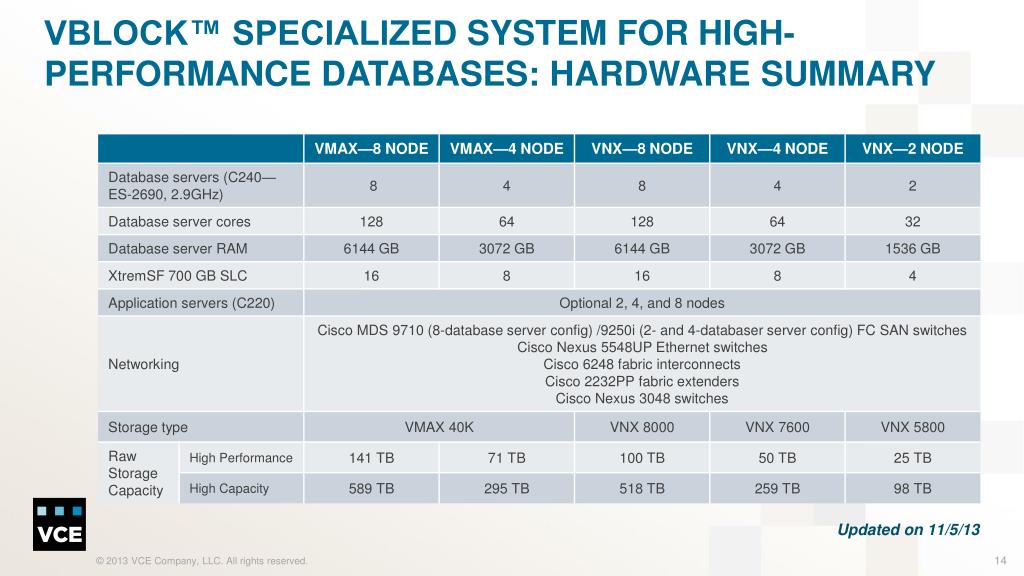

  14. Vblock™ Specialized System for High-Performance Databases: Hardware summary Updated on 11/5/13

  15. Vblock™ Specialized System for High-Performance Databases • Performance Results from Vblock System, September 2013 VCE makes no representation and undertakes no obligation with regard to product planning information, anticipated product characteristics, performance specifications or anticipated release dates (collectively, “Roadmap Information”). Roadmap information is provided by VCE as an accommodation to the recipient solely for purposes of discussion and without intending to be bound thereby.

  16. XtremSF Advantages Dramatic improvements in application latency and throughput—up to 1.13 million IOPS Broad range of eMLC and SLC capacities for use as local storage or with XtremCache – 2x700GB SLC chosen Best TCO—lowest overhead, highest performance, lowest power consumption, best density Performance Flexibility Efficiency

  17. XtremCache: SoftwarePerformance and Protection 0011001110011010110100000110100110011100001100010000110100111000111001111001001100110011000011011111001101100110 Dramatic improvements inlatency and throughput Extends EMC FAST architectureinto the server Backed by intelligent, resilient,highly available storage Performance Intelligence Protection

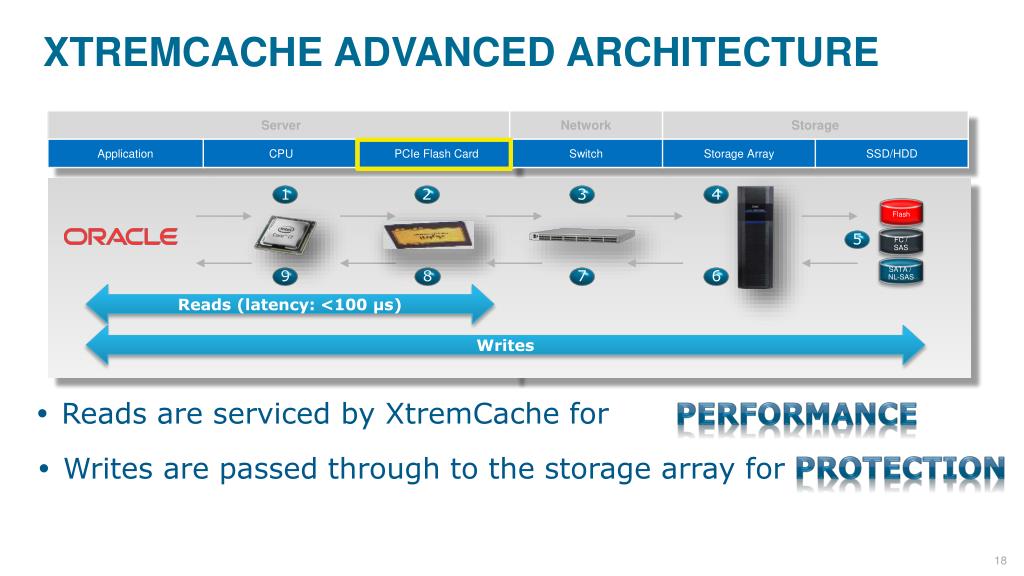

  18. XtremCacheAdvanced Architecture 1 2 3 4 Flash 5 FC / SAS 9 8 7 6 SATA / NL-SAS Reads (latency: <100 μs) Writes • Reads are serviced by XtremCache for Performance • Writes are passed through to the storage array for Protection

  19. XtremCache 2.0 – Oracle RAC Support • Requires XtremCache 2.0.1 and above • Cache-Coherency Roles & Responsibilities: • RAC still owns database content coherency (rows/columns) • XtremCache owns LUN block coherency • Optimized, sends metadata between nodes • Uses SCSI-3 PGR for nodes membership transitions • Cooperate with Oracle clusterware Oracle Clients Oracle RAC Nodes XtremCache & XtremSF Shared Volumes LUN LUN

  20. Integrated data protection Option VBLOCKTM DATA PROTECTION • Continuous availability,best-in-class system uptime • Advanced de-duplication • Optimum resource utilization • Eliminate risk, faster time to value • Support for entire Vblock Systems portfolio Avamar 7 plus Data Domain EMC RecoverPoint EMC VPLEX (For Vblock™ Specialized System for High-Performance Databases in 2014)

  21. Backup And Recovery for Oracle Integrated Solutions Takes Oracle Protection To Next Level Less storage for backup – deduplication Speed up backups 50% with DD Boost Software Less bandwidth Reliable recovery Control and visibility Third-partyBackup Applications Avamar Data Domain―DD Boost Software NetWorker ORACLE-optimized interfaces

  22. Vblock™ Specialized System for High-Performance Databases Specialized System – Open Hardware Architecture • Performance Driven • Purpose Built • Fully Integrated • Flash Everywhere • Fully Automated Storage Tiering • Physical or Virtual • Optional Add-Ons: Data Domain, VPLEX (Coming in 2014) , RecoverPoint, Replication Manager Oracle SQL Server DB2 OLTP Data Warehouse Hybrid DATABASE WORKLOAD Physical VMAX VNX Virtual VMAX VNX

  23. VblockTM for High Performance Databases • Standard Platform Software • RHEL V6.3 • PowerPath V5.7 • XtremCache V2.0.1 • Cisco MDS Enterprise • VCE Vision (VB300, VB700) • UniSphere management and FAST Suite • ProSphere management and FAST Suite • Hardware Platforms • Cisco UCS C240M3 Servers • XtremSFPCIe Flash Cache Blades • Cisco MDS & Nexus Switches • VNX (5800, 7600, 8000) Storage Arrays – FAST Cache, SSD, SAS, NL SAS • VMAX 40K (4-Engine, 8-Engine) Storage Arrays - SSD, FC, SATA

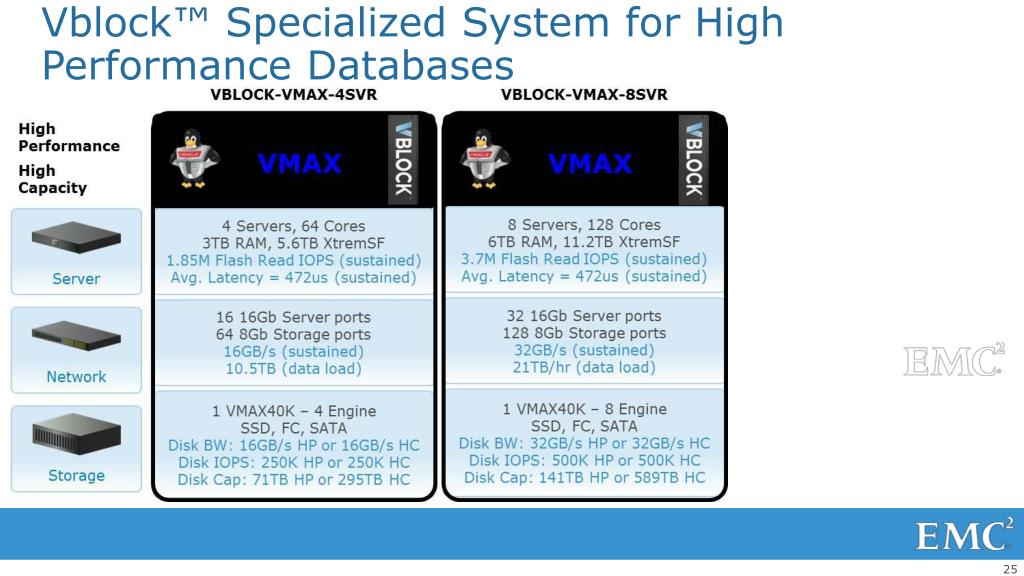

  24. Vblock™ Specialized System for High Performance Databases

  25. Vblock™ Specialized System for High Performance Databases

  26. Vblock™ Specialized System for High Performance Databases - Competitive Advantages • Supports Oracle, SQL Server, & DB2 • Supports Oracle RAC Clusters • Supports Physical or Virtual • Delivers Higher Availability • Delivers Over 3.7 Million “sustained” IOPS • Delivers Less than ½ Millisecond I/O Latency • Delivers 32GB/s Sustained Throughput • Delivers 21TB/hr Data Load • Delivers 2.5X more Usable Capacity • Delivers Active-Active Balanced Bandwidth • Does not Require 3-Way Database Mirroring • Delivers Fully Automated Storage Tiering • Delivers Server & Storage Non-Disruptive Upgrades • Optional Server Add-On s for Applications and additional workloads • Optional Federated Database Clones & Snaps • Optional Logical & Physical Database Protection • Optional Federated Multi-Site Replication • Optional Federated Data Domain Backup Delivers 26% Lower Total Cost of Ownership

  27. Vblock Enablement Services 0 Service Catalog Definition Operational Integration Application Workload Migration • Unclear application workload migration strategy • Separate operational silos • Incomplete cloud delivery model • System integrated into data center • Integrated operational processes and tools • Accelerated cloud delivery model to transform to ITaaS Platinum Gold

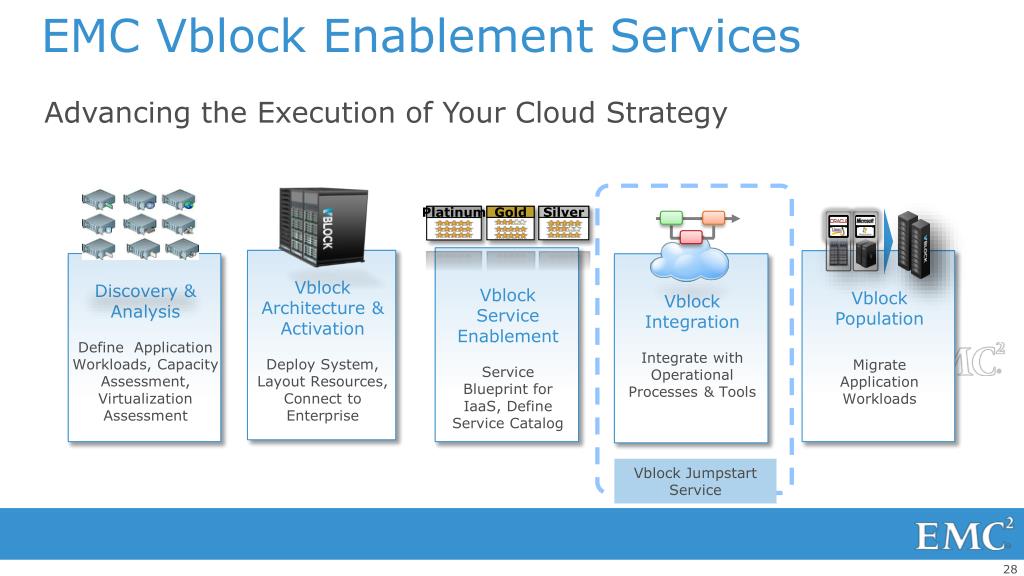

  28. EMC Vblock Enablement Services Advancing the Execution of Your Cloud Strategy Vblock Architecture &Activation Deploy System, Layout Resources, Connect to Enterprise Vblock Service Enablement ServiceBlueprint forIaaS, Define Service Catalog VblockPopulationMigrateApplicationWorkloads VblockIntegration Integrate with Operational Processes & Tools Discovery & Analysis Define Application Workloads, Capacity Assessment, Virtualization Assessment Vblock Jumpstart Service Platinum Gold Silver

  29. forOracle BestPractice

  30. EMC Community for Oracle DBAs EMC Solution Experts EMC Proven Solutions Calendar of Events and Training for Your Staff Interactive Blogs Live Demos DBA DBA EMC Virtual Infrastructure for Oracle Oracle Backup & Recovery Oracle Continuous Availability Oracle Performance Oracle Converged Infrastructure Flash & More Storage Visibility and Control DBA Control of Backup, Recovery and Replication Logical and physical recovery and active-active availability Faster Deployment, Higher Availability & Lower IT Costs Optimize Oracle Infrastructure & Maximize DBA Productivity www.emc.com/everythingoracle
