  1. MAP4C1 Trigonometry Pre-Amble and Review

  2. History • Historically, trigonometry was developed for use in astronomy and geography, but scientists have been using it for centuries for other purposes, too. • Trig is used in physics, engineering, and chemistry. • Trig is used primarily in calculus (which is perhaps its greatest application), linear algebra, and statistics. • Since these fields are used throughout the natural and social sciences, trig is a very useful subject to study.

  3. Trigonometry • Trigonometry is concerned with the ratios of lengths of sides of triangles. • In similar triangles, the ratios of corresponding sides are equal to each other.

  4. Trigonometry • No matter where T and S are chosen, these ratios are the same.

  5. Trigonometry • For a given angle <ABC, the ratio TD is unique for that angle. BD • The same holds true for the ratios: BT and TD BDBT • These ratios help define the primary trig ratios.

  6. Trigonometry sin B = opposite/hypotenuse = AC/AB cos B = adjacent/hypotenuse = BC/AB tan B = opposite/adjacent = AC/BC

  7. Examples • 1) Use your calculator to evaluate the following to the nearest thousandth: a) Sin 40o b) cos 50o c) sin 30o d) tan 45o • 2) Use your calculator to find the unknown angle to the tenth: a) sin T = 1 b) tan D = ½ c) cos M = ¼

  8. Examples • Write the trig ratios of sin A, cos A and tan A for triangle ABC, expressing each answer as a fraction in lowest terms. Plan: Step 1: Find c Step 2: Identify O, A, H Step 3: Write formulae for primary trig ratios Step 4: Sub in values and simplify!!

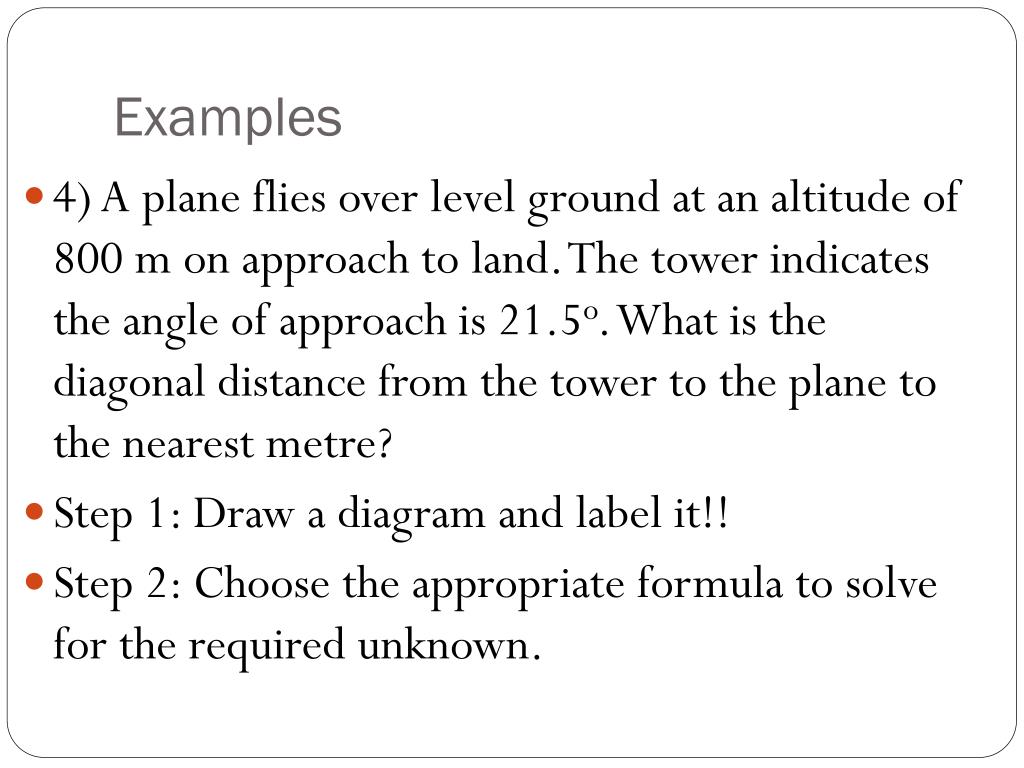

  9. Examples • 4) A plane flies over level ground at an altitude of 800 m on approach to land. The tower indicates the angle of approach is 21.5o. What is the diagonal distance from the tower to the plane to the nearest metre? • Step 1: Draw a diagram and label it!! • Step 2: Choose the appropriate formula to solve for the required unknown.

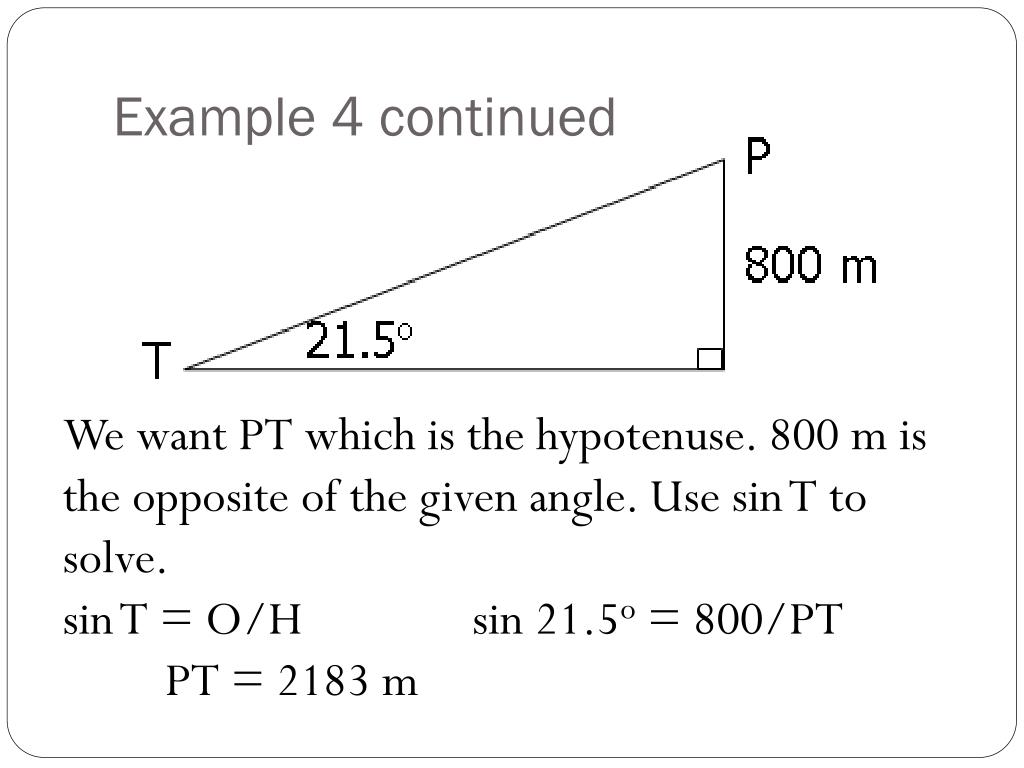

  10. Example 4 continued We want PT which is the hypotenuse. 800 m is the opposite of the given angle. Use sin T to solve. sin T = O/H sin 21.5o = 800/PT PT = 2183 m

  11. Text work • Page 4 #1-8 (Pre-test) • Page 7 # #1-4 (odd letters) • Page 9 #1, 2
