Presentation Transcript


Reduce standby power to 10mw fan302hl psr ssr mixed pwm controller

Reduce Standby Power To <10mW

FAN302HL

PSR/SSR Mixed PWM Controller


The power saving challenge

The Power Saving Challenge

  • Low Standby Power: Need a solution to comply to future energy efficiency regulations

    Source: Consortium of Mobile-Phone Makers

5 Star Level Score Chart from the Consortium of Mobile-Phone Makers calls for standby power < 30 mW for mobile charger

Expect < 30 mW could soon extend to more applications and higher power

More stringent standards are expected to come.


Smaller form factor challenge

Smaller Form Factor Challenge

  • Design trend moving to even smaller form factors

  • Reducing even more components

  • Integration is necessary


Constantly drawing power standby power loss

Constantly drawing Power – Standby Power Loss

  • Today, between 6 and 10 billion power supplies plugged-in constantly draw power

  • Figures for most developed countries show 5% to 10% of power consumption going to standby power

  • Numbers illustrate the growing concern of energy waste and attention drawn to reducing standby power


Key growth area of ac dc power supplies mobile communication

Key Growth Area of AC-DC Power Supplies – Mobile Communication

  • Key growth area will be communications, driven by mobile phones

  • A 60% increase in just four years

Source: Selantek Power Supply Report 2010


Market trend for smart devices

Market Trend for Smart Devices

  • If we take US market as an example :

    • Smartphone and feature phone shipments will meet the cross point in US market

    • Smartphone shipment will increase sharply in the coming years, but feature phone shipment will continuously drop

    • Among various PCs, the Tablet will have the highest growth rate

  • The growth trend for smart devices is spreading to the whole world

Note: Percentages may not total 100% because of rounding

Source: Forrester Research eReader Forecast, 2010 to 2015 (US)

Source:Nielson (2010/11)


System losses at no load

System Losses at No Load

  • Switching Loss

  • Conduction Loss


Mwsaver technology for smart devices

mWSaver™ Technology for Smart Devices

  • mWSaver™ technology is an optimized combination of process and circuit technologies that will be embedded in key power adapter components

  • All components with the mWSaver technology brand designation will feature the industry’s lowest standby/no-load power consumption per component

  • mWSaver Technology Solution for Smart Devices, FAN302HL:

    • PWM controller that achieves under 10 mW standby power.

    • Suitable for application from 5 W~15 W, the power range for Smart Devices (smart phones and tablet PCs).


Reduce standby power to 10mw fan302hl psr ssr mixed pwm controller

Achieve Standby power <10 mW

  • New Primary Side CC Charger controller IC

  • Three dynamic partial shutdown strategies

    • Normal Mode: CC and CV heavy load

    • Green Mode: CV mid. and light load

    • Burst Mode:CV no load


Smaller form factor with higher switching frequency

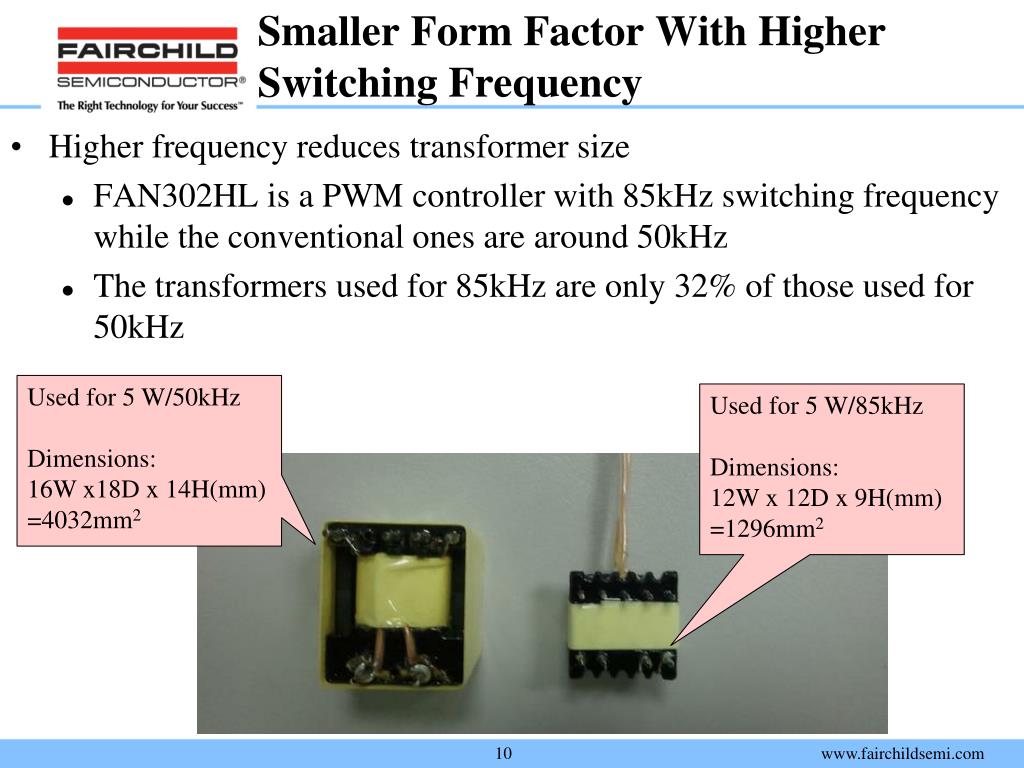

Smaller Form Factor With Higher Switching Frequency

  • Higher frequency reduces transformer size

    • FAN302HL is a PWM controller with 85kHz switching frequency while the conventional ones are around 50kHz

    • The transformers used for 85kHz are only 32% of those used for 50kHz

Used for 5 W/50kHz

Dimensions:

16W x18D x 14H(mm)

=4032mm2

Used for 5 W/85kHz

Dimensions:

12W x 12D x 9H(mm)

=1296mm2


Smaller form factor with v s ovp

Smaller Form Factor With VS OVP

  • Reduce PCB size by reducing external components with VS OVP

  • VS OVP for safer system and reduced part count

External 2nd side OVP circuit :

Photo coupler

TL431

2x BJT

Capacitors and resistors


Other benefits from fan302hl

Other Benefits from FAN302HL

CV & CC

  • Good CV dynamic

  • CV±5% vs. CC ±10%

  • Ripple < 100mV

  • Meets Highest Efficiency Standards

± 5%

± 10%

CC from PSR

CV from SSR


Meeting typical application specs with fan302hl

Meeting Typical Application Specs with FAN302HL


Mwsaver technology provides the best in class standby power

mWSaver™ Technology – Provides the Best-in-Class Standby Power

  • FAN302HL provides <10mW standby power for applications 15W and below

  • mWSaver™ technology is being designed into a series of SMPS ICs that will be released throughout 2011.

  • By developing solutions like mWSaver technology and the FAN302HL, Fairchild enables engineers to drive innovation in their designs for maximum performance, simplified design and reduced bill of materials costs.
