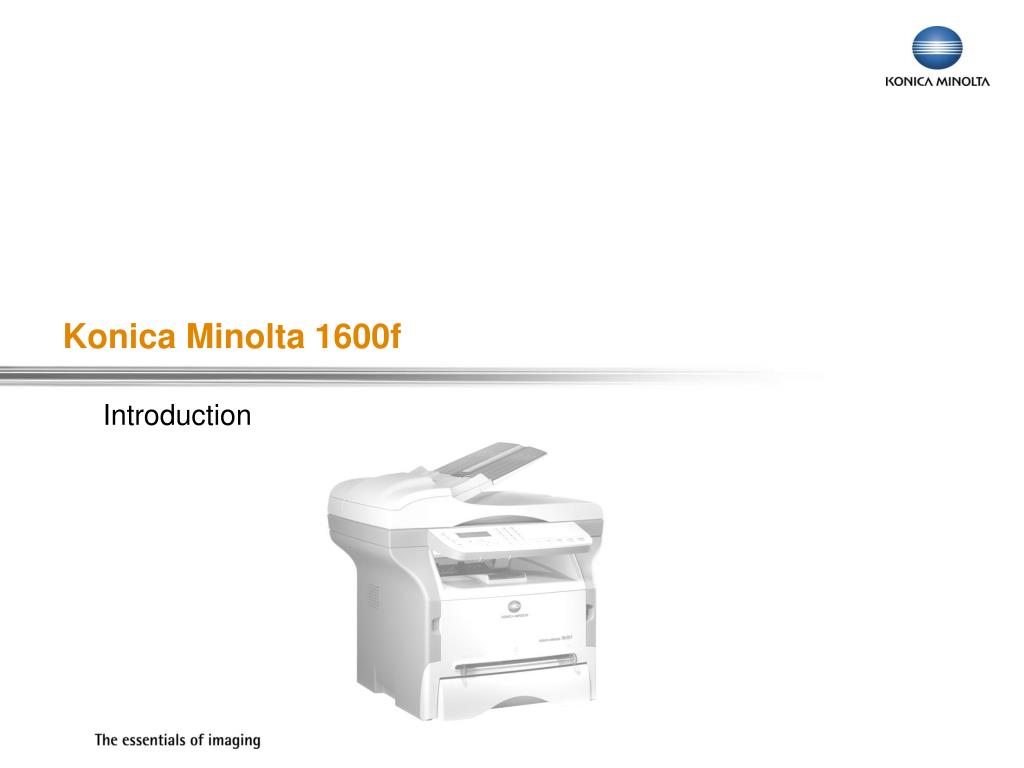

  1. Konica Minolta 1600f Introduction

  2. Basics • Have you ever heard that a MFP is compact, easy to handle and has a interesting feature set? • Maybe too often. But 1600f let it become reality!

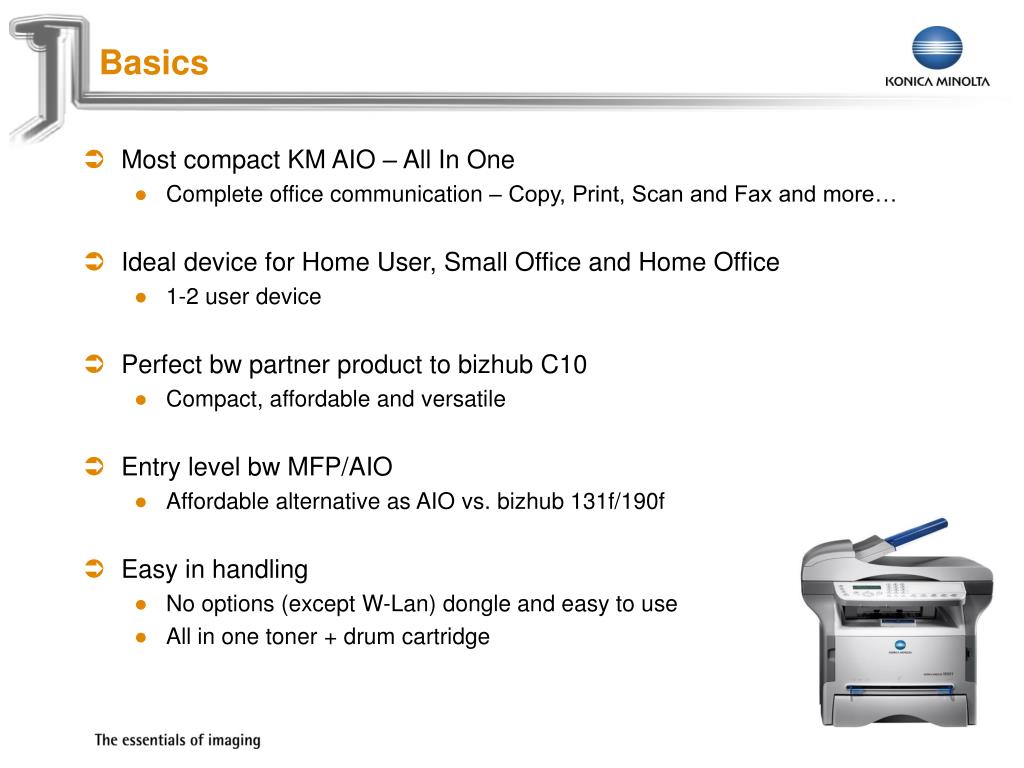

  3. Basics • Most compact KM AIO – All In One • Complete office communication – Copy, Print, Scan and Fax and more… • Ideal device for Home User, Small Office and Home Office • 1-2 user device • Perfect bw partner product to bizhub C10 • Compact, affordable and versatile • Entry level bw MFP/AIO • Affordable alternative as AIO vs. bizhub 131f/190f • Easy in handling • No options (except W-Lan) dongle and easy to use • All in one toner + drum cartridge

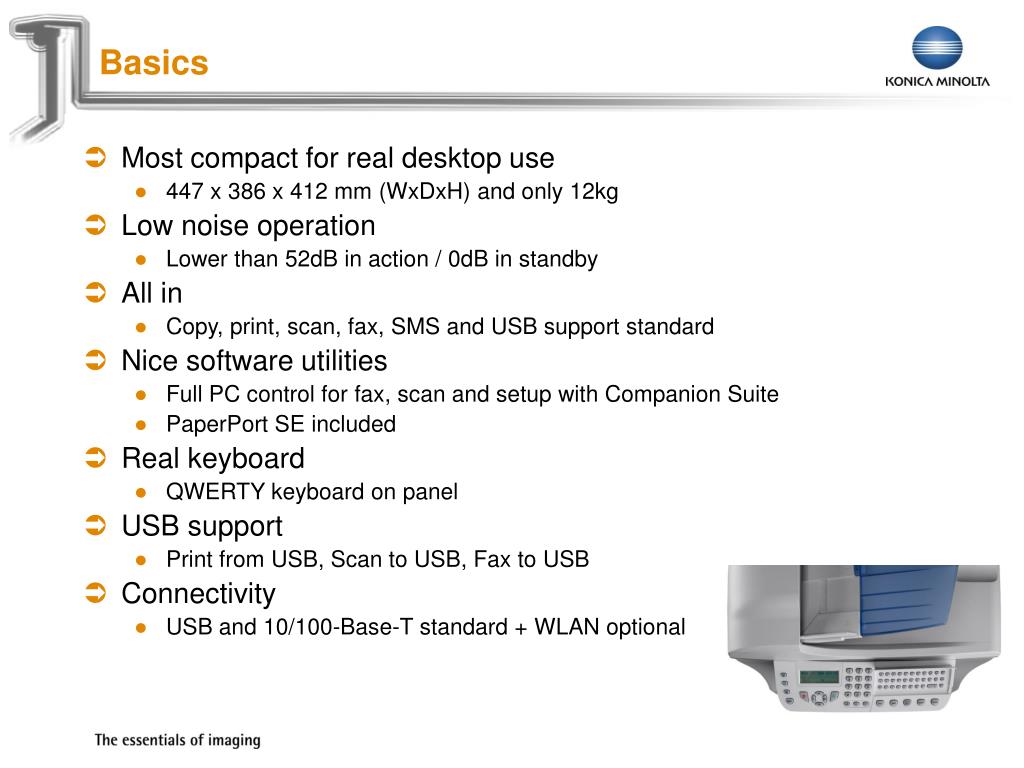

  4. Basics • Most compact for real desktop use • 447 x 386 x 412 mm (WxDxH) and only 12kg • Low noise operation • Lower than 52dB in action / 0dB in standby • All in • Copy, print, scan, fax, SMS and USB support standard • Nice software utilities • Full PC control for fax, scan and setup with Companion Suite • PaperPort SE included • Real keyboard • QWERTY keyboard on panel • USB support • Print from USB, Scan to USB, Fax to USB • Connectivity • USB and 10/100-Base-T standard + WLAN optional

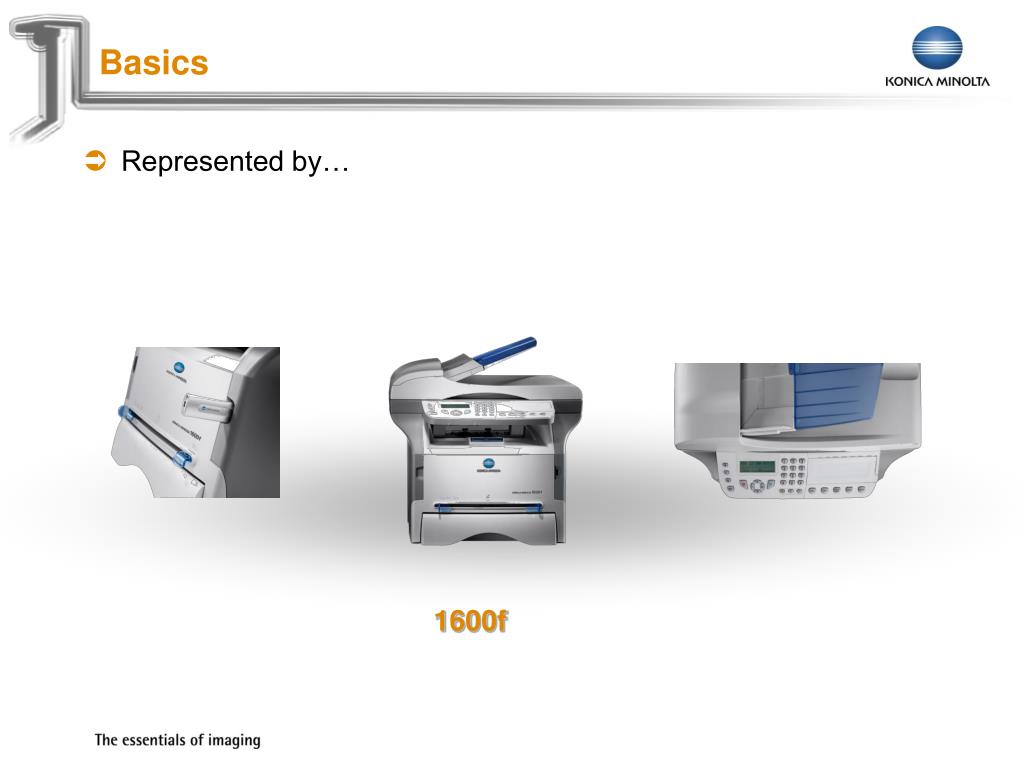

  5. Basics • Represented by… 1600f

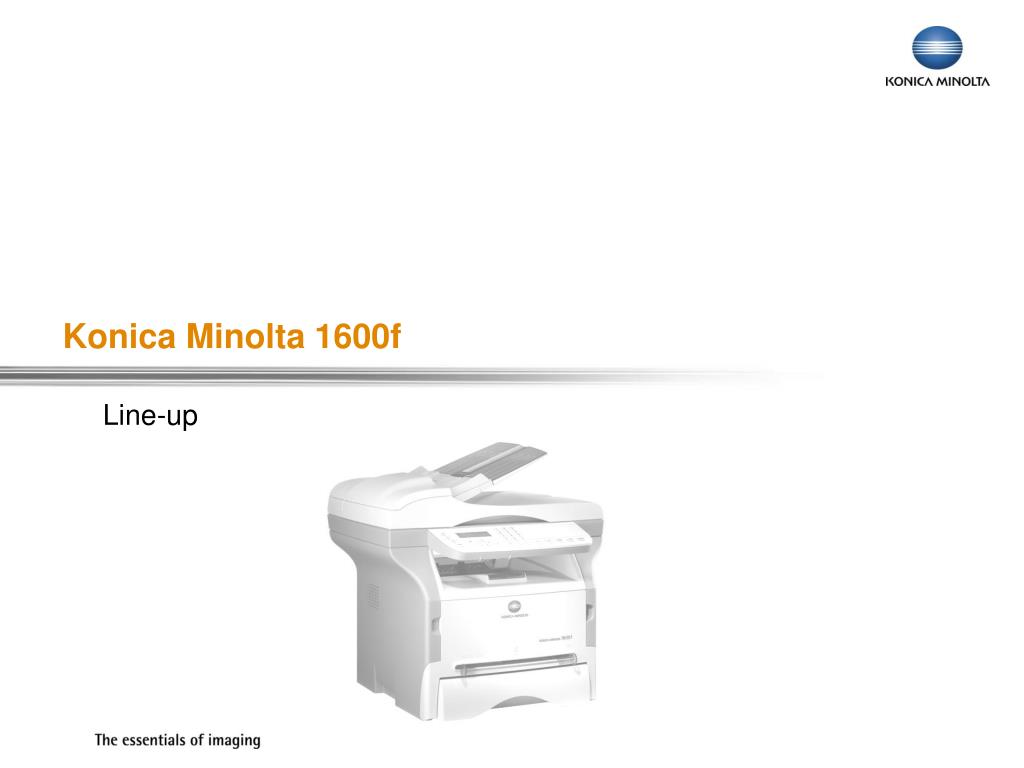

  6. Konica Minolta 1600f Line-up

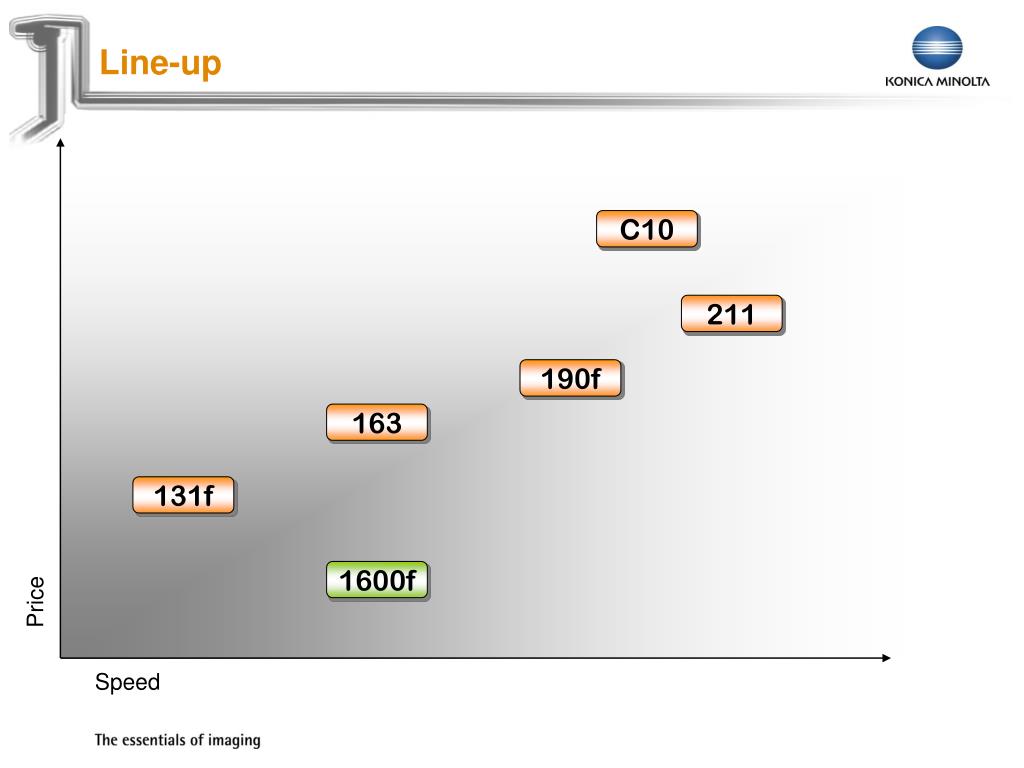

  7. Price Speed Line-up C10 211 190f 163 131f 1600f

  8. Konica Minolta 1600f Specification

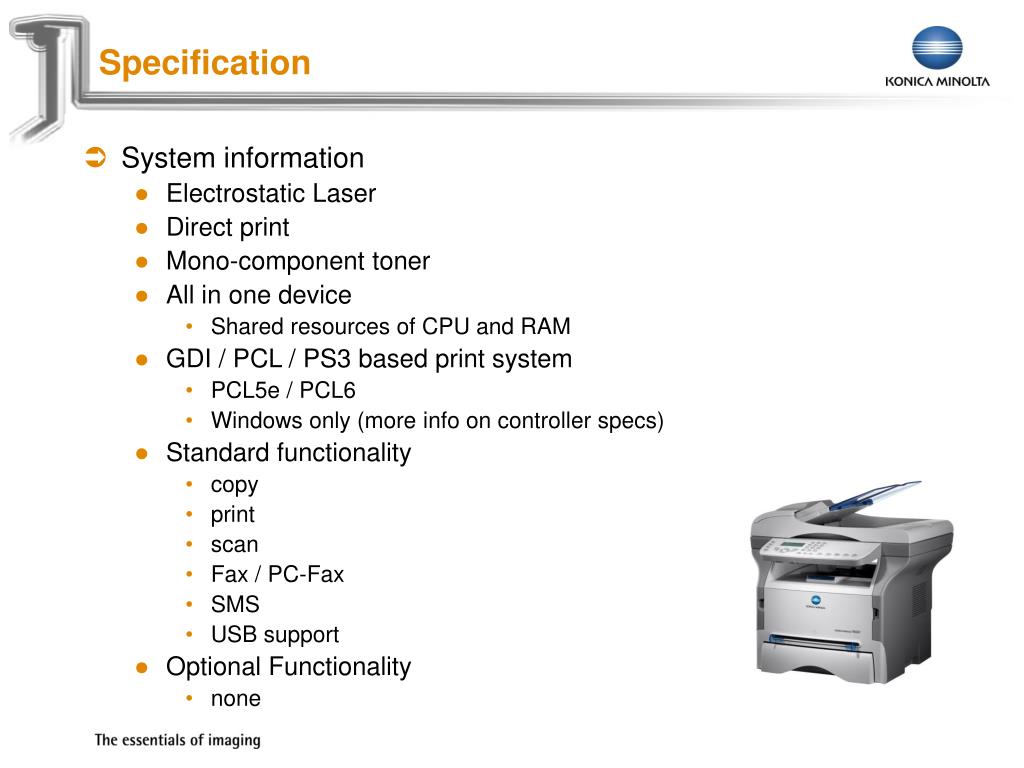

  9. Specification • System information • Electrostatic Laser • Direct print • Mono-component toner • All in one device • Shared resources of CPU and RAM • GDI / PCL / PS3 based print system • PCL5e / PCL6 • Windows only (more info on controller specs) • Standard functionality • copy • print • scan • Fax / PC-Fax • SMS • USB support • Optional Functionality • none

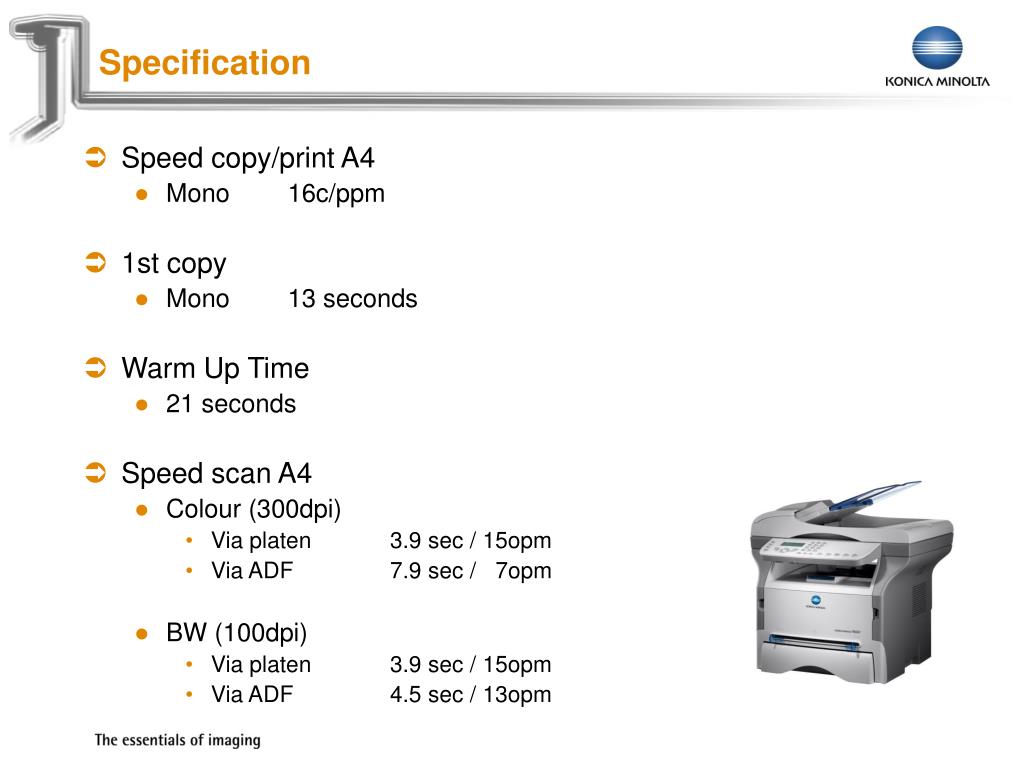

  10. Specification • Speed copy/print A4 • Mono 16c/ppm • 1st copy • Mono 13 seconds • Warm Up Time • 21 seconds • Speed scan A4 • Colour (300dpi) • Via platen 3.9 sec / 15opm • Via ADF 7.9 sec / 7opm • BW (100dpi) • Via platen 3.9 sec / 15opm • Via ADF 4.5 sec / 13opm

  11. Specification • Resolutions copy • 600 x 600 dpi • Resolutions print • 600 x 600 dpi • Resolution scan • 75 to 4800dpi (optical resolution 600 x 2400dpi) • Resolution fax • Std 300 x 100dpi • Fine 300 x 200dpi • Superfine 600 x 200dpi • Photo 600 x 200dpi (64 greyscales)

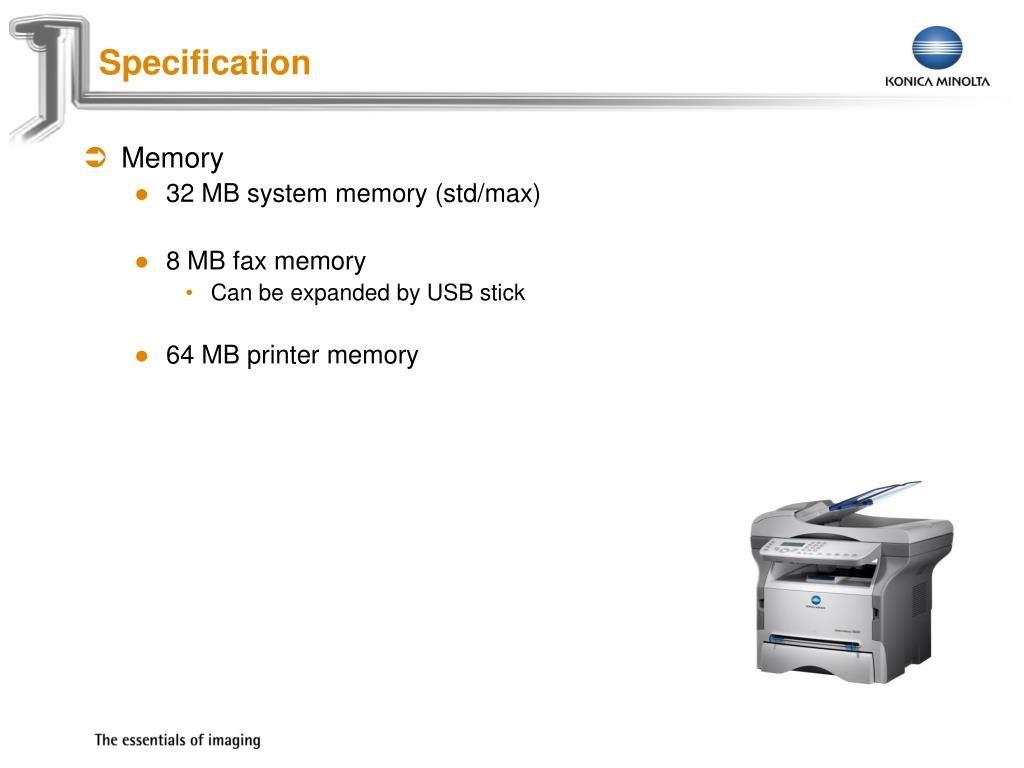

  12. Specification • Memory • 32 MB system memory (std/max) • 8 MB fax memory • Can be expanded by USB stick • 64 MB printer memory

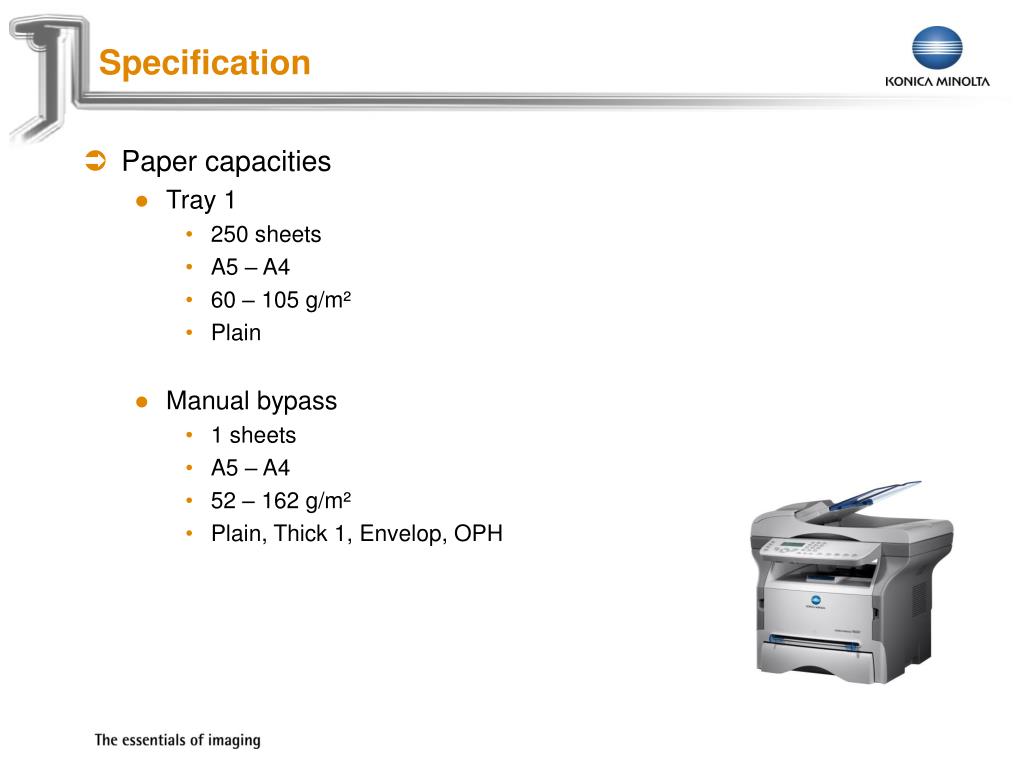

  13. Specification • Paper capacities • Tray 1 • 250 sheets • A5 – A4 • 60 – 105 g/m² • Plain • Manual bypass • 1 sheets • A5 – A4 • 52 – 162 g/m² • Plain, Thick 1, Envelop, OPH

  14. Specification • Duplex • Not available • Volumes • Rec. 0.5k Max. 1.3k • Lifetime • 80k

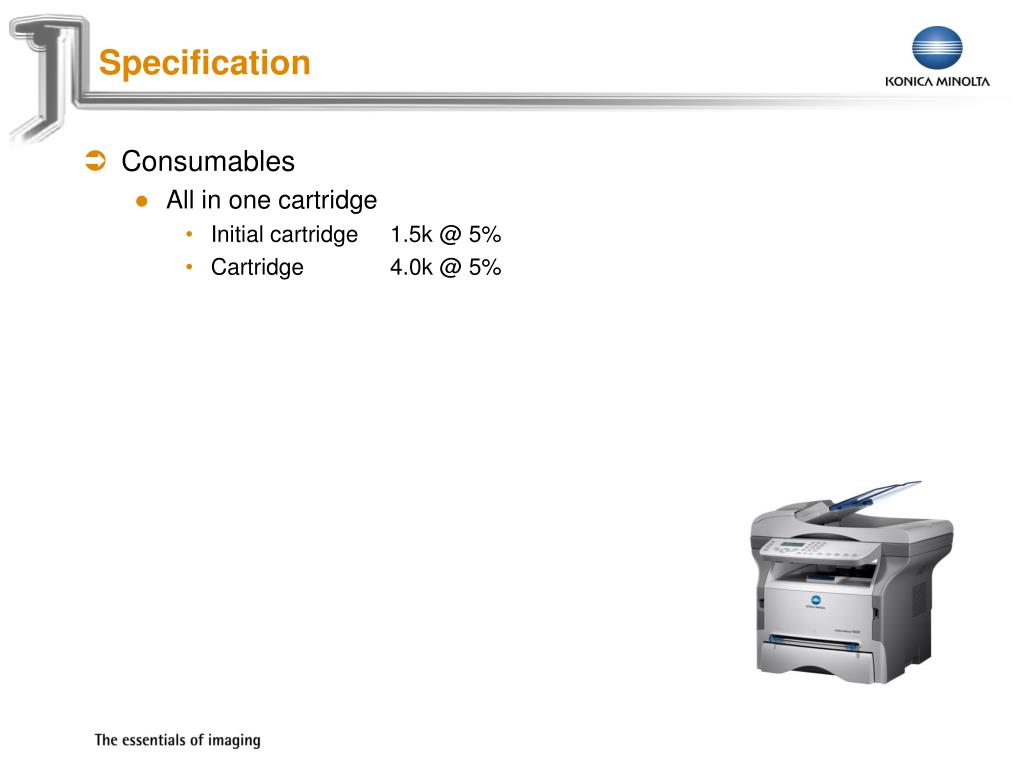

  15. Specification • Consumables • All in one cartridge • Initial cartridge 1.5k @ 5% • Cartridge 4.0k @ 5%

  16. Specification • Controller • RISC processor @ 100MHz • USB2.0 (print + scan) • 10/100-Base-T Ethernet (print) • GDI and PCL5e/6 • PostScript 3 • PPD version only • Can be used on Macintosh with Adobe Core driver. However, this is not within specification. • RJ-11 PSTN line (fax) • RJ-11 2nd line for telephone/answering machine • Printer / Scanner Driver • Windows 98, ME, 2000. XP, Vista 32 • No support for 64bit platforms

  17. Specification • Dimension • W386 x D447 x H459 • Weight • 12kg • Power Consumption • Average 340W • Standby 17W • Sleep Mode 13W • Compliance • New Energy Star • RoHS
