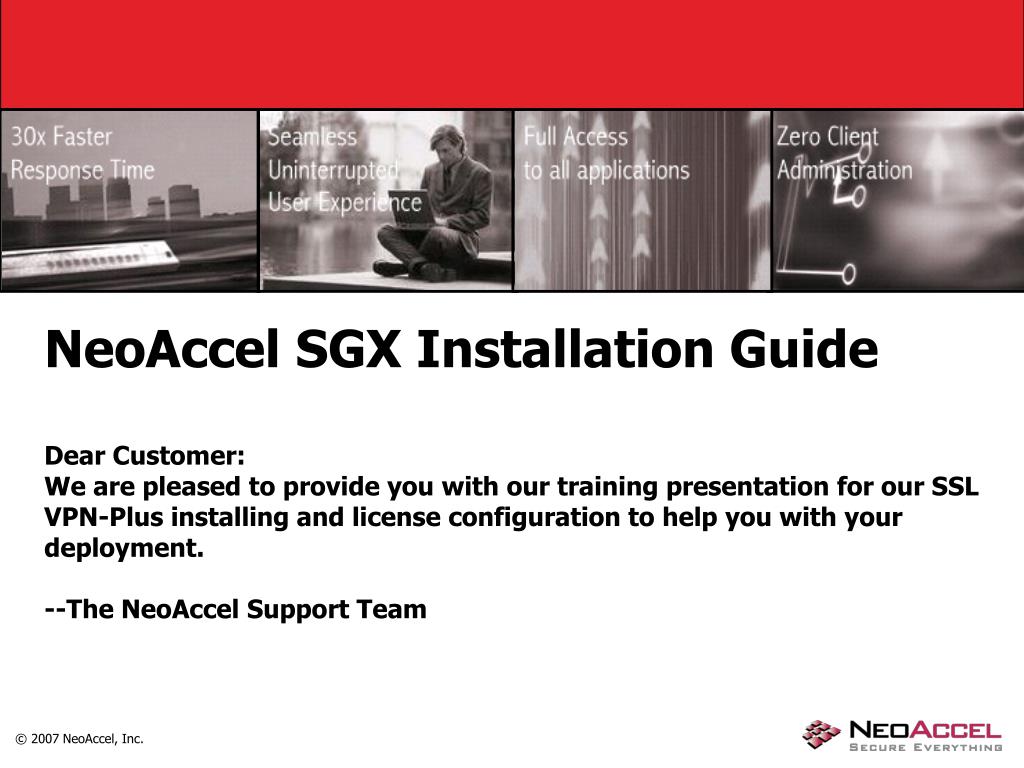

NeoAccel SGX Installation GuideDear Customer:We are pleased to provide you with our training presentation for our SSL VPN-Plus installing and license configuration to help you with your deployment.--The NeoAccel Support Team


Sgx installation guide page 3 license upgrade guide page 13

SGX Installation Guidepage 3

License Upgrade Guidepage 13

Table of Contents


Neoaccel ssl vpn plus

NeoAccel SSL VPN-Plus™

SGX Installation Guide


Prerequisites to get started

Prerequisites to Get Started

  • SSL VPN-Plus SGX Appliance(s)

    • SGX-800

    • SGX-1200

    • SGX-2400

  • A Desktop or Laptop connected to same switch as the SGX appliance

  • Management Console

    • Require JRE 1.4.2 or above on administrator’s PC

  • SSL VPN-Plus Access Terminals

    • WAT: IE 5.0 & above, Firefox, Safari, NetScape

    • QAT: Windows 2000 & above

    • PHAT: Windows 2000 & Above, WinCE 5.0 & above Red Hat 9.0, Red Hat EL 3, Knoppix, Debian, MAC OSX 10.3, 10.4, 10.5


Powering on the device

Powering ON the device

  • Connect the power cable. Connect network cable to eth0

Eth0: 192.168.10.230

SGX800

Eth0: 192.168.10.230

SGX1200

Eth0: 192.168.10.230

SGX2400


Connecting to the gateway

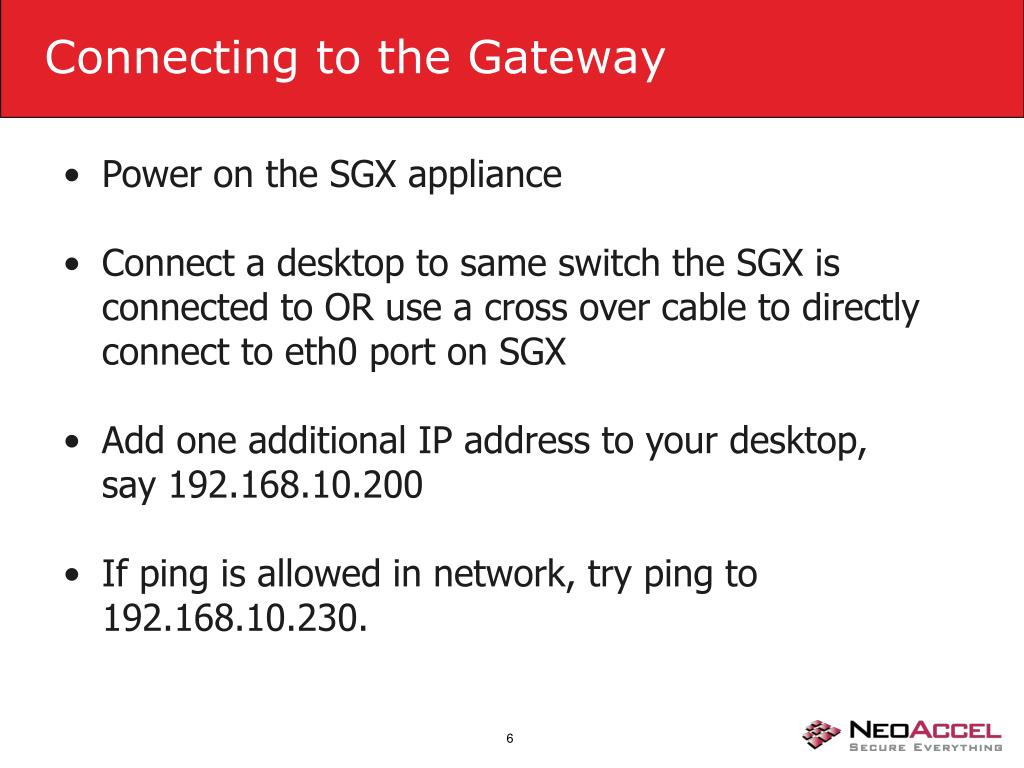

Connecting to the Gateway

  • Power on the SGX appliance

  • Connect a desktop to same switch the SGX is connected to OR use a cross over cable to directly connect to eth0 port on SGX

  • Add one additional IP address to your desktop, say 192.168.10.200

  • If ping is allowed in network, try ping to 192.168.10.230.


Access management console

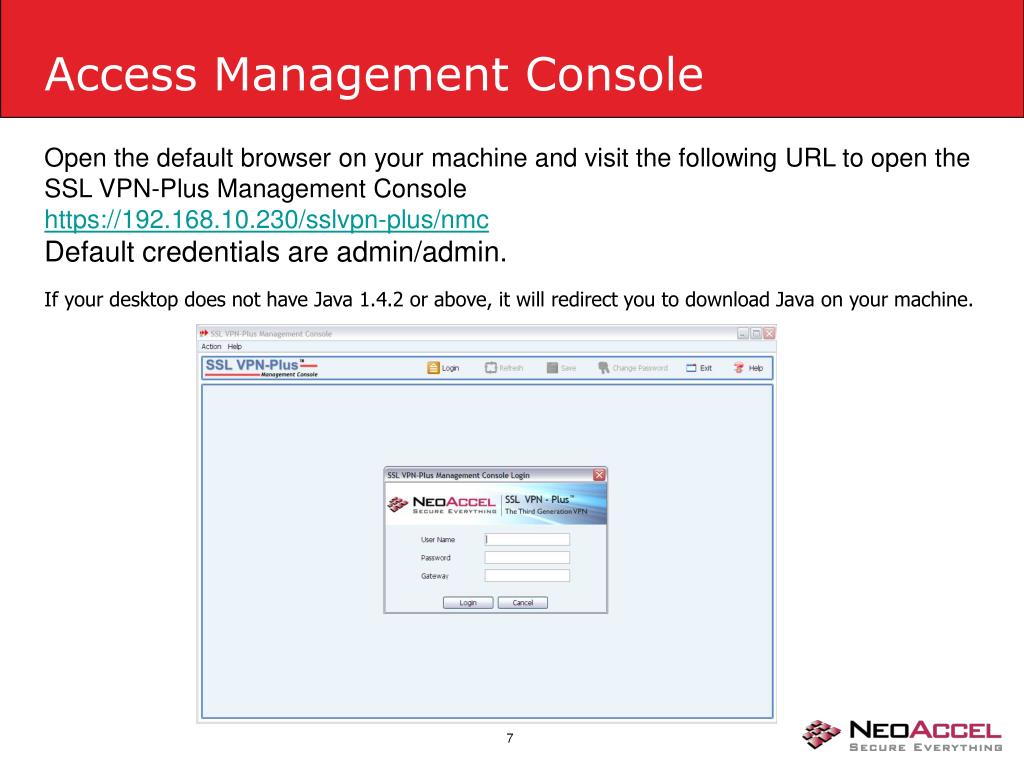

Access Management Console

Open the default browser on your machine and visit the following URL to open the SSL VPN-Plus Management Console

https://192.168.10.230/sslvpn-plus/nmc

Default credentials are admin/admin.

If your desktop does not have Java 1.4.2 or above, it will redirect you to download Java on your machine.


Networking setup

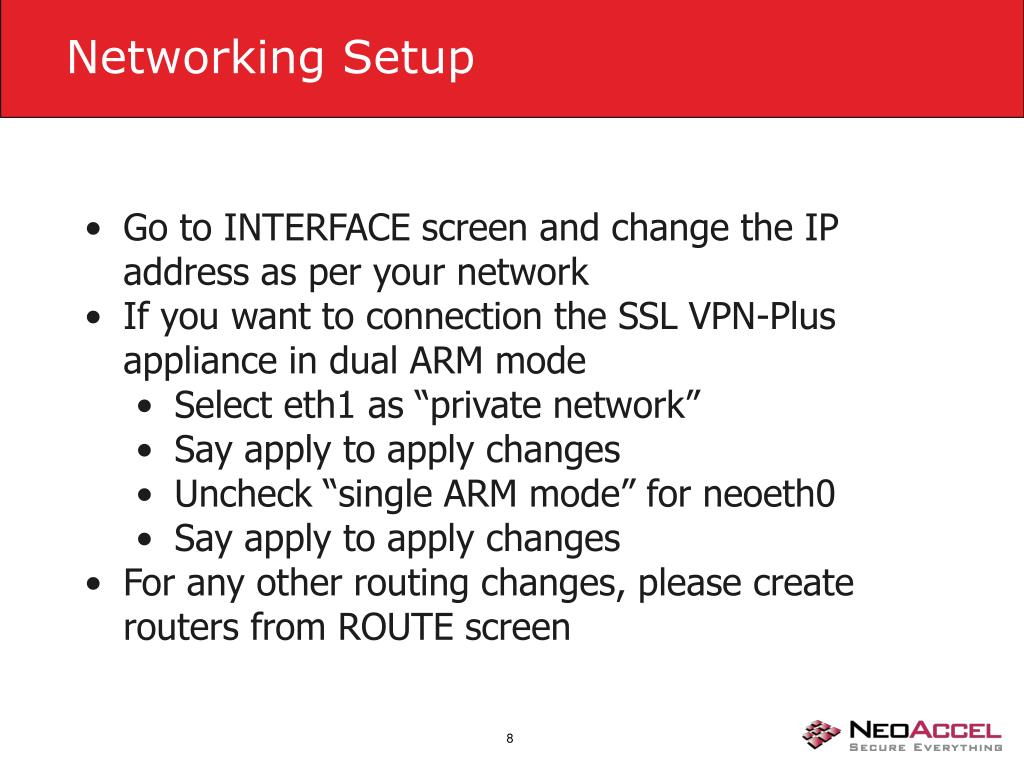

Networking Setup

  • Go to INTERFACE screen and change the IP address as per your network

  • If you want to connection the SSL VPN-Plus appliance in dual ARM mode

    • Select eth1 as “private network”

    • Say apply to apply changes

    • Uncheck “single ARM mode” for neoeth0

    • Say apply to apply changes

  • For any other routing changes, please create routers from ROUTE screen


Licensing setup

Licensing Setup

  • NeoAccel runs an online license server to provide license to customers

  • You need SSN (Software Serial Number) and password to get a license from license server

  • To get a license of SSL VPN-Plus, open management console and go to LICENSE screen.

  • Follow the instructions on screen to get/update license

  • Please refer to attached “Licensing guide” for more details.


Deployment options

Internal Workstation

Internal Server

Internal Network

External Firewall

eth1

Internet Router

eth0

SSL VPN-Plus Gateway

Internet

Internal Workstation

Internal Server

Internal Network

External Firewall

eth1

Internet Router

SSL VPN-Plus Gateway

Internet

Deployment Options

Single ARM Mode in DMZ

Parallel to Firewall


Deployment options1

Internal Workstation

Internal Workstation

Internal Server

Internal Server

Internal Network

Internal Network

External Firewall

External Firewall

Firewall: DMZ

eth1

Firewall: DMZ

eth1

eth0

SSL VPN-Plus Gateway

Internet Router

Internet Router

Internet

Internet

eth0

SSL VPN-Plus Gateway

Deployment Options

Internal DMZ

External DMZ


Access ssl vpn plus portal

Access SSL VPN-Plus Portal

  • Open URL: https://<WAN side IP address of gateway machine>/sslvpn-plus/

    • Example: https://vpn.corporate.net/sslvpn-plus/


Sgx installation guide page 3 license upgrade guide page 13

NeoAccel SSL VPN-Plus

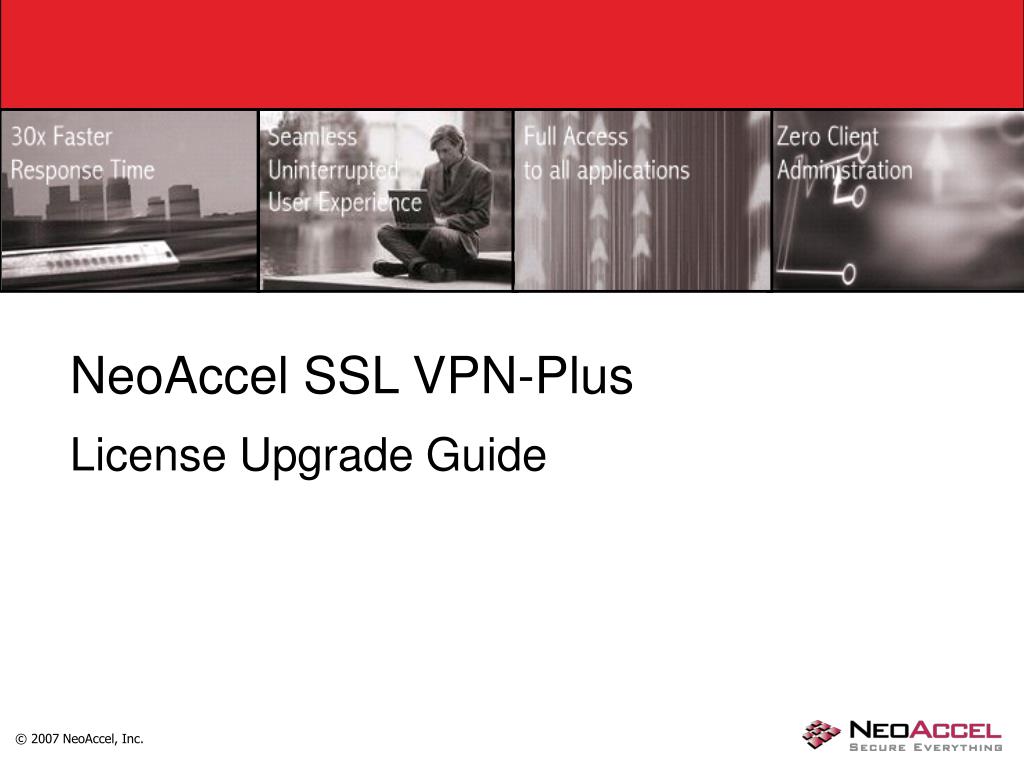

License Upgrade Guide


Ssl vpn plus licensing

SSL VPN-Plus Licensing

  • Licensing based upon

    • Number of days

    • Maximum concurrent users

    • SSL VPN-Plus features

  • Two types of licenses

    • Registered: Variable parameters

    • Evaluation: 30 days, max 25 users

  • Global license server:

  • https://utils.sslvpn-plus.net/sslvpn-plus/users/

  • License management through management console


Prerequisites

Prerequisites

  • You need the Software Serial Number (SSN) and password to access NeoAccel License Server

  • The SSN no. and password are specified on the one page main document you have got with the appliance.

  • If you need any help with licensing write to [email protected] or call Technical Support at

    • +1.408.436.1000

  • To get the license you need Internet connectivity from your desktop from where you are logged on to NeoAccel management Console.


1 open management console

#1: Open Management Console

Login into Management console


Sgx installation guide page 3 license upgrade guide page 13

#2: Visit License Management Screen

Go to License management screen. If license has expired, a warning message will be shown


Sgx installation guide page 3 license upgrade guide page 13

#3: Update License

Click on update button to update license

Enter your SSN No. and click OK to generate license request.


Sgx installation guide page 3 license upgrade guide page 13

#4: License Request Generated

Click on “copy to Clipboard” to copy the license request string displayed in the control

Click on “Open License Server to go to NeoAccel License Server


Sgx installation guide page 3 license upgrade guide page 13

#5: Visit License Server

A new browser window is opened in the default browser.

If you have Firefox set as default browser, please copy the URL in the address bar and use Internet Explorer to open the license server page.

Enter your SSN and password to enter license server


Sgx installation guide page 3 license upgrade guide page 13

#6: License Request Posting Page

You need to copy the license request from management console here.


Sgx installation guide page 3 license upgrade guide page 13

#7: Post License Request

Copy the license request from management console to license server page.

Click on submit button to generate license key.


8 license key is generated

#8: License Key is Generated

This is your license key which you need to copy to management console screen.


Sgx installation guide page 3 license upgrade guide page 13

#9: Apply License Key

Copy the license key from license server page to management console.

Click Ok button to apply the license


Sgx installation guide page 3 license upgrade guide page 13

#10: License is Updated

Updated license information is displayed here.


Sgx installation guide page 3 license upgrade guide page 13

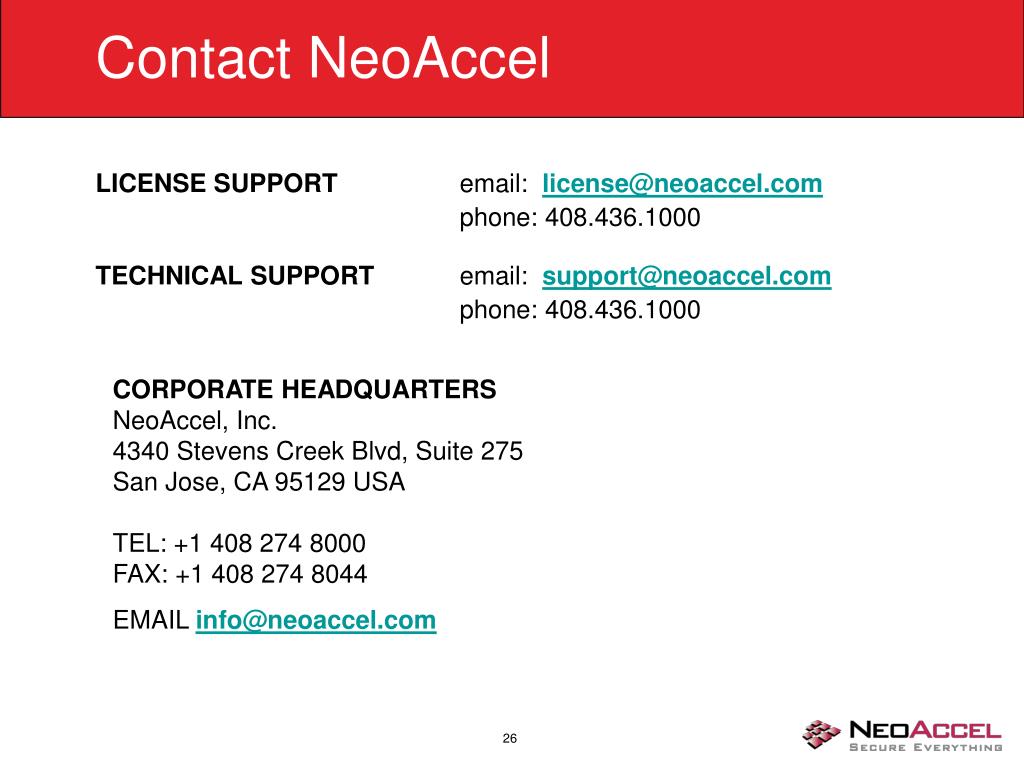

Contact NeoAccel
