SIGConnects/LitePainfree CIM Formatting

MFG/PRO Midwest Users Group

March 26, 2002


Cim in review
CIM in Review

  • QAD’s “legacy” mechanism to update MFG/PRO

  • Based on Progress redirection

    ‘INPUT FROM’ or ‘INPUT THROUGH’

  • Ability to drive a standard QAD screen programs from a data file


Why use cim
Why use CIM?

  • Retains database integrity

    • Ensures updates to all associated tables

  • Complete editing of input data

    • Same as if entered manually

  • Any screen can be updated *

    (*well, almost any!?)

  • Support from QAD is not compromised

  • “Easier” upgrades to new releases


Cim format

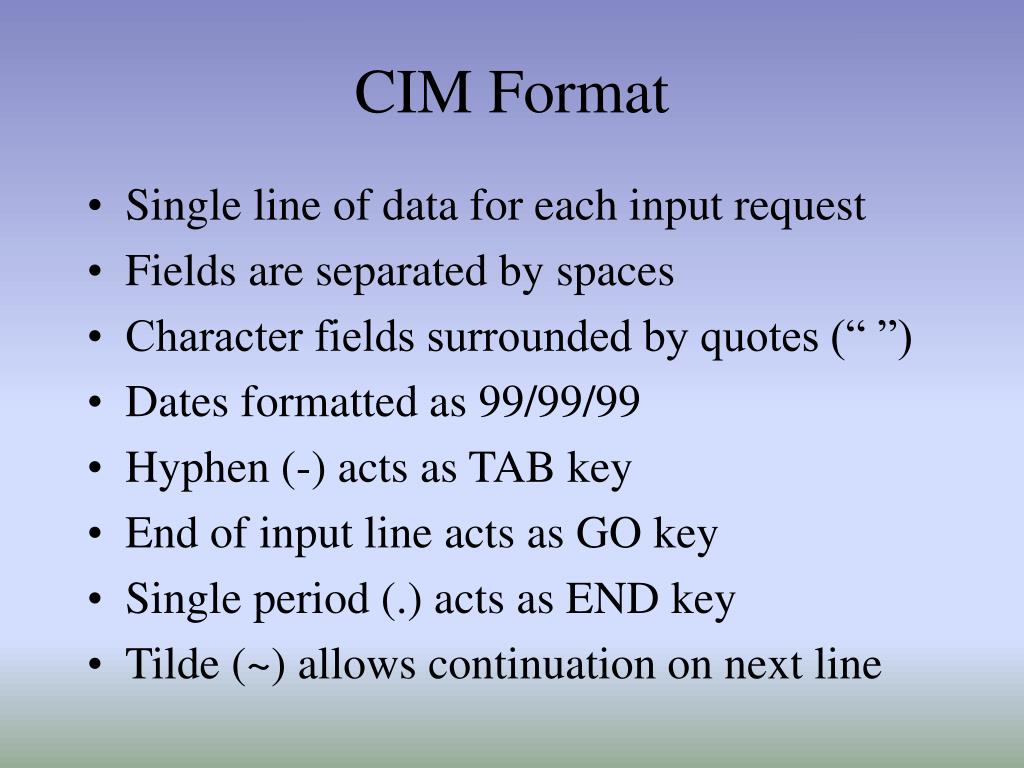

CIM Format

  • Single line of data for each input request

  • Fields are separated by spaces

  • Character fields surrounded by quotes (“ ”)

  • Dates formatted as 99/99/99

  • Hyphen (-) acts as TAB key

  • End of input line acts as GO key

  • Single period (.) acts as END key

  • Tilde (~) allows continuation on next line


Cim data format example
CIM Data Format Example

“1397-04”

“ea” “Warble-vane”

“ajb” - - “Drawing” “FINGOOD” “AC”

“A” - “10000” - - no “Article” 30 90 ~

- no yes

yes yes 0 “POQ” 100 - - - - “A”

.


Can a function run in cim
Can a function run in CIM?

  • CIM-able - All screen navigation requires only Tab, Go or End keys

  • Non-CIM-able - Requires more than Tab, Go or End keys to navigate

    • Function keys other than Go or End

    • Scrolling windows that require cursor movement and Enter key

    • Radio buttons, slider bars, etc


Cim not a perfect solution
CIM – Not a perfect solution

  • Unforgivingly ugly file format

  • Not all functions can be executed

  • Poor error reporting

  • Performance concerns

  • At upgrade, reformatting required whenever the UI changes


Sigconnects lite
SIGConnects/Lite

  • You define your input file

  • You map your input to the provided screen definition

  • You add your edits

  • SIGConnects/Lite reformats your data ready to CIM


Template driven approach

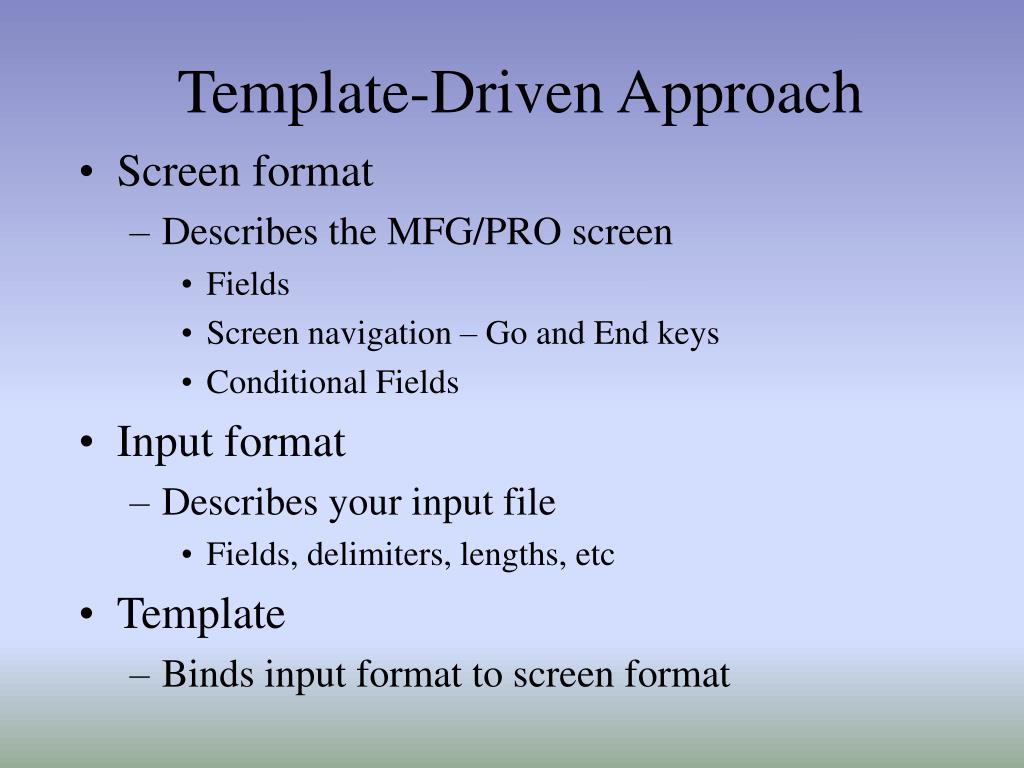

Template-Driven Approach

  • Screen format

    • Describes the MFG/PRO screen

      • Fields

      • Screen navigation – Go and End keys

      • Conditional Fields

  • Input format

    • Describes your input file

      • Fields, delimiters, lengths, etc

  • Template

    • Binds input format to screen format


Sigconnects screen formats
SIGConnects Screen Formats

Seq Field CC Cnt SIG Data Cnd

=== ============== == === ======== ===

1 pt_part

2 F1

3 lot_serialqty

4 site

  • Field: used to map from the input definition

  • CC: designates controls for F1 or F4

  • Cnt: number of times the entry repeats

  • SIGData: sets a variable for use in edit routines or reporting

  • Cnd: Conditional field


Sigconnects conditional fields

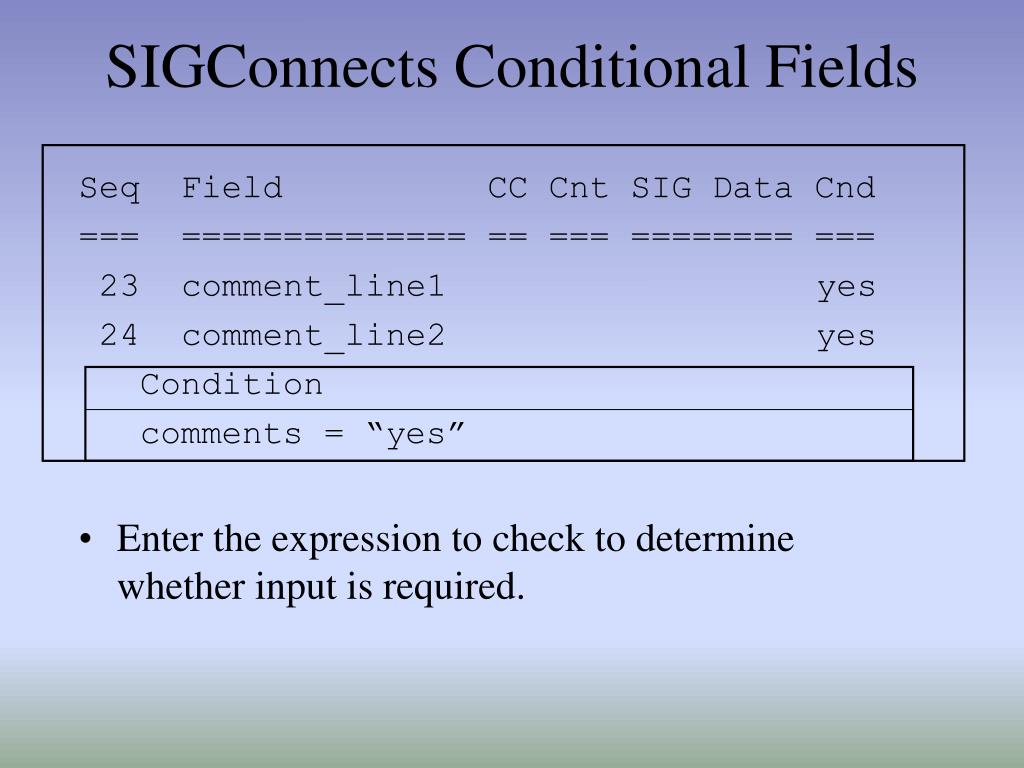

SIGConnects Conditional Fields

Seq Field CC Cnt SIG Data Cnd

=== ============== == === ======== ===

23 comment_line1 yes

24 comment_line2 yes

Condition

comments = “yes”

  • Enter the expression to check to determine whether input is required.


Screen definition libraries
Screen Definition Libraries

  • SIG provides over 100 MFG/PRO transactions

  • Specific to version and letter release

    • 7.4h through eB

  • Includes every required field and most common use of a given MFG/PRO program

  • You can modify screen definitions to support your customizations or specific use


Input formats fixed position

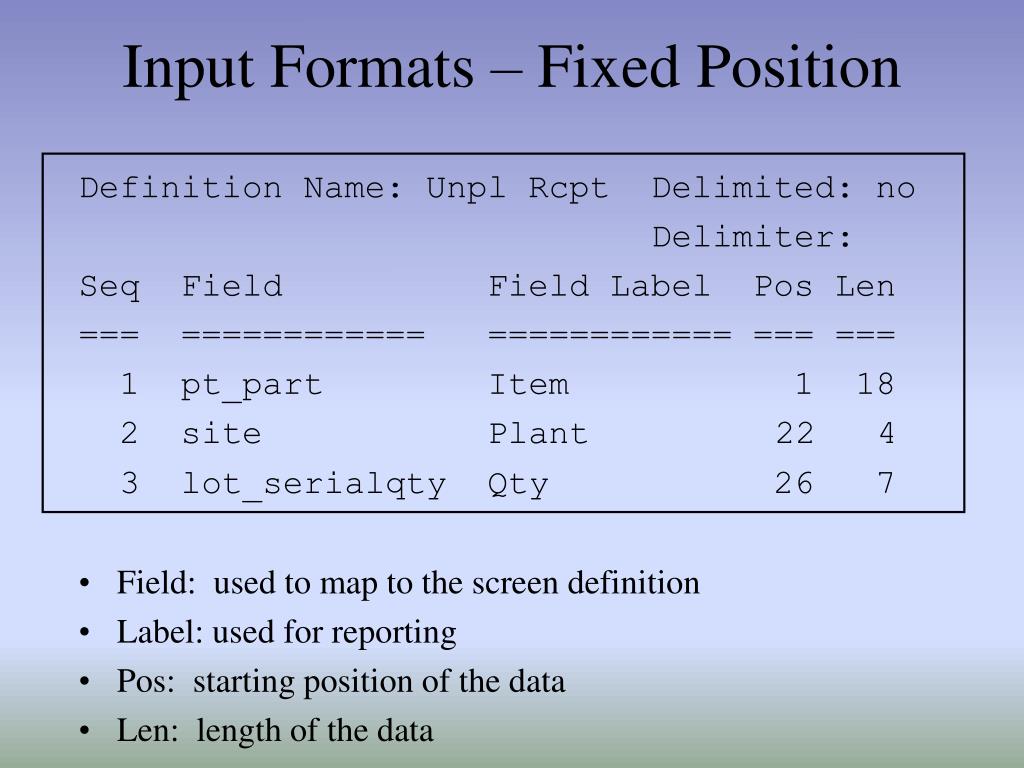

Input Formats – Fixed Position

Definition Name: Unpl Rcpt Delimited: no

Delimiter:

Seq Field Field Label Pos Len

=== ============ ============ === ===

1 pt_part Item 1 18

2 site Plant 22 4

3 lot_serialqty Qty 26 7

  • Field: used to map to the screen definition

  • Label: used for reporting

  • Pos: starting position of the data

  • Len: length of the data


Input formats delimited
Input Formats – Delimited

Definition Name: Unpl Rcpt Delimited: yes

Delimiter: ,

Seq Field Field Label

=== ============ ============

1 pt_part Item

2 site Plant

3 lot_serialqty Qty

  • Delimiter: character used to separate input fields

  • Field: used to map to the screen definition

  • Label: used for reporting


Templates binding input to output

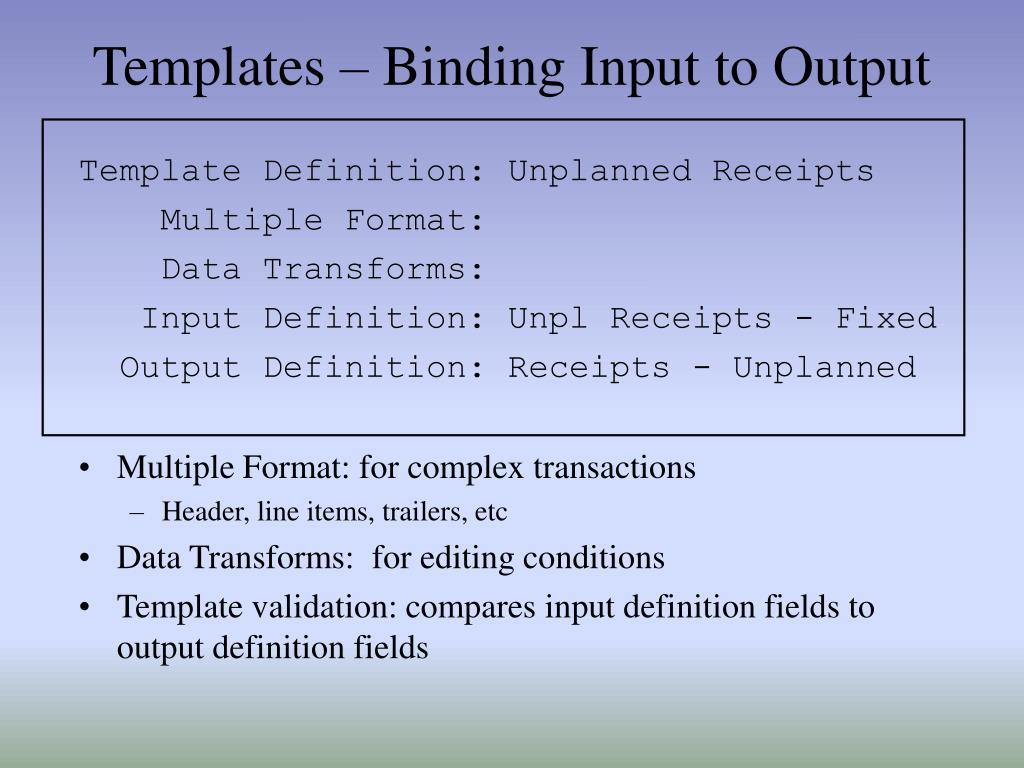

Templates – Binding Input to Output

Template Definition: Unplanned Receipts

Multiple Format:

Data Transforms:

Input Definition: Unpl Receipts - Fixed

Output Definition: Receipts - Unplanned

  • Multiple Format: for complex transactions

    • Header, line items, trailers, etc

  • Data Transforms: for editing conditions

  • Template validation: compares input definition fields to output definition fields


Running a template
Running a Template

Input File Name:

c:\lite\in\unplfixed.txt

Output File Name:

c:\lite\out\unplcim.txt

Exception Report File Name:

c:\lite\rpt\unpl.rpt

Output Format: CIMLoad

  • Specify file names to process

  • Output format: CIMLoad or Quickloader

    • Quickloader is CIM without @@ lines


Data transforms

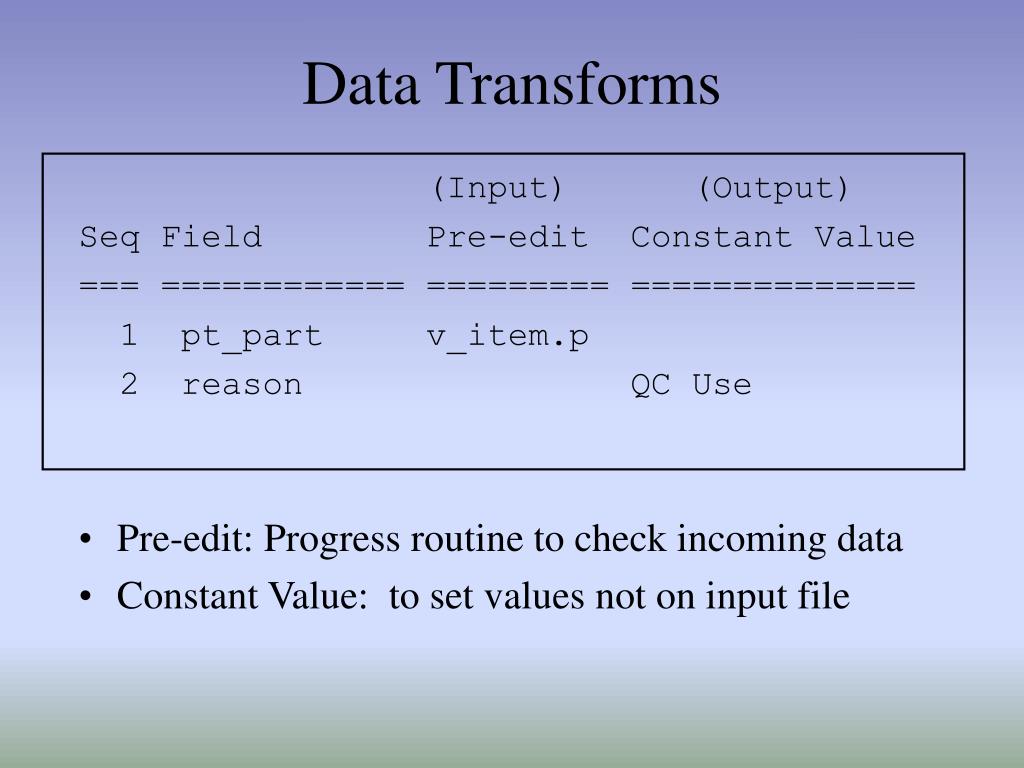

Data Transforms

(Input) (Output)

Seq Field Pre-edit Constant Value

=== ============ ========= ==============

1 pt_part v_item.p

2 reason QC Use

  • Pre-edit: Progress routine to check incoming data

  • Constant Value: to set values not on input file


Pre edit routines

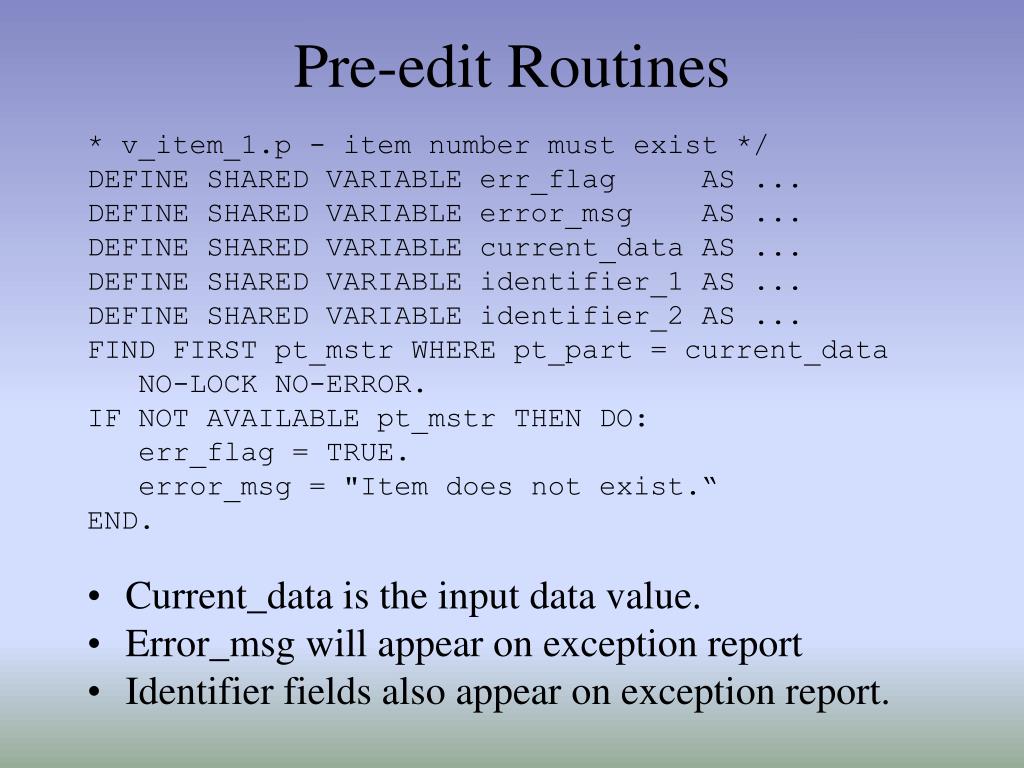

Pre-edit Routines

* v_item_1.p - item number must exist */

DEFINE SHARED VARIABLE err_flag AS ...

DEFINE SHARED VARIABLE error_msg AS ...

DEFINE SHARED VARIABLE current_data AS ...

DEFINE SHARED VARIABLE identifier_1 AS ...

DEFINE SHARED VARIABLE identifier_2 AS ...

FIND FIRST pt_mstr WHERE pt_part = current_data

NO-LOCK NO-ERROR.

IF NOT AVAILABLE pt_mstr THEN DO:

err_flag = TRUE.

error_msg = "Item does not exist.“

END.

  • Current_data is the input data value.

  • Error_msg will appear on exception report

  • Identifier fields also appear on exception report.


Pre edit routines can transform input

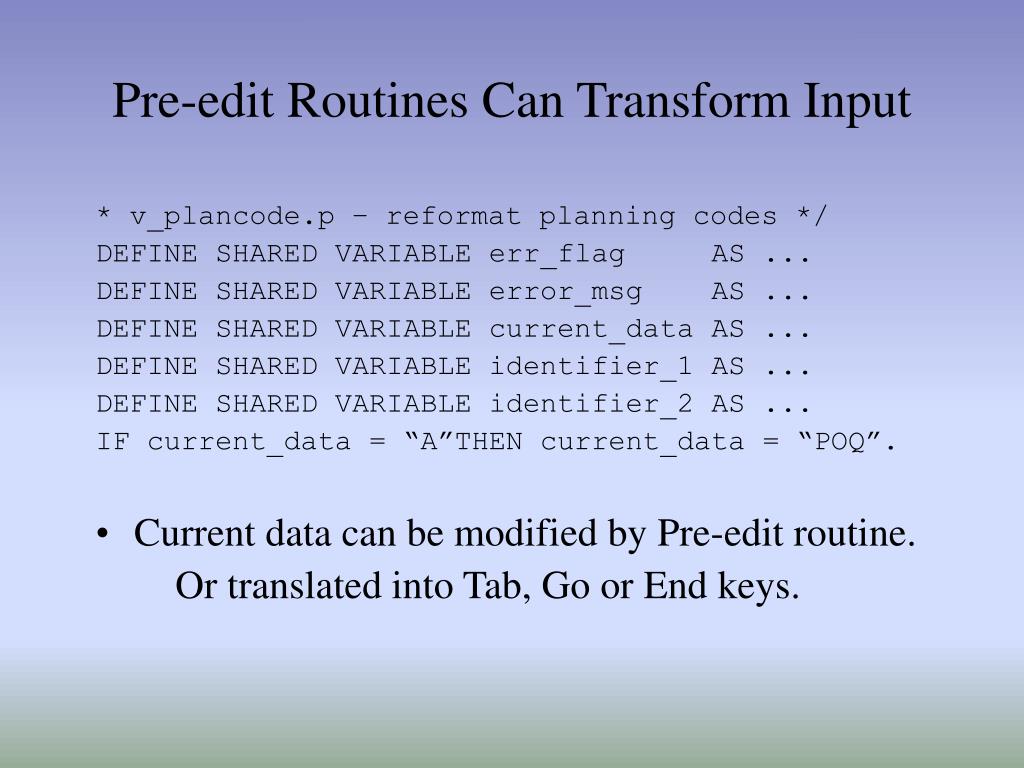

Pre-edit Routines Can Transform Input

* v_plancode.p – reformat planning codes */

DEFINE SHARED VARIABLE err_flag AS ...

DEFINE SHARED VARIABLE error_msg AS ...

DEFINE SHARED VARIABLE current_data AS ...

DEFINE SHARED VARIABLE identifier_1 AS ...

DEFINE SHARED VARIABLE identifier_2 AS ...

IF current_data = “A”THEN current_data = “POQ”.

  • Current data can be modified by Pre-edit routine.

    Or translated into Tab, Go or End keys.


Exception reports

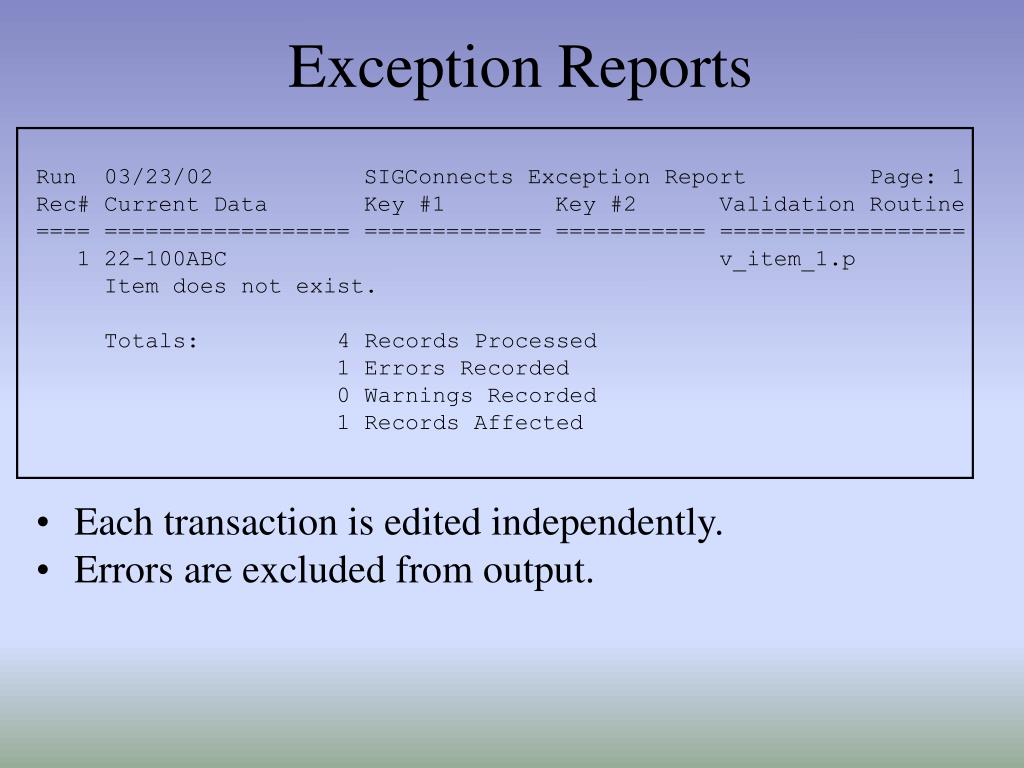

Exception Reports

Run 03/23/02 SIGConnects Exception Report Page: 1

Rec# Current Data Key #1 Key #2 Validation Routine

==== ================== ============= =========== ==================

1 22-100ABC v_item_1.p

Item does not exist.

Totals: 4 Records Processed

1 Errors Recorded

0 Warnings Recorded

1 Records Affected

  • Each transaction is edited independently.

  • Errors are excluded from output.


Complex transactions

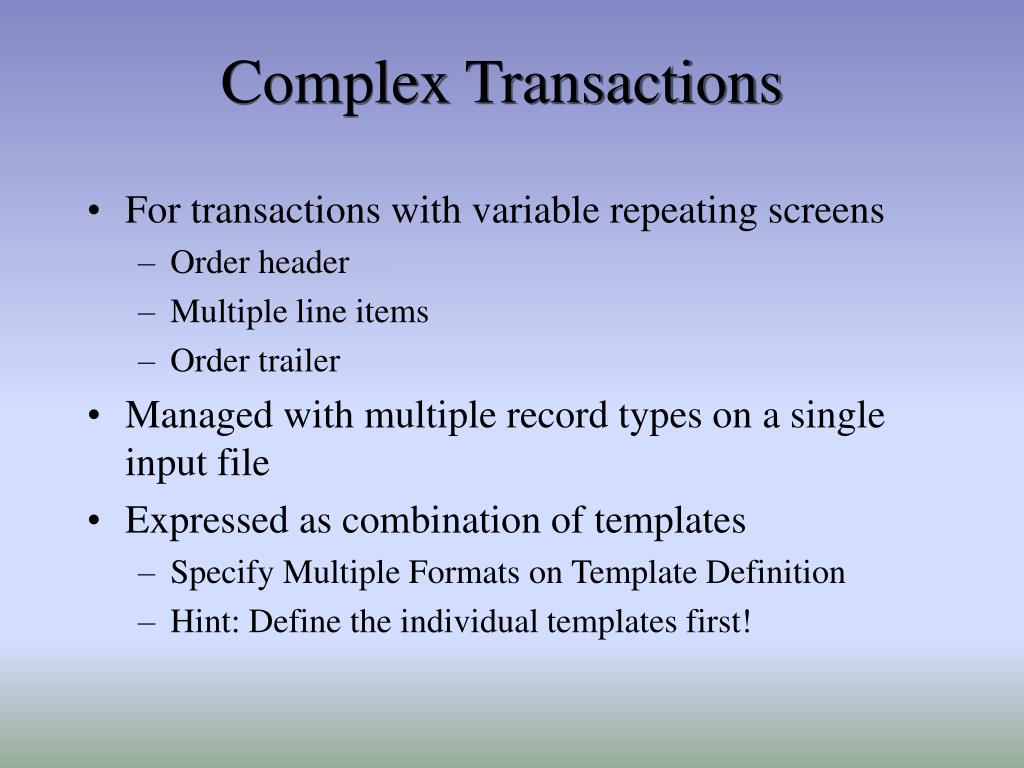

Complex Transactions

  • For transactions with variable repeating screens

    • Order header

    • Multiple line items

    • Order trailer

  • Managed with multiple record types on a single input file

  • Expressed as combination of templates

    • Specify Multiple Formats on Template Definition

    • Hint: Define the individual templates first!


Complex transactions1
Complex Transactions

Template Name Control Chars(Preceding)

Seq In Ident Control Chars(Following) Dep

=== ================ ======================== ===

1 Sales Header P: no

Hdr F: F1

2 Sales Detail P: yes

Det F: F1 F4 F4

3 Sales Trailer P: yes

Trl F: F1

  • Each format requires its own template.

  • Control Characters define the navigation between formats with preceding or following control codes.

  • Dependence – Should an error on a previous format cause this format to be bypassed?


Complex transaction data example
Complex Transaction Data Example

Hdr::0002000,Bright,03/25/99,Rush Approved

Det::22-100,1000,35,45.50,3/25/99,,Red

Det::22-4000,1000,3,18.75,3/25/99,,

Det::22-230,1000,4,22.50,3/25/99,yes,

Trl::UPS 2-Day,43.58

  • Each record type has a record identifier with double colons ‘::’ to demark record identifier from data.

  • Fixed length formats define position 1 as after the double colons.


Automating with sigconnects lite
Automating with SIGConnects/Lite

  • sigbtch.p for unattended processing

  • Run parameters from input file maparam.dat

    /* parameters - 1 - input file name */

    /* 2 - template definition name */

    /* 3 - output file format */

    /* 4 - exception report file name */

    /* 5 - output file name */

    /* 6 - audit report file name */

    /* 7 - version */

    /* 8 - release */


How to get sigconnects lite
How to Get SIGConnects/Lite

www.strategic.com

  • Fill in form with contact information

  • We email you with access password and download instructions from SIG’s FTP site

  • You download SIGConnects/Lite and documentation

  • Install it yourself

  • Email support group for support


Sigconnects family

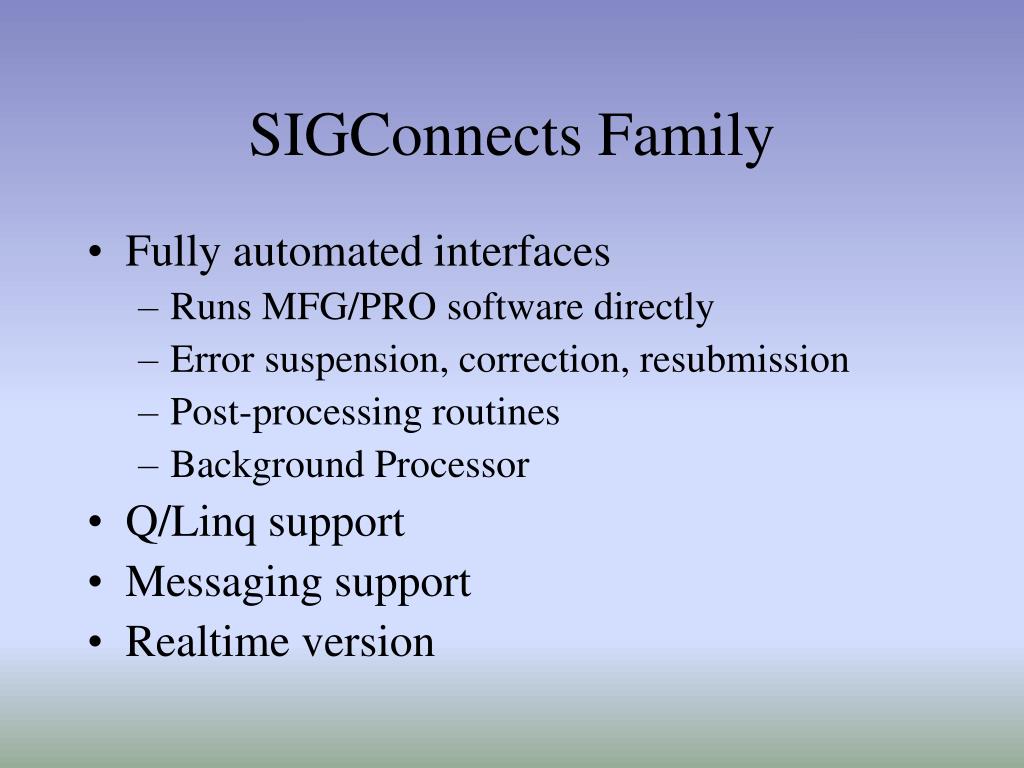

SIGConnects Family

  • Fully automated interfaces

    • Runs MFG/PRO software directly

    • Error suspension, correction, resubmission

    • Post-processing routines

    • Background Processor

  • Q/Linq support

  • Messaging support

  • Realtime version


Sigconnects family1
SIGConnects Family

  • Additional formats

    • XML

      • Import/export XML definitions using DTD

    • Tag and Value

    • QAD Triplet

  • Output formatting

    • Any supported format


Sigconnects family2
SIGConnects Family

  • Upgrade from SIGConnects/Lite

    • No reinstallation of software

    • No loss of SIGConnects/Lite templates or definitions


Strategic information group
Strategic Information Group

Thank you!
