Presentation Transcript


Maintenance operations l.jpg

Maintenance Operations


Principles of maintenance l.jpg

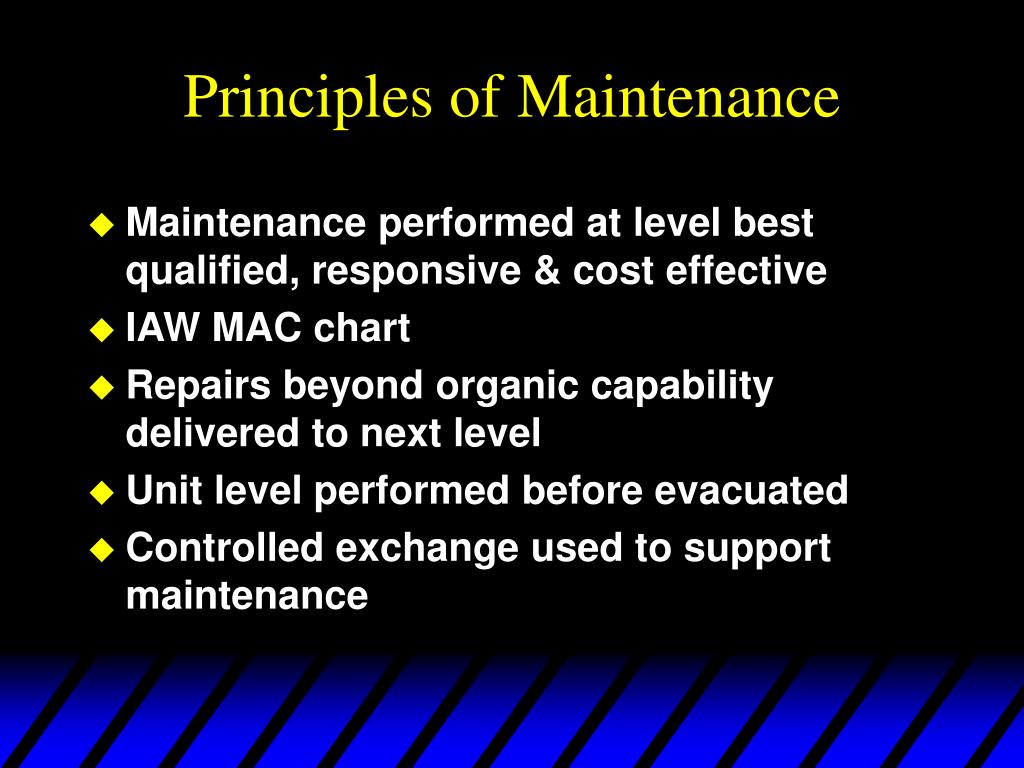

Principles of Maintenance

  • Maintenance performed at level best qualified, responsive & cost effective

  • IAW MAC chart

  • Repairs beyond organic capability delivered to next level

  • Unit level performed before evacuated

  • Controlled exchange used to support maintenance


Levels of maintenance l.jpg

Levels of Maintenance

  • Unit Maintenance: Maintenance which an organization has authorization & responsibility to perform on its own equipment.

  • Subdivided into:

    • first level (operator)

    • second level (trained maint. personnel)


Levels of maintenance cont l.jpg

Levels of Maintenance (cont)

  • Direct support: performed by TOE or TDA units responsible for DS

  • “return to user basis”

  • Technical assistance to unit maintenance elements

  • Repairable exchange of serviceable items for unserviceable


Levels of maintenance cont5 l.jpg

Levels of Maintenance (cont)

  • General support: maintenance support provided on an area basis

  • Overhaul at this level

  • Equipment repaired returned to supply system

  • “return to user” beyond DS

  • Repair part stocked for GS maint


Levels of maintenance cont6 l.jpg

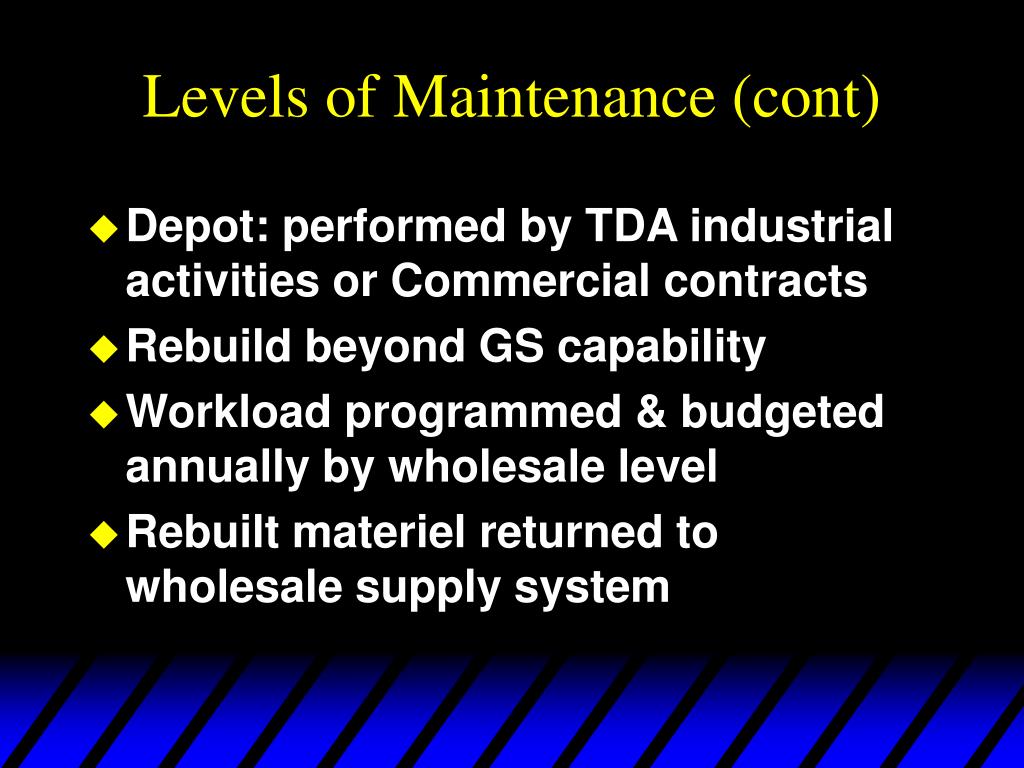

Levels of Maintenance (cont)

  • Depot: performed by TDA industrial activities or Commercial contracts

  • Rebuild beyond GS capability

  • Workload programmed & budgeted annually by wholesale level

  • Rebuilt materiel returned to wholesale supply system


Evacuation repair eligibility of materiel l.jpg

Evacuation & Repair Eligibility of Materiel

  • Maintenance beyond units capability evacuated to next higher level

  • TI done before evacuation:

    • to determine extent of repairs

    • classify item as economically uneconomically repairable

    • detemine if condition was from other than normal wear or combat damage.


Evacuation repair eligibility of materiel cont l.jpg

Evacuation & Repair Eligibility of Materiel (cont)

  • Estimate the cost of repair:

    • Direct labor

    • Direct materials

    • Indirect or overhead costs

    • Contractual services

    • shipping costs


Evacuation repair eligibility of materiel cont9 l.jpg

Evacuation & Repair Eligibility of Materiel (cont)

  • Condition codes used to classify equipment:

    • A - serviceable (without qualifications)

    • B - serviceable (with qualifications)

    • F - unserviceable (repairable)

    • G - unserviceable (incomplete)

    • H - unserviceable (condemned)


Pll definitions l.jpg

PLL Definitions

  • PLL: list of authorized repair parts to be on-hand or on order

    • support daily maint operations for a prescribed number of days

    • demand supported, non-demand supported, and initial stocked items

    • managed by AR 40-61, DA PAM 710-2-1


Pll definitions cont l.jpg

PLL Definitions (cont)

  • Initial Fielding List (IFL): support kits developed and fielded concurrently with DEPMEDS

    • managed individually by TAMMIS or DA Form 3318, Record of Demands

    • retention for 2 years without being demand support (can be extended by authorization from USAMMA)


Pll definitions cont12 l.jpg

PLL Definitions (cont)

  • Combat PLL: parts stocked for unit maint in combat/prescribed # of days

  • Mandatory Parts List (MPL): minimum stockage essential for use during wartime

    • published in TB 8-6500-MPL

    • TOE units with organic maintenance must stock MPL

    • D & D+60 Guard & Reserve also


Items authorized for pll combat pll stockage l.jpg

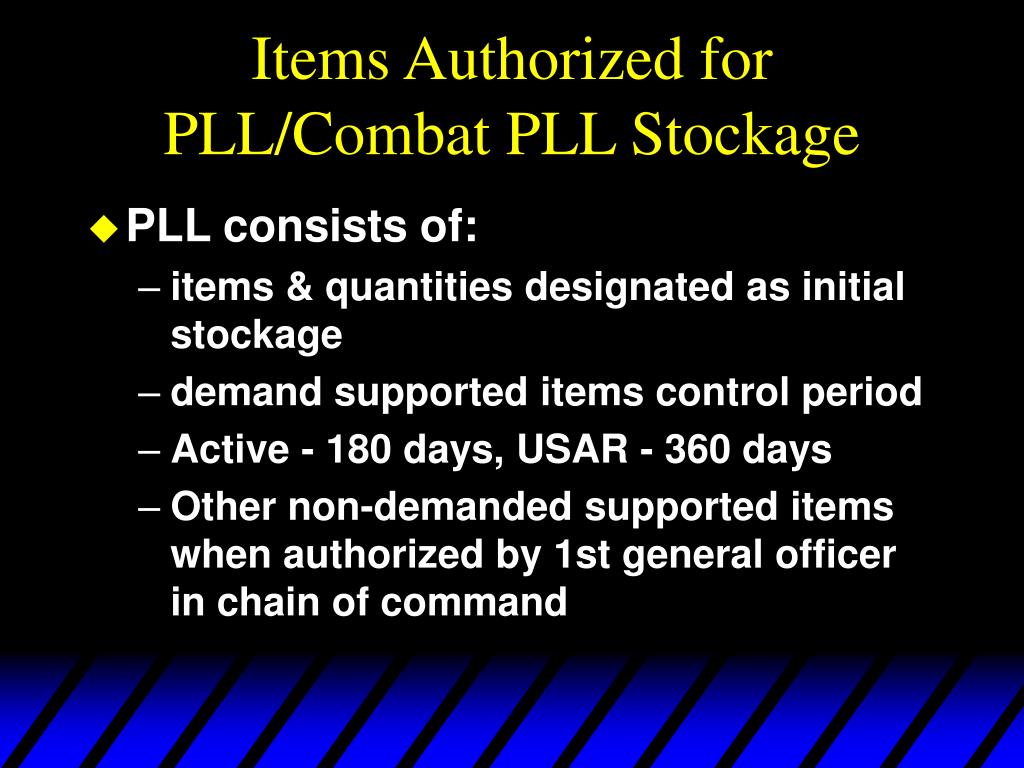

Items Authorized for PLL/Combat PLL Stockage

  • PLL consists of:

    • items & quantities designated as initial stockage

    • demand supported items control period

    • Active - 180 days, USAR - 360 days

    • Other non-demanded supported items when authorized by 1st general officer in chain of command


Items authorized for pll combat pll stockage cont l.jpg

Items Authorized for PLL & Combat PLL Stockage (cont)

  • PLL consists of: (cont)

    • parts for commercially designed equipment based on local experience

    • if authorized to perform next level maintenance may contain those

    • Basic Issue Items (BII) parts packed with equipment


Items authorized for pll combat pll stockage cont15 l.jpg

Items Authorized for PLL & Combat PLL Stockage (cont)

  • Combat PLL consist of items & quantities prescribed by MPLs

  • Items consumed in maintenance (bench stock):

    • ordered & stocked on usage basis

    • stocked 7 days supply

    • no PLL records required unless part of PLL basic load


Initial stockage of pll l.jpg

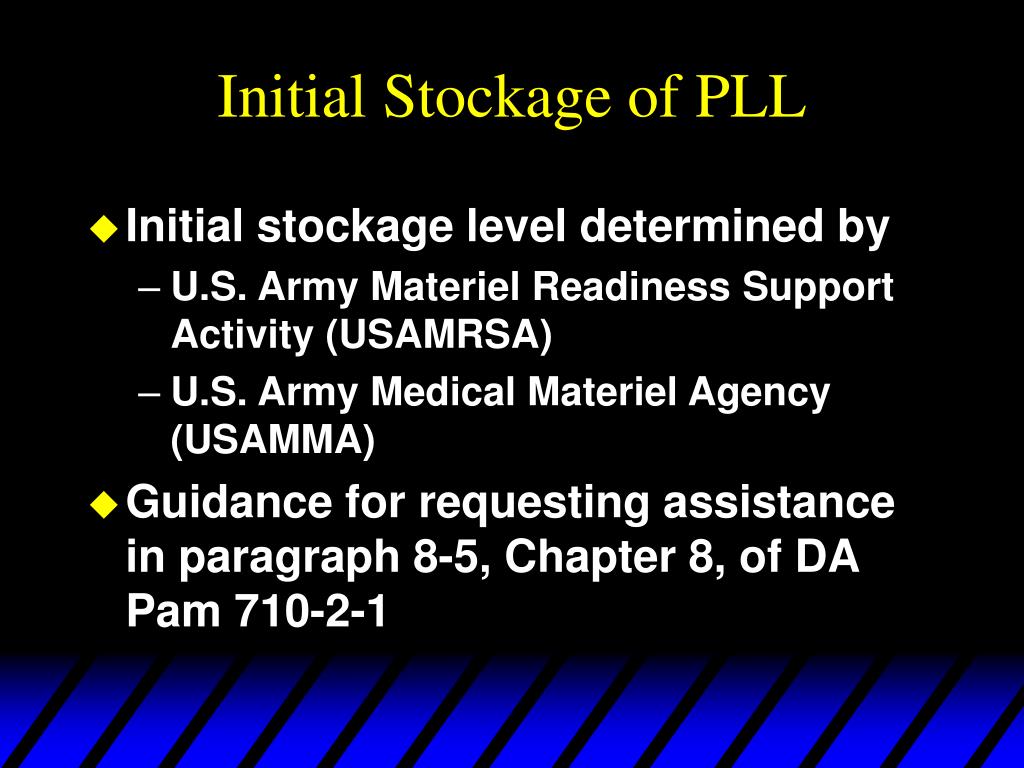

Initial Stockage of PLL

  • Initial stockage level determined by

    • U.S. Army Materiel Readiness Support Activity (USAMRSA)

    • U.S. Army Medical Materiel Agency (USAMMA)

  • Guidance for requesting assistance in paragraph 8-5, Chapter 8, of DA Pam 710-2-1


Initial stockage of pll cont l.jpg

Initial Stockage of PLL (cont)

  • Upon receipt of PLL data:

    • prepare & process DA Form 2063-R

    • prepare a DA Form 3318 for each line authorized for stockage. Use stockage code “MS”

    • request initial stockage of PLL


Non stocked item demand file l.jpg

Non-Stocked Item Demand File

  • Definition: separate file of DA Form 3318s used to record demands for parts not part of unit’s PLL to determine if parts should be stocked

  • Items must meet stockage criteria:

    • 3 demands in most recent 180 days

    • 3 demands in most recent 360 days


Non stocked item demand file cont l.jpg

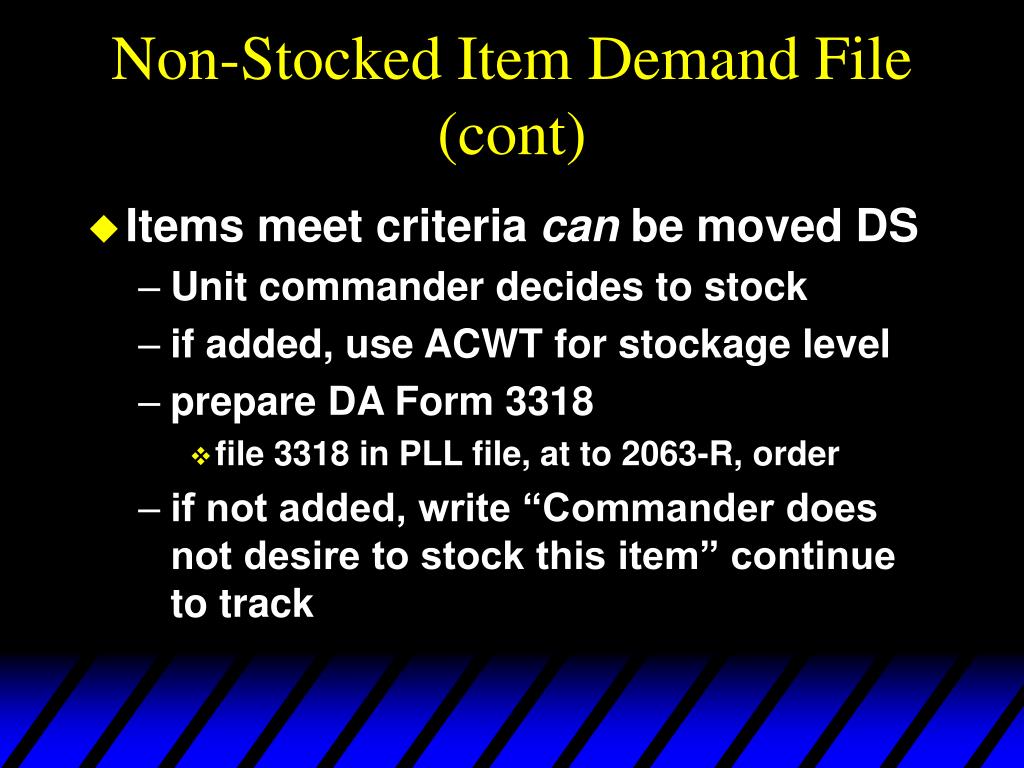

Non-Stocked Item Demand File (cont)

  • Items meet criteria can be moved DS

    • Unit commander decides to stock

    • if added, use ACWT for stockage level

    • prepare DA Form 3318

      • file 3318 in PLL file, at to 2063-R, order

    • if not added, write “Commander does not desire to stock this item” continue to track


Non stocked item demand file cont20 l.jpg

Non-Stocked Item Demand File (cont)

  • Maintenance of 3318:

    • 1st demand prepare 3318, post demand, order item & record request on 2063-R, file in NIIN sequence

    • 2nd & subsequent demands, post demand to 3318, line out demands out side of control period, review to see if item qualifies for DS


Authorized stockage list asl l.jpg

Authorized Stockage List (ASL)

  • MEDLOG Battalions operating under AR 40-61 as SSAs will provide Class VIII to all TOE units in their area

  • Re-supply of Class VIII will sustain essential maint operations

  • ASL shows items that are proven to be sufficiently active to warrant stockage regardless of demand


Authorized stockage list asl22 l.jpg

Authorized Stockage List (ASL)

  • ASL managed in a stock record account to show receipt, issue, and asset status of materiel

  • Repair parts stocked to re-supply unit level requirements & for MEDLOG’s organizational mission


Function concept and objective of tamms l.jpg

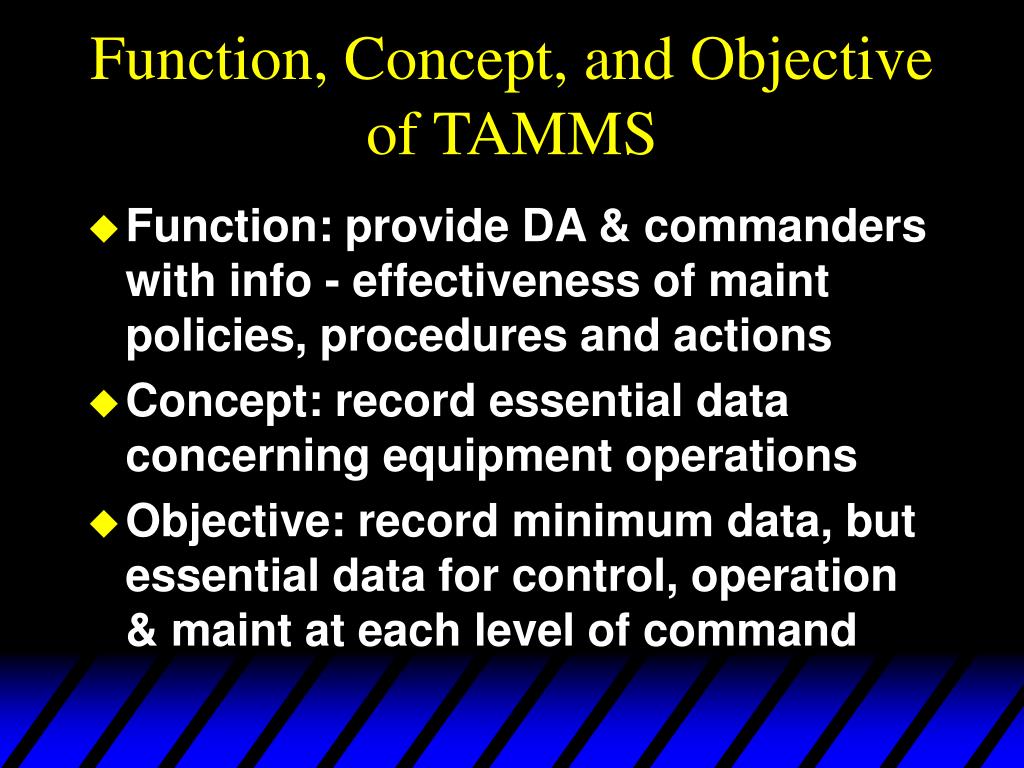

Function, Concept, and Objective of TAMMS

  • Function: provide DA & commanders with info - effectiveness of maint policies, procedures and actions

  • Concept: record essential data concerning equipment operations

  • Objective: record minimum data, but essential data for control, operation & maint at each level of command


Basic types of records used in da pam 738 750 l.jpg

Basic Types of Records used in DA PAM 738-750

  • Operational records: provide for control of operators & equipment, Examples:

    • Motor Vehicle Utilization Record (DD Form 1970) control use of equip

    • Organizational Control Record for Equipment (DA Form 2401) identify where equip is

  • Instructions found in Chapter 2, DA PAM 738-750


Basic types of records used in da pam 738 750 cont l.jpg

Basic Types of Records used in DA PAM 738-750 (cont)

  • Maintenance Records: used to control maintenance Example:

    • Exchange tag (DA Form 2402) identify warranty claims & equip improvement

    • Equipment Inspection and Maintenance Worksheet (DA Form 2404) identify equip faults during operator maint

    • Preventive Maintenance Schedule and Record (DD Form 314)

  • Chapter 5, DA PAM 738-750


Equipment historical record l.jpg

Equipment Historical Record

  • Permanent record with info on receipt, operation, maint, modification, transfer & disposal of equipment

  • Examples:

    • Log Book Binder-consolidate historical records

    • Equipment Record Folder-appropriate TAMMS forms

    • DA Form 2408 Series-historical record

    • DA Form 2407-Maintenance Request


Mission capability l.jpg

Mission Capability

  • FMC: can perform combat mission

  • NMC: cannot perform combat mission - faults in NOT AVAILABLE/ READY if column of PMCS checklist, outstanding Urgent or limited urgent MWO, Unit commander judges equip not to be safe or able to perform combat mission


Mission capability cont l.jpg

Mission Capability (cont)

  • NMCM: NMC because of maint is being performed:

    • 2406 broken into organic or support

    • NMCM time recorded on back of 314

  • NMCS: NMC because of supply

    • 2406 broken into organic or support

    • NMCS time recorded on back of 314


Mission capability cont29 l.jpg

Mission Capability (cont)

  • Available Time: # of days that equip is on hand in FMC condition

  • Possible Time: # of days equip is on hand during reporting period

    • day item is gained is counted as day

    • day item is lost is not counted as day


Mission capability cont30 l.jpg

Mission Capability (cont)

  • Deficiency: defect that makes item, system, subsystem inoperable(NMC)

  • Shortcoming: fault requires maint supply action, does not make (NMC)


Purpose of readiness reporting l.jpg

Purpose of Readiness Reporting

  • Readiness determined by reporting actual status to established standard

  • Deficiences identified to detemine MC & time frame to achieve

  • Deficiences corrected by repair, redistribution, substitution, replenishment, or modernization within budget constraints


Individual responsibilities for readiness reporting l.jpg

Individual Responsibilities for Readiness Reporting

  • Operator PMCS: operator responsible to notify maint activity of repairs identified

  • Repairer: maintain 314

  • DA 2406: definitions, reportable equipment, responsibilities, distribution, and procedures listed in AR 700-138


Questions l.jpg

Questions
