  1. CBQ: Class-Based Queuing • Class-Based Tree Root 100 Mbps TCP 60 Mbps ICMP 0Mbps UDP 40 Mbps HTTP 30 Mbps FTP 30 Mbps

  2. Sentido • As regras se aplicam de forma diferente de acordo com o sentido do pacote. • Existe uma árvore diferente para cada sentido em cada porta do roteador. Outbound: root-output-tree Inbound: root-input-tree CBQ.2 CBQ.1 ROTEADOR Inbound: root-input-tree Outbound: root-output-tree

  3. Comandos • config cbq.1 traffic-class.tcpin protocols tcp parent root-input-tree[ bandwidth-allocation 500000bounded falsemaxbandwidth 6000000priority 1] • config cbq.1 traffic-class.root-input-treerow-status active

  4. Comandos • Regra para subrede: • config cbq.1 traffic-class.bancada1src-ip-addresses 192.168.1.0-192.168.1.20 parent root-input-tree • Regra de bloqueio: • config cbq.2 traffic-class.udp protocols udpparent root-input-treebandwidth-allocation 0 bounded true. • Regra default: (não precisa criar ...) • config cbq.1 traffic-class.other-defaultparent root-input-treebandwidth-allocation 0 bounded true

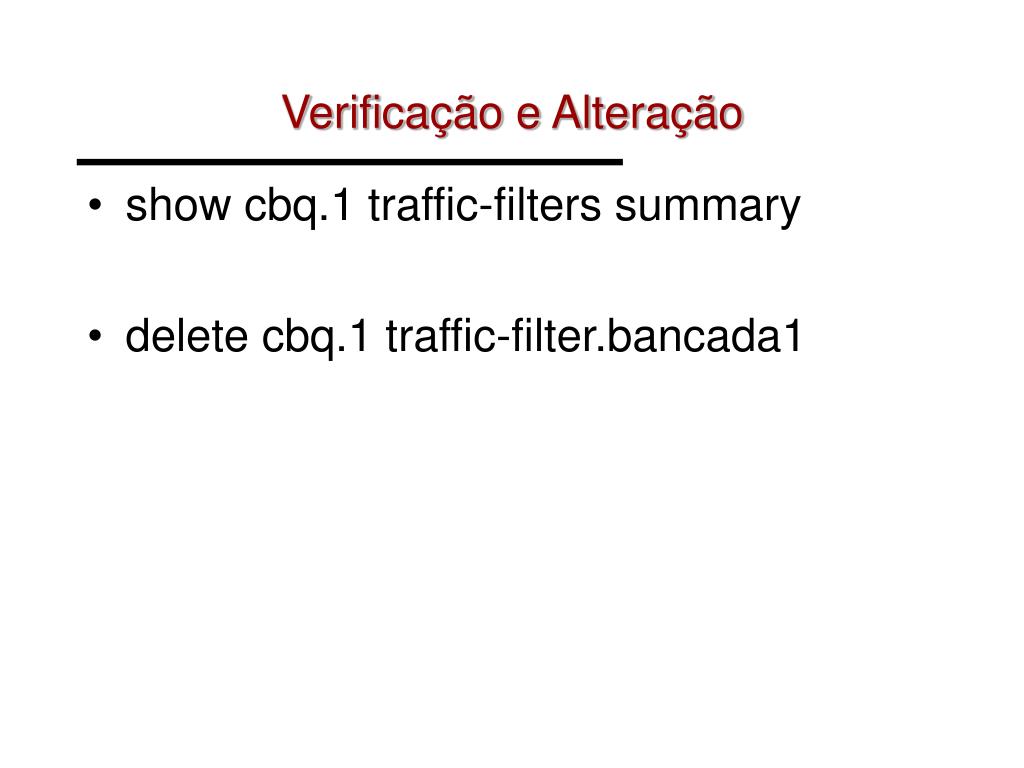

  5. Verificação e Alteração • show cbq.1 traffic-filters summary • delete cbq.1 traffic-filter.bancada1

  6. Opções de Filtro • Endereços IP: • src-ip-addresses ip_inicio-ip_fim • dest-ip-addresses ip_inicio-ip_fim • Portas: • src-ports porta_inicio-porta_fim • dst-port porta_inicio-porta_fim

  7. Opções de Filtro • applications sigla • http, ftp, smtp, etc. • traffic-class.http-outapplications http • traffic-class.http-returnaplications httpEstablished • protocols sigla ou número • traffic-class.TCP-out protocols TCP • traffic-class.TCPUDP protocols 6-17

  8. Applicações Statefull • allTcp, allTcpEstablished • allUdp, allUdpEstablished • allIcmp, allIcmpEstablished • ftp, ftpEstablished • http, httpEstablished • telnet, telnetEstablished

  9. Exemplo • Criar uma entrada root ativa: • config cbq.1 traffic-class.root-input-tree row-status active • Para permitir o tráfego: • config cbq.1.traffic-class.smtp-out parent root-input-tree applications smtp • config cbq.2.traffic-class.smtp-return parent root-input-tree applications smtpEstablished

  10. Operadores • operator and • operator or • config cbq.1 traffic-class.httpserver src-ip-addresses 192.168.1.2 protocols tcp operator and

  11. Exemplo • config cbq.3 traffic-class.respostaHTTP • src-ports 80 parent root-input-tree (** ERRADO **) • config cbq.3 traffic-class.respostaHTTP • src-ports 80 applications allTcpEstablished • parent root-input-tree cbq.3 Bancada 1 roteador Bancada 2 cliente Servidor HTTP resposta

  12. Cenário 192.168.1.1 SW1 R1 rede interna 1 (192.168.1.0/24) 192.168.2.2 R2 192.168.0.5 dmz 1 (192.168.2.0/24) SW2 192.168.2.1 internet 192.168.3.1 R3 192.168.0.6 dmz 2 (192.168.3.0/24) SW3 192.168.4.2 R4 rede interna 2 (192.168.4.0/24) SW4 192.168.4.1

  13. Indentifique as Interfaces na sua rede cbq. root-input-tree cbq. root-input-tree rede interna IP: Mascara: SW1 R1 Internet R2 dmz IP: Mascara SW2 cbq. root-input-tree cbq. root-input-tree

  14. Considere que os seguintes serviços estão disponíveis na DMZ • SMTP: TCP 25 e IP: • POP3: TCP 110 e IP: • HTTP: TCP 80 e IP: • DNS: UDP 53 e IP: • FTP: TCP 21 e IP:

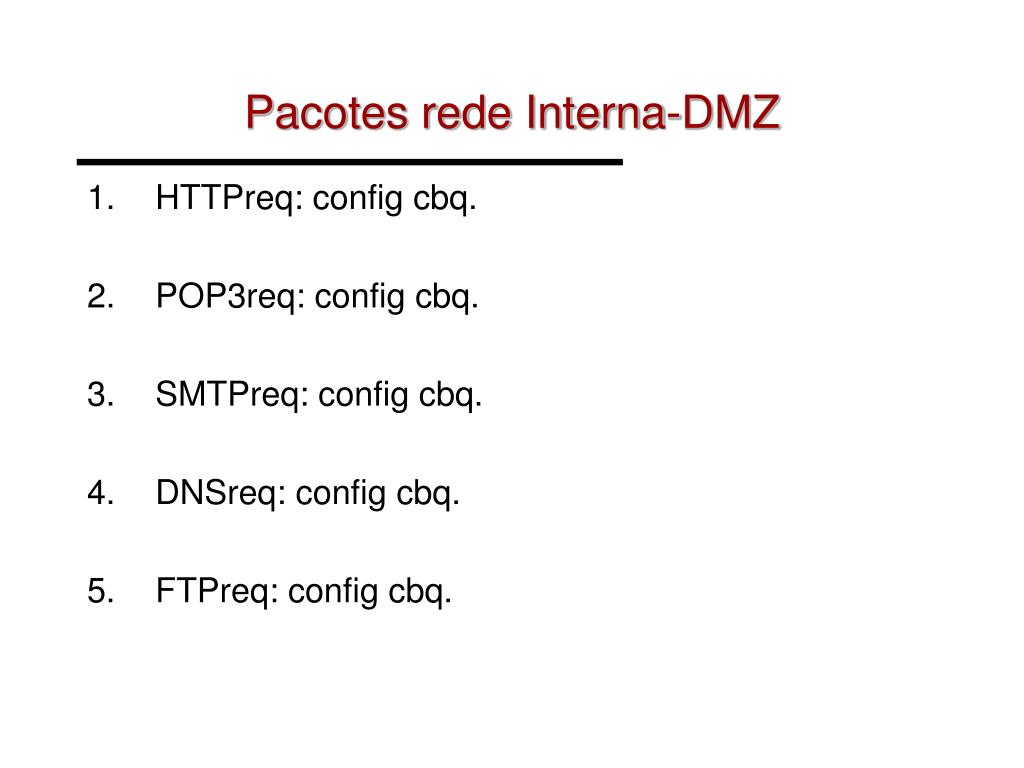

  15. Pacotes rede Interna-DMZ • HTTPreq: config cbq. • POP3req: config cbq. • SMTPreq: config cbq. • DNSreq: config cbq. • FTPreq: config cbq.

  16. Pacotes DMZ-Rede Interna • HTTPresp: config cbq. • POP3resp: config cbq. • SMTPresp: config cbq. • DNSresp: config cbq. • FTPresp: config cbq.

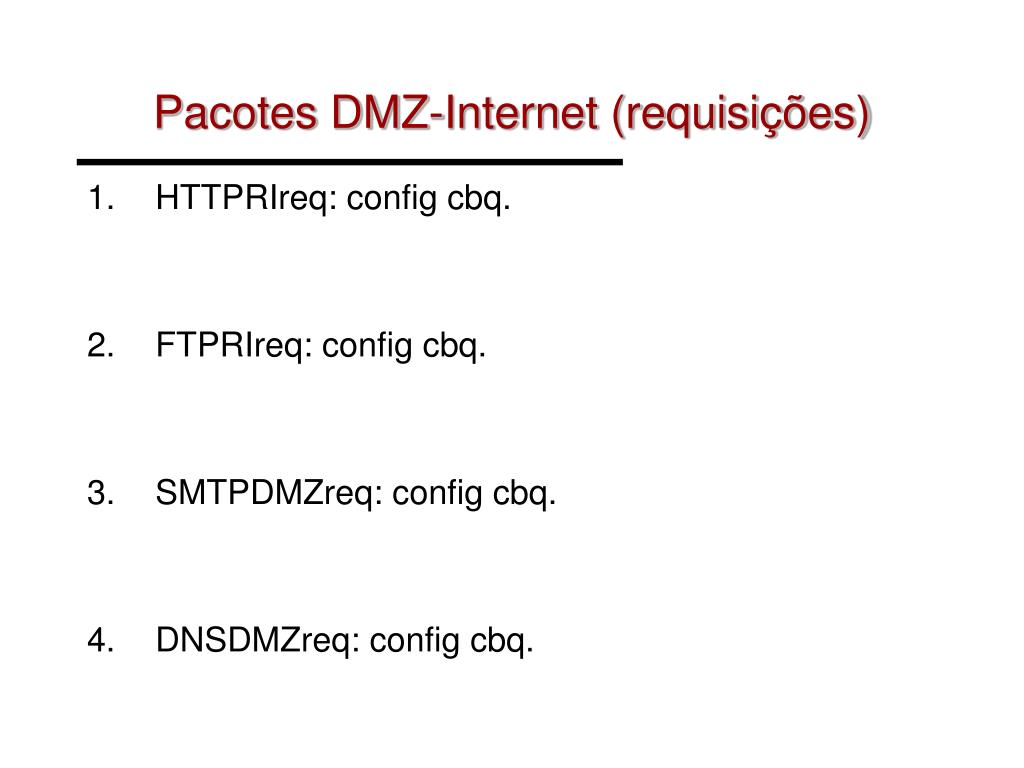

  17. Pacotes DMZ-Internet (requisições) • HTTPRIreq: config cbq. • FTPRIreq: config cbq. • SMTPDMZreq: config cbq. • DNSDMZreq: config cbq.

  18. Pacotes DMZ-Internet (respostas) • HTTPDMZresp: config cbq. • FTPDMZresp: config cbq. • SMTPDMZresp: config cbq. • DNSDMZresp: config cbq.

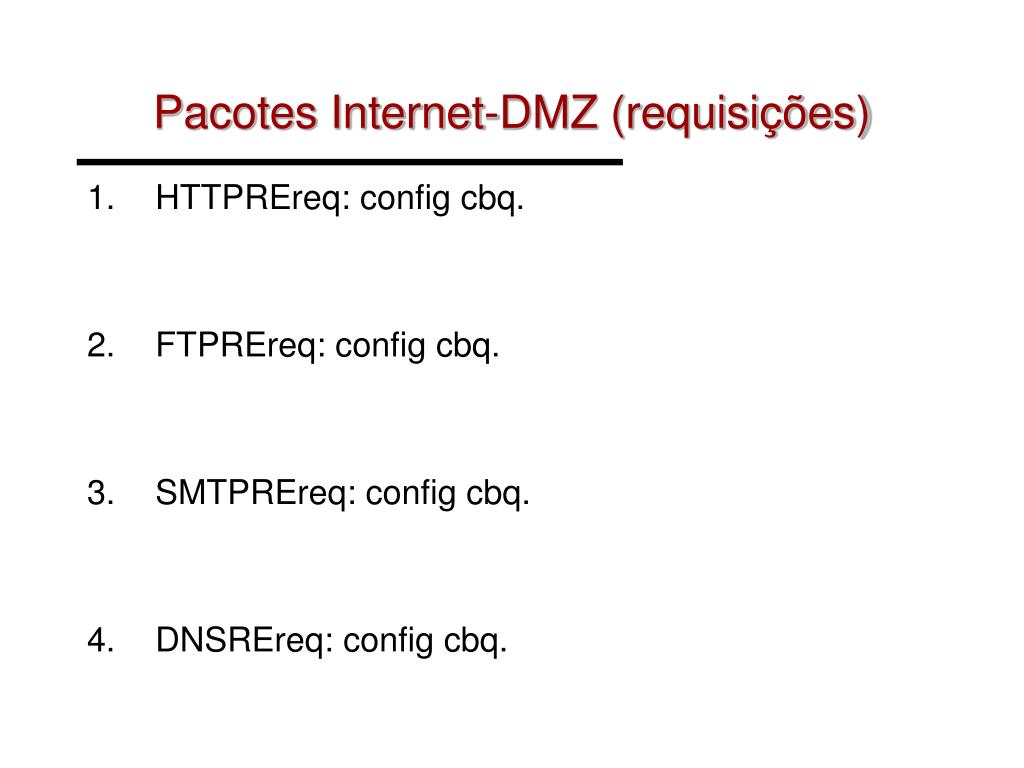

  19. Pacotes Internet-DMZ (requisições) • HTTPREreq: config cbq. • FTPREreq: config cbq. • SMTPREreq: config cbq. • DNSREreq: config cbq.

  20. Pacotes Internet-DMZ (respostas) • HTTPREresp: config cbq. • FTPREresp: config cbq. • SMTPREresp: config cbq. • DNSREresp: config cbq.

  21. Testes • Para simular os servidores na bancada DMZ: • jview mserver porta • Exemplo: jview mserver 21 • Para simular os clientes nas bancadas internas: • jview cliente IPServidor PortaServidor • Exemplo: jview cliente 192.168.1.7 21 • Para simular ataques por spoofing de porta: • jview cliente IPServidor PortaServidor PortaCliente • Exemplo: jview cliente 192.168.1.7 8080 21

  22. Verificações • Os clientes da rede interna conseguem acessar aos servidores na DMZ local? • Os clientes da rede interna conseguem acessar aos servidores na DMZ remota? • Outras portas de serviços não autorizados estão bloqueadas? Exemplo: ICMP, telnet, etc. Simule este teste criando um servidor telnet na DMZ. • Suas regras estão protegidas contra spoofing de porta?
