Octane isomers

Octane isomers. 1 octane 3 heptanes 7 hexanes 6 pentanes 1 butane. Octane. C – C – C – C – C – C – C – C CH 3 CH 2 CH 2 CH 2 CH 2 CH 2 CH 2 CH 3. Octane. C – C – C – C – C – C – C – C CH 3 CH 2 CH 2 CH 2 CH 2 CH 2 CH 2 CH 3. Octane. C – C – C – C – C – C – C – C

brier
Download Presentation

Octane isomers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Octane isomers 1 octane 3 heptanes 7 hexanes 6 pentanes 1 butane

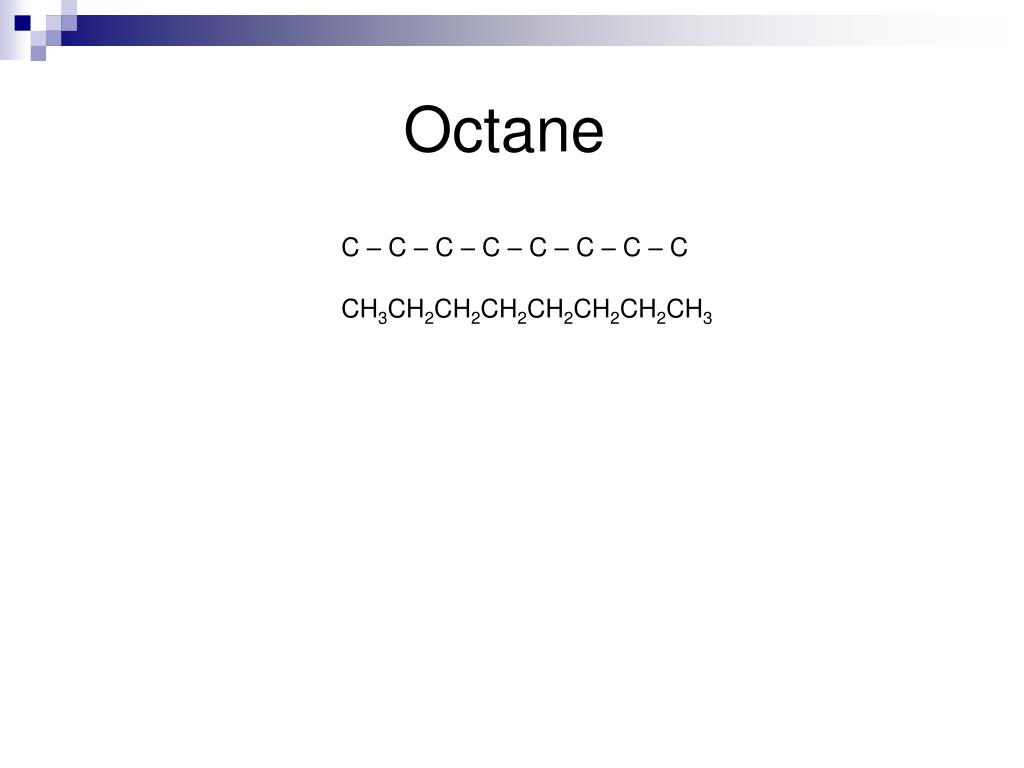

  2. Octane C – C – C – C – C – C – C – C CH3CH2CH2CH2CH2CH2CH2CH3

  3. Octane C – C – C – C – C – C – C – C CH3CH2CH2CH2CH2CH2CH2CH3

  4. Octane C – C – C – C – C – C – C – C CH3CH2CH2CH2CH2CH2CH2CH3

  5. Octane C – C – C – C – C – C – C – C CH3CH2CH2CH2CH2CH2CH2CH3

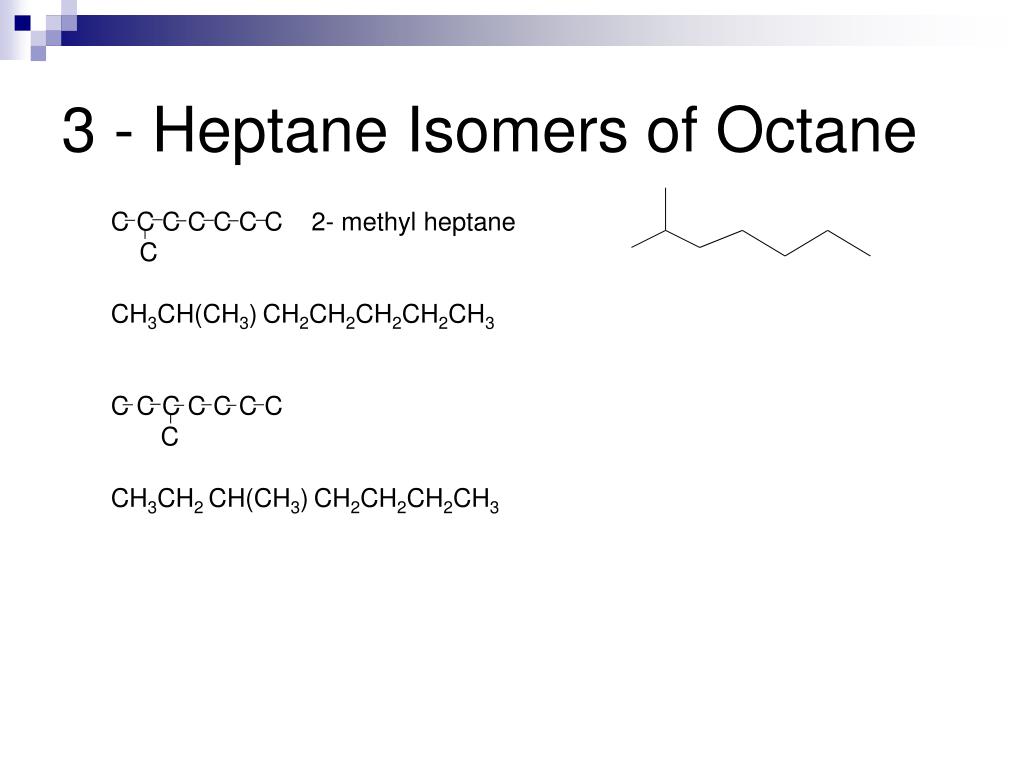

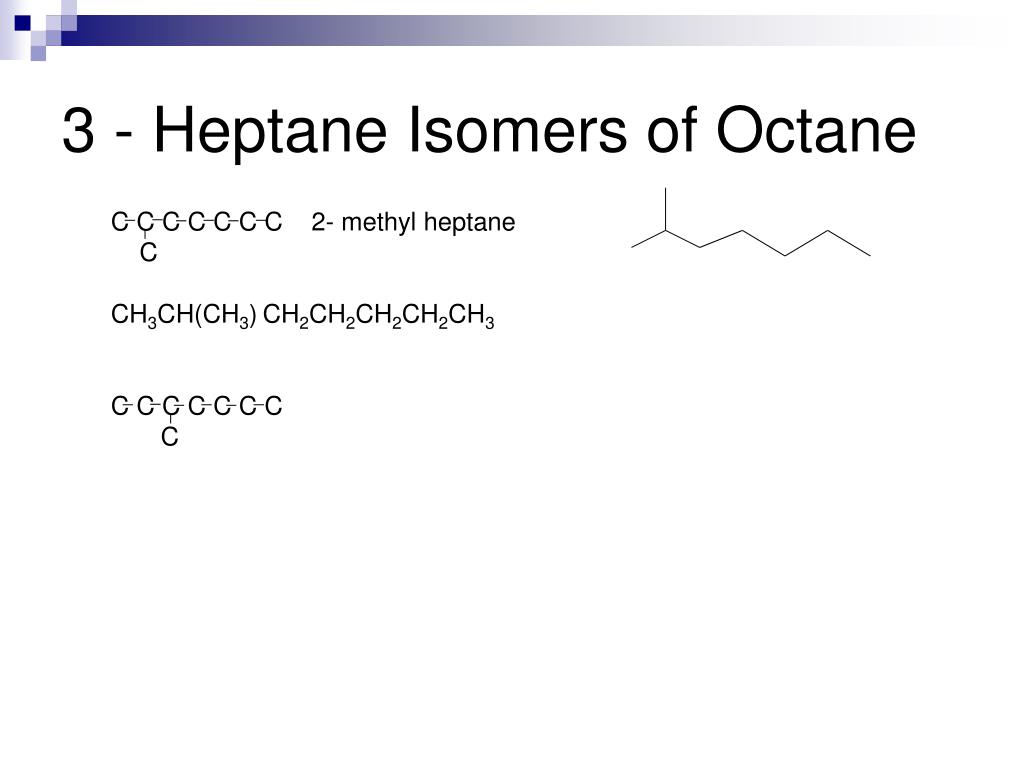

  6. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  7. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  8. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  9. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  10. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  11. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  12. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  13. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  14. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  15. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  16. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  17. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

  18. 3 - Heptane Isomers of Octane C C C C C C C 2- methyl heptane C CH3CH(CH3)CH2CH2CH2CH2CH3 C C C C C C C 3 – methyl heptane C CH3CH2 CH(CH3)CH2CH2CH2CH3 C C C C C C C 4 – methyl heptane C CH3CH2 CH2CH(CH3)CH2CH2CH3

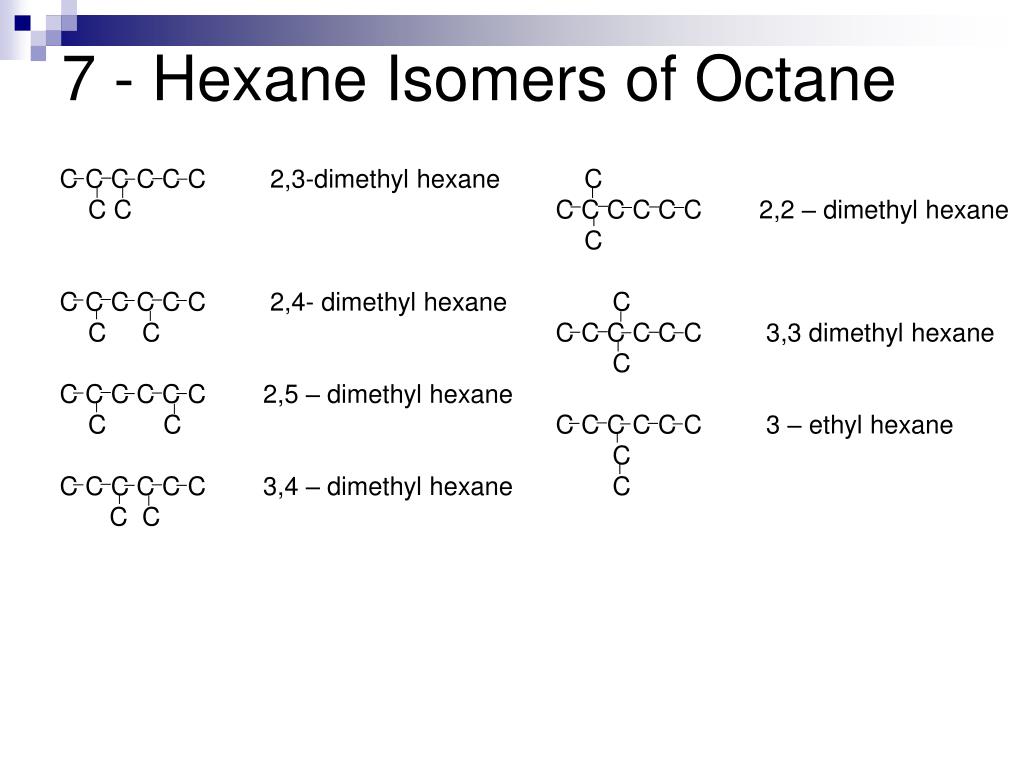

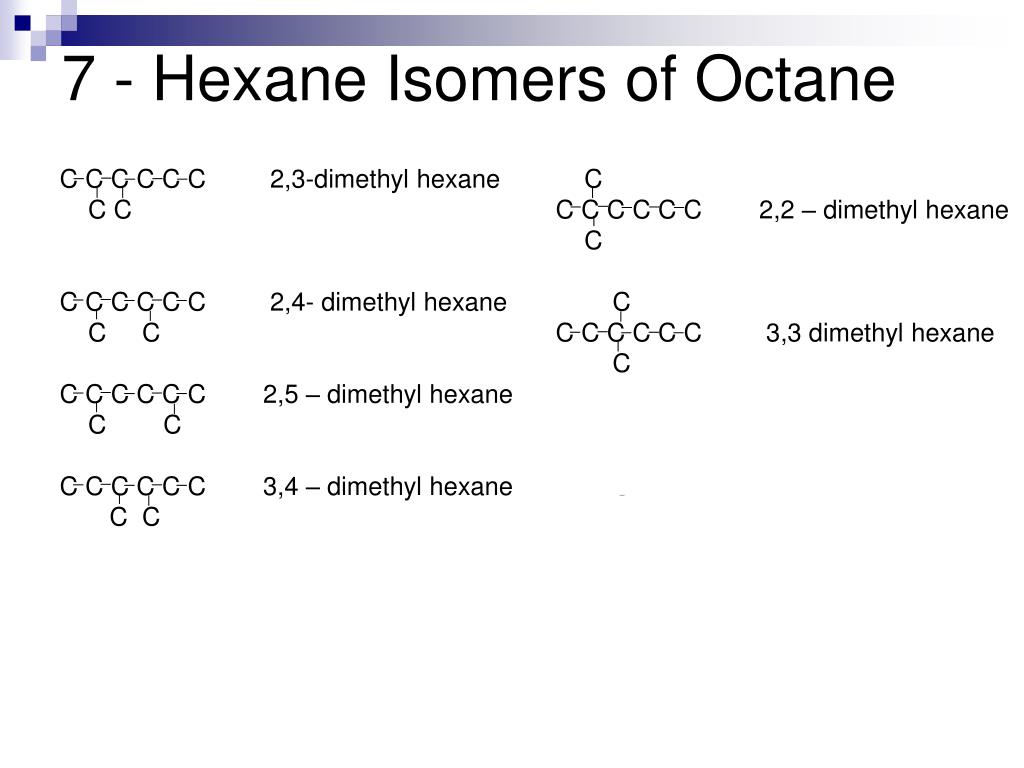

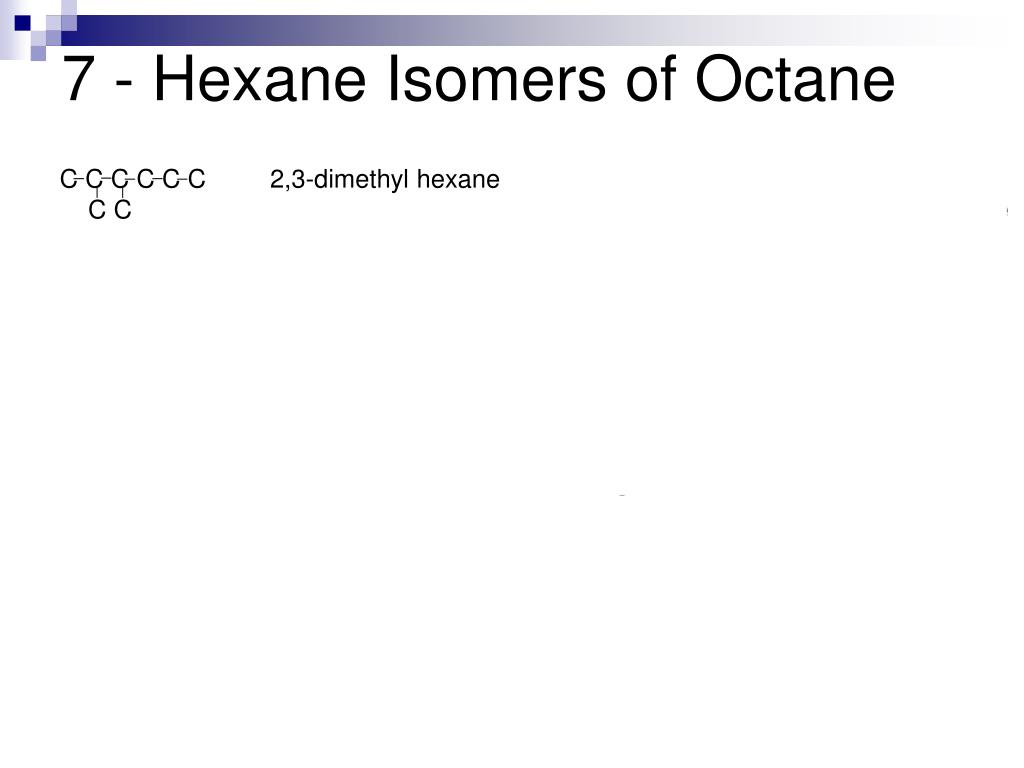

  19. 7 - Hexane Isomers of Octane C C C C C C 2,3-dimethyl hexane C C C C C C C C 2,4- dimethyl hexane C C C C C C C C 2,5 – dimethyl hexane C C C C C C C C 3,4 – dimethyl hexane C C C C C C C C C 2,2 – dimethyl hexane C C C C C C C C 3,3 dimethyl hexane C C C C C C C 3 – ethyl hexane C C

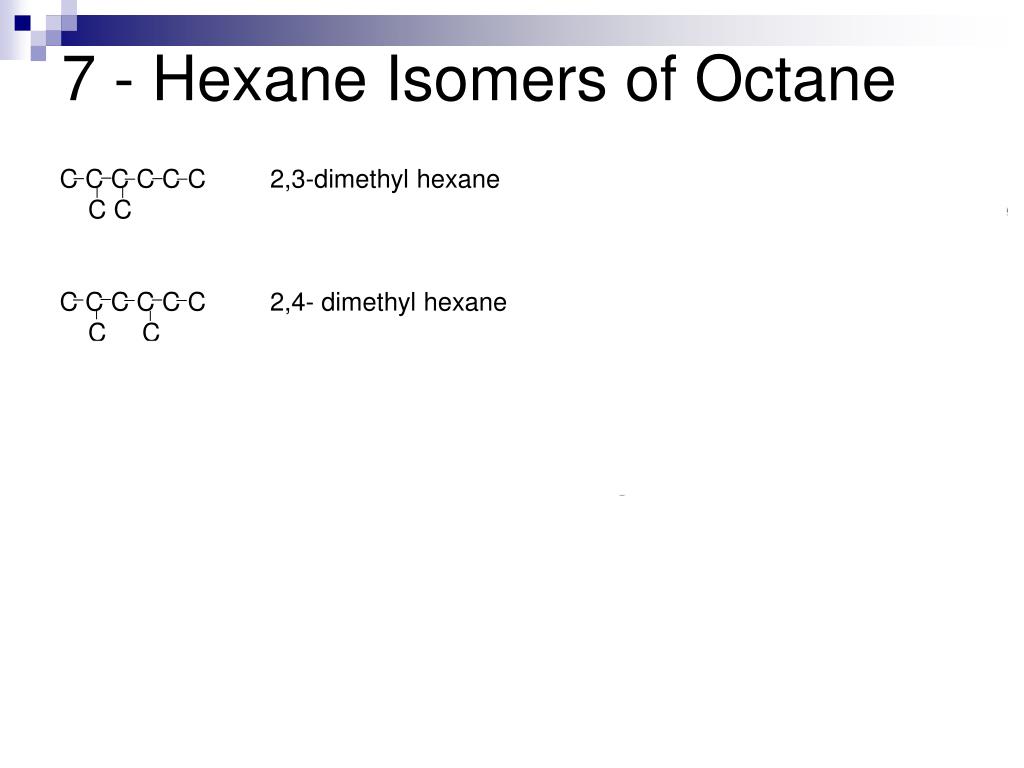

  20. 7 - Hexane Isomers of Octane C C C C C C 2,3-dimethyl hexane C C C C C C C C 2,4- dimethyl hexane C C C C C C C C 2,5 – dimethyl hexane C C C C C C C C 3,4 – dimethyl hexane C C C C C C C C C 2,2 – dimethyl hexane C C C C C C C C 3,3 dimethyl hexane C C C C C C C 3 – ethyl hexane C C

  21. 7 - Hexane Isomers of Octane C C C C C C 2,3-dimethyl hexane C C C C C C C C 2,4- dimethyl hexane C C C C C C C C 2,5 – dimethyl hexane C C C C C C C C 3,4 – dimethyl hexane C C C C C C C C C 2,2 – dimethyl hexane C C C C C C C C 3,3 dimethyl hexane C C C C C C C 3 – ethyl hexane C C

  22. 7 - Hexane Isomers of Octane C C C C C C 2,3-dimethyl hexane C C C C C C C C 2,4- dimethyl hexane C C C C C C C C 2,5 – dimethyl hexane C C C C C C C C 3,4 – dimethyl hexane C C C C C C C C C 2,2 – dimethyl hexane C C C C C C C C 3,3 dimethyl hexane C C C C C C C 3 – ethyl hexane C C

  23. 7 - Hexane Isomers of Octane C C C C C C 2,3-dimethyl hexane C C C C C C C C 2,4- dimethyl hexane C C C C C C C C 2,5 – dimethyl hexane C C C C C C C C 3,4 – dimethyl hexane C C C C C C C C C 2,2 – dimethyl hexane C C C C C C C C 3,3 dimethyl hexane C C C C C C C 3 – ethyl hexane C C

  24. 7 - Hexane Isomers of Octane C C C C C C 2,3-dimethyl hexane C C C C C C C C 2,4- dimethyl hexane C C C C C C C C 2,5 – dimethyl hexane C C C C C C C C 3,4 – dimethyl hexane C C C C C C C C C 2,2 – dimethyl hexane C C C C C C C C 3,3 dimethyl hexane C C C C C C C 3 – ethyl hexane C C

  25. 7 - Hexane Isomers of Octane C C C C C C 2,3-dimethyl hexane C C C C C C C C 2,4- dimethyl hexane C C C C C C C C 2,5 – dimethyl hexane C C C C C C C C 3,4 – dimethyl hexane C C C C C C C C C 2,2 – dimethyl hexane C C C C C C C C 3,3 dimethyl hexane C C C C C C C 3 – ethyl hexane C C

  26. 7 - Hexane Isomers of Octane C C C C C C 2,3-dimethyl hexane C C C C C C C C 2,4- dimethyl hexane C C C C C C C C 2,5 – dimethyl hexane C C C C C C C C 3,4 – dimethyl hexane C C C C C C C C C 2,2 – dimethyl hexane C C C C C C C C 3,3 dimethyl hexane C C C C C C C 3 – ethyl hexane C C

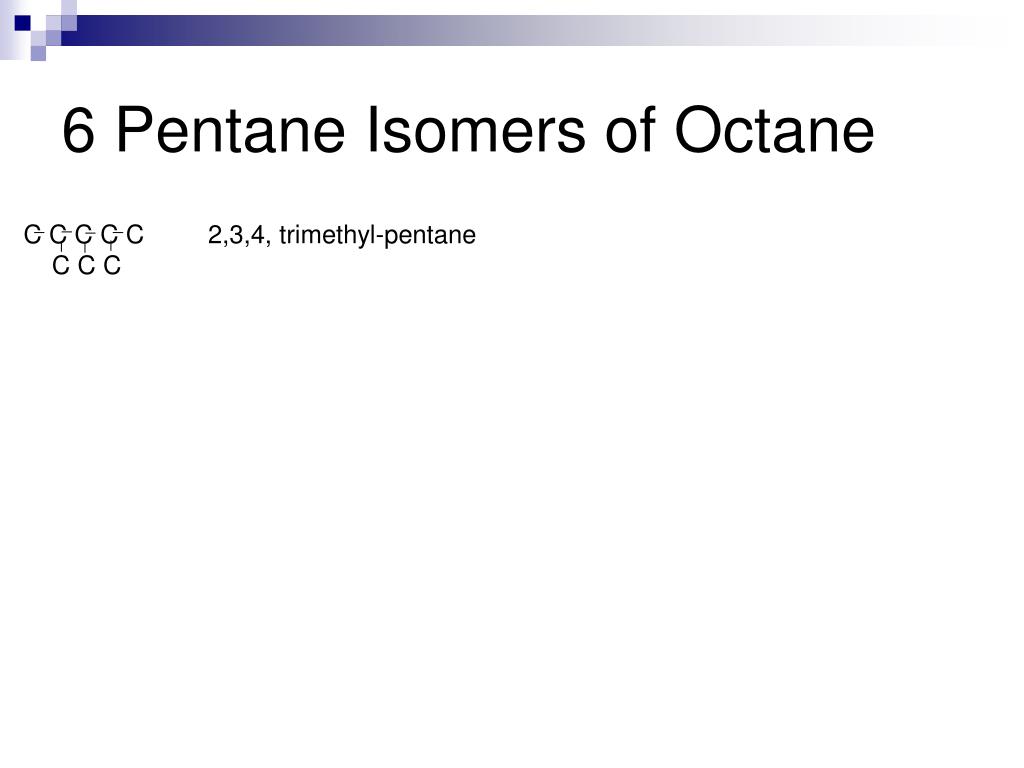

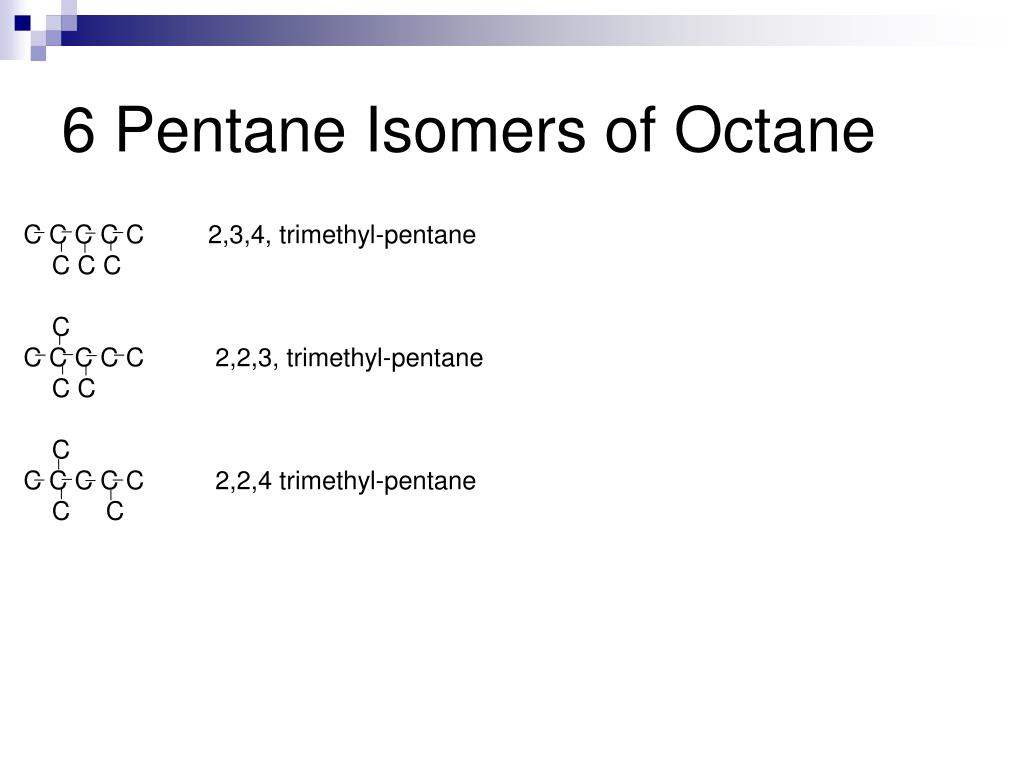

  27. 6 Pentane Isomers of Octane C C C C C C C 2,3,3 trimethyl pentane C C C C C C C 3-ethyl – 3 – methyl pentane C C C C C C C C 3-ethyl – 2 – methyl pentane C C C C C C C 2,3,4, trimethyl-pentane C C C C C C C C C 2,2,3, trimethyl-pentane C C C C C C C C 2,2,4 trimethyl-pentane C C

  28. 6 Pentane Isomers of Octane C C C C C C C 2,3,3 trimethyl pentane C C C C C C C 3-ethyl – 3 – methyl pentane C C C C C C C C 3-ethyl – 2 – methyl pentane C C C C C C C 2,3,4, trimethyl-pentane C C C C C C C C C 2,2,3, trimethyl-pentane C C C C C C C C 2,2,4 trimethyl-pentane C C

  29. 6 Pentane Isomers of Octane C C C C C C C 2,3,3 trimethyl pentane C C C C C C C 3-ethyl – 3 – methyl pentane C C C C C C C C 3-ethyl – 2 – methyl pentane C C C C C C C 2,3,4, trimethyl-pentane C C C C C C C C C 2,2,3, trimethyl-pentane C C C C C C C C 2,2,4 trimethyl-pentane C C

  30. 6 Pentane Isomers of Octane C C C C C C C 2,3,3 trimethyl pentane C C C C C C C 3-ethyl – 3 – methyl pentane C C C C C C C C 3-ethyl – 2 – methyl pentane C C C C C C C 2,3,4, trimethyl-pentane C C C C C C C C C 2,2,3, trimethyl-pentane C C C C C C C C 2,2,4 trimethyl-pentane C C

  31. 6 Pentane Isomers of Octane C C C C C C C 2,3,3 trimethyl pentane C C C C C C C 3-ethyl – 3 – methyl pentane C C C C C C C C 3-ethyl – 2 – methyl pentane C C C C C C C 2,3,4, trimethyl-pentane C C C C C C C C C 2,2,3, trimethyl-pentane C C C C C C C C 2,2,4 trimethyl-pentane C C

  32. 6 Pentane Isomers of Octane C C C C C C C 2,3,3 trimethyl pentane C C C C C C C 3-ethyl – 3 – methyl pentane C C C C C C C C 3-ethyl – 2 – methyl pentane C C C C C C C 2,3,4, trimethyl-pentane C C C C C C C C C 2,2,3, trimethyl-pentane C C C C C C C C 2,2,4 trimethyl-pentane C C

  33. 6 Pentane Isomers of Octane C C C C C C C 2,3,3 trimethyl pentane C C C C C C C 3-ethyl – 3 – methyl pentane C C C C C C C C 3-ethyl – 2 – methyl pentane C C C C C C C 2,3,4, trimethyl-pentane C C C C C C C C C 2,2,3, trimethyl-pentane C C C C C C C C 2,2,4 trimethyl-pentane C C

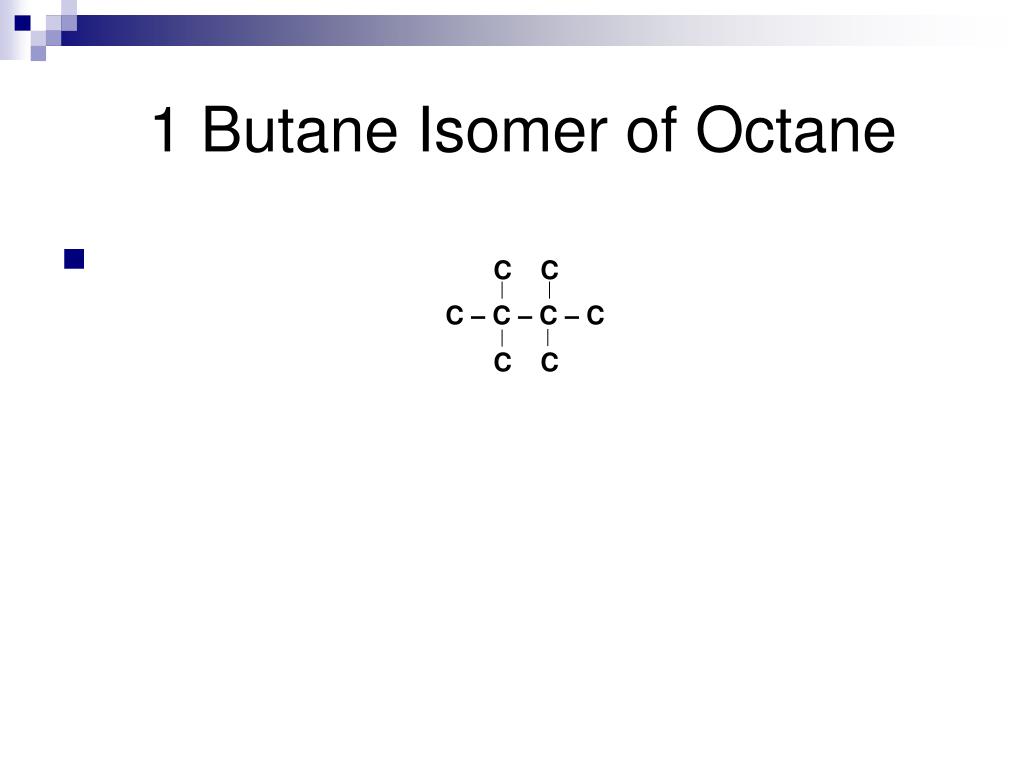

  34. 1 Butane Isomer of Octane C C C C C – C – C – C CH3C(CH3)2C(CH3)2CH3 2,2,3,3-tetramethyl-butane

  35. 1 Butane Isomer of Octane C C C C C – C – C – C CH3C(CH3)2C(CH3)2CH3 2,2,3,3-tetramethyl-butane

  36. 1 Butane Isomer of Octane C C C C C – C – C – C CH3C(CH3)2C(CH3)2CH3 2,2,3,3-tetramethyl-butane

  37. 1 Butane Isomer of Octane C C C C C – C – C – C CH3C(CH3)2C(CH3)2CH3 2,2,3,3-tetramethyl-butane
