Presentation Transcript


Distributed virtual environments and vrml an event based architecture

Distributed Virtual Environments and VRML: an Event-based Architecture

HP Labs BristolFilton Road, Bristol BS12 6QZ, UK

http://keryxsoft.hpl.hp.com/

Rycharde Hawkes [email protected]

Mike Wray [email protected]


Overview

Overview

  • Keryx Notification System

  • Distributed Virtual Environments

  • VRML

  • Living Worlds

  • Applications

  • Summary


Keryx notification system

Reaction

Keryx Notification System

  • Publication

    • Anyone can declare an intention to send notifications

    • Notifications are undirected

  • Subscription

    • Anyone can register an intention to receive notifications

    • Notifications filtered by a content template

Reaction

  • Notifications

    • Self-describing packages of information about something that has happened (an event)

  • Propagation

    • Supporting servers send notifications to end-users

    • Propagate only if interest exists


Self describing data representation

Self-describing Data Representation

{ system { message-id 97 } type ( emit ) content { type ( mutech zone ) sender "15.144.30.194/123/1" id "zone0" op ( object update ) oid "15.144.30.194/123/47” update { pos ( 1.01 2.23 1.57 ) ori ( 0 1 0 1.237 ) } }}

  • http://keryxsoft.hpl.hp.com/documents/sdr/draft-low-sdr-00.txt


Keryx notification system1

WWW Browser

Web Server

Event Distributor

Video Camera

Active Badge

‘Smart Seat’

Keryx Notification System

Internet

Events

Events

Events

Events

WWW Site Watch

Events

Open Set of Devices

Events

Events

Enterprise Telephony

Electronic Mail

PBX


Distributed virtual environments

Distributed Virtual Environments

  • What are they?

    • Shared, virtual worlds on the Internet.

  • Why distribute them?

    • Too large to manage in one place.

    • Enables multiple participants.

    • Decentralises ownership.

  • What does a DVE need?

    • Scalability.

    • Interoperability.

    • Extensibility.

    • Openness.

    • Consistency.

    • Persistence.

    • Interpersonal communications.


Managing dves

Rych

Mike

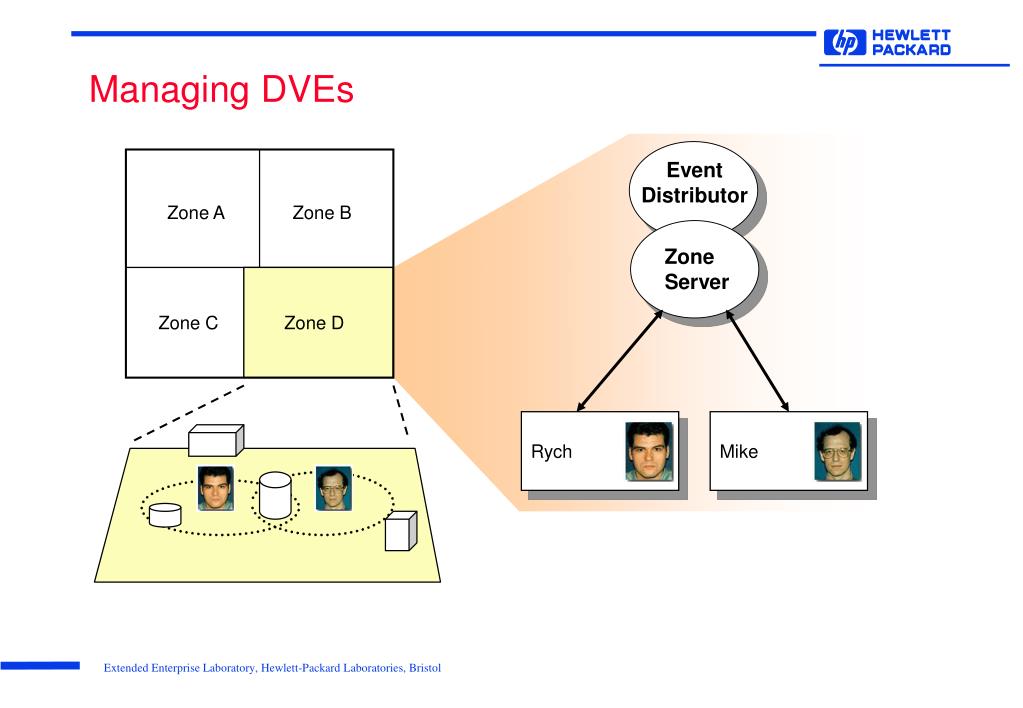

Managing DVEs

EventDistributor

Zone A

Zone B

ZoneServer

Zone C

Zone D


Vrml living worlds

WWW Browser

JavaApplets,etc.

VRML Browser

EAI

VRML World

Java Scripts

External Services, e.g. KNS

Network

VRML & Living Worlds

  • VRML

    • “3D on the Internet”.

    • Single user.

  • Living Worlds

    • Standard multi-user extensions to VRML.

  • Java

    • VRML browser and WWW browser share same Virtual Machine.

    • Embeddablein VRML.

    • Applets can use External Authoring Interface.

    • Either can interface to other services.


Living worlds

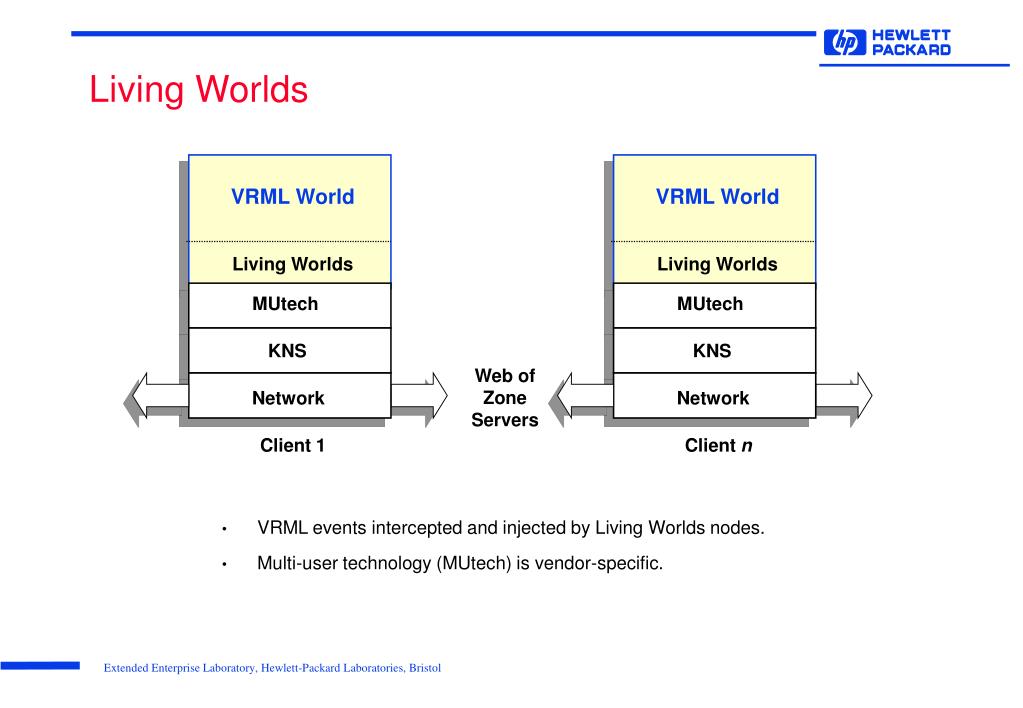

Living Worlds

  • VRML events intercepted and injected by Living Worlds nodes.

  • Multi-user technology (MUtech) is vendor-specific.

VRML WorldLiving Worlds

VRML WorldLiving Worlds

MUtech

MUtech

KNS

KNS

Web of ZoneServers

Network

Network

Client 1

Client n


Living worlds1

Living Worlds

Client A

Client B

Client C

Pilot

Drone 1

Drone 2

Zone Client

Zone Client

Zone Client

EventDistributor

ZoneServer

MUtech


Cubeworld

CubeWorld


Virtual helsinki

Virtual Helsinki

  • http://www.helsinkiarena2000.fi/


Virtual helsinki1

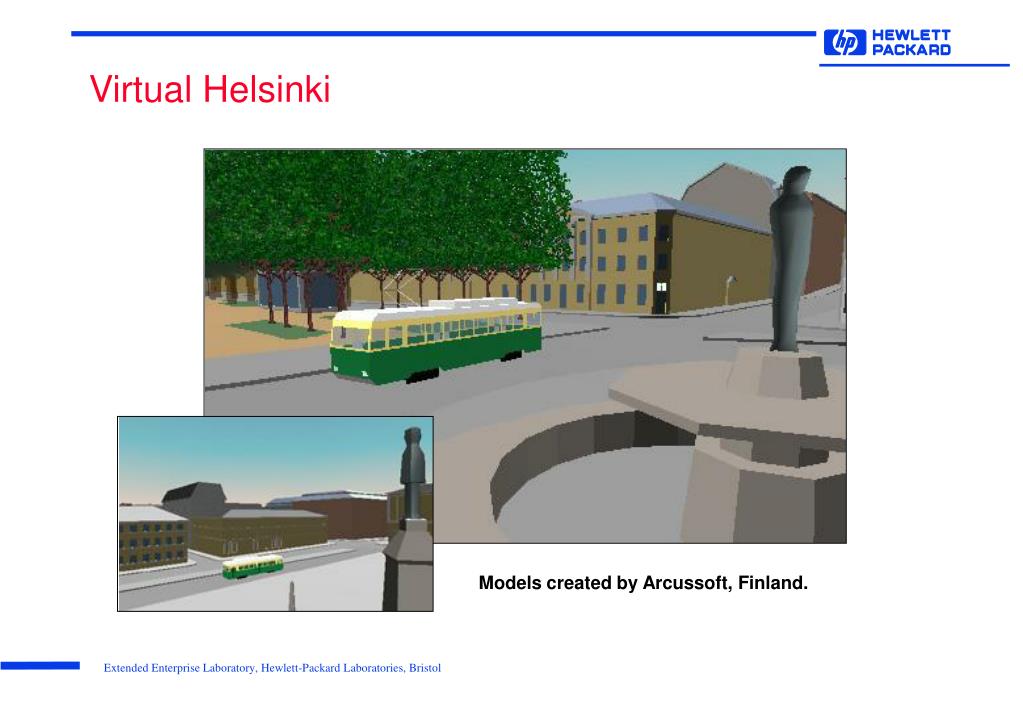

Virtual Helsinki

Models created by Arcussoft, Finland.


3d tele conferencing

3D Tele-Conferencing

HRTF


Summary

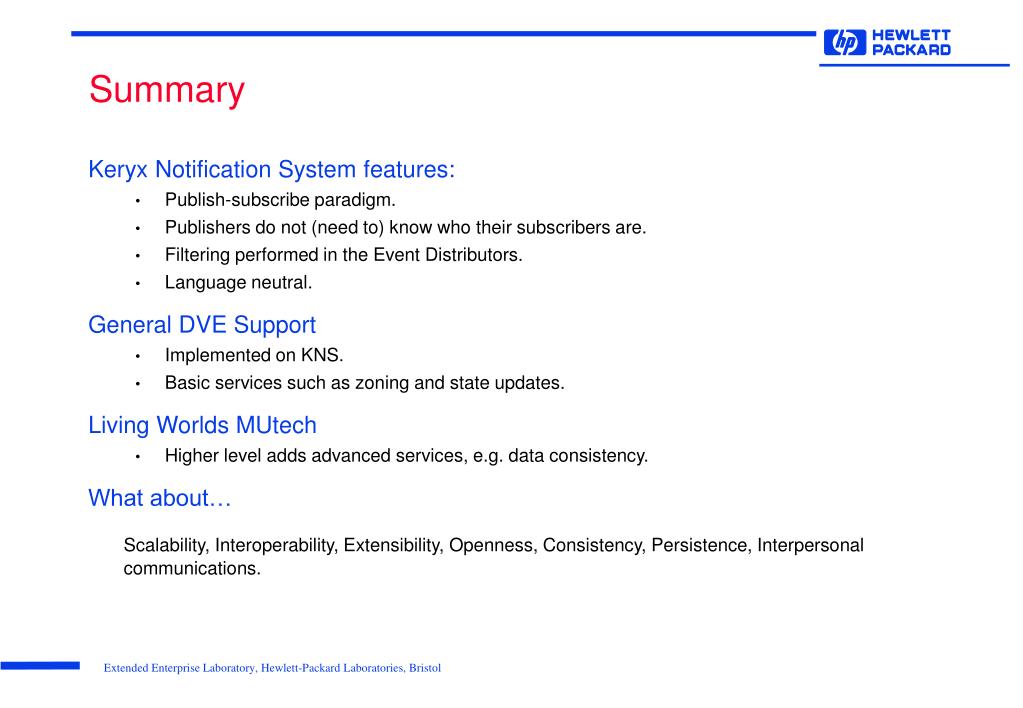

Summary

  • Keryx Notification System features:

    • Publish-subscribe paradigm.

    • Publishers do not (need to) know who their subscribers are.

    • Filtering performed in the Event Distributors.

    • Language neutral.

  • General DVE Support

    • Implemented on KNS.

    • Basic services such as zoning and state updates.

  • Living Worlds MUtech

    • Higher level adds advanced services, e.g. data consistency.

  • What about…

  • Scalability, Interoperability, Extensibility, Openness, Consistency, Persistence, Interpersonal communications.
