Plate Tectonics

Plate Tectonics. The lithosphere (crust and upper mantle) is broken into separate sections called plates. Plates. Floating Plates. These plates float on top of the asthenosphere through convection currents. States that pieces of the Earth’s lithosphere are in constant, slow motion

Download Presentation

Plate Tectonics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Plate Tectonics

  2. The lithosphere (crust and upper mantle) is broken into separate sections called plates. Plates

  3. Floating Plates • These plates float on top of the asthenosphere through convection currents.

  4. States that pieces of the Earth’s lithosphere are in constant, slow motion This theory explains the movement and subduction of plates on Earth. The Theory of Plate Tectonics

  5. The Movementof the Plates • The convection currents in the asthenosphere causes the plates to move • No plate can budge without affecting the other plates surrounding it

  6. Review • The lithosphere is broken in different sections. What are these sections called? • What do the plates float on top of? • What causes the plates to move? • T/F: When the plates move, they do not affect the other plates in the Lithosphere.

  7. The plates move in different directions. Pg. 133 (figure 23) Which Way Are They Going?

  8. Where The Plates Meet • The plates meet at boundaries. • There are 3 kinds of plate boundaries: • Transform boundaries • Divergent boundaries • Convergent boundaries

  9. Transform Boundaries • At a transform boundary, plates slip past each other moving in opposite directions • Earthquakes are frequent here

  10. San Andreas Fault Creek offset by the San Andreas Fault

  11. Divergent Boundaries • At a divergent boundary, two plates move apart • Most occur at the Mid-Ocean Ridge

  12. Divergent Boundaries • When a divergent boundary occurs on land, a rift valley forms. • A rift valley is a deep valley formed where the plates are separating

  13. The Great Rift Valley in Africa

  14. Convergent Boundaries • At a convergent boundary, two plates come together, or converge. • There are 3 types of convergent boundaries: • Oceanic crust collides with oceanic crust • Oceanic crust collides with continental crust • Continental crust collides with continental crust

  15. And the winner is… • When two plates collide, the density of the plates determines which one comes out on top • Remember: oceanic crust is more dense than continental crust

  16. Oceanic VS Oceanic • Two oceanic plates meet at a trench • And the winner is: The less dense plate comes out on top • The plate which is more dense dives under the other one and returns to the mantle (called subduction)

  17. Oceanic VS Continental • And the winner is: Continental comes out on top • The oceanic plate is more dense so it sinks and plunges under the continental plate (subduction)  Continental Oceanic 

  18. Continental VS Continental • Subduction does not occur (neither is dense enough to sink into the mantle) • This makes mountains • And the winner is: IT’S A DRAW!

  19. Slow Motion • The plates move from 1 to 10 centimeters per year!!! • North America and Eurasia move apart 2.5 centimeters per year • This is how fast your fingernails grow

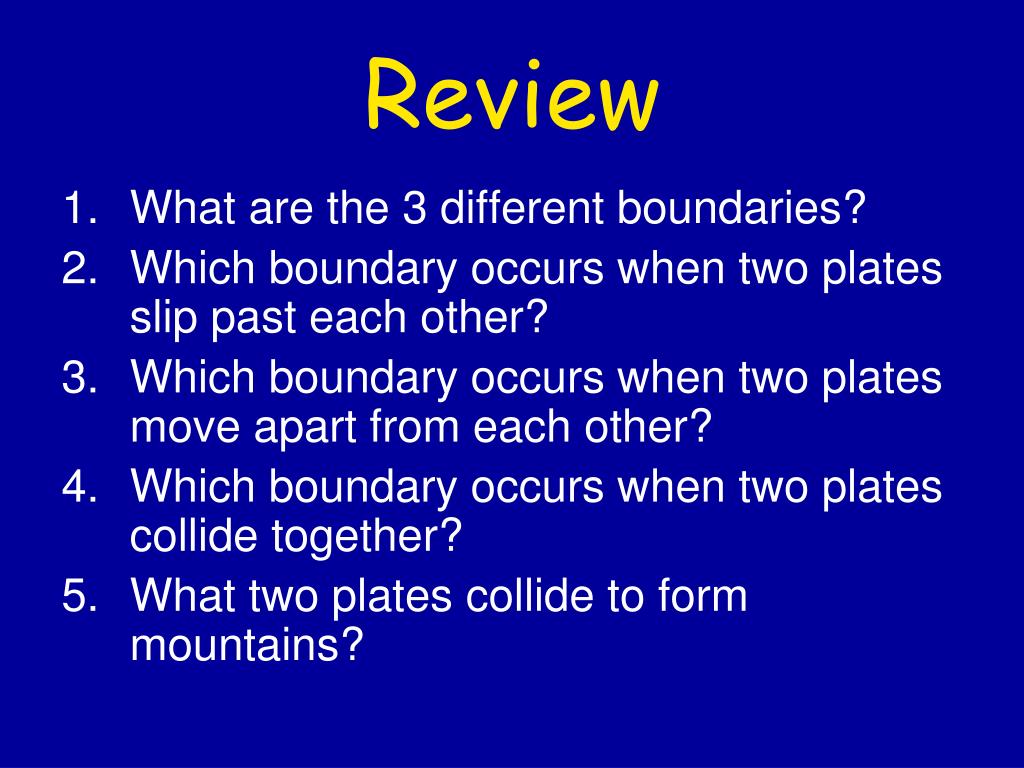

  20. Review • What are the 3 different boundaries? • Which boundary occurs when two plates slip past each other? • Which boundary occurs when two plates move apart from each other? • Which boundary occurs when two plates collide together? • What two plates collide to form mountains?
