Presentation Transcript


A unified langauge model architecture for web based speech recognition grammars

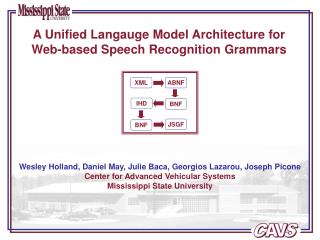

A Unified Langauge Model Architecture for Web-based Speech Recognition Grammars

XML

ABNF

IHD

BNF

JSGF

BNF

Wesley Holland, Daniel May, Julie Baca, Georgios Lazarou, Joseph Picone

Center for Advanced Vehicular Systems

Mississippi State University


A unified langauge model architecture for web based speech recognition grammars

  • Speech Recognition

  • Acoustic Model

    • Maps audio data to words or phonemes

  • Language Model

    • Specifies order in which a sequence of words or phonemes is likely to occur

    • Described using grammar


A unified langauge model architecture for web based speech recognition grammars

  • Grammar Specifications

  • Backus-Naur Form (BNF)

  • Augmented BNF (ABNF)

  • JSpeech Grammar Format (JSGF)

  • Speech Recognition Grammar Specification (SRGS)

  • ISIP Hierarchical Digraph (IHD)

BNF

ABNF

JSGF

<A>::=aB

<B>::=bB

<B>::=ε

<A>::=ab*

<A>=a(b)*;

XML-SRGS

IHD

a

<item repeat=“0-”>

b

</item>


A unified langauge model architecture for web based speech recognition grammars

  • Conversion Design

  • Goals

    • JSGF ↔ IHD

    • XML-SRGS ↔ IHD

    • Determination of equivalence

    • Grammar minimization

  • Final Architecture

XML

ABNF

BNF

IHD

JSGF


A unified langauge model architecture for web based speech recognition grammars

  • JSGF/XML-SRGS → ABNF

  • JSGF→ABNF

    • Trivial

    • Similar in syntax and structure to ABNF

  • XML-SRGS →ABNF

    • Harder than JSGF

    • Different in syntax and structure from ABNF

    • Requires enumeration of certain repeat attributes

JSGF

ABNF

<A>=ab*;

<A>::=ab*

XML-SRGS

ABNF

<item repeat=‘1-2’>

a

b

</item>

<S>::=(ab)|(abab)

<item repeat=‘2-’>

a

b

</item>

<S>::=abab(ab)*


A unified langauge model architecture for web based speech recognition grammars

  • JSGF/XML-SRGS → ABNF

  • XML-SRGS →ABNF (continued)

    • Different weighting mechanisms (weight and repeat-prob attributes)

a

<item repeat=“0-” repeat-prob=“.45”>

b

</item>

<one-of>

<item weight=“.4”>c</item>

<item weight=“.6”>d</item>

</one-of>


A unified langauge model architecture for web based speech recognition grammars

  • ABNF → BNF

  • Normalized BNF

    • Consists of rules of the following formats:

      • (RULE_NAME)::=(TERMINAL),(NON_TERMINAL)

      • (RULE_NAME)::=(NON_TERMINAL)

      • (RULE_NAME)::=ε

ABNF

  • Break rule into multiple rules at each top-level alternation. Recurse on each rule.

  • For each concatenation, Kleene star, or Kleene plus, extract a set of left symbols and a set of right symbols.

  • For n left symbols and m right symbols, create n x m connecting rules.

  • ABNF → BNF

    • Complicated

    • Accomplished using a recursive algorithm that extracts sets of normalized BNF rules from a set of ABNF rules

BNF


A unified langauge model architecture for web based speech recognition grammars

  • BNF ↔ IHD

  • BNF ↔ IHD

    • Each arc translates to a normalized BNF

    • Terminals correspond to nodes; concatenations correspond to arcs

BNF

IHD


A unified langauge model architecture for web based speech recognition grammars

  • BNF → JSGF/XML-SRGS

  • BNF →JSGF/XML-SRGS

    • Rule-by-rule

    • Trivial

XML-SRGS

<rule id=“a”>

a

<ruleref uri=“#b”/>

</rule>

<rule id=“b”>

<one-of>

<item>

b

<ruleref uri=“#b”/>

</item>

<item>

<ruleref special=

“NULL”/>

</item>

</one-of>

</rule>

BNF

JSGF

<A>::=aB

<B>::=bB

<B>::=ε

<A>=aB;

<B>=b|bB;


A unified langauge model architecture for web based speech recognition grammars

  • Software Tools

  • ISIP Network Converter

    • Console tool to perform conversions to and from arbitrary grammar formats

  • ISIP Network Builder

    • Java-based graphical tool to design

    • grammars as finite state machines

    • Can exports grammars to JSGF,

    • XML-SRGS, ABNF, BNF, and IHD

  • ISIP Language Model Tester

    • Console tool for testing of grammars

    • Can generate valid sentences in a given grammar

    • Can parse sentences and determine if accepted by a given grammar.


A unified langauge model architecture for web based speech recognition grammars

  • Summary

  • Future Work

    • Web-based front-end to speech recognition software

    • Mobile speech recognition

  • Public Domain Toolkit

    • Contains language model conversion tools

    • Public domain – available for download
