Don brown

Don Brown

Struts 2.0


Web circa 2000

Web, Circa 2000


Web circa 2006

Web, Circa 2006


Struts 2 architecture

Struts 2 Architecture


Struts 2 0

Struts 1

Action 

ActionForm 

ActionForward 

struts-config.xml 

ActionServlet 

RequestProcessor 

Struts 2

Action

Action or POJO’s

Result

struts.xml

FilterDispatcher

Interceptors


Struts plugins

Struts Plugins


Simple example

Simple Example


Struts 1

Struts 1

<html:errors/>

<html:form action="/SaveMeeting">

<table border="0" width="100%">

<tr>

<th align="right">

Name:

</th>

<td align="left">

<html:text property="name" size=”50” />

</td>

</tr>

<tr>

<th align="right">

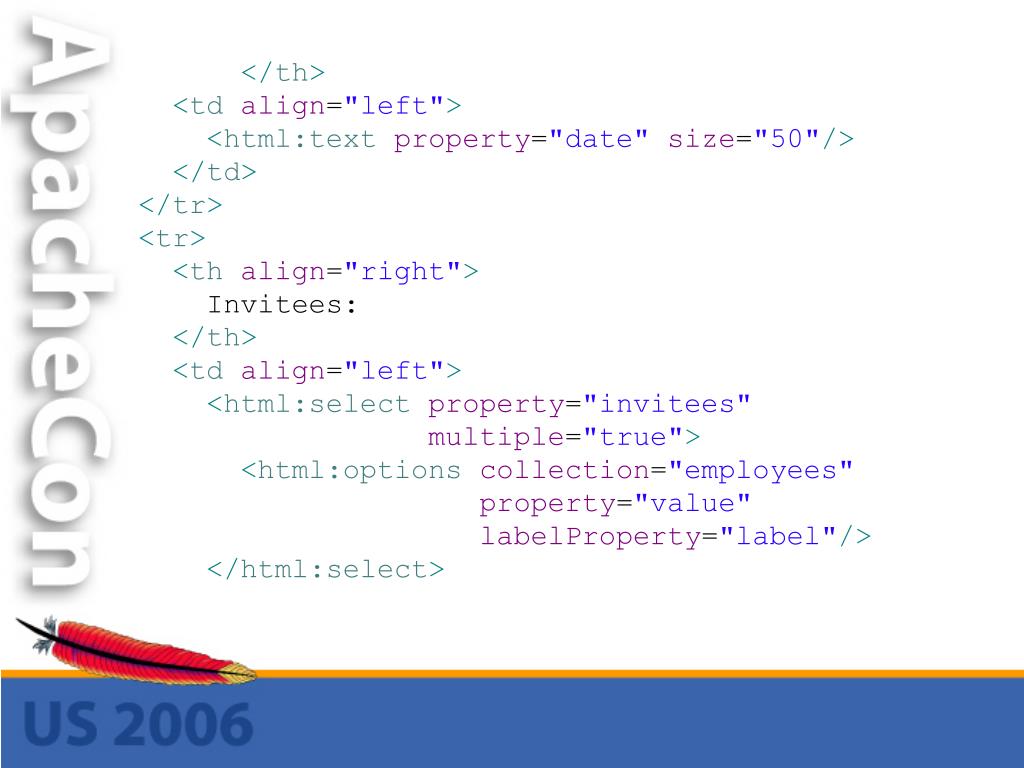

Date:


Struts 2 0

</th>

<td align="left">

<html:text property="date" size="50"/>

</td>

</tr>

<tr>

<th align="right">

Invitees:

</th>

<td align="left">

<html:select property="invitees"

multiple="true">

<html:options collection="employees"

property="value"

labelProperty="label"/>

</html:select>


Struts 2 0

</tr>

<tr>

<th align="right">

Description:

</th>

<td align="left">

<html:textarea property="description"

rows="4" cols="50" />

</td>

</tr>

<tr>

<td align="right">

&nbsp;

</td>

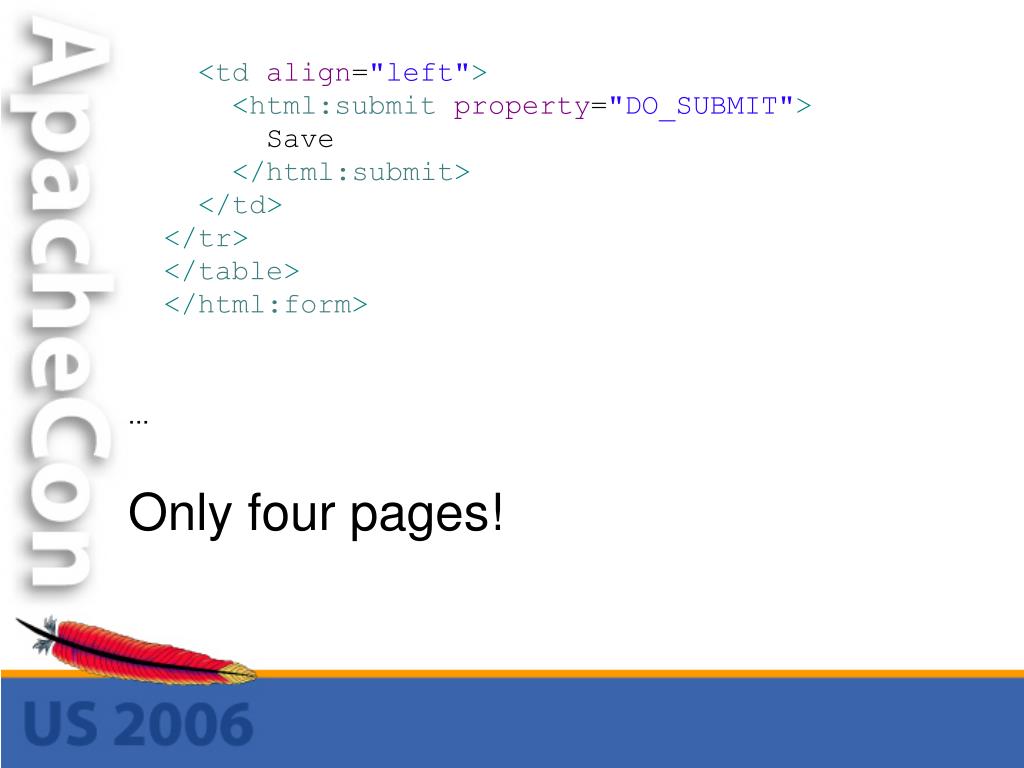

Only four pages

...

Only four pages!

<td align="left">

<html:submit property="DO_SUBMIT">

Save

</html:submit>

</td>

</tr>

</table>

</html:form>


Struts 2

Struts 2

<s:form action="Meeting" validate="true">

<s:token />

<s:textfield label=”Name” name=“name” />

<s:textfieldlabel=”Date"name="date"/>

<s:select label=”Invitees” name="invitees"list="employees"/>

<s:textarealabel=”Description” name="description"

rows="4"cols="50"/>

<s:submitvalue=”Save"method="save"/>

</s:form>

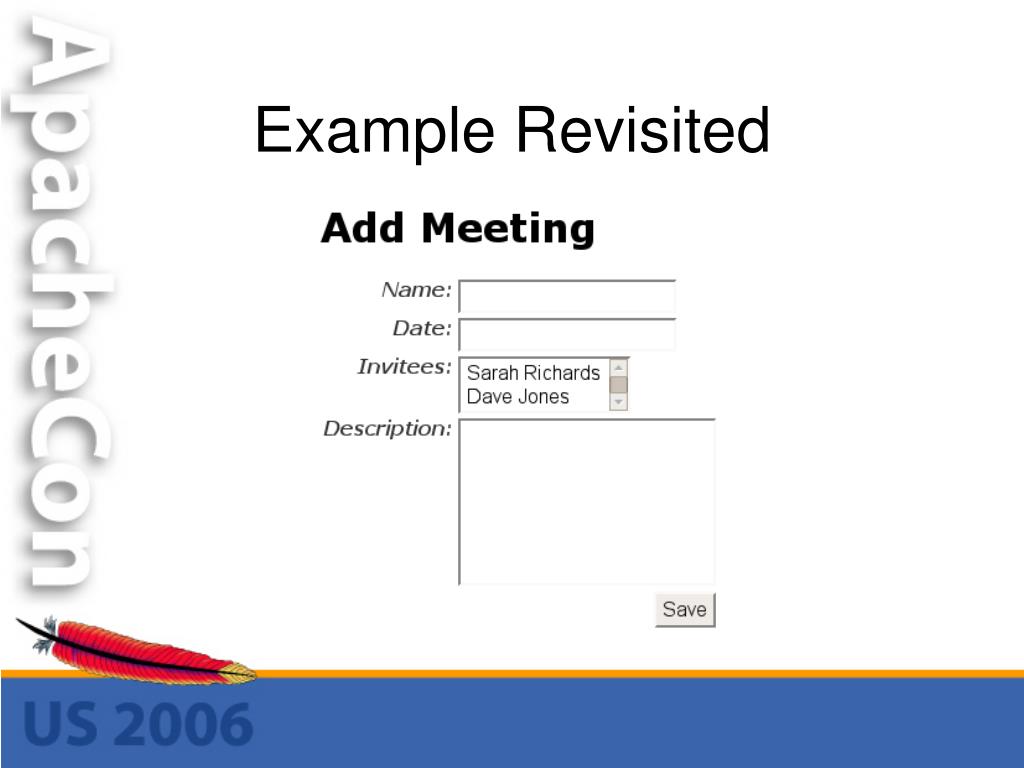

Example revisited

Example Revisited


Struts 2 0

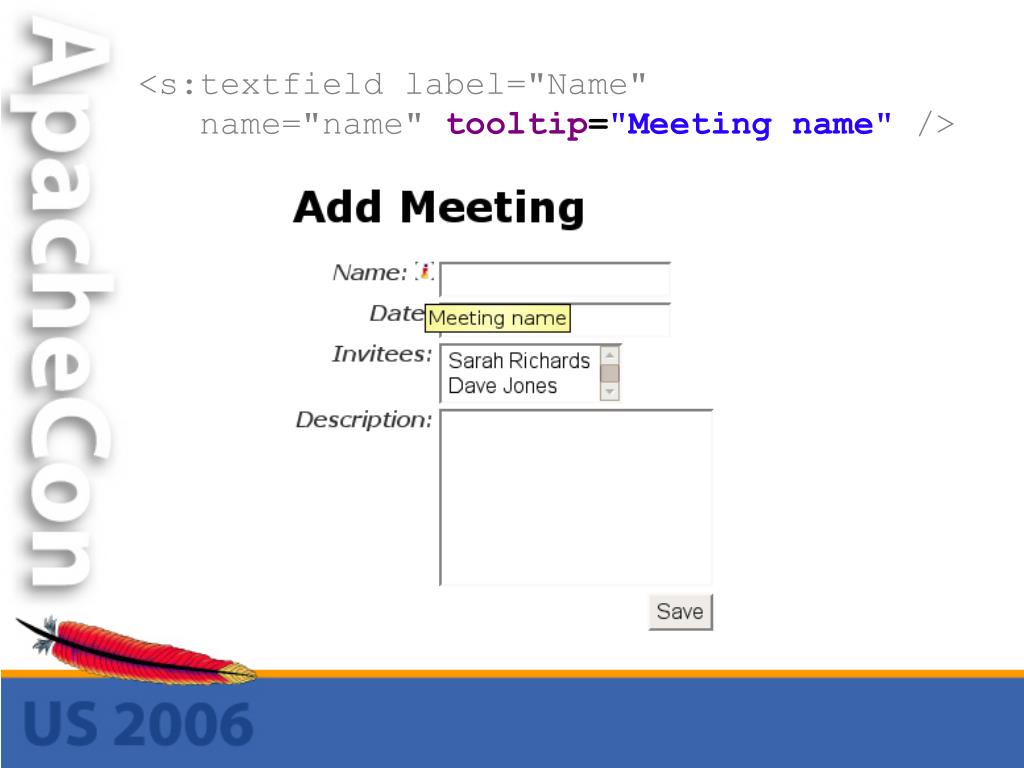

<s:textfield label="Name"

name="name"tooltip="Meeting name"/>


Struts 2 0

<s:datepickerlabel="Date" name="date"/>


Struts 2 0

<s:optiontransferselect ... />


Struts 2 0

<jsp:include

page="/ajax/commonInclude.jsp"/>

...

<s:textareatheme="ajax"label="Description"

name="description" rows="4" cols="50" />


But there s more

But there's more . . .


Brian kernighan law of debugging difficulty

Debugging is twice as hard as writing the code in the first place. Therefore, if you write the code as cleverly as possible, you are, by definition, not smart enough to debug it.

Brian Kernighan Law of Debugging Difficulty


Prevention and cure

Prevention and Cure


Struts devmode true

struts.devMode = true

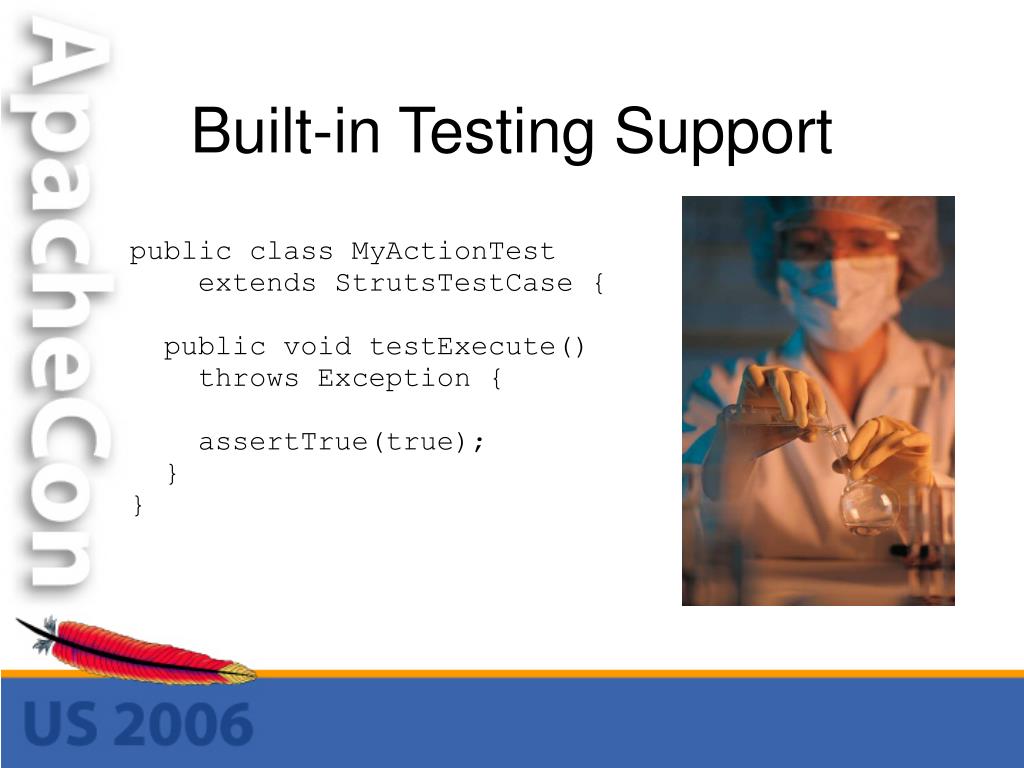

Built in testing support

Built-in Testing Support

public class MyActionTest

extends StrutsTestCase {

public void testExecute()

throws Exception {

assertTrue(true);

}

}


Struts 2 0

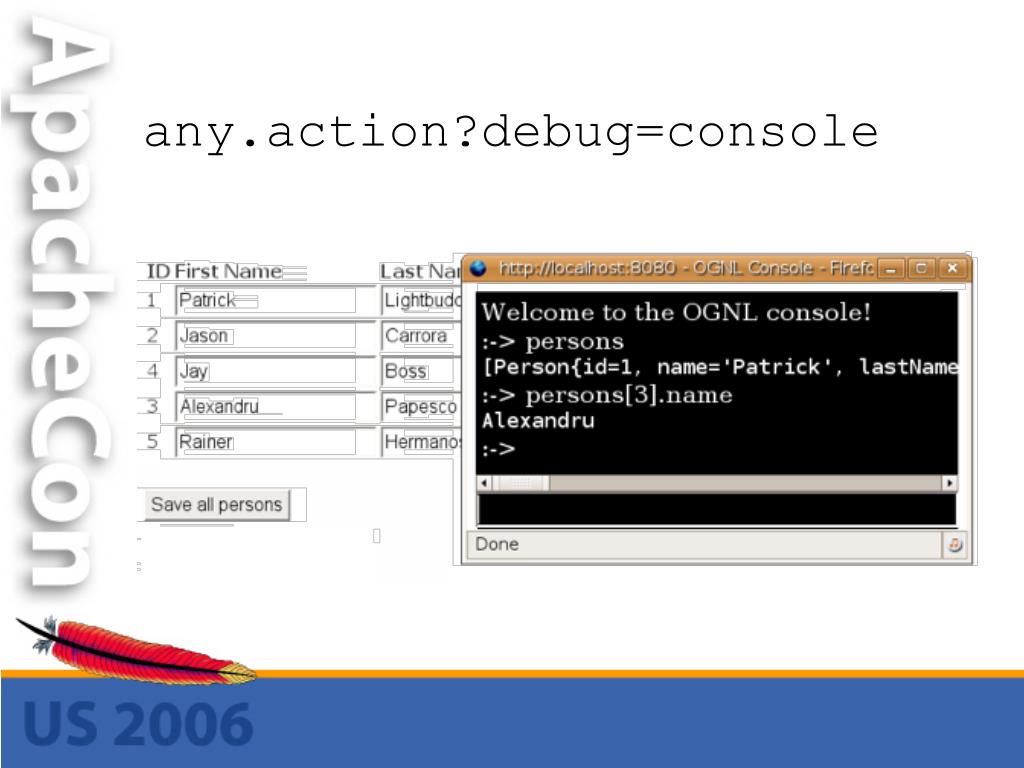

any.action?debug=console


Struts 2 0

any.action?profiling=yes


Struts 2 0

Time to Upgrade?


Struts 2 0

Tutorials, Guides, and FAQs


Struts 2 0

Struts 2 Training Course


Struts 2 0

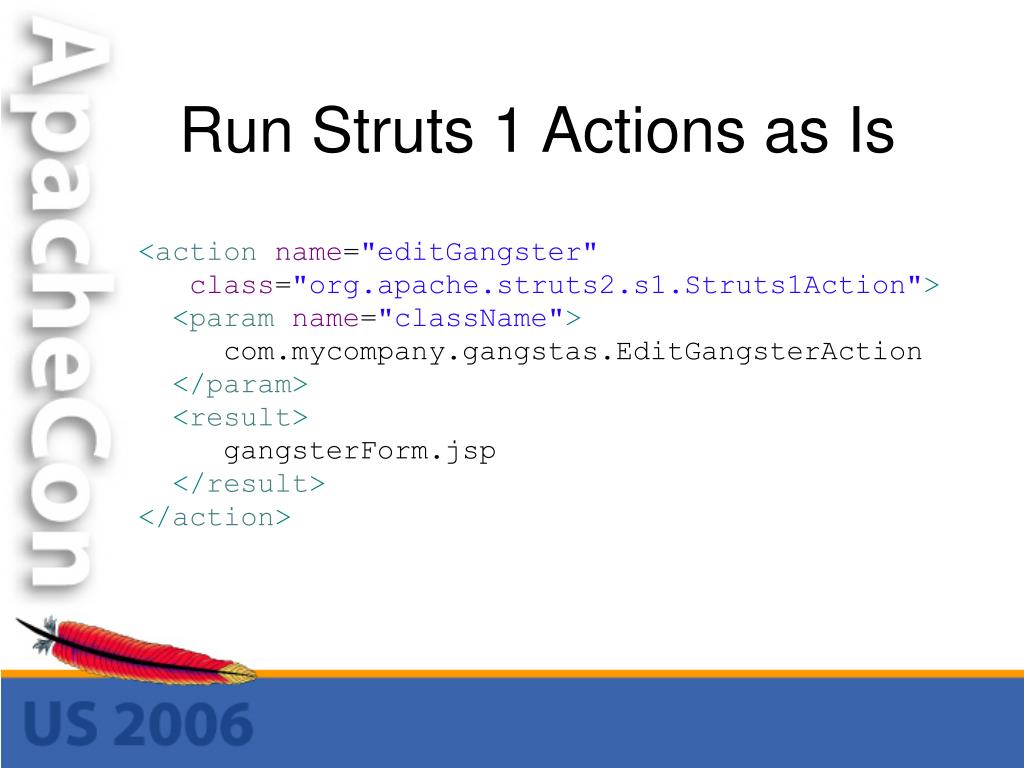

Run Struts 1 Actions as Is

<action name="editGangster"

class="org.apache.struts2.s1.Struts1Action">

<param name="className">

com.mycompany.gangstas.EditGangsterAction

</param>

<result>

gangsterForm.jsp

</result>

</action>


Struts 2 0

How do I get started?


Struts 2 0

Where We are Going
