Nuclear Chemistry

Nuclear Chemistry. Electromagnetic Radiation. Two types of radiation: 1.  Ionizing radiation      a.  x-rays, gamma rays     b.  greatest energy      c.  high frequency; short wavelength      d.  cause particles like electrons to be ejected

brenna
Download Presentation

Nuclear Chemistry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Nuclear Chemistry

  2. Electromagnetic Radiation Two types of radiation: 1.  Ionizing radiation      a.  x-rays, gamma rays     b.  greatest energy      c.  high frequency; short wavelength      d.  cause particles like electrons to be ejected      e.  exposure can cause great damage to tissues  2.  Non-ionizing radiation      a.  radio waves, microwaves, infrared, visible light, ultraviolet      b.  lower energy      c.  low frequency; long wavelength      d.  exposure does not cause great damage to tissues

  3. Atoms ParticleSymbolLocationChargeMolar Mass (g/mol)protonp+nucleus1+1neutronnonucleus01electrone-outside nucleus in energy levels1-0.0005 or 0              A. atomic number = number of protons             B.  mass number = number of protons + neutrons             C. isotopes                         1.  atoms of the same element having different number of neutrons                         2.  radioisotope                                     a.  radioactive                                     b.  decays spontaneously 3.  symbol                   mass # à       90                                                                             Sr                                                 Atomic #  à    38 4.  name                         a.  add mass number to the name of the element                         b.  example:  strontium-90  or Sr-90

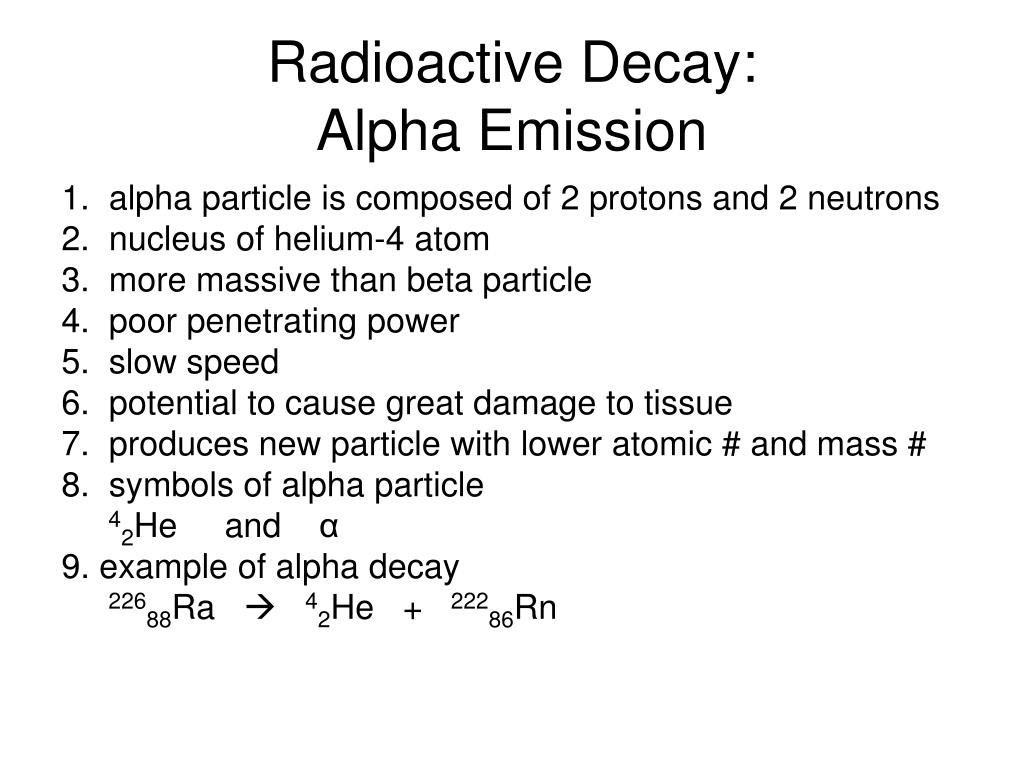

  4. Radioactive Decay:Alpha Emission 1.  alpha particle is composed of 2 protons and 2 neutrons 2.  nucleus of helium-4 atom 3.  more massive than beta particle 4.  poor penetrating power 5.  slow speed 6.  potential to cause great damage to tissue 7.  produces new particle with lower atomic # and mass # 8.  symbols of alpha particle 42He     and    α 9. example of alpha decay 22688Ra   42He   +   22286Rn

  5. Radioactive Decay:Beta Emission 1.  beta particle is an electron 2.  beta emission is equivalent to the conversion of a neutron to a proton 3.  smaller than an alpha particle 4.  moves faster and penetrates better than alpha 5.  produces new particle with higher atomic # and same mass # 6.  symbols of beta decay 0-1e      and      0-1β      and       β 7.  example of beta decay 146C   0-1e   +   147N

  6. Radioactive Decay:Gamma 1.  gamma is a form of electromagnetic radiation 2.  high energy photons 3.  represents energy lost when the remaining nucleons reorganize into more stable arrangements 4.  moves at speed of light 5.  not a particle 6.  penetrates best of all types of radiation 7.  no change in particle that undergoes gamma decay 8.  symbols 00γ     and       γ

  7. Radioactive Decay:Positron Emission 1.  positron is a positive electron 2.  produces a new particle with lower atomic # and same mass # 3.  positrons have a very short life because it is annihilated when it collides with an electron, producing gamma rays 01e   +   0-1e      2 00γ 4.  example of positron  emission 3819K   3818Ar   +   0+1e

  8. Radioactive Decay: Electron Capture 1.  only type of radioactive decay in which the particle is on the reactant side of the equation (electron is consumed rather than formed) 2.  electron 3.  converts a proton to a neutron 11p   +   0-1e   10n 4.  example of electron capture 10647Ag   +   0-1e   10646Pd

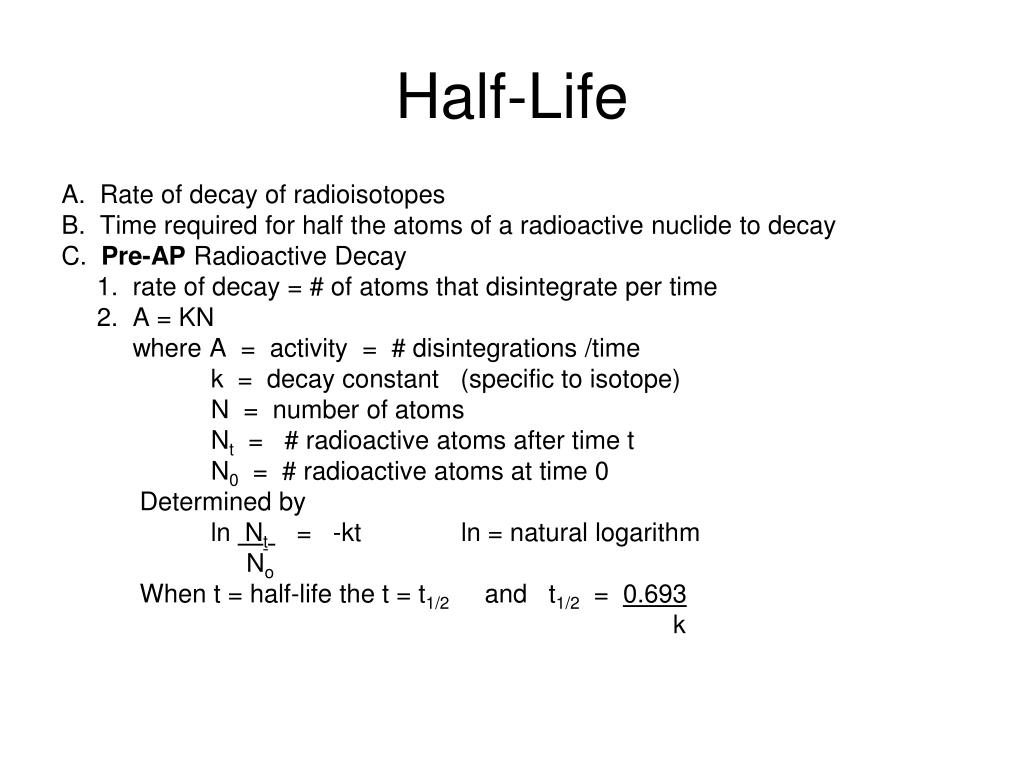

  9. Half-Life A.  Rate of decay of radioisotopes B.  Time required for half the atoms of a radioactive nuclide to decay C.  Pre-AP Radioactive Decay      1.  rate of decay = # of atoms that disintegrate per time      2.  A = KN           where A  =  activity  =  # disintegrations /time                      k  =  decay constant   (specific to isotope)                     N  =  number of atoms                      Nt  =   # radioactive atoms after time t                      N0  =  # radioactive atoms at time 0            Determined by                      ln Nt   =   -kt              ln = natural logarithm                           No            When t = half-life the t = t1/2     and   t1/2  =  0.693                                                                                       k
