Solar cycle variation of p-mode frequencies

Solar cycle variation of p-mode frequencies. Hiromoto Shibahashi (University of Tokyo) The First Far Eastern Workshop on Helioseismology March 15-17, 2003 Korea Institute for Advanced Study. Long-term frequency variation. Dependent on mode frequency Very weak l -dependence

brenna-hardin
Download Presentation

Solar cycle variation of p-mode frequencies

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Solar cycle variationof p-mode frequencies Hiromoto Shibahashi (University of Tokyo) The First Far Eastern Workshop on Helioseismology March 15-17, 2003 Korea Institute for Advanced Study

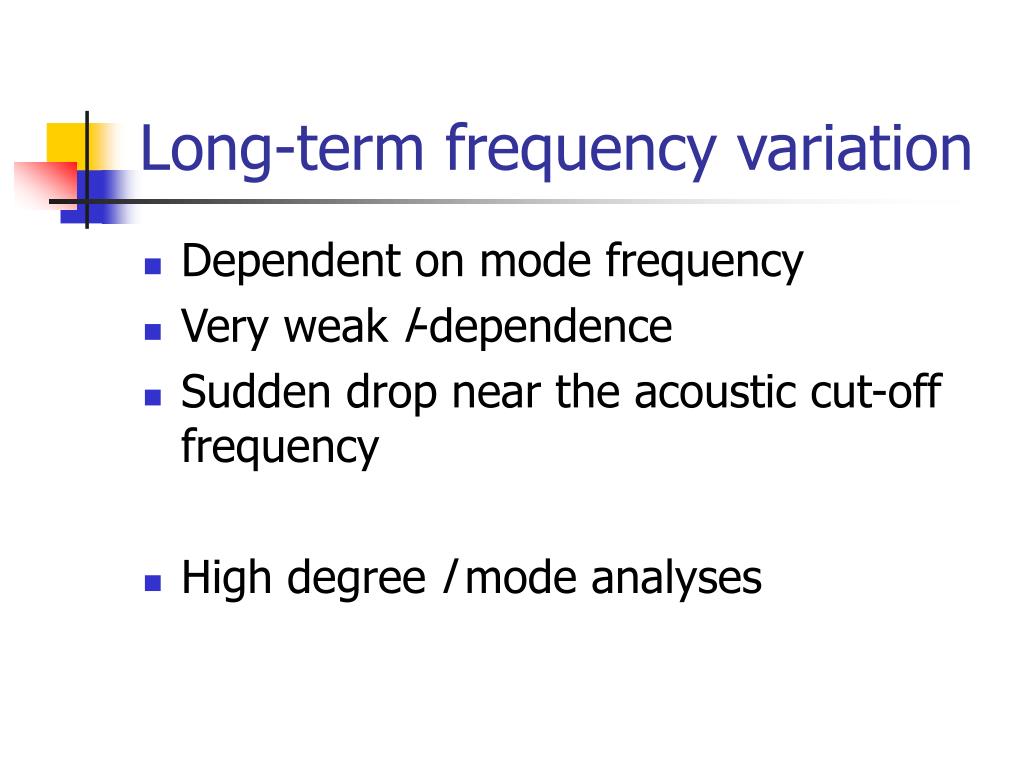

  2. Long-term frequency variation • Dependent on mode frequency • Very weak l-dependence • Sudden drop near the acoustic cut-off frequency • High degree l mode analyses

  3. Long-term frequency variation  High degree l p-modes  crit

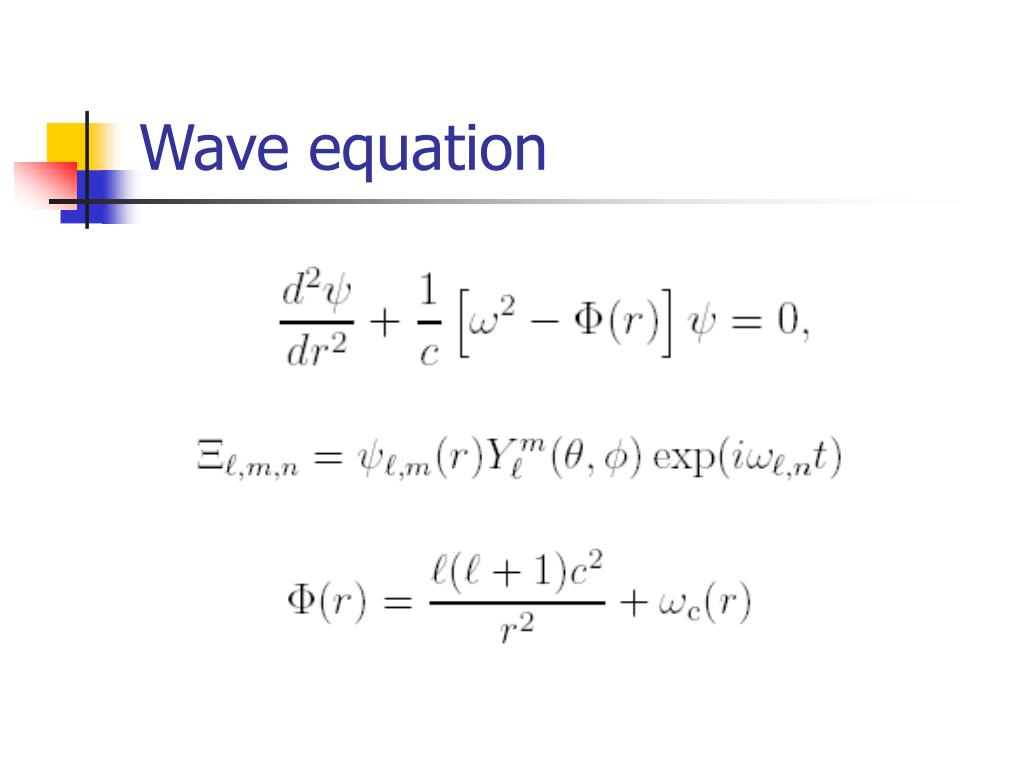

  4. Wave equation

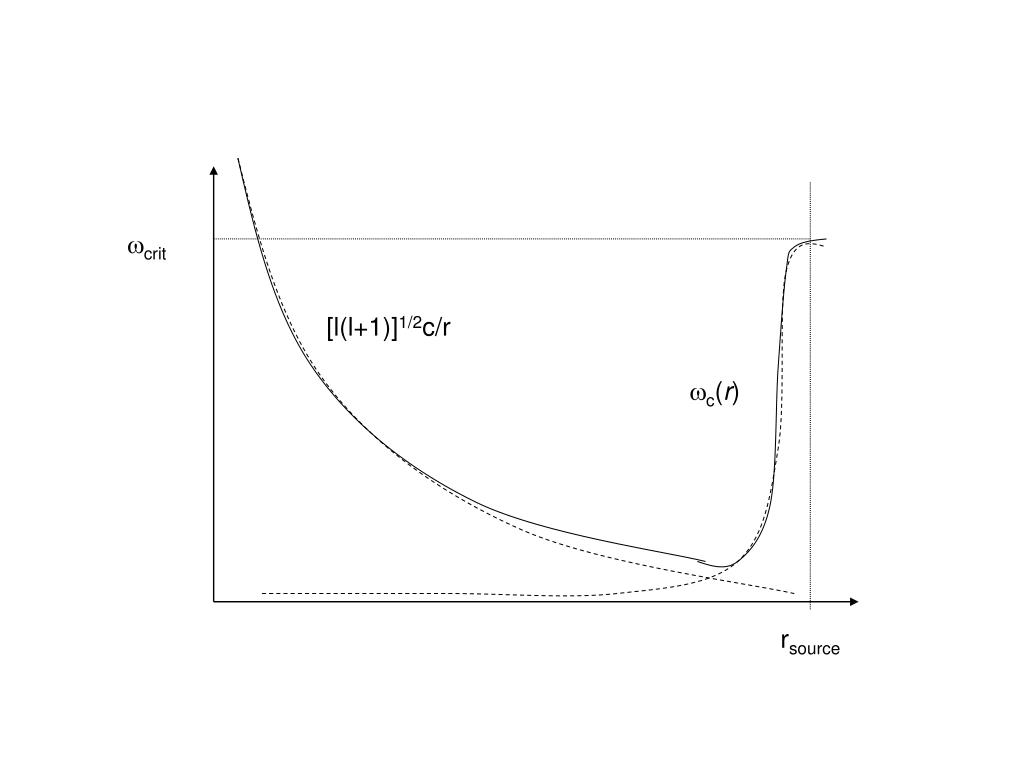

  5. crit [l(l+1)]1/2c/r c(r) rsource

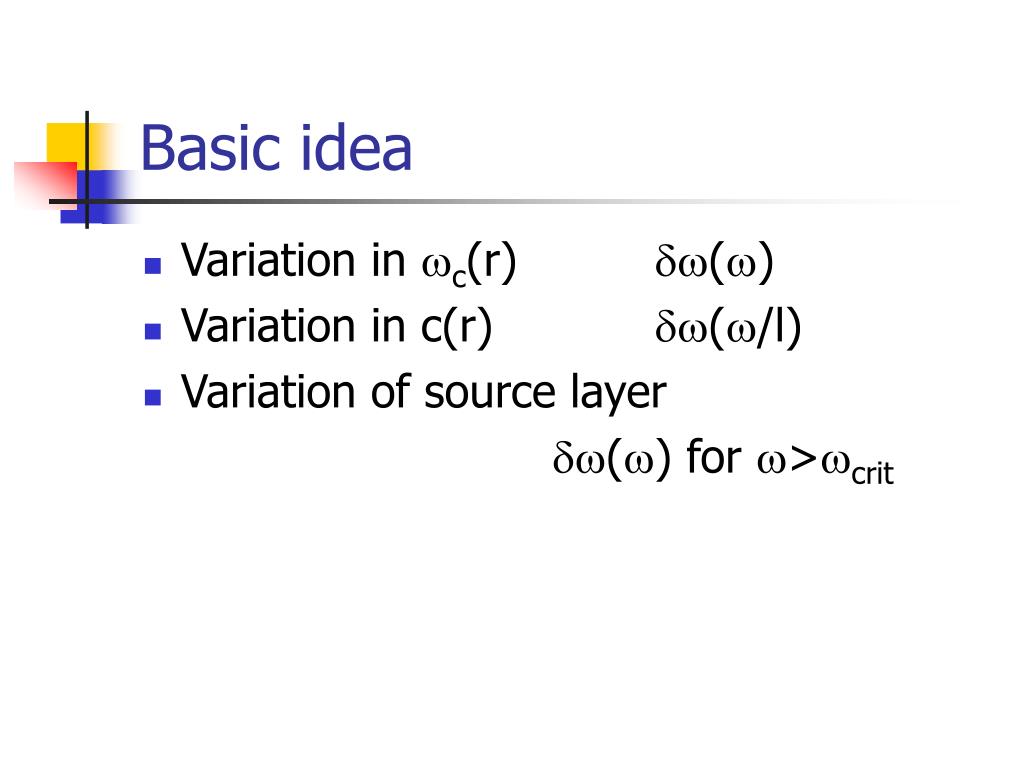

  6. Basic idea • Variation in c(r) () • Variation in c(r) (/l) • Variation of source layer () for >crit

  7. Quantization condition

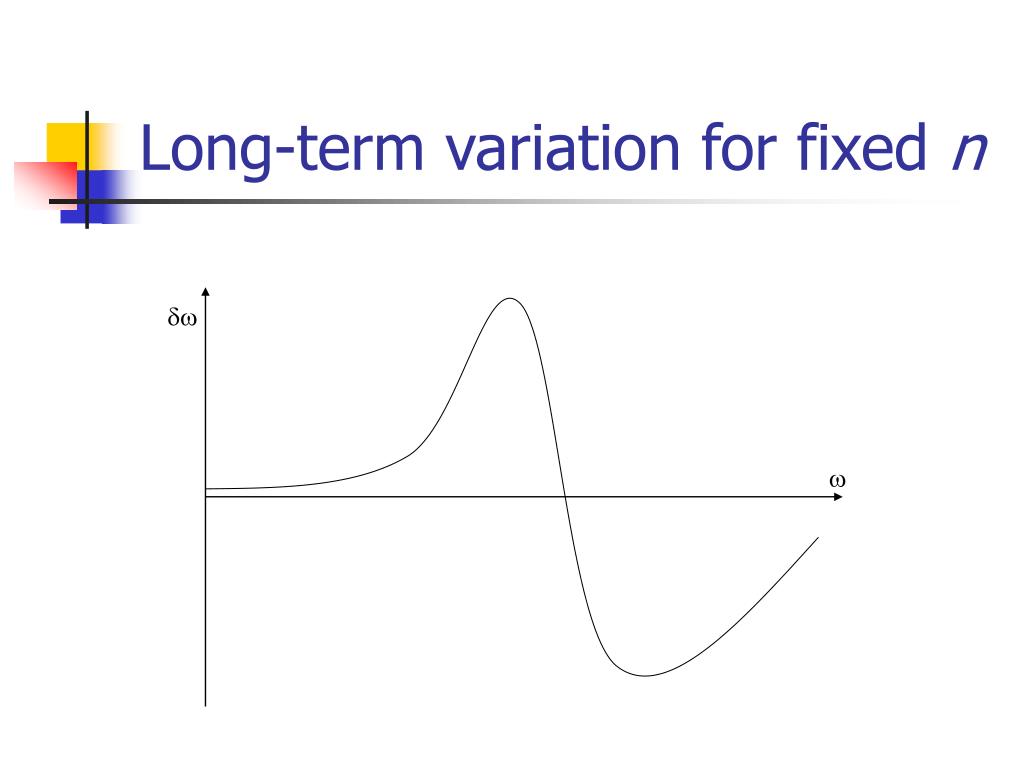

  8. Long-term variation for fixed n  

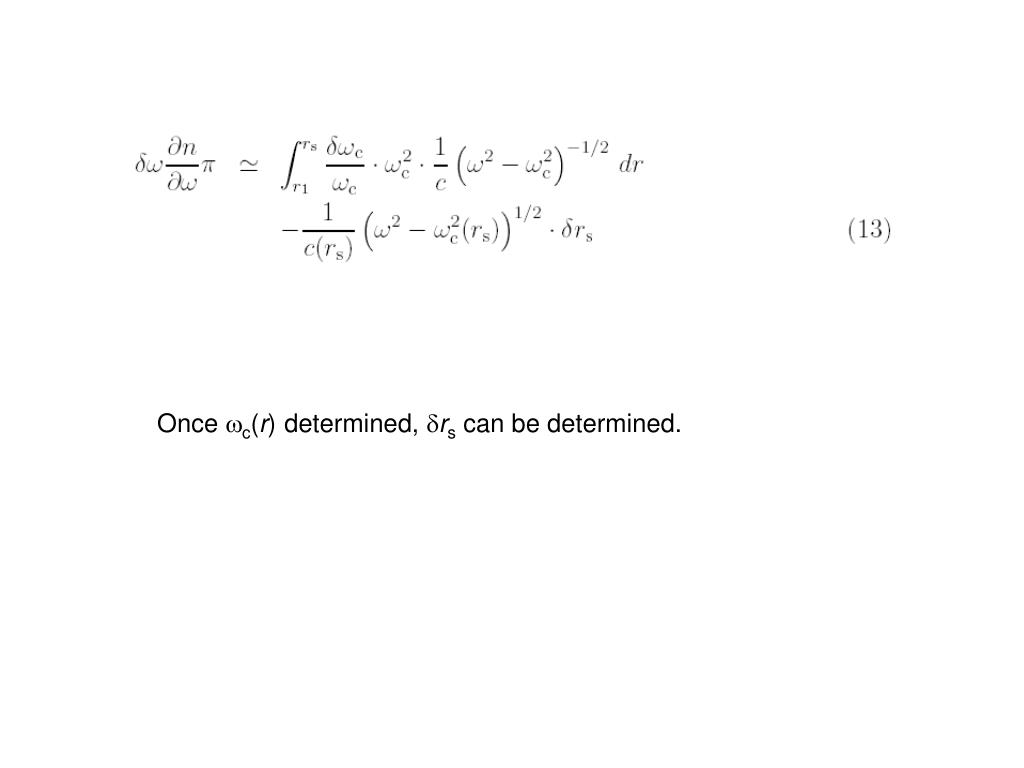

  9. Once c(r) determined, rs can be determined.

  10. Summary • Variation of acoustic potential • Frequency dependence part • Frequency / Degree dependence part • Variation of source layer • Variation in HIP frequency • Magnetic variation • Irradiance variation
