Large scale social simulation in java and the neiss project

Large Scale Social Simulation in Java and the NeISS Project

Andy Turner

http://www.geog.leeds.ac.uk/people/a.turner/

Future Research Directions in Agent Based Modelling Workshop, Leeds, UK, 2010-06-15


Overview

Overview

  • Introduction

  • Modelling people movements at an individual level

    • Demographics

    • Traffic simulation

  • Scaling up models

    • Computational issues

  • Memory handling in Java


Introduction

Introduction

  • GENESIS

    • Generative e-Social Science for Socio-Spatial Simulation

    • ESRC funded

    • A second phase research node of the UK National Centre for e-Social Science

    • http://www.genesis.ucl.ac.uk/

  • NeISS

    • National e-Infrastructure for Social Simulation

    • JISC funded

    • Part of the Information Environment Program

    • http://www.neiss.org.uk/


Large scale social simulation in java and the neiss project

  • My Presentation Slides, and Notes from this meeting can all be found via the following URL:

    http://ur1.ca/07j0y


Modelling people movements at an individual level

Modelling People Movements at an Individual Level

  • Model Characteristics

    • Scale and resolution

      • Spatial

        • 2D/3D

      • Temporal

    • Agent and Environment Attributes

    • Constraints

  • Types of model

    • Prehistorical

    • Historical

    • Contemporary

    • Use restricted v Open access


Contemporary model data

Contemporary Model Data

  • Lots exists, but much is not openly available

  • Census and Social Surveys

  • Government statistics

  • Traffic monitoring and surveys

  • Crowd sourced

    • Mobile devices

  • Telecommunication data

  • Navigation company data

  • Traffic/transport systems

    • Transport networks

    • Public transport scheduled services

  • Financial transactions

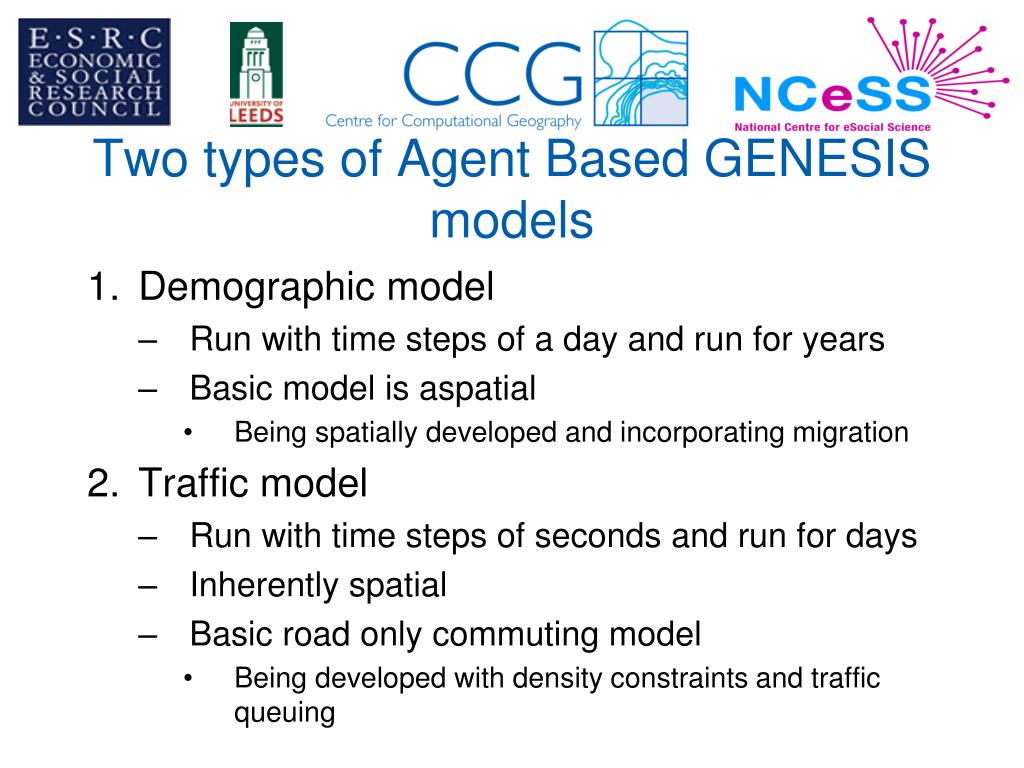

Two types of agent based genesis models

Two types of Agent Based GENESIS models

  • Demographic model

    • Run with time steps of a day and run for years

    • Basic model is aspatial

      • Being spatially developed and incorporating migration

  • Traffic model

    • Run with time steps of seconds and run for days

    • Inherently spatial

    • Basic road only commuting model

      • Being developed with density constraints and traffic queuing


Open source java

Open Source Java

  • GENESIS Code Base

    • http://ur1.ca/07n5h

  • Key third party libraries

    • ojALGO

      • http://ojalgo.org/

    • JFreeChart

      • http://www.jfree.org/jfreechart/

    • Traveling Salesman OSM routing library

      • http://wiki.openstreetmap.org/wiki/Traveling_Salesman


Result can be reproduced although models are stochastic in nature

Result can be reproduced although models are stochastic in nature

  • Uses seeded psuedo-random number sequences

    • Results can be easily reproduced

      • Given the same input data and model configuration

    • A range of results can be generated for different random seeds

  • Iterators are used to go through collections of Objects during processing

    • However, the order in which objects are retrieved via the iterator does not have an effect in that the data after going through the iteration is the same each time.


Basic demographic model

Basic Demographic Model

  • Deals with birth and death

  • Starts with an initial population

    • Comprised of males and females

  • Males and females may have different age specific fertility and mortality rates

  • At each step simulates:

    • Death

    • Birth

    • Pregnancy

    • Miscarriage


Basic demographic model detail

Basic Demographic Model Detail

  • All living Person (Agents) are tested to see if they die at each step:

    • Tests are done by asking for the next number from a pseudo-random sequence and comparing the number with respective age and gender specific mortality rates

  • In the first simple model

    • Miscarriage rate was fixed for all ages, but was reasonably high

    • Gestation period was fixed at 266 days

    • At birth a single Agent is formed with a 50% chance of it being either male or female


Example output

Example Output

  • _Year 299

    • _TotalDeathsInYear 11442

    • _TotalBirthsInYear 12049

    • _TotalConceptionsInYear 14238

    • _TotalMiscarriagesInYear 2138

  • Output Directory


Demographic considerations

Demographic considerations

  • Seeding the initial population with pregnancies

    • Without this there is a significant cohort of births 266 days after the simulation starts and then again 266 days after this

    • Over time miscarriage helps to even out the number of new births on each day

  • Sharply increasing Fertility probabilities at a specific age result in a secondary cohort effect

    • The first newborn population may tend to all have babies on the same day too

  • Pregnancy term is not fixed, but based on a probability distribution


Example platform

Example Platform

  • Intel(R) Core(TM) 2 Duo CPU P9400 @ 2.4GHz

  • 2.39 GHz, 1.95 GB RAM

  • Ran from within Netbeans 6.7.1

  • Java opts

    • –Xmx512m –Xms512m

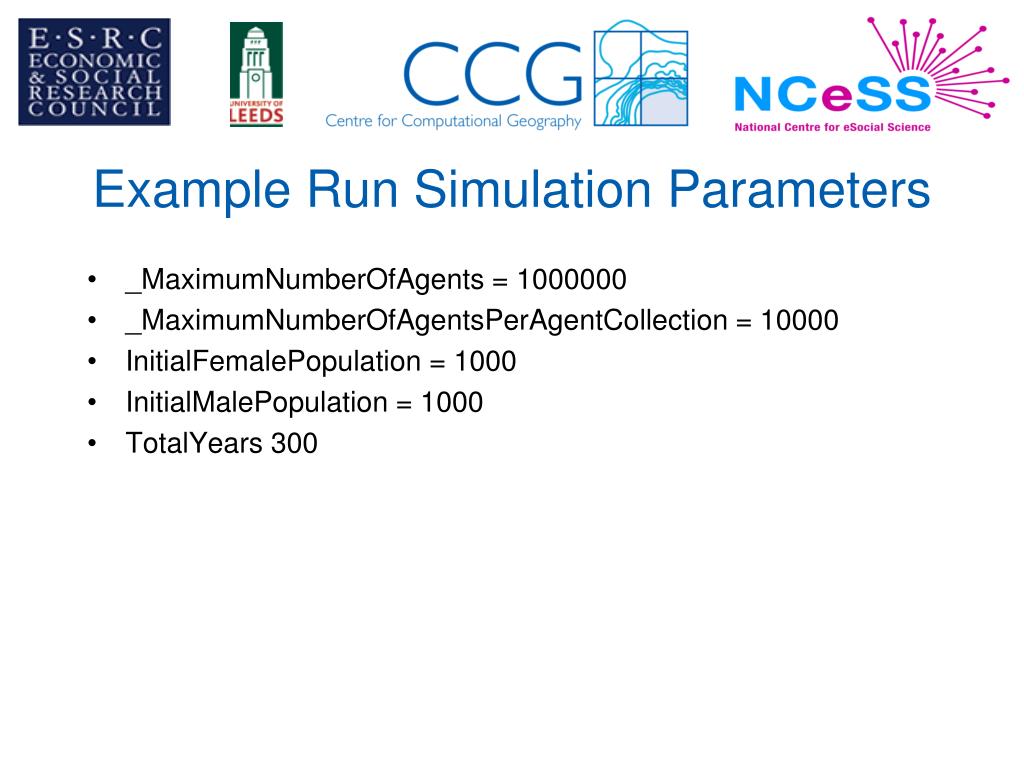

Example run simulation parameters

Example Run Simulation Parameters

  • _MaximumNumberOfAgents = 1000000

  • _MaximumNumberOfAgentsPerAgentCollection = 10000

  • InitialFemalePopulation = 1000

  • InitialMalePopulation = 1000

  • TotalYears 300


Example run data

Example Run Data

  • No input data

  • All data generated by simulation model

    • 1162563 Files

      • 1173895 Directories

  • Size 1.92 GB (2067216392 bytes)

  • Size on disk 4.48 GB (4819922944 bytes)

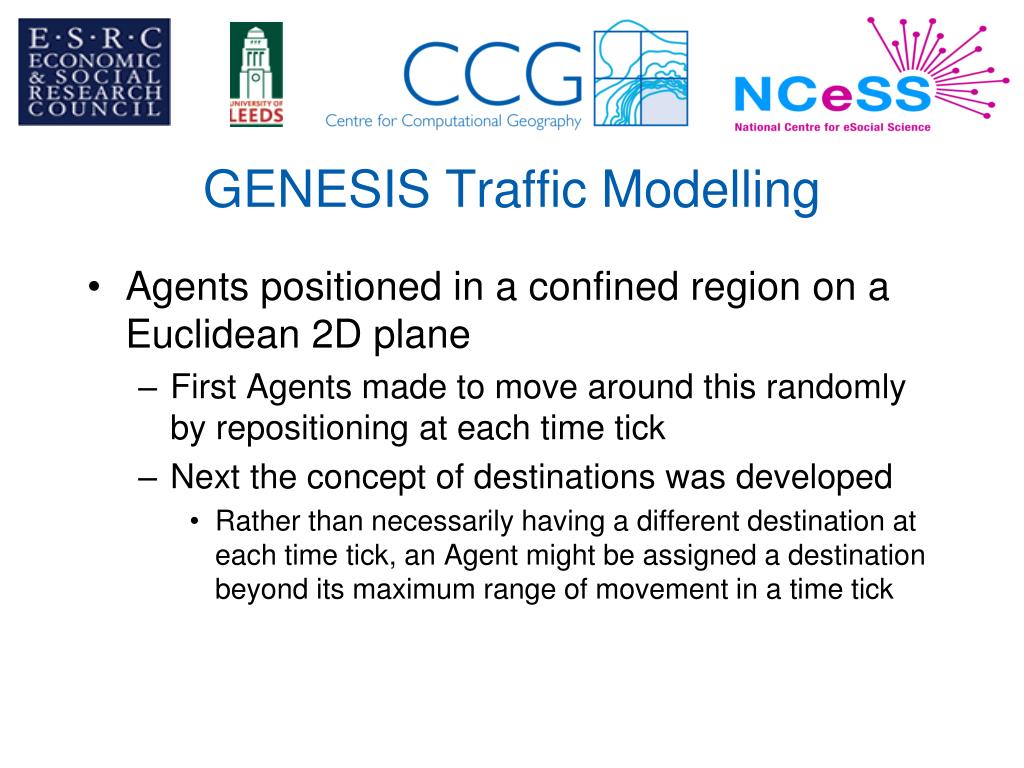

Genesis traffic modelling

GENESIS Traffic Modelling

  • Agents positioned in a confined region on a Euclidean 2D plane

    • First Agents made to move around this randomly by repositioning at each time tick

    • Next the concept of destinations was developed

      • Rather than necessarily having a different destination at each time tick, an Agent might be assigned a destination beyond its maximum range of movement in a time tick


Spatial resolutions

Spatial resolutions

  • Fixed decimal place type precision high resolution raster network

  • Movement on network also uses fixed decimal place precision

  • Reporting done for lower resolution rasters

    • Both vectors of movement and population density grid outputs


Model libraries

Model Libraries

  • Generic

    • http://ur1.ca/07ne2

  • Raster

    • Grids

      • http://ur1.ca/07ndw

  • Vector

    • http://ur1.ca/07nel

  • Agent data


Commuting model for leeds seeded with uk census data

Commuting model for Leeds seeded with UK Census data

  • Data

    • 2001 UK census special travel statistics data

      • home origin and work destination at an Output Area (OA) level

      • There are over 200,000 OA in the UK

    • Open Street Map (OSM) Road data

      • http://www.openstreetmap.org/

  • Key 3rd party library

    • Traveling Salesman OSM routing library

      • http://wiki.openstreetmap.org/wiki/Traveling_Salesman


Example output1

Example output

  • Output Directory


Computational issues

Computational Issues

  • These models are computationally demanding both in terms of the processing and the data storage requirements

    • To reduce compute times then parallelisation is key

      • MPJ Express

    • For large scale simulations then there are few computers with enough fast access memory

      • Some way of swapping data with slower access (usually persistent disk) memory is wanted

      • Some Java Memory Handling slides coming up...


A method to get the amount of available jvm memory

A method to get the amount of available JVM memory


A method to try to prevent outofmemoryerror being thrown

A method to try to prevent OutOfMemoryError being thrown


A public wrapped method

A public wrapped method


A simple case of handling outofmemoryerror

A simple case of handling OutOfMemoryError


Agents and data structures

Agents and Data Structures

  • Agents

    • Each of these has a unique numeric ID

    • Have a file location

  • AgentCollections

    • These are HashSets of Agents

    • Have a file location

  • AgentIDCollections

    • These are HashSets of Agent numeric IDs


Data structure settings

Data Structure Settings

100000000000

1000000000

10000000

100000

1000

100

6 directory levels can store 100000000000 (one hundred thousand million) files.


Considerations and further work

Considerations and Further Work

  • I am happy to help anyone wanting to get a copy of my code and get it running

  • The next big computational step is to paralellise the models

  • For the demographic models I am working on migration

  • For the traffic models I am working on implementing density and flow based constraints


Acknowledgements

Acknowledgements

  • GENESIS is funded by the UK ESRC

    • RES-149-25-1078

  • NeISS is funded by the UK JISC

  • Thanks for help and support from:

    • The e-Research community

    • The University of Leeds

      • School of Geography

      • Centre for Computational Geography


Thank you

Thank you

http://ur1.ca/07j0y
