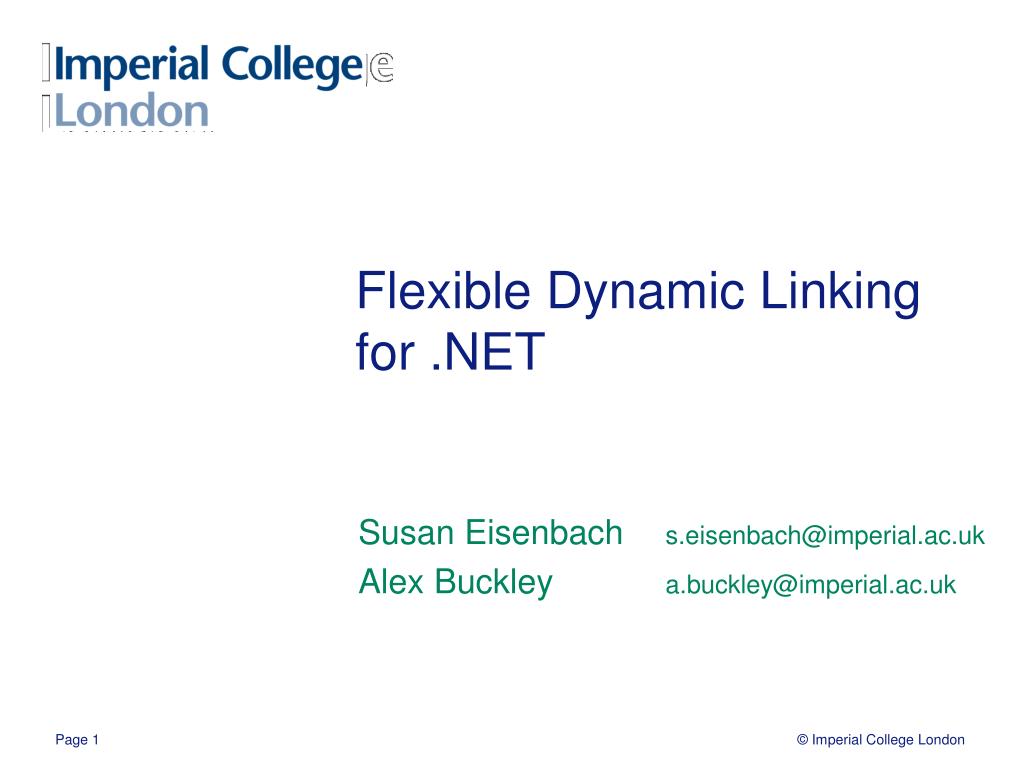

Flexible Dynamic Linkingfor .NET

Susan [email protected]

Alex [email protected]

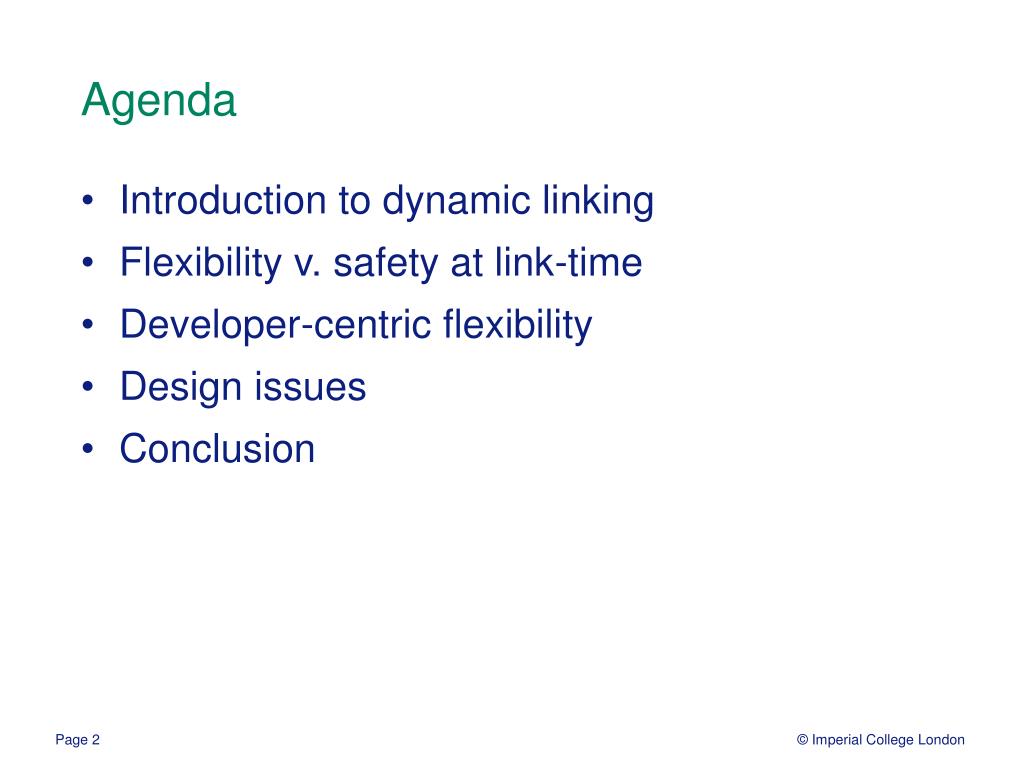

Agenda

Agenda

  • Introduction to dynamic linking

  • Flexibility v. safety at link-time

  • Developer-centric flexibility

  • Design issues

  • Conclusion


Dynamic linking

Dynamic linking

Turns

ldfldMemberDescriptor

generated at compile-time

into

ldfld0x100405

in the run-time environment

by using assembly and class definitions


Dynamic linking1

Dynamic linking

  • Is taken as given in modern execution environments

  • Saves space by sharing code between programs

  • Enables binding policies such as:

    • User/system-wide upgrades (v1.0 → v2.0)

    • Servicing policy (v1.1.9 → v1.2)

    • Unification policy (use version corresponding to the CLR)

    • Local and remote probing (check GAC, then URL)

  • Supports bytecode verification on the user’s machine

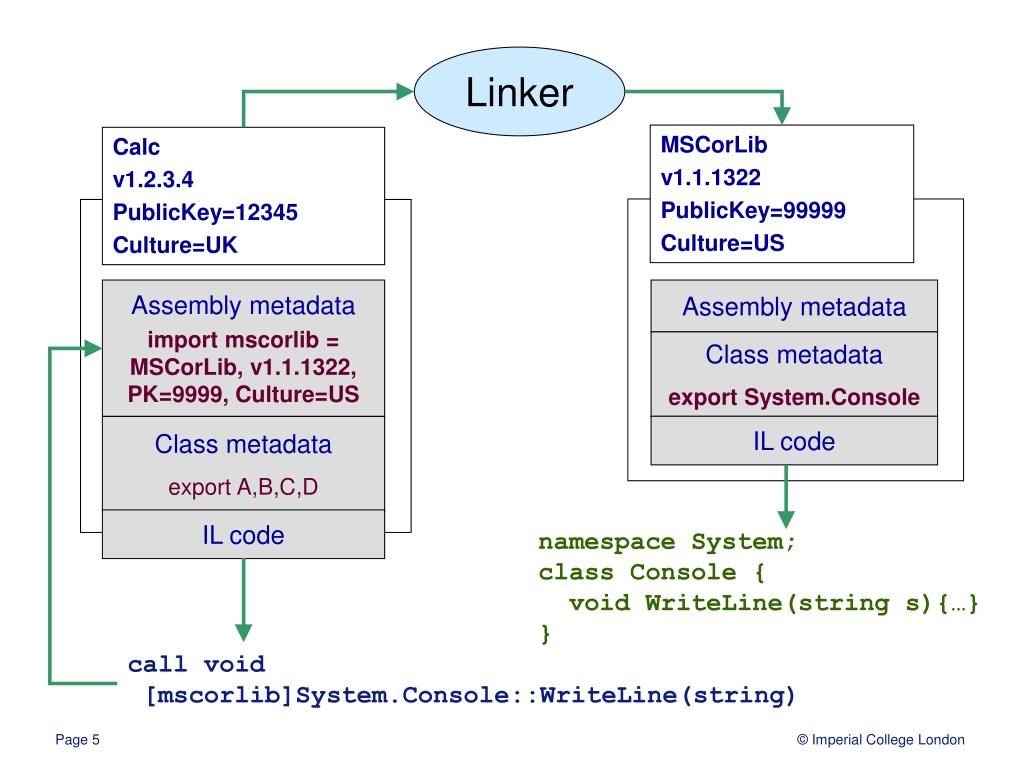

Flexible dynamic linking for net

call void[mscorlib]System.Console::WriteLine(string)

Linker

MSCorLib

v1.1.1322

PublicKey=99999

Culture=US

Calc

v1.2.3.4

PublicKey=12345

Culture=UK

Assembly metadata

import mscorlib = MSCorLib, v1.1.1322, PK=9999, Culture=US

Assembly metadata

Class metadata

export System.Console

IL code

Class metadata

export A,B,C,D

IL code

namespace System;class Console {void WriteLine(string s){…}}


Linking is constrained by compiler decisions

Linking is constrained by compiler decisions

Console.WriteLine(“Hi”);

Known to the compiler

call void[mscorlib]System.Console::WriteLine(string)

Available at runtime

call void[monolib]System.Console::WriteLine(string)


Platform or vendor specific assemblies might be available at runtime only

Platform- or vendor-specific assemblies might be available at runtime only

  • Generic ODBC v. SQLServer ODBC

  • Microsoft FTP v. third-party SecureFTP

    A concrete example:

  • Imperial’s LTSA model-checkercan use non-redistributable NASA algorithms

  • How to avoid compile-time dependencies on NASA code?

  • Separate compilation still checks dependencies

  • Have to use error-prone reflection

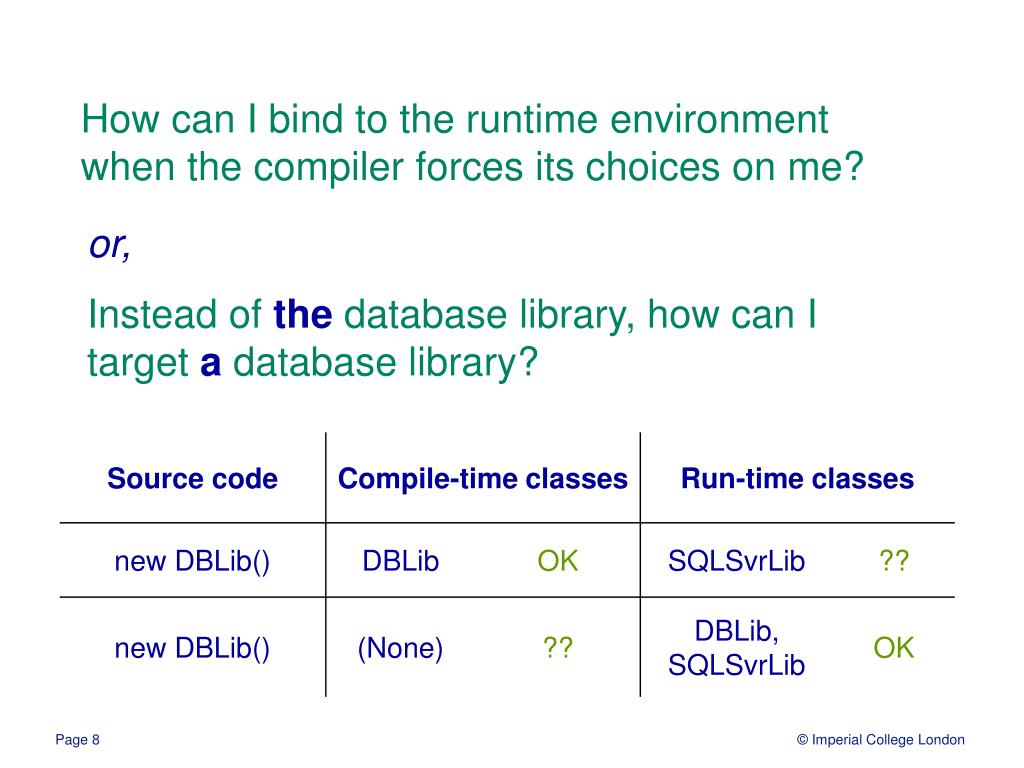

How can i bind to the runtime environment when the compiler forces its choices on me

How can I bind to the runtime environment when the compiler forces its choices on me?

or,

Instead of the database library, how can I target a database library?


Initial idea make bytecode more flexible

Initial idea: make bytecode more flexible

Assembly type variable

call void [X]System.Console::WriteLine(…)

call void [mscorlib]System.Console::WriteLine(…)

Class type variable

call void [mscorlib]Y::WriteLine(…)

call void [mscorlib]System.Console::WriteLine(…)

Compile-time

Link-time

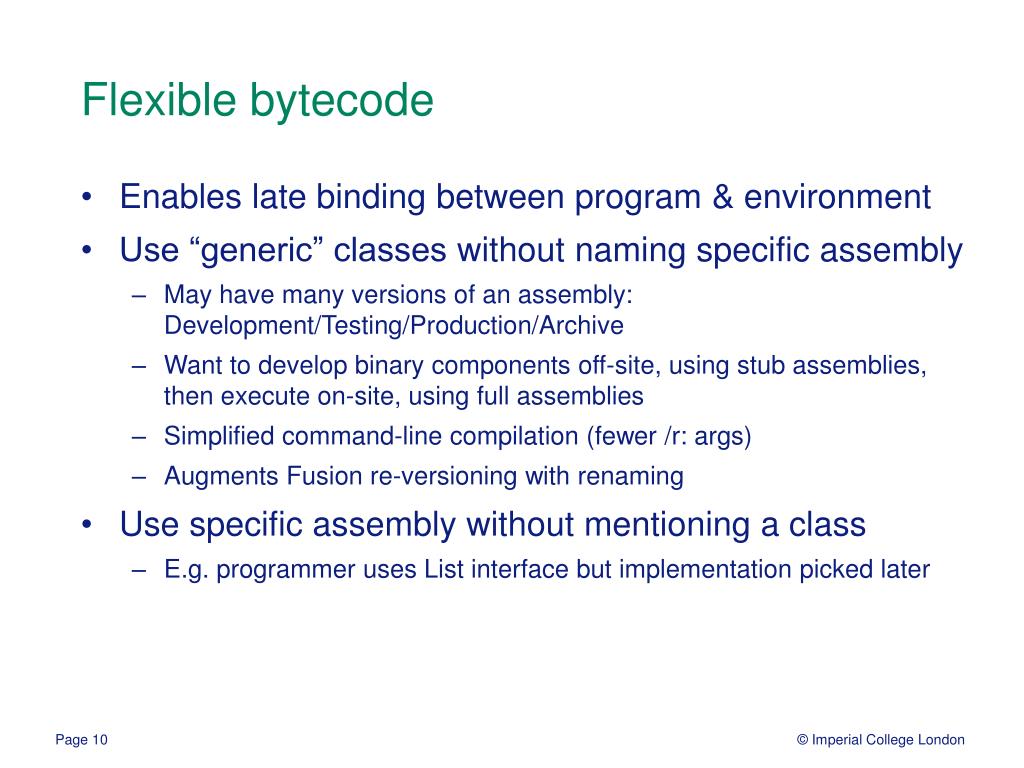

Flexible bytecode

Flexible bytecode

  • Enables late binding between program & environment

  • Use “generic” classes without naming specific assembly

    • May have many versions of an assembly: Development/Testing/Production/Archive

    • Want to develop binary components off-site, using stub assemblies, then execute on-site, using full assemblies

    • Simplified command-line compilation (fewer /r: args)

    • Augments Fusion re-versioning with renaming

  • Use specific assembly without mentioning a class

    • E.g. programmer uses List interface but implementation picked later


Type safety

Type-safety

  • The substitute for an assembly or class should provide members used by the programmer, e.g.

    • Assembly X provides interface List

    • Interface List provides ‘void compare(List l);’

    • Class Y is a subclass of/implements List

      So:

  • Collect constraints from bytecode

  • Search the GAC for suitable assemblies at run-time

  • OK?

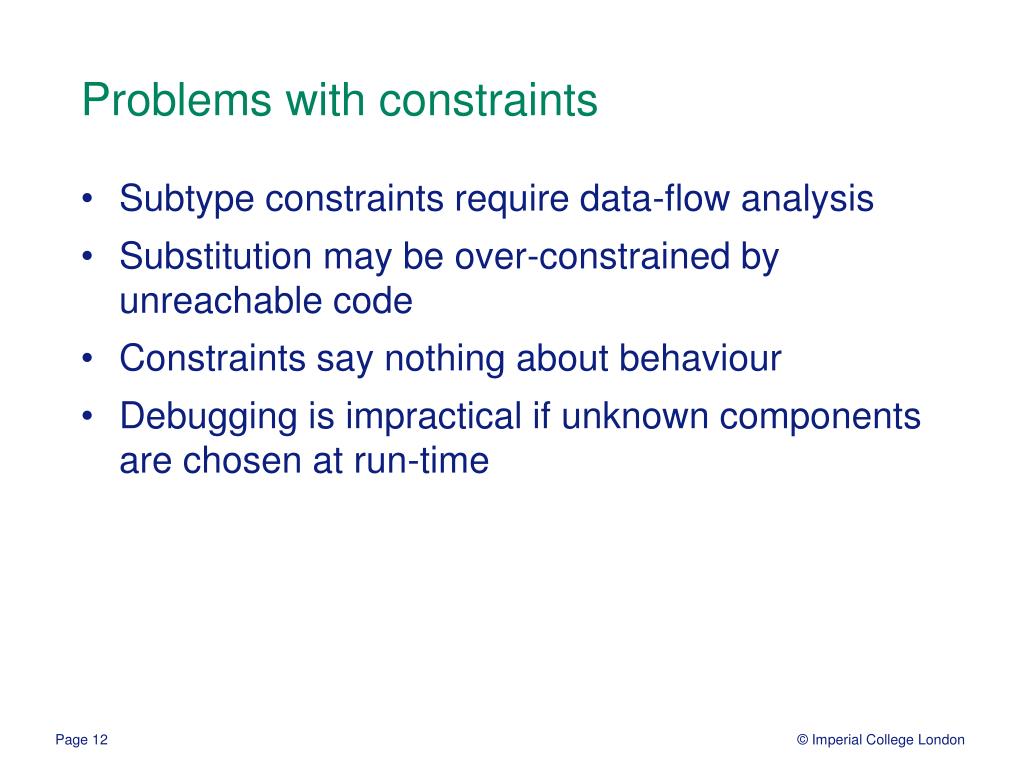

Problems with constraints

Problems with constraints

  • Subtype constraints require data-flow analysis

  • Substitution may be over-constrained by unreachable code

  • Constraints say nothing about behaviour

  • Debugging is impractical if unknown components are chosen at run-time


Semantic substitutions

Semantic substitutions

Policy: Programmer has to know valid assemblies and classes

  • Custom attributes declare possible substitutions

    [LinkAssembly(Assembly1, Assembly2)]

    [LinkAssembly(Assembly1, Assembly3)]

    [LinkClass(Class1, Class2)]

    [LinkClass(Class1, Class3)]

  • Any assembly or class can be independently substituted

    →All types are type variables

  • Still need member constraints, but only to avoid resolution errors, not guide substitutions

    [LinkMember(Assembly1, Class1, B m(D))]

    [LinkMember(Assembly1, Class1, B f]

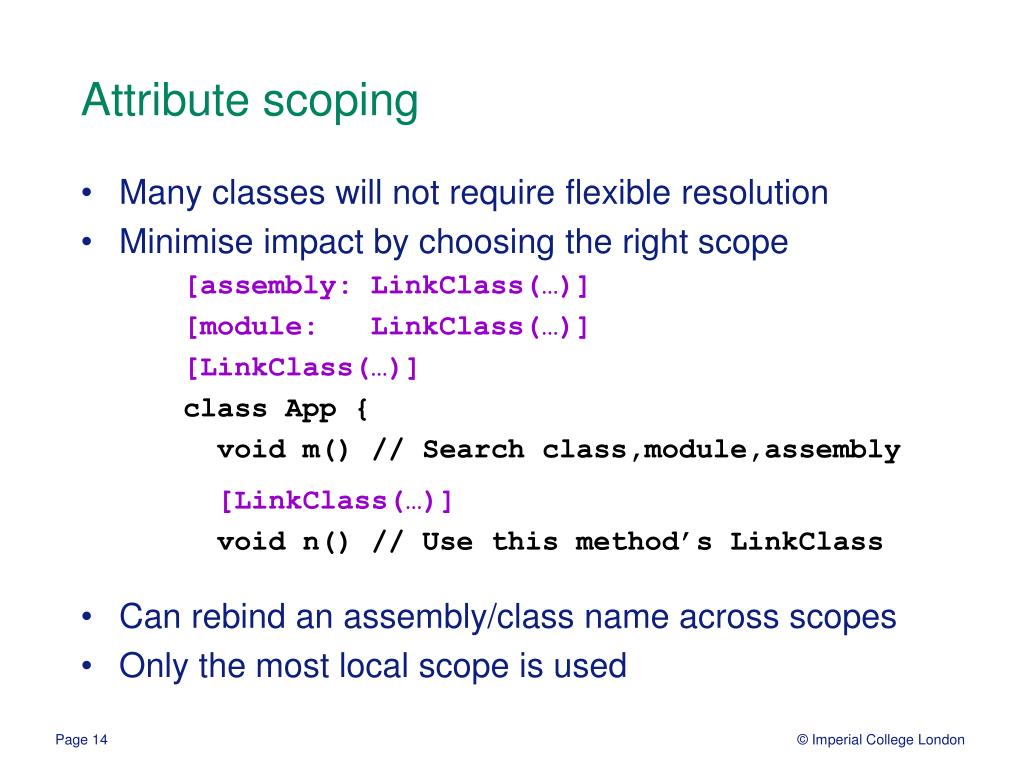

Attribute s coping

Attribute scoping

  • Many classes will not require flexible resolution

  • Minimise impact by choosing the right scope

    [assembly: LinkClass(…)]

    [module: LinkClass(…)]

    [LinkClass(…)]

    class App {

    void m() // Search class,module,assembly

    [LinkClass(…)]

    void n() // Use this method’s LinkClass

  • Can rebindan assembly/class name across scopes

  • Only the most local scope is used

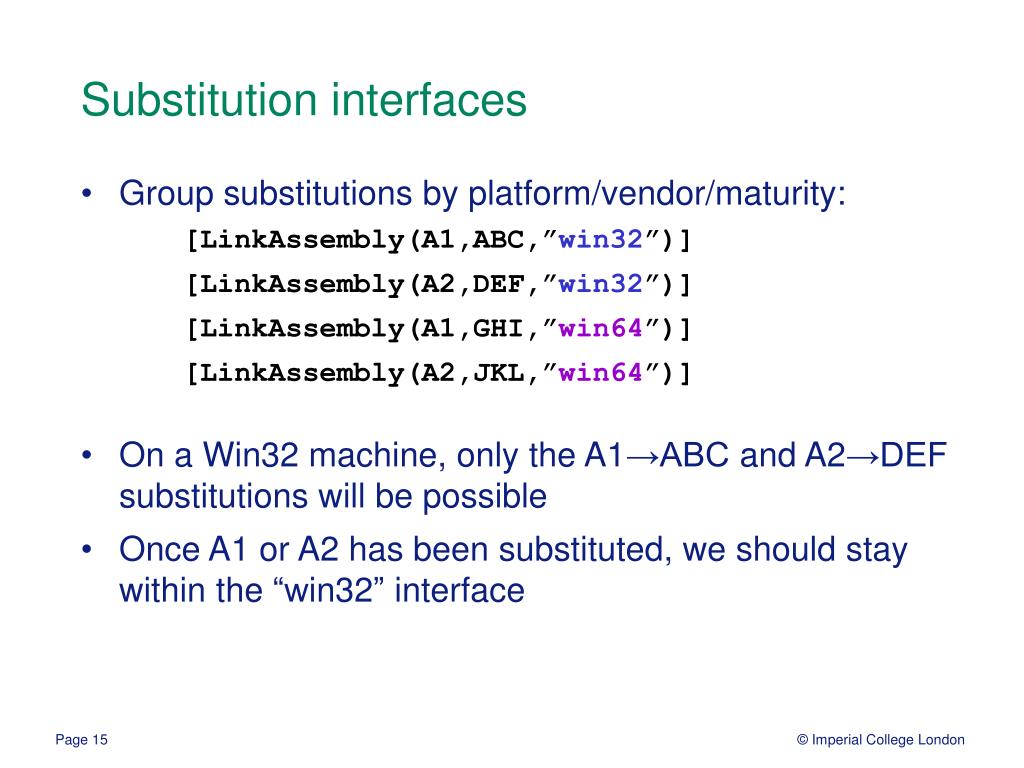

Substitution interfaces

Substitution interfaces

  • Group substitutions by platform/vendor/maturity:

    [LinkAssembly(A1,ABC,”win32”)]

    [LinkAssembly(A2,DEF,”win32”)]

    [LinkAssembly(A1,GHI,”win64”)]

    [LinkAssembly(A2,JKL,”win64”)]

  • On a Win32 machine, only the A1→ABC and A2→DEF substitutions will be possible

  • Once A1 or A2 has been substituted, we should stay within the “win32” interface


Interface policies

Interface policies

[LinkAssembly(A1,ABC,”win32”,

LOCAL_INTERFACE)]

Demand only [LinkAssembly]+[LinkClass] from “win32”

[LinkAssembly(A1,ABC,”win32”,

LOCAL_INTERFACE_PREFERRED)]

Try “win32” attributes first, but allow others on failure

[LinkAssembly(A1,ABC,”win32”,

LOCAL_INTERFACE_EAGER)]

Eagerly check that all “win32” attributes will succeed

[LinkAssembly(A1,ABC,”win32”,ANY_INTERFACE)]

No restrictions on later attributes

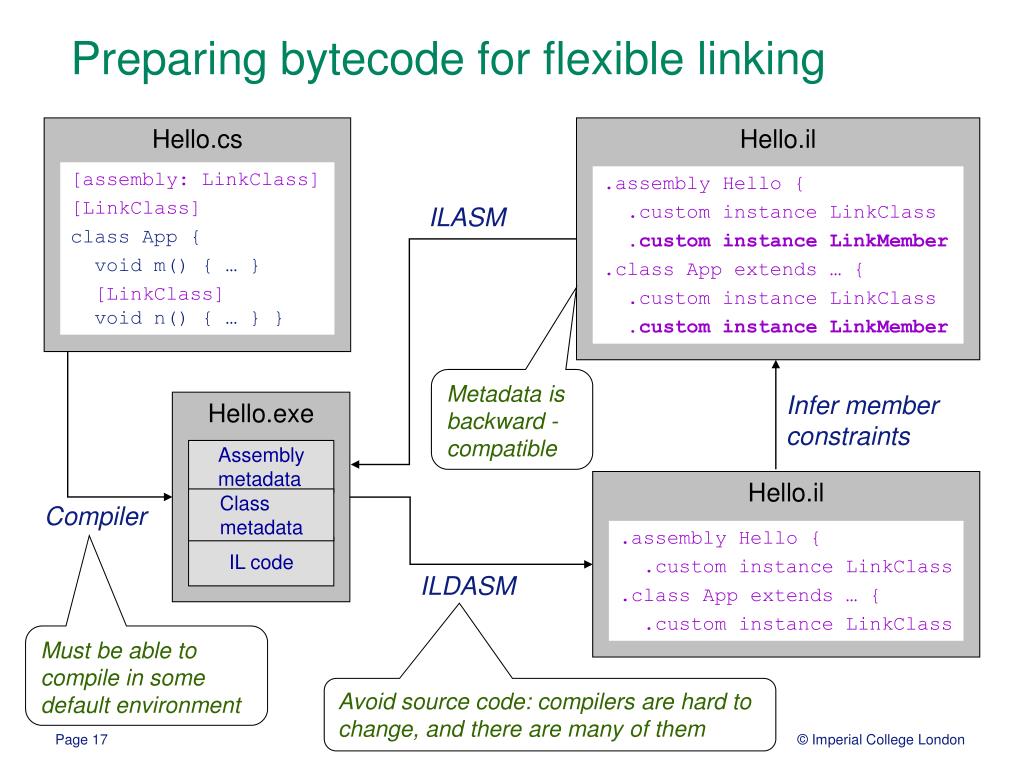

Preparing bytecode for flexible linking

Preparing bytecode for flexible linking

Hello.cs

Hello.il

[assembly: LinkClass]

[LinkClass]

class App {

void m() { … }

[LinkClass] void n() { … } }

.assembly Hello {

.custom instance LinkClass

.custom instance LinkMember

.class App extends … {

.custom instance LinkClass

.custom instance LinkMember

ILASM

Metadata is backward - compatible

Infer member constraints

Hello.exe

Assembly metadata

Hello.il

Class metadata

Compiler

.assembly Hello {

.custom instance LinkClass

.class App extends … {

.custom instance LinkClass

IL code

ILDASM

Must be able to compile in some default environment

Avoid source code: compilers are hard to change, and there are many of them


Just in time substitution

Just-In-Time substitution

  • CLI-compliant linking is very flexible

  • If verification happens, its timing is not specified

  • Timing of resolution is very loose

    • As early as install time, as late as execution time

  • But actually, the CLR is lazy

  • Resolves when an expression is JIT-compiled

  • Verification happens at resolution

  • We extend resolution to handle [Link*()] attributes

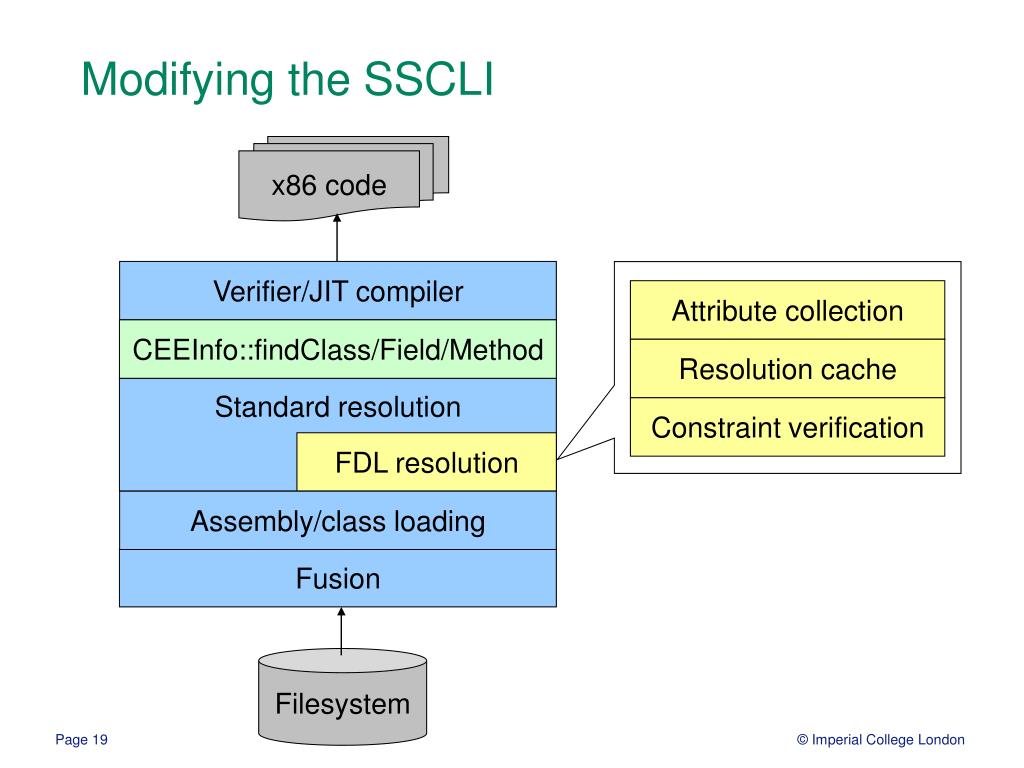

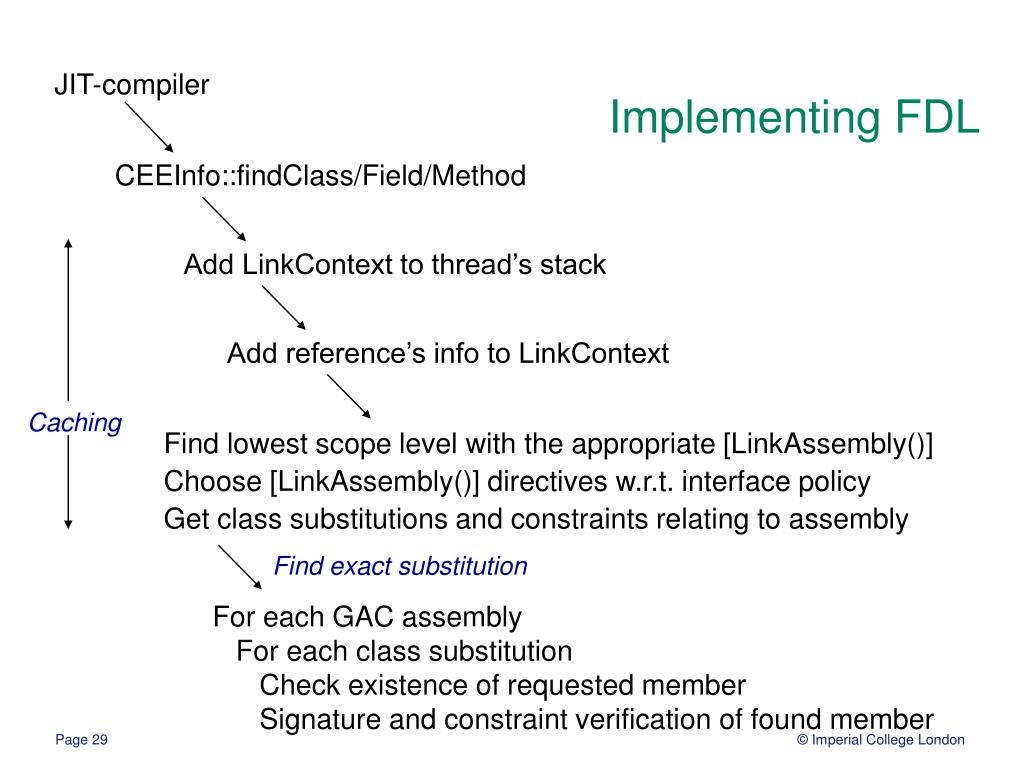

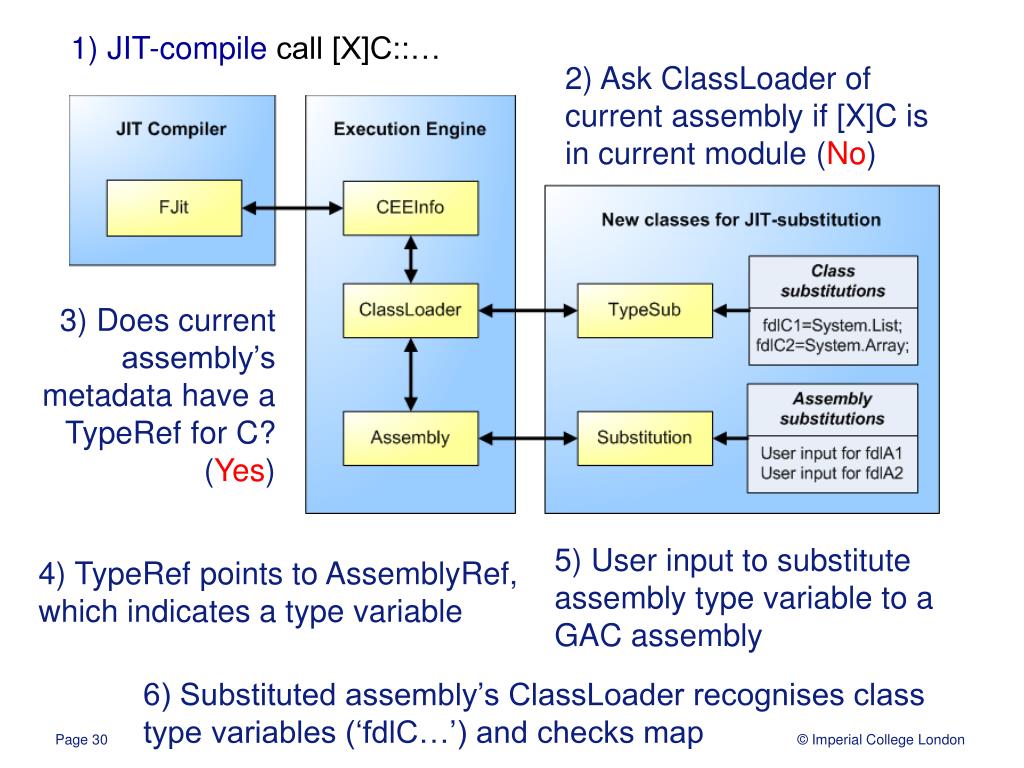

Modifying the sscli

Modifying the SSCLI

x86 code

Verifier/JIT compiler

Attribute collection

CEEInfo::findClass/Field/Method

Resolution cache

Standard resolution

Constraint verification

FDL resolution

Assembly/class loading

Fusion

Filesystem


Attribute c ollection

Attribute collection

  • A LinkContext encapsulates a single resolution attempt, e,g, call [A]C::m …

    =A fully-qualified member reference needing resolution

    +The nearest [LinkAssembly] and [LinkClass] attributes in scope

    +Set of constraints applying to these attributes

  • JIT-compiling a method creates a MasterLinkContext

    • Finding custom attributes is easy with Metadata Importers

  • LinkContexts in a method share a MasterLinkContext

  • Need a LinkContext for caller’s and callee’s scope


Nested linkcontexts

Nested LinkContexts

To resolve call [A]C::m(D,E,F)

  • (MasterLinkContext is already created)

  • Create LinkContext for this instruction

  • Use LinkContext to choose for A, and C

  • Load (substituted version of) [A]C, and find m

    [A]C::m expects to execute in an environment where its own custom attributes are obeyed

  • Create nested LinkContext for method m in [A]C

  • Resolve D,E,F under original + nested LinkContexts


Issue flexible fields

Issue: Flexible fields

class A {

[LinkAssembly(...)]

[LinkClass(B, C)]

private B f = new B();

public void A() { .. }

In A’s constructor (.ctor):

newobj instance [..]B

stfld class [..]B [..]A::f

  • newobj could be making a B object destined for any field

  • Only at stfld do we find that it is destined for a flexlinked field

  • Don’t want to rely on bytecode being in a precise order

  • Don’t want to look-ahead in the JIT-compiler

class A {

private B f = new B();

[LinkAssembly(...)]

[LinkClass(B, C)]

public void A() { .. }

Rely on an IDE to move attributes to the constructor:

(Where f is initialised)


Issue static resolution of flexible fields

Issue: Static resolution of flexible fields

  • C# 1.x compiler resolves fields statically

  • Has the effect of hiding members that should be substituted

  • Java 1.3 did the same; changed in 1.4

// Compile-time env

class A {

String f;

}

class B extends A {}

[LinkClass(B,C)]

new B().f;

ldfld […]A::f

// Does not match

// the LinkClass(B,…)


Conclusion

Conclusion

  • CLI is a good home for flexible dynamic linking

    • Different runtimes and frameworks (WinFx, .NETCF, OpenCF, Mono, Portable.NET) have different API implementations → more choices for the programmer

    • Resolution guided by rich metadata

    • Easy to represent FDL-related facts

    • Flexibly-linked bytecode is still verifiable (type-safe)

    • Tiny amounts of code in the right place are very effective

  • Future work

    • Modify compiler for independent compilation

    • (Overcome static resolution problem)

    • Implement extended resolution mechanism with aspects

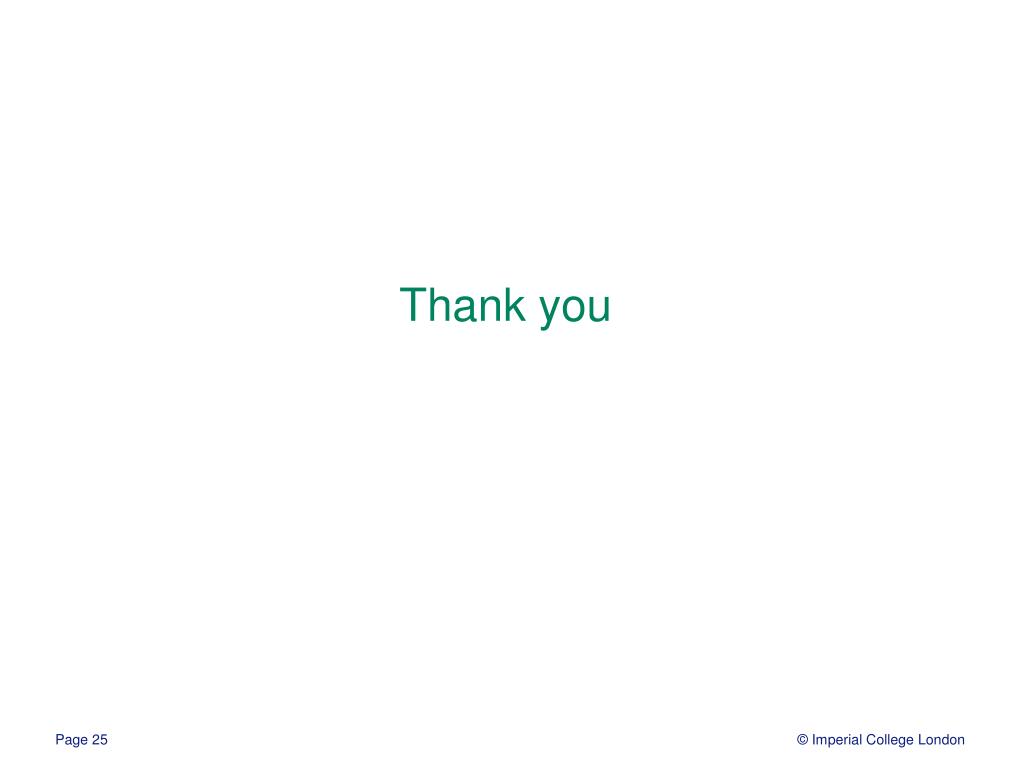

Thank you

Thank you

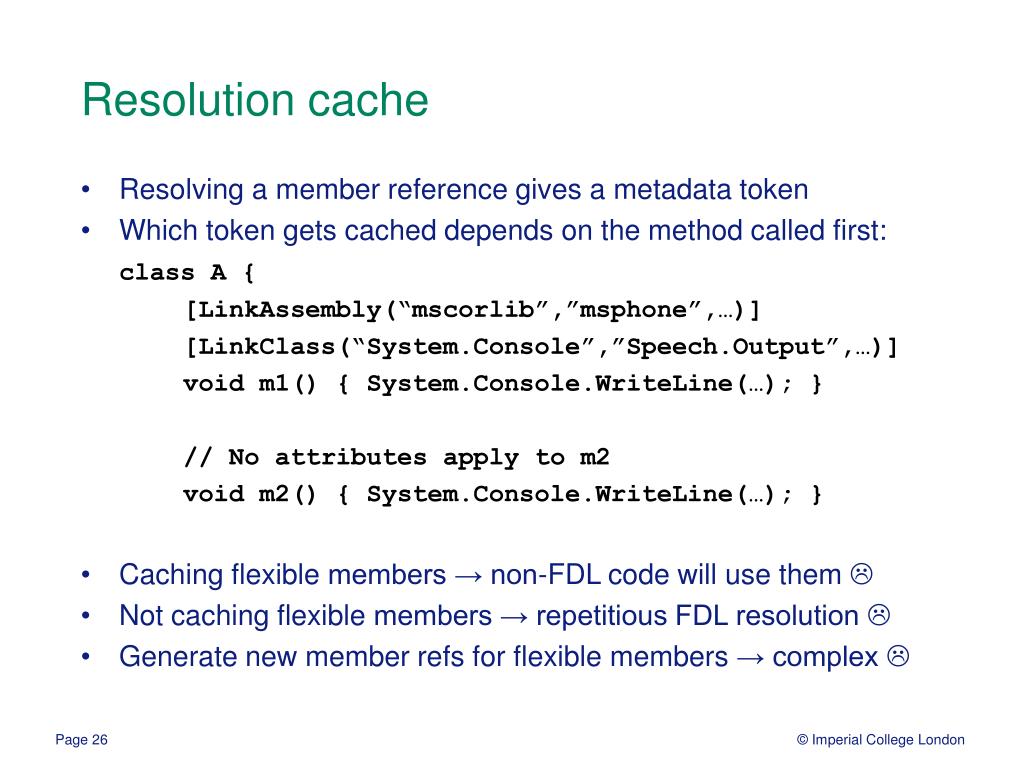

Resolution cache

Resolution cache

  • Resolving a member reference gives a metadata token

  • Which token gets cached depends on the method called first:

    class A {

    [LinkAssembly(“mscorlib”,”msphone”,…)]

    [LinkClass(“System.Console”,”Speech.Output”,…)]

    void m1() { System.Console.WriteLine(…); }

    // No attributes apply to m2

    void m2() { System.Console.WriteLine(…); }

  • Caching flexible members → non-FDL code will use them 

  • Not caching flexible members → repetitious FDL resolution 

  • Generate new member refs for flexiblemembers → complex 

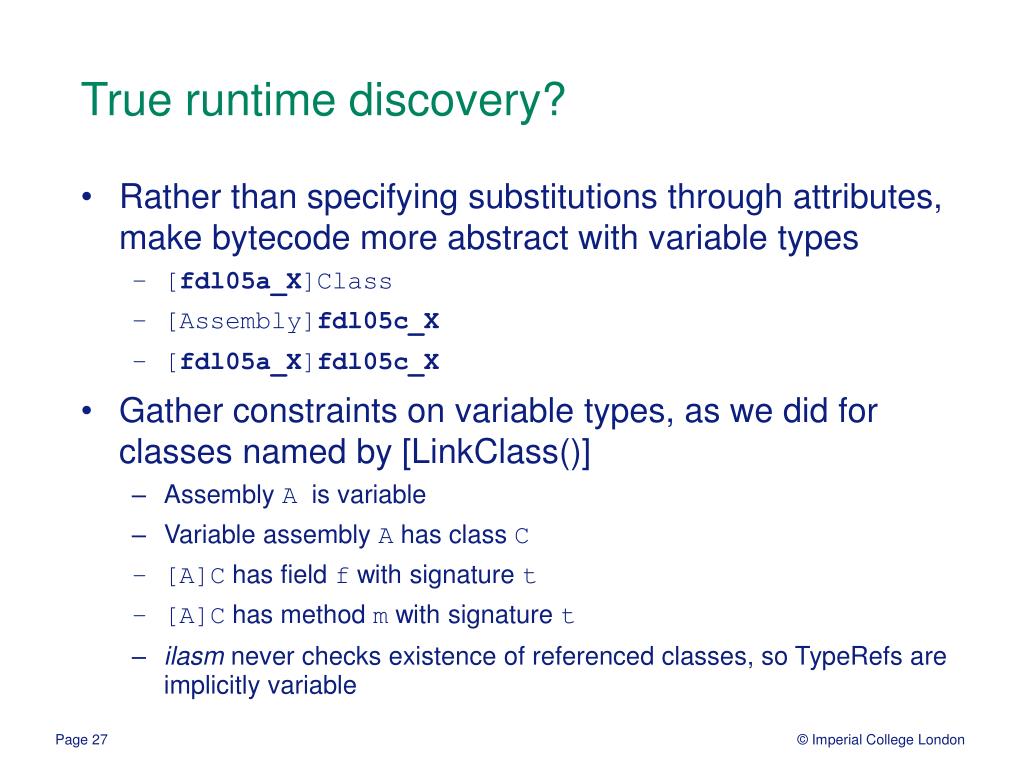

True runtime discovery

True runtime discovery?

  • Rather than specifying substitutions through attributes, make bytecode more abstract with variable types

    • [fdl05a_X]Class

    • [Assembly]fdl05c_X

    • [fdl05a_X]fdl05c_X

  • Gather constraints on variable types, as we did for classes named by [LinkClass()]

    • Assembly A is variable

    • Variable assembly A has class C

    • [A]C has field f with signature t

    • [A]C has method m with signature t

    • ilasm never checks existence of referenced classes, so TypeRefs are implicitly variable

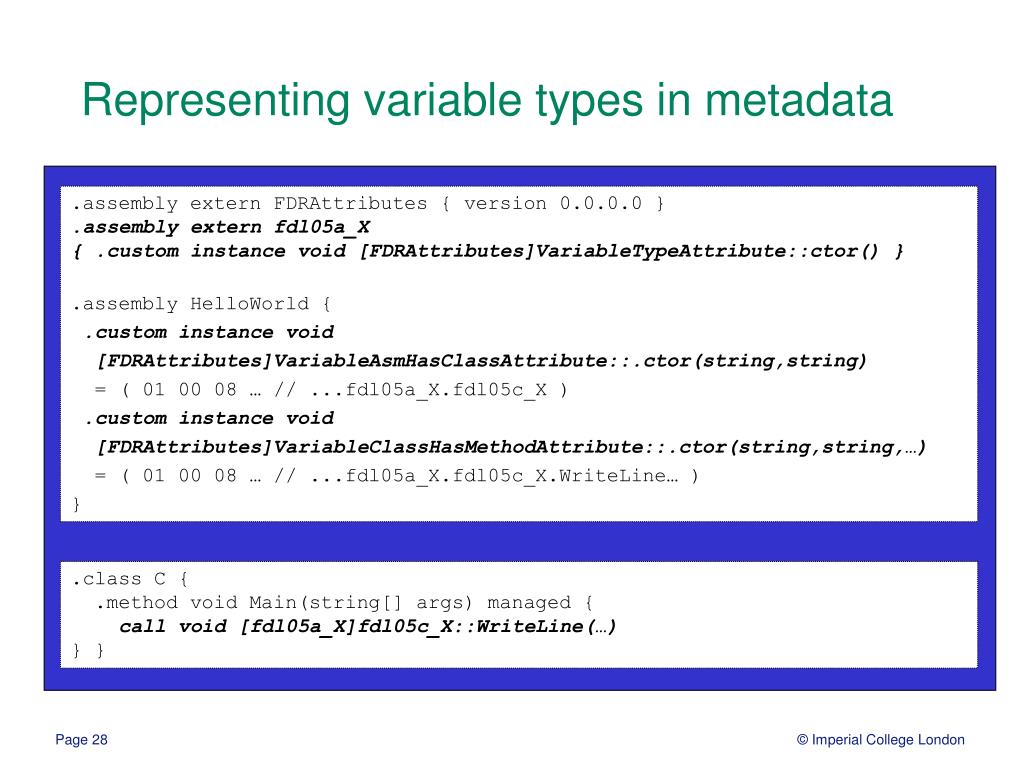

Representing variable types in metadata

Representing variable types in metadata

.assembly extern FDRAttributes { version 0.0.0.0 }

.assembly extern fdl05a_X

{ .custom instance void [FDRAttributes]VariableTypeAttribute::ctor() }

.assembly HelloWorld {

.custom instance void

[FDRAttributes]VariableAsmHasClassAttribute::.ctor(string,string)

= ( 01 00 08 … // ...fdl05a_X.fdl05c_X )

.custom instance void

[FDRAttributes]VariableClassHasMethodAttribute::.ctor(string,string,…)

= ( 01 00 08 … // ...fdl05a_X.fdl05c_X.WriteLine… )

}

.class C {

.method void Main(string[] args) managed {

call void [fdl05a_X]fdl05c_X::WriteLine(…)

} }


Implementing fdl

Implementing FDL

JIT-compiler

CEEInfo::findClass/Field/Method

Add LinkContext to thread’s stack

Add reference’s info to LinkContext

Caching

Find lowest scope level with the appropriate [LinkAssembly()]

Choose [LinkAssembly()] directives w.r.t. interface policy

Get class substitutions and constraints relating to assembly

Find exact substitution

For each GAC assembly

For each class substitution

Check existence of requested member

Signature and constraint verification of found member


Flexible dynamic linking for net

1) JIT-compile call [X]C::…

2) Ask ClassLoader of current assembly if [X]C is in current module (No)

3) Does current assembly’s metadata have a TypeRef for C? (Yes)

5) User input to substitute assembly type variable to a GAC assembly

4) TypeRef points to AssemblyRef, which indicates a type variable

6) Substituted assembly’s ClassLoader recognises class type variables (‘fdlC…’) and checks map

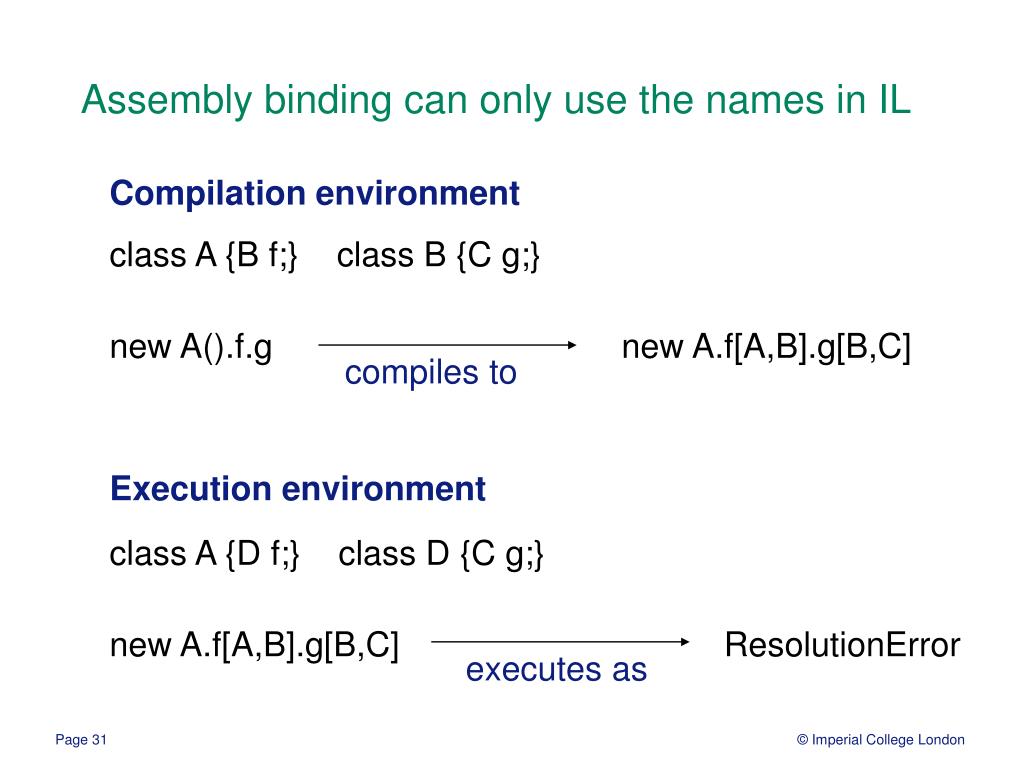

Assembly binding can only use the names in il

Assembly binding can only use the names in IL

Compilation environment

class A {B f;} class B {C g;}

new A().f.gnew A.f[A,B].g[B,C]

compiles to

Execution environment

class A {D f;} class D {C g;}

new A.f[A,B].g[B,C]ResolutionError

executes as


  • Login
