Natural convection in enclosed spaces

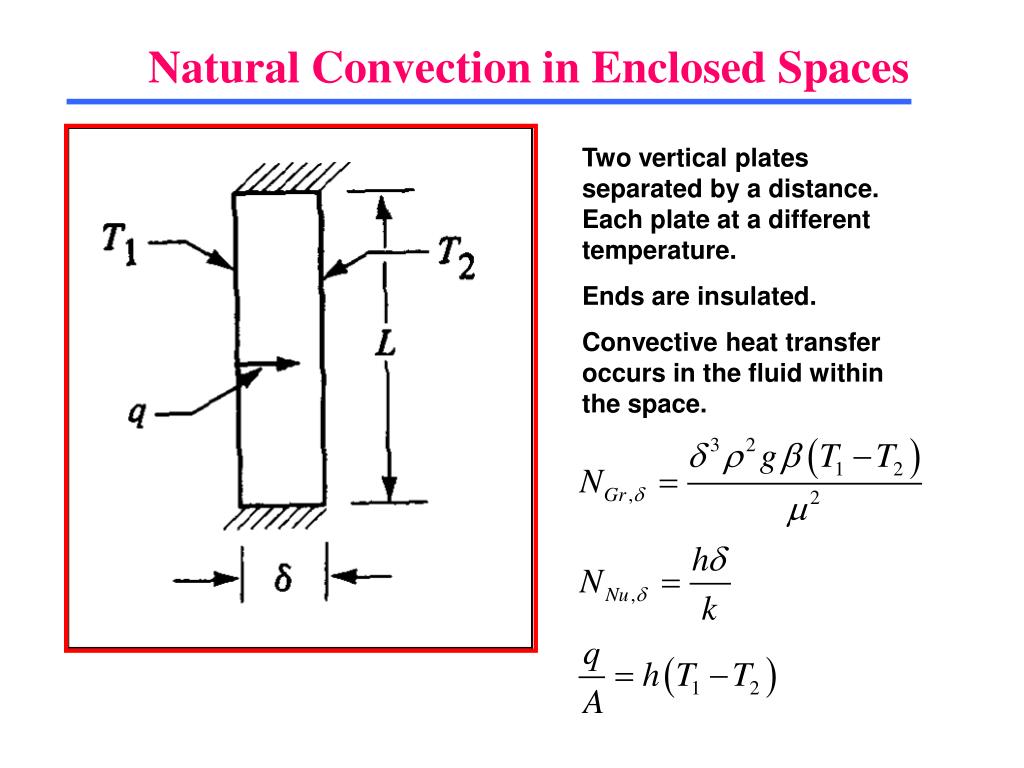

Natural Convection in Enclosed Spaces

Two vertical plates separated by a distance. Each plate at a different temperature.

Ends are insulated.

Convective heat transfer occurs in the fluid within the space.


Natural convection in enclosed spaces

Natural Convection in Enclosed Spaces


Natural convection in enclosed spaces

Natural Convection in Enclosed Spaces


Natural convection in enclosed spaces

Boiling

A: Free convection; B: Nucleate boiling; C: Transition Boiling;

D: Film boiling


Natural convection in enclosed spaces

Boiling

Type Excess Temperature (deg. C)

Free Convection: < 5

Nucleate Boiling: 5 – 25

Transition Boiling: 25 – 120

Film Boiling: > 120

The excess temperature is the surface temperature above the boiling point of the liquid.


Natural convection in enclosed spaces

Nucleate Boiling

Bubbles form at surface and separate, mixing the fluid. As temperature increases, the bubbles join to form bubble columns or jets. These eventually merge to form slugs. This type of boiling is the most desirable for a chemical process due to the high heat rates.


Natural convection in enclosed spaces

Transition Boiling

Film begins to form at surface. Surface changes from nucleate to film boiling.


Natural convection in enclosed spaces

Film Boiling

Surface completely covered with film blanket.


Natural convection in enclosed spaces

Nucleate Boiling Correlations


Natural convection in enclosed spaces

Nucleate Boiling Correlations


Natural convection in enclosed spaces

Film Boiling Correlations

Film boiling not desirable! Better to have nucleate!


Natural convection in enclosed spaces

Condensation

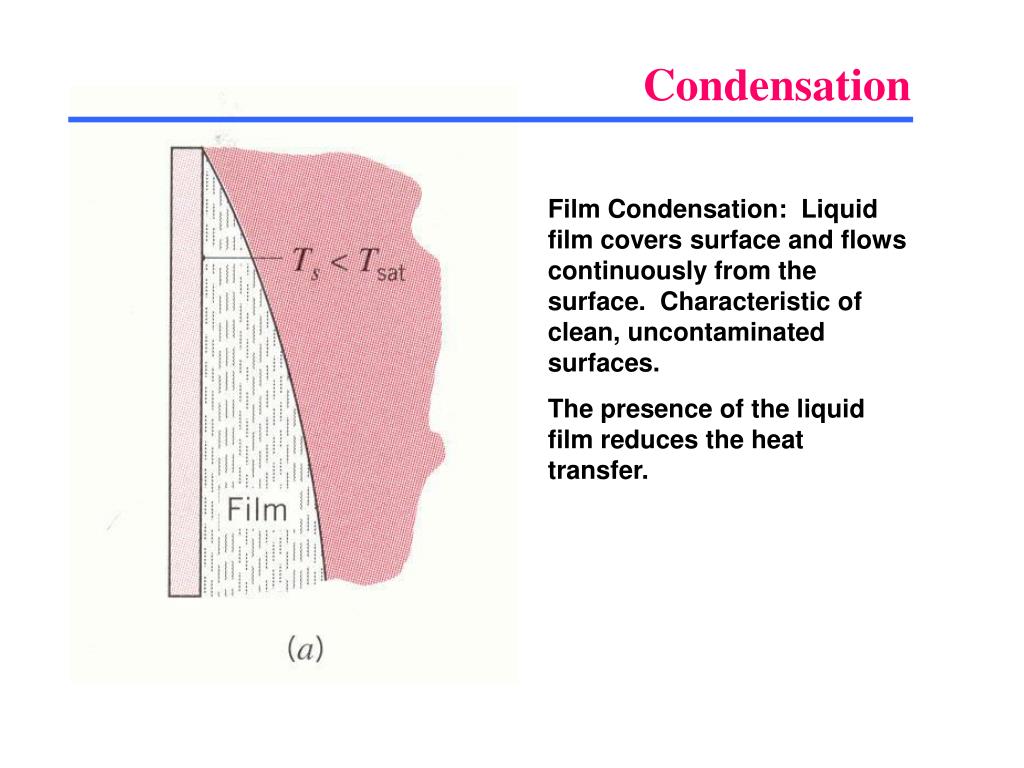

Film Condensation: Liquid film covers surface and flows continuously from the surface. Characteristic of clean, uncontaminated surfaces.

The presence of the liquid film reduces the heat transfer.


Natural convection in enclosed spaces

Condensation

Droplet Condensation: drops form in cracks, pits and cavities on the surface and may grow and coalesce thru condensation. More than 90% of the surface is covered by drops, ranging from a few micrometers in diameter to agglomerations visable to the naked eye. The droplets flow from the surface due to gravity.

Heat transfer for droplet condensation is higher than film. To be conservative, most design calculations assume film.


Natural convection in enclosed spaces

Condensation

Droplet Film


Natural convection in enclosed spaces

Condensation

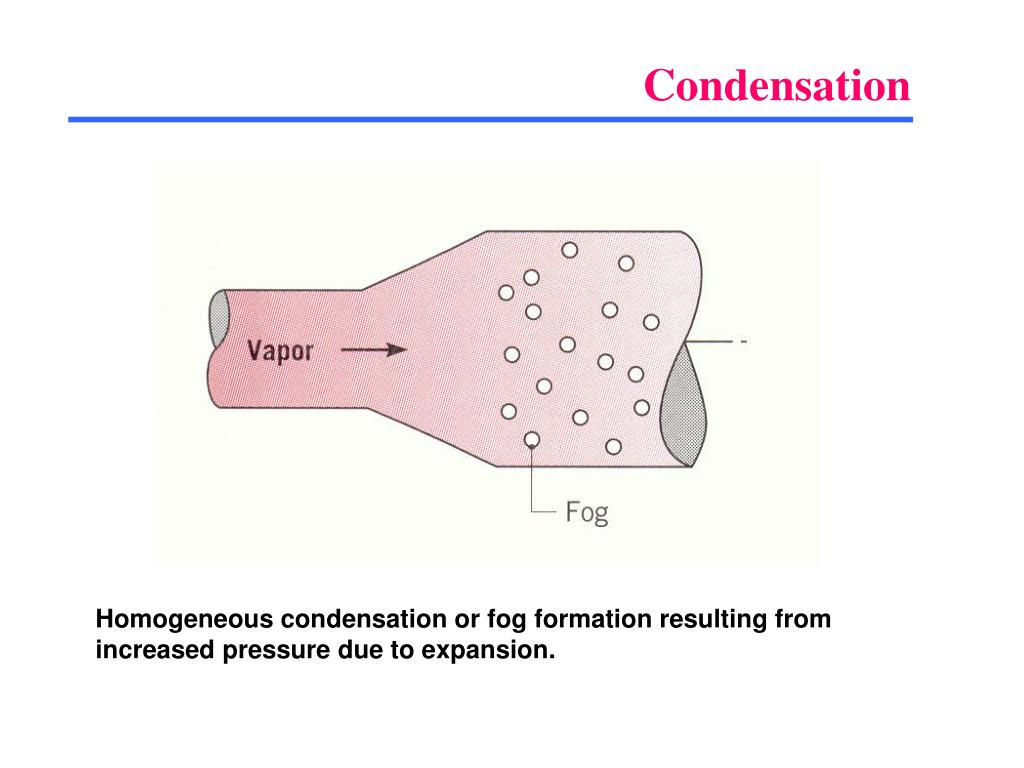

Homogeneous condensation or fog formation resulting from increased pressure due to expansion.


Natural convection in enclosed spaces

Condensation

Direct contact condensation.


Natural convection in enclosed spaces

Condensation


Natural convection in enclosed spaces

Condensation


Natural convection in enclosed spaces

Condensation

For tubes, the liquid thickens as the condensate flows down the tube.

For banks of tubes, the liquid may flow as a film to the lower tube, or it may drip to the lower tubes.


Natural convection in enclosed spaces

Condensation
